BACTERIAL TRANSPOSONS Definitions and Keywords Transposons are sequences
BACTERIAL TRANSPOSONS
Definitions and Keywords • Transposons - are sequences of DNA that can move around to different positions within the genome of a single cell, a process called transposition. • Transposase -An enzyme that binds to ends of transposon and catalyses the movement of the transposon to another part of the genome by a cut and paste mechanism or a replicative transposition mechanism. • IS elements -A short DNA sequence that acts as a simple transposable element
Definitions and Keywords DNA polymerase-A DNA polymerase is an enzyme that catalyzes the polymerization of deoxyribonucleotides into a DNA strand. DNA ligase is a special type of ligase that can link together two DNA strands that have double-strand break a break in both complementary strands of DNA
Bacterial Transposons • • • Bacteria contain transposons two types of 1]Composite mobile genetic elements that are larger than IS elements and contain one or more protein-coding genes in addition to those required for transposition. 2]Non composite mobile genetic elements are those which lack IS elements on its ends e. g. is Tn 3
Composite Transposon A composite transposon, is flanked by two separate IS elements which may or may not be exact replicas. Instead of each IS element moving separately, the entire length of DNA spanning from one IS element to the other is transposed as one complete unit. IR IR
Non composite Transposon • Non-composite transposons (which lack flanking insertion sequences). In each case, transposition requires specific DNA sequences located at the ends (IS 1, IS 3, Tn 5, Tn 10, and Tn 3) or a multisubunit complex (e. g. Tn 7). • Encode transposition proteins, have inverted repeats (but no ISs) at their ends. In addition to resistance and virulence genes they may encode catabolic enzymes
Mechanism of transposition • There are two mechanisms of transposition replicative and nonreplicative • During transposition, the IS-element transposase makes cuts at the positions indicated by small red arrows, • So the entire transposon is moved from the donor DNA (e. g. , a plasmid). • A DNA polymerase fills in the resulting gaps from the sticky ends and DNA ligase closes the sugar-phosphate backbone. This results in target site duplication and the insertion sites of DNA transposons may be identified by short direct repeats (a staggered cut in the target DNA filled by DNA polymerase) followed by inverted repeats (which are important for the transposon excision by transposase). The duplications at the target site can result in gene duplication and this is supposed to play an important role in evolution. • Composite transposons will also often carry one or more genes conferring antibiotic resistance
Mechanism of transposition(contd) • • The conservative mechanism, also called the “cut-and-paste” mechanism, is used by elements like Tn 10. The element is excised cleanly by double-strand cleavages from the donor DNA and inserted, with limited repair, between a pair of staggered nicks at the target DNA. Replicative transposition is a mechanism of transposition in molecular biology in which the transposable element is duplicated during the reaction, so that the transposing entity is a copy of the original element. Replicative transposition is characteristic to retrotransposons and occurs from time to time in class II transposons.
General mechanism of Transposition Production of protein (enzyme transposase) from the site of transposase(right corner an Tn 5) should be shown. {the site in upper diagram in between IR of IS element. } Action/Motion-Production of protein (enzyme transposase) from the site of transposase (right corner an Tn 5) should be shown

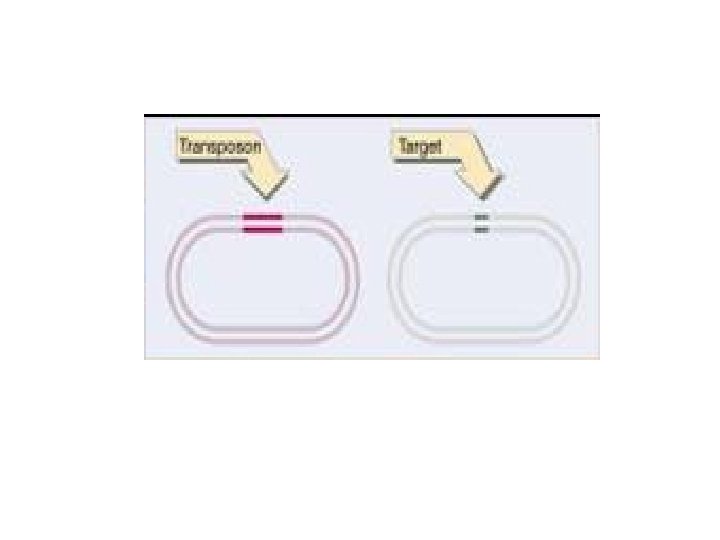

Replicative Transposition Single stranded cuts are made on either side of the Transposon and on the opposite sides of the target of the recipient.
• get This produces 4 free ends in each DNA molecule Two of the ends from the donor are ligated to 2 of the ends of target. This links the two molecules with a single molecule of transposon.
The two remaining free 3’ ends are used as primers for DNA polymerase which uses the Transposon DNA as the template. This replicates the transposon and leaves the cointegrate.
Nicking - Single strranded cuts produce staggered ends in both transposon and target
Crossover structure (strand transfer complex) Nicked ends of Transposon are joined to nicked ends of target.
Replication from free 3’ end generate cointegrate Single molecule has two types of transposon.
Cointegrate drawn as continuous path shows that transposons are at junctions between replicons.
• NON REPLICATIVE TRANSPOSON
First, the transposase makes a double-stranded cut in the donor DNA at the ends of the transposon and makes a staggered cut in the recipient DNA.
Each end of the donor DNA is then joined to an overhanging end of the recipient DNA.
DNA polymerase fills in the short, overhanging sequences, resulting in a short, direct repeat on each side of the transposon insertion in the recipient DNA.
