Bacterial Transformation AP Biology Transformation Lab What is

Bacterial Transformation AP Biology Transformation Lab

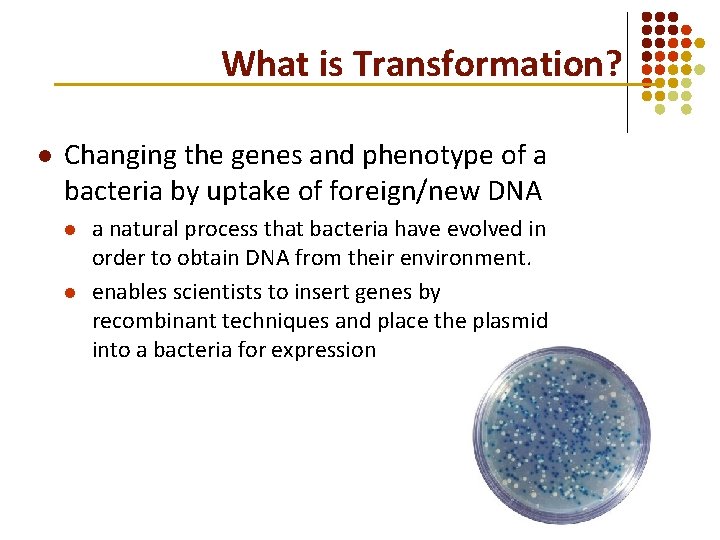

What is Transformation? l Changing the genes and phenotype of a bacteria by uptake of foreign/new DNA l l a natural process that bacteria have evolved in order to obtain DNA from their environment. enables scientists to insert genes by recombinant techniques and place the plasmid into a bacteria for expression

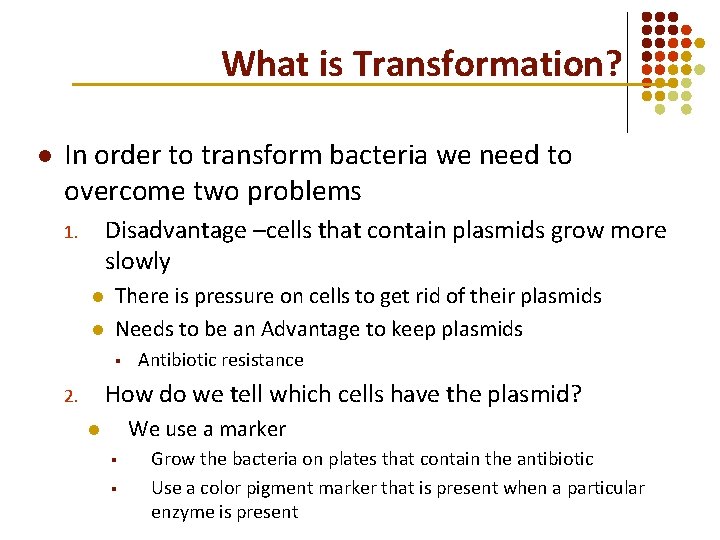

What is Transformation? l In order to transform bacteria we need to overcome two problems Disadvantage –cells that contain plasmids grow more slowly 1. l l There is pressure on cells to get rid of their plasmids Needs to be an Advantage to keep plasmids § Antibiotic resistance How do we tell which cells have the plasmid? 2. We use a marker l § § Grow the bacteria on plates that contain the antibiotic Use a color pigment marker that is present when a particular enzyme is present

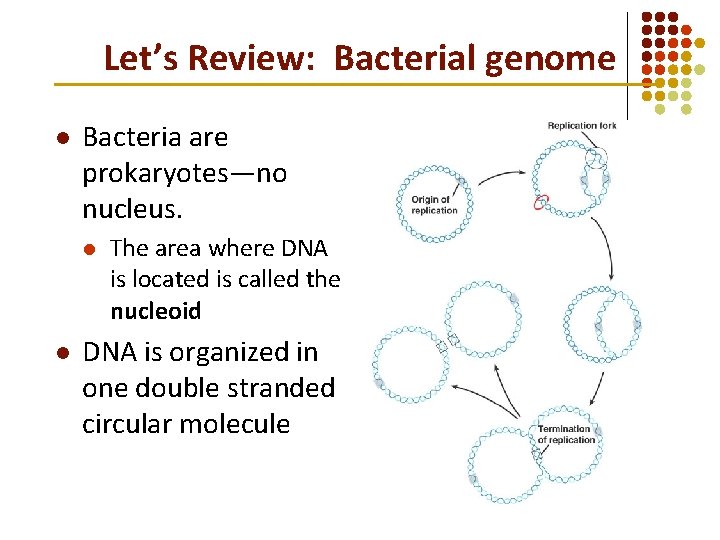

Let’s Review: Bacterial genome l Bacteria are prokaryotes—no nucleus. l l The area where DNA is located is called the nucleoid DNA is organized in one double stranded circular molecule

Bacterial DNA Bacterial cell Plasmid DNA Genomic DNA

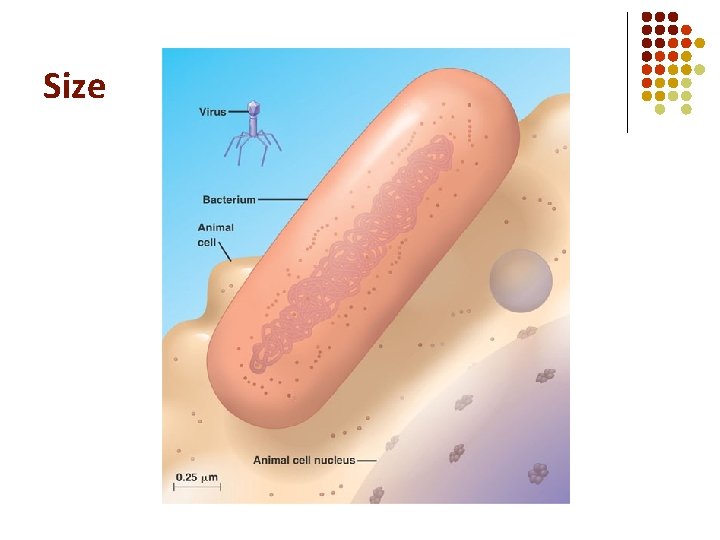

Size

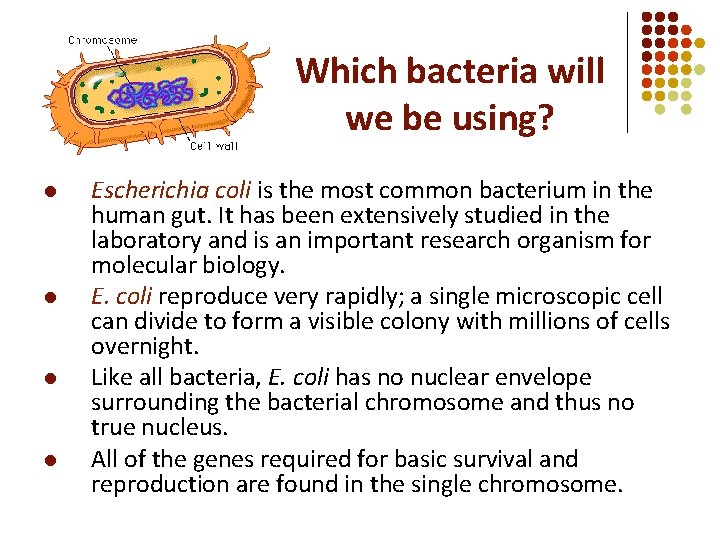

Which bacteria will we be using? l l Escherichia coli is the most common bacterium in the human gut. It has been extensively studied in the laboratory and is an important research organism for molecular biology. E. coli reproduce very rapidly; a single microscopic cell can divide to form a visible colony with millions of cells overnight. Like all bacteria, E. coli has no nuclear envelope surrounding the bacterial chromosome and thus no true nucleus. All of the genes required for basic survival and reproduction are found in the single chromosome.

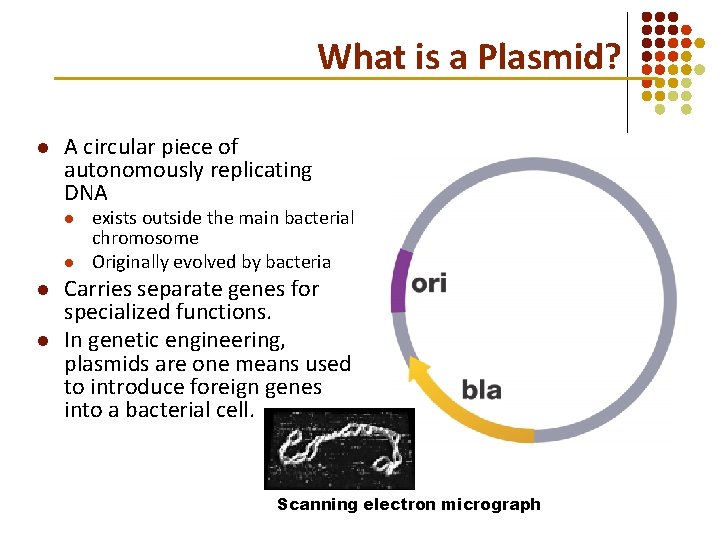

What is a Plasmid? l A circular piece of autonomously replicating DNA l l exists outside the main bacterial chromosome Originally evolved by bacteria Carries separate genes for specialized functions. In genetic engineering, plasmids are one means used to introduce foreign genes into a bacterial cell. Scanning electron micrograph

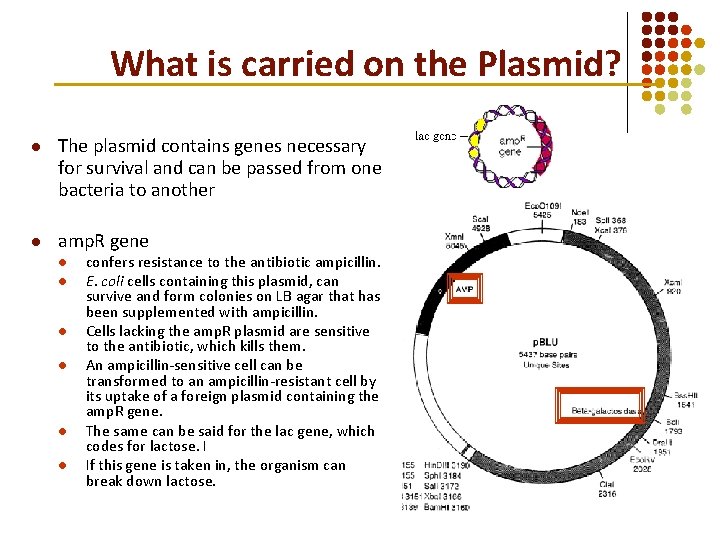

What is carried on the Plasmid? l The plasmid contains genes necessary for survival and can be passed from one bacteria to another l amp. R gene l l l confers resistance to the antibiotic ampicillin. E. coli cells containing this plasmid, can survive and form colonies on LB agar that has been supplemented with ampicillin. Cells lacking the amp. R plasmid are sensitive to the antibiotic, which kills them. An ampicillin-sensitive cell can be transformed to an ampicillin-resistant cell by its uptake of a foreign plasmid containing the amp. R gene. The same can be said for the lac gene, which codes for lactose. I If this gene is taken in, the organism can break down lactose.

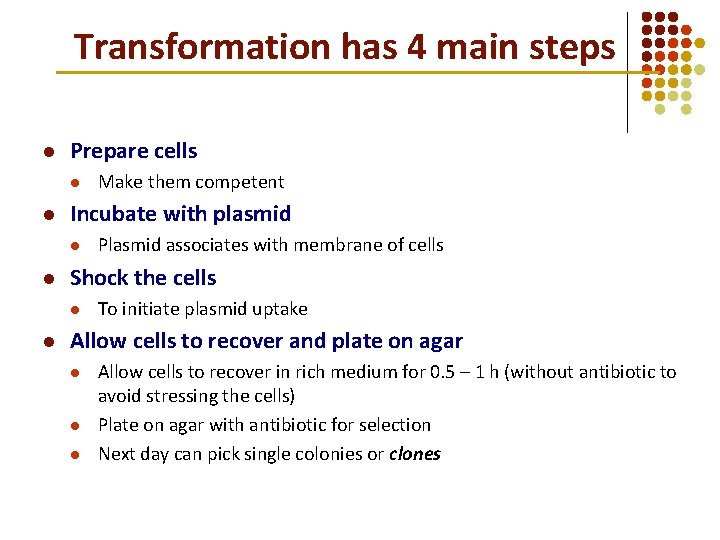

Transformation has 4 main steps l Prepare cells l l Incubate with plasmid l l Plasmid associates with membrane of cells Shock the cells l l Make them competent To initiate plasmid uptake Allow cells to recover and plate on agar l l l Allow cells to recover in rich medium for 0. 5 – 1 h (without antibiotic to avoid stressing the cells) Plate on agar with antibiotic for selection Next day can pick single colonies or clones

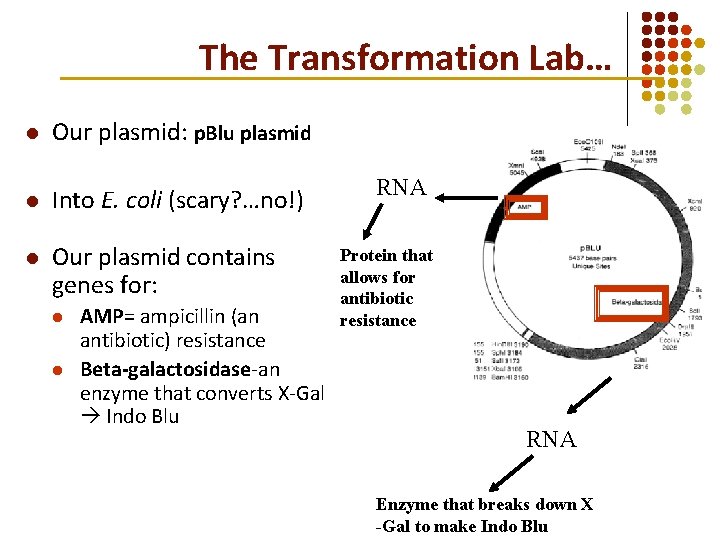

The Transformation Lab… l Our plasmid: p. Blu plasmid l Into E. coli (scary? …no!) l Our plasmid contains genes for: l l AMP= ampicillin (an antibiotic) resistance Beta-galactosidase-an enzyme that converts X-Gal Indo Blu RNA Protein that allows for antibiotic resistance RNA Enzyme that breaks down X -Gal to make Indo Blu

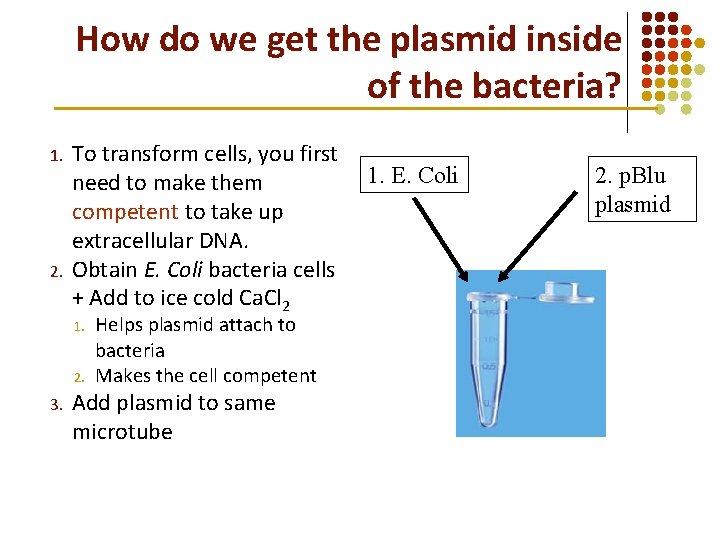

How do we get the plasmid inside of the bacteria? 1. 2. To transform cells, you first need to make them competent to take up extracellular DNA. Obtain E. Coli bacteria cells + Add to ice cold Ca. Cl 2 1. 2. 3. Helps plasmid attach to bacteria Makes the cell competent Add plasmid to same microtube 1. E. Coli 2. p. Blu plasmid

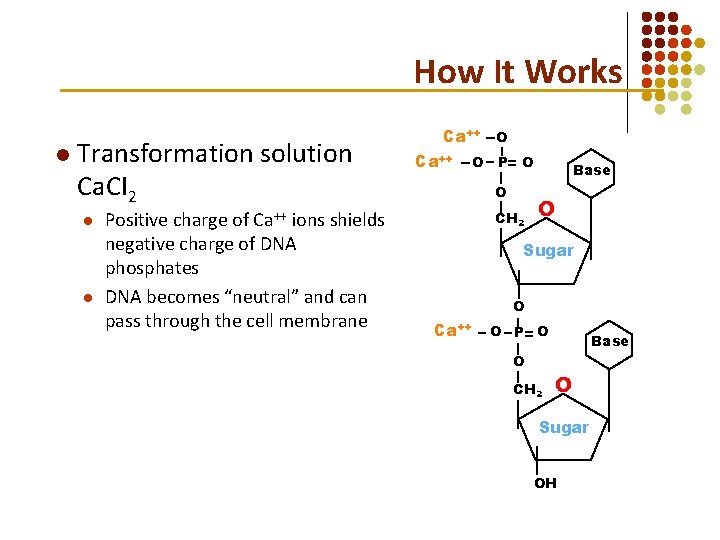

How It Works l Transformation solution Ca. CI 2 l l Positive charge of Ca++ ions shields negative charge of DNA phosphates DNA becomes “neutral” and can pass through the cell membrane Ca++ O O P O O CH 2 Base O Sugar O Ca++ O P O O CH 2 Base O Sugar OH

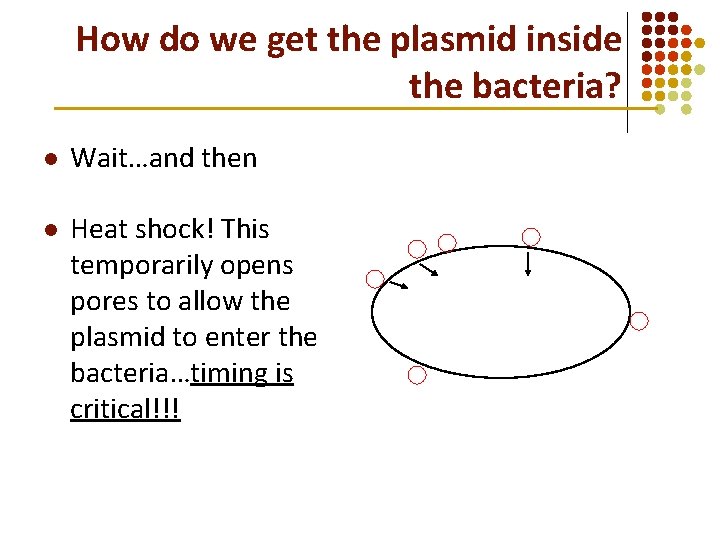

How do we get the plasmid inside the bacteria? l Wait…and then l Heat shock! This temporarily opens pores to allow the plasmid to enter the bacteria…timing is critical!!!

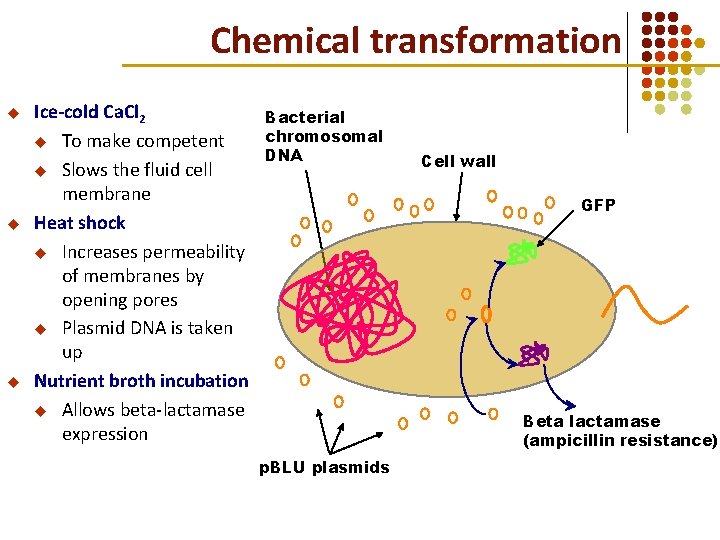

Chemical transformation u u u Ice-cold Ca. Cl 2 u To make competent u Slows the fluid cell membrane Heat shock u Increases permeability of membranes by opening pores u Plasmid DNA is taken up Nutrient broth incubation u Allows beta-lactamase expression Bacterial chromosomal DNA Cell wall GFP Beta lactamase (ampicillin resistance) p. BLU plasmids

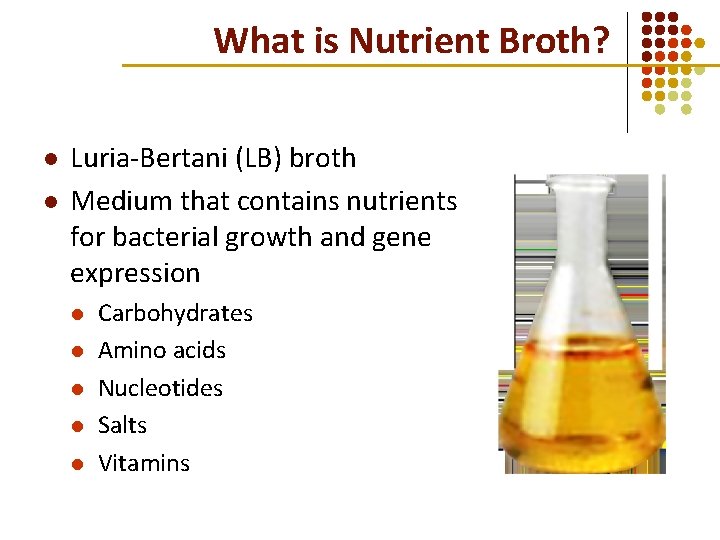

What is Nutrient Broth? l l Luria-Bertani (LB) broth Medium that contains nutrients for bacterial growth and gene expression l l l Carbohydrates Amino acids Nucleotides Salts Vitamins

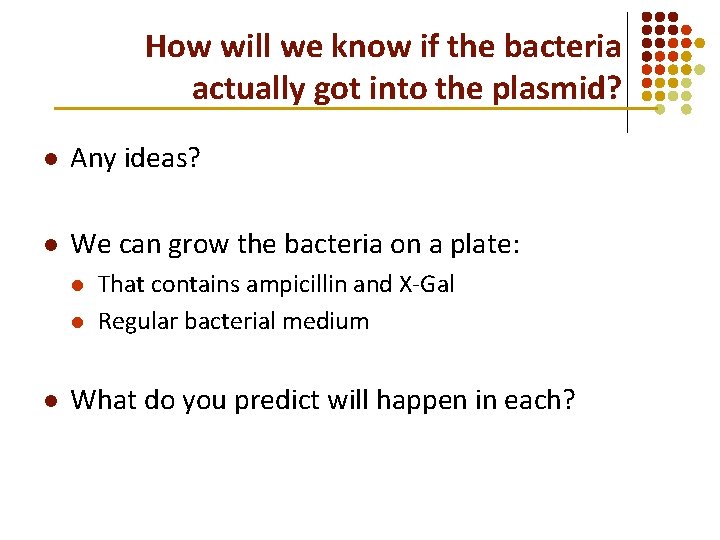

How will we know if the bacteria actually got into the plasmid? l Any ideas? l We can grow the bacteria on a plate: l l l That contains ampicillin and X-Gal Regular bacterial medium What do you predict will happen in each?

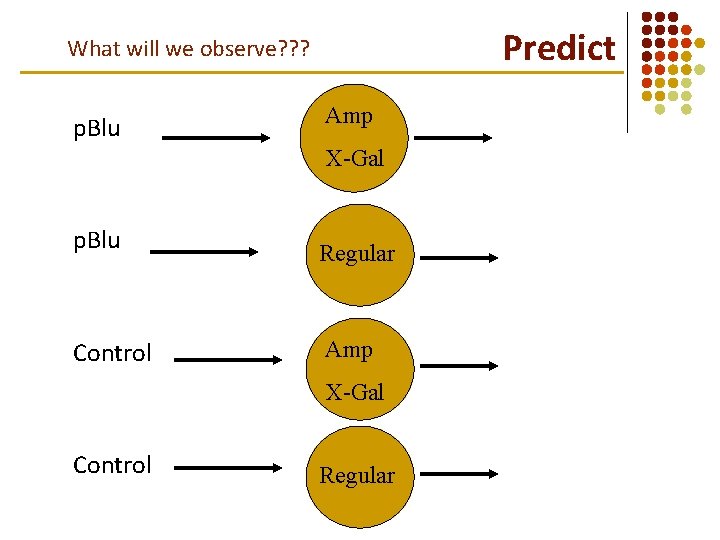

Predict What will we observe? ? ? p. Blu Amp X-Gal p. Blu Regular Control Amp X-Gal Control Regular

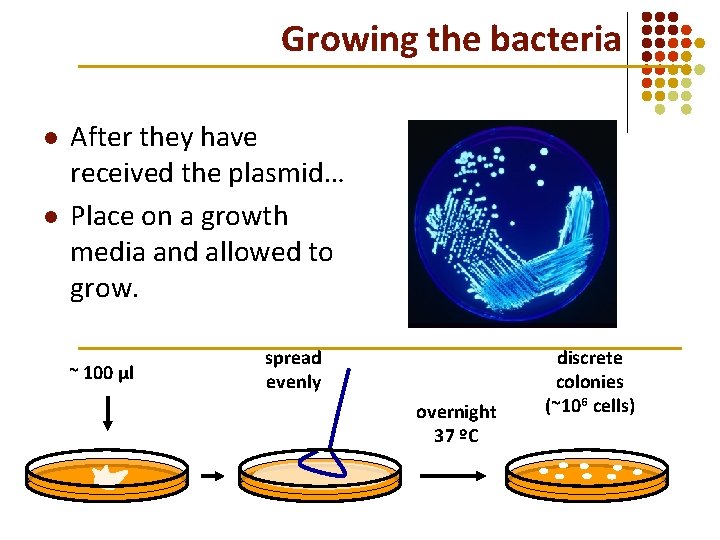

Growing the bacteria l l After they have received the plasmid… Place on a growth media and allowed to grow. ~ 100 µl spread evenly overnight 37 ºC discrete colonies (~106 cells)
