Baby Hunters Bill Liao Eugene Wang Richard Wang

Status Update • The aim of this project is to set parent's minds at ease regarding the whereabouts of their children by use of an inconspicuous device worn on the child and a monitoring device to pinpoint the location of their child in cases of emergency.

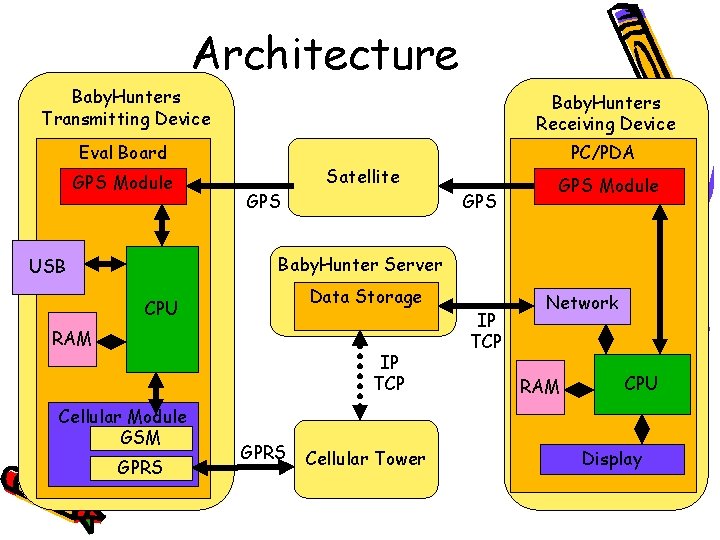

Architecture Baby. Hunters Transmitting Device Baby. Hunters Receiving Device Eval Board PC/PDA GPS Module GPS Satellite GPS Module Baby. Hunter Server USB Data Storage CPU RAM IP TCP Cellular Module GSM GPRS Cellular Tower IP TCP Network RAM CPU Display

Use Cases • Use Case 1 • Use Case 2 • Use Case 3 – – – BHTX device turns on BHTX grabs GPS data BHTX sends data to cellular network Data arrives at Server sends data to BHRX device – – – BHRX device sends message to wake up BHTX device Message goes through SMS to wake up BHTX device BHTX grabs GPS data BHTX sends data to cellular network Data arrives at Server sends data to BHRX device – BHRX device sends message to wake up BHTX device – Attempt to wake up BHTX device fails – BHRX loads last known location of device with notification

Risks & Mitigation • GPS data unavailable for TX • Cellular Network unavailable for TX • Packets lost on way between BHTX and BHRX • BHRX attempts to wake up BHTX but fail • Server fails • Display last received data for RX • Resend packet data • Reload last location and attempt to wake up again • Attempt to send GPS data through SMS

Baby Hunters Architecture B. Data Center CP, IP/T 3. Data received and processed by server A. Transmitting Device S GP R S GPR GPS 1. Device collects GPS data 2. Device sends GPS data 4. Reception of processed data as useful locating information C. Receiving Device

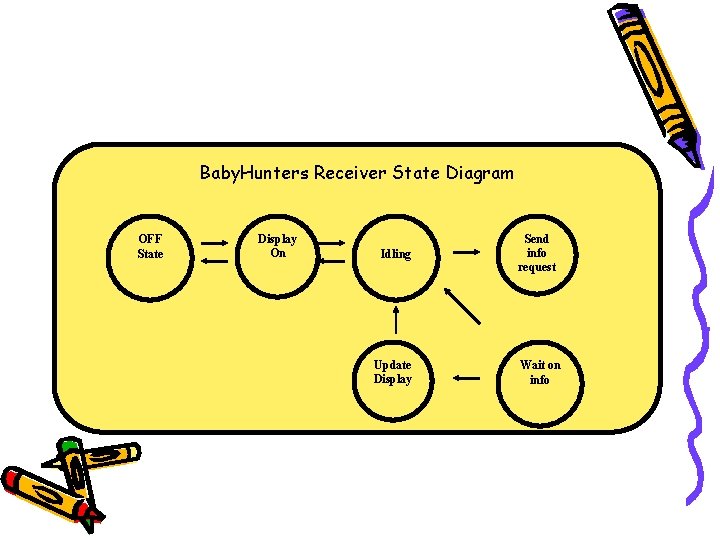

Baby. Hunters Receiver State Diagram OFF State Display On Idling Send info request Update Display Wait on info

Baby. Hunters Trasnmitter State Diagram OFF Command Sending Signal Power Saving

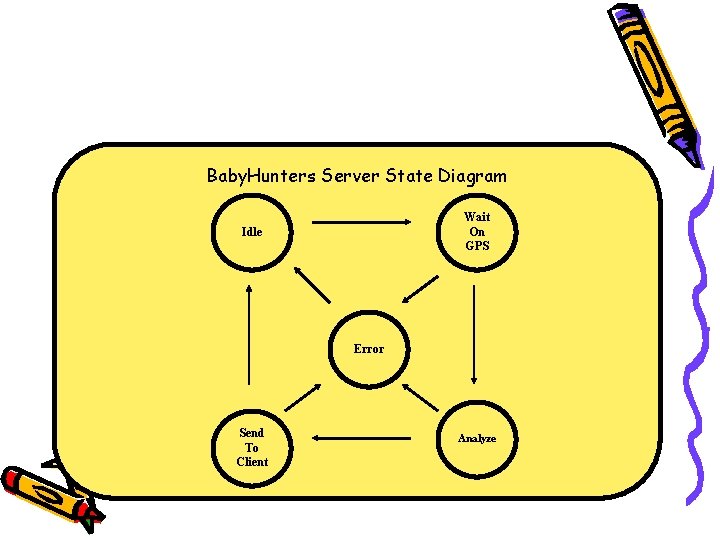

Baby. Hunters Server State Diagram Wait On GPS Idle Error Send To Client Analyze
