B 01 2 Outer Tracker 402 04 Karl

B 01. 2 – Outer Tracker 402. 04 Karl Ecklund, L 2 Manager, 402. 02 September 17, 2015 K. Ecklund, 2015 September 17 Director's Progress Review -- Outer Tracker 1

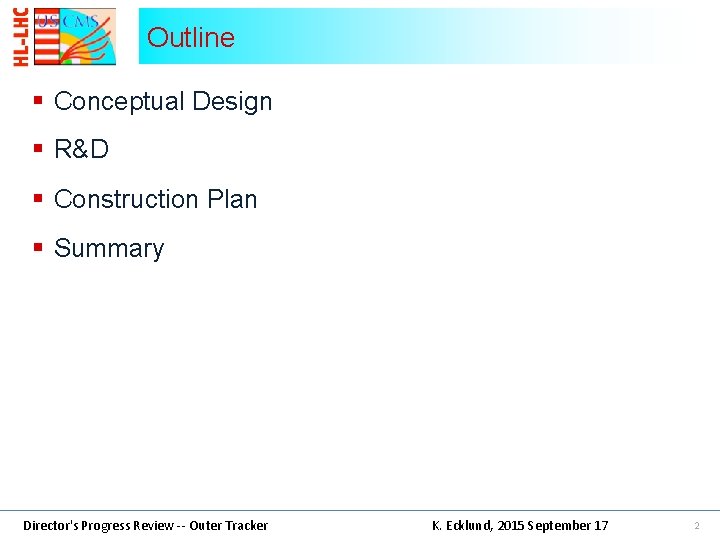

Outline § Conceptual Design § R&D § Construction Plan § Summary Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 2

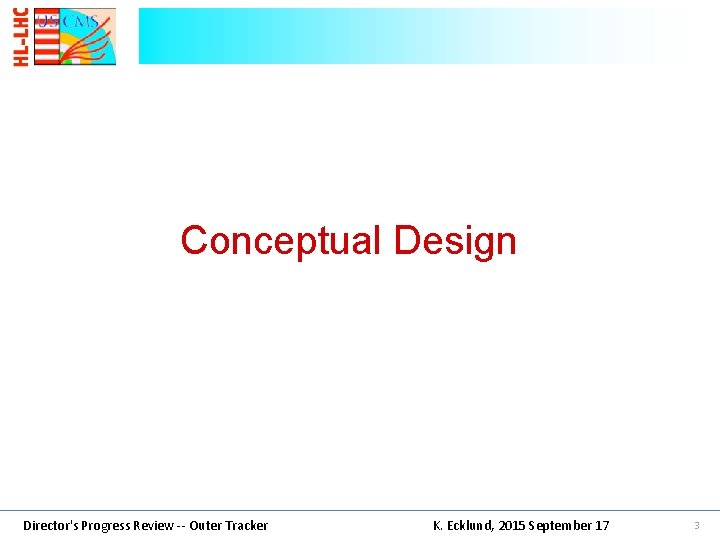

Conceptual Design Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 3

Technical Proposal Layout Six barrel layers + 2*5 disks with p. T modules (pixel-strip PS and strip-strip 2 S) Layout for tracking and L 1 Track Finding with local p. T filtering Number of modules: § PS: 7004 (4164 barrel +2840 endcap) of 3 heights (1. 6, 2. 6, 4 mm) § 2 S: 8424 (4464 barrel + 3960 endcap) of 2 heights (1. 8 & 4 mm) Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 4

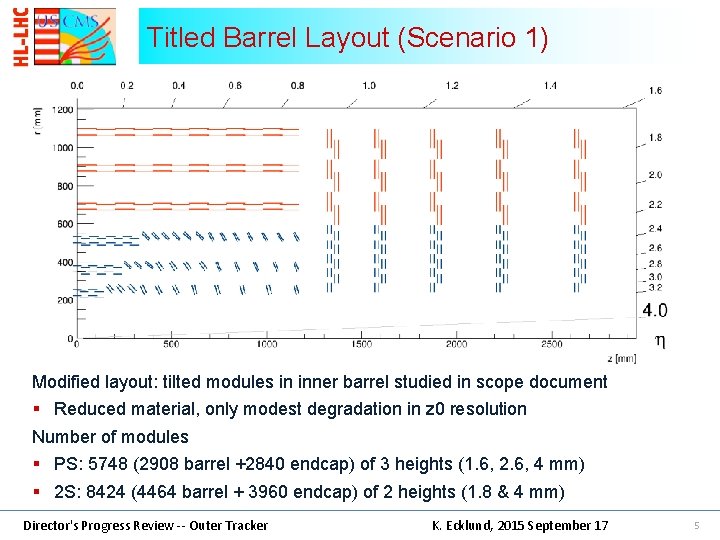

Titled Barrel Layout (Scenario 1) Modified layout: tilted modules in inner barrel studied in scope document § Reduced material, only modest degradation in z 0 resolution Number of modules § PS: 5748 (2908 barrel +2840 endcap) of 3 heights (1. 6, 2. 6, 4 mm) § 2 S: 8424 (4464 barrel + 3960 endcap) of 2 heights (1. 8 & 4 mm) Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 5

Outer Tracker Conceptual Design § 2 types of “p. T” modules § At intermediate radii, pixel-strip (PS) modules § At larger radii, strip-strip (2 S) modules § § 3 types of sensors § 2 S AC coupled 5 cm long strip sensor with 90 µm pitch § PS AC coupled 2. 5 cm long strip sensor with 100 µm pitch § PS DC coupled macro-pixel sensor 1. 5 mm long with 100 µm pitch § 320 µm thick n-in-p baseline sensors with deep diffusion 200 µm active thickness Binary readout chip to deal with substantially larger data volume due to increased channel count and inclusion of trigger information § “CBC” 130 nm CMOS § FE ASICs flip-chip bump-bonded § Powered with point-of-load DC-DC converters Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 6

Material compared to present tracker • • • Silicon & ASICS similar Barrel is integrated design; present tracker has two independent volumes DC-DC conversion and CO 2 cooling reduce material Overall attention to material in design: modules, routing of services Largest reduction in barrel-endcap region where services sit However, must remain vigilant as design progresses. Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 7

US Scope (1) § Module Construction PS + 2 S § Development of PS construction techniques is US deliverable § Assembly of PS modules & test procedures o Sensor qualification o Macro-pixel subassemblies (Ma. PSA) o Mechanical assembly & testing § US capacity needed for 2 S modules too o Assembly techniques similar, more fully developed in CMS § US Total: ~6000 modules PS Module Director's Progress Review -- Outer Tracker 2 S Module K. Ecklund, 2015 September 17 8

PS Module Conceptual Design Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 9

2 S Module Conceptual Design Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 10

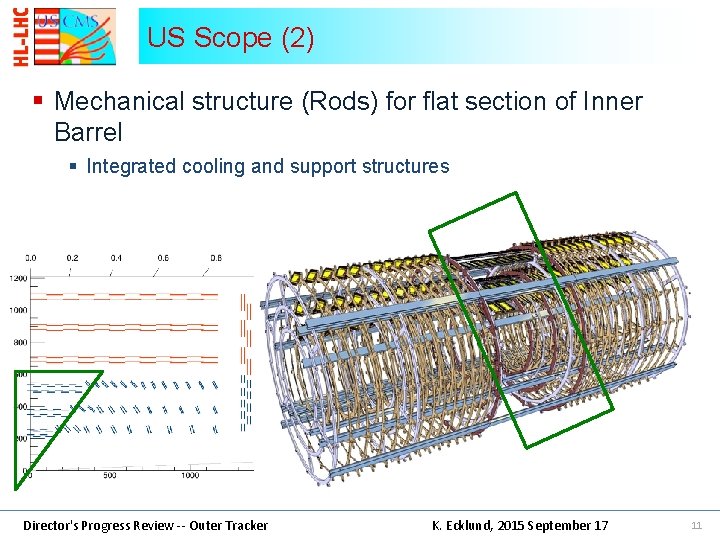

US Scope (2) § Mechanical structure (Rods) for flat section of Inner Barrel § Integrated cooling and support structures Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 11

Inner Barrel Rod Conceptual Design § PS modules placed on light-weight mechanical support with integrated CO 2 cooling § Use of carbon fiber, Carbon honeycomb or Airex, Aluminum-Carbon Fiber spacers § Design underway in US § Attention to thermal issues and system issues (e. g. grounding) § R&D continues in 2016 -17 Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 12

R&D Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 13

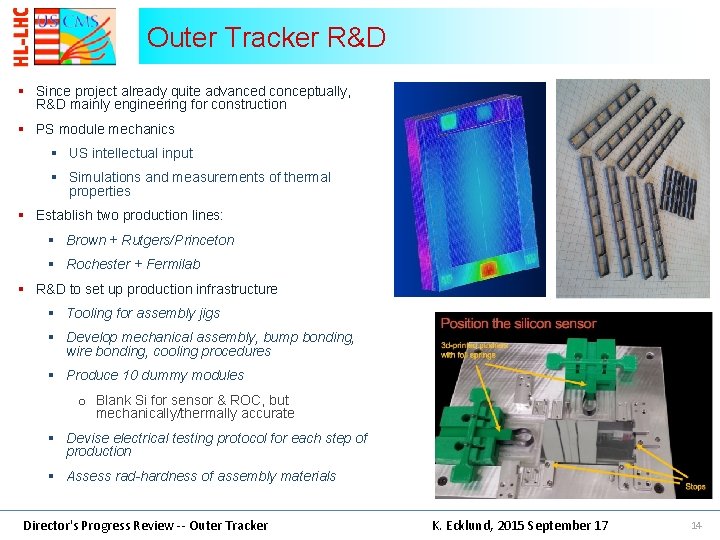

Outer Tracker R&D § Since project already quite advanced conceptually, R&D mainly engineering for construction § PS module mechanics § US intellectual input § Simulations and measurements of thermal properties § Establish two production lines: § Brown + Rutgers/Princeton § Rochester + Fermilab § R&D to set up production infrastructure § Tooling for assembly jigs § Develop mechanical assembly, bump bonding, wire bonding, cooling procedures § Produce 10 dummy modules o Blank Si for sensor & ROC, but mechanically/thermally accurate § Devise electrical testing protocol for each step of production § Assess rad-hardness of assembly materials Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 14

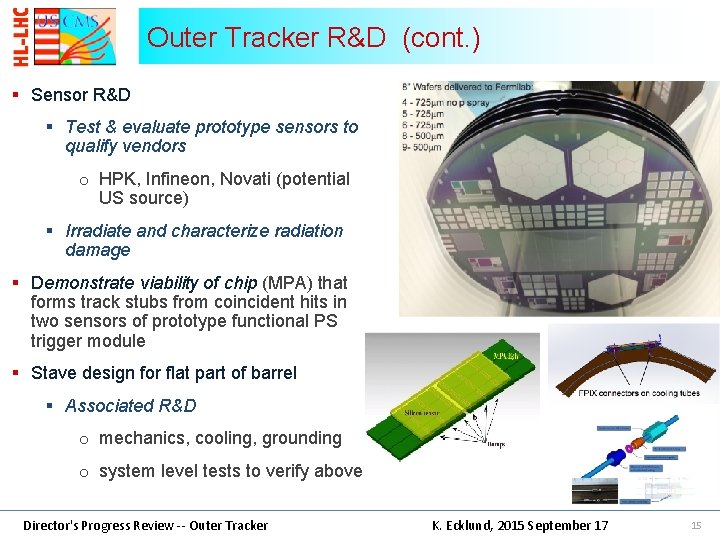

Outer Tracker R&D (cont. ) § Sensor R&D § Test & evaluate prototype sensors to qualify vendors o HPK, Infineon, Novati (potential US source) § Irradiate and characterize radiation damage § Demonstrate viability of chip (MPA) that forms track stubs from coincident hits in two sensors of prototype functional PS trigger module § Stave design for flat part of barrel § Associated R&D o mechanics, cooling, grounding o system level tests to verify above Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 15

Project Organization Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 16

Project Team § L 3 manager named, to be confirmed § Key contributors from FNAL and 6 Universities o Fermilab, Brown University, University of Rochester, Rutgers University, Princeton University, University of California (Davis), University of California (Santa Barbara) o Additional university groups could easily participate at FNAL – model forward pixel phase 1 upgrade and original construction project § Two production lines for modules EOI from § Brown / Rutgers / Princeton § Rochester / FNAL (Si. Det) § Mechanics construction and integration at FNAL Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 17

International Context and Coordination § How is your area coordinated with international CMS? § US plans are well integrated into CMS plans § CMS Tracker Phase 2 Management Board § Participation in working groups (modules, sensor, mechanics) o Expecting future leadership positions in working groups § US scientists attend tracker weeks & upgrade weeks at CERN (or elsewhere) § What dependencies do you have on external groups? § Parts from other CMS collaborators are needed: o CBC ASIC – but well advanced stage; CIC – earlier stage (UK) o GBT ASIC – optical link chip set (CERN) o DC-DC converters (Germany) § All common issues for many countries CMS TK management Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 18

Construction Plans Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 19

Construction Schedule Overview § Early construction start: large system § § Modules from two production lines: Rochester/FNAL, Brown/Rutgers/Princeton Mechanical Rods at FNAL Shipment to CERN and reassembly into Outer Tracker mechanical structure Period for pre-commissioning at CERN before installation in LS 3 Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 20

Module Construction Schedule Module “Factory” Extensive testing Pre/post assembly Use known-good parts At each stage Sensor QC (not shown) Ma. PSA testing (not shown) Electrical testing Thermal cycles Long term testing Per current plan: PS modules first 2 S modules follow Can be optimized Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 21

Mechanics Construction Schedule § Mechanics follows a similar schedule § Available in time for integration of modules at FNAL § Further optimization (resource leveling) likely Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 22

Summary Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 23

Summary § Outer tracker is a large construction project § R&D is well advanced (both US CMS and CMS) § R&D tasks selected to match our deliverables to project § US will take responsibility for 6000 modules § Two production lines § Leadership on PS module assembly & testing techniques § Provide additional capacity for 2 S module production § US will provide inner barrel flat section mechanics § Integrated system design for cooling, power, fiber/cable routing § Construction needs to start early to deliver § CD 3 a likely needed for Silicon sensor purchase § Present plan fits schedule constraints Director's Progress Review -- Outer Tracker K. Ecklund, 2015 September 17 24
