Azure WAN IPsec VPN over Internet Azure WAN
- Slides: 44
Azure WAN IPsec VPN over Internet Azure WAN Cloud on your WAN
Express. Route provides a private, dedicated, highthroughput network connection between onpremises and Microsoft Azure Predictable performance Security High throughput Lower cost

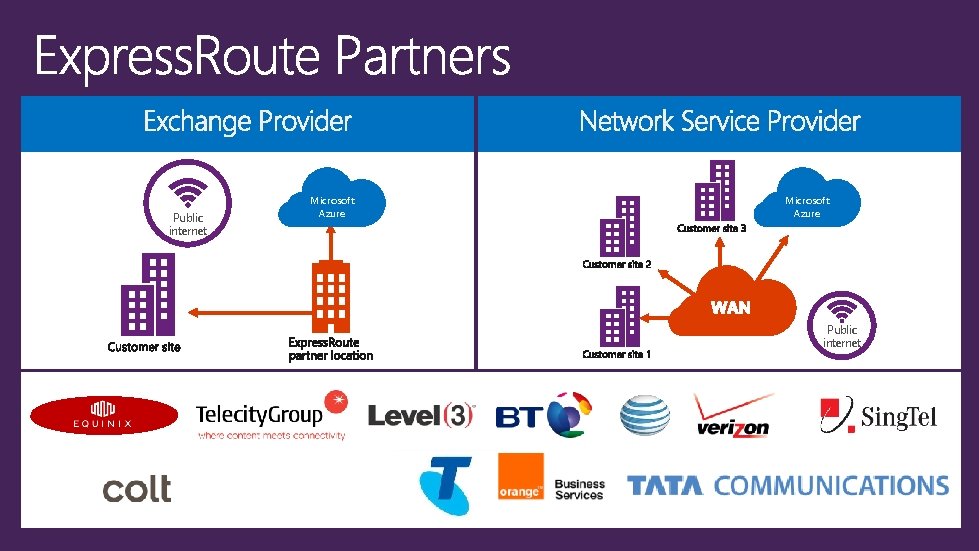

IPsec VPN over internet Public internet Exchange provider Public internet Microsoft Azure Network service provider Microsoft Azure Public internet Virtual Network—Compute only Express. Route—Provides customer choice and includes access to all Azure services
Customer’s network Connectivity provider infrastructure Express. Route Peering Site Azure Compute Traffic to Azure Storage, SQL DB, … Traffic to VNets
Azure service access Internet bound Cross Premises Direct internet traffic Internet Routing policy is customer choice Storage Websites Azure public services Express. Route Circuit Microsoft Azure
Customer’s premises Internet edge Storage Public Peering Extranet Express. Route Circuit Private Peering Core Network SQL Websites Azure public services Microsoft Azure
Public internet Microsoft Azure Public internet
US • Atlanta • Chicago • Dallas • Los Angeles • New York • Seattle • Silicon Valley, CA • Washington D. C. EMEA • Amsterdam • London, UK APAC • Hong Kong • Singapore • Sydney • Tokyo • • • AT&T British Telecom Colt Equinix Internet Initiative Japan (IIJ) Level 3 Orange Sing. Tel Tata Communications Telecity Group Telstra Verizon Azure datacenters Express. Route Locations (today) New Locations and coming soon
Gateway SKU Express. Route Throughput S 2 S Throughput Max Tunnels Default 500 Mbps 10 Performance 1000 Mbps 200 Mbps 30
North Europe West Europe London Amsterdam
Microsoft Azure IT Express. Route Sales R&D Marketing
Audit logs for API calls BGP session status Coming soon
BT IP Connect and Express. Route Brian Lappin Head of Product Management IP Connect Global BT Connect. Networks that think
Our propositions: • BT Connect Applications • BT Diamond IP • BT IP Connect Web-VPN • BT Internet Connect • BT IP Connect • BT Ethernet Connect • BT Optical Connect • Access services • BT LAN Connect • BT Advise Connect Customers tell us “I need… • A network which is aligned to my business needs • Connectivity wherever my business goes • To improve the flexibility of my network • To ensure my business critical applications perform and users are happy with the network performance • To ensure my network can support the influx of smart devices, both corporate and privately owned • To drive efficiency in my network (UK only) Why BT: • Over 3, 400 customers use BT Connect services with more than 700, 000 customer sites connected. • Our network services are available in 198 countries and territories globally. • We operate a global MPLS network offering IP VPN in 198, Ethernet VPN in 50 and Dedicated Internet Access in 45 countries and territories. • Using the global internet, we provide Internet Access in more than 200 and Internet VPN in more than 180 countries and territories. • We offer applications performance management in more than 90 countries and territories. • We offer a wide range of access services from Ethernet and TDM through to Satellite and x. DSL. • We have one of the world´s largest broadband satellite networks with 37, 000+ customer sites. • We operate 5. 5 million Wi-Fi hotspots in the UK. June 14/15 highlight: • We launched IP Connect with Microsoft Express. Route for Azure, providing private connectivity to Microsoft’s datacentres in Europe, improving performance and security.

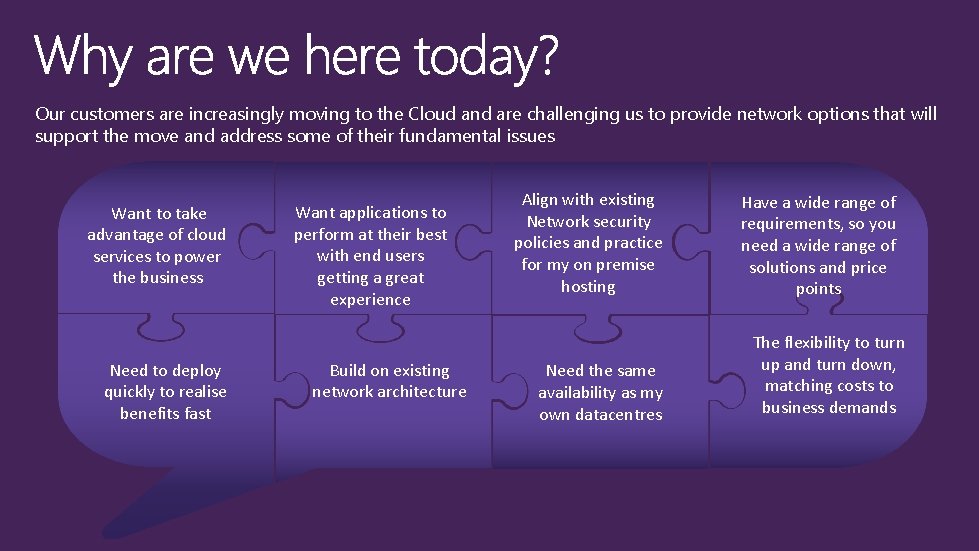

Our customers are increasingly moving to the Cloud and are challenging us to provide network options that will support the move and address some of their fundamental issues Want to take advantage of cloud services to power the business Need to deploy quickly to realise benefits fast Want applications to perform at their best with end users getting a great experience Build on existing network architecture Align with existing Network security policies and practice for my on premise hosting Need the same availability as my own datacentres Have a wide range of requirements, so you need a wide range of solutions and price points The flexibility to turn up and turn down, matching costs to business demands
BT Connect – Cloud datacentres BT Connect – Cloud Acceleration and security “Cloud” Service Environment Customer Site Acceleration Internet Security Path selection Monitoring Analytics

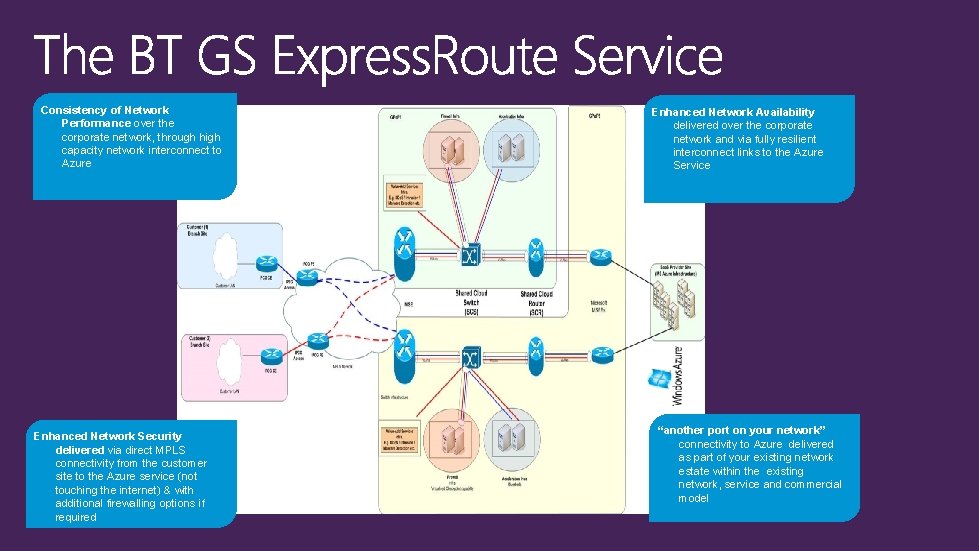

Consistency of Network Performance over the corporate network, through high capacity network interconnect to Azure Enhanced Network Security delivered via direct MPLS connectivity from the customer site to the Azure service (not touching the internet) & with additional firewalling options if required Enhanced Network Availability delivered over the corporate network and via fully resilient interconnect links to the Azure Service “another port on your network” connectivity to Azure delivered as part of your existing network estate within the existing network, service and commercial model
Today’s timescales : days not weeks or months Tomorrow’s timescales: minutes not days Obtain Service Key from Microsoft & Provide to BT BT Configure Service on existing infrastructure BT set up standard network service wrap – reports etc Step 1 Step 2 Step 3 Customer configure virtual N/W & gateway & link network to circuit Step 4
We are continuing to expand improve upon our service…. Feature Extension Provide value add features to enhance the BT Express. Route service including security enhancement through Firewalls and performance enhancement through Wan Optimisation Geographic Expansion Expand current interconnect from existing European locations (Dublin / Amsterdam) to US (East Coast / West Coast) and Asia (Singapore, Honk Kong and Tokyo) in the next 3 -6 months Service Enhancement Enhance the service experience through the introduction of a near real time delivery of service capability for the BT element of Express. Route
Bed bug: Cimex lectularius / hemipterus
200 k+ Unique devices connect to wireless/day 180 k+ 1. 2 m+ 1, 300+ Site locations (114 countries) 160 k 80% 11% 270 k 95% 300 k 90 k Users on Office 365 Exchange LOB apps in Azure in 5 years Users 717 165 k+ 4. 5 m Remote connections/ month 40 k MSIT Servers in On-Prem Data Centers In the Cloud, WAP and Azure, in 5 years LOB apps run in Saa. S or Paa. S today System Center managed devices Managed Windows 8. 1 Systems Share. Point Sites in the Cloud MSFT employees on Yammer
12, 055 Total Managed Network Devices 519 9 600 49, 152 22 gb Sustained Internet Traffic
Legacy Apps 3 Azure Regions Used with Express. Route 5 Gbps Sustained Hybrid Traffic To Azure New Apps Paa. S
Case Studies Express. Route. Sales@microsoft. com Brian. Lappin@bt. com Azure Express. Route overview Azure Express. Route technical overview Azure Express. Route FAQs Azure Express. Route API reference for customers Azure Power. Shell cmdlet reference for customers Azure Networking Blogs AT&T British Telecom Colt Equinix Level 3 Orange Tele. City Telstra Verizon
http: //azure. microsoft. com/en-us/services/expressroute/ Express. Route. Sales@Microsoft. com
http: //technet. microsoft. com/library/dn 765472. aspx http: //technet. microsoft. com/en-us/library/hh 546785. aspx http: //www. microsoft. com/en-us/server-cloud/products/ windows-azure-pack http: //azure. microsoft. com/en-us/
http: //channel 9. msdn. com/Events/Tech. Ed www. microsoft. com/learning http: //microsoft. com/technet http: //developer. microsoft. com
