Azure OnPremises Datacenter Operational cost model 4 x

Azure On-Premises Datacenter

Operational cost model

~4 x normal load (Holiday shopping) ~10 x normal load (Tax season)

Operational cost model Rate of Innovation

Offline Operations Remote Debug Tag Expressions Site to Site Virtual Network Stop without Billing Xamarin integration Traffic Manager. Large Memory SKU Hyper-V Recovery Cloud Services SDK 2. 0 SQL, Share. Point, Biz. Talk Images HDInsight Mercurial Deployment Windows Phone Support Partitioned Queues/Topics Distributed Cache Scheduler Remote Desktop Log Streaming Auto. Scale Per Minute Billing Android Dynamic Support Iaa. S Active Directory HTML 5/CORS IP and SNI SSL Custom Mobile API Biz. Talk Services Hyper-V Disaster Recovery Support Last 12 months MSDN Dev/Test Integration Storage Analytics Mobile Services Git Source Control B 2 B/EDI IP/DDOS Protection Multi-Factor Auth http Logs to Storage Dynamic Remote Desktop Web. Sockets AMQP Support Delete Disks New VM Gallery VIP ACLs Power. BI Queue Geo Replication Windows Server Backup Manage Azure in AD New Relic Notification Hubs Windows 8 i. OS Notification Support Read-Only Secondary Storage http Logs to Storage AD Management Portal CORS/JSON Storage Support AD Directory and EAI Adapters VOD Streaming + Encoding Auto. Scale/Monitoring Web Sites Point to Site Media Services Message Pump Programming Model Sync Notification Support Software VPN VS Online Import/Export Hard Drives

Operational cost model Rate of Innovation Global coverage

19 Azure footprint Azure datacenter regions

Virtual Networks Forced Tunneling RBAC Trust and Control Multiple v. NICs IP ACLing Subnet ACL’ing

Azure Virtual Machine C: OS Disk Cache D: Temporary Disk (Contents can be lost) E: , F: , etc. Data Disks Azure Blob

Defend against regional disasters East DC > 400 miles Geo replication West DC

Azure Virtual Machine C: OS Disk Cache D: Temporary Disk E: , F: , etc. Data Disks G: , H: , etc. SMB Share Azure Files Azure Blob

SMB 2. 1 Shared settings, diagnostic share Lift and Shift Applications Azure VM Azure Files Azure VM

Up to 32 TB of storage per VM >50, 000 IOPS per VM Less than 1 ms read latency

Captures all disks attached Best effort disk consistency Re-deploy as a new VM Sysprep and non-Sysprep

Highest value VM Size Basic and Standard Sizes General Purpose and High Memory High Performance A 8/A 9 (RDMA) A

D 60% faster CPU Up to 112 GB Memory Local SSD storage

Optimized for data workloads Up to 32 CPU cores, 448 GB RAM, 6. 5 TB local SSD Latest generation Intel processor G

SLA High Availability Hardware and Software SQL Server Primary Virtual Machine SQL Server Secondary Virtual Machine SLA 99. 95 Windows and Linux

Internal and External PORT 80 TCP/UDP ACLs, Client Affinity Custom HTTP Probe PORT 80 LB PORT 80 VM 1 LBHTTP /healthcheck. aspx VM 2 LBHTTP /healthcheck. aspx VM 3 LBHTTP /healthcheck. aspx

Internet Public Internal IP IP Customer Network Internal. VIP Internal Front end IP Back end

Define Subnets, Private IPs, DNS SSL Based Connectivity VPN Device Connectivity Partner Express. Route On-premises GW VPN

Azure Automation Operation Insights Ops Dev. Ops Migration and DR Identity

Automate Operation Tasks PS runbooks and community Triggered by schedule / event Highly Available Engine

Manage, Search and Build Insights Log Management and analysis Monitor, troubleshoot, store

Direct DSC and Power. Shell Octopus Deploy Visual Studio RM Chef and Puppet

In. Mage Migration to Azure Site Recovery Plan and Test Failovers

Create and Debug a VM Launch MSDN specific images 33% to 99% savings

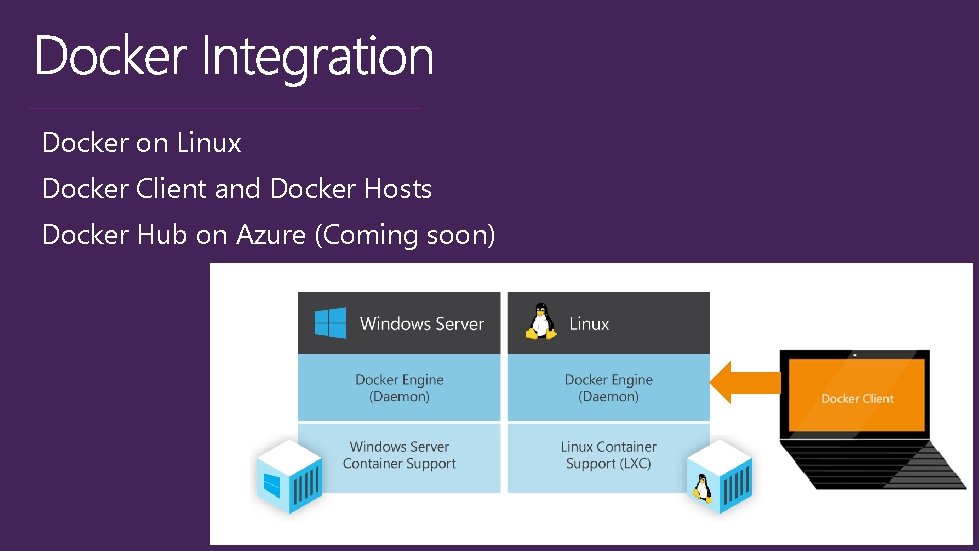

Docker on Linux Docker Client and Docker Hosts Docker Hub on Azure (Coming soon)

A Growing Marketplace

Ubuntu Oracle Linux SUSE Cent. OS-Based Core. OS Community

Cameras / Alarms Secure By Design 24 X 7 security staff Operation Security Controls Barriers / Fencing Compliance Certifications Two-factor access control Penetration Testing Days of backup power Forensics Secure and Isolated VNets Subnet ACLs Forced Tunneling Security Appliances Multiple virtual NICs Anti-Malware VM Security Extensions Role-Based Access Controls Logging / Auditing Encrypted VHD Boot

Infrastructure: Compliance Information security standards Effective controls Government & industry certifications ISO 27001 SOC 1 Type 2 SOC 2 Type 2 Fed. RAMP/FISMA PCI DSS Level 1 UK G-Cloud HIPAA/HITECH

VPN Reserve and Reuse an IP Assign full port range of an IP FTP services and Monitoring 53. 0. 0. 1 VM 3 VM 1 VM 4 VM 2

Cloud Service Front End (App) Tier Virtual Network 1 Internet Subnet ACL 10. 0. 0. 4 Middle (Logic) Tier Virtual Network 2 Subnet ACL 10. 0. 0. 5 Virtual Network 3 Backend (Database) Tier On-Premises Datacenter VPN ACL 10. 0. 0. 6

Cloud Service Front End (App) Tier Virtual Network 1 Internet Middle (Logic) Tier Virtual Network 2 Virtual Network 3 Backend (Database) Tier On-Premises Datacenter Forced Tunnel

Security Partnerships

Roles • Collection of Permissions • Action + Resource Type • Built-in Roles • Owner • Contributor • Reader Role Assignments • Subject • AD User • AD Security Group • Scope • Subscription • Resource Group • Resource Active Directory Access Inheritance Directory Subscription Resource Group Resource

Customers

Game sessions hosted using Azure Hosted using >100, 000 Azure Virtual Machines

Hybrid, Enterprise Grade, Hyper-Scale Bringing our Cloud to you! Agility, Time-to-Market, TCO At any scale, at any time
