AWS core services Compute, Storage, Network | piergio malusardi | Solution Architect – Public

AWS core services Compute, Storage, Network | piergio malusardi | Solution Architect – Public Sector | Amazon Web Services | 14/05/2019 © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark

AWS Global Infrastructure 21 Geographical Regions, 64 Availability Zones, 160+ Po. Ps Region &

AWS Global Infrastructure 21 Geographical Regions, 64 Availability Zones, 160+ Po. Ps Region & Number of Availability Zones (AZs) Gov. Cloud (US) Europe US-East (3), US-West (3) Frankfurt (3) Ireland (3) US West London (3) Oregon (3) Paris (3) Northern California (3) Stockholm (3) US East Asia Pacific N. Virginia (6), Ohio (3) Singapore (3), Sydney (3), Tokyo (4), Osaka-Local (1)* Canada Seoul (2), Mumbai (2) Central (2) China South America Beijing (2), Ningxia (3) São Paulo (3) Announced Regions Four Regions and 12 AZs in Bahrain, Cape Town, Jakarta, and Milan https: //www. infrastructure. aws/ * Available to select AWS customers who request access. Customers wishing to use the Asia Pacific (Osaka) Local Region should speak with their sales representative.

AWS Region Design AWS Regions are comprised of multiple AZs for high availability, high

AWS Region Design AWS Regions are comprised of multiple AZs for high availability, high scalability, and high fault tolerance. Applications and data are replicated in real time and consistent in the different AZs AWS Availability Zone (AZ) AWS Region AZ Transit AZ Datacenter A Region is a physical location in the world where we have multiple Availability Zones consist of one or more discrete data centers, each with redundant power, networking, and connectivity, housed in separate facilities.

Introduction to Services and Categories

Introduction to Services and Categories

Network Services

Network Services

AWS Global Network • Redundant 100 Gb. E network • Private network capacity between

AWS Global Network • Redundant 100 Gb. E network • Private network capacity between all AWS Region, except China © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential

VPC – Virtual Private Cloud AWS Cloud Availability Zone 1 VPC Routing Table 1

VPC – Virtual Private Cloud AWS Cloud Availability Zone 1 VPC Routing Table 1 Routing Table 2 Availability Zone 2 Destination Target Status 10. 1. 0. 0/16 local Active 0. 0/0 IGW Active Destination Target Status 10. 1. 0. 0/16 local Active 22. 16. 0. 0/16 VPN Active 0. 0/0 NAT GW Active

Elastic Load Balancing security tools TLS offloading SNI support Access logs Application firewall User

Elastic Load Balancing security tools TLS offloading SNI support Access logs Application firewall User Authentication Secure your application by offloading user authentication to Application Load Balancer, including support for federated identities.

Compute Services

Compute Services

Broadest and deepest platform choice Amazon EC 2 Amazon ECS, EKS, and Fargate AWS

Broadest and deepest platform choice Amazon EC 2 Amazon ECS, EKS, and Fargate AWS Lambda Virtual server instances in the cloud Container management service for running Docker on a managed cluster of EC 2 Serverless compute for stateless code execution in response to triggers

Broadest and deepest platform choice Linux | Windows Arm and x 86 architectures General

Broadest and deepest platform choice Linux | Windows Arm and x 86 architectures General purpose and workload optimized Bare metal, disk, networking capabilities Amazon EC 2 Packaged | Custom | Community AMIs Multiple purchase options: On-demand, RI, Spot

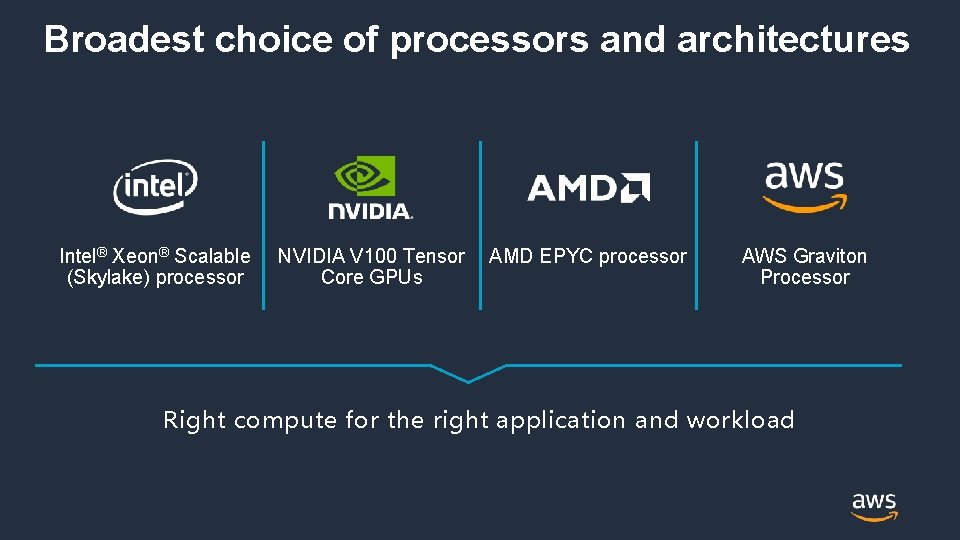

Broadest choice of processors and architectures Intel® Xeon® Scalable (Skylake) processor NVIDIA V 100

Broadest choice of processors and architectures Intel® Xeon® Scalable (Skylake) processor NVIDIA V 100 Tensor Core GPUs AMD EPYC processor AWS Graviton Processor Right compute for the right application and workload

AWS support for Arm-based applications A 1 Optimized cost and performance for Arm-based applications

AWS support for Arm-based applications A 1 Optimized cost and performance for Arm-based applications Up to 45% cost savings, higher price/performance AWS Graviton Processor with Arm-based cores and customized silicon Ideal for scale-out workloads including web and e-commerce sites

EC 2 instances Amazon Lightsail T 3 M 5 d General purpose Virtual private

EC 2 instances Amazon Lightsail T 3 M 5 d General purpose Virtual private servers D 2 H 1 Dense storage Burstable Big data optimized R 5 d R 5 m Memoryoptimized X 1 e Memory intensive Inmemory High I 3 I/O I 3 m High I/O C 5 d Compute optimized G 3 P 3 Graphics intensive Generalpurpose GPU F 1 FPGAs z 1 dm Compute and memory intensive

High memory instances: certified for SAP HANA NEW! 12 TB Up to 12 TB

High memory instances: certified for SAP HANA NEW! 12 TB Up to 12 TB Memory; SAP-Certified Custom Intel® Xeon® Scalable Processor Native to AWS; Out-of-box integration 9 TB Simple management: AWS CLI, Console, IAM Flexibility to scale; Resize in minutes 6 TB 4 TB 244 GB 488 GB R 3 R 4 768 GB 1 TB R 5 X 1 X 1 e EC 2 High Memory Instances

AWS container services landscape Management Deployment, Scheduling, Scaling & Management of containerized applications Hosting

AWS container services landscape Management Deployment, Scheduling, Scaling & Management of containerized applications Hosting Where the containers run Image Registry Container Image Repository Amazon Elastic Container Service for Kubernetes Amazon EC 2 AWS Fargate Amazon Elastic Container Registry

Making development easier with AWS Lambda Accessible for all developers Greater productivity Support for

Making development easier with AWS Lambda Accessible for all developers Greater productivity Support for all runtimes with Lambda Layers and Runtime API Toolkits for popular IDEs: 15 minute functions VSCode, Intelli. J, and Py. Charm SQS for Lambda Simplified deployment with nested apps Automatic Load Balancing for Lambda ISO, PCI, HIPAA, SOC, GDPR, and Fed. Ramp compliances Enable new application patterns Support for Kinesis Data Streams Enhanced Fan-Out and HTTP/2 Trillions of executions every month for hundreds of thousands of active customers

AWS Storage Services

AWS Storage Services

More choice for more applications File storage FSx for Windows Block storage EFS Standard

More choice for more applications File storage FSx for Windows Block storage EFS Standard EFS Infrequent Access Provisioned IOPS SSD Throughput-Optimized HDD Cold HDD Amazon EC 2 Amazon AWS Storage Gateway Family EFS Amazon FSx for Windows File Server Elastic Amazon EBS Backup Amazon FSx for Lustre Object storage S 3 Standard-IA S 3 One Zone-IA S 3 Glacier S 3 Intelligent-Tiering Amazon S 3 Glacier Deep Archive

Your choice of Amazon S 3 storage classes S 3 Standard S 3 Intelligent-Tiering

Your choice of Amazon S 3 storage classes S 3 Standard S 3 Intelligent-Tiering S 3 One Zone-IA S 3 Glacier Deep Archive S 3 Glacier Access Frequency Frequent • Active, frequently accessed data • Milliseconds access • > 3 AZ • $0. 0210/GB S 3 Standard-IA • Data with changing access patterns • Milliseconds access • > 3 AZ • $0. 0210 to $0. 0125/GB • Monitoring fee per Obj. • Min storage duration • Infrequently accessed data • Milliseconds access • > 3 AZ • $0. 0125/GB • Retrieval fee per GB • Min storage duration • Min object size • Re-creatable, less accessed data • Milliseconds access • 1 AZ • $0. 0100/GB • Retrieval fee per GB • Min storage duration • Min object size © 2018, Amazon Web Services, Inc. or its affiliates. All rights reserved. Infrequent • Archive data • Select minutes or hours • > 3 AZ • $0. 0040/GB • Retrieval fee per GB • Min storage duration • Min object size • • Archive data Select 12 or 48 hours > 3 AZ $0. 00099/GB Retrieval fee per GB Min storage duration Min object size

S 3 Intelligent-Tiering Automated storage tiering for data with changing access patterns

S 3 Intelligent-Tiering Automated storage tiering for data with changing access patterns

S 3 Glacier Deep Archive Lowest cost storage class for long-term archiving and digital

S 3 Glacier Deep Archive Lowest cost storage class for long-term archiving and digital asset preservation $0. 00099 per GB-month Fully managed without tape burden Designed for 99. 99999% durability Recover data in 12 hours

Amazon EBS: Built for dynamic workloads Simple High Performance Reliable Elastic volumes: Adjust size

Amazon EBS: Built for dynamic workloads Simple High Performance Reliable Elastic volumes: Adjust size and tune performance with no disruption Optimized for low-latency or high throughput Managed block storage for enterprise applications 2 x performance improvement for PIOPS SSD volumes Control and encryption through Key Management Back up data on EBS volumes using point-in-time snapshot capability Data Lifecycle Manager 60% improvement in gp 2 SSD volumes performance 99. 999% availability Massive scale and flexibility

Amazon Elastic File System Simple Fully managed Highly reliable regional design Secure No re-architecting

Amazon Elastic File System Simple Fully managed Highly reliable regional design Secure No re-architecting required Elastic Scalable Automatically grows and shrinks Consistent IOPS Lower TCO than DIY or on-prem Consistent throughput Flexible client connectivity

Amazon FSx for Windows File Server Lift and shift your Windows file storage with

Amazon FSx for Windows File Server Lift and shift your Windows file storage with fully managed Windows file servers Native Windows compatibility back to Windows 7 Fast and flexible performance Ready for Enterprise Apps like ERP & CRM Connect to Amazon EC 2, Work. Spaces, Appstream 2. 0 & VMware Cloud on AWS Handles patching and other maintenance

Amazon FSx for Lustre For compute-intensive data processing use cases like HPC or Machine

Amazon FSx for Lustre For compute-intensive data processing use cases like HPC or Machine Learning Raw data stored in S 3 is loaded to FSx for Lustre for processing Output of processing returned to S 3 for retention

Storage Gateway hybrid storage solutions Use standard storage protocols to access AWS storage services

Storage Gateway hybrid storage solutions Use standard storage protocols to access AWS storage services Customer Premises Amazon S 3 Application servers Direct Connect NFS Amazon Glacier i. SCSI Enterprise storage Backup servers VTL Internet File Volume Tape Amazon EBS snapshots Amazon VPC Amazon Cloud. Watch AWS KMS AWS Cloud. Trail AWS IAM

Thank you! © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved.

Thank you! © 2019, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
