Avaya IP Office Avaya IP Office IP Office
- Slides: 70

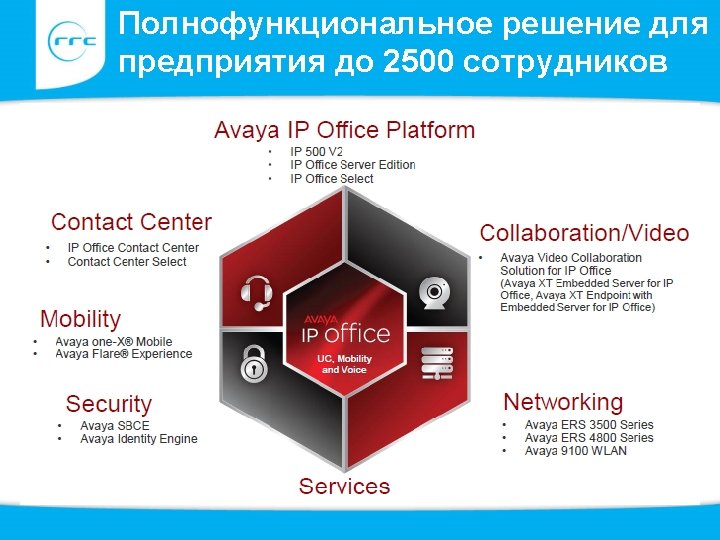

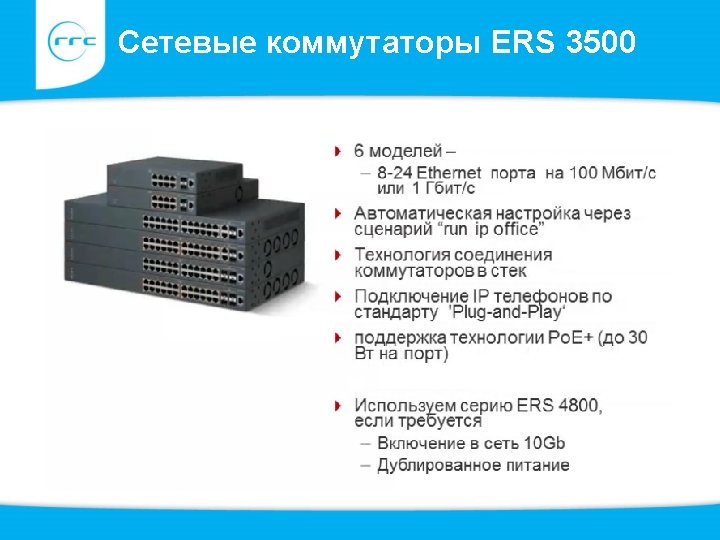

Обзор Avaya IP Office • Avaya IP Office • Платформа IP Office 500 v 2 • Системные решения IP Office 500 v 2 -- Basic Edition – Essential Edition – Preferred Edition • IP Office Server Edition , IP Office Select • Пользовательские решения • IPO Contact Center Select • ERS 3500 • ВКС

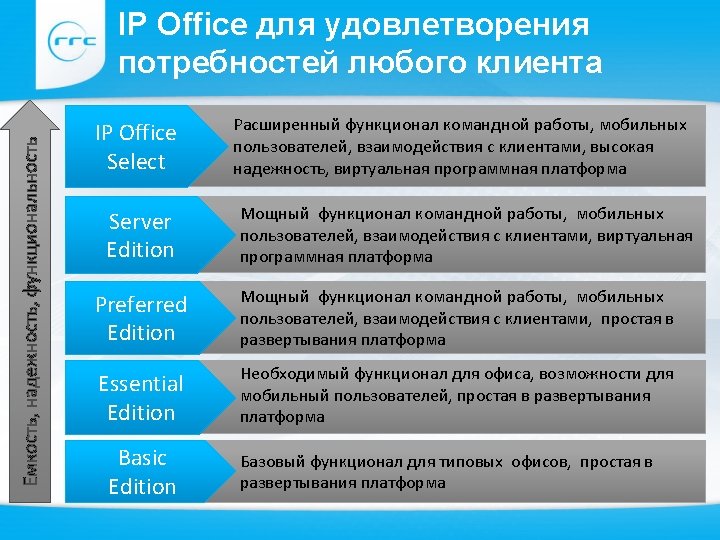

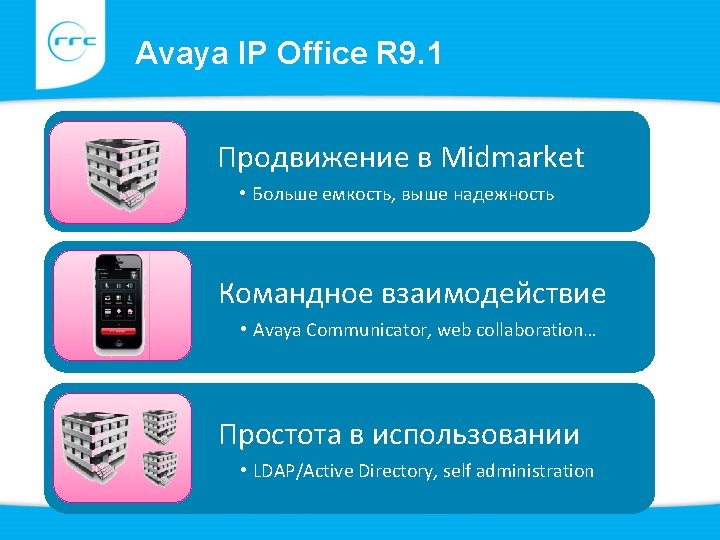

Avaya IP Office R 9. 1 Edition Platform Business size (users) Basic Edition IP 500 V 2 <25 Essential Edition IP 500 V 2 20– 99 Preferred Edition IP 500 V 2 21– 384 Server Edition Linux Server, IP 500 V 2 and Linux Expansion 100 — 2000 Server Edition Select Linux Server, IP 500 V 2 and Linux Expansion 100 — 2500

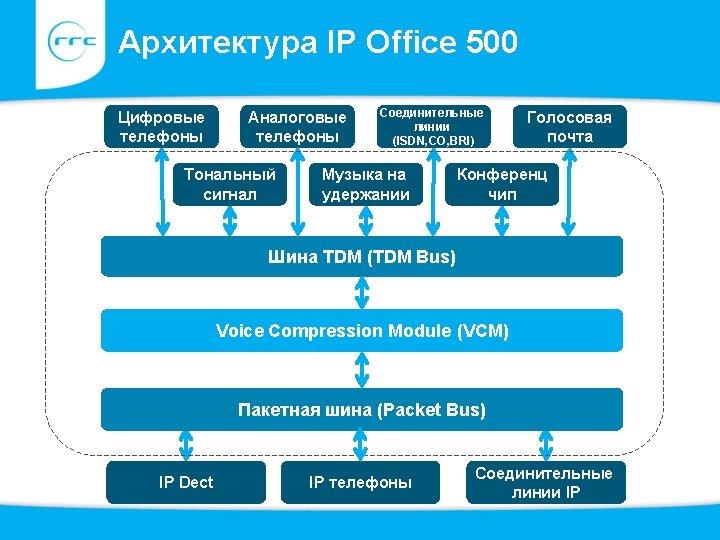

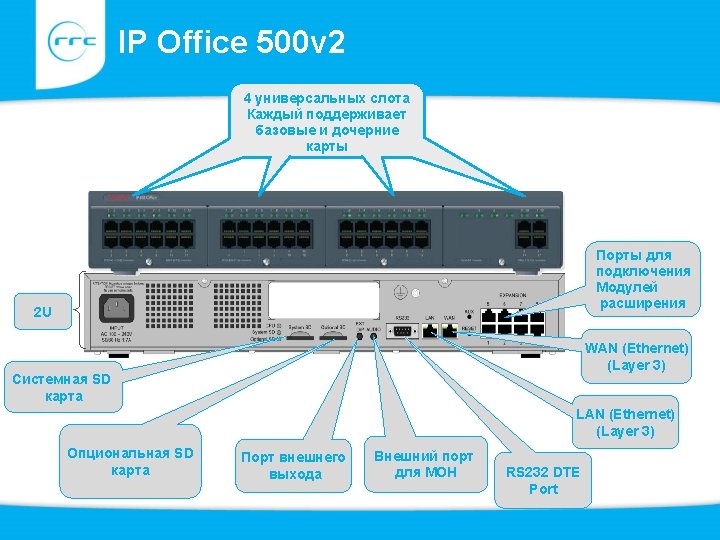

Платформа IP Office 500 v 2

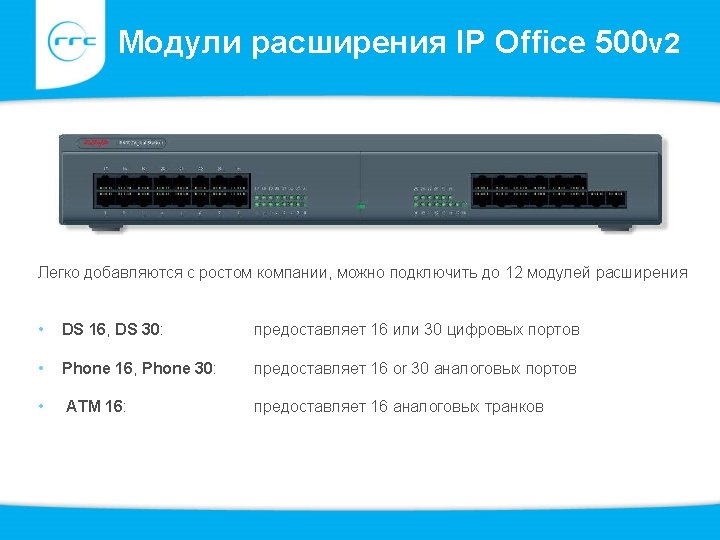

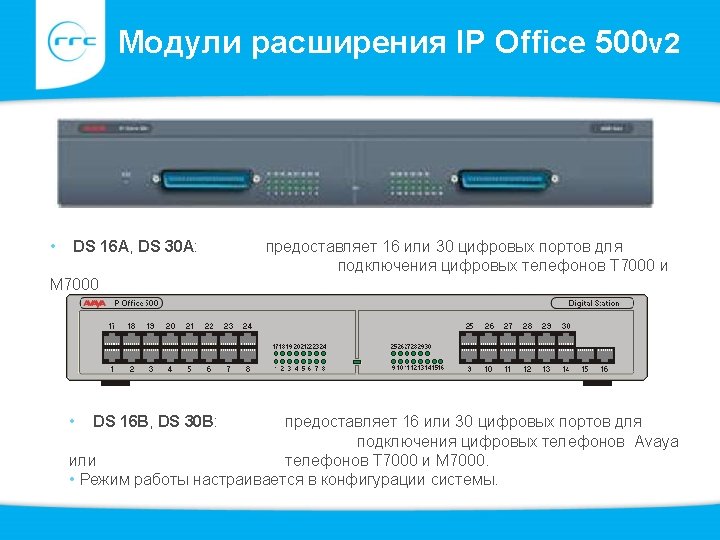

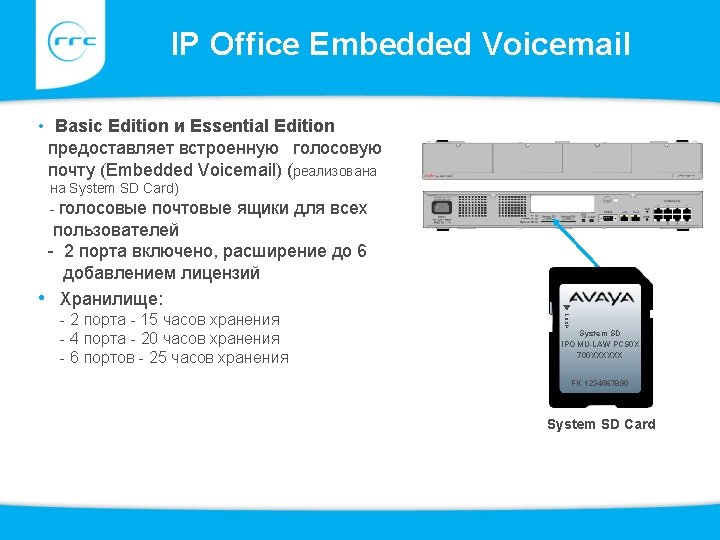

Карты IP Office 500 v 2 Дочерние карты Базовые карты • • • SD-карты - 8 -Port Digital Station (max 3) - Single E 1/PRI - 8 -Port TCM Digital Station (max 4) - Dual E 1/PRI - 2 -Port Phone Station (max 4) - 4 -Port Analog Trunk - 8 -Port Phone Station (max 4) System. SD карта: - 2 or 4 -Port BRI (4 or 8 channels) - лицензионный ключ; - 32 -Channel VCM Module (max 2) - 64 -Channel VCM Module (max 2) - 4 -Port Expansion Port (max 1) - Combination card (max 2) два типа: -6 Digital, 2 Phone, 10 VCM, 2 port BRI – Дочерние карты -6 Digital, 2 Phone, 10 VCM, 4 port Analog Trunk • Устанавливаются на базовую карту - установлена операционная система для IP Office; - встроенная голосовая почта. Optional SD – для Backap
Avaya IP Office Емкость системы Capability Expansion ports IP Office 500 With 4 -Port Expansion Cards 8 12 • POTS: [8*30] + [4*8] = 272 • POTS: [12*30] + [3*8] = 384 • DS: [8*30] + [3*8] = 264 • DS: [12*30] + [3*8] = 384 • IP: 384 Total number of user/telephone ports (including DS, POT, IP) 272/IP 384 Trunks (E 1/T 1 PRI) 4 xdual = 240/192 3 xdual = 180/144 Analog. Trunks (CO) 4 x 4+16 x 8=144 4 x 3+16 x 12=204 DS or POT telephone ports 384 Conference channels До 128 участников; max 64 участника в одной конференции

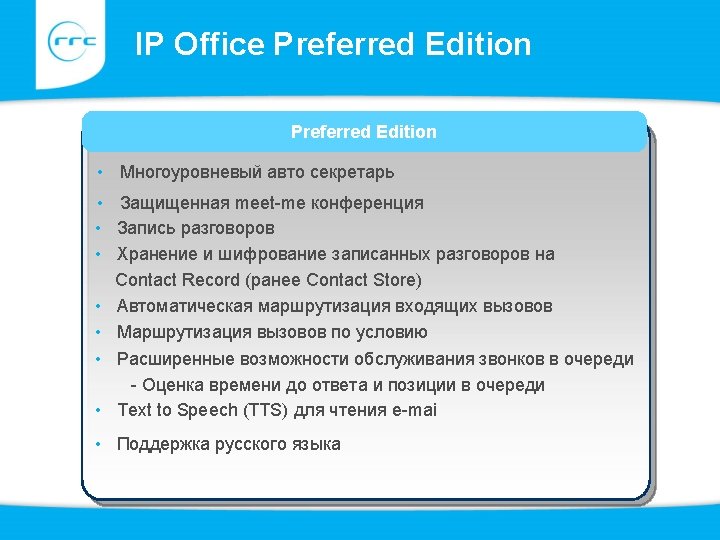

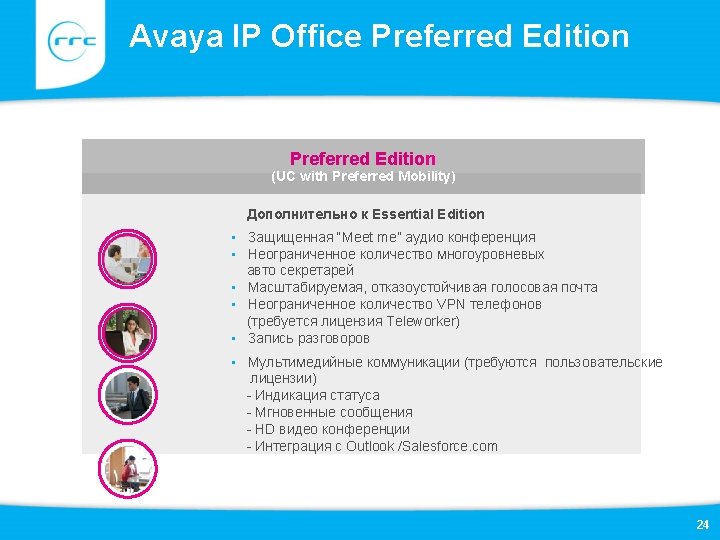

Avaya IP Office 500 R 9. 1 Простое и функциональное решение для SME Пользовательские решения нет в Basic Office Worker Receptionist Mobile Worker Tele. Worker Power User Системные решения Basic Telephony IP Office Basic Edition IP Telephony with Mobility IP Office Essential Edition Unified Communication IP Office Preferred Edition требуется : Essential Edition Оборудование и телефоны Коммуникационный Сервер Данные Мультимедийные терминалы Многоузловые сети Avaya – Confidential

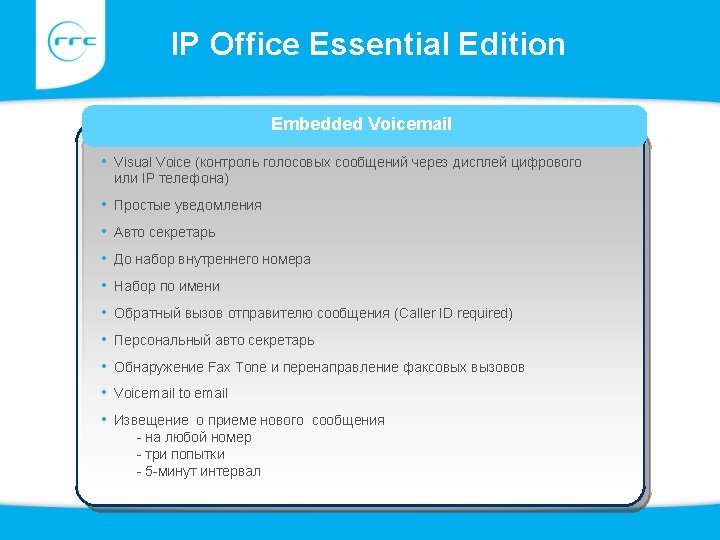

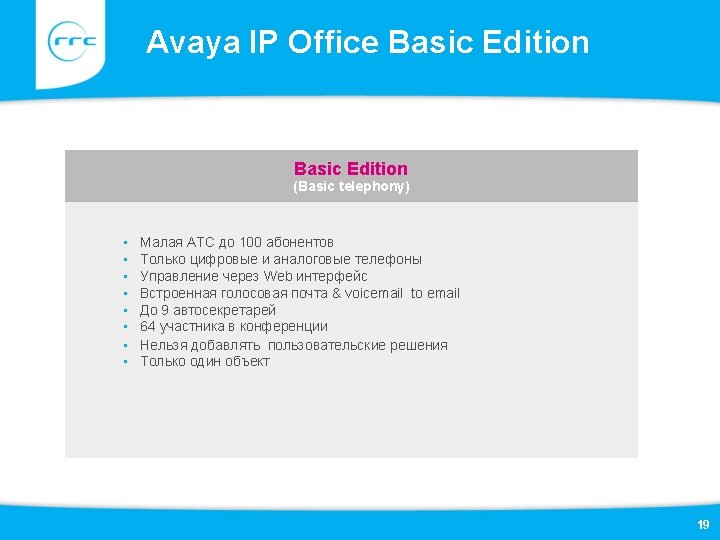

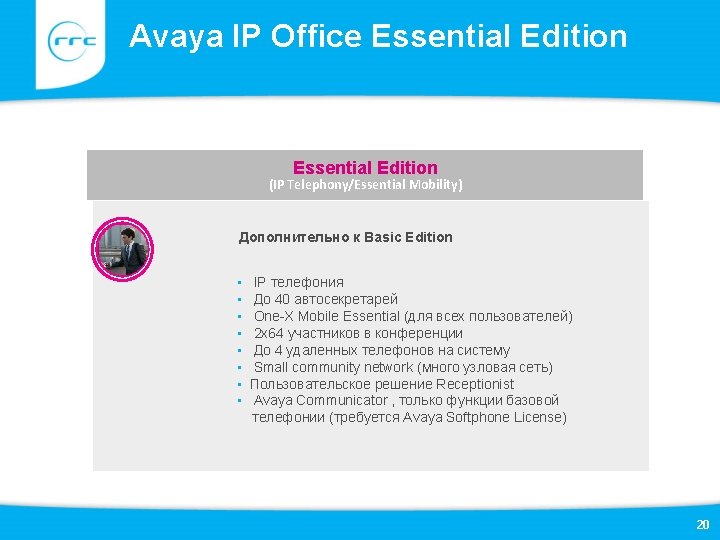

Basic Edition и Essential Edition Сравнение функций 21

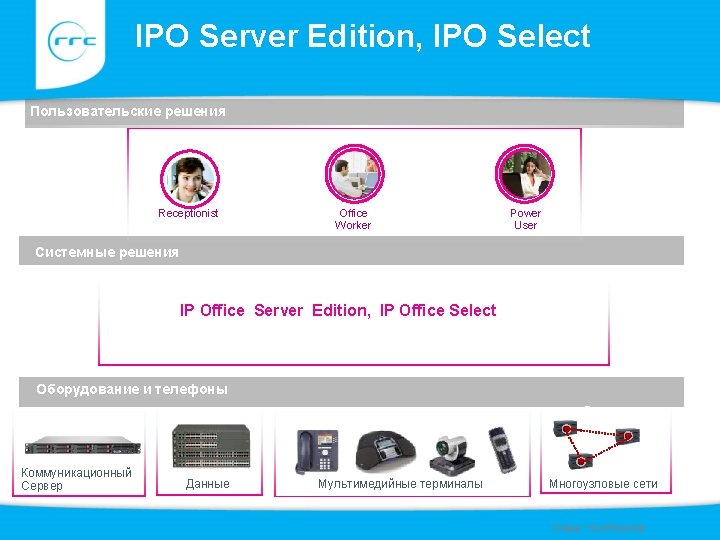

IP Office Server Edition IP Office Select
IPO Server Edition, IPO Select Hardware Components • IP Office Server Edition – Primary/Secondary Servers - HP DL 360 G 7 - Dell R 620 - HP DL 120 G 7 - Dell R 210 • IP Office Server Edition – Expansion Server - HP DL 120 G 7 - Dell R 210 • IP Office Server Edition – виртуальный сервер на VMWare Поддерживает только IP телефонию HP DL 360 G 7 Dell R 620 HP DL 120 G 7 Dell R 210
IPO Server Edition, IPO Select Программное обеспечение Primary Server Secondary Server

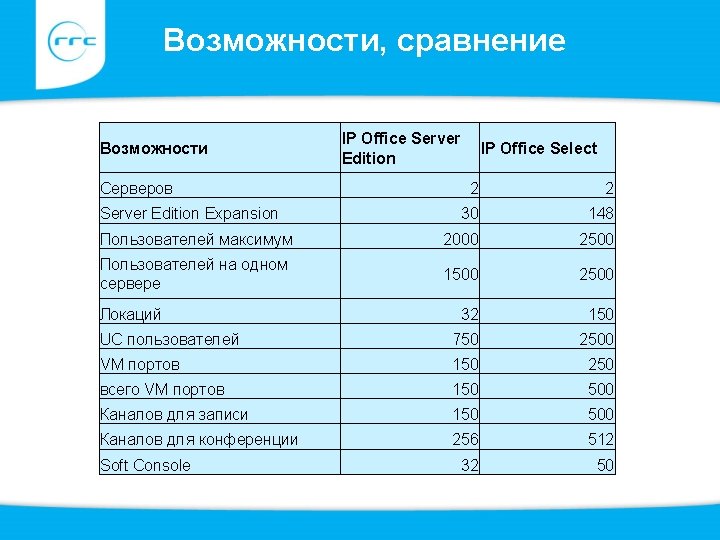

IPO Server Edition / IPO Select Avaya IP Office Server Edition позволяет подключить до 2000/2500 IP абонентов на одной локации, централизованное лицензирование, централизованный менеджмент. Может быть подключено до 30/148 Expansion System до 2000/2500 IP абонентов всего Primary Server SIP IP Phones Secondary Server Avaya IP Office 500 v 2 Expansion System Avaya IP Office for Linux Expansion System IP Phones IP Digital PRI/T 1 Analog
IPO Server Edition, IPO Select Powerful Resiliency, and Voice Messaging Redundancy 16 хх/96 хх Secondary Server Primary Server Voice Messaging 16 хх/96 хх Expansion System Resilience для всех IP Phones в сети Digital/Analog

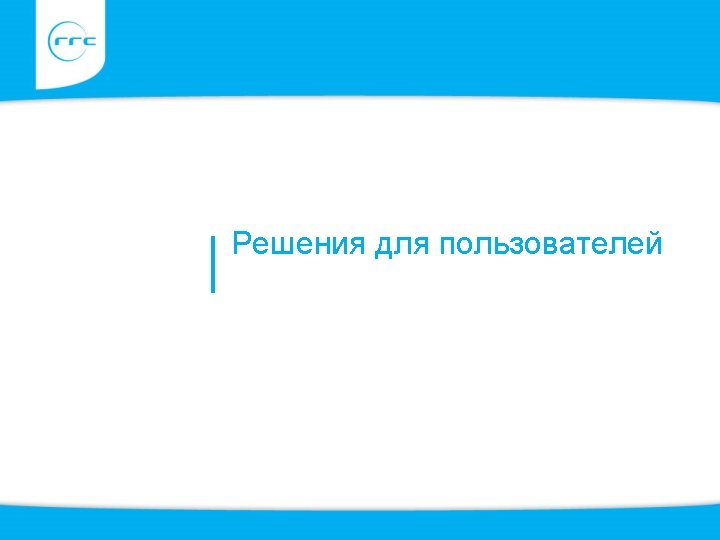

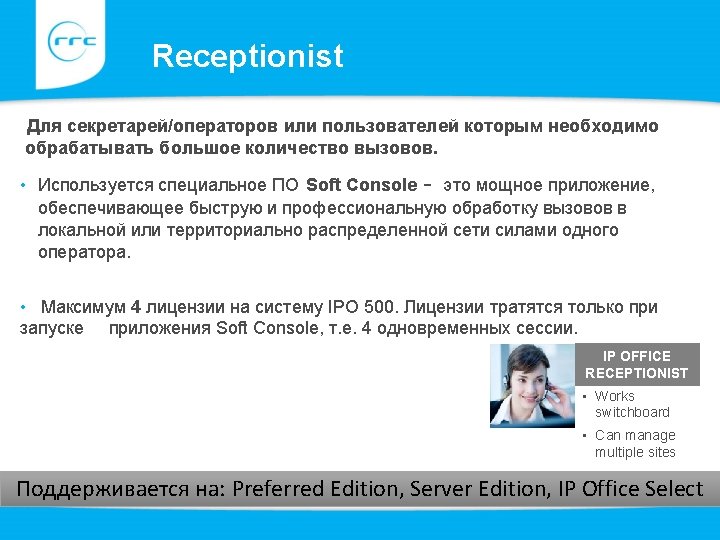

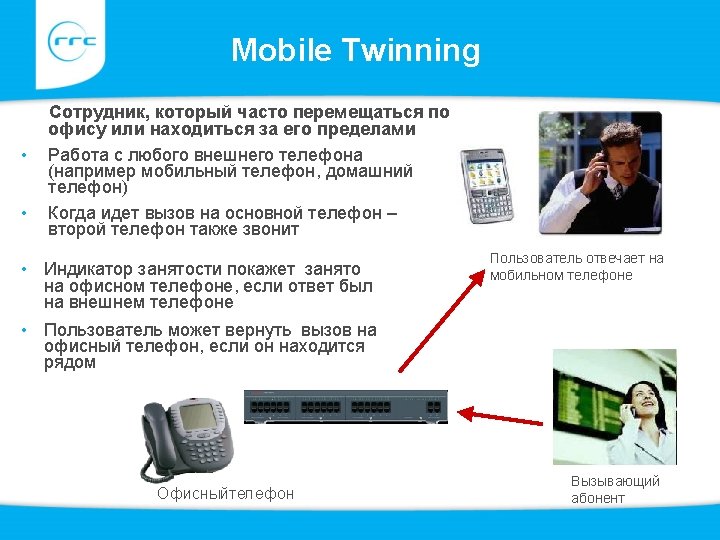

Решения для пользователей IP OFFICE WORKER • Work from the office IP OFFICE MOBILE WORKER • Have cell phones • Work “on the road” IP OFFICE TELEWORKER • Works on pc/laptop • Full-time from home IP OFFICE POWER USER • Laptop & Cell Phone • Need to work from anywhere IP OFFICE RECEPTIONIST • Works switchboard • Can manage multiple sites from anywhere
Avaya IP Office 500 R 9. 1 Простое и функциональное решение для SME Пользовательские решения нет в Basic Office Worker Receptionist Mobile Worker Tele. Worker Power User Системные решения Basic Telephony IP Office Basic Edition IP Telephony with Mobility IP Office Essential Edition Unified Communication IP Office Preferred Edition требуется : Essential Edition Оборудование и телефоны Коммуникационный Сервер Данные Мультимедийные терминалы Многоузловые сети Avaya – Confidential

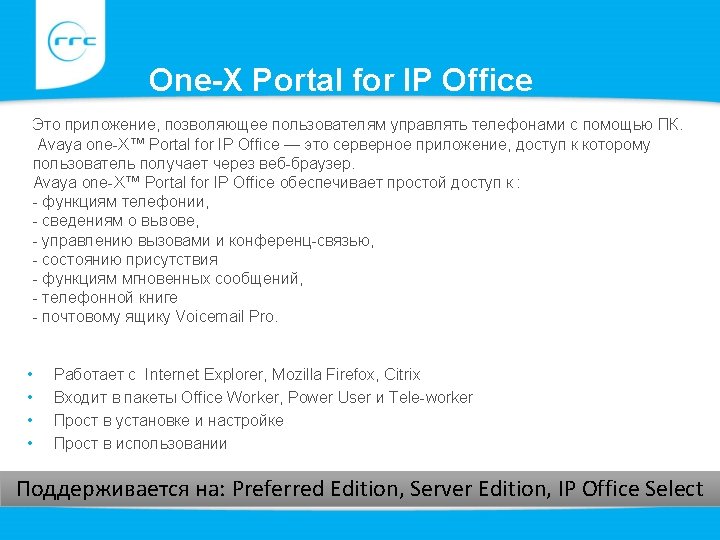

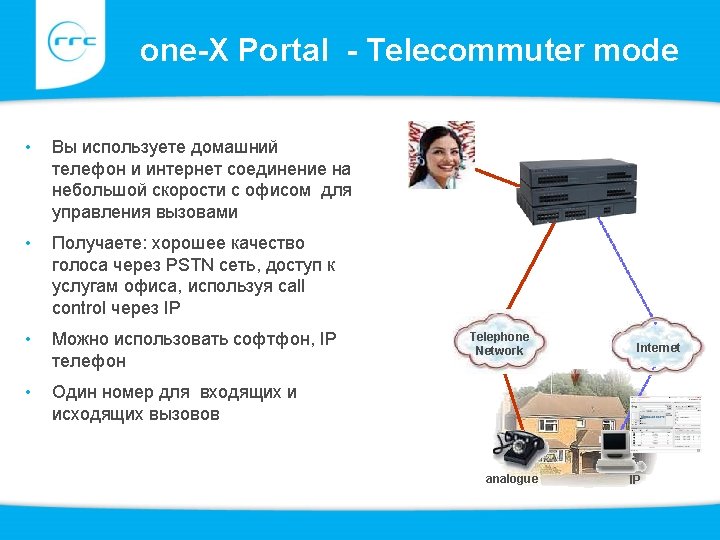

one-X® Portal for IP Office 3 rd party Gadget

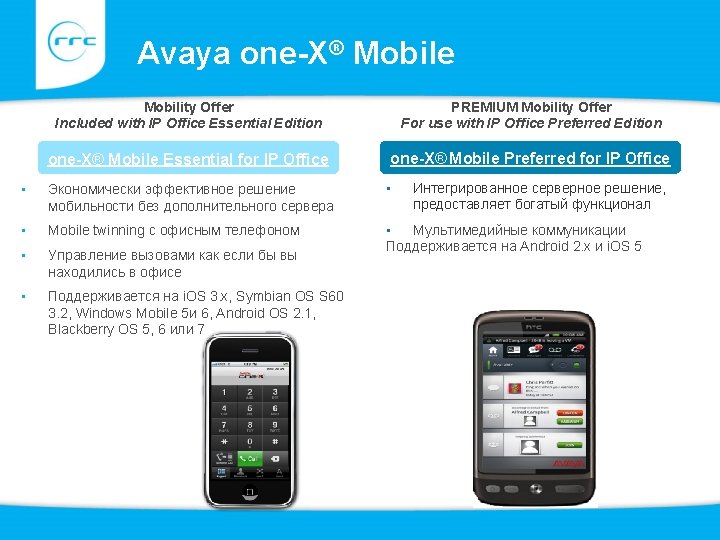

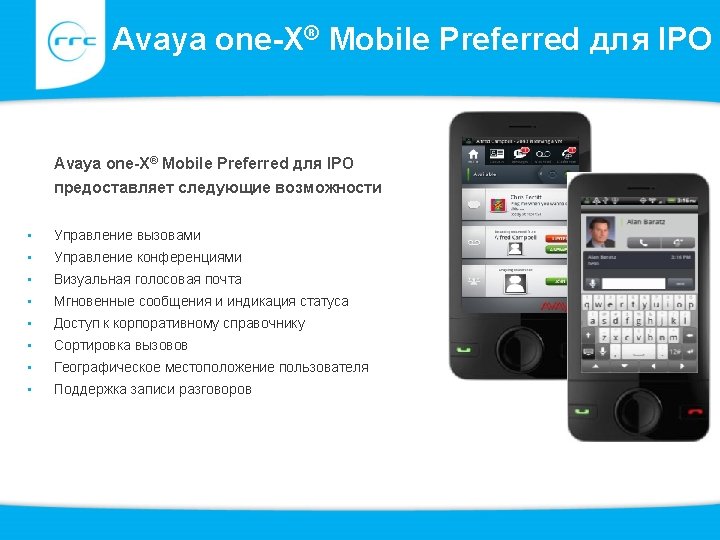

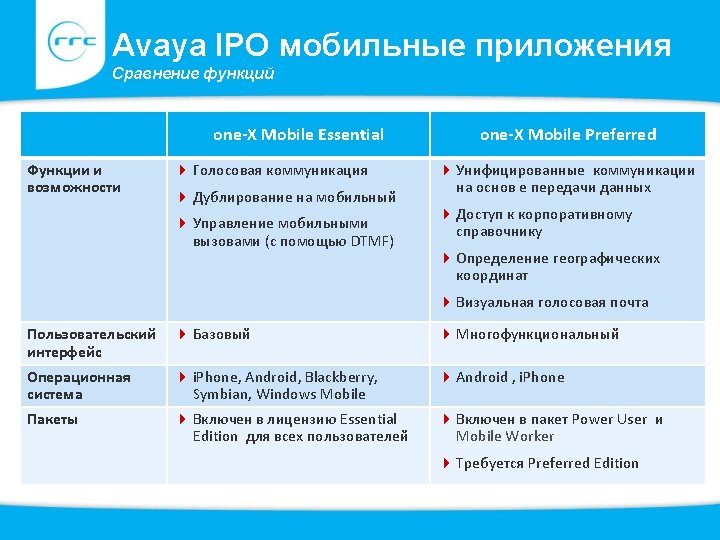

Avaya one-X® Mobile Preferred for IPO Cellular voice / PSTN IP Office Voice calls • Теперь Wi. Fi/3 G/4 G как канал связи - возможность оперативной смены режима • Простота развертывания, использование существующей серверной инфраструктуры Data Voice calls Internet / Cellular Data Network IP Office one-X Portal & Voice. Mail Pro Server Требуется только один физический сервер Microsoft Exchange Server Calendar Integration
IP Office Contact Center
Avaya Contact Center Select Multichannel Contact Center Клиенты Ресурсы контакт центра Agent Groups Voice Agent Email SMS Web Chat Call Back Универсальная очередь External Destination Waiting Announcements IVR Fax Outbound Dialer

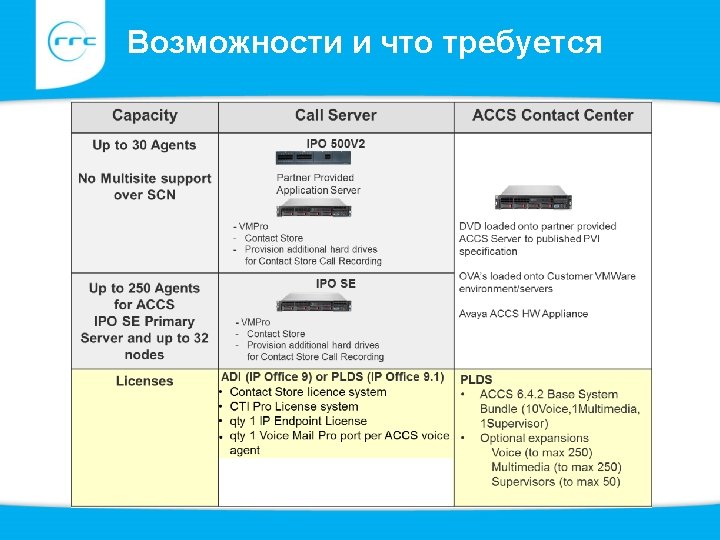

Как заказать ACCS Part No 370230 Base System Offers ACCS R 6 FP 2 Base System Software + License Bundle (10 voice+1 Multimedia+1 Supervisor) 306804 306805 306806 ACCS R 6 VOICE AGT LIC /E ACCS R 6 MMED LIC /E ACCS R 6 SPV LIC /E 700509036 ACCS 6. 4 DVD 306811 + 306812 + 306813 + 306814 + 272801 ACCS OVA (comprising ACCS OVA + AMS OVA + Web LM OVA) 306737 ACCS Hardware Appliance server
Как заказать ACCS Опционально: • Расширяется максимум: - 250 voice - 250 multichannel - 50 supervisor • ACCS Business Continuity Part No Optional expansions 306808 1 x Voice Agent License (ASD provisions 1 Dialog Port 307703 at $0 for every 10 Voice Agents) 306809 1 x Contact Center - Multimedia Agent License 306810 1 x Contact Center -Supervisor License 370231 ACCS Business Continuity - непрерывность бизнес, требуется 2 ACCS

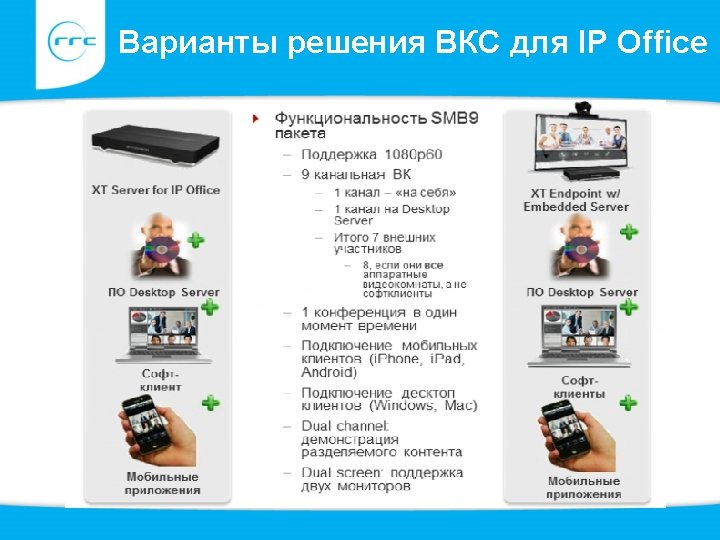

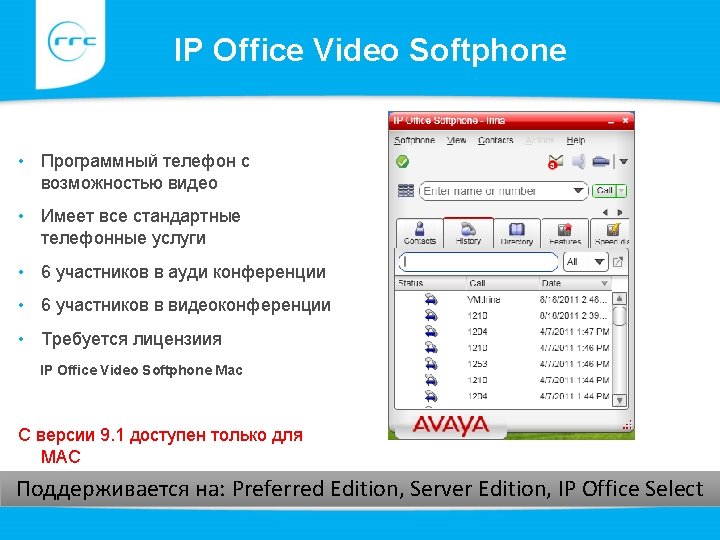

Video Collaboration Solution для IP Office
