Avaya Aura Communication Manager Release 6 0 Overview
- Slides: 37
Avaya Aura™ Communication Manager Release 6. 0 Overview Mike Gerardi - Sunturn
Communication Manager 6. 0 Deployment Options Defined 4 In R 6. 0, Communication Manager is deployed in two modes: – Feature server (In conjunction with Session Manager) – Evolution server (Access for endpoints & trunks) 4 Material Code and Price is the same for both – Since they are just administrable options for the same software 4 Simple to administer – Just a single field in the CM SIP trunk configuration to Avaya Aura. TM Session Manager 4 Must purchase Session Manager hardware to deploy Communication Manager as a feature server 4 Must purchase Session Manager to deploy SIP terminals with the evolution server option – SIP Phones register to Session Manager Avaya – Proprietary. Use pursuant to Avaya policy. 2
Communication Manager 6. 0 Deployment Options Compared 4 Feature server is the descriptor for the option of deploying Communication Manager 6. 0 in the core or remote, in half call model, supporting only SIP endpoints with full application sequencing • SIP Endpoints register with Session Manager • Communication Manager employs the half call model • Supports only G 450/G 430 gateways • Supports full application sequencing 4 Evolution server is the descriptor for the option of deploying CM 6. 0 in the core or remote, in full call model, supporting both SIP and non. SIP endpoints with limited application sequencing • H. 323/Digital/Analog endpoints register with Communication Manager • SIP endpoints register with Session Manager • All endpoints receive service from Communication Manager • Only supports implicit sequencing (limited application sequencing) • Communication Manager employs the full call model • Supports all current Communication Manager gateways and Port Networks Avaya – Proprietary. Use pursuant to Avaya policy. 3
Avaya Aura™ Architecture May 2010 Application Avaya Aura™ for Communication Manager (evolution server) Survivable Core (feature server) System Manager Service Providers Avaya Aura™ Core Connection Session Manager Avaya Aura™ Session Border Controller SIP Trunks Access Communication Manager R 6. x Communication Manager R 5. 2. x (evolution server ) Local SM + CM (feature server) Avaya one-X® SIP endpoints Avaya Aura™ for Survivable Remote For use w/ CM in feature server mode SIP-only Branch No SIP endpoints Supports SIP endpoints w/o SES CM LSP R 5. 2. 1 Avaya Aura™ for Survivable Remote Avaya one-X® Local SM + CM (evolution server) For use w/ R 5. 2. 1 no SIP endpoint survivability Avaya one-X® H. 323/Digital endpoints SIP endpoints Avaya one-X® H. 323/Digital endpoints Hybrid SIP, non-SIP Branch Non-SIP CM 5. 2 Branch Avaya – Proprietary. Use pursuant to Avaya policy.
Avaya Aura™ Communication Manager Templates 4 Every release of Communication Manager 6. 0 will be on the Avaya Aura. TM System Platform 4 A template is a configuration of applications running on System Platform 4 Simpler and easier to install, configure and manage The Template Prior to CM 6. 0 Communication Manager Avaya Aura™ Applications System Platform Avaya – Proprietary. Use pursuant to Avaya policy. 5
Avaya Aura™ Communication Manager Solutions / Templates Avaya Aura™ CM Main / Avaya Aura™ for Survivable Core Duplex version Simplex version CM_Duplex CM_Simplex Domain 0/1 Hypervisor (Dom 0) CDOM (Dom 1): SAL Hypervisor (Dom 0) CDOM (Dom 1): SAL Dom 2 CM 6. 0 Utility Services CM/CMM 6. 0 CM 6. 0 CM/CMM 6. 0 Session Manager 6. 0 for Survivable Remote Template Name Dom 3 Dom 4 Use Case Large Enterprises (>5000 stations) who want a CM feature server and survivable feature server. Or as access elements. Duplex: 18 K H. 323 or SIP endpoints Equal or greater than 5. 2 capacity Avaya Aura™ for Survivable Remote Simplex version Embedded version Avaya Aura™ CM Main Embedded version CM_Surv. Remote. Embed CM_only. Embed To survive endpoints at remote sites (H. 323, digital, analog, SIP). LSP migration. • Simplex: 2400+ SIP/ H. 323 active stations (5000 station) • Embedded: 450+ SIP/ H. 323 active stations (1000 station) 450+ SIP/H. 323 endpoints; (1000 stations) 6000 CM mailboxes HW 2 - S 8800 S 8510 w/ 8 G or S 8800 S 8300 D Avaya – Proprietary. Use pursuant to Avaya policy. 6
Avaya Aura™ Communication Manager Templates 4 Avaya Aura™ CM 6. 0 offers two main/core templates – Installed on S 8800 or S 8510 server with System Platform 4 Avaya Aura™ Communication Manager - Duplex CM Main / Survivable Core Template (for S 8800 only) – Template includes CM 6. 0 – Requires two servers (same identical server hardware) and can be a Main (default) or ESS-like survivability – Template name: CM_Duplex 4 Avaya Aura™ Communication Manager - Simplex CM Main / Survivable Core Template (for S 8800 and S 8510) – Template includes CM 6. 0, CMM 6. 0 and Utility Services – Template name: CM_Simplex – Can be a Main (default) or ESS-like or LSP-like survivability Avaya – Proprietary. Use pursuant to Avaya policy. 7
Business Continuity – Levels of redundancy Avaya Aura™ Communication Manager R 6 (Feature Server) PSTN Avaya Aura™ for Survivable Core (Feature Server) 2 1 Data Center Session Manager 6. 0 2 3 System Manager R 6 4 5 5 SM / CM on System Platform Avaya Aura™ for Survivable Remote Audio. Codes (Thin Survivable Branch) Location 1: SIP Endpoints Non-critical remote site, basic survivability during WAN outage Location 2: SIP Endpoints Critical Remote Site, requires full feature survivability in case of WAN outage Levels of redundancy Avaya – Proprietary. Use pursuant to Avaya policy.
Avaya Aura™ Communication Manager Templates 4 Avaya Aura™ CM 6. 0 offers one embedded main template – Embedded is on the S 8300 D server with System Platform 4 Avaya Aura™ Communication Manager - Embedded CM Main Template (for S 8300 D only) – Template includes CM/CMM 6. 0 (in the same VM) and Utility Services – Template name: CM_only. Embed – Can be a Main (default) 4 For JITC market and JITC testing – Can be used as an LSP-like survivability – Not to be used for survivability in the civilian or commercial market, use instead Avaya Aura™ for Survivable Remote Avaya – Proprietary. Use pursuant to Avaya policy. 9
Avaya Aura™ Communication Manager Templates 4 Avaya Aura™ CM 6. 0 offers two survivable remote templates – Installed on S 8800/8510 or S 8300 D server with System Platform 4 Avaya Aura™ CM for Survivable Remote (for S 8800 and S 8510) – Enables ESS-like or LSP-like survivability – Template includes CM 6. 0, Branch Session Manager 6. 0 and Utility Services – Template name: CM_Surv. Remote 4 Avaya Aura™ CM for Embedded Survivable Remote (for S 8300 D) – Enables survivability of telephony and access at remote locations in a LSP-like mode – Template includes CM 6. 0, Branch Session Manager 6. 0 and Utility Services – Template name: CM_Surv. Remote. Embed Avaya – Proprietary. Use pursuant to Avaya policy. 10
Thick Remote Office Survivability: 100% SIP endpoints - utilize CM Feature Server Communication Manager Feature Server SIPISC Avaya Aura™ for Survivable Remote (Simplex) SIPISC Core SM SM Avaya Aura™ for Survivable Remote (Embedded) SM SIP Secondary, rainy day SIP Primary Service Secondary, rainy day SIP For Survivable Remote Sites: Utilize system platform with Branch SM and CM feature server on either a simplex (S 8800, S 8510) or embedded S 8300 D server 4 96 xx SIP Phones register to (1) the main SM, (2) a backup main SM, (3) and the Local BSM. On a WAN outage the local SM and CM feature server take over. 4 Media services provided by the local H. 248 gateway during sunny and rainy day scenarios 4 Avaya – Proprietary. Use pursuant to Avaya policy. 11
Avaya Aura. TM Communication Manager 6. 0 Servers 4 S 8300 D 4 Embedded blade for Avaya Aura Gateways (G 450/30, 350, 250, 700) 4 S 8510 Server - not used for duplication 4 Use in a simplex migration by adding memory add 6 GB to total of 8 GB 4 most have 250 GB HDD but if 146 G HDDs, add third 146 GB HDD and RAID 5 4 S 8800 Server for Communication Manager 6. 0 4 700478514 comcode, with a single CPU-quad core, 12 GB RAM 4 Three 146 GB hard disks (HDD) in RAID 5, 272 GB useable 4 6 total NICs: 2 on mother board, 2 on daughter card, 2 on PCI NIC 4 Single power supply (with optional second power supply) 4 Software duplication available, hardware duplication is not offered Avaya – Proprietary. Use pursuant to Avaya policy. 12
Communication Manager on System Platform 4 All instances of Communication Manager 6. 0 run on System Platform – CM is in its own virtualized machine (VM) and does not “own the hardware” 4 All platform (Server-type) items managed by System Platform 4 Installation via a solution template (CM with BSM & …) after System Platform installed 4 The five CM 6. 0 templates are all packaged in a single CM_super. iso – CM_Duplex, CM_Simplex, CM_only. Embed, CM_Surv. Remote, CM_Surv. Remote. Embed Avaya – Proprietary. Use pursuant to Avaya policy. 13
Software Installation and Access to Media 4 If the customer chooses to download software from Avaya 1. Customer/partner will go to the download pages on support. avaya. com which will be linked to PLDS – the CM pages look a lot like they do today for CM 5. x. 2. Download & utilize pre-migration patches (per previous CM release) – as needed to migrate data (used in migration restore step) – migrations from CM 5. 2. 1, 5. 2. 0 and 5. 1. 2 supported 3. Customer/partner will download System Platform (SP) 6. 0, burn a. ISO DVD & install System Platform on the server – Insert the bootable SP. ISO DVD into the server’s drive – Walk thru nominal questions, e. g. VLAN assignments Avaya – Proprietary. Use pursuant to Avaya policy. 14
Software Installation and Access to Media 4. Download the Installation Wizard to collect CM initial configuration data/information – Install Wizard is customized per template to gather user inputs: IP addresses, hostnames, proxy, DNS servers, initial cust login, etc. – Install Wizard runs standalone w/o server hardware, run on PC – Save EPW file to import initial CM configuration data at install 5. Download the CM super. ISO package of five CM 6. 0 templates – Or utilize System Platform Console to reach PLDS directly 6. Bring License file and Authentication file to System Platform (SP) – Web. LM Server contained on System Platform Avaya – Proprietary. Use pursuant to Avaya policy. 15
Software Installation and Access to Media 7. Install one of the templates via System Platform Console – Initial template install will initialize the Install Wizard • Import saved EPW information • Else real-time Install Wizard will prompt for initial configuration data – THIS IS REQUIRED 8. Configure CM and other applications through standard interfaces accessed directly into the VM – CM and CMM use SAT, SMI Web Pages, Pro. Vision, etc. – BSM uses Avaya Aura. TM System Manager – Utility Services Web Pages Avaya – Proprietary. Use pursuant to Avaya policy. 16
Software Installation and Access to Media 4 If the customer chooses to receive physical media, there are optional orderable items: – System Platform. ISO DVD – CM_super. ISO DVD – RAID conversion CDs that are needed for server configuration set -up/changes for S 8800 and certain S 8510 migrations 4 Customer/Partner will still have to download the following from support. avaya. com or PLDS, Product Licensing and Delivery System – pre-install patches, service packs, firmware updates, etc. Avaya – Proprietary. Use pursuant to Avaya policy. 17
System Platform (SP) – Provides 4 Use Web. Console 4 Installation 4 Upgrading between templates / releases – Once the first template is installed 4 Additional details System Platform Architecture, Administration and Maintenance by Prasad Subramanian Avaya – Proprietary. Use pursuant to Avaya policy. 18
System Platform (SP) – Provides 4 Remote Access utilizing SAL, Secure Access Link – IP (internet) only, No modem support – Avaya exclusively uses SAL for remote access 4 Hardware interface for reliability – System Platform has VM restart capabilities – No SAMP, Server Availability Management Processor, support • Remove the SAMP from the migrated s 8510 – System Platform interfaces with S 8800 IPMI, Intelligent Platform Management Interface. IPMI has additional restart capabilities Avaya – Proprietary. Use pursuant to Avaya policy. 19
System Platform (SP) – Provides Alarming 4 Alarming thru SAL, Secure Access Link – System Platform (SP) alarms hardware/platform items • SP manages server hardware alarms, forwards SNMP thru SAL – RAID, environmental, fans, power supplies, etc. – Applications (e. g. CM) alarm using SNMP directed thru SAL 4 Changes for CM 6. 0 alarming – CM ‘display alarms’ will not show platform/server alarms – New Sys. OID for CM 6. 0 (1. 3. 6. 1. 4. 1. 6889. 1. 8. 1. 58 – avaya-aura-cm) 4 SAL can forward SNMP • CM can also forward SNMP: SNMP-INADS (for Avaya) or SNMP-FPM to Fault Performance Manager or an NMS Avaya – Proprietary. Use pursuant to Avaya policy. 20

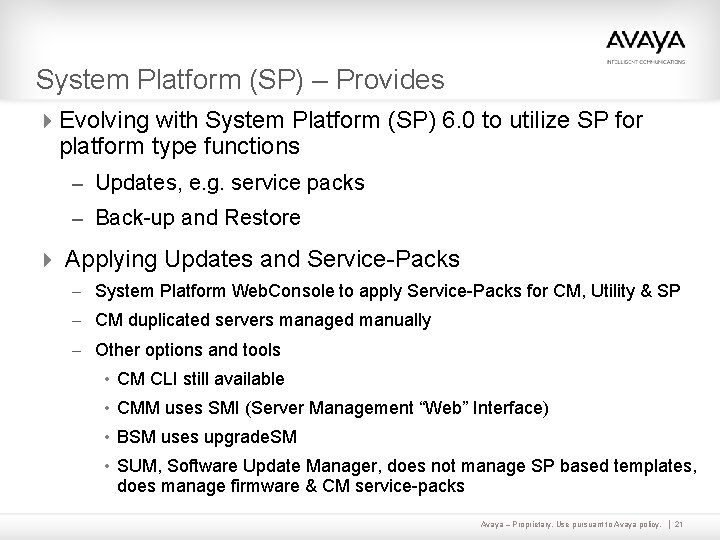

System Platform (SP) – Provides 4 Evolving with System Platform (SP) 6. 0 to utilize SP for platform type functions – Updates, e. g. service packs – Back-up and Restore 4 Applying Updates and Service-Packs – System Platform Web. Console to apply Service-Packs for CM, Utility & SP – CM duplicated servers managed manually – Other options and tools • CM CLI still available • CMM uses SMI (Server Management “Web” Interface) • BSM uses upgrade. SM • SUM, Software Update Manager, does not manage SP based templates, does manage firmware & CM service-packs Avaya – Proprietary. Use pursuant to Avaya policy. 21
System Platform (SP) – Provides 4 Back-up and Restore – Use System Platform to back-up and restore SP and applications – SP Console Back-up does not back-up CMM Message Store and database – Other options and tools • CM and CMM has further back-up options thru CM’s SMI (Server Management Interface) • BSM also uses System Manager – No back-ups to Flash cards • SP supports local, SFTP, email – SP does not encrypt back-ups • Can encrypt thru CM SMI (Server Management Interface) Avaya – Proprietary. Use pursuant to Avaya policy. 22
Changes with Communication Manager 6. 0 4 No support for CNA/CNB – Control Network A, Control Network B no longer supported – Used bonded NICs thru System Platform for redundancy • Use corporate LAN and allow customer network / routes to customize 4 No support for Fiber Connectivity/Center Stage Switch – No fiber connectivity including Expansion Interfaces, DS 1 Converter, ATM – We’ll test Center Stage Switch for federal at a later date but only for federal customers! 4 SES will not be supported with CM R 6. 0 – It is not needed with Session Manager & the Evolution Server Avaya – Proprietary. Use pursuant to Avaya policy. 23
Changes with Communication Manager 6. 0 4 SMI, Server Management Interface, changes – Some items eliminated, some just changed – Due to using System Platform, CM changes, offer changes, etc. – Server Configuration & Configure Server – Eject Cd-rom – Diagnostics: Temperature/voltage – Server Upgrades – Modem, Modem Test – Manage Software – Network Time Sync – Make Upgrade Permanent – Server – Boot Partition – Raid Status – Update BIOS – Configure Time-server – Data Backup/restore – Set Modem Interface – Format Compact – Configure Rmb – – Restore Default -- now done by reinstalling the VM Tripwire/tripwire commands -- tripwire is no longer supported – IP phones – tftpboot Avaya – Proprietary. Use pursuant to Avaya policy. 24
CM SMI Pages – Server Role Avaya – Proprietary. Use pursuant to Avaya policy. 25
CM SMI Pages – Network Configuration Avaya – Proprietary. Use pursuant to Avaya policy. 26
Changes with Communication Manager 6. 0 4 Migrations only – no upgrades from previous CM 5. x – Migrate translations plus certain platform data • CM 5. 2. 1, 5. 2. 0 and 5. 1. 2 - User. Logins, Logs, etc. – Licensing changes – use Web. LM – License & authentication files get installed via System Platform 4 Increased capacities Avaya – Proprietary. Use pursuant to Avaya policy. 27
Boot Time Memory configurations 4 Boot Time Memory (BTM) and Template Memory Sizes (configurable thru SMI with defaults set) 4 Match survivable with the main 4 Migrations from pre-6. 0 used a standard or Xlarge memory configuration – If the main was/is a standard, the LSP should be medium survivable. – If the main was/is a xlarge, the LSP should be a large survivable. – If the main was/is an S 8300, the LSP should be a small survivable. – CM_Duplex, CM_Simplex, CM_Surv. Remote. Embed templates default to large – CM_only. Embed defaults to small Avaya – Proprietary. Use pursuant to Avaya policy. 28
Changes with Communication Manager 6. 0 4 Impacts to AIM, Avaya Integrated Management – No AIW, Avaya Installation Wizard – NRW, Network region Wizard, moved to separate standalone download – SUM does manages firmware & CM service-packs, not upgrades/migrations for CM 6. 0 – Additional details: Avaya Integrated Management 6. 0 Eran Shapiro, Al Garcia 4 Move items from CM to Utility Services – ESD, Enhanced System Directory – Phone and GW firmware file management including http server. Note TN firmware is not included in the Utility Services Avaya – Proprietary. Use pursuant to Avaya policy. 29
Utility Services 4 HTTP and HTTPS fileserver for IP phones & Gateway firmware 4 Scheduling and control of H 323 IP phone firmware upgrades 4 Control of IP phone settings via GUI settings editor 4 My. Phone (self administration tool for IP phone users) 4 CDR collection tools 4 DHCP server 4 Enterprise System Directory allowing LDAP lookups via IP Phones Avaya – Proprietary. Use pursuant to Avaya policy. 30
System Capacities 4 There are some key capacity changes in CM 6. 0 to align better with the Avaya reference architecture with Session Manager at the core – Better CM SIP trunk capacities – Increased station capacity 4 Offer capacities are now set by the deployed System Platform template – Similar to platform limits in previous releases, but a bit more hardware independent – Set by “boot time memory” parameters Avaya – Proprietary. Use pursuant to Avaya policy. 31
Capacity Increases 4 SIP Trunking Expansion – Increased from 7, 000 to 24, 000 for CM in the Feature Server configuration (“IMS Enabled” set to “y”) – Increased to 12, 000 CM in the Evolution Server configuration (“IMS Enabled” set to “n”) – A single CM does not support simultaneous administration of “Feature Server” SIP trunks and “Evolution Server” SIP trunks 4 Scale – CM now supports up to 18, 000 IP endpoints • May be any mix of H. 323 or SIP stations – Up to 10, 000 agents are supported – SIP performance is also improved by replacing and upgrading certain components of the SIP “stack” Avaya – Proprietary. Use pursuant to Avaya policy. 32
Offer Capacities determined by Template 4 Avaya Aura™ Main / Avaya Aura for Survivable Core (Simplex configuration) – – – Contrast with CM 5. 2. 1 S 8800 simplex 18000 H. 323 / SIP stations (up from 2400) 24000 SIP trunks in feature server mode, half call model (up from 7000) 12000 SIP trunks evolution server (up from 7000) Unless in a survivable configuration, then 12000 SIP trunks on main and 12000 on survivable server 4 Avaya Aura Main / Avaya Aura for Survivable Core (Duplex configuration) – – Contrast with CM 5. 2. 1 S 8800/S 87 xx duplex Capacities are the same as Avaya Aura Main / Avaya Aura for Survivable Core (Simplex configuration) above 4 Embedded CM Main Template – – Contrast with CM 5. 2. 1 S 8300 D 1000 H. 323 / SIP stations (up from 450) 4000 trunks (up from 450) Unless in a survivable configuration, then 2000 SIP trunks on main and 2000 on survivable server Avaya – Proprietary. Use pursuant to Avaya policy. 33
Capacities by Template (continued) 4 Avaya Aura for Survivable Remote (Simplex configuration) – Contrast with CM 5. 2. 1 LSP on S 8800 simplex – 5000 active H. 323 / SIP stations (up from 2400) – 12000 active H. 323 / SIP trunks (up from 7000) – Supports full core server translation set for survivability 4 Avaya Aura for Survivable Remote (Embedded configuration) – Contrast with CM 5. 2. 1 LSP on S 8300 D – 1000 active H. 323 / SIP stations (up from 450) – 2000 active H. 323 / SIP trunks (up from 450) – Supports full core server translation set for survivability Avaya – Proprietary. Use pursuant to Avaya policy. 34
thank you Mike Gerardi mgerardi@sunturn. com 602 -388 -4505 Avaya – Proprietary. Use pursuant to Avaya policy. 35
4 Back-up Avaya – Proprietary. Use pursuant to Avaya policy. 36
S 8800 NIC Layout (rear of server) for CM 6. 0 5. 6. 18. 19. 20. 21. 22. PCI Ethernet connector 1 (eth 5) – not used at this time (subject to change) PCI Ethernet connector 0 (eth 4) – not used at this time Ethernet connector 2 (eth 1) – Services Port Ethernet connector 1 (eth 0) – Corporate LAN/Processor Ethernet connector 4 (eth 3) – CM duplication link (when needed) Ethernet connector 3 (eth 2) – HA / 2 nd NIC for bonding to eth 0 System MGMT (management) Ethernet connector (IMM – Integrated Management Module) Avaya – Proprietary. Use pursuant to Avaya policy. 37
