Available Hardware 1 Qube 50 Qube 300 Qtanium
Available Hardware • • • 1 Qube 50 Qube 300 Qtanium 100 Qtanium 200 Qtanium 350 Qtanium 400 TM 470 R MDT 860 MNav 950 Garmin 670 Garmin Nuvi 2539 • • Dallas Key (Key Fob) Con-Ex Satellite CDMA TAT – Trailer Asset Tracking PTO Jbus & OBDII

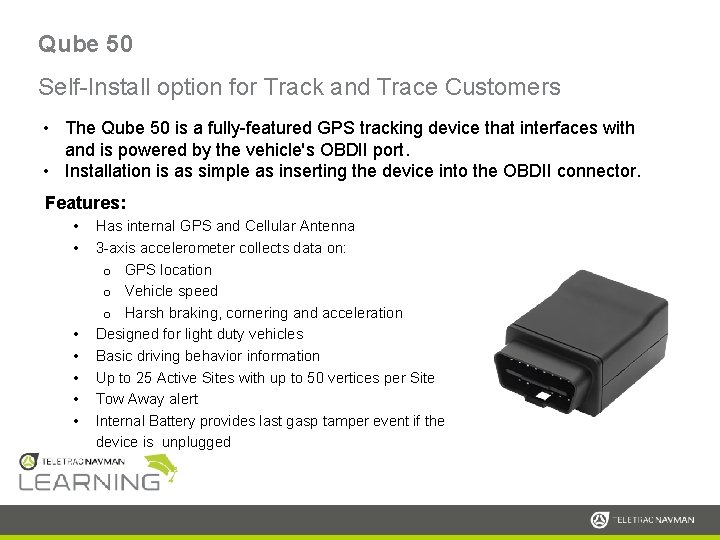

Qube 50 Self-Install option for Track and Trace Customers • The Qube 50 is a fully-featured GPS tracking device that interfaces with and is powered by the vehicle's OBDII port. • Installation is as simple as inserting the device into the OBDII connector. Features: • • 2 Has internal GPS and Cellular Antenna 3 -axis accelerometer collects data on: o GPS location o Vehicle speed o Harsh braking, cornering and acceleration Designed for light duty vehicles Basic driving behavior information Up to 25 Active Sites with up to 50 vertices per Site Tow Away alert Internal Battery provides last gasp tamper event if the device is unplugged
Qube 300 On-Road Tracking Device • Designed for on road use. Basic track and trace with the ability to do some safety metrics via accelerometer. Features: • Supports MNav 800 & 950 and Iridium Satellite modems • Supports up to 8 conex’s - 4 digital inputs, 2 digital outputs and 2 multi I/O • Supports 1 – wire for temperature monitoring • 600 active sites • Accelerometer • Back-up battery • Tamper cover • Includes power harness 3
TM 470 On-Road Tracking Device • Designed for on road use. Basic track and trace with the ability to do some safety metrics via accelerometer. Features: • The TM 470 contains a GPS receiver and cellular modem • Supports 2 digital inputs and 2 digital outputs • Version 8 variants of the TM 470 contain a Pic processor which can be used to directly interface with vehicle J-Bus systems in order to collect information about vehicle behaviour and performance from its on-board computer.
TRAILER AND ASSET TRACKING 5 TELETRAC NAVMAN, INTERNAL 2016
Qtanium 100 Non-powered Asset Tracking Device • Self-powered tracker designed for unpowered assets and trailers with basic location only settings at set time intervals throughout a day. Features: • Self powered • Store up to 10 active sites • Replaceable Lithium ion battery • Updates location only at set time intervals • IP 67 Rated • Installation is easy – bolt or magnet mounted • Device sends an alert when the battery is low • Sends location update information periodically • Once a day – 7 year battery life • Every 2 hours – 3 year batter life • Every 4 hours – 18 month batter life
Qtanium 200 Powered Asset Tracking Device • The Qtanium 200 will be Teletrac Navman’s latest asset tracking device based on Cal. Amp’s TTU 2830. The QT 200 has a broad range of usage from trailer to asset tracking for Resources, Mining and Construction markets. • Specifically designed to locate, manage and recover company equipment. • In-motion visibility of trailer and asset positioning with updates times that are configurable. • The ability to set up Active Site alerts and notifications to automate status reporting. Director notifies users when a trailer unit has arrived at a customer site. • Powerful charge power. When the product is hooked to a tractor unit, its internal battery starts charging— meaning the next time the tractor is un-hooked, it continues reporting its position without the need for external power.
Qtanium 200 Features: • Waterproof • 3 -axis precision accelerometer for motion detection • 4 power states for battery conservation (Hibernate, Asleep, Low Power and Fully Active) • 6 month with single message cycle per day on fully charged battery • 2 inputs / 2 Outputs • 20, 000 buffered messages • 100 built-in Active Sites (and 5400 vertices for polygon zones) • Over-the-air configuration and firmware updates • GPRS, CDMA 1 x. RTT and HSPA
Choosing the Correct Equipment Use the table below to determine the best asset tracking option for your customers Application/Equipment Power Connection Preferred Application Type Unit Type 48 /53 foot Standard Box/ 7 way Power QT 200 Pulled by a Semi Truck rarely sits at one location for more Dry Van Trailer connection than 10 days at a time 48/53 Standard 7 way Power QT 200 Pulled by a Semi Truck rarely sits at one location for more Reefer/Refrigerated connection or than 10 days at a time trailers Reefer battery 48/53 Standard Flatbed/ 7 way Power QT 200 Pulled by a Semi Truck rarely sits at one location for more Lowboy Trailers connection than 10 days at a time Gooseneck Trailer 5 Way Power QT 100 Usually used to pull equipment can sit for more than 10 connection day up to weeks at a time, pulled by a pickup truck Small Utility Box Trailers 5 Way Power QT 100 Usually used to pull equipment can sit for more than 10 connection day up to weeks at a time, pulled by a pickup truck
HEAVY EQUIPMENT PRISM UNITS 11 TELETRAC NAVMAN, INTERNAL 2016
Qtanium 350 Off-Road Tracking Device • Designed for all makes and models of off road equipment. Basic track and trace. Features: • Supports MNav 800 & 950 and Iridium Satellite modems • Supports up to 8 conex’s - 6 digital inputs and 2 multi I/O • 600 active sites • Back-up battery • IP 67 Rated • Shock testing to 30 G and vibration testing to 9 G • Includes power harness
Qtanium 400 Off-Road Tracking Device • Designed for all makes and models of off road equipment. Next Generation Off. Road Tracking device. Replacing Qtanium 350.
Qtanium 400 Off-Road Tracking Device Features: • Supports MNav 800 & 950 • Supports up to 8 conex’s - 4 digital inputs, 2 digital outputs and 2 “multi” – digital in/out/analogue inputs • 3 Communication variants: Base (cellular), Base + (internal) Wi-Fi, Base + Satellite (internal) • 2 Network Variant: HSPA & CDMA • Built in Isolating Power Supply, isolation between chassis and the negative supply terminal • 600 active sites • Up to 3 months operation from internal battery • IP 67 rated and exceeds SAE J 1455 shock and vibration standard • Shock testing to 30 G and vibration testing to 9 G
TM 470 R Off-Road Tracking Device • Designed for all makes and models of off road equipment. Basic track and trace. Features: • Supports up to 6 conex’s – 2 Analog inputs, 1 analog output, 118 micro, 1 -DB-9 RS 232 Serial Port and 1 -DB 15 1708/21939 J-Bus • 32 active sites • IP 66 Rated
MDT 860 Communication Device • Used to streamline and automate a variety of tasks currently accomplished through manual means. Can be used on on/off road vehicles and equipment. Features: • 2 way communication (no navigation) • Send status updates • Virtual time clock “punching in and out” • Dispatch vehicles • Track in vehicle inventory • Track fuel use/take-in • User can set preset messages/forms • Driver pin
MNav 950 Navigation Device • Navigator with the addition of Navman Wireless Drive that provides messaging, forms, EMS and Driver ID. Optimized for heavy transport operation and to route large vehicles or those with hazardous cargo. Can be used with on/off road vehicles.

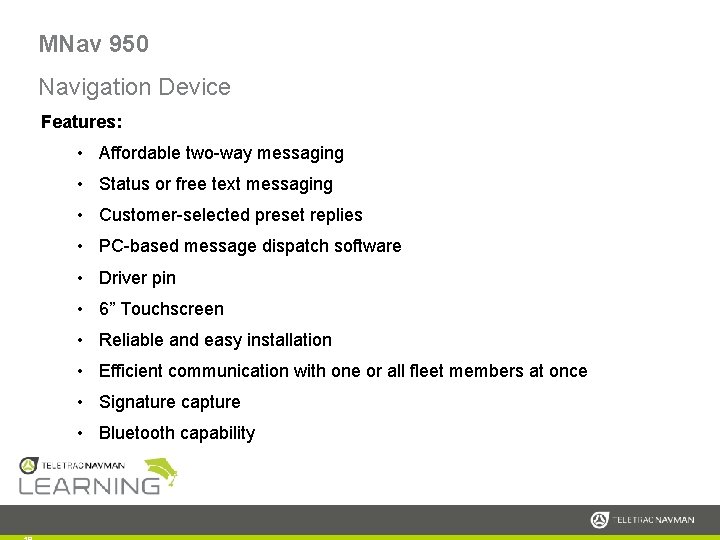

MNav 950 Navigation Device Features: • Affordable two-way messaging • Status or free text messaging • Customer-selected preset replies • PC-based message dispatch software • Driver pin • 6” Touchscreen • Reliable and easy installation • Efficient communication with one or all fleet members at once • Signature capture • Bluetooth capability
Garmin 670 Navigation Device • Navigator with the addition of Teletrac Driver’s app that provides messaging, forms and HOS. Optimized for heavy transport operation and to route large vehicles or those with hazardous cargo. Can be used with on/off road vehicles.

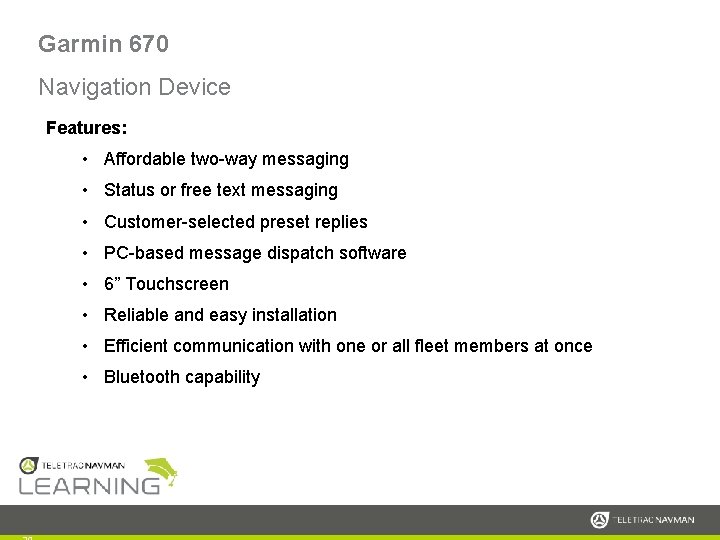

Garmin 670 Navigation Device Features: • Affordable two-way messaging • Status or free text messaging • Customer-selected preset replies • PC-based message dispatch software • 6” Touchscreen • Reliable and easy installation • Efficient communication with one or all fleet members at once • Bluetooth capability
Garmin Nuvi 2539 Navigation Device • Navigator with the addition of Teletrac Driver’s app that provides messaging and navigation. Optimized for heavy transport operation and to route large vehicles or those with hazardous cargo. Can be used with on/off road vehicles.
Garmin Nuvi 2539 Navigation Device Features: • Messaging and navigation • Affordable two-way messaging • Status or free text messaging • Customer-selected preset replies • PC-based message dispatch software • 5” Touchscreen • Reliable and easy installation • Removable • Efficient communication with one or all fleet members at once
Dallas Key (Key Fob) Driver ID Device • Simple magnetic tap device used to identify driver/operator to on/off road vehicle/equipment. Features: • Driver ID device • RFID
Conex Sensor Device • Used to connect to 3 rd party sensors for activity tracking. Such as, door open/closed, oil pressure switches or any sensor with an electrical output. Features: • Supports inputs and outputs for on road vehicles and RS 232 inputs • Used to measure Power Take Off (PTO)

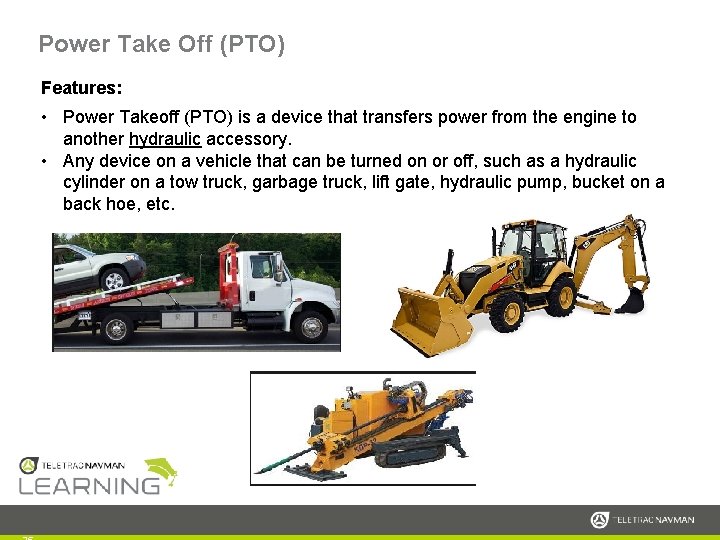

Power Take Off (PTO) Features: • Power Takeoff (PTO) is a device that transfers power from the engine to another hydraulic accessory. • Any device on a vehicle that can be turned on or off, such as a hydraulic cylinder on a tow truck, garbage truck, lift gate, hydraulic pump, bucket on a back hoe, etc.
Satellite Device • Designed primarily for construction, foresting, mining and oil & gas industries in remote areas. Can be used with either Qube or Qtanium. Features: • Used in remote areas with little to no cell coverage • Switches automatically to satellite when no cell coverage detected • Uninterrupted real-time tracking • Can be configured to limit satellite transmissions to priority events (such as panic messages, rollover alerts, engine overheating, speed or geofence violations) until cellular coverage is restored.
Vehicle Diagnostics Jbus & OBDII • Provides essential vehicle health, fuel consumption and emissions data even before the driver knows what’s going on through the vehicle’s ECM (Electronic Control Module) via a J-Bus or OBDII cable. Features: • Allows fleet managers to safeguard the safety and longevity of their vehicles. • Produces diagnostic reports enabling proactive maintenance, increasing company productivity, efficiency and performance. • Over the road vehicles, semi-trucks or big rig vehicles will require a J-bus connection. J-Bus OBD II
Edition Hardware Software Platform Essential Professional Qube 50 TM 470 Director Professional Qube 300 Director Professional + Driver ID Qube 300 Director Professional + Diagnostics TM 470 Director Professional + HOS TM 470 Fleet Director Professional + HEV Professional + Trailer Professional + LEV QT 350 QT 100 QT 200 Director 28 TELETRAC NAVMAN, INTERNAL 2016
VLU Type Hardware Compatibility Peripheral Type and Extras CTO 5 Samsung w/ TT Drive App TM 470 Garmin 670 w/ TT Drive App Garmin Nuvi 2539 TM 470 R Qube 300 Qtanium 350 Qtanium 400 29 TELETRAC NAVMAN, INTERNAL 2016 N/A MNAV 800 w/ HOS MNAV 950 w/o HOS MDT 860 Dallas Key (Key fob) Satellite VPOD
QUESTIONS? If you have any questions in regards to the new software or features, please contact. Ops Training. 30 PRESENTATION NOTE, IF NECESSARY
Qube 300 Specs Physical • Weight: 320 g • Packed Weight (Gift Box): 600 g • Case Material: Bayer KU 2 1514 • ABS/Polycarbonate blend • Tamper Cover: Polycarbonate Current Consumption at 13. 8 V (27. 6 V) • Sleep State: <3 m. A @ 12 V DC • Awake, modem ON: 70 m. A (35 m. A) • Awake, average transmit event once • every one minute: 120 m. A (60 m. A) • Peak transmit current: 250 m. A (130 m. A) • Battery charging: additional 150 m. A (80 m. A) Power Supply • Nominal operating voltage: 12 or 24 V vehicle supplies • Minimum operating voltage: 8 V DC • Maximum operating voltage: 30 V DC Digital Output • Maximum sink current 250 m. A (over current protection/shut-off) Temperature Monitoring • Maximum of six Navman Wireless digital temperature probes • Maximum 30 m cable length per installation Digital Inputs • Input Voltage LOW: <1. 0 V (Active High mode) • Input Voltage HIGH: >5. 0 V (Active High mode) • Input Voltage LOW: <0. 2 V (Active Low mode) • Input Voltage HIGH: >0. 5 V or not connected (Active Low mode) • Absolute Maximum Voltage: 33 V (Independent of supply) Analogue Input • Voltage Range: 0 -33 V DC • ADC Resolution: 12 bit • Absolute Maximum Voltage: 40 V DC Serial Interface • RS 232 x 3 Environmental • Storage Temperature: -40 to +85°C (-40 to +185°F) • Operational Temperature: -20 to +70 C(-4 to +158°F) • IP Rating: IP 4 X • Humidity: SAE J 1455 • Vibration: SAE J 1455 • Shock: 20 G 10 m. S Ignition Input • Absolute Maximum Voltage: 33 V (independent of supply)

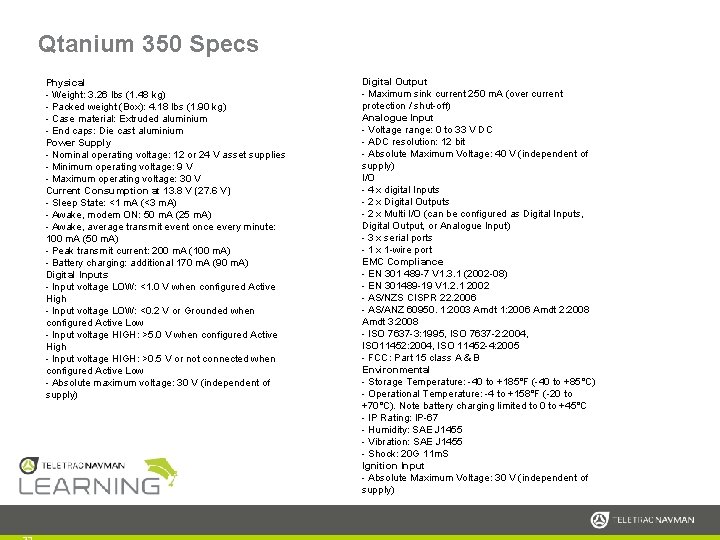

Qtanium 350 Specs Physical - Weight: 3. 26 lbs (1. 48 kg) - Packed weight (Box): 4. 18 lbs (1. 90 kg) - Case material: Extruded aluminium - End caps: Die cast aluminium Power Supply - Nominal operating voltage: 12 or 24 V asset supplies - Minimum operating voltage: 9 V - Maximum operating voltage: 30 V Current Consumption at 13. 8 V (27. 6 V) - Sleep State: <1 m. A (<3 m. A) - Awake, modem ON: 50 m. A (25 m. A) - Awake, average transmit event once every minute: 100 m. A (50 m. A) - Peak transmit current: 200 m. A (100 m. A) - Battery charging: additional 170 m. A (90 m. A) Digital Inputs - Input voltage LOW: <1. 0 V when configured Active High - Input voltage LOW: <0. 2 V or Grounded when configured Active Low - Input voltage HIGH: >5. 0 V when configured Active High - Input voltage HIGH: >0. 5 V or not connected when configured Active Low - Absolute maximum voltage: 30 V (independent of supply) Digital Output - Maximum sink current 250 m. A (over current protection / shut-off) Analogue Input - Voltage range: 0 to 33 V DC - ADC resolution: 12 bit - Absolute Maximum Voltage: 40 V (independent of supply) I/O - 4 x digital Inputs - 2 x Digital Outputs - 2 x Multi I/O (can be configured as Digital Inputs, Digital Output, or Analogue Input) - 3 x serial ports - 1 x 1 -wire port EMC Compliance - EN 301 489 -7 V 1. 3. 1 (2002 -08) - EN 301489 -19 V 1. 2. 1 2002 - AS/NZS CISPR 22. 2006 - AS/ANZ 60950. 1: 2003 Amdt 1: 2006 Amdt 2: 2008 Amdt 3: 2008 - ISO 7637 -3: 1995, ISO 7637 -2: 2004, ISO 11452 -4: 2005 - FCC: Part 15 class A & B Environmental - Storage Temperature: -40 to +185°F (-40 to +85°C) - Operational Temperature: -4 to +158°F (-20 to +70°C). Note battery charging limited to 0 to +45°C - IP Rating: IP-67 - Humidity: SAE J 1455 - Vibration: SAE J 1455 - Shock: 20 G 11 m. S Ignition Input - Absolute Maximum Voltage: 30 V (independent of supply)
MNav 950 Specs

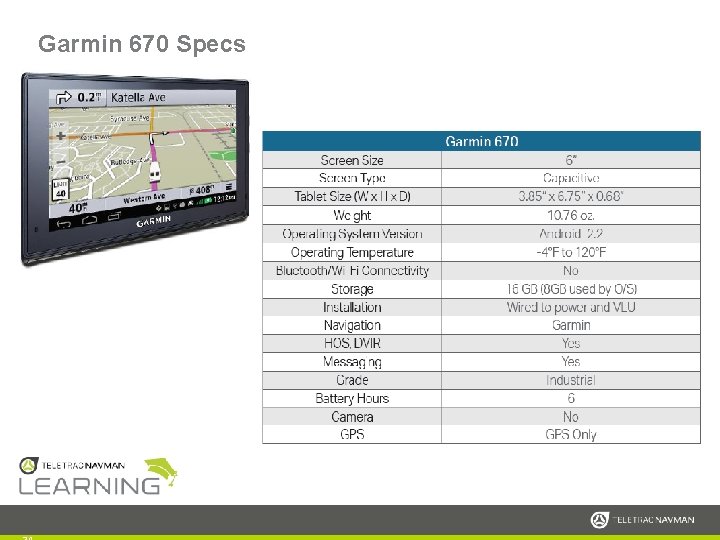

Garmin 670 Specs
TM 470 R Specs

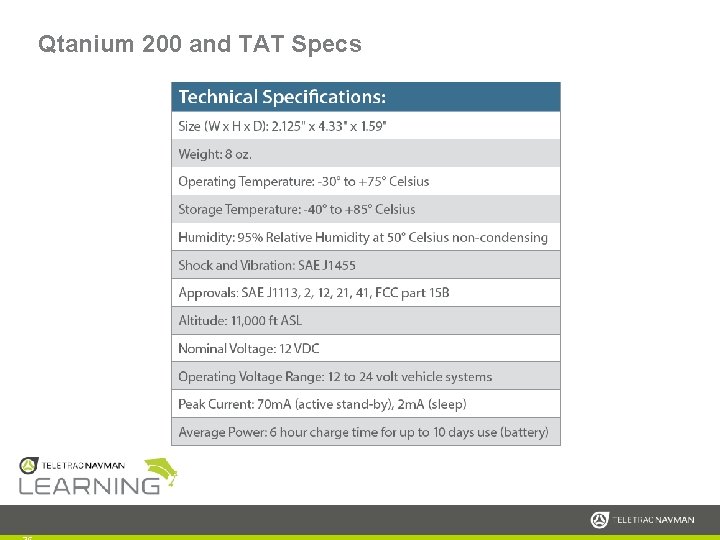

Qtanium 200 and TAT Specs
