AUTORACKS POSSIBILITIES IN INDIAN RAILWAYS O P CHAUBE

AUTORACKS POSSIBILITIES IN INDIAN RAILWAYS O. P. CHAUBE Former CME S. E. Rly AM I. Mech. E (UK) FIE (MECH)/INDIA 24 -09 -2016 IMech. E Seminar at Kolkata, Dt. 24/09/2016 AUTORACKS- POSSIBILITIES IN INDIA 1

AUTORACKS • What is Autorack ? • History: -Progress and Innovations pacing with demands • Salient Design Features • Terminals and Facilities • Lashings • Efforts made in IR –so far • Present and Future Possibilities 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 2

What is Autorack ? • An autorack, also known as an auto carrier, is a specialized piece of railroad rolling stock used to transport automobiles and light trucks, generally from factories to automotive distributors. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 3

What is Autorack ? • A modern German autorack similar to the original design with a full load of automobiles 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 4

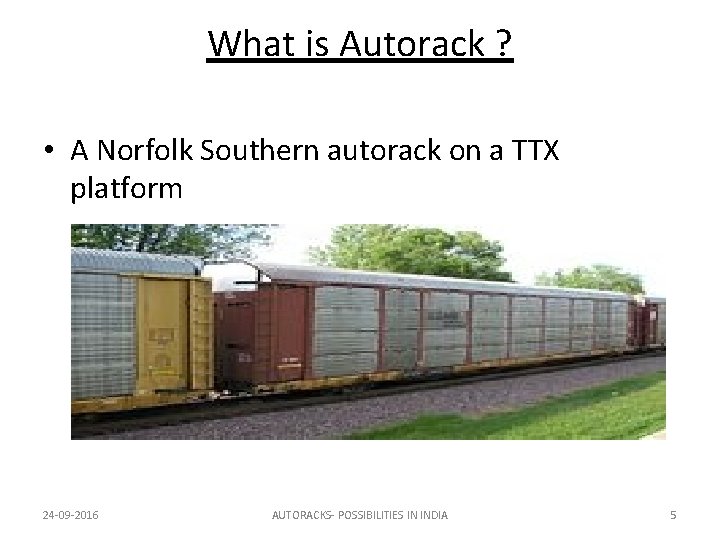

What is Autorack ? • A Norfolk Southern autorack on a TTX platform 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 5

CARS POPPING OUT LOADING/ UNLOADING Videos 1. HONDA’S AUTO – MAX 22. 2. INDIAN RAILWAYS’- BCACBM AUTO- RAKE at NIVANDA (NDV)/near BANGALURU, SW Rly. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 6

ACTION PACKED SCENARIO - NARR I. • Generally only five to eight cars are loaded in a single string. • A portable ramp is rolled up to the end of the string. • At some auto facilities, there are fixed ramps at the ends of tracks (but this is less common). • The ramp levels are either fixed (for tri-levels or bilevels) or can be adjusted hydraulically. • the doors are opened and folding deck plates are laid down between the cars. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 7

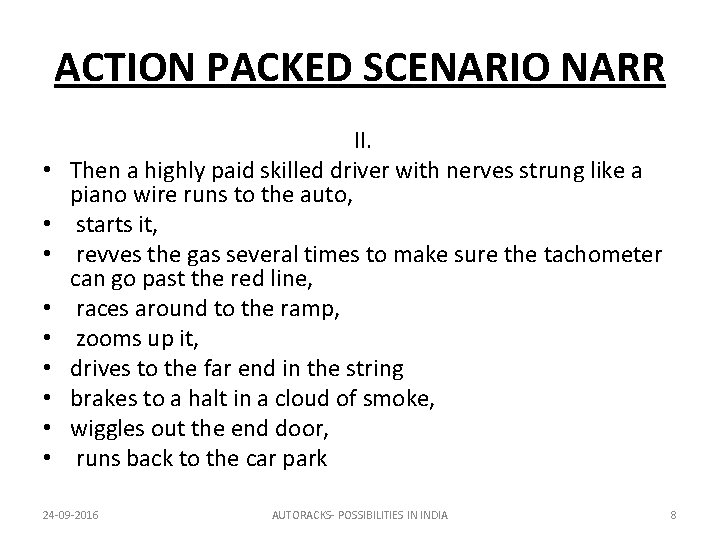

ACTION PACKED SCENARIO NARR II. • Then a highly paid skilled driver with nerves strung like a piano wire runs to the auto, • starts it, • revves the gas several times to make sure the tachometer can go past the red line, • races around to the ramp, • zooms up it, • drives to the far end in the string • brakes to a halt in a cloud of smoke, • wiggles out the end door, • runs back to the car park 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 8

ACTION PACKED SCENARIO III. • to start again, • narrowly escaping being flattened by the former open-wheel champion in the next car. • Another crew, or sometimes the same as the driver, - uses tie down straps or chocks to lash the auto to the deck. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 9

Autorack – HISTORY & INNOVATIONS i. Early 20 th century in boxcars: - Two to four automobiles ii. Susequent modifications : - longer boxcars, -larger sliding double side doors at one end, -doors located on the boxcar ends. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 10

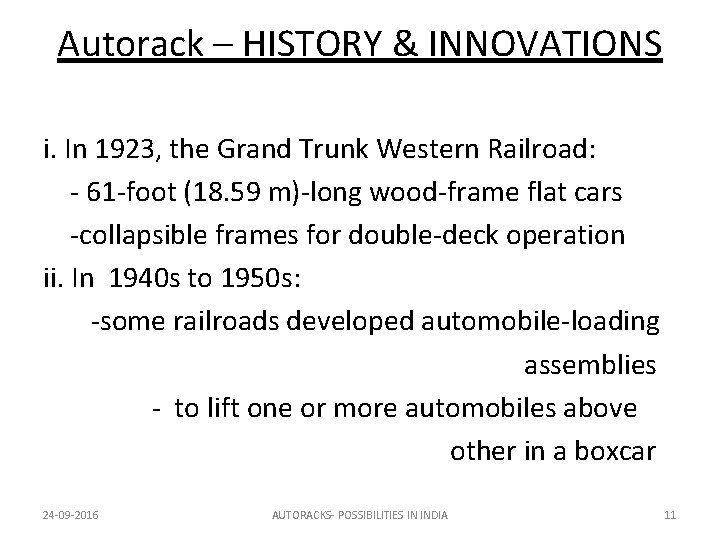

Autorack – HISTORY & INNOVATIONS i. In 1923, the Grand Trunk Western Railroad: - 61 -foot (18. 59 m)-long wood-frame flat cars -collapsible frames for double-deck operation ii. In 1940 s to 1950 s: -some railroads developed automobile-loading assemblies - to lift one or more automobiles above other in a boxcar 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 11

Autorack – HISTORY & INNOVATIONS i. In U. S. , most Circuses traveled by rail ii. Circuses were major haulers of wheeled vehicles: - on flat cars - usually behind their own passenger cars iii. Usually, one train for people - A second train for vehicles / freight iv. The Circus solution to loading vehicles: -used a string of flatcars. - a temp ramp at the end of the flatcars - temp bridge plates over the gaps bet flatcars v. Vehicles were driven or towed up onto one car and then over the train v. This became known as “Circus Style" loading 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 12

Autorack – HISTORY & INNOVATIONS i. Autorack and flat car length quickly grew to - 87 feet (26. 52 m) - 89 feet (27. 13 m) - equal to then average railroad passenger car ii. Longer cars ? - interchange service problem due to clearance on curves iii. Yet, U. S. Railroads could still do better -( way back)! 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 13

Autorack – HISTORY & INNOVATIONS i. A major problem: - protection from theft, vandalism, severe weather ii. Individual railroads began installing: - mesh side screen / solid panels late 1960 s -early 1970 s new racks built with side panels. iii. Vandals could still gain access to the automobiles iv. In 1973 , the first fully enclosed racks with continuous side panels, end doors, and roofs were developed. - But not all Autoracks until mid -1980 s -Bridges and Tunnel clearances? -Modified progressively 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 14

Autorack – HISTORY & INNOVATIONS • Whitehead & Kales, Ford, N&W and DT&I jointly developed prototype Tri-Level car: - Completely enclosed -Car side made up of overlapping perforated steel sheets -Ends protected with two Trifold doors, -A corrugated steel roof extending full length of car 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 15

Autorack – HISTORY & INNOVATIONS • Currently autoracks produced by: - Trinity. Rail, -Greenbrier, -Johnstown America, - National Steel Car, - Union Pacific Railroad • ( Scope for Collaboration exists- in India) 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 16

Autorack – HISTORY & INNOVATIONS Vert-A-Pac • Both railroads and automakers wanted reduced shipping costs • Increase the number of vehicles per rail car • In 1968 GM and the Southern Pacific Railroad jointly developed: -to carry the Chevrolet Vega( a new compact car of GM) - a radical new rail car; "Vert-A-Pac", - Holds 30 Vegas in vertical, nose-down position ; Vs 18 in tri-level autoracks. • Design didn’t survive. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 17

Autorack – HISTORY & INNOVATIONS Vert-A-Pac 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 18

Autorack – HISTORY & INNOVATIONS • • Stac-Pac Another joint General Motors-Southern Pacific automobile rail car -Stac-Pac. Designed to carry 12 high end Oldsmobile, Buick, and Cadillac models in four removable fully enclosed tri-level containers on 89 -foot flat car. First production entered service in 1971. Withdrawn from service at - end of the 1976 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 19

Autorack – HISTORY & INNOVATIONS • • • Trailer Train Company (TTX) ( Business Strategy) Although advantageous , in the 1960 s, most North American railroads were reluctant to invest in specially built equipment. The Trailer Train Company, (Pennsylvania Railroad and the Norfolk and Western Railway in 1955) stepped in to ease the railroads' financial burden a bit. Trailer Train purchased the flat cars from the rail car manufacturers, Railroads purchased the racks Racks were installed flat cars and operated by Railroads 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 20

Autorack – HISTORY & INNOVATIONS Ensuing Success • This arrangement worked so well that nearly every autorack operating in the US was owned by a railroad. • Trailer Train became TTX Company in 1991; • Since then many railroads have themselves purchased the flat cars on which the racks were installed • TTX expanded into purchasing and leasing out other railroad rolling stock. • The development of enclosed autoracks also helped make several other innovative services work well. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 21

Autorack – HISTORY & INNOVATIONS • Trailer Train / TTX reporting marks applied to autorack flats: • BTTX (1) - 85 ft to 89 ft bilevel rack with fixed decks; used from 1960 to 1988 • BTTX (2) - fully enclosed articulated bilevel with fixed decks, • CTTX (2) - 89 ft enclosed but roofless trilevel for use on low overhead clearance routes; used from 1976 onward • CTTX (3) - 89 -4 fully enclosed convertible bilevel/trilevel with hinged middle deck; used from 2013 onward 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 22

Autorack – HISTORY & INNOVATIONS • ETTX (1) - 89 ft trilevel with elevating middle and top decks; used from 1962 to 1973 • ETTX (2) - 89 -4 fully enclosed trilevel with hinged middle deck; used from 1973 onward • KTTX - 87 ft to 89 ft trilevel with hinged middle deck • RTTX - 85 ft to 89 ft trilevel rack with fixed decks; used from 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 23

Autorack – HISTORY & INNOVATIONS • TTBX - 89 -4 bilevel with fixed decks; used from 1968 onward • TTGX - 89 -4 fully enclosed bilevel with fixed deck; used from 1977 onward • TTKX - 89 -4 trilevel with hinged middle deck; used from 1968 onward • TTNX - 89 -4 enclosed but doorless bilevel with fixed decks, used from 1983 forward 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 24

Autorack – HISTORY & INNOVATIONS • TTSX (2) - 89 -4 enclosed but roofless bilevel with fixed decks, used from 1979 forward • TTUX (2) - 81 ft enclosed single deck for large trucks and other vehicles • TTVX (1) - 89 -4 Vert-A-Pacs, used 1970– 1977 • TTVX (2) - 89 -4 enclosed but doorless trilevel with hinged middle deck, used from 1982 forward 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 25

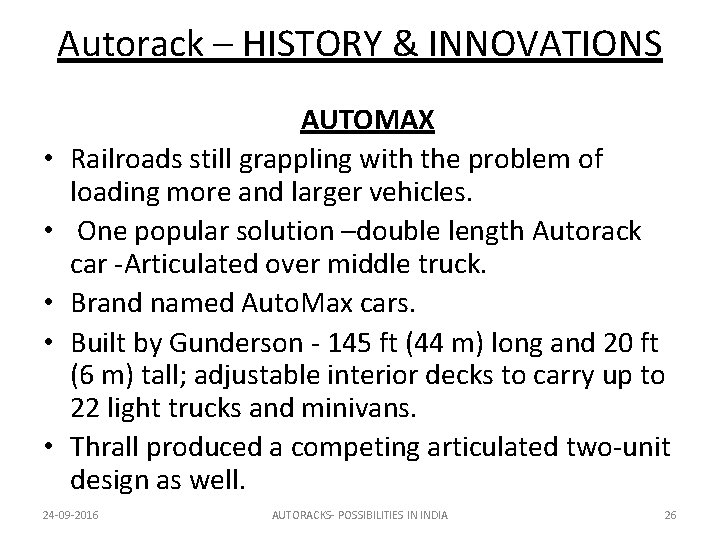

Autorack – HISTORY & INNOVATIONS AUTOMAX • Railroads still grappling with the problem of loading more and larger vehicles. • One popular solution –double length Autorack car -Articulated over middle truck. • Brand named Auto. Max cars. • Built by Gunderson - 145 ft (44 m) long and 20 ft (6 m) tall; adjustable interior decks to carry up to 22 light trucks and minivans. • Thrall produced a competing articulated two-unit design as well. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 26

ARTICULATED BOGIE 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 27

ARTICULATED BOGIE 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 28

Autorack – HISTORY & INNOVATIONS Multi-Max / Auto. Flex • For greater flexibility - decks easily changeable between bilevel and trilevel • Greenbrier calls their version of this multilevel convertible - the Multi-Max, • Union Pacific Railroad builds their own version, called the Auto. Flex. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 29

Salient Design Features 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 30

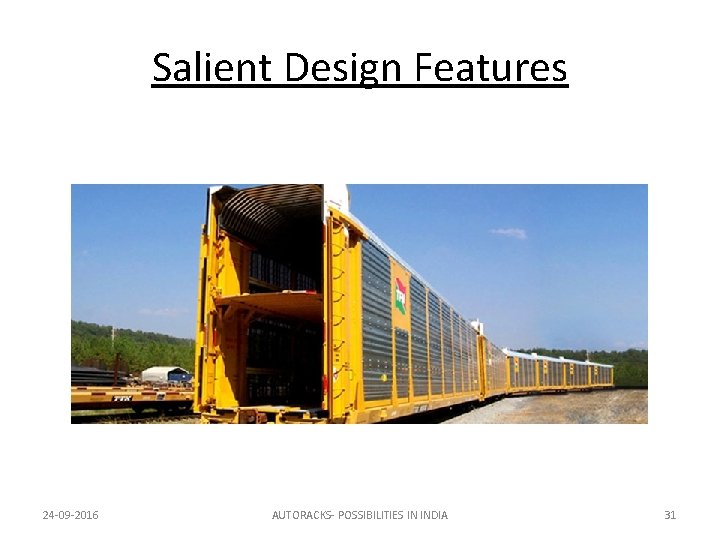

Salient Design Features 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 31

Salient Design Features 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 32

Salient Design Features 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 33

Salient Design Features 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 34

Salient Design Features TRINITY BILEVEL 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 35

Salient Design Features 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 36

Salient Design Features 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 37

Salient Design Features TYPICAL TRI- LEVEL mmd – US RAI ROADS 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 38

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 39

BI-LEVEL 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 40

TRI-LEVEL 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 41

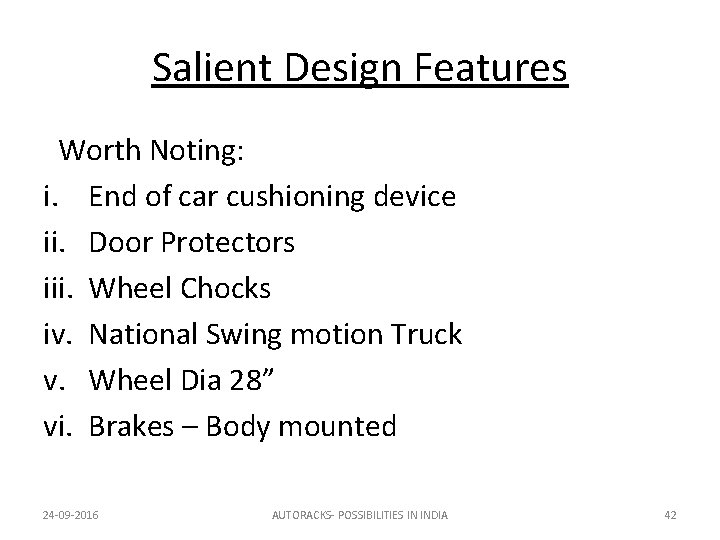

Salient Design Features Worth Noting: i. End of car cushioning device ii. Door Protectors iii. Wheel Chocks iv. National Swing motion Truck v. Wheel Dia 28” vi. Brakes – Body mounted 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 42

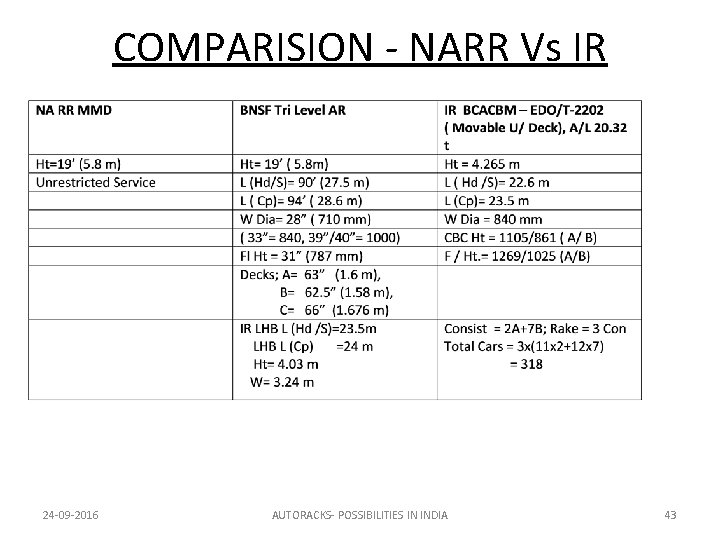

COMPARISION - NARR Vs IR 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 43

COMPARISION In IR R/S BOXN BLC (A/B), BLC (A/B) M (D/S), BLL (A/B) ( 22, 24, 45; 20/ 40 F; 9. 5 F containers DFC EXISTING W Dia= 1000/ 840 mm DFC W Dia = 1000 mm W Dia = 840 mm CBC Ht : E=1105 – 1090 Ld= 1030 min Fl Ht = 1273 mm CBC Ht = 1104/845 Ht = 4. 265 mm mm 7. 1/5. 1 m ( W/E) Fl Ht = 1009 mm Width= 3. 2 m 3. 6 m L ( Hd /S)= 9784 mm S/ Stack Cont, Bi Level AR D/ Stack Con, Tri Level AR in WDFC, L (Cp)= 10713 mm Tr Length = 700 m 1500 m 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA Tr Load = 5000 t W Dia= 1000 mm 13000 t 44

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 45

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 46

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 47

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 48

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 49

MMD EDFC 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 50

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 51

WDFC JNPT - DADRI ( 1504 Km , D/L, Elec. ) Via Vadodra –Ahemdabad -Palanpur- Phulera- Rewari. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 52

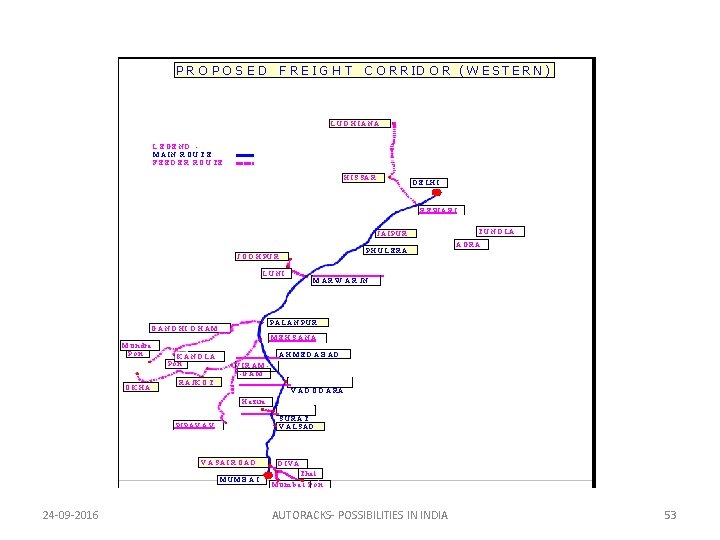

PRO PO SED F R E IG H T C O R R ID O R ( W E S T E R N ) L U D H IA N A L E G E N D : M A IN R O U T E F E E D E R R O U TE H IS S A R D E LH I REWARI J A I PU R P H U L ER A J O D H PU R L U NI T U N D LA A G RA M A R W A R JN. P A L A N PU R G A N D HI D H AM M E H S A NA M u n d ra P o rt O K HA K A N D LA P o rt A H M E D A B AD V IR A M -G A M R A JK O T V A D O D A RA H a z ira SURAT V A L SA D P IP A V VASAIROAD MUMBA I 24 -09 -2016 D IV A T h al M u m b a i P o rt AUTORACKS- POSSIBILITIES IN INDIA 53

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 54

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 55

EDFC TWO Segments: i) Dankuni – Khurja = 1409 Km , D/L Elec. ii) Ludhiana ( Dhadarikalan)-Ambala- Saharanpur-Meerut-Hapur-Khurja- Dadri: = 447 Km , S/L Elec. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 56

Amritsa r Ludhiana Bhatind a Dedicated Freight Corridor Ludhiana-Son Nagar with Extensions to Durgapur/Bokaro/Tatanagar Nagal Dam Chandigar h DFC (EASTERN) Ambla Saharanpur Panipa t Khurja Legend: Main Route Meerut Feeder Hapur Route Harduagan j Tundla Kanpur Unchahar Parich a Allahabad Mughal Sarai Son Nagar Gomoh Asanso l Durgapu r Tata Nagar Katn i Bondamunda 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 57

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 58

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 59

TERMINAL FACILITIES TYPICAL YARD LAYOUT 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 60

TERMINAL FACILITIES Photo Self 3/2006 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 61

TERMINAL FACILITIES • After each string is loaded, a switch engine couples up all the strings and assembles the train. A typical auto ramp capable of handling a solid train has room for six to nine 5 -8 car strings, or around 60 -80 cars. Big ramps can handle 10 times as much. • Plenty of Shunting Operations 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 62

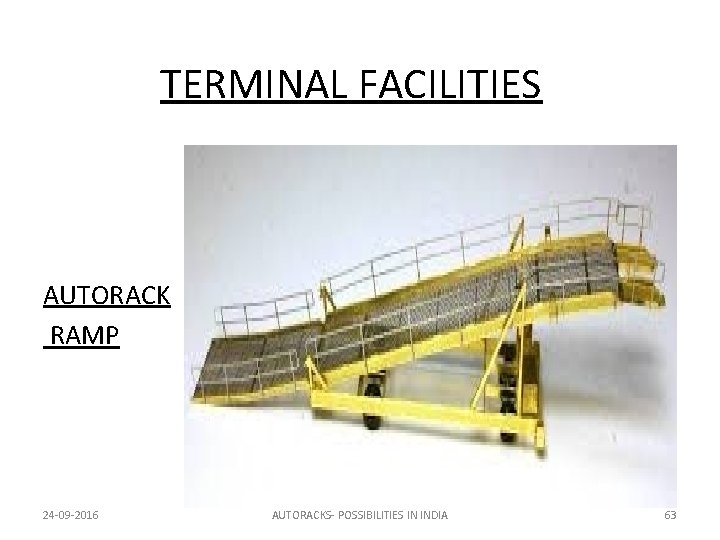

TERMINAL FACILITIES AUTORACK RAMP 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 63

TERMINAL FACILITIES AUTORACK RAMP 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 64

TERMINAL FACILITIES AUTORACK RAMP 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 65

TERMINAL FACILITIES AUTORACK RAMP 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 66

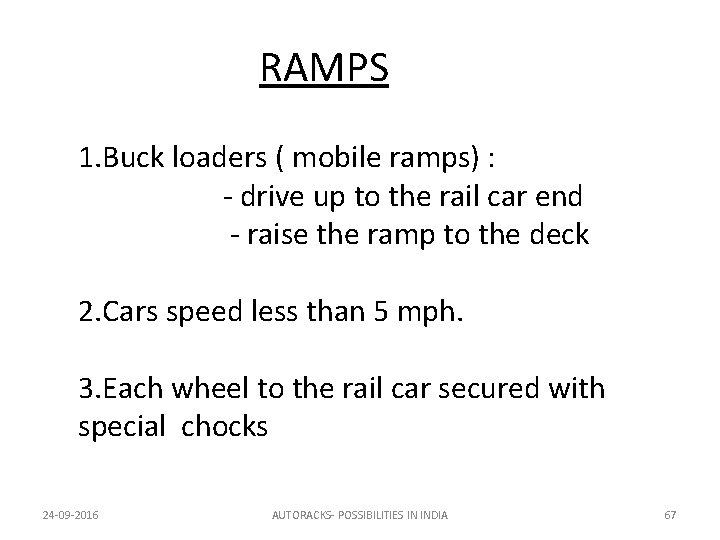

RAMPS 1. Buck loaders ( mobile ramps) : - drive up to the rail car end - raise the ramp to the deck 2. Cars speed less than 5 mph. 3. Each wheel to the rail car secured with special chocks 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 67

RAMPS 4. Auto ramp staff specially trained to handle vehicles with care. 5. Ramp personnel must be dressed in reflective clothing -without any exposed metal objects - like belts, watches, rings /jewelry. 6. cell phones, or smoke not allowed. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 68

TERMINAL FACILITIES AUTORACK RAMP A CAR UNLOADING 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 69

LASHINGS GRATE LOCK CHOCKS (GLC) 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 70

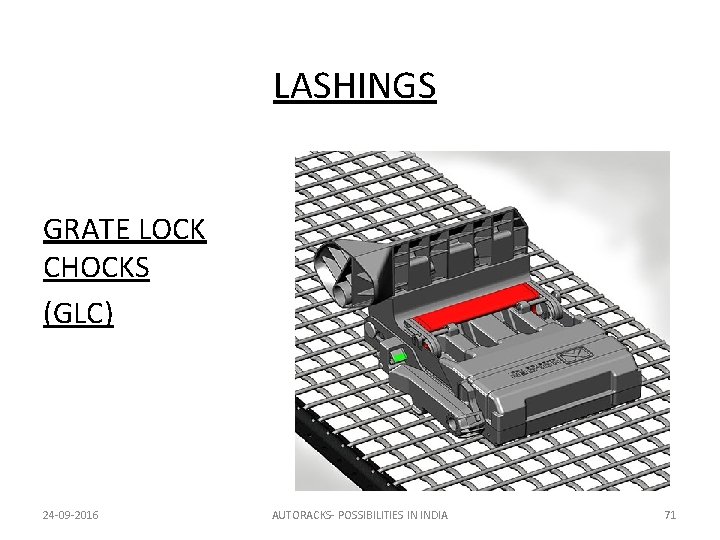

LASHINGS GRATE LOCK CHOCKS (GLC) 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 71

LASHINGS GLC 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 72

EFFORTS in IR I. BOGIE COVERED DOUBLE DECKER BCCN ‘A’ &‘B’ (Prior to AUTO Wagon Dev, Mod Coaches – NMG = 125 cars /rake) Designed= 1997 for cars especially maruti ZEN, 800, ALTO. -MMD= EDO/T-1043 - Length (HS)=19 m -Length (CP)= 20 m -Bogie center = 13. 6 m -Width =3150 mm -Consist= 2 A+3 B= 2 x 9+3 x 10=48; -Rake= 6 consist= 6 x 48=288 -Wheel Dia= 840, IRF 106 Bogie -Couplers = All CBCs 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 73

EFFORTS in IR Photo Self GOC 1998 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 74

EFFORTS in IR Photo Self GOC 1998 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 75

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 76

New Autocar: Double Deck Op 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 77

New Autocar : Single Deck Op 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 78

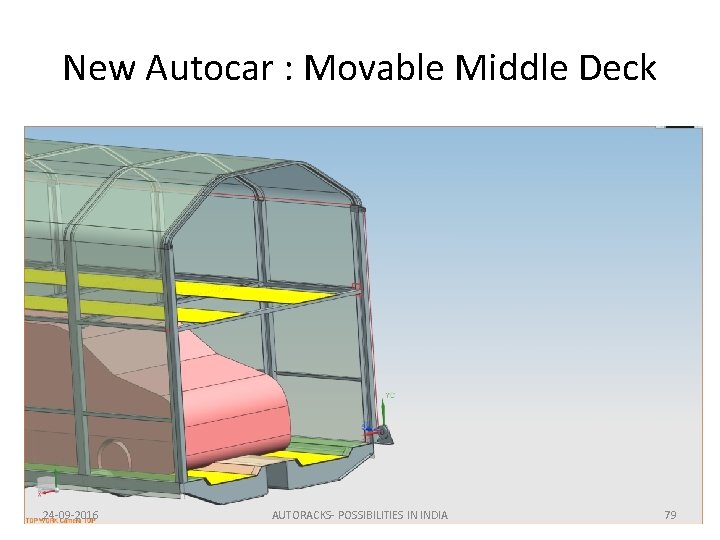

New Autocar : Movable Middle Deck 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 79

EFFORTS in IR II. BCACM Wagon A/B ( Not Successful- Ldg / Unldg issues) MMD – EDO/T 2202 • On Old BLC, Two rakes, 2007 Yr, JUDGW • L ( HS)= 13. 6/12. 2 • L ( CP)= 14. 5/13. 1 • Width = 2. 6 • Bogie Centers= 9. 6/8. 8 • Consist = 2 A+3 B, 9 / rake • Rake= 18 A+27 B= 45 • Cars /rake= 270 Altos , Fixed M deck • W Dia = 840 (Container flat BLC Bogie- LCCF) • Fl Ht. =1009 mm • Couplers= CBC and SLBDs 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 80

EFFORTS in IR III. BCACBM (A and B) cars: Latest MMD = EDO/T 2202 L (HS)=22. 6 m ( LHB = 23. 5 m) L (CP)=23. 5 ( LHB = 24 m) Bogie Centers= 14. 3 Width= 2. 9 Fl Ht =935 mm Wheel Dia= 840 mm Consist= 2 A + 7 B; 3/Rake Total Cars= 3( 2 x 11+7 x 120)= 318 Couplers= CBC All wagons Movable Deck, Optimised for A STAR , ALTO ; SUV Adj Deck Four Piece Decks, each 1 t, Flexibility= 1550 -2100 mm. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 81

EFFORTS in IR • Titagargh Wagon Ltd – COR • TEXMACO Wagon Ltd Status - In Progress 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 82

EFFORTS in IR • Maintenance; 1. BCACM - 2 rakes only, TKD , Maruti uses 2. BCACBM - Maruti Suzuki –TKD/ NR - 3 Rakes , - Gurgaon – Bangalore ( NIVANDA) - APL Logistics – Melpakkam (MLPM)/ SR - 6 Rakes, Chennai- Rewari • CC Pattern of Examination • BPC Validity- 7500 Km /30 Days 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 83

ROUTES - MARUTI Sn CIRCUITS (MARUTI CARS) 1 Gurgaon (GGN) /NR - Nidvanda (NDV)/SWR 2 Gurgaon - Mundra Port /WR 3 Gurgaon – Wardha (WR)/ CR 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 84

ROUTES – APL Logistics Sn CIRCUITS- Ford, Honda, Hyundai, Renault-Nissan 1 Melpakkam (MLPM)/SR - Kathuwas (CMLK)/NWR 2 MLPM - Changsari (CGS)/NFR 3 MLPM - Sanand (SAU) 4 Kathuwas (CMLK)/ NWR - Sanand 5 Kathuwas - Kalamboli /CR 6 Changsari - Kalamboli 7 Kathuwas - Nidvana 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 85

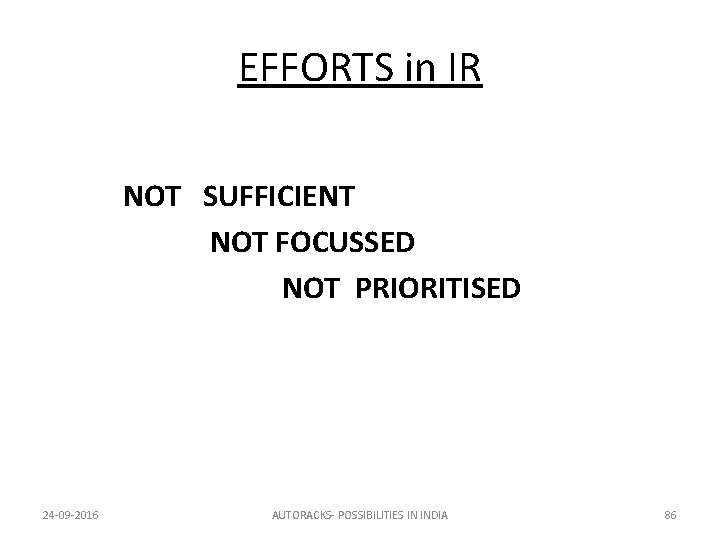

EFFORTS in IR NOT SUFFICIENT NOT FOCUSSED NOT PRIORITISED 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 86

Railroads Help Keep Coal. Based Electricity Freight Railroads in North America BNSF CN CP CSX FXE KCS/KCSM NS UP Other RRs 24 -09 -2016 SLIDE 87 AUTORACKS- POSSIBILITIES IN INDIA ASSOCIATION OF AMERICAN RAILROADS

U. S. Railroad FRT REV CL. I, 2012 Minerals & mineral products $4. 3 bil. , 176 mil. tons US: Total $69 billion 1. 8 bil. tons Intermodal* $14. 6 bil. , 135 mil. tons Coal $14. 7 bil. , 727 mil. tons Lumber & paper $3. 8 bil. , 59 mil. tons Ores & metals $3. 3 bil. , 125 mil. tons Autos & auto parts $4. 9 bil. , 26 mil tons Petrol. & Chemicals Food $5. 4 bil. , $12. 7 bil. , 108 mil. tons 258 mil. *Indian Railways : (2015 -16) tons Grain - $4. 8 bil. , $ 16. 45 billion ( 23. 8% ) 144 mil. tons 1. 1 bil. Tons ( 61. 1%) 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA SLIDE 88 ASSOCIATION OF AMERICAN RAILROADS

US RAIL ROADS ( Cl. I) Sr No COMMODITY REV Bl. $ Tonage ml. tons ORDER 1 COAL 14. 7 727 1 2 INTER MODAL 14. 6 135 5 3 PETROL, CHEMICALS 12. 7 258 2 4 FOOD 5. 4 108 7 5 AUTORACKS 4. 9 (7. 1) 26 (1. 4%) 9 6 GRAINS 4. 8 144 4 7 MINERALS , MIN PRODS 4. 3 176 3 8 LUMBER , PAPER 3. 8 59 8 9 ORES, METALS 3. 3 125 6 24 -09 -2016 TOTAL ( 2012 Yr) 69 Bl $ 1. 8 Bl. tons AUTORACKS- POSSIBILITIES IN INDIA 89

IR FRT REVENUES-2015 -16 Sr No COMMODITY REV RS Cr 1 ml. tonnes ORDER COAL 49, 989 552 1 2 CEMENT , KLINKER 9, 157 106 3 3 FOODGRAIN 7, 811 46 6 4 OTHER GOODS? (Salt, Lumber, Paper, Autos, etc ? ) 7, 776 ( 7. 1%) 78 (7. 0%) 4 5 IRON ORE 7, 072 117 2 6 PIG IRON , F/ STEEL 7, 047 42 8 7 FERTILIZER 6, 920 52 5 8 MINERAL OIL (POL) 6, 003 44 7 9 CONTAINER SERV 5, 483 46 6 10 R/M STEEL PLT ( EX ORE) 2, 022 20 9 TOTAL 24 -09 -2016 tonnege 109, 281 1, 104 (16. 45 b $) (1. 1 b tons) AUTORACKS- POSSIBILITIES IN INDIA 90

POSSIBILITIES AUTORACKS BUSINESS IN US RAIL ROADS Frt • Yr 2012: (Class I ): • Total = $ 69 billions ; 1. 8 billion Tons • AUTORACKS and Auto parts = $ 4. 9 billions ( 7%) 26 million Tons (1. 4%) • 70% Automobiles transported by Rail Roads 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 91

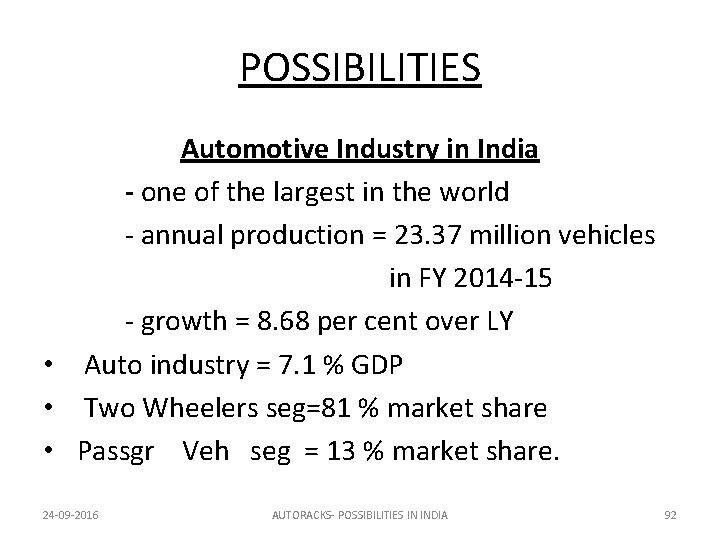

POSSIBILITIES Automotive Industry in India - one of the largest in the world - annual production = 23. 37 million vehicles in FY 2014 -15 - growth = 8. 68 per cent over LY • Auto industry = 7. 1 % GDP • Two Wheelers seg=81 % market share • Passgr Veh seg = 13 % market share. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 92

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 93

24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 94

CAR PRODUCTION • India Car Production 1991 -2016 • Increased to 2. 46 L Units in July from 2. 08 L in June , 2016. • Averaged 1. 01 L Units from 1991 until 2016. • All time high 2. 93 L Units in March of 2012 • Record low of only 7, 277 Units in April , 1992 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 95

CAR PRODUCTION • Car Production Forecast 2016 -2020 • Expected 2. 4 L Units by quarter Q-2 /2016. • Estimated Avg Car Production in India to stand at 2. 3 L in 12 months time. • In the long-term, projected to trend around 2. 3 L Units in 2020. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 96

POSSIBILITIES EXPORT • India also a prominent auto exporter • strong export growth expectations in near future. • In FY 2014 -15, auto exports grew by 15 % • In addition, several initiatives by the GOI to make India a leader in the 2 W and 4 W market in the world by 2020 • 100% FDI 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 97

VEHICLE PROD ANNUAL Category 2010 -11 L 2015 -16 L Passenger Vehicles 29. 8 34. 1 Commercial Vehicles 7. 6 7. 8 Three Wheelers 8. 0 9. 3 Two Wheelers 1. 3 1. 9 Grand Total 179 240 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 98

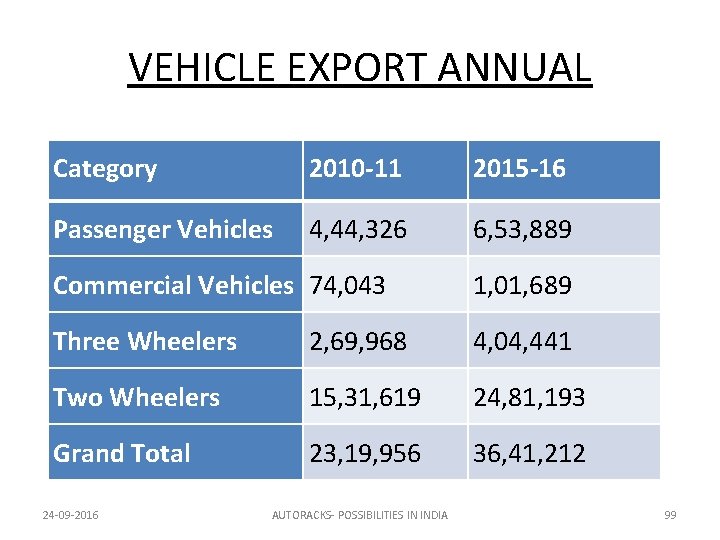

VEHICLE EXPORT ANNUAL Category 2010 -11 2015 -16 Passenger Vehicles 4, 44, 326 6, 53, 889 Commercial Vehicles 74, 043 1, 01, 689 Three Wheelers 2, 69, 968 4, 04, 441 Two Wheelers 15, 31, 619 24, 81, 193 Grand Total 23, 19, 956 36, 41, 212 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 99

POSSIBILITIES MANUFACTURING CLUSTURES I. Evenly divided into three "clusters" II. Around Chennai - largest, 35% revenue share, 60% country's auto exports, - Home of the India operations for Ford, Hyundai, Renault, Mitsubishi, Nissan, BMW, Hindustan Motors, Daimler, Caparo, Mini, and Datsun. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 100

POSSIBILITIES II. Near Mumbai, Maharashtra, along the Chakan corridor near Pune, - the western cluster - with a 33% market share - Audi, Volkswagen, Skoda - Aurangabad. - Mahindra and Mahindra - Nashik. -General Motors, Tata Motors, Mercedes Benz, Land Rover, Jaguar Cars, Fiat, Force Motors - in same area. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 101

POSSIBILITIES • The northern cluster - around the National Capital Region, - contributes 32%. - Gurgaon and Manesar, in Haryana, - the largest car manufacturer, Maruti Suzuki 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 102

POSSIBILITIES • An emerging cluster is the state of Gujarat, with a manufacturing facility of General Motors in Halol, and a facility for Tata Nano attheir plant in Sanand. Ford, Maruti Suzuki, and Peugeot. Citroen plants are also planned for Gujarat. [16] • Kolkata with Hindustan Motors (inactive), Noida with Honda, and Bengaluru with Toyota are other automotive manufacturing regions around the country. [17][18][19] 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 103

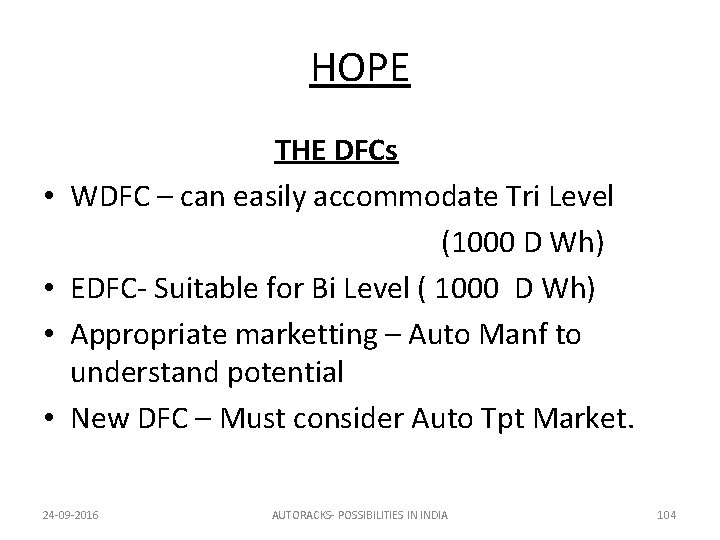

HOPE THE DFCs • WDFC – can easily accommodate Tri Level (1000 D Wh) • EDFC- Suitable for Bi Level ( 1000 D Wh) • Appropriate marketting – Auto Manf to understand potential • New DFC – Must consider Auto Tpt Market. 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 104

THANKS A LOT 24 -09 -2016 AUTORACKS- POSSIBILITIES IN INDIA 105
