Autoplot Overview Autoplot developed originally for Vi RBO
Autoplot Overview Autoplot developed originally for Vi. RBO Virtual Observatory, then adopted by VMO, and RBSP instrument and other teams
Autoplot Overview Autoplot developed originally for Vi. RBO Virtual Observatory, then adopted by VMO, and RBSP instrument and other teams Uses existing data resources. (As opposed to first downloading the data) Autoplot URIs identify data locations. One URI=one plot
Autoplot Overview Basic idea is it plots the data in a text file or where ever. decides render type (e. g. spectrogram or lineplot) autoranging

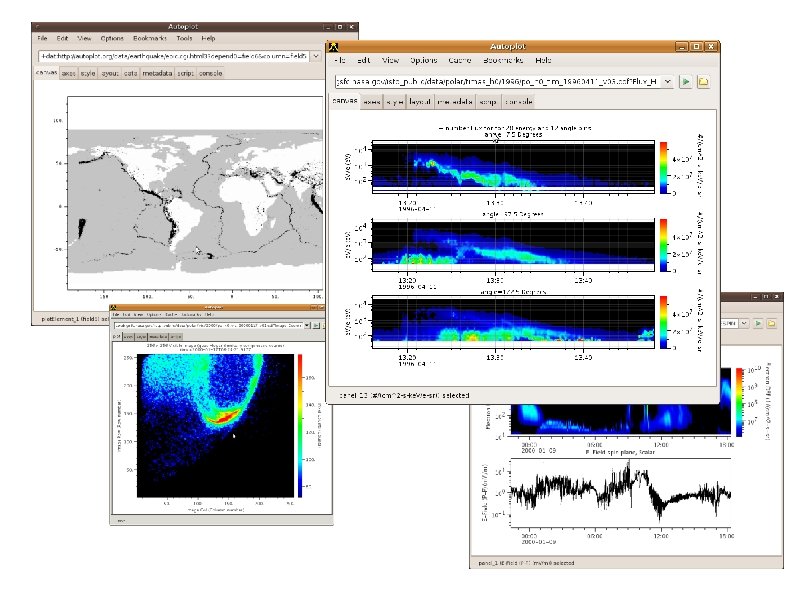

few screenshots and demo
I’ll talk about: • Autoplot’s internal data model, (way of representing the numbers), “QData. Set” • Autoplot URIs which identify data • Using Autoplot to get data into Matlab and IDL • Autoplot’s open source components

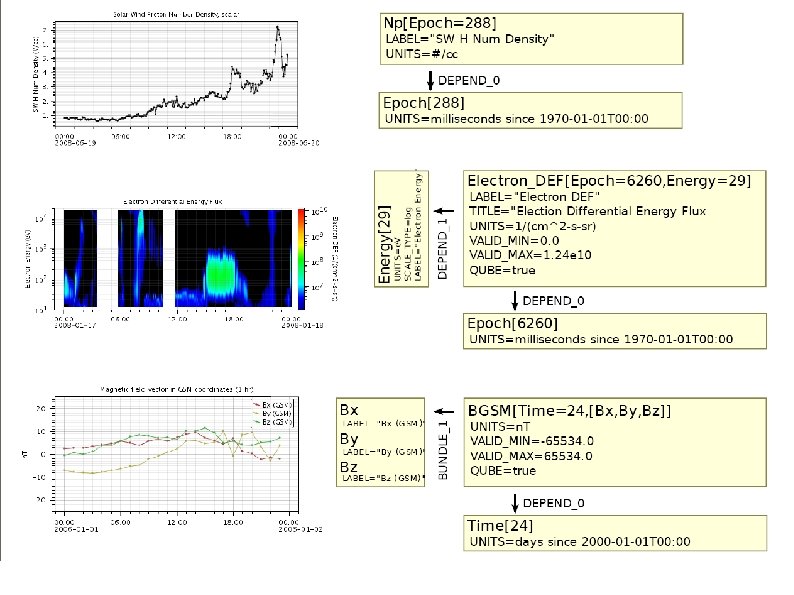

Autoplot’s QData. Set Data Model Data model “QData. Set” is in the middle of this. All data is represented in this model. Why not Net. CDF / the Common Data Model? Mostly I hadn’t come across it. But it’s very lightweight and I think it would serve other data systems nicely. QData. Set had been developed for Pa. PCo, an IDL code. “Ported” to Java and matured in Autoplot. Small Java interface with many implementations. wrap Net. CDF double arrays java. nio. Buffer etc.

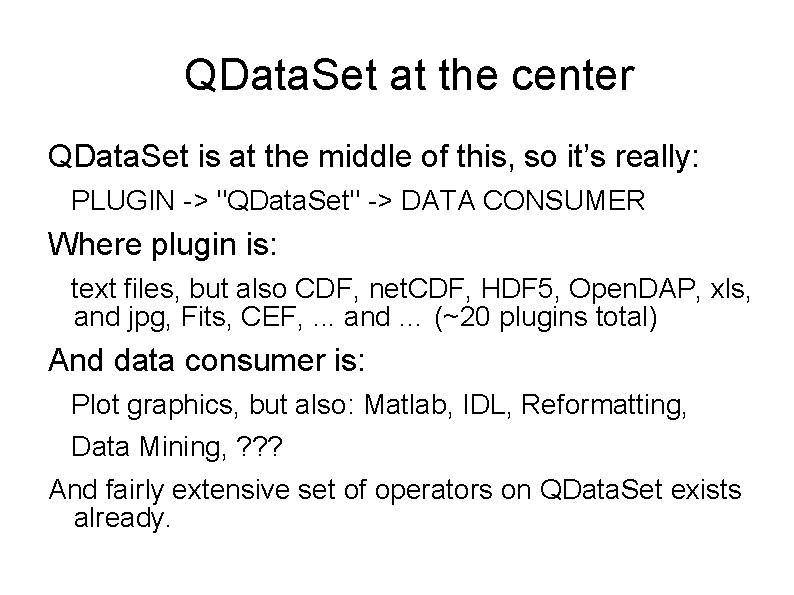

QData. Set at the center QData. Set is at the middle of this, so it’s really: PLUGIN -> "QData. Set" -> DATA CONSUMER Where plugin is: text files, but also CDF, net. CDF, HDF 5, Open. DAP, xls, and jpg, Fits, CEF, . . . and … (~20 plugins total) And data consumer is: Plot graphics, but also: Matlab, IDL, Reformatting, Data Mining, ? ? ? And fairly extensive set of operators on QData. Set exists already.
Autoplot figure-5 -new. PNGESSI Conference 2010
Autoplot URIs Autoplot defines URIs for locating data, for example: vap+dat: http: //autoplot. org/data/somedata. dat Autoplot resolves URIs into plottable datasets by identifying the plugin to handle the URI, which resolves the URI into a dataset. vap+cdf: http: //autoplot. org/data/somedata. cdf? BGSM Autoplot URIs are intended to be stored in bookmarks lists, sent in emails, and stored in SPASE records.
Autoplot data into Matlab and IDL have ad-hoc APIs for accessing various forms of data. Anything you can plot in Autoplot, you can read into IDL and Matlab using the Autoplot URIs. • • Matlab interface is very easy. IDL you must use Java connector (but once that’s set up it’s easy)
Matlab Example Script % Download ~20 MB jar file javaaddpath('http: //autoplot. org/images/Autoplot. All. jar'); apds = org. virbo. idlsupport. APData. Set; apds. set. Data. Set. URL( ‘http: //autoplot. org/data/somedata. dat' ) apds. do. Get. Data. Set; y= apds. values; x= apds. values('dep 0'); plot( x, y ) Note: CDF files require a C binary and do not work in this mode. (But Nand’s pure-java CDF reader will be incorporated. )
Software Reuse Uses open source components • Things I nothing about: e. g. i. Text for PDFs, HSSF for spreadsheets, JPEG metadata • Things for that I know just a little about: • Net. CDF, Open. DAP for reading data • Things I know lots about: • das 2 graphics library (Plasma Wave Group, UIowa) • QData. Set
Software Reuse: use cases Autoplot itself is open source and is being incorporated into many projects • Graphics for RBSP mission • QData. Set incorporated into das 2. • experimental use on ISTP/CDF web server and Ace Science Center. • Jon Vandegriff hacking out pieces for their RBSP applications at APL.

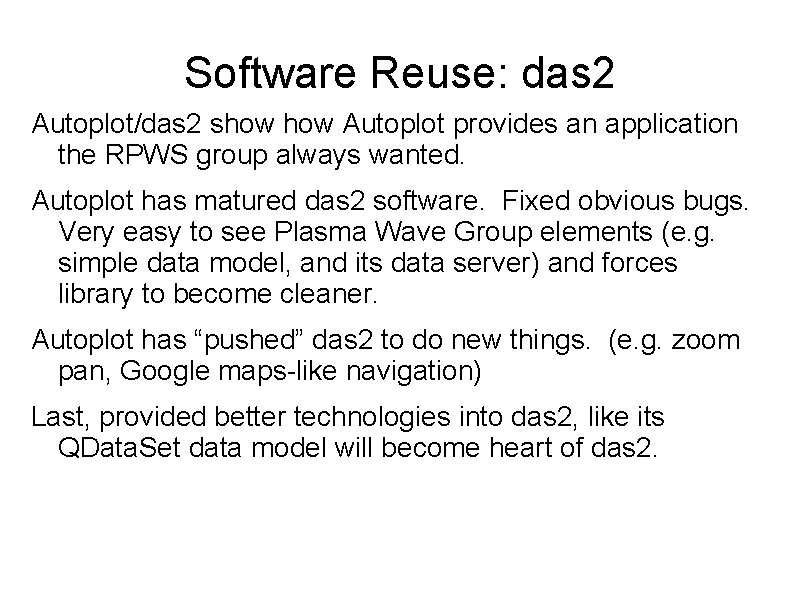

Software Reuse: das 2 Autoplot/das 2 show Autoplot provides an application the RPWS group always wanted. Autoplot has matured das 2 software. Fixed obvious bugs. Very easy to see Plasma Wave Group elements (e. g. simple data model, and its data server) and forces library to become cleaner. Autoplot has “pushed” das 2 to do new things. (e. g. zoom pan, Google maps-like navigation) Last, provided better technologies into das 2, like its QData. Set data model will become heart of das 2.
Software Reuse • Apache Math library downloaded and in use within minutes
