Autonomous Rover Reflectance Spectroscopy with Dozens of Targets Francisco Calderón David R. Thompson David Wettergreen Robotics Institute Carnegie Mellon University NASA ASTEP NNG 0 -4 GB 66 G Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 1

Agenda Introducing spectrometer transects Image analysis and rock detection Visual servo procedure Amboy field test results Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 2

Previous work in autonomous spectroscopy Antarctic Meteorite Search (Pedersen et al. , 2001) Single Cycle Instrument Placement (Pedersen et al. , 2004, Madison 2006, etc. ) OASIS system (Castaño et al. , 2005, 2006, 2007) Autonomous spectrum intepretation (Bornstein et al. , 2005, etc. ) Our goal: multiple targets, many samples Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 3

Spectrometer transects Scientists specify: Goal location Time budget (allocated to traverse segments) Rover: Navigates to the goal Detects and tracks multiple target features Pauses to collect spectra while time remains Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 4

Architecture spectrum 1. Image analysis SIFT keypoint detection 2. Data acquisition rock database visual servoing rock detection VIS/ NIR cameras pan/tilt correspondence search Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 5

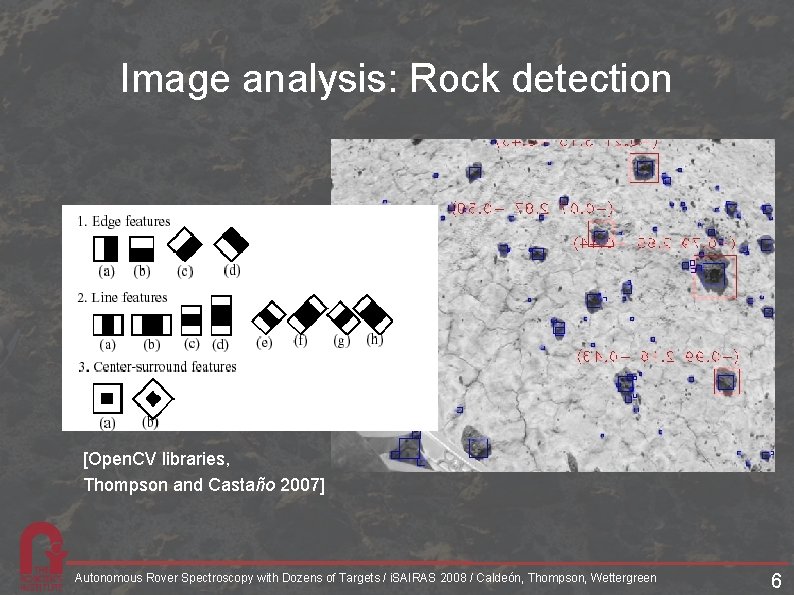

Image analysis: Rock detection [Open. CV libraries, Thompson and Castaño 2007] Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 6

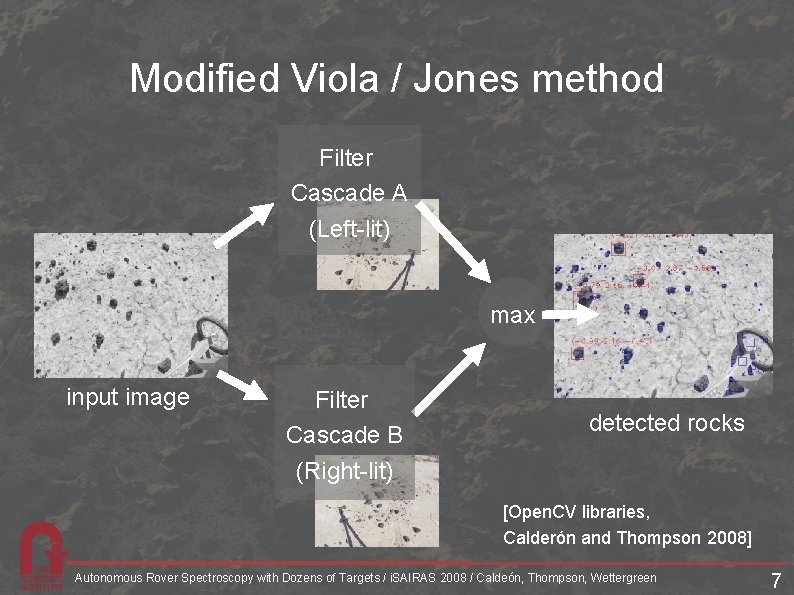

Modified Viola / Jones method Filter Cascade A (Left-lit) max input image Filter Cascade B (Right-lit) detected rocks [Open. CV libraries, Calderón and Thompson 2008] Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 7

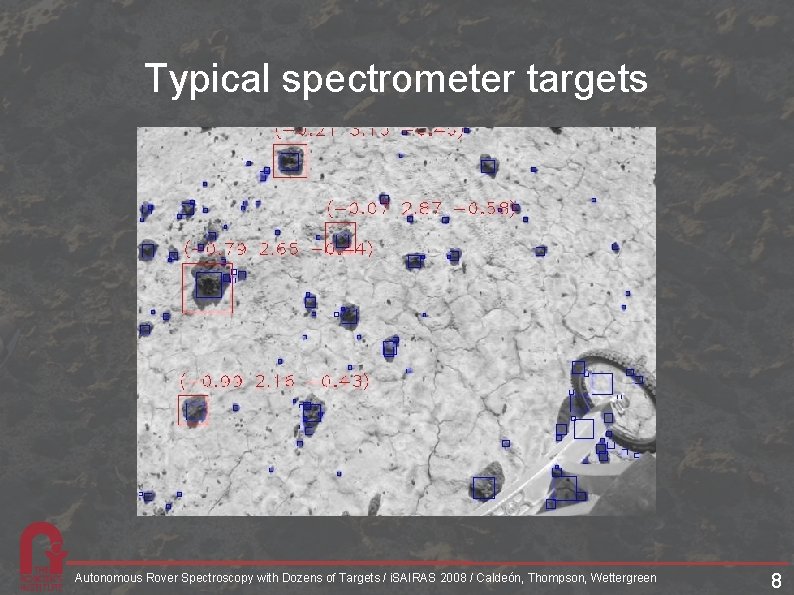

Typical spectrometer targets Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 8

Spectrometer targeting ASD Field. Spec Pro VIS/NIR Spectrometer Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 9

1. Calibration with white reference Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 10

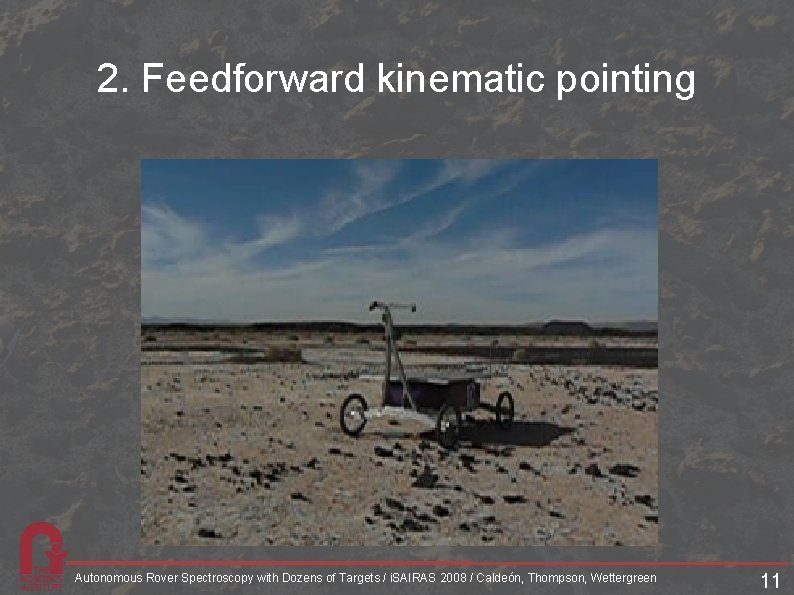

2. Feedforward kinematic pointing Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 11

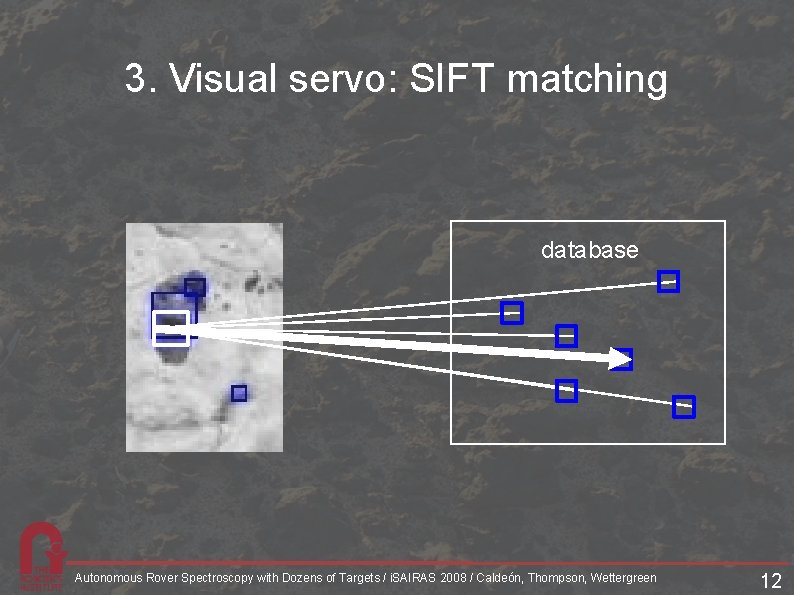

3. Visual servo: SIFT matching database Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 12

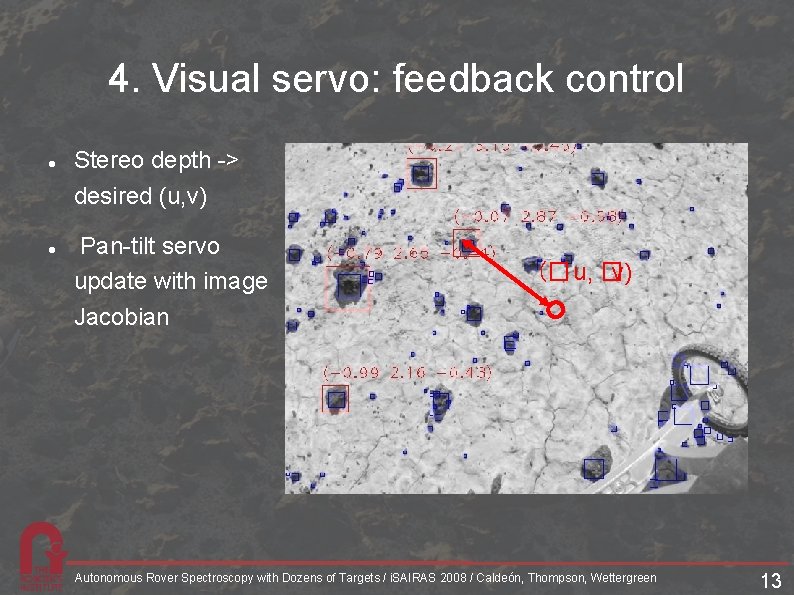

4. Visual servo: feedback control Stereo depth -> desired (u, v) Pan-tilt servo update with image Jacobian (�u, �v) Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 13

Rock tracking example Movie courtesy Dom Jonak, CMU RI Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 14

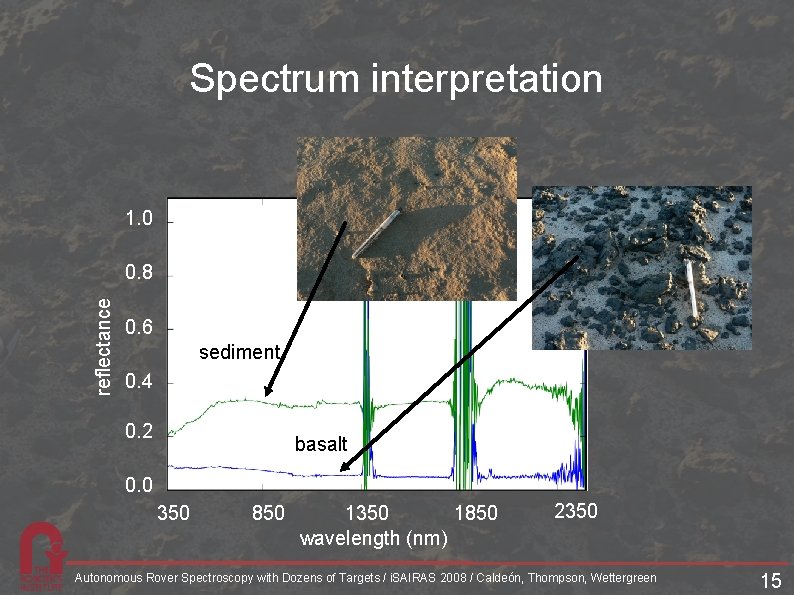

Spectrum interpretation 1. 0 reflectance 0. 8 0. 6 sediment 0. 4 0. 2 basalt 0. 0 350 850 1350 1850 wavelength (nm) 2350 Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 15

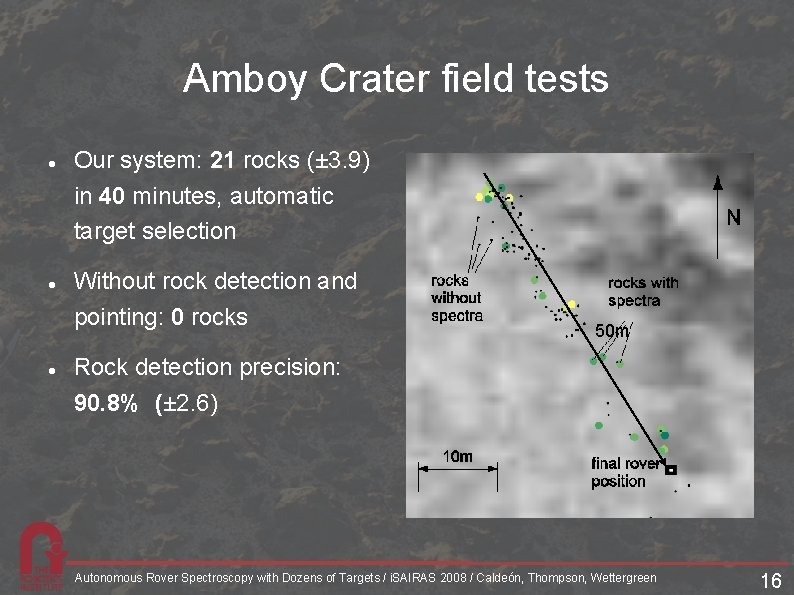

Amboy Crater field tests Our system: 21 rocks (± 3. 9) in 40 minutes, automatic target selection Without rock detection and pointing: 0 rocks 50 m Rock detection precision: 90. 8% (± 2. 6) Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 16

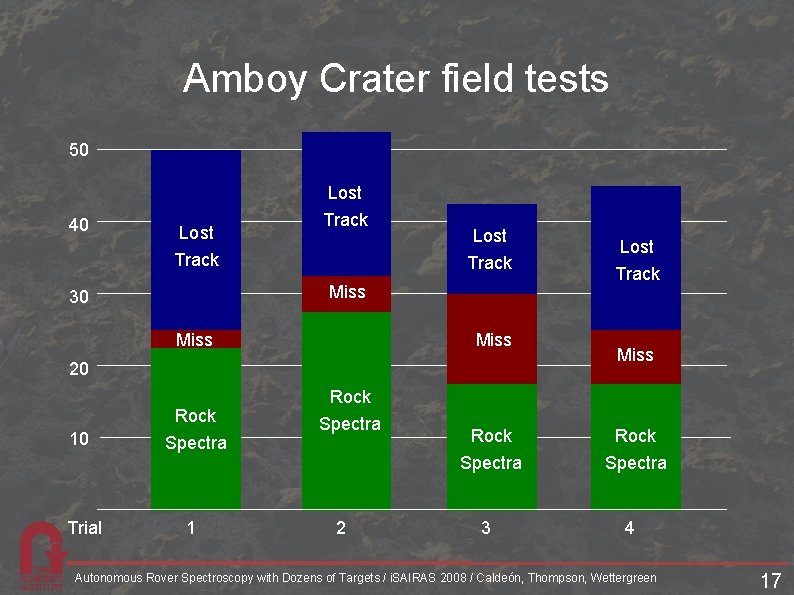

Amboy Crater field tests 50 40 Lost Track Miss 30 Miss 20 10 Trial Rock Spectra 1 Rock Spectra 2 Rock Spectra 3 Lost Track Miss Rock Spectra 4 Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 17

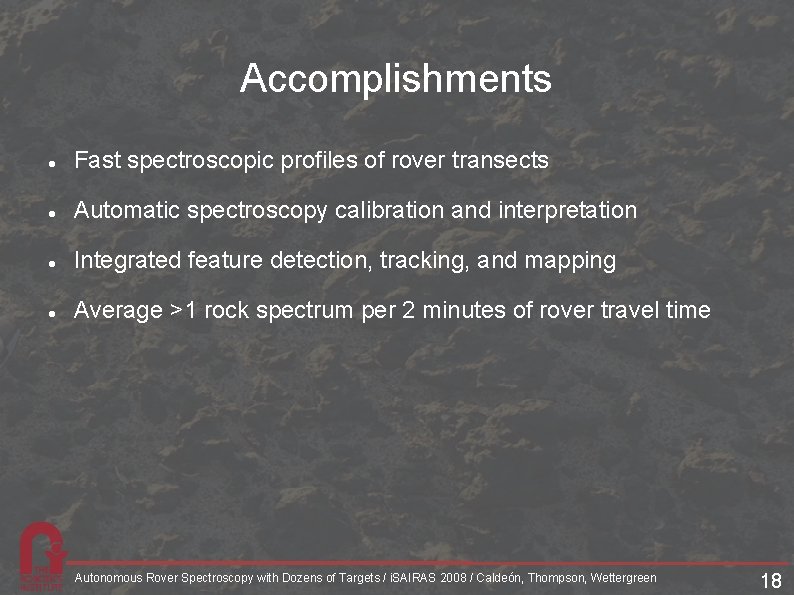

Accomplishments Fast spectroscopic profiles of rover transects Automatic spectroscopy calibration and interpretation Integrated feature detection, tracking, and mapping Average >1 rock spectrum per 2 minutes of rover travel time Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 18

Thanks! CMU Field Robotics: Dom Jonak, James Teza ASU: Ron Greeley, Shelby Cave, Phil Christensen NASA ASTEP NNG 0 -4 GB 66 G Autonomous Rover Spectroscopy with Dozens of Targets / i. SAIRAS 2008 / Caldeón, Thompson, Wettergreen 19
