Automotive Application Sensors Interior • Video cams • Windshield wiper sensor • Heating, ventilating, and air conditioning • Cruise control • Instrument cluster • ABS • Heated seats • Coolant sensor • Power seats • Backup sensor • Auto-dim rearview mirror • Blind-spot sensor • Keyless entry/start/stop Exterior Accessories • Rearview mirror • Headlight • Tail light • Power window • Power door lock • Windshield wiper motor • Head-up display • Tire pressure monitoring system • GPS navigation • Event recorder • Dashboard camera • Audio system
Seat heating system Car Battery Power Regulation Heating wire Temp sensor Heater control MCU LIN/CAN BUS
Selection Guide P/N Product Package Specification Application CPDU 24 V ESD 0603 Bi- 24 V/10 p. F I/O PIN
TPMS Car Battery Flash ROM Power Regulation RF transmitter Acceleration sensor ADC MCU Pressure sensor LF receiver Receiver IC MCU Power supply management 3 V Lithium Cell Display

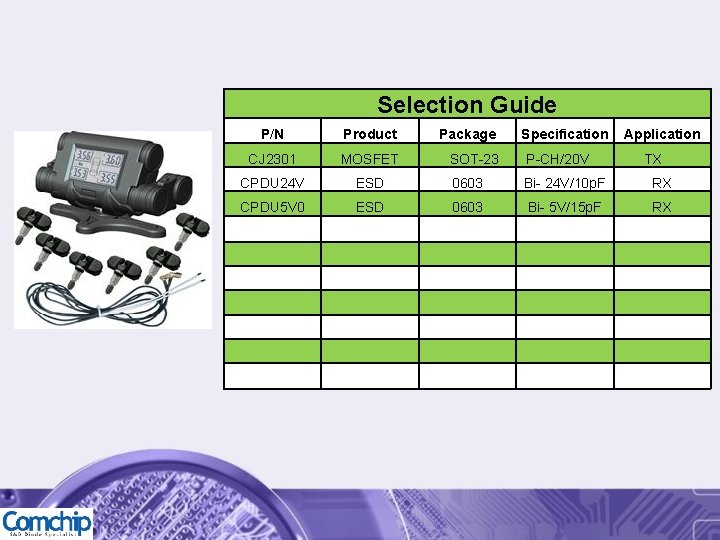

Selection Guide P/N Product Package Specification Application CJ 2301 MOSFET SOT-23 P-CH/20 V TX CPDU 24 V ESD 0603 Bi- 24 V/10 p. F RX CPDU 5 V 0 ESD 0603 Bi- 5 V/15 p. F RX
Remote keyless entry systeam Key fob Car Side Car Battery ROM RF transmitter Power Regulation MCU RF transmitter LF transmitter Power supply management MCU LIN/CAN BUS LF transmitter Sensor 3 V Lithium Cell Door Lock/Unlock
Selection Guide P/N Product Package Specification Application CDBZ 0130 L Schottky 0201 100 m. A/30 V CDBU 0240 Schottky 0603 200 m. A/40 V CDBN 140 Schottky 1206 CPDQR 24 V 0 U ESD 0402 1 A/40 V Uni 24 V/35 p. F
Instrument cluster Car Battery Power Regulation Wheel speed sensor Memory Fuel level sensor Display MCU Oil temperature sensor Car clock Signal conditioning Oil pressure sensor LED backlight Battery voltage sensor Coolant temperature sensor LIN/CAN BUS LEDs
Selection Guide P/N Product TV 15 C 260 JB TVS Package Specification Application SMC 26 V/1500 W
HVAC Car Battery Power Regulation Temp control Internal temp sensor External temp sensor MCU Humidity sensor Motor control Sunlight sensor LIN/CAN BUS Blower Fan
Selection Guide P/N Product Package Specification Application CDSW 4148 Switching SOD-123 300 m. A/75 V CDST-99 Switching SOT-23 200 m. A/70 V CGRA 4007 Rectifier SMA 1 A/1000 V CSFA 105 Rectifier SMA 1 A/600 V CZRA 4750 Zener SMA 27 V/1 W CZRM 5259 B Zener SOD-123 39 V/0. 5 W CZRW 5242 B Zener SOD-123 12 V/0. 35 W TV 04 A 240 J TVS SMA 24 V/400 W TV 30 C 240 J TVS SMC 24 V/3000 W TV 30 C 400 J TVS SMC 40 V/3000 W
HID head light Igniter Car Battery full bridge inverter DC-DC CONVERTER Control circuit HID Lamp

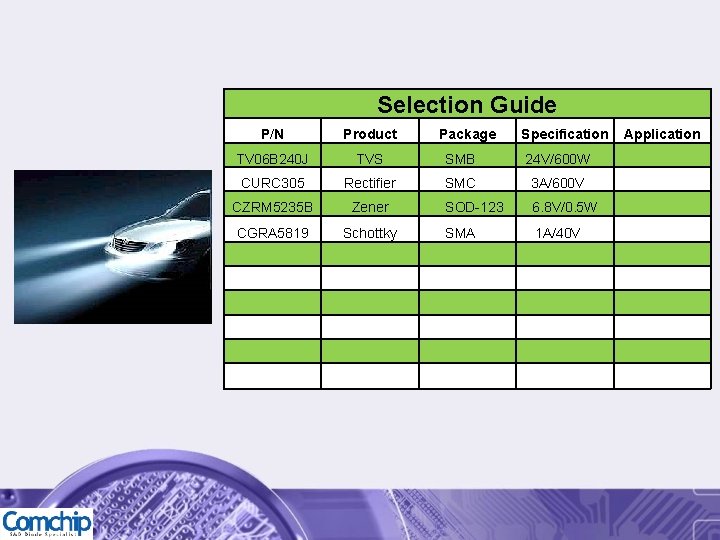

Selection Guide P/N Product Package Specification Application TV 06 B 240 J TVS SMB 24 V/600 W CURC 305 Rectifier SMC 3 A/600 V CZRM 5235 B Zener SOD-123 6. 8 V/0. 5 W CGRA 5819 Schottky SMA 1 A/40 V
LED head light system Car Battery Power Regulation High beam Low beam Ambient light sensor MCU Daytime Running lamp Turn signal lamp Headlight Leveling/Swiveling Motor control LIN/CAN BUS

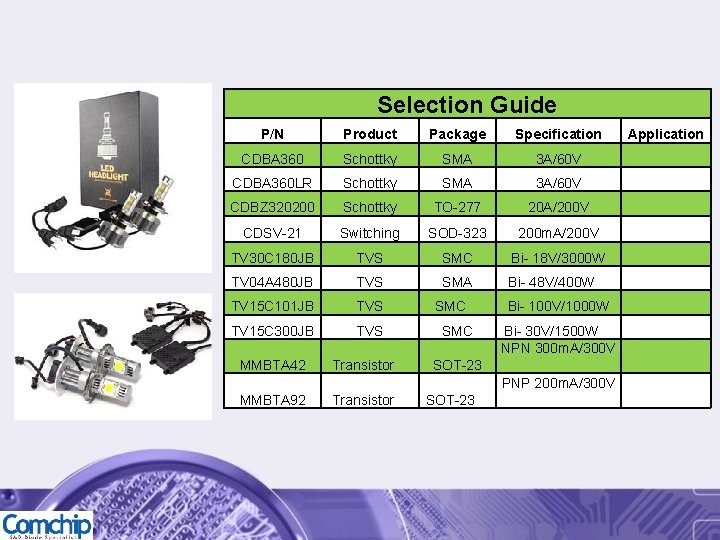

Selection Guide P/N Product Package Specification CDBA 360 Schottky SMA 3 A/60 V CDBA 360 LR Schottky SMA 3 A/60 V CDBZ 320200 Schottky TO-277 20 A/200 V CDSV-21 Switching SOD-323 200 m. A/200 V TV 30 C 180 JB TVS SMC Bi- 18 V/3000 W TV 04 A 480 JB TVS SMA Bi- 48 V/400 W TV 15 C 101 JB TVS SMC Bi- 100 V/1000 W TV 15 C 300 JB TVS SMC MMBTA 42 Transistor MMBTA 92 Transistor Bi- 30 V/1500 W NPN 300 m. A/300 V SOT-23 PNP 200 m. A/300 V SOT-23 Application
LED rear combination lamps Car Battery Tail input Dimming Power management Stop input
Selection Guide P/N Product Package Specification Application CDSW 4148 Switching SOD-123 300 m. A/75 V CGRKM 4005 Rectifier SOD-123 1 A/600 V CDBA 340 Schottky SMA 3 A/40 V
Power doors and liftgate Car Battery Power Regulation Door Key Pad Relay Driver MCU Hall Sensor Safety Sensor LIN/CAN BUS
Selection Guide P/N Product Package Specification Application CDBMT 1200 Schottky SOD-123 H 1 A/200 V CDBMT 140 Schottky SOD-123 H 1 A/40 V CDBT-70 Schottky SOT-23 70 m. A/70 V CZRF 52 C 18 Zener 1005 18 V/0. 35 W TV 06 B 300 JB TVS SMB 30 V/600 W CPDT-24 V ESD SOT-23 Bi- 24 V/10 p. F MMBT 3904 Transistor SOT-23 NPN 0. 2 A/60 V 2 N 7002 K MOSFET SOT-23 N-Ch/60 V
