Automobile Emission Gas Analysis Solution Automobile Emission Gas
Automobile Emission Gas Analysis Solution
Automobile Emission Gas Analysis Magnetic type Engine RPM Sensor Gasboard-8110 Testing gasoline and diesel engine RPM Emission Gas Analyzer Gasboard-3000 E/Gasboard-5020 Measurements: HC, CO 2, NO, O 2 , etc Battery Type Engine RPM Sensor Gasboard-8010 NOx Gas Analyzer Gasboard-3000 UV Connected with cigar lighter or battery Opacity Meter Gasboard-6000 Display opacity degree and light absorption coefficient Measuring gas: NO, NO 2 for diesel engines
Automibile Emission Gas Analyzer Gasboard-5020 Measurement of gases exhausted from gasoline, LPG, CNG engines Complied with ARAI testing standards. Simultaneous measuring of CO, CO 2, HC, O 2, NO Automatic calculation and display of Lambda and A/F LCD screen and keypad buttons for easier setting and operation. Selection of fuels: petro, LPG, Natural Gas, alcohol Selection of C 3 -C 6 factor Automatic leakage test, blocking test and HC residue test of sampling line Measurements: CO, CO 2, HC, O 2, NO Automatic zeroing and air purge before each measurement Optional RPM sensors Optional oil temperature probe. RS-232 digital serial interface Small Size, light weight and most convenient.
Automobile Emission Gas Analyzer Gasboard-3000 E Meets GB 18285 00 Class Measurement Standards Dual-beam micro flow NIDIR sensors Automatic thermostat technology to eliminate interference of working temperature impact. Measurements: CO, CO 2, HC, NO, O 2 Filter chamber design to reduce gas cross-interference Reserved oil temperature, RPM and other interfaces Can be integrated with other car testing equipment Connect with printer via bluetooth

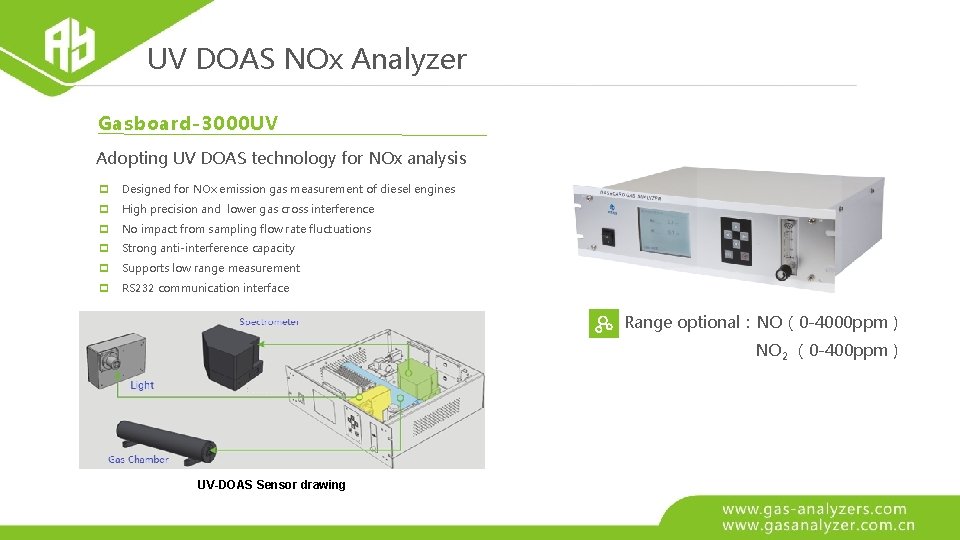

UV DOAS NOx Analyzer Gasboard-3000 UV Adopting UV DOAS technology for NOx analysis Designed for NOx emission gas measurement of diesel engines High precision and lower gas cross interference No impact from sampling flow rate fluctuations Strong anti-interference capacity Supports low range measurement RS 232 communication interface Range optional:NO(0 -4000 ppm) NO 2 (0 -400 ppm) UV-DOAS Sensor drawing

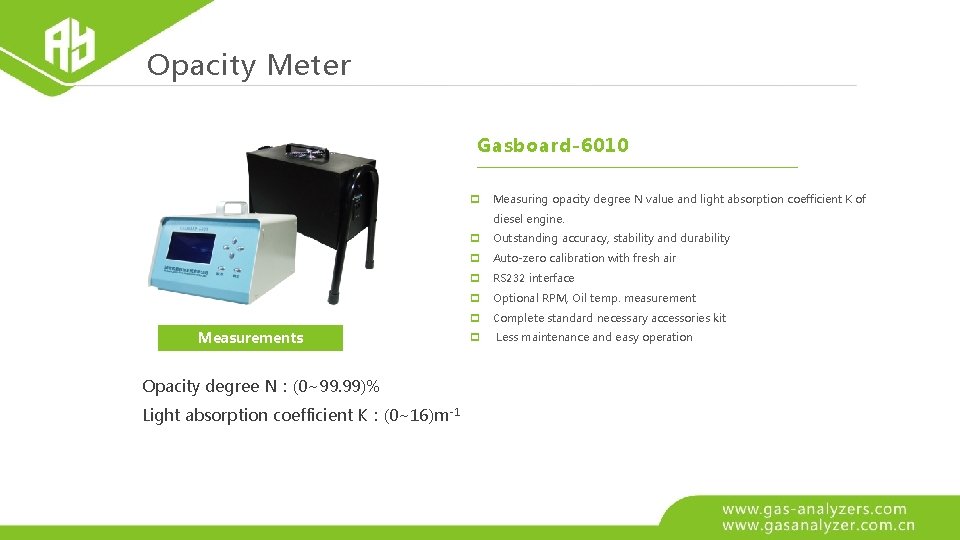

Opacity Meter Gasboard-6010 Measuring opacity degree N value and light absorption coefficient K of diesel engine. Measurements Opacity degree N:(0~99. 99)% Light absorption coefficient K:(0~16)m-1 Outstanding accuracy, stability and durability Auto-zero calibration with fresh air RS 232 interface Optional RPM, Oil temp. measurement Complete standard necessary accessories kit Less maintenance and easy operation
NDIR Gas Bench Gasboard-2006 CO, CO 2 & HC Accurate and stable measurements of CO, CO 2 and HC based on NDIR technology With temperature compensation on program Quick warm-up time ensures fast start-up Prompt response time for 3 gases measurements Plug-in electrochemical O 2 and NO sensors interfaces Easy emission gas analyzer integration Restoring of factory’s parameters possible Compatible communication protocol PC software available for testing CO, CO 2, HC (can be extended to O 2,NO options)
NDIR Gas Bench Gasboard-2008 CO, CO 2 & HC Precise CO, CO 2 and HC measurements based on one NDIR gas bench Temperature control design with heater on NDIR gas bench Great stability on measuring data Quick warm-up time ensures fast start-up Prompt response time for simultaneous channels measurement Plug-in electrochemical O 2 and NO sensors interfaces Easy emission gas analyzer integration Restoring of factory’s parameters possible Compatible communication protocol PC software available for testing CO, CO 2, HC (can be extended to O 2,NO options)
NDIR Gas Bench Difference between Gasboard-2006&2008 No. Items Gasboard-2006 Gasboard-2008 NDIR gas bench OIML 1 class OIML 0 class ARAI India ARAI By temp. correction on program With heater on NDIR gas bench; 1 Product 2 Standard 3 Temp. control design 4 Warm up time 10 minutes 8 - 10 minutes 5 Temperature impact Less impact No impact 6 Response time T 90: ≤ 5 s T 90: ≤ 4 s Temp. correction on program
Engine RPM sensor Measurement 2, 4 stroke & 1~12 cylinder Measurement 4 -stroke-diesel/gasoline Based on Cigar Lighter Based on Vibration and Noise Gasboard-8010 Gasboard-8110 Directly connected to cigar lighter or battery to measure RPM without Advanced hardware design together with integrated software analysis any sensor Measuring RPM of a variety of gasoline engine, diesel engines High precision Automatic calibration, high measurement accuracy and reliable Great reliability Easy installation Standard output such as TTL or RS-232 performance Easy on installation and operation

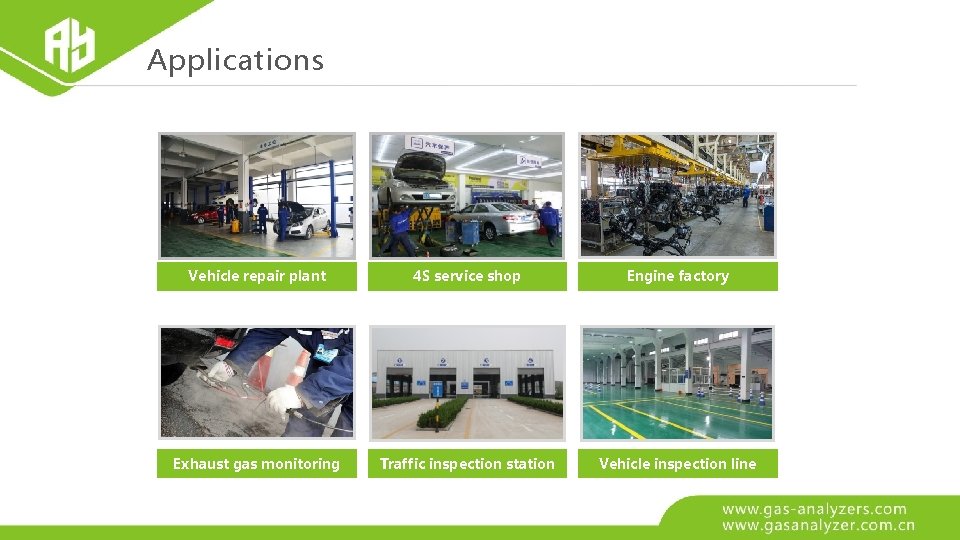

Applications Vehicle repair plant 4 S service shop Engine factory Exhaust gas monitoring Traffic inspection station Vehicle inspection line

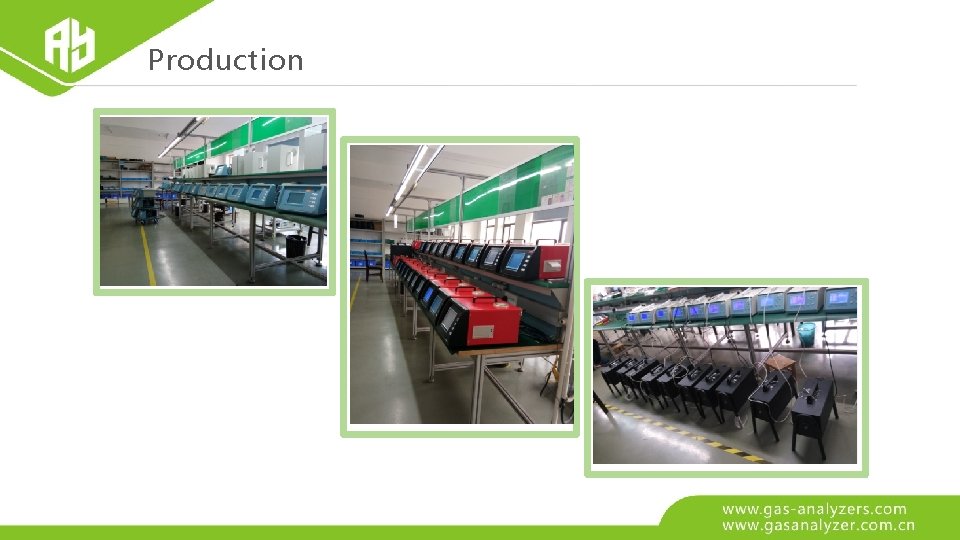

Production
Production

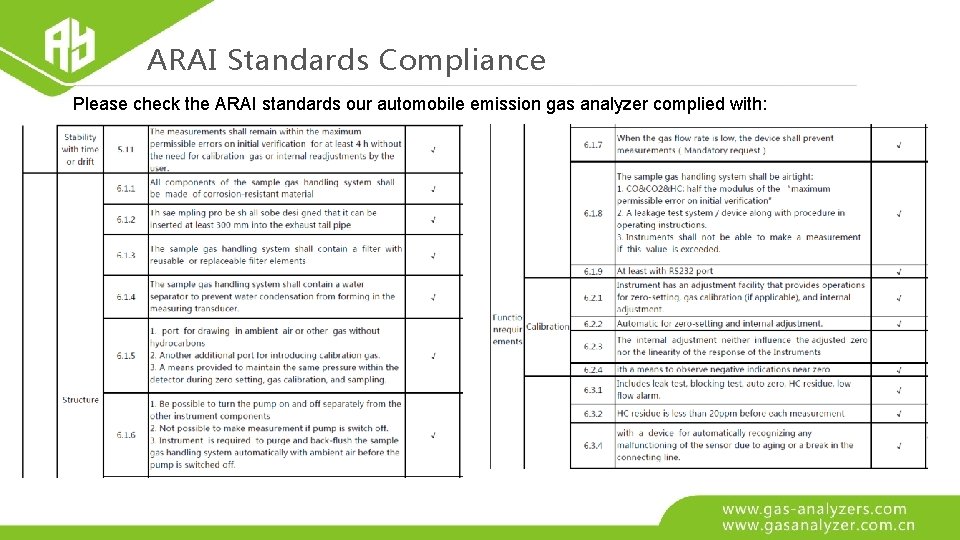

ARAI Standards Compliance Please check the ARAI standards our automobile emission gas analyzer complied with:
ARAI Standards Compliance
ARAI Standards Compliance
Certificates ISO CE IATF 16949
About Us Hubei Cubic-Ruiyi Instrument Co. , Ltd. is a solution provider specializing in development & production for industrial process gas and air pollution gas analysis solution. Gas sensors based on comprehensive technology
Hubei Cubic-Ruiyi Instrument Co. , Ltd Add:Fenghuang No. 3 Road, Fenghuang Industrial Park Eastlake Hi-tech Development Zone Wuhan 430205, Hubei Province, China Tel: 0086 -27 -81628831 Fax: 0086 -27 -87401159 Email:info@gasanalyzer. com. cn Web:www. gasanalyzer. com. cn www. gas-analyzers. com
