Automatism platform Micro TSX 37 xx Introduction to

Automatism platform Micro (TSX 37 xx)

Introduction to the general presentation of the Micro The following transparencies allow a presentation of the Micro more or less detailed depending on the level of the need and duration. The presentation is organized in 2 parts and 3 levels : - A core (~15 slides) for the basic presentation - A second part which contains all the more detailed slides and annexes to complete the basic presentation (2 levels) To have access to this, you must be inside the SLIDE SHOW mode : 1) When the symbol will be met, you’ll have only to click on it to go directly to the associated annex. Then in the last slide of each annex the symbol will appear. By clicking on it you’ ll go back to the slide in the basic presentation where you were. 2) Other accesses : - In the slide 5 (“A well gifted PLC …”) you click on ZOOM to have the characteristics. - In the slide 6 (“Optimized platforms …”) you click directly on each TSX 37 to obtain the corresponding details. AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 2

Optimized platforms To meet your needs Final Customers Premium Quantum O E M / Machine Builders Premium Micro Atrium Nano AUT S. B. S. - Presentation name - Date - Language - Electronic File Name Manufacturer Process 3

Micro The PLC for Machine Builders : ð for more intelligent and performant machines ð with very small dimensions but with a very large modularity ð with powerful functions easy to set up ð for well adapted solutions at reduced costs AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 4

Micro : A well gifted PLC for its size Up to 468 I/O Memory up to 84 kwords Less than 0, 15 µs/inst. Large specialized functions : • counting • analog I/O and PID • mathematical functions • fuzzy logic • . . . AUT S. B. S. - Presentation name - Date - Language - Electronic File Name Multi-tasking application with event functions Many networks and communication buses Protection : • of the user know-how • of data • of PLC peripherals (outputs, safety chains, …) 5

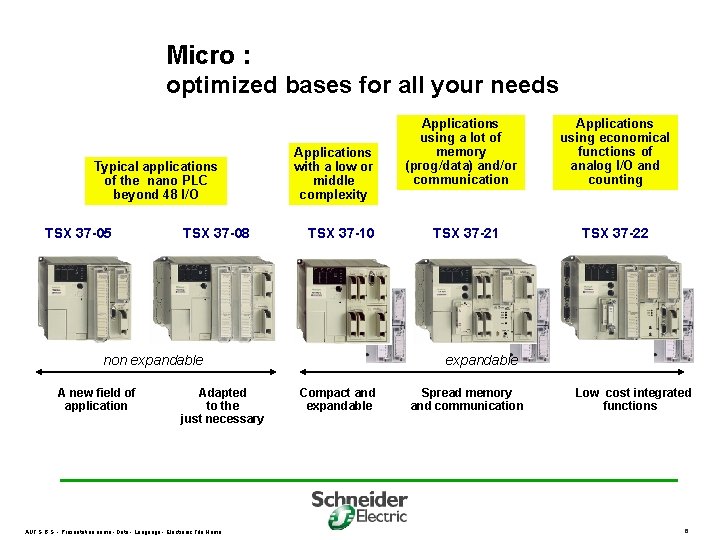

Micro : optimized bases for all your needs Typical applications of the nano PLC beyond 48 I/O TSX 37 -05 TSX 37 -08 Applications with a low or middle complexity TSX 37 -10 non expandable A new field of application Adapted to the just necessary AUT S. B. S. - Presentation name - Date - Language - Electronic File Name Applications using a lot of memory (prog/data) and/or communication TSX 37 -21 Applications using economical functions of analog I/O and counting TSX 37 -22 expandable Compact and expandable Spread memory and communication Low cost integrated functions 6

Micro Integrated Functions Built in display for I/O (in-rack, AS-i) and Diag Programming Terminal PC Connection 8 Analog Inputs 1 Analog Output 10 k. Hz Up/Down Fast Counter 10 k. Hz Up Counter Unitelway Port for connection of up to 5 Slaves AUT S. B. S. - Presentation name - Date - Language - Electronic File Name TSX 37 -22 PCMCIA communications port PCMCIA memory expansion port 7

Nano link Exchanges between applications STZ % IW % QW 10 Remote I/O %I %Q 1 2 3 4 200 m maximum of 4 TSX Nanos up to 3 as remote processors AUT S. B. S. - Presentation name - Date - Language - Electronic File Name supports remote Nano analog modules 8

Program loader A better answer to OEM needs n. Program loader (for Nano and Micro) – – Storage and transfer of program up to 15 Kwords Easy duplication of program by unspecialized people Facilitates the updating of machines on customer site Part number : TSX PRG LDR AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 9

PL 7 Micro : The continuous help of PL 7 software Networks HM I Remote I/Os Counting / Positionning Fieldbuses Analog I/O Control loops Fuzzy logic AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 1 0

PL 7 Micro : Easy choices, and automatic setting up Ergonomics in the automatician’s service Powerful languages for all the needs A very simple setting up for specialized functions Performant services for setting up and maintenance AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 1 1

Micro Application: Example : embedded automatism n Compact : high density card linkage via pre-wired cables n Integrated : saving via F-Epromembedded multi-using vizualisation n Modular : half-format modules for the best dimensions n Really industrial : large range power supply temperature 0 -70°C vibrations holdingconnecteurs) AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 1 2

Micro Application : Example : high speed machines n Fast : very short cycle times multi-tasking / events high speed counting 500 khz short time inputs filters n Keen : quick connection via TELEFAST AS-i bus n User- friendly : HMI functions library AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 1 3

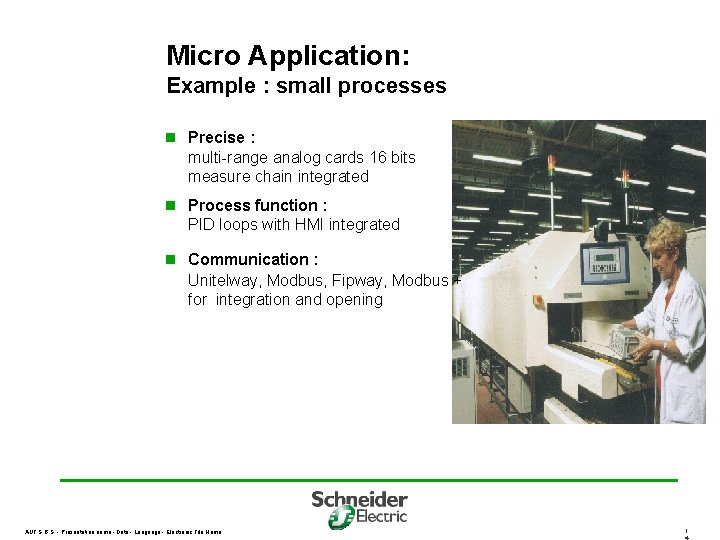

Micro Application: Example : small processes n Precise : multi-range analog cards 16 bits measure chain integrated n Process function : PID loops with HMI integrated n Communication : Unitelway, Modbus, Fipway, Modbus + for integration and opening AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 1 4

Micro Application: Example : distributed architectures n Distributed and Transparent : Transparent X-way architectures remote I/O and local automatism via Nano link n Memory : data memory for recipes and production data saving n Keen : counting and positionnning functions low cost and integrated analog I/O functions AUT S. B. S. - Presentation name - Date - Language - Electronic File Name 1 5

Automatism platform Micro (TSX 37 xx)
