分布式拓扑结构 PS 1 OS 2 ES/OS 1 Digi. Net S (Ethernet TCP/IP) PS 3 PS 2 OS 3 ABB Automation World 2000 Control IT Page 2 PS 4 OS 4/DDE 1 PS 5 OS 5

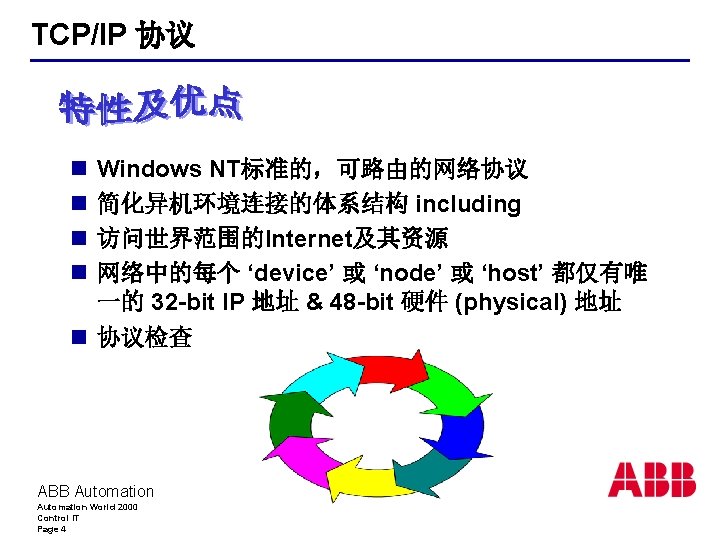

TCP/IP协议 TCP / IP = Transmission Control Protocol / Internet Protocol 发起人是 US 的国防部,最早用于国防部高级研究计划署 内部的数据交换与通讯,1970 年后发展成为世界范围的 公用网络协议。 ( Internet = internet work = a network of networks ) ABB Automation World 2000 Control IT Page 3
TCP/IP 协议 Router 因特网-‘Internet’ ‘local network’ ‘devices’, ‘nodes’, ‘hosts’ 都有唯一的地址 以太网-‘Ethernet’ ABB Automation World 2000 Control IT Page 5 Router Router ‘Token Ring’
TCP/IP 协议 IP 地址的格式: n 是 32位的地址,并且为唯一的地址 e. g. 11000001010 00011110 0000001 = 4 个八位字节 每个八位字节可以转换成一个十进制的数字,如: 0… 255 例如 11000001010 00011110 0000001 = 193. 10. 30. 1 = ‘ 十进制数的表示方法 ’ ABB Automation World 2000 Control IT Page 6
TCP/IP 协议 IP 地址可以分成 3 级: 如果 第一个 8位数 / byte = n 0… 127 = ‘CLASS A’ (具有最小的网络数和最多 16, 777, 216 宿主机数) n 128… 191 = ‘CLASS B’ (for some networks and max. 65, 536 hosts each) n 192… 223 = ‘CLASS C’ (for large no. of networks and max. 254 hosts each) n 例如: 193. 10. 30. 2 属于 ‘CLASS C’范围的 IP地址 ABB Automation World 2000 Control IT Page 7
TCP/IP 协议 IP 地址的 3 级分类标准: 1 st octet: Network ‘Class A’ 3 rd octet: Host 4 th octet: Host NNNN HHHHHHHH 0… 127 Network ‘Class B’ 2 nd octet: Host N = Net. ID, H = Host. ID Network Host NNNNNNNN HHHHHHHH 128… 191 Network ‘Class C’ Network Host NNNNNNNN HHHH 192… 223 ABB Automation World 2000 Control IT Page 8 Network

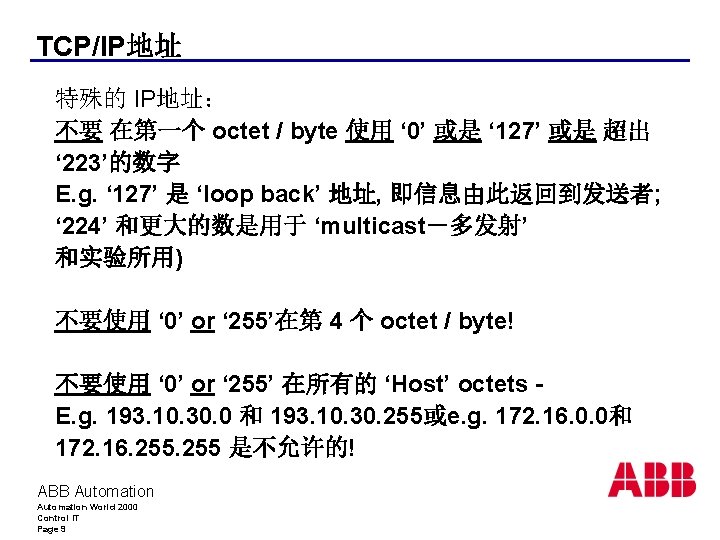

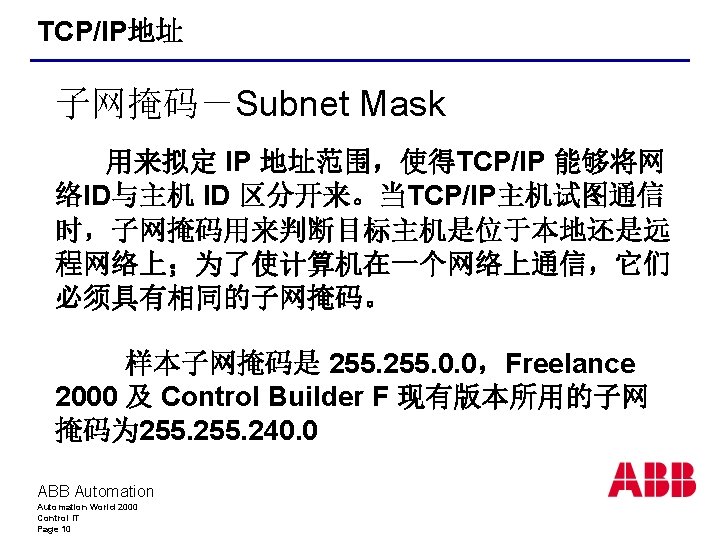

TCP/IP 地址举例 站资源所用的默认ID与IP地址: Process Stations (Project) PC Stations (Digi. Tool) (Digi. Vis) Resource PS 1 PS 2 PS 3 PS 4 PS 5 ID 1 2 3 4 5 IP 地址 172. 16. 1. 1 172. 16. 1. 2 172. 16. 1. 3 172. 16. 1. 4 172. 16. 1. 5 Resource ES OS 1 OS 2 OS 3 OS 4 DDE 1 OS 5 ID 31 32 21 22 23 24 25 IP 地址 172. 16. 1. 31 172. 16. 1. 21 172. 16. 1. 22 172. 16. 1. 23 172. 16. 1. 25 默认子网掩码: 255. 240. 0 ABB Automation World 2000 Control IT Page 11 TCP/IP addresses and resource IDs
通� 介� AC 800 F允许使用以下介质 � 准 介 � 模 件 � 接方式 10 Base 2 细同轴电缆 EI 801 F 直接 10 Base 5 粗同轴电缆 EI 802 F 用Transceiver连接到AUI 10 Base. T 双绞线电缆 EI 802 F 用Transceiver连接到AUI EI 803 F 直接 EI 802 F 用Transceiver连接到AUI 10 Base. FL 光导纤维电 缆 ABB Automation World 2000 Control IT Page 12
通� 介� -10 Base 2 (细以太网, 细同轴电缆) 每段 max. 600 ft. / 185 m 基带式传输 传输速率为 10 MBits/s min. 0. 5 m / 2 ft. 50 W L=0 PS ABB Automation World 2000 Control IT Page 13 • • 总线式结构 使用T型头连接 Max. 30 节点/每段 Max. 1024个节点/网 络 • Max. 185米 /每段 • min. 0. 5米/节点间 max. 185 m 50 W Length = L = 0 AC 800 F L=0 OS
通� 介� -10 Base 2 50 W Segment 1 T Transceiver AUI cable (max. 160 ft. / 50 m) AUI/AUI Repeater (max. 4 Repeater) R Attention: • 2个收发器 Transceiver 加上一个 转发器 Repeater可以扩展出另外一 个段 • max. 3000 ft. / 925 m 的10 Base 2 电缆及另外 max. 1300 ft. / 400 m AUI 电缆 AUI cable (max. 160 ft. / 50 m) Transceiver T 50 W Segment 2 50 W 10 Base 2 or 10 Base. FL ABB Automation World 2000 Control IT Page 14
通� 介� -10 Base 5 (全以太网-粗同轴电缆) 每段 max. 1700 ft. / 500 m 基带式传输 传输速率为 10 MBits/s min. 8 ft. 2. 5 m • • • 总线式结构 通过 Transceivers 使用AUI连接 Max. 100 节点/每段 Max. 1024个节点 /网络 Max. 500米 /每段 min. 2. 5米/节点间 max. 1700 ft. 500 m 50 W T T Transceiver AUI cable OS PS ABB Automation World 2000 Control IT Page 15 T AC 800 F
通� 介� -10 Base 5 Medium 10 Base 5 MDI M F AUI cable ABB Automation World 2000 Control IT Page 16 PMA MAU

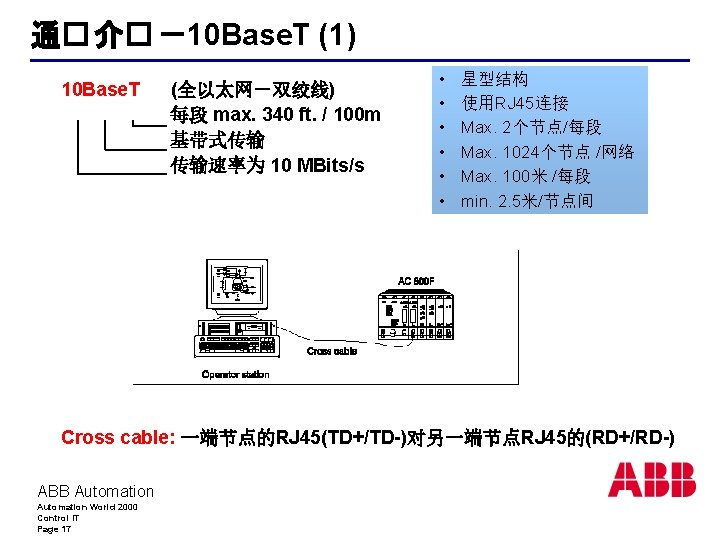

通� 介� -10 Base. T (2) 可以用hub 使用双绞线连接多个节点 与已有网络连接 1: 1 Cable ABB Automation World 2000 Control IT Page 18

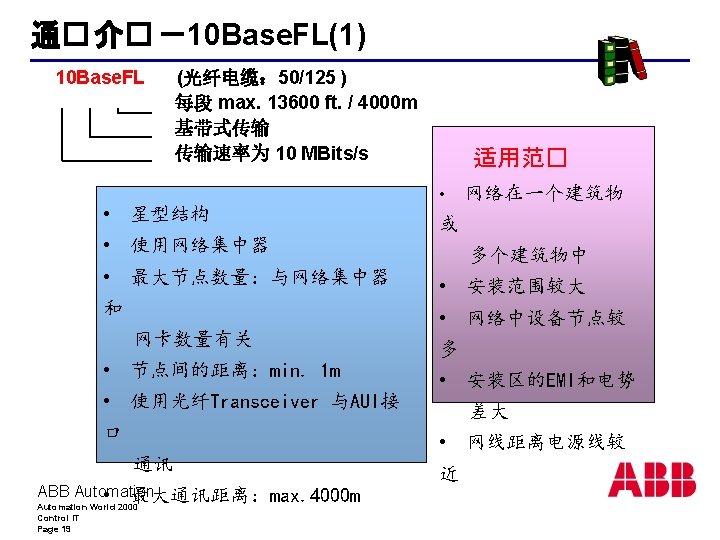

通� 介� -10 Base. FL(2) ABB Automation World 2000 Control IT Page 20
通� 介� -10 Base. FL(3) ABB Automation World 2000 Control IT Page 21
