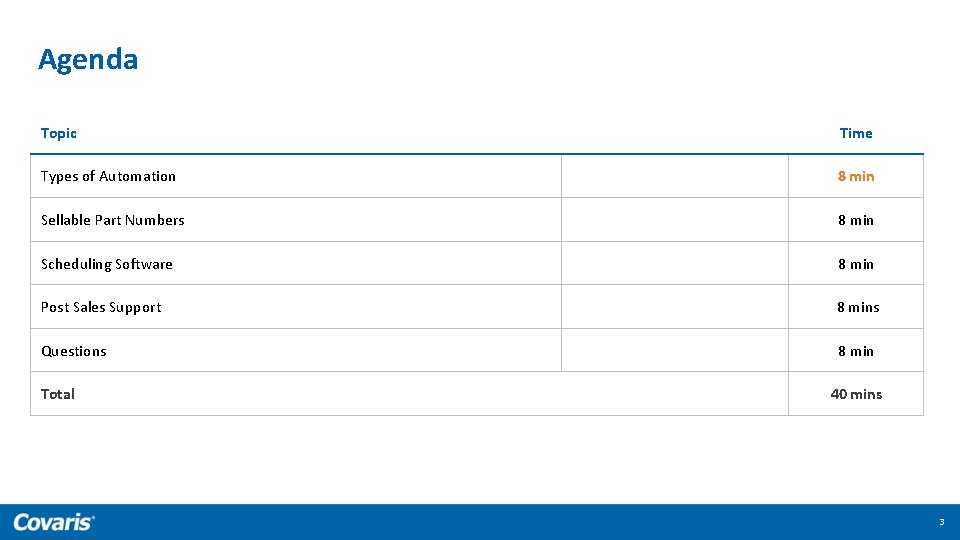

Agenda Topic Time Types of Automation 8 min Sellable Part Numbers 8 min Scheduling Software 8 min Post Sales Support Questions Total 8 mins 8 min 40 mins 3

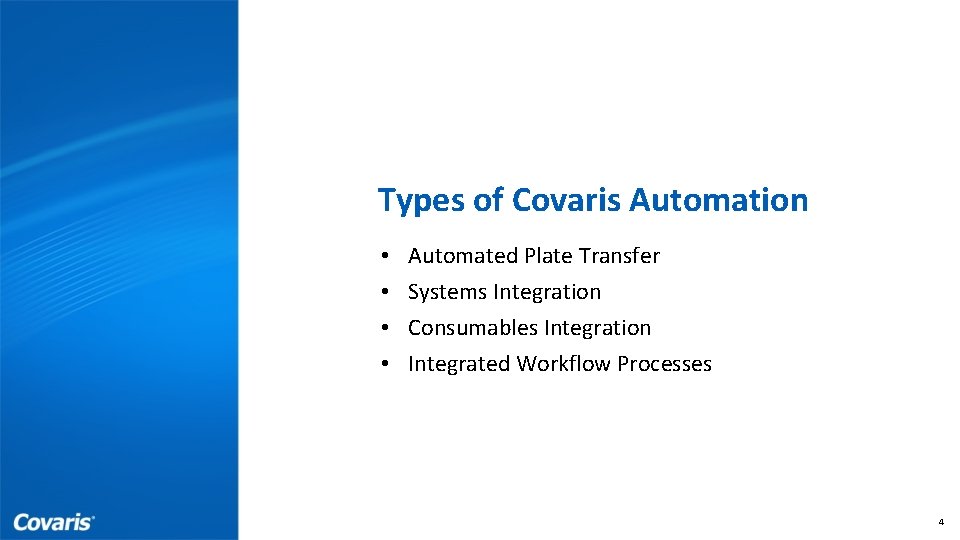

Types of Covaris Automation • • Automated Plate Transfer Systems Integration Consumables Integration Integrated Workflow Processes John Doe September 00, 2017 www. covaris. com 4

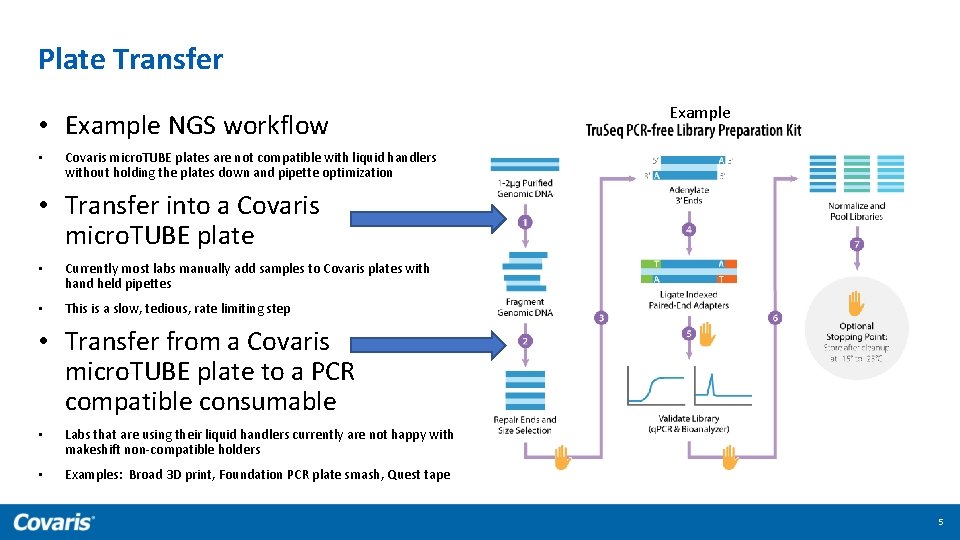

Plate Transfer • Example NGS workflow • Example Covaris micro. TUBE plates are not compatible with liquid handlers without holding the plates down and pipette optimization • Transfer into a Covaris micro. TUBE plate • Currently most labs manually add samples to Covaris plates with hand held pipettes • This is a slow, tedious, rate limiting step • Transfer from a Covaris micro. TUBE plate to a PCR compatible consumable • Labs that are using their liquid handlers currently are not happy with makeshift non-compatible holders • Examples: Broad 3 D print, Foundation PCR plate smash, Quest tape 5

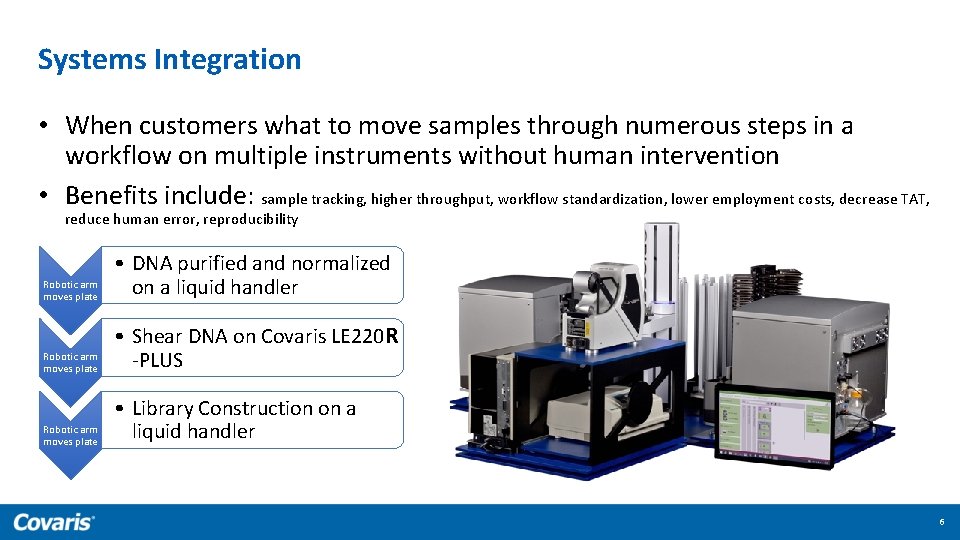

Systems Integration • When customers what to move samples through numerous steps in a workflow on multiple instruments without human intervention • Benefits include: sample tracking, higher throughput, workflow standardization, lower employment costs, decrease TAT, reduce human error, reproducibility Robotic arm moves plate • DNA purified and normalized on a liquid handler Robotic arm moves plate • Shear DNA on Covaris LE 220 R -PLUS Robotic arm moves plate • Library Construction on a liquid handler 6

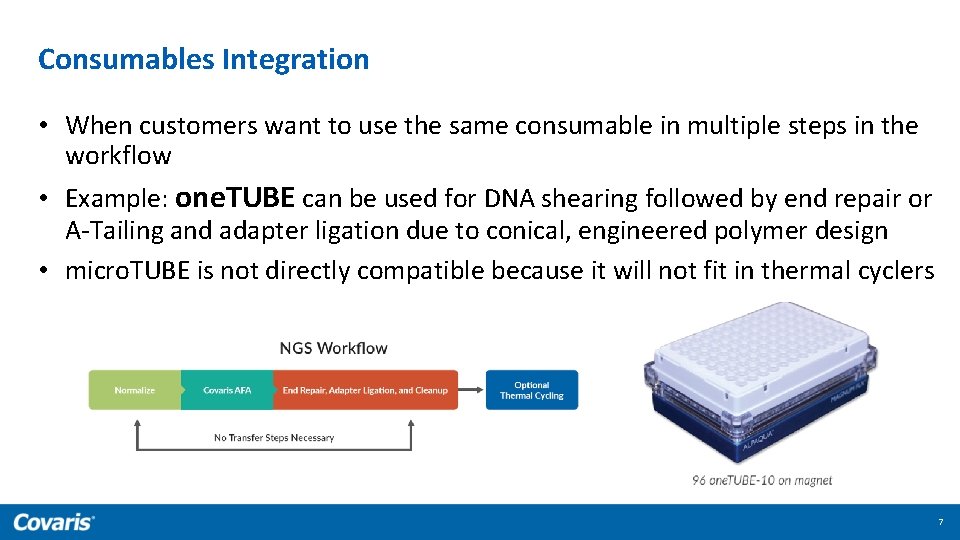

Consumables Integration • When customers want to use the same consumable in multiple steps in the workflow • Example: one. TUBE can be used for DNA shearing followed by end repair or A-Tailing and adapter ligation due to conical, engineered polymer design • micro. TUBE is not directly compatible because it will not fit in thermal cyclers 7

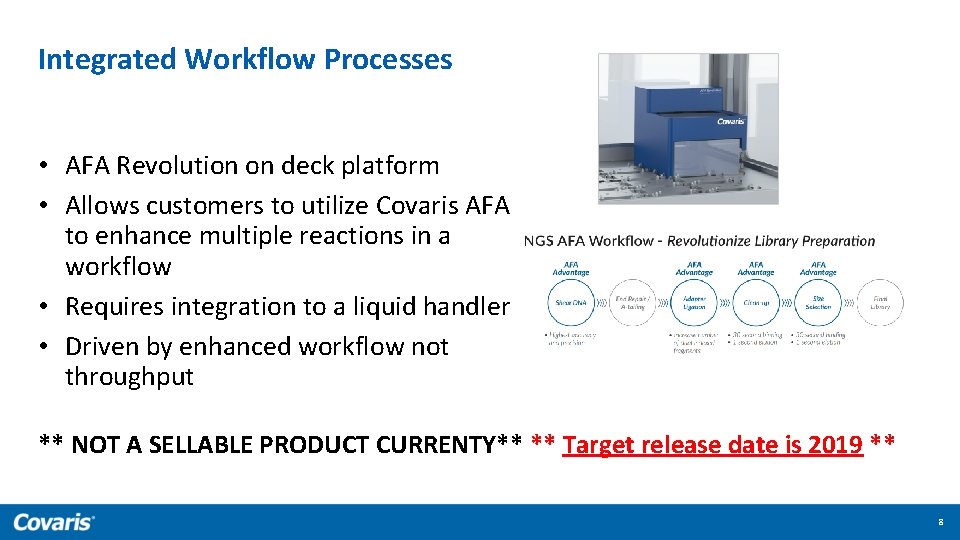

Integrated Workflow Processes • AFA Revolution on deck platform • Allows customers to utilize Covaris AFA to enhance multiple reactions in a workflow • Requires integration to a liquid handler • Driven by enhanced workflow not throughput ** NOT A SELLABLE PRODUCT CURRENTY** ** Target release date is 2019 ** 8

Sellable Products • Plate Holders • LE 220 R-PLUS • Robotic Arms John Doe September 00, 2017 www. covaris. com 9

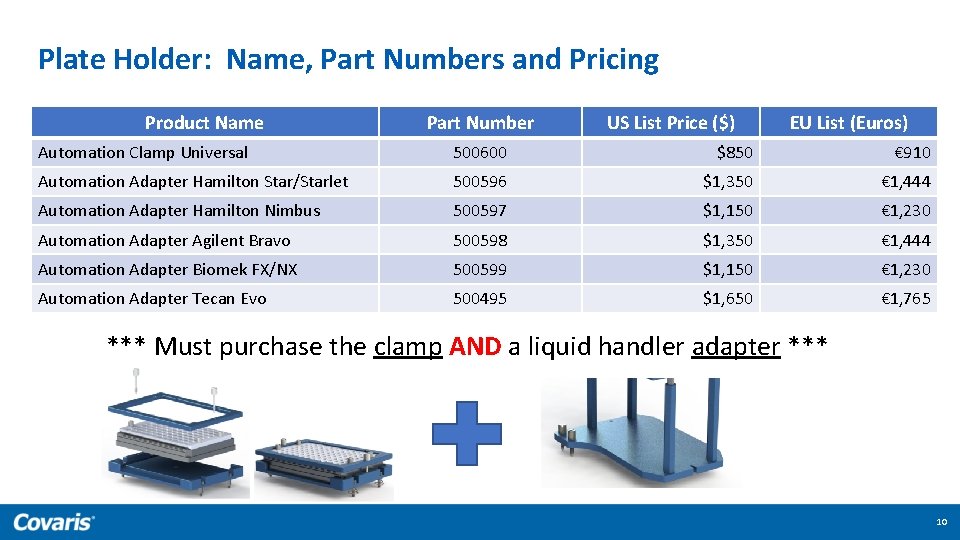

Plate Holder: Name, Part Numbers and Pricing Product Name Part Number US List Price ($) EU List (Euros) Automation Clamp Universal 500600 $850 € 910 Automation Adapter Hamilton Star/Starlet 500596 $1, 350 € 1, 444 Automation Adapter Hamilton Nimbus 500597 $1, 150 € 1, 230 Automation Adapter Agilent Bravo 500598 $1, 350 € 1, 444 Automation Adapter Biomek FX/NX 500599 $1, 150 € 1, 230 Automation Adapter Tecan Evo 500495 $1, 650 € 1, 765 *** Must purchase the clamp AND a liquid handler adapter *** 10

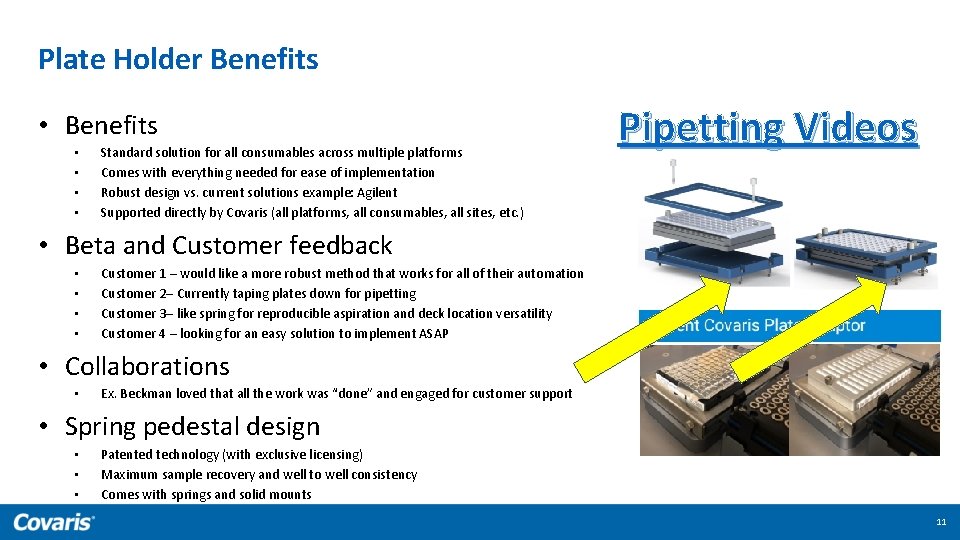

Plate Holder Benefits • Benefits • • Standard solution for all consumables across multiple platforms Comes with everything needed for ease of implementation Robust design vs. current solutions example: Agilent Supported directly by Covaris (all platforms, all consumables, all sites, etc. ) Pipetting Videos • Beta and Customer feedback • • Customer 1 – would like a more robust method that works for all of their automation Customer 2– Currently taping plates down for pipetting Customer 3– like spring for reproducible aspiration and deck location versatility Customer 4 – looking for an easy solution to implement ASAP • Collaborations • Ex. Beckman loved that all the work was “done” and engaged for customer support • Spring pedestal design • • • Patented technology (with exclusive licensing) Maximum sample recovery and well to well consistency Comes with springs and solid mounts 11

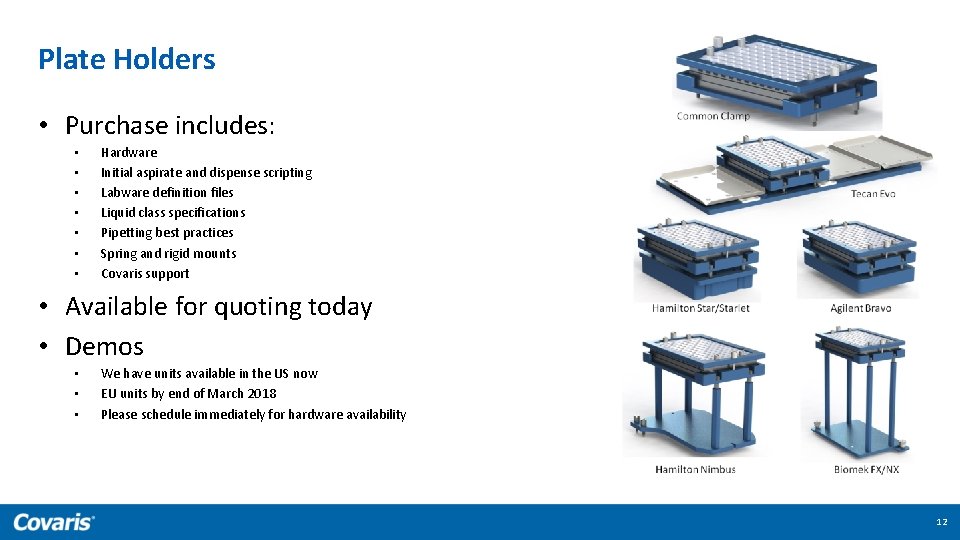

Plate Holders • Purchase includes: • • Hardware Initial aspirate and dispense scripting Labware definition files Liquid class specifications Pipetting best practices Spring and rigid mounts Covaris support • Available for quoting today • Demos • • • We have units available in the US now EU units by end of March 2018 Please schedule immediately for hardware availability 12

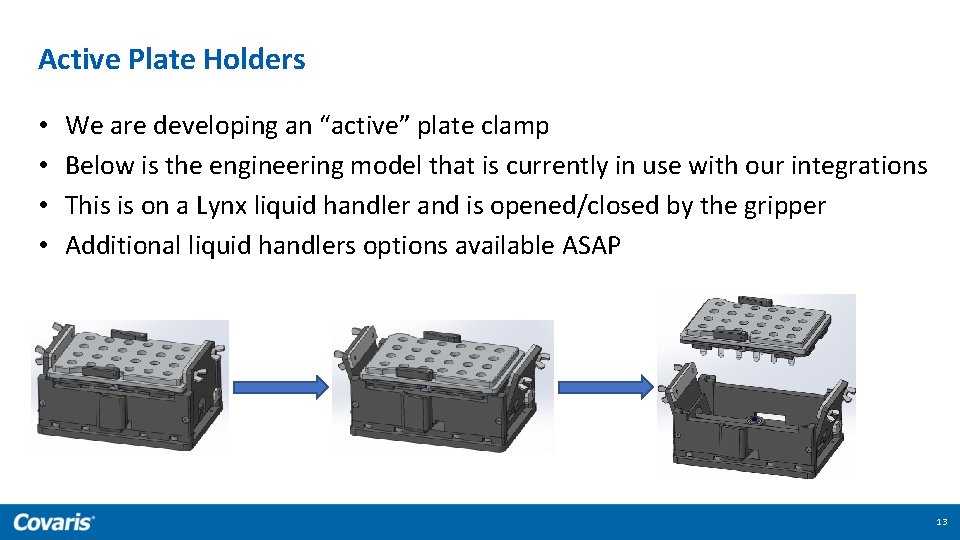

Active Plate Holders • • We are developing an “active” plate clamp Below is the engineering model that is currently in use with our integrations This is on a Lynx liquid handler and is opened/closed by the gripper Additional liquid handlers options available ASAP 13

LE 220 R-PLUS • • Required for customers who want to integrate systems at some point Can be run stand alone (same as LE 220 -PLUS) until integration Can continuously add workflows and instruments “R” PLUS includes: • • • Robotic arm access door Enclosure sensing light curtains Covaris automation shuttle arm Mounting hardware for integration API integration toolkit for drivers Integration/Driver support Product Name LE 220 R-plus Focused-ultrasonicator Part Number US List ($) 500578 $189, 950 LE 220 R-plus Focused-ultrasonicator (LE 220 -plus Upgrade) 500578 UPLP $11, 975 LE 220 R-plus Focused-ultrasonicator (LE 220 Upgrade) 500578 UPL $44, 950 LE 220 R-plus Focused-ultrasonicator (E 220 Upgrade) 500578 UP $62, 350 LE 220 R-plus Focused-ultrasonicator (E 220 e Upgrade) 500578 UPE $110, 495 14

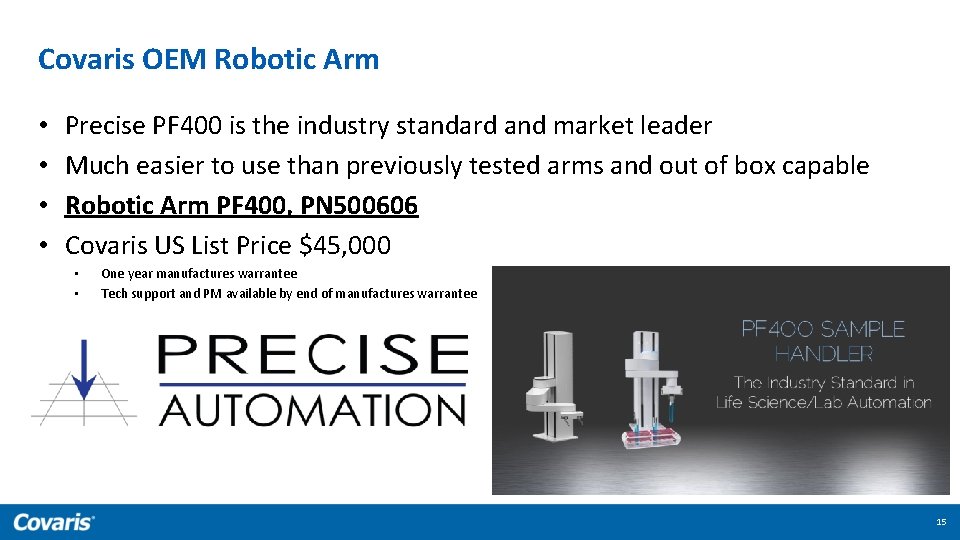

Covaris OEM Robotic Arm • • Precise PF 400 is the industry standard and market leader Much easier to use than previously tested arms and out of box capable Robotic Arm PF 400, PN 500606 Covaris US List Price $45, 000 • • One year manufactures warrantee Tech support and PM available by end of manufactures warrantee 15

Integration Software • • Scheduling Software Bio. Sero Preferred Partnership Drivers API Integration Toolkit John Doe September 00, 2017 www. covaris. com 16

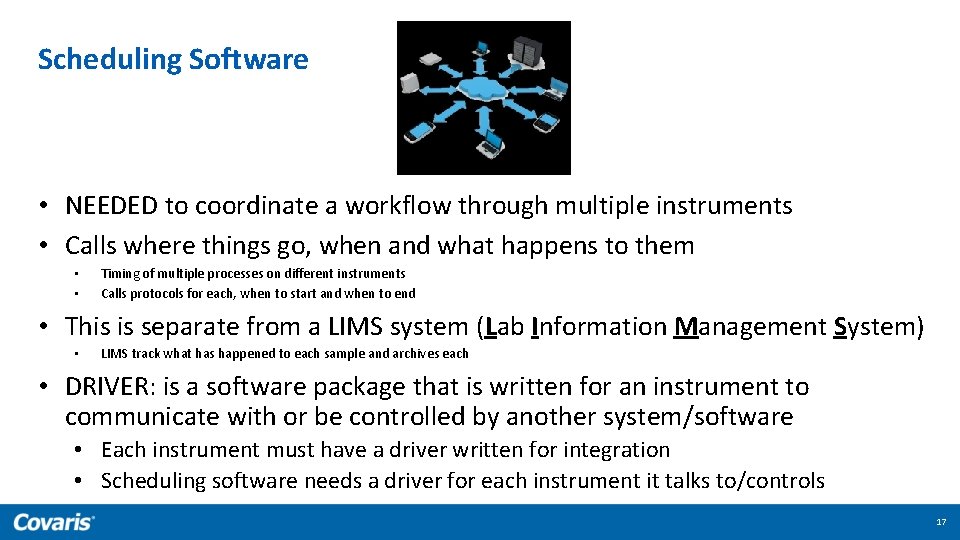

Scheduling Software • NEEDED to coordinate a workflow through multiple instruments • Calls where things go, when and what happens to them • • Timing of multiple processes on different instruments Calls protocols for each, when to start and when to end • This is separate from a LIMS system (Lab Information Management System) • LIMS track what has happened to each sample and archives each • DRIVER: is a software package that is written for an instrument to communicate with or be controlled by another system/software • Each instrument must have a driver written for integration • Scheduling software needs a driver for each instrument it talks to/controls 17

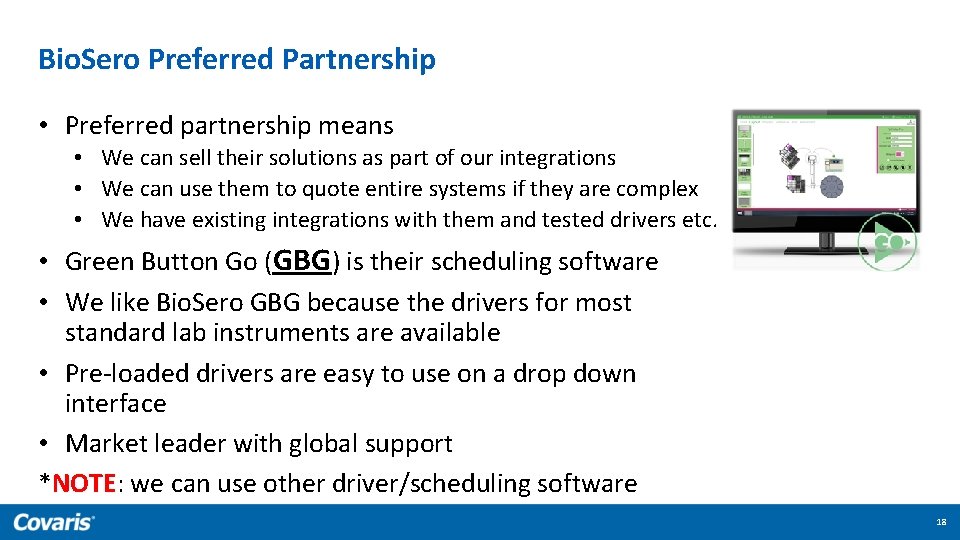

Bio. Sero Preferred Partnership • Preferred partnership means • We can sell their solutions as part of our integrations • We can use them to quote entire systems if they are complex • We have existing integrations with them and tested drivers etc. • Green Button Go (GBG) is their scheduling software • We like Bio. Sero GBG because the drivers for most standard lab instruments are available • Pre-loaded drivers are easy to use on a drop down interface • Market leader with global support *NOTE: we can use other driver/scheduling software 18

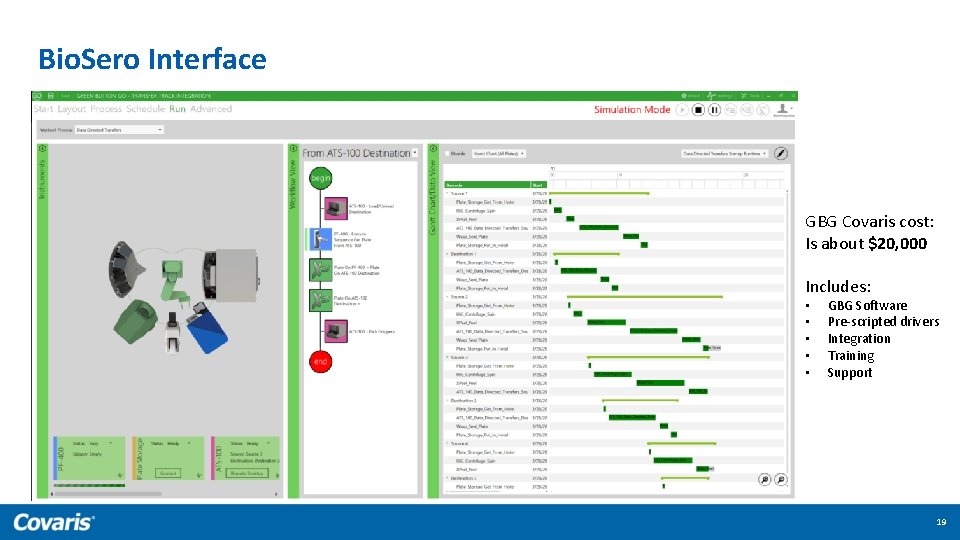

Bio. Sero Interface GBG Covaris cost: Is about $20, 000 Includes: • • • GBG Software Pre-scripted drivers Integration Training Support 19

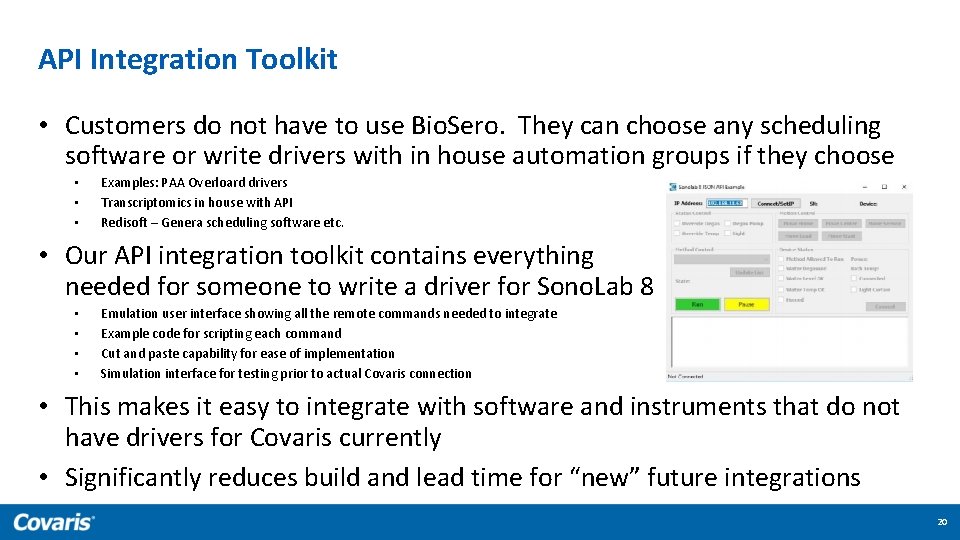

API Integration Toolkit • Customers do not have to use Bio. Sero. They can choose any scheduling software or write drivers with in house automation groups if they choose • • • Examples: PAA Overloard drivers Transcriptomics in house with API Redisoft – Genera scheduling software etc. • Our API integration toolkit contains everything needed for someone to write a driver for Sono. Lab 8 • • Emulation user interface showing all the remote commands needed to integrate Example code for scripting each command Cut and paste capability for ease of implementation Simulation interface for testing prior to actual Covaris connection • This makes it easy to integrate with software and instruments that do not have drivers for Covaris currently • Significantly reduces build and lead time for “new” future integrations 20

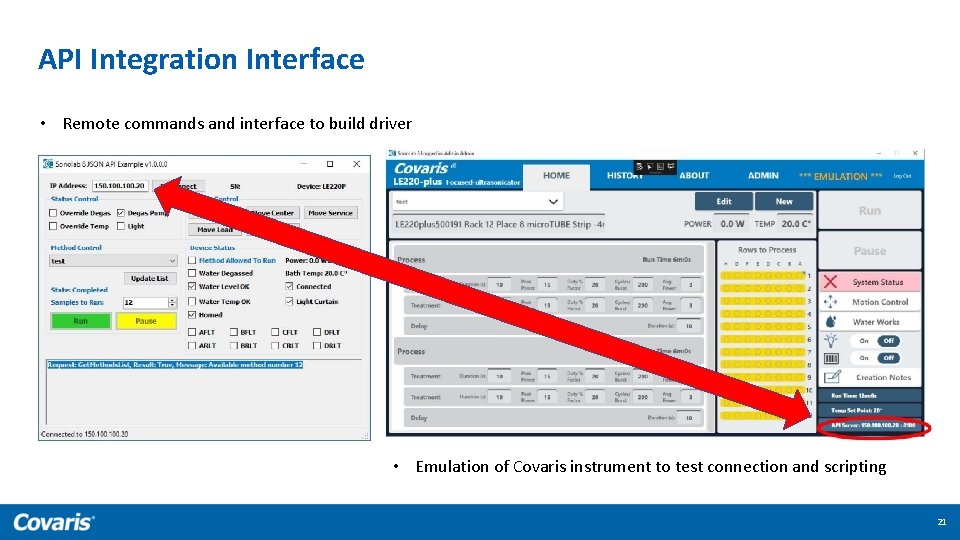

API Integration Interface • Remote commands and interface to build driver • Emulation of Covaris instrument to test connection and scripting 21

Post Sales Support • Plate Holders • Integrations • Robotic Arms John Doe September 00, 2017 www. covaris. com 22

Plate Holder Support • Pipetting is supported by Applications and Automation • Hardware is supported by Automation and Engineering • Automation includes Jeff, Dave, Paulina, Valentina and a representative from each department • The big picture is that automated transfers are the doorway to higher throughput and fully automated workflows so we aim to have a high level of support for these accounts • The goal is to fully support the customer workflow, not just the plate clamp 23

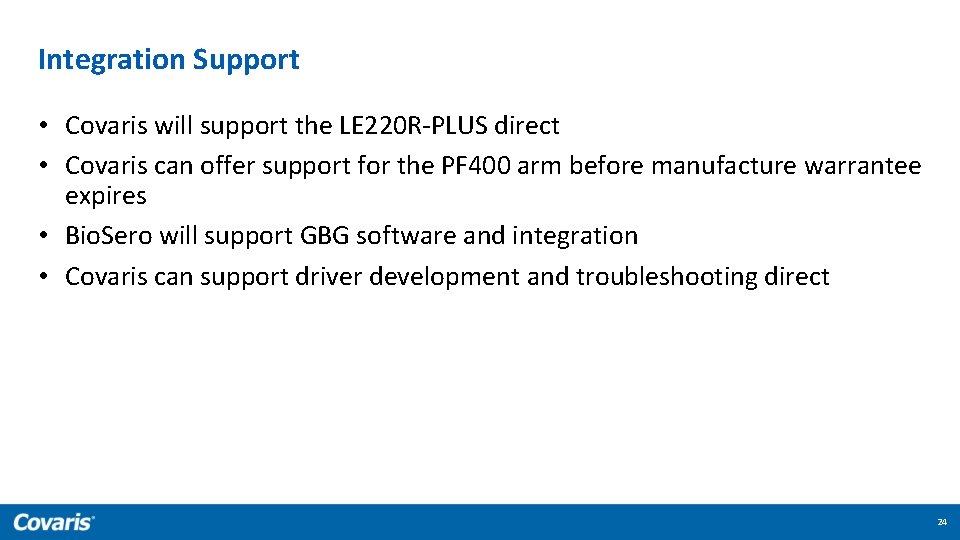

Integration Support • Covaris will support the LE 220 R-PLUS direct • Covaris can offer support for the PF 400 arm before manufacture warrantee expires • Bio. Sero will support GBG software and integration • Covaris can support driver development and troubleshooting direct 24

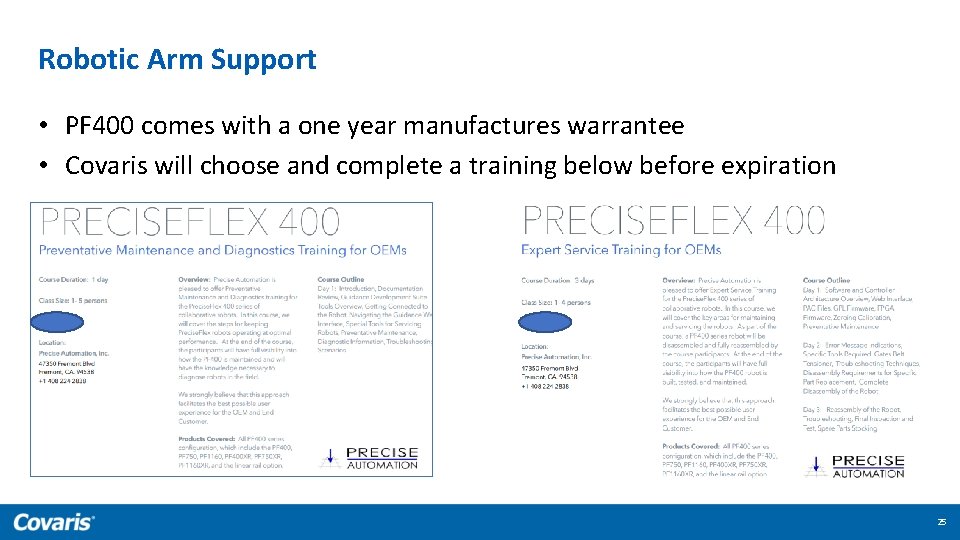

Robotic Arm Support • PF 400 comes with a one year manufactures warrantee • Covaris will choose and complete a training below before expiration 25
