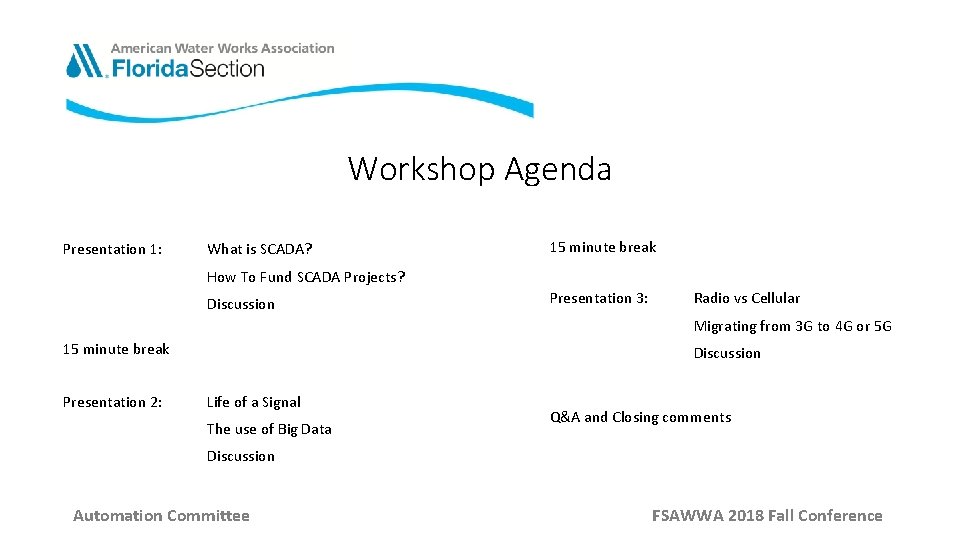

Workshop Agenda Presentation 1: What is SCADA? 15 minute break How To Fund SCADA Projects? Discussion Presentation 3: Radio vs Cellular Migrating from 3 G to 4 G or 5 G 15 minute break Presentation 2: Discussion Life of a Signal The use of Big Data Q&A and Closing comments Discussion Automation Committee FSAWWA 2018 Fall Conference

Workshop Format • Each presentation will last approximately 20 minutes • Each table will be posed a list of questions to start discussions about the presentation • A spokesperson for the table will be selected by each table • The spokesperson will share the table’s answers to the questions with the rest of the tables Automation Committee FSAWWA 2018 Fall Conference

Automation Committee Workshop Presentation 1 What is SCADA? How To Fund SCADA Projects? Automation Committee FSAWWA 2018 Fall Conference

What is SCADA? • SCADA is a term for a type of system. The acronym stands for Supervisory Control And Data Acquisition • SCADA is a control system used to monitor and control operation of equipment such as pumps, valves, sensors and other instruments. Automation Committee FSAWWA 2018 Fall Conference

Ø A SCADA system uses computers, industrial processors and networks to read field devices, make decisions, and control other field devices. HMI Human Machine Interface Automation Committee MANUFACTURERS • • Rockwell - Factory. Talk Schneider - Citect Wonderware VTScada GE - i. Fix Open. SCADA Ignition FSAWWA 2018 Fall Conference

Ø A SCADA system uses computers, industrial processors and networks to read field devices, make decisions, and control other field devices. MANUFACTURERS • • • Rockwell Allen-Bradley Schneider Modicon SCADAPack Siemens GE Automation. Direct Emerson Automation Committee PLC Programmable Logic Controller FSAWWA 2018 Fall Conference

Ø A SCADA system uses computers, industrial processors and networks to read field devices, make decisions, and control other field devices. Radio, Cellular, Ethernet, Modbus, Fiber Optic Cellular Radio Copper Fiber Optic Automation Committee FSAWWA 2018 Fall Conference

Ø A SCADA system uses computers, industrial processors and networks to read field devices, make decisions, and control other field devices. Read Instruments Tank levels Conductivity Control Devices Pump Start/Stop p. H Flow Valve Open/Close Pressure, Temperature Valve Status Automation Committee Variable Frequency Drives Pump Status FSAWWA 2018 Fall Conference

Remote Station A Typical SCADA System Cellular Cloud Plant #1 Plant #2 Radio • • • Automation Committee FCC Licensed Unlicensed 200 -900 Mhz Point-To-Point-To-Multipoint FSAWWA 2018 Fall Conference

How to fund SCADA projects? Obsolescence • SCADA software upgrade cycle is typically 5 years • Hardware lifecycle is typically 15 -20 years Master Plans • Either overall or SCADA Master Plans can help justify • Are a formal document identifying a need and path • Master Plans typically have a list of projects Automation Committee CIP Planning • Identify SCADA needs in advance • Add the costs for SCADA projects to the CIP FSAWWA 2018 Fall Conference

How to fund SCADA projects? Add-on Strategies • Take advantage of plant expansions or refurbishments • Add fiber optic cable when installing underground assets like pipelines • Follow the IT model and specify the right equipment and software Justifications • • • Improve safety Downtime or spill costs versus more instrumentation and visibility Go from 24/7/365 to only M-F 8 -5 operators Remote visibility/control for all Reduce energy and maintenance costs Automation Committee FSAWWA 2018 Fall Conference

Discussion Questions 1. What are some misconception you had about SCADA systems? 2. What funding strategies have you found successful for funding SCADA projects? Automation Committee FSAWWA 2018 Fall Conference
