Automation Associate Professor SuJin Kim Automation and CIM
- Slides: 22
Automation (자동화) Associate Professor Su-Jin Kim Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim School of Mechanical Engineering Gyeongsang National University
Index • • Sensor Actuator Hard Automation Flexible Automation NC Control Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
Sensor Mechanic Electric • Distance(거리) Velocity(속도): • Force(힘): • Angle(각도) Angular velocity(각속도): • Torque(토크): • Generator(발전기) : Power = Fv -> VI • Bimetal : Temp -> Displacement -> On/Off • Temperature -> Resistance(저항) • Vibration (진동) Sound (소리) -> V I Wave • PZT(압전): Pressure(Stress) -> V • 적외선 광: Temp -> Light -> Wavelength or V • 변위 센서: Displacement -> Capacitance • 스트레인게이지: Strain -> Resistance Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
Actuator • Electric Mechanic Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
Manufacturing Automation • • Automation is the process of machines follow a predetermined sequence of operations with little or no human involvement. The major breakthrough in automation is numerical control (NC) of machine tools. Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
Hard Automation (고정자동화) • • • Machines designed to produce a standardized product, thus specialized and lack flexibility. Transfer mechanisms and transfer lines used to move workpiece from one station to another. High volume, High reliability, High production rates, High initial investment Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
Conveyer http: //ma. gnu. ac. kr/vod/Automatic/Conveyer. MP 4 Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim http: //ma. gnu. ac. kr/vod/Automatic/Conveyer 2. MP 4
Fixturing • • • Fixtures are designed for specific purposes Clamps are simple multifunctional devices Jigs have reference surfaces and points for accurate alignment. Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim

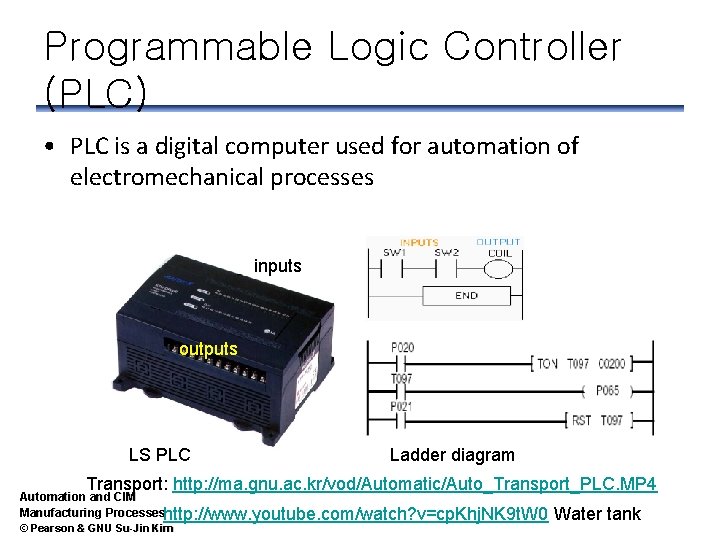

Programmable Logic Controller (PLC) • PLC is a digital computer used for automation of electromechanical processes inputs outputs LS PLC Ladder diagram Transport: http: //ma. gnu. ac. kr/vod/Automatic/Auto_Transport_PLC. MP 4 Automation and CIM Manufacturing Processeshttp: //www. youtube. com/watch? v=cp. Khj. NK 9 t. W 0 © Pearson & GNU Su-Jin Kim Water tank
Pneumatic automation (공압) • Air valve and air cylinder is controlled by PLC or NC. • Pickup, move, put down. Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim http: //ma. gnu. ac. kr/vod/Automatic/Air_Cylinder. wmv Pneumatic control
Flexible Automation (유연자동화 ) • Programmable automation, Low production rates, medium quantity and varied production batches. • Numerical Control (NC) is the controlling of the machine components movements by coding into the system. Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
Automatic Guide Vehicle (AGV) • AGV is a mobile robot that fallows markers on the floor. • They move materials around a manufacturing facility. AGV Forklift Air pallet: http: //ma. gnu. ac. kr/vod/Automatic/Air_pallet. MP 4 Automation and CIM Manufacturing. Transport: Processes © Pearson & GNU Su-Jin Kim http: //ma. gnu. ac. kr/vod/Automatic/Auto_Transport_Laser. MP 4
Industrial robot (산업용 로봇) • Robot is reprogrammable multipurpose manipulator automatically controlled in three or more axes. • Typical applications of robots include welding, painting, assembly, pick and place. Articulated Automation and CIM Delta: Manufacturing Processes © Pearson & GNU Su-Jin Kim SCARA Delta http: //ma. gnu. ac. kr/vod/Automatic/Robot_Parallel. mp 4
Machiningcenter & Terningcenter • Cutting tool is controlled along the NC data programmed by CAM software and remove material to get precise geometry. • High precision and stiffness is required. Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
Assembly systems 3 basic methods of assembly: manual, robotic , high-speed automatic. Flexibility • Manual Robotic Hard automatic Productivity Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
NC Control (NC 제어) Servo motor Ball screw LM bearing Automation and CIM Mini-6 axis: Manufacturing Processes http: //ma. gnu. ac. kr/vod/Automatic/Mini-6 axis. mp 4 © Pearson & GNU Su-Jin Kim
NC Controler (CNC) Sentrol Fanuc Automation and Fanuc: CIM Manufacturing Processes http: //ma. gnu. ac. kr/vod/Automatic/CNC_Fanuc_PC. mp 4 © Pearson & GNU Su-Jin Kim
Servo drive & motor • Servo drive (서보제어기) & Servo moter(서보모터) : Numerical signal is changed to mechanical torque. Rotation angle is feedback to drive. Automation and CIM LS: Manufacturing Processes © Pearson & GNU Su-Jin Kim http: //ma. gnu. ac. kr/vod/Automatic/CNC_LS. mp 4
Ball screw • Ball screw (볼나사) : Changer angular driving motion to linear motion Automation and CIM NC-Screw: Manufacturing Processes http: //ma. gnu. ac. kr/vod/Automatic/CNC_Fanuc. mp 4 http: //ma. gnu. ac. kr/vod/Automatic/Rack_Pinion. mp 4 © Pearson & GNU Su-Jin. Rack-pinion: Kim
Stepping servo motor • Servo control stepping motor and communicate with PC by USB port. Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim http: //ma. gnu. ac. kr/vod/Automatic/Step_Servo_Moter. wmv Step Servo Motor
LM Bearing (LM Guide) • Linear motion bearing (직선이송 가이드): General • Sliding guide(미끄럼 가이드): High stiffness, Slow • Hydro static bearing(유정압 베어링): Precision, High speed Automation and CIM LM Manufacturing Processes Bearing: http: //ma. gnu. ac. kr/vod/Automatic/LM_Bearing 1. MP 4 LM Bearing: http: //ma. gnu. ac. kr/vod/Automatic/LM_Bearing 2. MP 4 © Pearson & GNU Su-Jin Kim
Automated Process • Ball bearing: http: //www. youtube. com/watch? v=e. Gyo. Mu. E 4 g. D Q&p=9 B 6 D 9 EAE 75875 D 9 D • Make coins: http: //www. youtube. com/watch? v=Dk. HFNn. OK 3 B g&p=9 B 6 D 9 EAE 75875 D 9 D • Scuba tank: http: //www. youtube. com/watch? v=q. Ag. SU 6 BCps Y&p=9 B 6 D 9 EAE 75875 D 9 D Automation and CIM Manufacturing Processes © Pearson & GNU Su-Jin Kim
