Automation and Drives SIMATIC BATCH PCS 7 SIMATIC

Automation and Drives SIMATIC BATCH PCS 7 SIMATIC BATCH V 6 PA PM / 25. 03. 2003 1

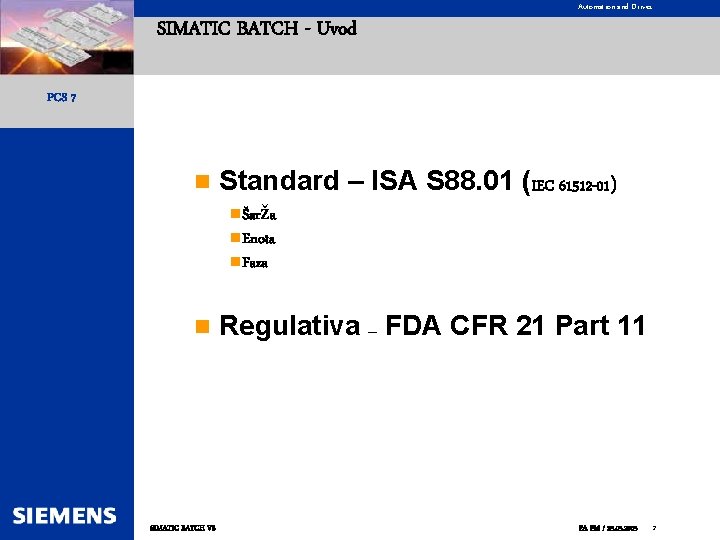

Automation and Drives SIMATIC BATCH - Uvod PCS 7 n Standard – ISA S 88. 01 (IEC 61512 -01) nŠarža n. Enota n. Faza n SIMATIC BATCH V 6 Regulativa – FDA CFR 21 Part 11 PA PM / 25. 03. 2003 2

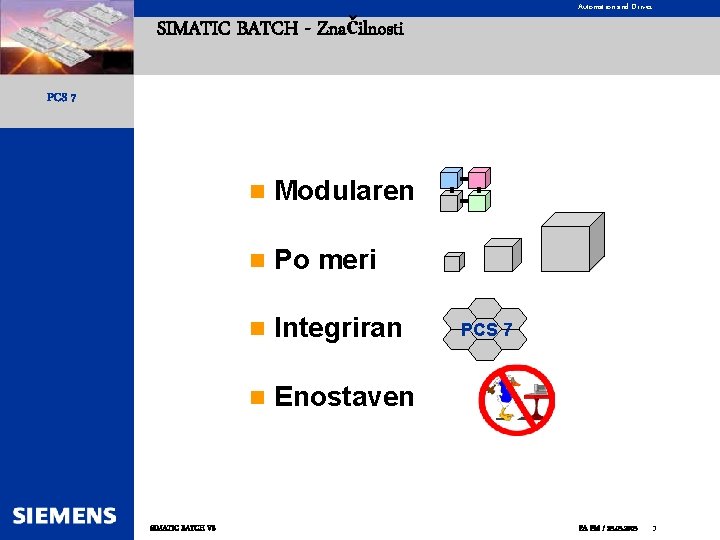

Automation and Drives SIMATIC BATCH - Značilnosti PCS 7 SIMATIC BATCH V 6 n Modularen n Po meri n Integriran n Enostaven PCS 7 PA PM / 25. 03. 2003 3

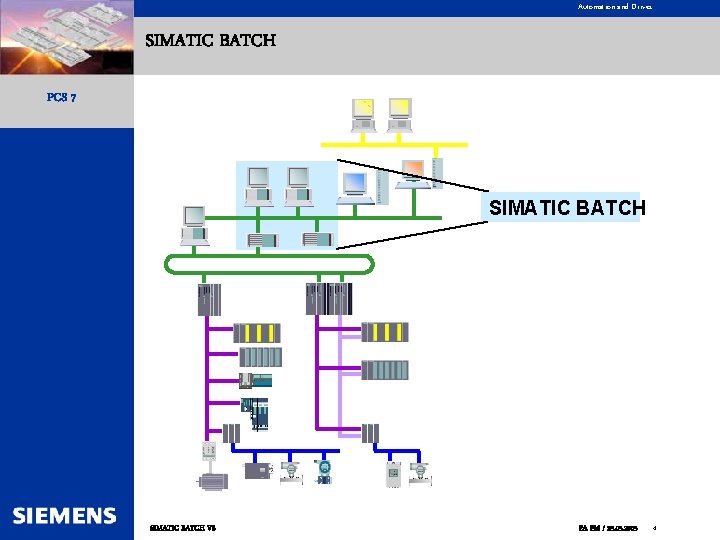

Automation and Drives SIMATIC BATCH PCS 7 SIMATIC BATCH V 6 PA PM / 25. 03. 2003 4

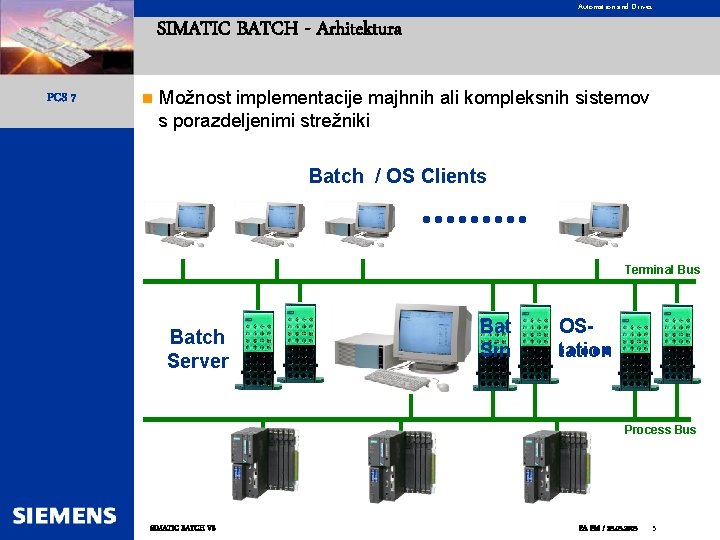

Automation and Drives SIMATIC BATCH - Arhitektura PCS 7 n Možnost implementacije majhnih ali kompleksnih sistemov s porazdeljenimi strežniki Batch / OS Clients Terminal Bus Batch Server Batch- / OSPCS 7 OS Single Station Server Process Bus SIMATIC BATCH V 6 PA PM / 25. 03. 2003 5

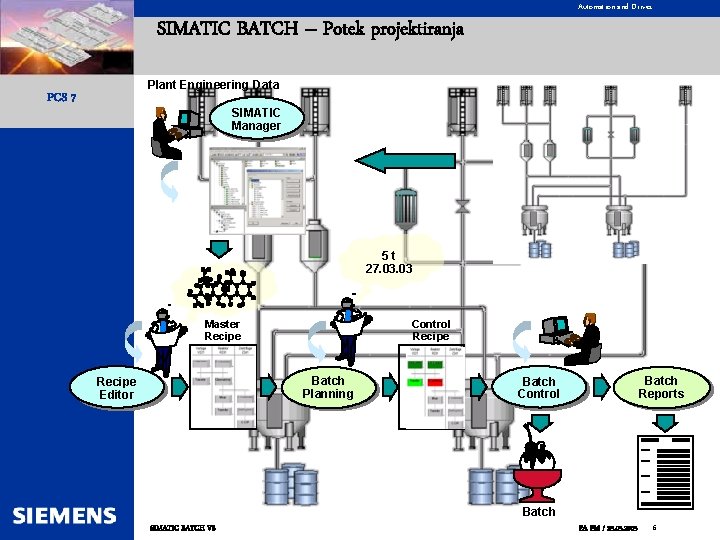

Automation and Drives SIMATIC BATCH – Potek projektiranja Plant Engineering Data PCS 7 SIMATIC Manager 5 t 27. 03 Master Recipe Control Recipe St St Recipe Editor AF 1 AF 3 AF 2 Batch Planning AF 1 AF 2 Batch Reports Batch Control AF 3 Batch SIMATIC BATCH V 6 PA PM / 25. 03. 2003 6

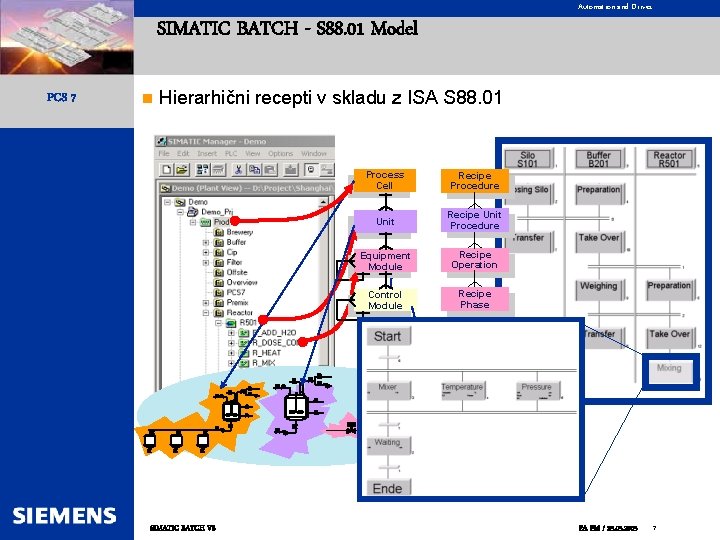

Automation and Drives SIMATIC BATCH - S 88. 01 Model PCS 7 n Hierarhični recepti v skladu z ISA S 88. 01 SIMATIC BATCH V 6 Process Cell Recipe Procedure Unit Recipe Unit Procedure Equipment Module Recipe Operation Control Module Recipe Phase PA PM / 25. 03. 2003 7

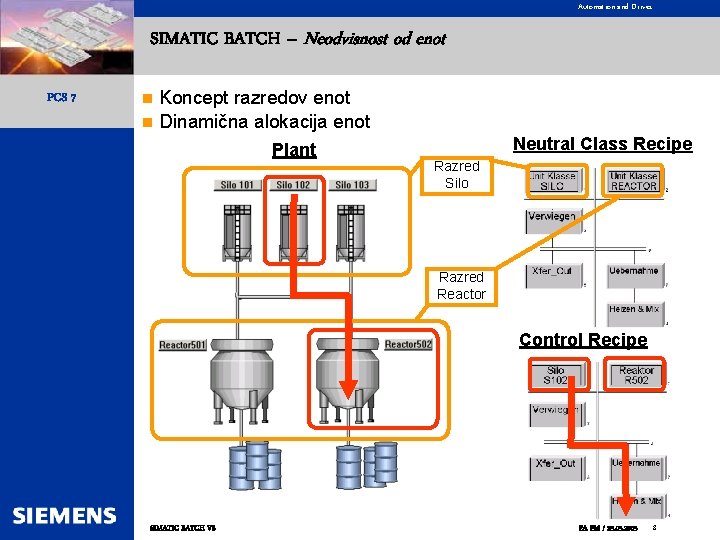

Automation and Drives SIMATIC BATCH – Neodvisnost od enot PCS 7 Koncept razredov enot n Dinamična alokacija enot n Plant Neutral Class Recipe Razred Silo Razred Reactor Control Recipe SIMATIC BATCH V 6 PA PM / 25. 03. 2003 8

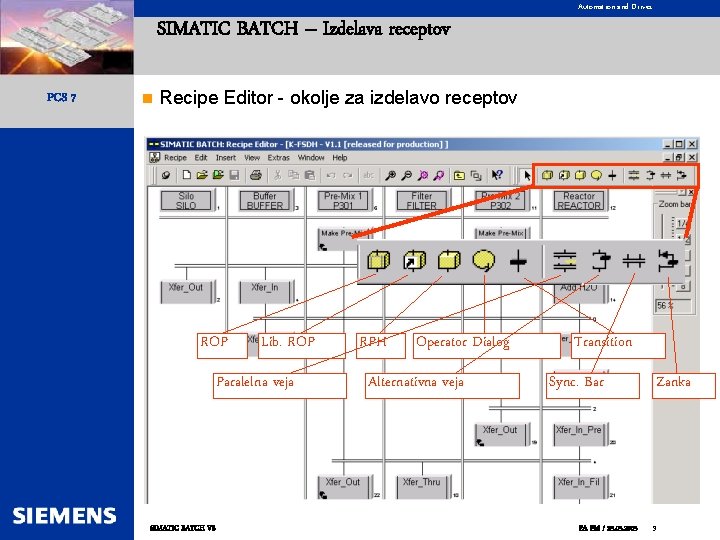

Automation and Drives SIMATIC BATCH – Izdelava receptov PCS 7 n Recipe Editor - okolje za izdelavo receptov ROP Lib. ROP Paralelna veja SIMATIC BATCH V 6 RPH Operator Dialog Alternativna veja Transition Sync. Bar PA PM / 25. 03. 2003 Zanka 9

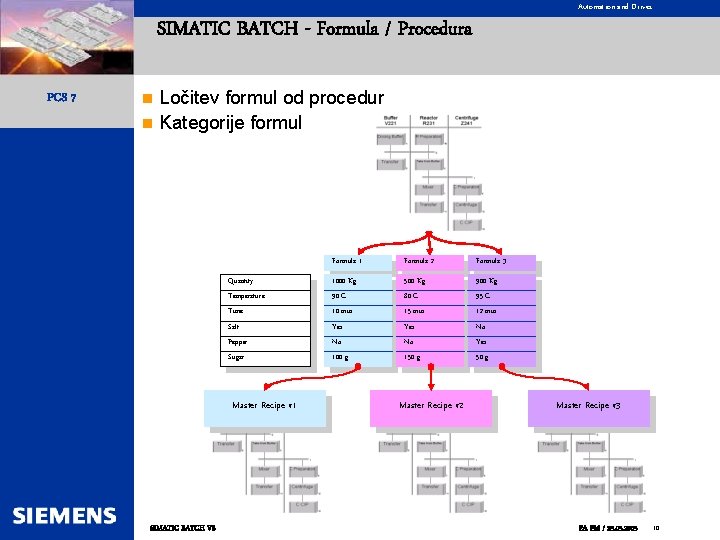

Automation and Drives SIMATIC BATCH - Formula / Procedura PCS 7 Ločitev formul od procedur n Kategorije formul n Formula 1 Formula 2 Formula 3 Quantity 1000 Kg 500 Kg 900 Kg Temperature 90 C 80 C 95 C Time 10 min 15 min 12 min Salt Yes No Pepper Sugar No 100 g No 150 g Yes 50 g Master Recipe #1 SIMATIC BATCH V 6 Master Recipe #2 Master Recipe #3 PA PM / 25. 03. 2003 10

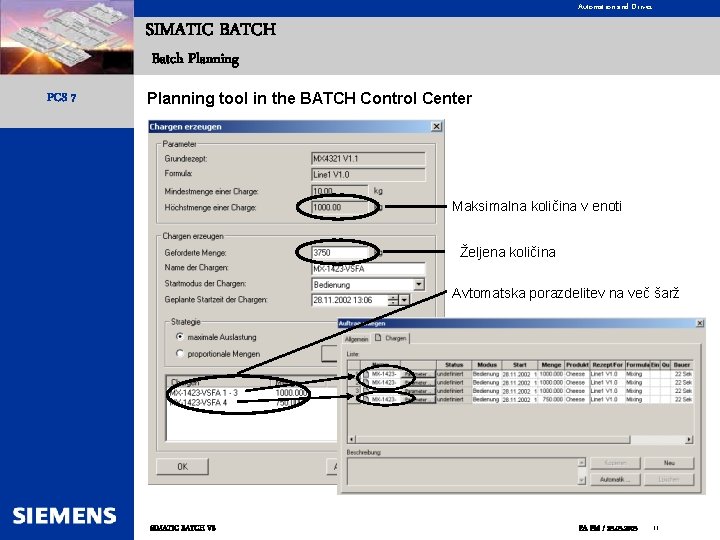

Automation and Drives SIMATIC BATCH Batch Planning PCS 7 Planning tool in the BATCH Control Center Maksimalna količina v enoti Željena količina Avtomatska porazdelitev na več šarž SIMATIC BATCH V 6 PA PM / 25. 03. 2003 11

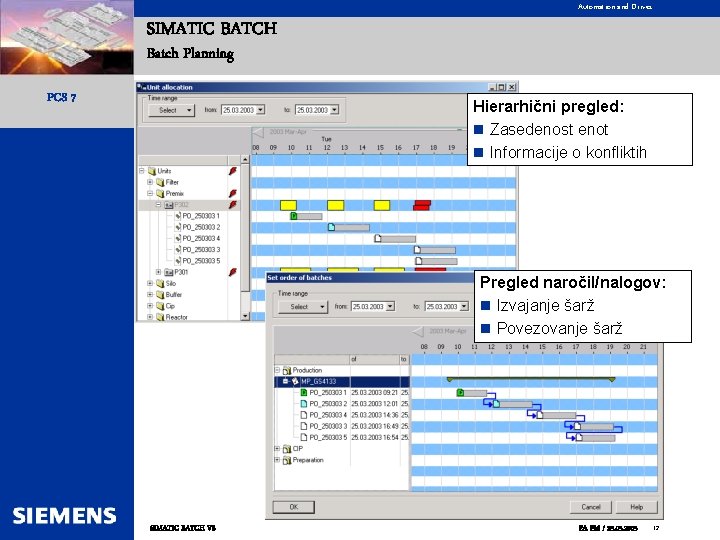

Automation and Drives SIMATIC BATCH Batch Planning PCS 7 Hierarhični pregled: n Zasedenost enot n Informacije o konfliktih Pregled naročil/nalogov: n Izvajanje šarž n Povezovanje šarž SIMATIC BATCH V 6 PA PM / 25. 03. 2003 12

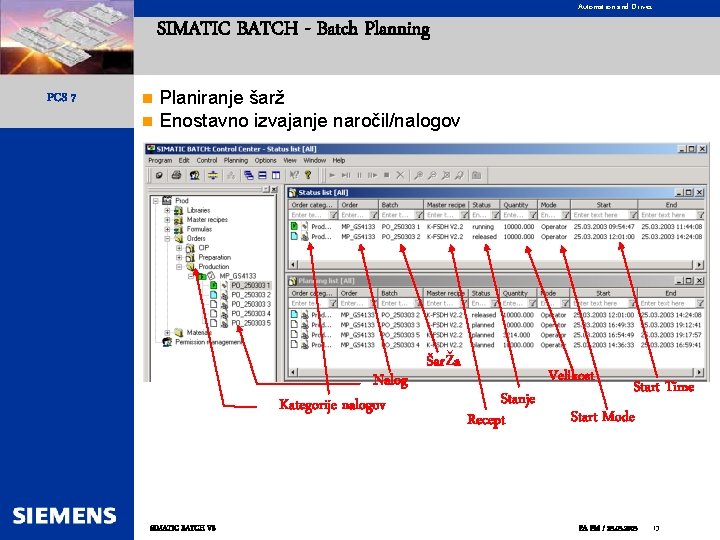

Automation and Drives SIMATIC BATCH - Batch Planning PCS 7 n n Planiranje šarž Enostavno izvajanje naročil/nalogov Nalog Kategorije nalogov SIMATIC BATCH V 6 Šarža Stanje Recept Velikost Start Time Start Mode PA PM / 25. 03. 2003 13

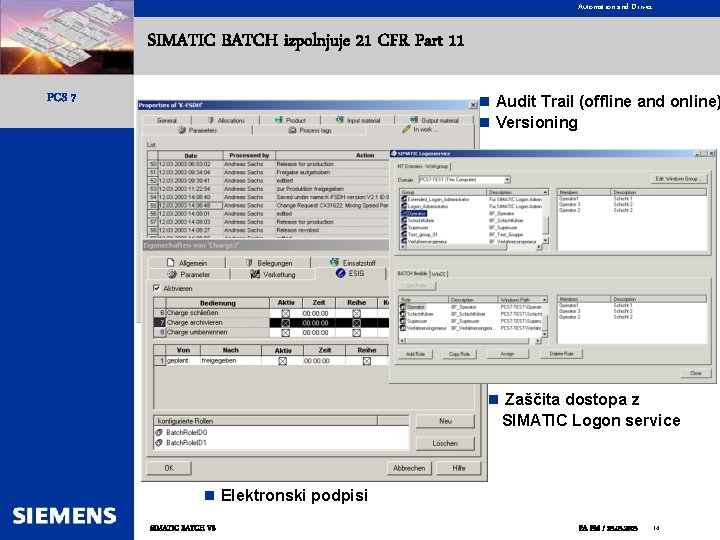

Automation and Drives SIMATIC BATCH izpolnjuje 21 CFR Part 11 PCS 7 n Audit Trail (offline and online) n Versioning n Zaščita dostopa z SIMATIC Logon service n Elektronski podpisi SIMATIC BATCH V 6 PA PM / 25. 03. 2003 14

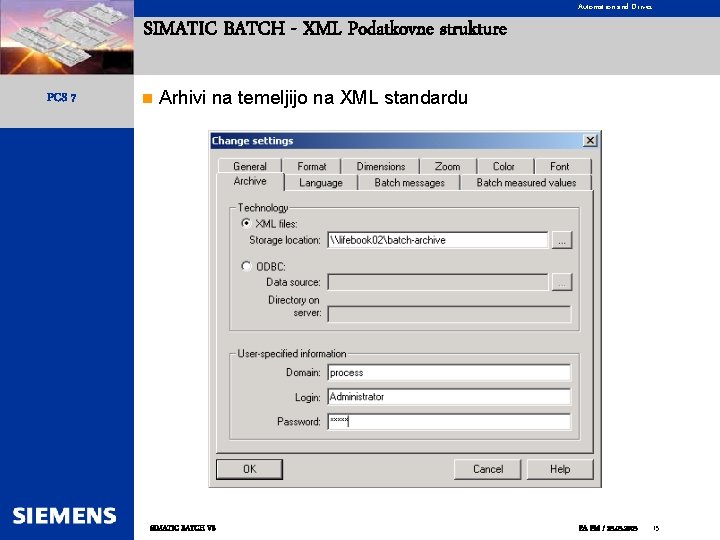

Automation and Drives SIMATIC BATCH - XML Podatkovne strukture PCS 7 n Arhivi na temeljijo na XML standardu SIMATIC BATCH V 6 PA PM / 25. 03. 2003 15

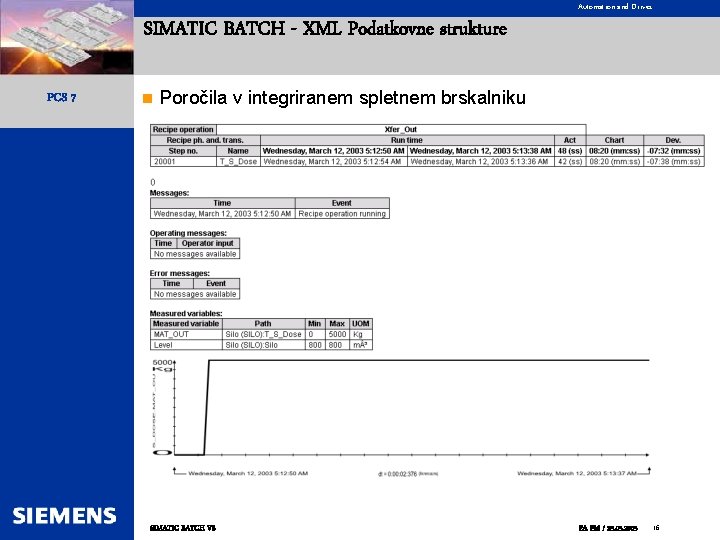

Automation and Drives SIMATIC BATCH - XML Podatkovne strukture PCS 7 n Poročila v integriranem spletnem brskalniku SIMATIC BATCH V 6 PA PM / 25. 03. 2003 16

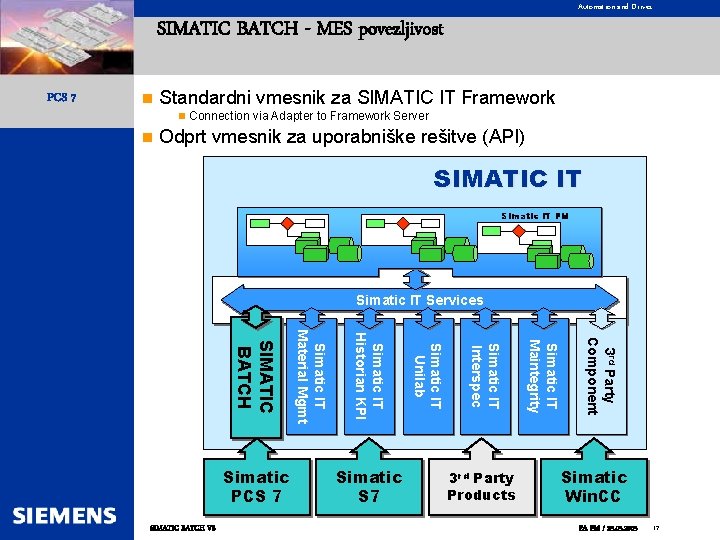

Automation and Drives SIMATIC BATCH - MES povezljivost PCS 7 n Standardni vmesnik za SIMATIC IT Framework n Connection via Adapter to Framework Server n Odprt vmesnik za uporabniške rešitve (API) SIMATIC IT Simatic IT PM Simatic IT Services 3 rd Party Component 3 rd Party Products Simatic IT Maintegrity Simatic IT Interspec Simatic S 7 Simatic IT Unilab Simatic IT Historian KPI SIMATIC BATCH V 6 Simatic IT Material Mgmt SIMATIC BATCH Simatic PCS 7 Simatic Win. CC PA PM / 25. 03. 2003 17

Automation and Drives SIMATIC BATCH - Vprašanja PCS 7 SIMATIC BATCH V 6 PA PM / 25. 03. 2003 18
