Automation and Drives PCbased Control SIMATIC Win AC

Automation and Drives PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC New SIMATIC Win. AC features PC-based Control Product overview World of PC-based Automation All about SIMATIC Win. AC Support SIMATIC Win. AC A&D AS, 07/2004, Chart 1 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Innovation in PC technology PC-based Control SIMATIC Win. AC Why. PC-based Why Automation? Automation technology willparticipate in the rapid innovation in PC technology! PC-based Control with SIMATIC New SIMATIC Win. AC features Product overview World of PC-based Automation Support Statement from Intel: „ 22 Ghz in 2008“ SIMATIC Win. AC A&D AS, 07/2004, Chart 2 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Integration of automation solution on a hardware platform PC-based Control SIMATIC Win. AC Why. PC-based Why Automation? Cost reduction through integrationof Visualization Control PC-based Control with SIMATIC New SIMATIC Win. AC features Product overview World of PC-based Automation Data processing Support Networks on one single PC SIMATIC Win. AC A&D AS, 07/2004, Chart 3 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Openness of PC technology PC-based Control SIMATIC Win. AC Increased flexibility through useof Why. PC-based Why Automation? Control application Office PC-based Control with SIMATIC New SIMATIC Win. AC features Product overview World of PC-based Automation Support open standards SIMATIC Win. AC A&D AS, 07/2004, Chart 4 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Totally Integrated Automation PC-based Control SIMATIC Win. AC Enterprise Resource Planning (ERP) Why PC-based Automation? Manufacturing Execution Systems (MES) PC-based. Control with. SIMATIC New SIMATIC Win. AC features Product overview World of PC-based Automation MES Solutions Totally Integrated Control Automation Production Life Cycle Design and Engineering Installation and Commissioning Inbound Logistics Operation Maintenance Modernization and Upgrade Process Production Workflow Discrete Support SIMATIC Win. AC Outbound Logistics A&D AS, 07/2004, Chart 5 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Engineering with STEP 7 PC-based Control SIMATIC Win. AC Re-use of available SIMATIC Know how Why PC-based Automation? PC-based. Control with. SIMATIC Version 5. 3 New SIMATIC Win. AC features Product overview World of PC-based Automation Embedded Control Support PC based Control SIMATIC S 7/C 7 Save your software investment Technische Folien SIMATIC Win. AC A&D AS, 07/2004, Chart 6 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Standard interface PC-based Control SIMATIC Win. AC Why PC-based Automation? Production visualization SIMATIC Win. CC flexible PC-based. Control with. SIMATIC New SIMATIC Win. AC features Product overview World of PC-based Automation inclusive Process visualization SIMATIC Win. CC Visualization system on Windows 3 rd party SIMATIC communication Win. AC Support Flexibility through useof open standards Technical slides SIMATIC Win. AC A&D AS, 07/2004, Chart 7 © Siemens AG 2004 - Subject to change without prior notice

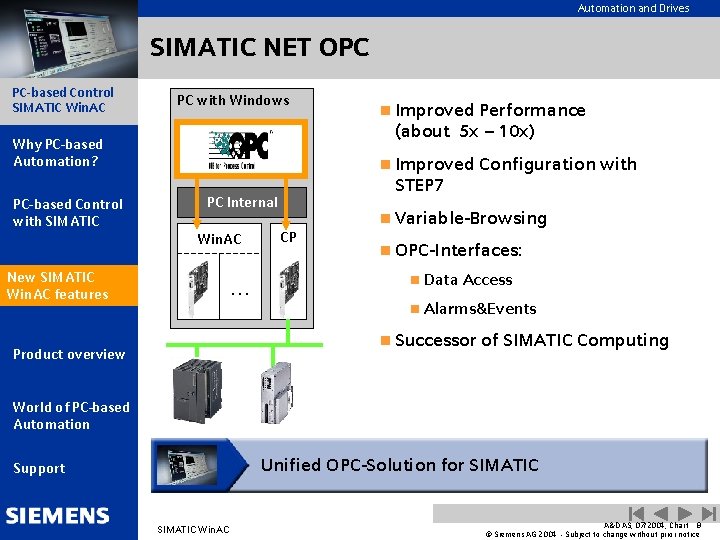

Automation and Drives SIMATIC NET OPC PC-based Control SIMATIC Win. AC PC with Windows Why PC-based Automation? PC-based Control with SIMATIC n Improved Performance (about 5 x – 10 x) n Improved STEP 7 PC Internal Win. AC New. SIMATIC Win. ACfeatures … n Variable-Browsing CP n OPC-Interfaces: n Data Access n Alarms&Events n Successor Product overview Configuration with of SIMATIC Computing World of PC-based Automation Unified OPC-Solution for SIMATIC Support SIMATIC Win. AC A&D AS, 07/2004, Chart 8 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Multi-PLC Support PC-based Control SIMATIC Win. AC n Reduced HW-cost, reduced space (less PCs) Why PC-based Automation? n Communication PC-based Control with SIMATIC n Distributed New. SIMATIC Win. ACfeatures using BSEND/BRCV control power n < 4 Win. AC Slot PLC n 1 Win. AC Software PLC + < 3 Win. AC Slot PLC n External Power Supply: 1 PS Extension Board per Win. AC Slot required Product overview World of PC-based Automation More compact and cost-effective Automation Solution Support SIMATIC Win. AC A&D AS, 07/2004, Chart 9 © Siemens AG 2004 - Subject to change without prior notice

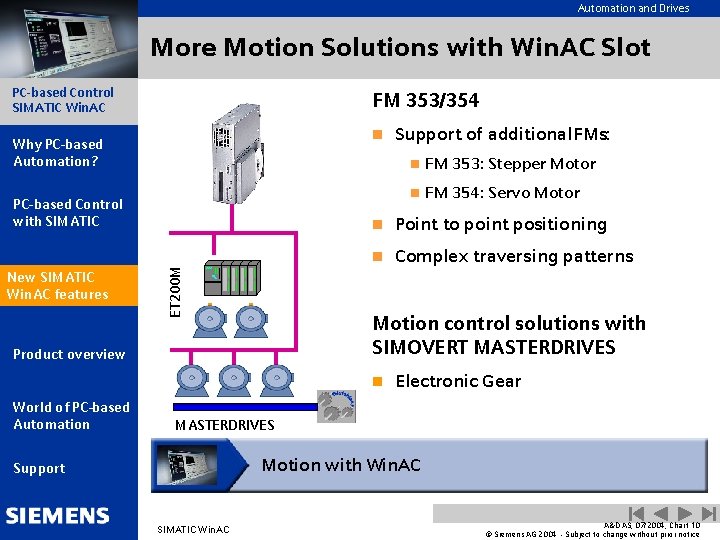

Automation and Drives More Motion Solutions with Win. AC Slot PC-based Control SIMATIC Win. AC FM 353/354 n Why PC-based Automation? New. SIMATIC Win. ACfeatures ET 200 M PC-based Control with SIMATIC n FM 353: Stepper Motor n FM 354: Servo Motor n Point to point positioning n Complex traversing patterns Motion control solutions with SIMOVERT MASTERDRIVES Product overview n World of PC-based Automation Support of additional FMs: Electronic Gear MASTERDRIVES Motion with Win. AC Support SIMATIC Win. AC A&D AS, 07/2004, Chart 10 © Siemens AG 2004 - Subject to change without prior notice

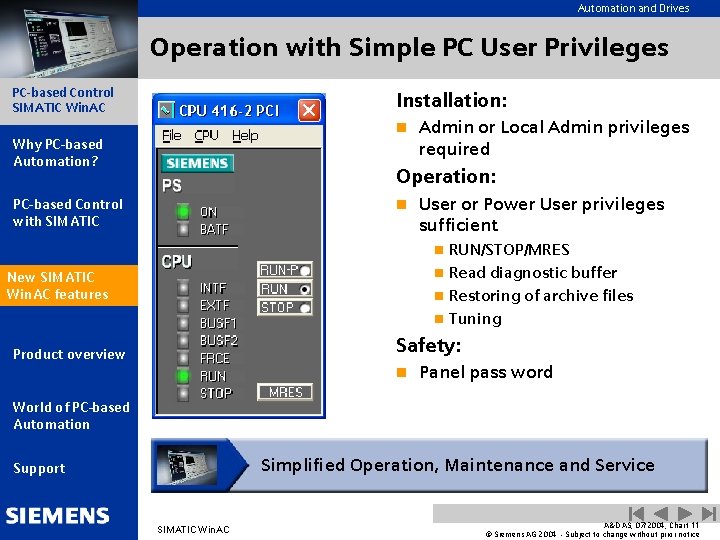

Automation and Drives Operation with Simple PC User Privileges PC-based Control SIMATIC Win. AC Installation: n Why PC-based Automation? Admin or Local Admin privileges required Operation: n PC-based Control with SIMATIC User or Power User privileges sufficient RUN/STOP/MRES n Read diagnostic buffer n Restoring of archive files n Tuning n New. SIMATIC Win. ACfeatures Safety: Product overview n Panel pass word World of PC-based Automation Simplified Operation, Maintenance and Service Support SIMATIC Win. AC A&D AS, 07/2004, Chart 11 © Siemens AG 2004 - Subject to change without prior notice

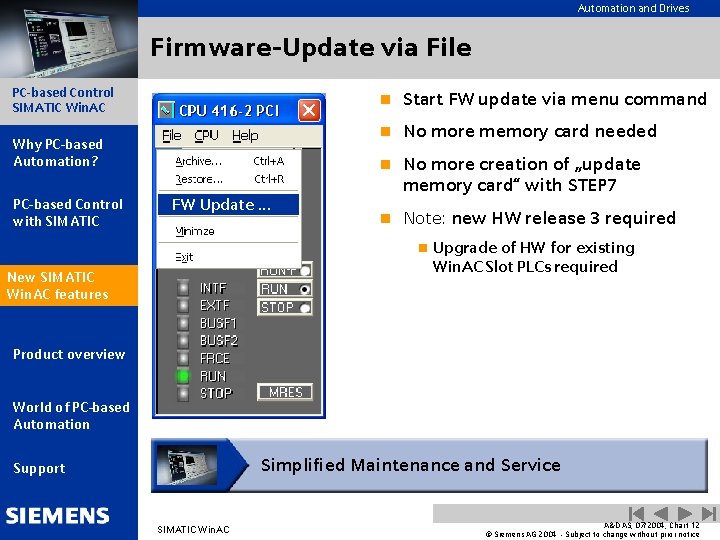

Automation and Drives Firmware-Update via File PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC FW Update. . . n Start FW update via menu command n No more memory card needed n No more creation of „update memory card“ with STEP 7 n Note: new HW release 3 required n New. SIMATIC Win. ACfeatures Upgrade of HW for existing Win. AC Slot PLCs required Product overview World of PC-based Automation Simplified Maintenance and Service Support SIMATIC Win. AC A&D AS, 07/2004, Chart 12 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Win. AC PN Option für Win. AC Basis PC-based Control SIMATIC Win. AC Modular, distributed Automation with Win. AC Basis Why PC-based Automation? Ethernet PC-based Control with SIMATIC Integration of PROFInet into Win. AC standard products n Used for Component based Automation n Replacement of Win. AC PN V 1. 1 n Option package for Win. AC Basis PROFIBUS New. SIMATIC Win. ACfeatures Product overview n Components with distributed I/O on PROFIBUS World of PC-based Automation Innovations and Trends with PC based Control Products Support SIMATIC Win. AC A&D AS, 07/2004, Chart 13 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Performance for Win. AC Software PLCs PC-based Control SIMATIC Win. AC Notes for Measurement: Why PC-based Automation? PC-based Control with SIMATIC n 32000 Operations (32 loops à 1000) n Performance values depending on processor type! n Performance values depending on program structure! n 1, 2 New. SIMATIC Win. ACfeatures z GH ro ele C Product overview World of PC-based Automation 4) Support H 3 G SIMATIC Win. AC e z. X o P n( Performance x 2 A&D AS, 07/2004, Chart 14 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Integration of T-Kit und ODK: Win. AC ODK V 4. 1 PC-based Control with SIMATIC New. SIMATIC Win. ACfeatures ODK V 4. 1 n One C/C++ engineering packageforr Win. AC Software and Slot PLCs Wizard supported programming for run-time interfaces for Win. AC Software and Slot PLCs: Microsoft Visual Studio Custom Code Extension („ODK-Interface“) Shared Memory Extension Product overview („T-Kit-Interface“) Controller Management Interface (NEW) World of PC-based Automation Soft Slot Why PC-based Automation? n Wizard PC-based Control SIMATIC Win. AC Integration of Custom Functions Support SIMATIC Win. AC A&D AS, 07/2004, Chart 15 © Siemens AG 2004 - Subject to change without prior notice

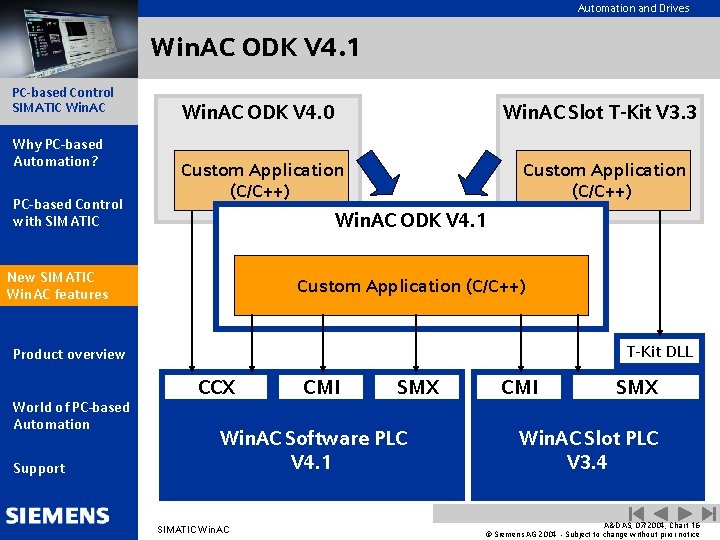

Automation and Drives Win. AC ODK V 4. 1 PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC Win. AC ODK V 4. 0 Win. AC Slot T-Kit V 3. 3 Custom Application (C/C++) Win. AC ODK V 4. 1 New. SIMATIC Win. ACfeatures Custom Application (C/C++) T-Kit DLL Product overview CCX World of PC-based Automation Support CMI SMX Win. AC Software PLC V 4. 1 SIMATIC Win. AC CMI SMX Win. AC Slot PLC V 3. 4 A&D AS, 07/2004, Chart 16 © Siemens AG 2004 - Subject to change without prior notice

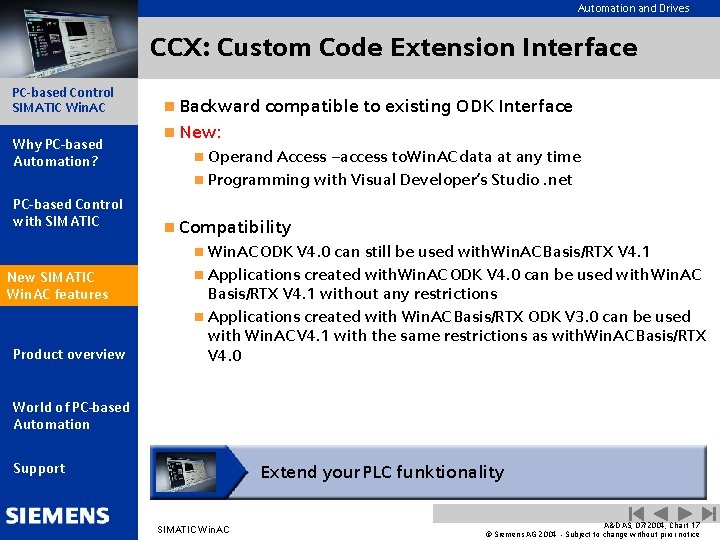

Automation and Drives CCX: Custom Code Extension Interface PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC n Backward compatible to existing ODK Interface n New: Operand Access –access to. Win. AC data at any time n Programming with Visual Developer‘s Studio. net n n Compatibility Win. AC ODK V 4. 0 can still be used with. Win. AC Basis/RTX V 4. 1 n Applications created with. Win. AC ODK V 4. 0 can be used with Win. AC Basis/RTX V 4. 1 without any restrictions n Applications created with Win. AC Basis/RTX ODK V 3. 0 can be used with Win. AC V 4. 1 with the same restrictions as with. Win. AC Basis/RTX V 4. 0 n New. SIMATIC Win. ACfeatures Product overview World of PC-based Automation Support Extend your PLC funktionality SIMATIC Win. AC A&D AS, 07/2004, Chart 17 © Siemens AG 2004 - Subject to change without prior notice

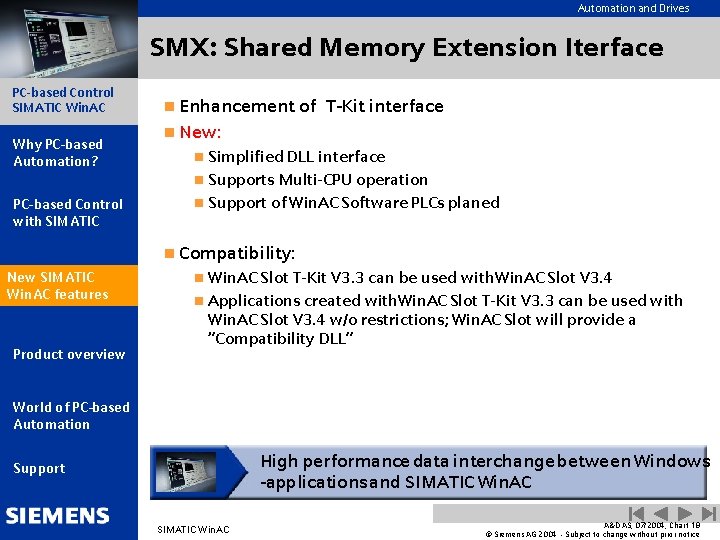

Automation and Drives SMX: Shared Memory Extension Iterface PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC n Enhancement of T-Kit interface n New: Simplified DLL interface n Supports Multi-CPU operation n Support of Win. AC Software PLCs planed n n Compatibility: New. SIMATIC Win. ACfeatures Product overview Win. AC Slot T-Kit V 3. 3 can be used with Win. AC Slot V 3. 4 n Applications created with. Win. AC Slot T-Kit V 3. 3 can be used with Win. AC Slot V 3. 4 w/o restrictions; Win. AC Slot will provide a “Compatibility DLL” n World of PC-based Automation High performance data interchange between Windows -applications and SIMATIC Win. AC Support SIMATIC Win. AC A&D AS, 07/2004, Chart 18 © Siemens AG 2004 - Subject to change without prior notice

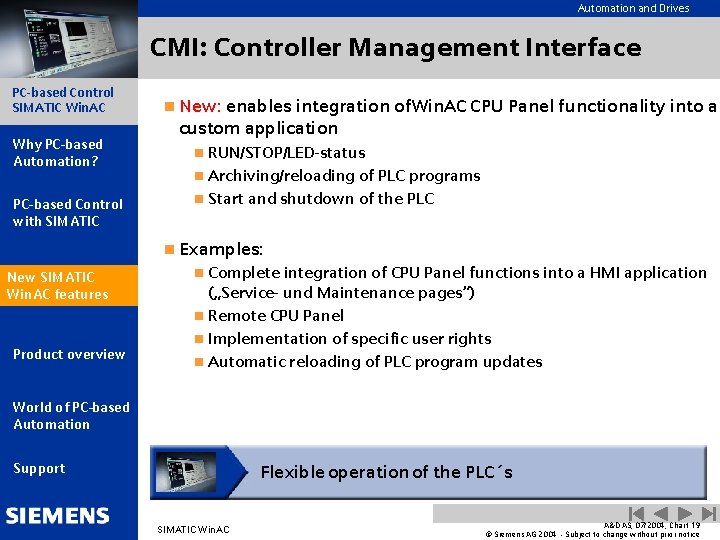

Automation and Drives CMI: Controller Management Interface PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC n New: enables integration of. Win. AC CPU Panel functionality into a custom application RUN/STOP/LED-status n Archiving/reloading of PLC programs n Start and shutdown of the PLC n n Examples: New. SIMATIC Win. ACfeatures Product overview Complete integration of CPU Panel functions into a HMI application („Service- und Maintenance pages“) n Remote CPU Panel n Implementation of specific user rights n Automatic reloading of PLC program updates n World of PC-based Automation Support Flexible operation of the PLC´s SIMATIC Win. AC A&D AS, 07/2004, Chart 19 © Siemens AG 2004 - Subject to change without prior notice

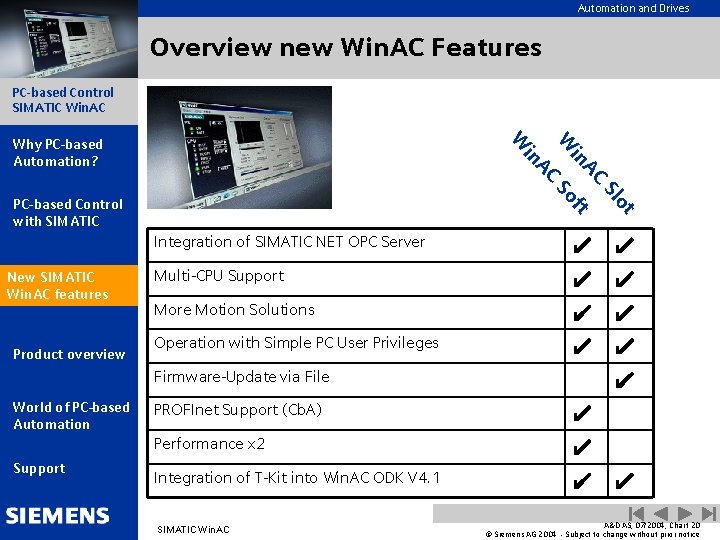

Automation and Drives Overview new Win. AC Features PC-based Control SIMATIC Win. AC Multi-CPU Support More Motion Solutions Operation with Simple PC User Privileges Firmware-Update via File World of PC-based Automation Support PROFInet Support (Cb. A) Performance x 2 Integration of T-Kit into Win. AC ODK V 4. 1 SIMATIC Win. AC t o Sl t Product overview C f So Integration of SIMATIC NET OPC Server PC-based Control with SIMATIC New. SIMATIC Win. ACfeatures A in C A in W W Why PC-based Automation? A&D AS, 07/2004, Chart 20 © Siemens AG 2004 - Subject to change without prior notice

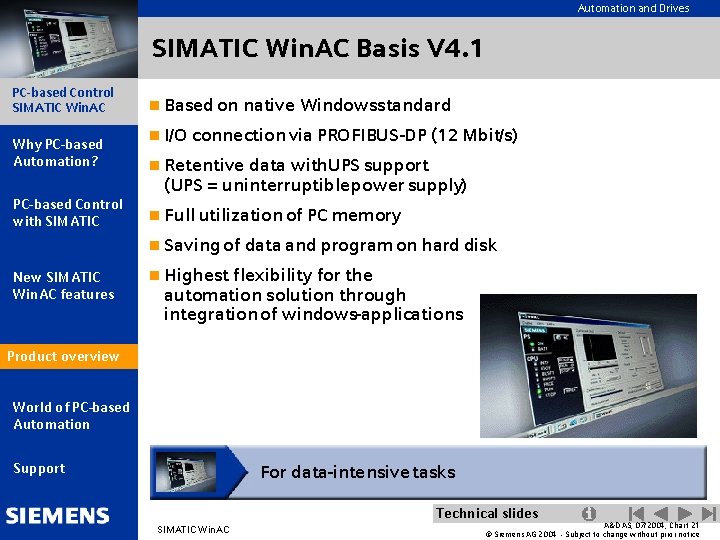

Automation and Drives SIMATIC Win. AC Basis V 4. 1 PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC n Based on n I/O native Windowsstandard connection via PROFIBUS-DP (12 Mbit/s) n Retentive data with. UPS support (UPS = uninterruptible power supply) n Full utilization of PC memory n Saving of data and program on hard disk New SIMATIC Win. AC features n Highest flexibility for the automation solution through integration of windows-applications Productoverview Product World of PC-based Automation Support For data-intensive tasks Technical slides SIMATIC Win. AC A&D AS, 07/2004, Chart 21 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives SIMATIC Win. AC RTX V 4. 1 PC-based Control SIMATIC Win. AC n For applications Why PC-based Automation? n Based on standard Windows PC-based Control with SIMATIC with high requirements to determinism and real-time behavior NT and Real Time e. Xtension from Ventur. Com n I/O connection using PROFIBUS DP card (12 Mbit/s) Up to four PROFIBUS lines possible New SIMATIC Win. AC features n Retentive data with. UPS support (UPS = uninterruptible power supply) n Utilization of Productoverview Product PC main memory n Saving of data and program on hard disk World of PC-based Automation Support For real-time tasks Technical slides SIMATIC Win. AC A&D AS, 07/2004, Chart 22 © Siemens AG 2004 - Subject to change without prior notice

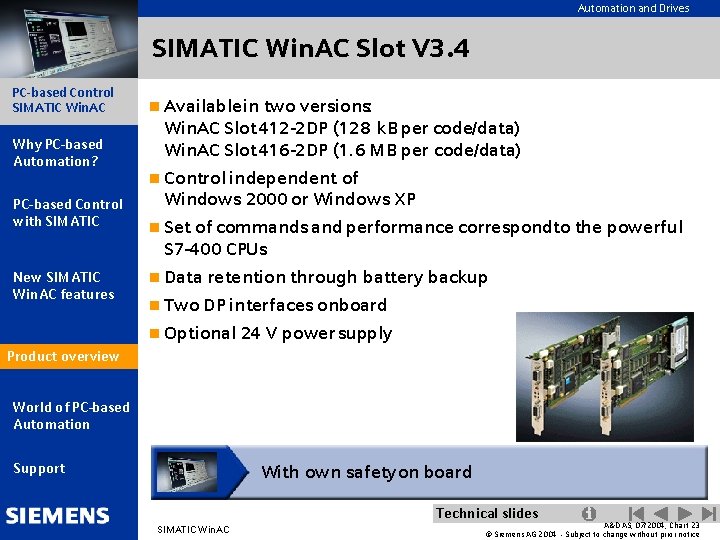

Automation and Drives SIMATIC Win. AC Slot V 3. 4 PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC New SIMATIC Win. AC features n Available in two versions: Win. AC Slot 412 -2 DP (128 k. B per code/data) Win. AC Slot 416 -2 DP (1. 6 MB per code/data) n Control independent of Windows 2000 or Windows XP n Set of commands and performance correspondto the powerful S 7 -400 CPUs n Data retention through battery backup n Two DP interfaces n Optional onboard 24 V power supply Productoverview Product World of PC-based Automation Support With own safety on board Technical slides SIMATIC Win. AC A&D AS, 07/2004, Chart 23 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives SIMATIC Win. AC ODK 4. 1 PC-based Control SIMATIC Win. AC Why PC-based Automation? n SIMATIC Win. AC ODKis an engineering package which supports the developmentof C/C++ applications for Win. AC Software and Slot PLCs. LAD, STL, CSL PC-based Control with SIMATIC New SIMATIC Win. AC features Win. AC range OB 1 CFC, Graph 7, Higraph n Extend the Win. AC control-functionality n Accelerate the Data-Interchange n Integration of PC-Soft and Hardware into Win. AC SCL Productoverview Product C++ World of PC-based Automation improve the productivitythrough Integration of C++ applications Support Technical slides SIMATIC Win. AC A&D AS, 07/2004, Chart 24 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives World of PC-based Automation PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC New SIMATIC Win. AC features Product overview World of PC-based Automation Support The complete PC-based solution from one source! SIMATIC Win. AC A&D AS, 07/2004, Chart 25 © Siemens AG 2004 - Subject to change without prior notice

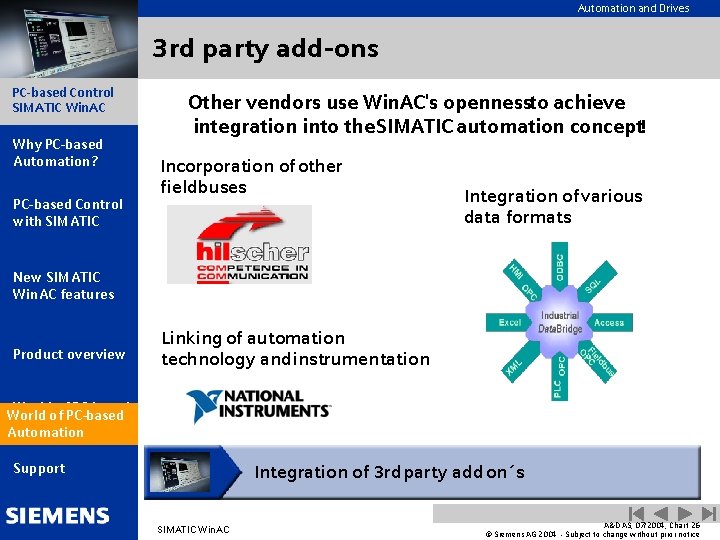

Automation and Drives 3 rd party add-ons PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC Other vendors use Win. AC's opennessto achieve integration into the SIMATIC automation concept! Incorporation of other fieldbuses Integration of various data formats New SIMATIC Win. AC features Product overview Linking of automation technology and instrumentation World of PC-based Automation Support Integration of 3 rd party add on´s SIMATIC Win. AC A&D AS, 07/2004, Chart 26 © Siemens AG 2004 - Subject to change without prior notice

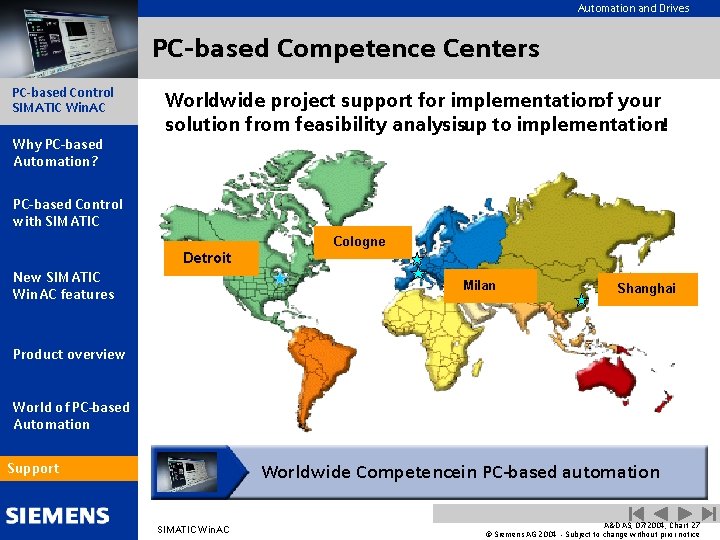

Automation and Drives PC-based Competence Centers PC-based Control SIMATIC Win. AC Worldwide project support for implementationof your solution from feasibility analysisup to implementation! Why PC-based Automation? PC-based Control with SIMATIC Cologne Detroit New SIMATIC Win. AC features Milan Shanghai Product overview World of PC-based Automation Support Worldwide Competencein PC-based automation SIMATIC Win. AC A&D AS, 07/2004, Chart 27 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives Internet / knowledge base PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC New SIMATIC Win. AC features Product overview The latest information on PC-based Automation from Siemens can always be found here www. pcbasedautomation. com World of PC-based Automation Support SIMATIC Win. AC A&D AS, 07/2004, Chart 28 © Siemens AG 2004 - Subject to change without prior notice

Automation and Drives PC-based Control SIMATIC Win. AC Why PC-based Automation? PC-based Control with SIMATIC New SIMATIC Win. AC features PC-based Control Product overview World of PC-based Automation Support The Integration-Plattform for your PC-based Solution SIMATIC Win. AC A&D AS, 07/2004, Chart 29 © Siemens AG 2004 - Subject to change without prior notice
