Automating Deployments with Octopus Deploy ALL PROBLEMS ARE

Automating Deployments with Octopus Deploy “ALL PROBLEMS ARE BORING PROBLEMS UNTIL THEY'RE YOUR OWN” - GALINA “RED” REZNIKOV (ORANGE IS THE NEW BLACK)

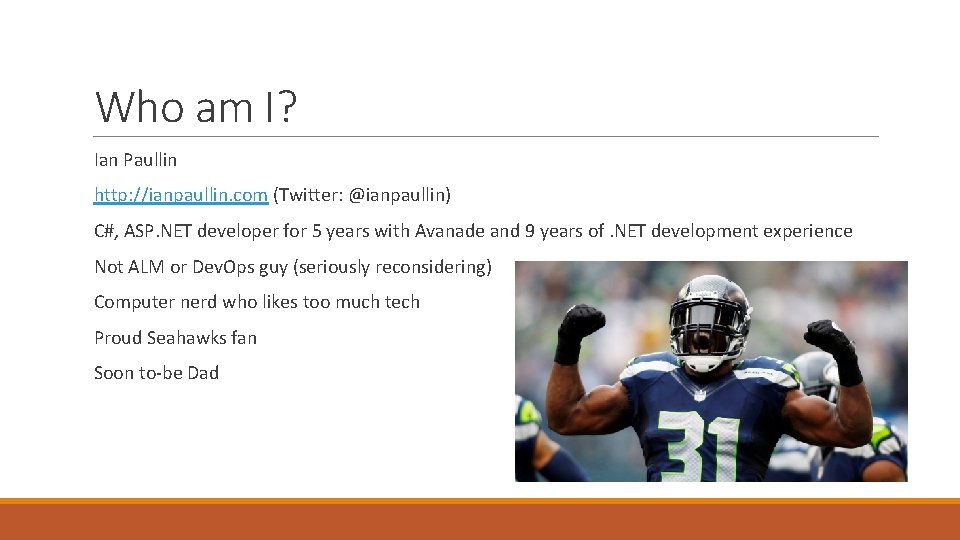

Who am I? Ian Paullin http: //ianpaullin. com (Twitter: @ianpaullin) C#, ASP. NET developer for 5 years with Avanade and 9 years of. NET development experience Not ALM or Dev. Ops guy (seriously reconsidering) Computer nerd who likes too much tech Proud Seahawks fan Soon to-be Dad

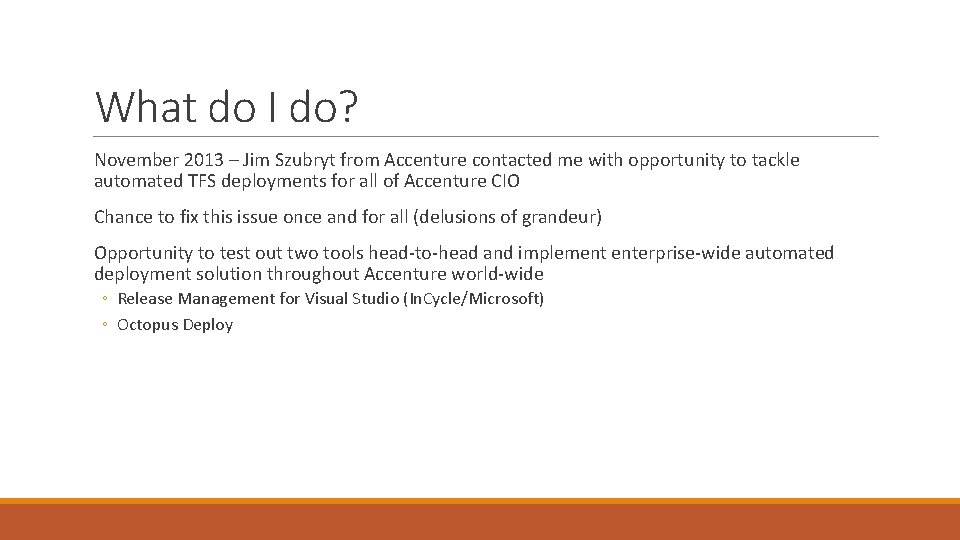

What do I do? November 2013 – Jim Szubryt from Accenture contacted me with opportunity to tackle automated TFS deployments for all of Accenture CIO Chance to fix this issue once and for all (delusions of grandeur) Opportunity to test out two tools head-to-head and implement enterprise-wide automated deployment solution throughout Accenture world-wide ◦ Release Management for Visual Studio (In. Cycle/Microsoft) ◦ Octopus Deploy

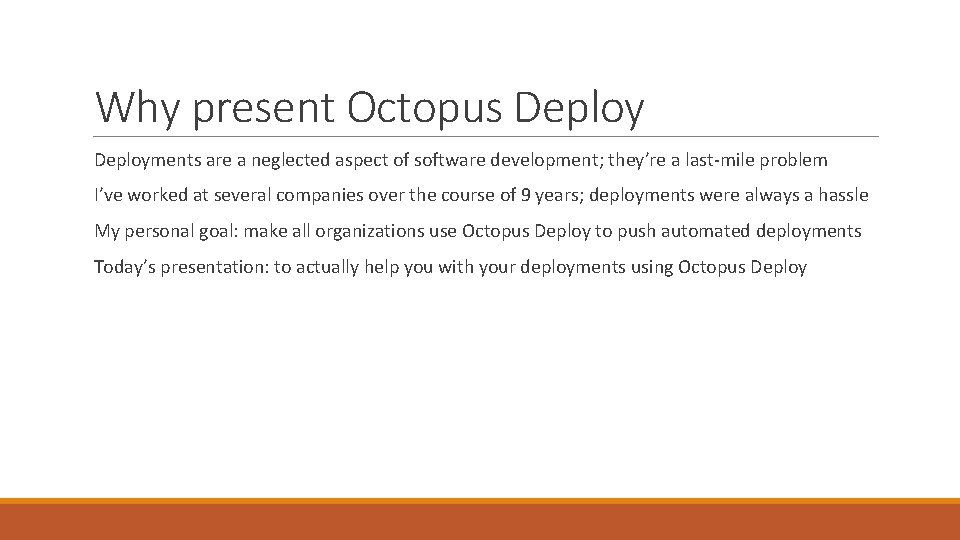

Why present Octopus Deployments are a neglected aspect of software development; they’re a last-mile problem I’ve worked at several companies over the course of 9 years; deployments were always a hassle My personal goal: make all organizations use Octopus Deploy to push automated deployments Today’s presentation: to actually help you with your deployments using Octopus Deploy

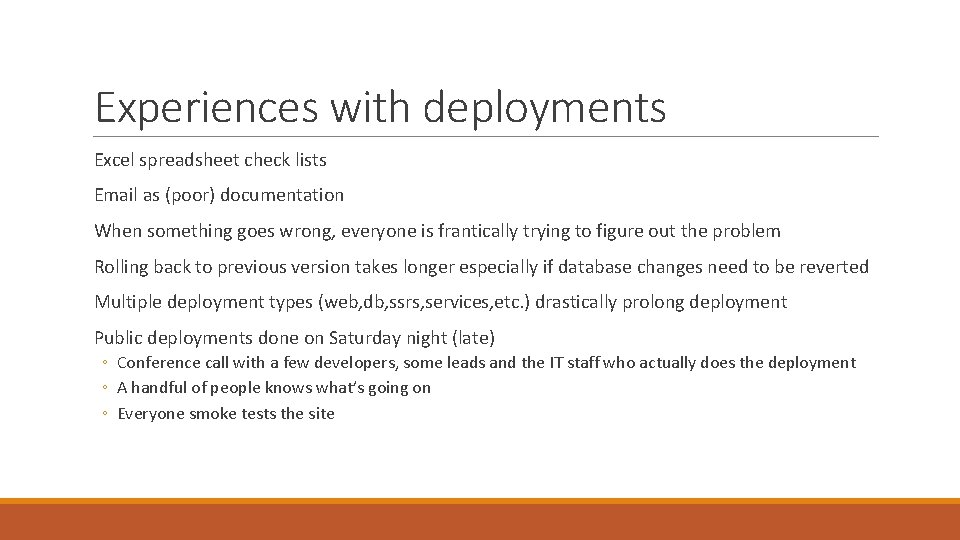

Experiences with deployments Excel spreadsheet check lists Email as (poor) documentation When something goes wrong, everyone is frantically trying to figure out the problem Rolling back to previous version takes longer especially if database changes need to be reverted Multiple deployment types (web, db, ssrs, services, etc. ) drastically prolong deployment Public deployments done on Saturday night (late) ◦ Conference call with a few developers, some leads and the IT staff who actually does the deployment ◦ A handful of people knows what’s going on ◦ Everyone smoke tests the site

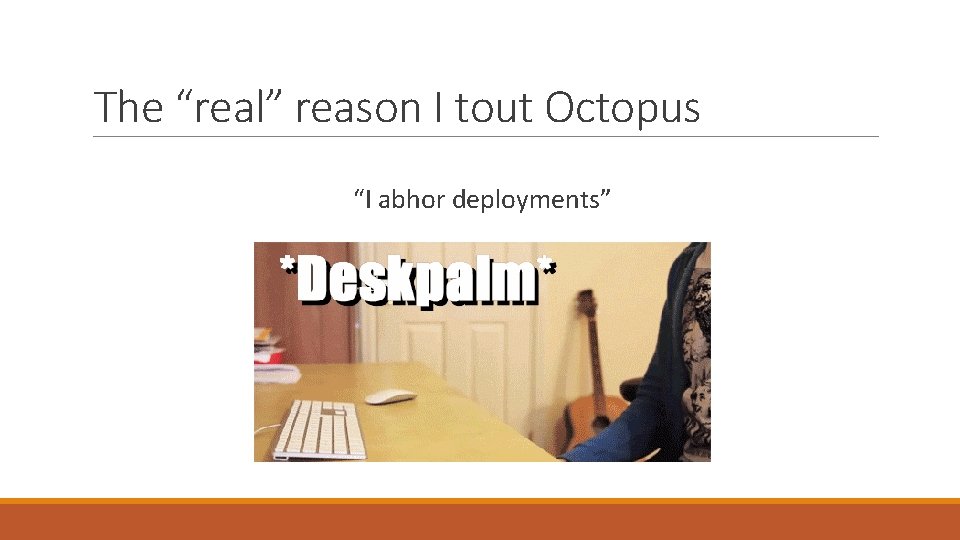

The “real” reason I tout Octopus “I abhor deployments”

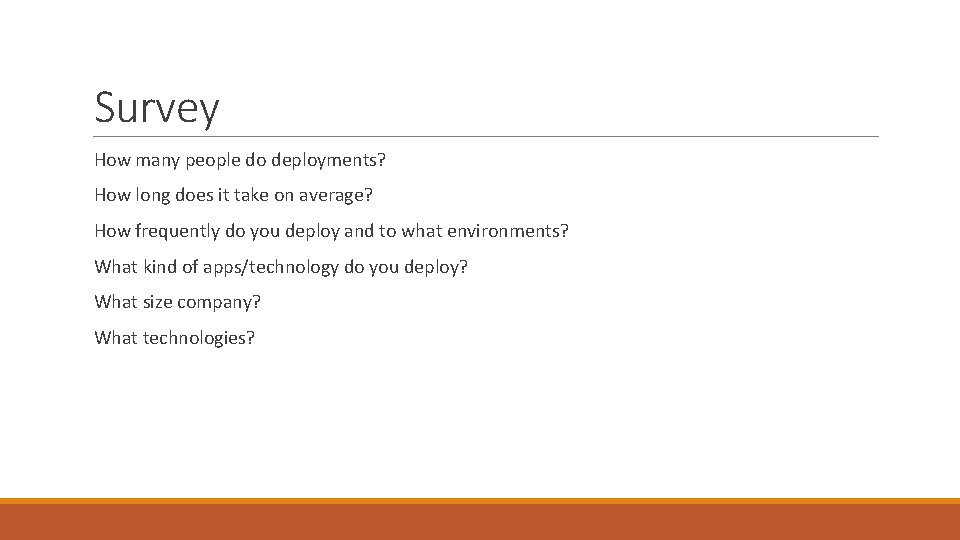

Survey How many people do deployments? How long does it take on average? How frequently do you deploy and to what environments? What kind of apps/technology do you deploy? What size company? What technologies?

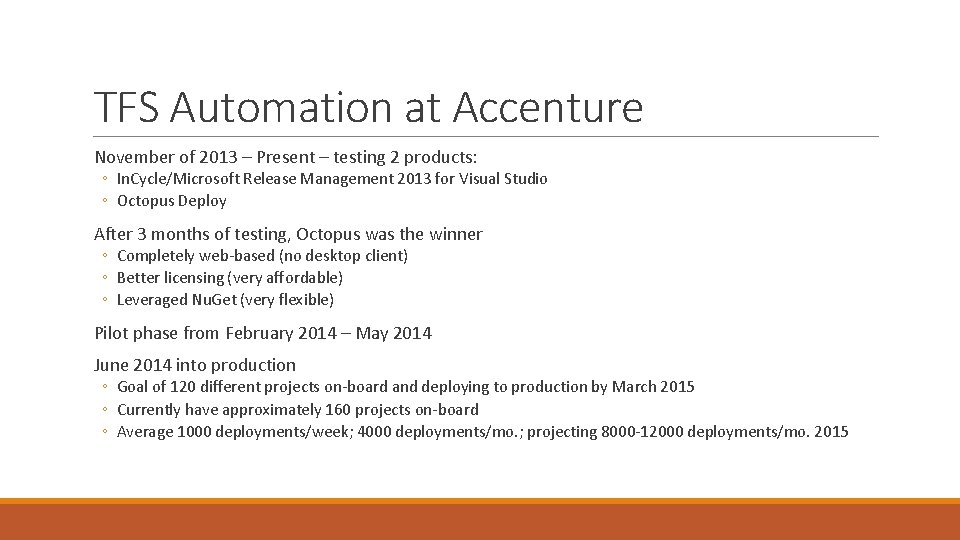

TFS Automation at Accenture November of 2013 – Present – testing 2 products: ◦ In. Cycle/Microsoft Release Management 2013 for Visual Studio ◦ Octopus Deploy After 3 months of testing, Octopus was the winner ◦ Completely web-based (no desktop client) ◦ Better licensing (very affordable) ◦ Leveraged Nu. Get (very flexible) Pilot phase from February 2014 – May 2014 June 2014 into production ◦ Goal of 120 different projects on-board and deploying to production by March 2015 ◦ Currently have approximately 160 projects on-board ◦ Average 1000 deployments/week; 4000 deployments/mo. ; projecting 8000 -12000 deployments/mo. 2015

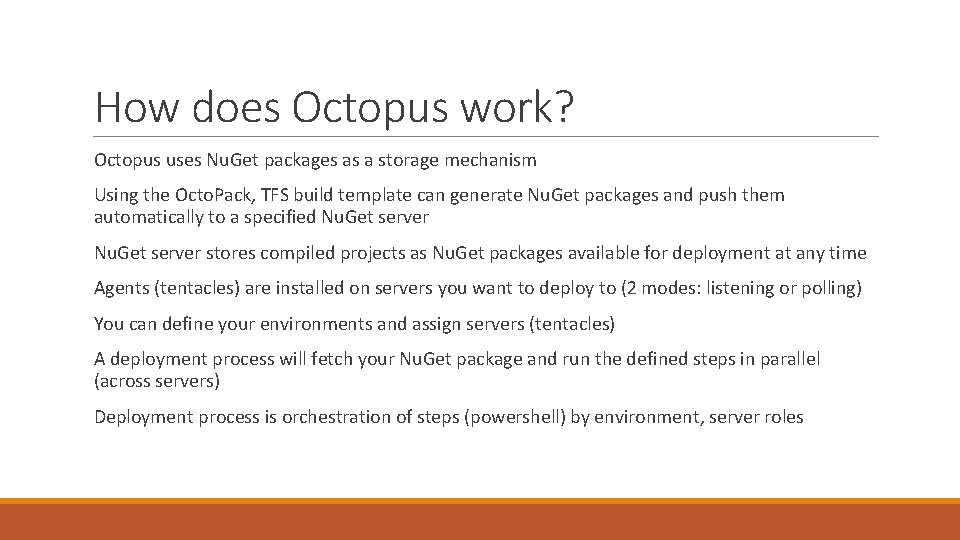

How does Octopus work? Octopus uses Nu. Get packages as a storage mechanism Using the Octo. Pack, TFS build template can generate Nu. Get packages and push them automatically to a specified Nu. Get server stores compiled projects as Nu. Get packages available for deployment at any time Agents (tentacles) are installed on servers you want to deploy to (2 modes: listening or polling) You can define your environments and assign servers (tentacles) A deployment process will fetch your Nu. Get package and run the defined steps in parallel (across servers) Deployment process is orchestration of steps (powershell) by environment, server roles

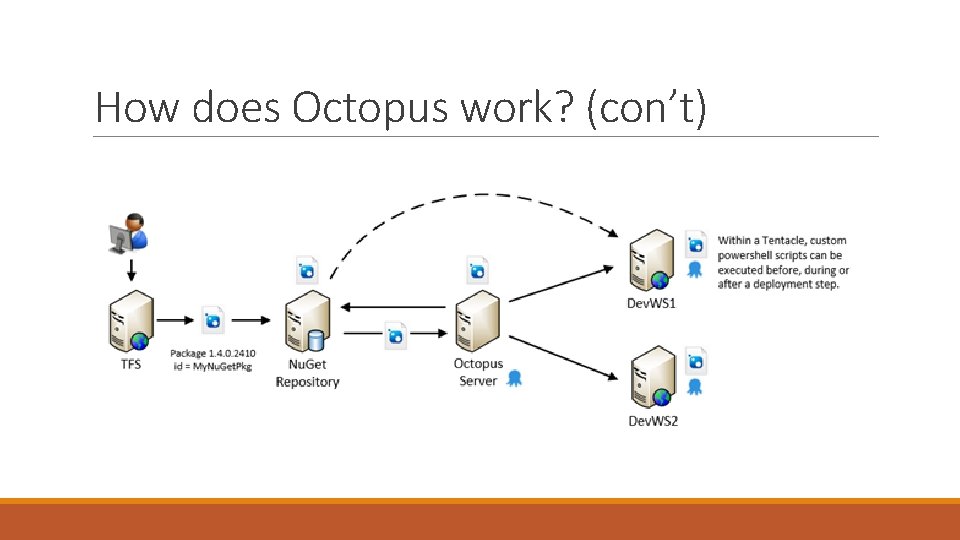

How does Octopus work? (con’t)

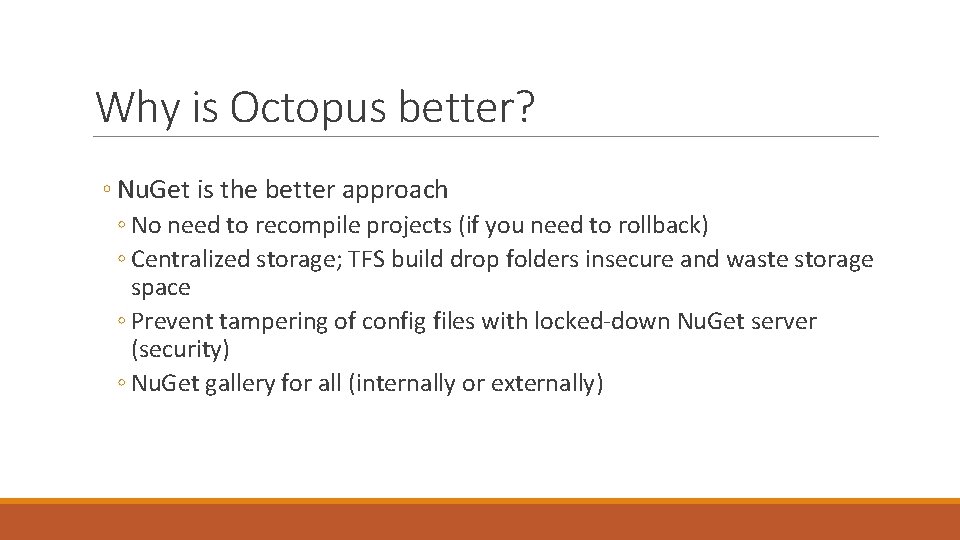

Why is Octopus better? ◦ Nu. Get is the better approach ◦ No need to recompile projects (if you need to rollback) ◦ Centralized storage; TFS build drop folders insecure and waste storage space ◦ Prevent tampering of config files with locked-down Nu. Get server (security) ◦ Nu. Get gallery for all (internally or externally)

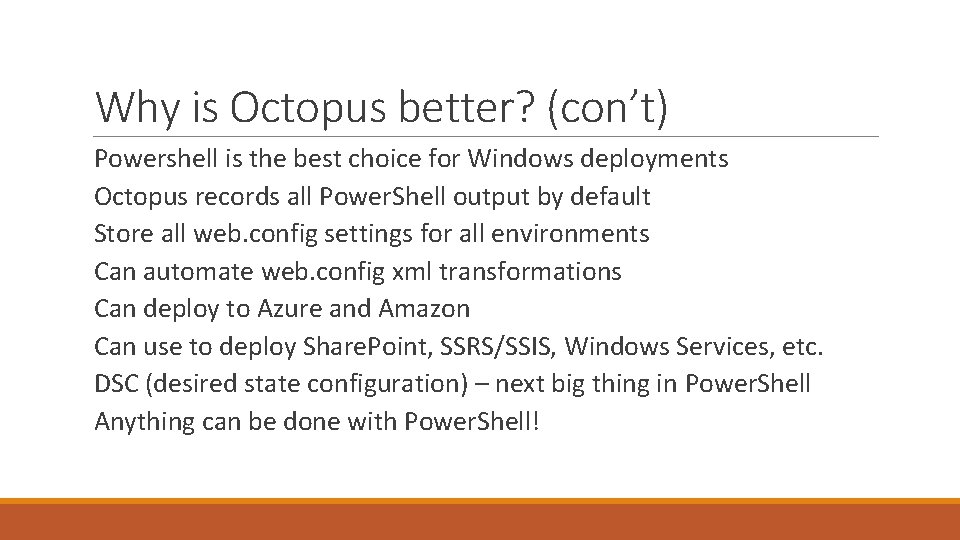

Why is Octopus better? (con’t) Powershell is the best choice for Windows deployments Octopus records all Power. Shell output by default Store all web. config settings for all environments Can automate web. config xml transformations Can deploy to Azure and Amazon Can use to deploy Share. Point, SSRS/SSIS, Windows Services, etc. DSC (desired state configuration) – next big thing in Power. Shell Anything can be done with Power. Shell!

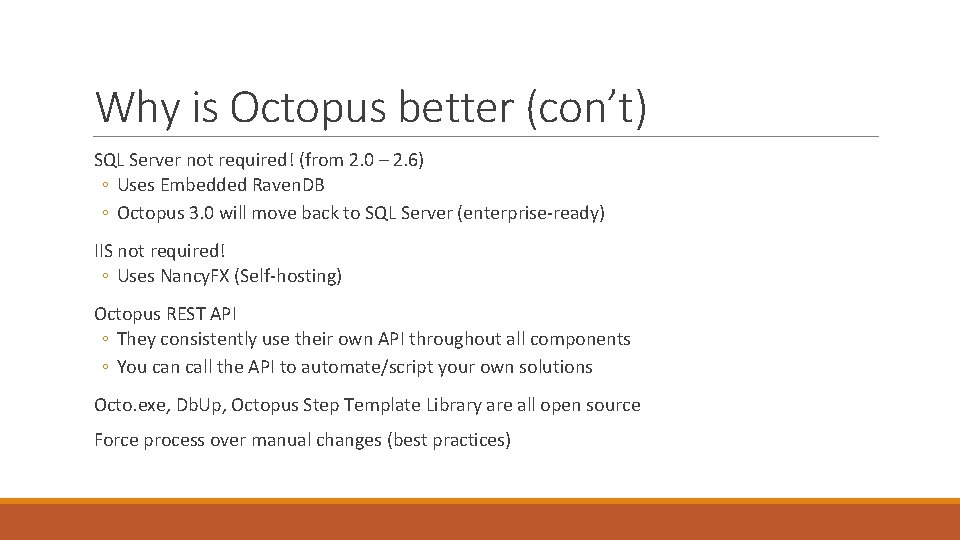

Why is Octopus better (con’t) SQL Server not required! (from 2. 0 – 2. 6) ◦ Uses Embedded Raven. DB ◦ Octopus 3. 0 will move back to SQL Server (enterprise-ready) IIS not required! ◦ Uses Nancy. FX (Self-hosting) Octopus REST API ◦ They consistently use their own API throughout all components ◦ You can call the API to automate/script your own solutions Octo. exe, Db. Up, Octopus Step Template Library are all open source Force process over manual changes (best practices)

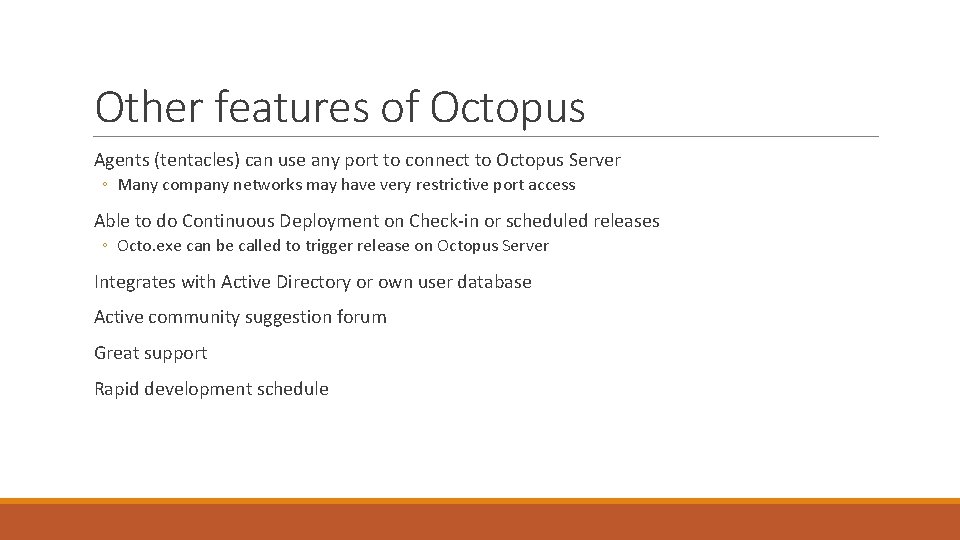

Other features of Octopus Agents (tentacles) can use any port to connect to Octopus Server ◦ Many company networks may have very restrictive port access Able to do Continuous Deployment on Check-in or scheduled releases ◦ Octo. exe can be called to trigger release on Octopus Server Integrates with Active Directory or own user database Active community suggestion forum Great support Rapid development schedule

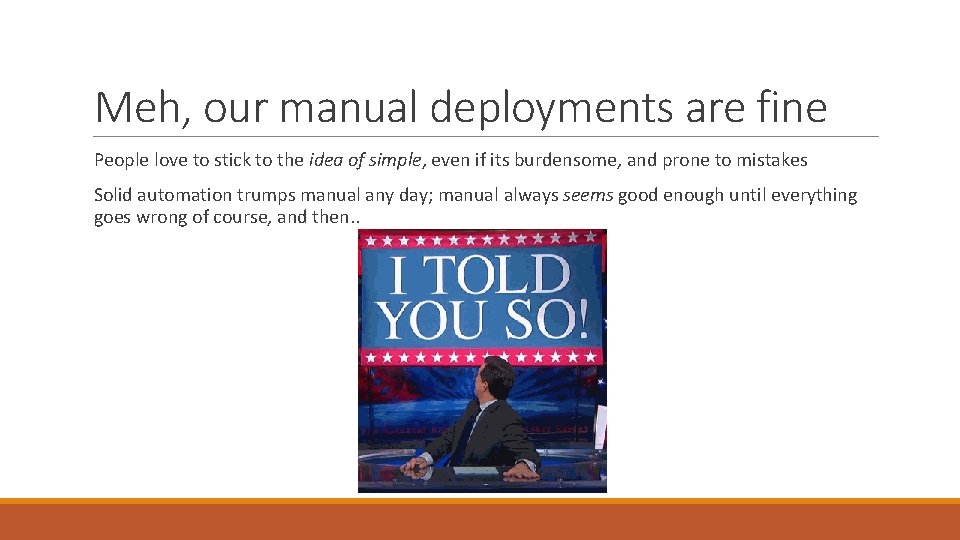

Meh, our manual deployments are fine People love to stick to the idea of simple, even if its burdensome, and prone to mistakes Solid automation trumps manual any day; manual always seems good enough until everything goes wrong of course, and then. .

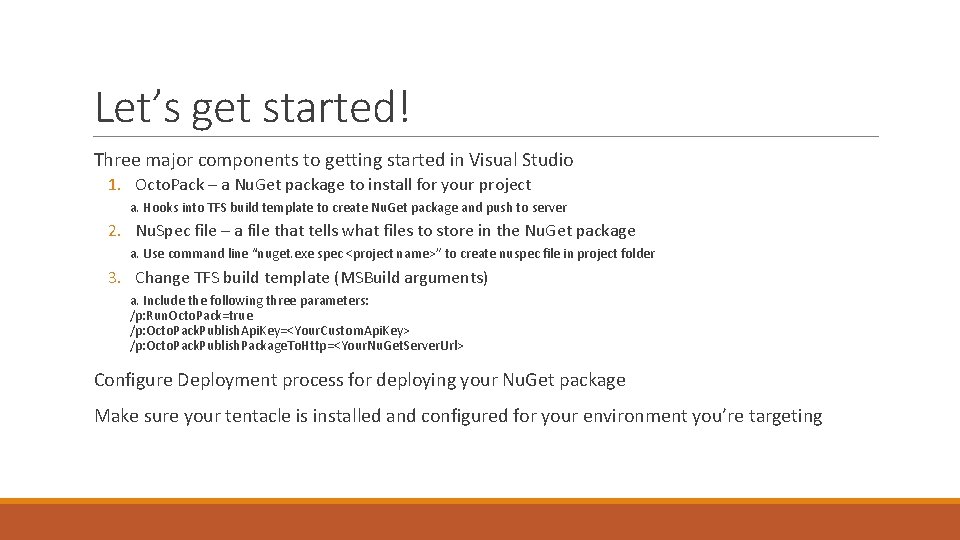

Let’s get started! Three major components to getting started in Visual Studio 1. Octo. Pack – a Nu. Get package to install for your project a. Hooks into TFS build template to create Nu. Get package and push to server 2. Nu. Spec file – a file that tells what files to store in the Nu. Get package a. Use command line “nuget. exe spec <project name>” to create nuspec file in project folder 3. Change TFS build template (MSBuild arguments) a. Include the following three parameters: /p: Run. Octo. Pack=true /p: Octo. Pack. Publish. Api. Key=<Your. Custom. Api. Key> /p: Octo. Pack. Publish. Package. To. Http=<Your. Nu. Get. Server. Url> Configure Deployment process for deploying your Nu. Get package Make sure your tentacle is installed and configured for your environment you’re targeting

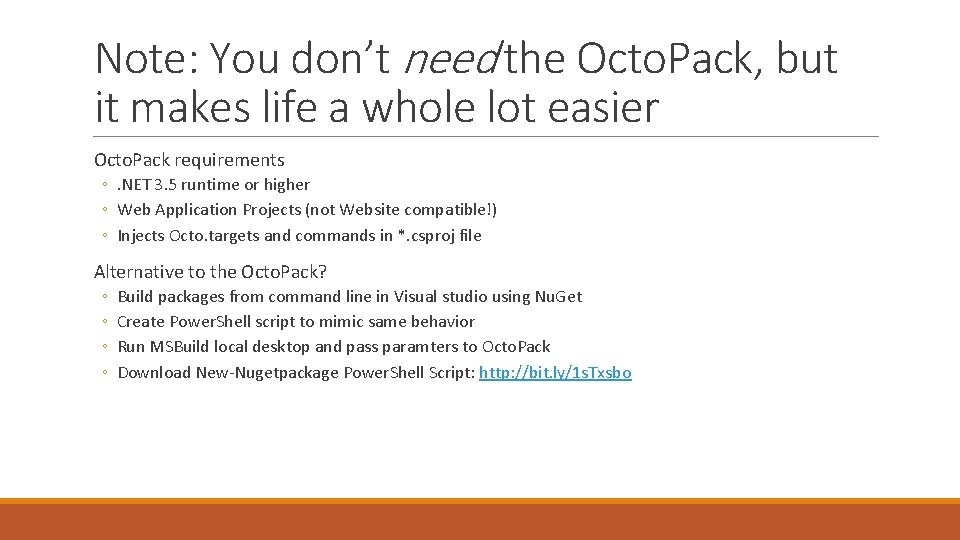

Note: You don’t need the Octo. Pack, but it makes life a whole lot easier Octo. Pack requirements ◦. NET 3. 5 runtime or higher ◦ Web Application Projects (not Website compatible!) ◦ Injects Octo. targets and commands in *. csproj file Alternative to the Octo. Pack? ◦ ◦ Build packages from command line in Visual studio using Nu. Get Create Power. Shell script to mimic same behavior Run MSBuild local desktop and pass paramters to Octo. Pack Download New-Nugetpackage Power. Shell Script: http: //bit. ly/1 s. Txsbo

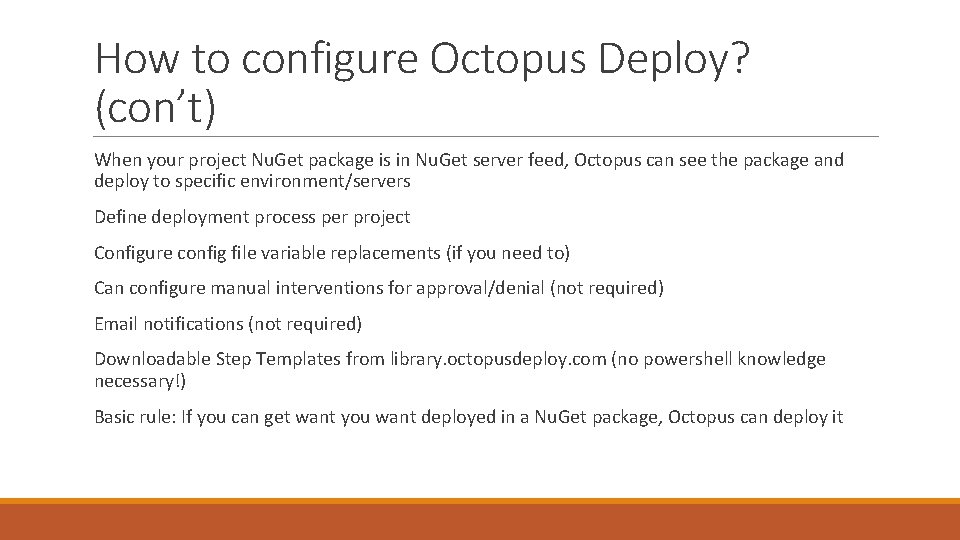

How to configure Octopus Deploy? (con’t) When your project Nu. Get package is in Nu. Get server feed, Octopus can see the package and deploy to specific environment/servers Define deployment process per project Configure config file variable replacements (if you need to) Can configure manual interventions for approval/denial (not required) Email notifications (not required) Downloadable Step Templates from library. octopusdeploy. com (no powershell knowledge necessary!) Basic rule: If you can get want you want deployed in a Nu. Get package, Octopus can deploy it

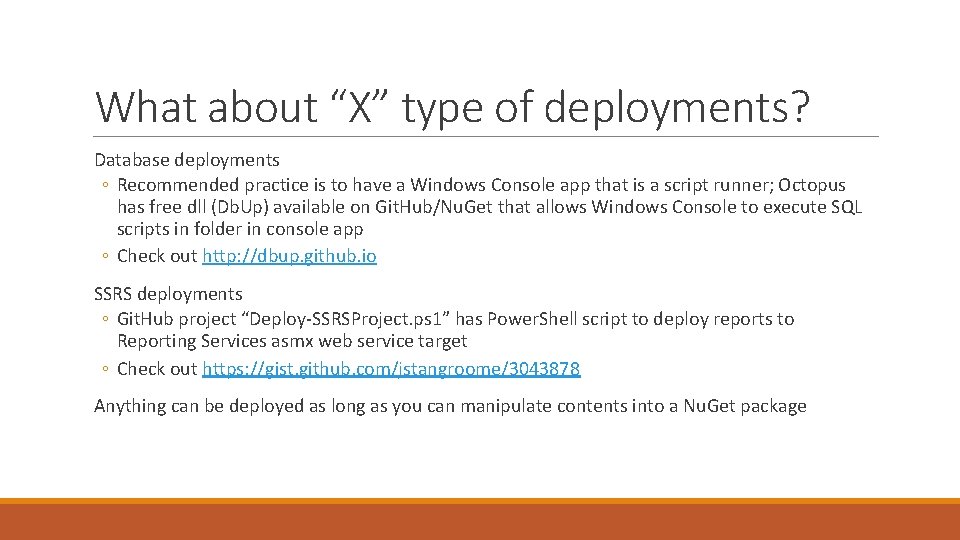

What about “X” type of deployments? Database deployments ◦ Recommended practice is to have a Windows Console app that is a script runner; Octopus has free dll (Db. Up) available on Git. Hub/Nu. Get that allows Windows Console to execute SQL scripts in folder in console app ◦ Check out http: //dbup. github. io SSRS deployments ◦ Git. Hub project “Deploy-SSRSProject. ps 1” has Power. Shell script to deploy reports to Reporting Services asmx web service target ◦ Check out https: //gist. github. com/jstangroome/3043878 Anything can be deployed as long as you can manipulate contents into a Nu. Get package

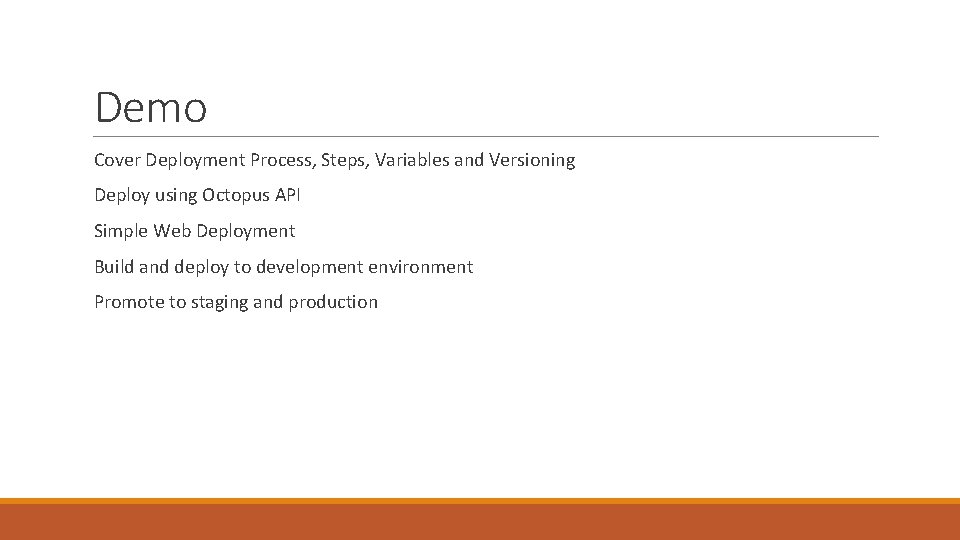

Demo Cover Deployment Process, Steps, Variables and Versioning Deploy using Octopus API Simple Web Deployment Build and deploy to development environment Promote to staging and production

Crazy Implementations Do you ever just get down on your knees and thank God that you know me and have access to my dementia? - George Costanza

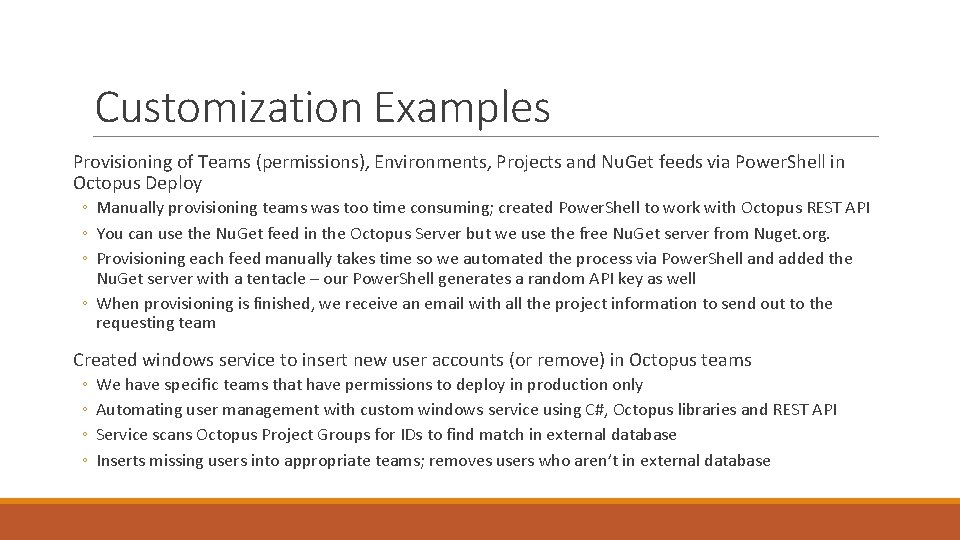

Customization Examples Provisioning of Teams (permissions), Environments, Projects and Nu. Get feeds via Power. Shell in Octopus Deploy ◦ Manually provisioning teams was too time consuming; created Power. Shell to work with Octopus REST API ◦ You can use the Nu. Get feed in the Octopus Server but we use the free Nu. Get server from Nuget. org. ◦ Provisioning each feed manually takes time so we automated the process via Power. Shell and added the Nu. Get server with a tentacle – our Power. Shell generates a random API key as well ◦ When provisioning is finished, we receive an email with all the project information to send out to the requesting team Created windows service to insert new user accounts (or remove) in Octopus teams ◦ ◦ We have specific teams that have permissions to deploy in production only Automating user management with custom windows service using C#, Octopus libraries and REST API Service scans Octopus Project Groups for IDs to find match in external database Inserts missing users into appropriate teams; removes users who aren’t in external database

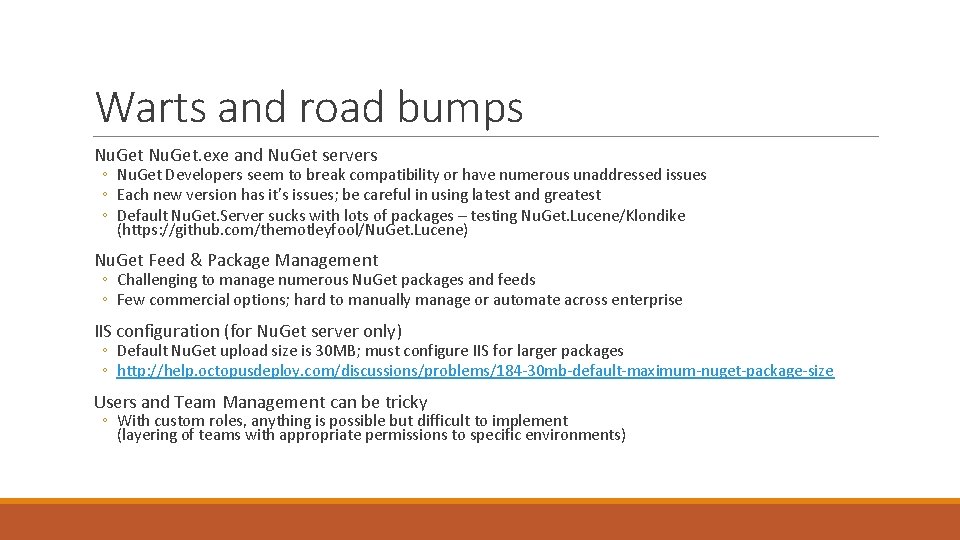

Warts and road bumps Nu. Get. exe and Nu. Get servers ◦ Nu. Get Developers seem to break compatibility or have numerous unaddressed issues ◦ Each new version has it’s issues; be careful in using latest and greatest ◦ Default Nu. Get. Server sucks with lots of packages – testing Nu. Get. Lucene/Klondike (https: //github. com/themotleyfool/Nu. Get. Lucene) Nu. Get Feed & Package Management ◦ Challenging to manage numerous Nu. Get packages and feeds ◦ Few commercial options; hard to manually manage or automate across enterprise IIS configuration (for Nu. Get server only) ◦ Default Nu. Get upload size is 30 MB; must configure IIS for larger packages ◦ http: //help. octopusdeploy. com/discussions/problems/184 -30 mb-default-maximum-nuget-package-size Users and Team Management can be tricky ◦ With custom roles, anything is possible but difficult to implement (layering of teams with appropriate permissions to specific environments)

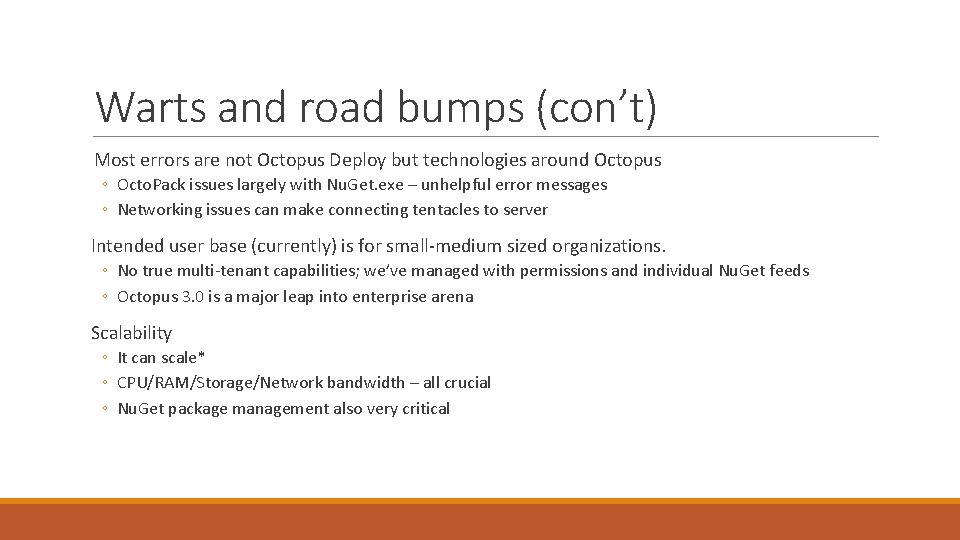

Warts and road bumps (con’t) Most errors are not Octopus Deploy but technologies around Octopus ◦ Octo. Pack issues largely with Nu. Get. exe – unhelpful error messages ◦ Networking issues can make connecting tentacles to server Intended user base (currently) is for small-medium sized organizations. ◦ No true multi-tenant capabilities; we’ve managed with permissions and individual Nu. Get feeds ◦ Octopus 3. 0 is a major leap into enterprise arena Scalability ◦ It can scale* ◦ CPU/RAM/Storage/Network bandwidth – all crucial ◦ Nu. Get package management also very critical

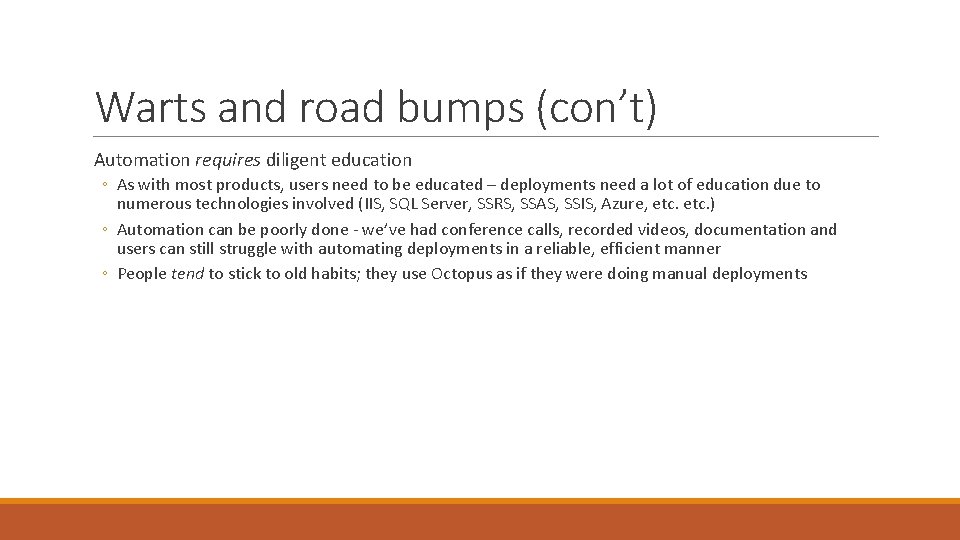

Warts and road bumps (con’t) Automation requires diligent education ◦ As with most products, users need to be educated – deployments need a lot of education due to numerous technologies involved (IIS, SQL Server, SSRS, SSAS, SSIS, Azure, etc. ) ◦ Automation can be poorly done - we’ve had conference calls, recorded videos, documentation and users can still struggle with automating deployments in a reliable, efficient manner ◦ People tend to stick to old habits; they use Octopus as if they were doing manual deployments

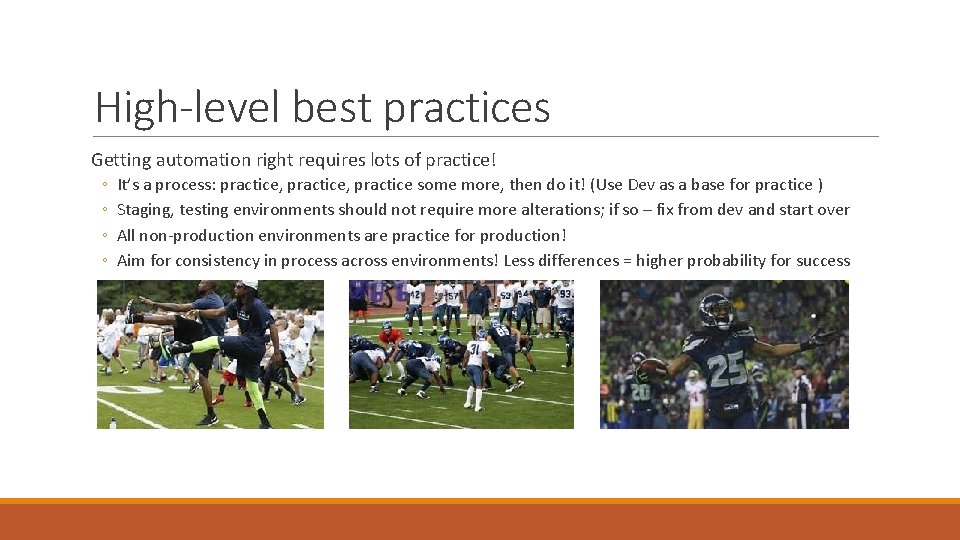

High-level best practices Getting automation right requires lots of practice! ◦ ◦ It’s a process: practice, practice some more, then do it! (Use Dev as a base for practice ) Staging, testing environments should not require more alterations; if so – fix from dev and start over All non-production environments are practice for production! Aim for consistency in process across environments! Less differences = higher probability for success

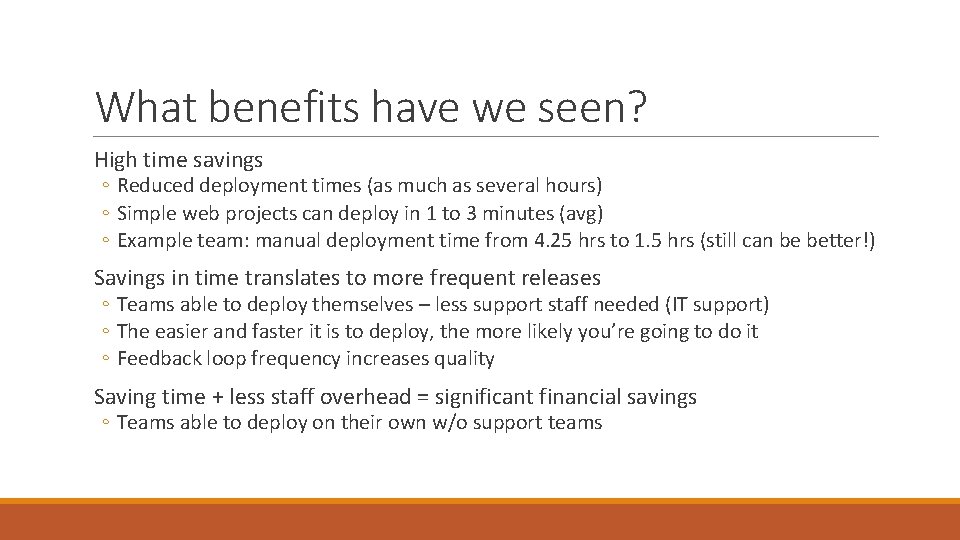

What benefits have we seen? High time savings ◦ Reduced deployment times (as much as several hours) ◦ Simple web projects can deploy in 1 to 3 minutes (avg) ◦ Example team: manual deployment time from 4. 25 hrs to 1. 5 hrs (still can be better!) Savings in time translates to more frequent releases ◦ Teams able to deploy themselves – less support staff needed (IT support) ◦ The easier and faster it is to deploy, the more likely you’re going to do it ◦ Feedback loop frequency increases quality Saving time + less staff overhead = significant financial savings ◦ Teams able to deploy on their own w/o support teams

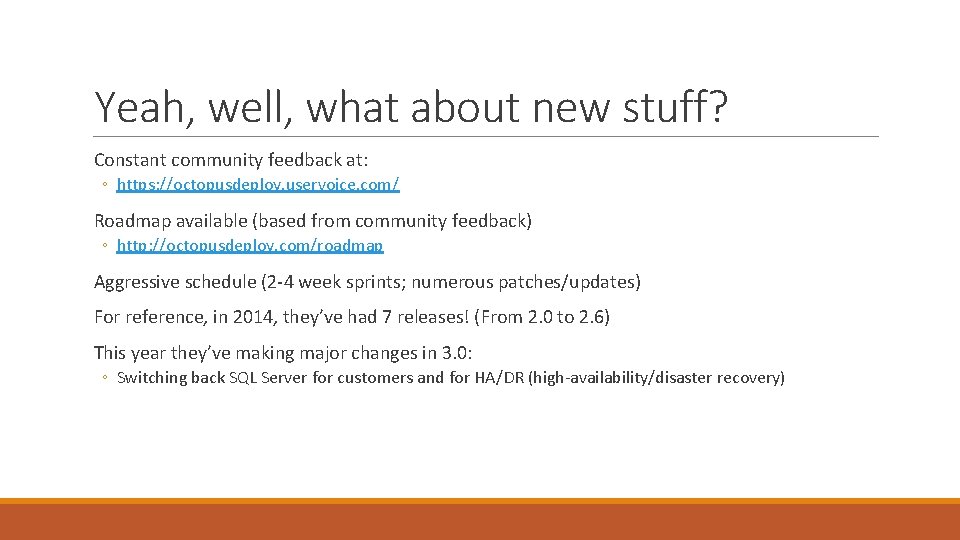

Yeah, well, what about new stuff? Constant community feedback at: ◦ https: //octopusdeploy. uservoice. com/ Roadmap available (based from community feedback) ◦ http: //octopusdeploy. com/roadmap Aggressive schedule (2 -4 week sprints; numerous patches/updates) For reference, in 2014, they’ve had 7 releases! (From 2. 0 to 2. 6) This year they’ve making major changes in 3. 0: ◦ Switching back SQL Server for customers and for HA/DR (high-availability/disaster recovery)

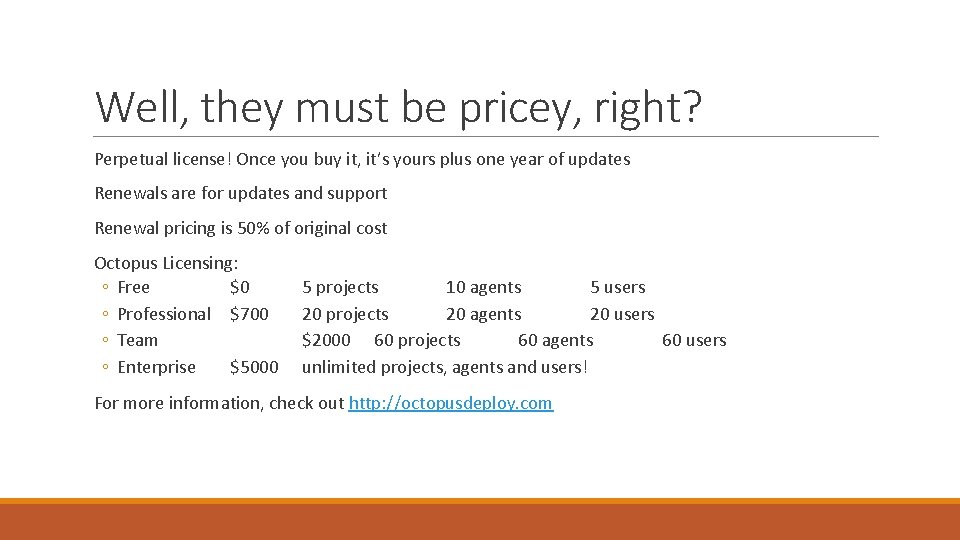

Well, they must be pricey, right? Perpetual license! Once you buy it, it’s yours plus one year of updates Renewals are for updates and support Renewal pricing is 50% of original cost Octopus Licensing: ◦ Free $0 ◦ Professional $700 ◦ Team ◦ Enterprise $5000 5 projects 10 agents 5 users 20 projects 20 agents 20 users $2000 60 projects 60 agents 60 users unlimited projects, agents and users! For more information, check out http: //octopusdeploy. com

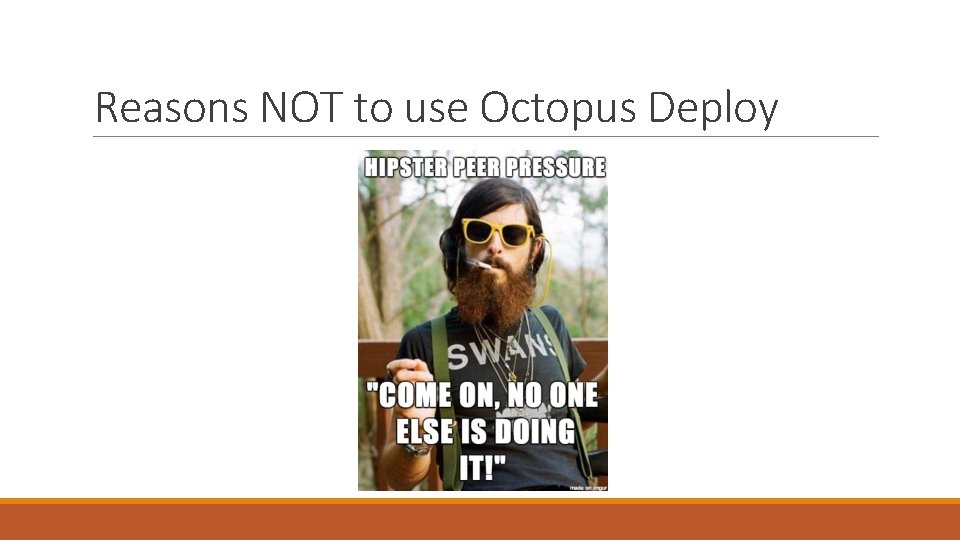

Reasons NOT to use Octopus Deploy

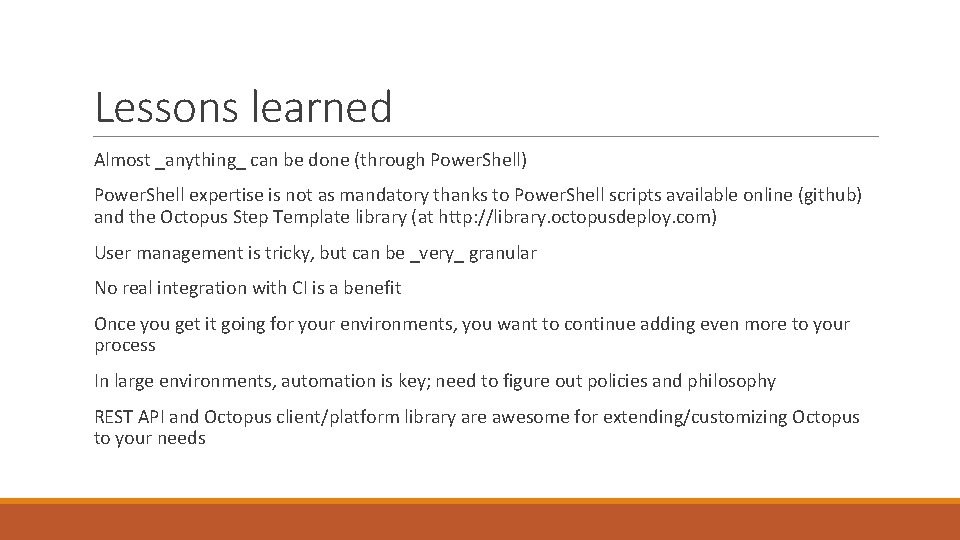

Lessons learned Almost _anything_ can be done (through Power. Shell) Power. Shell expertise is not as mandatory thanks to Power. Shell scripts available online (github) and the Octopus Step Template library (at http: //library. octopusdeploy. com) User management is tricky, but can be _very_ granular No real integration with CI is a benefit Once you get it going for your environments, you want to continue adding even more to your process In large environments, automation is key; need to figure out policies and philosophy REST API and Octopus client/platform library are awesome for extending/customizing Octopus to your needs

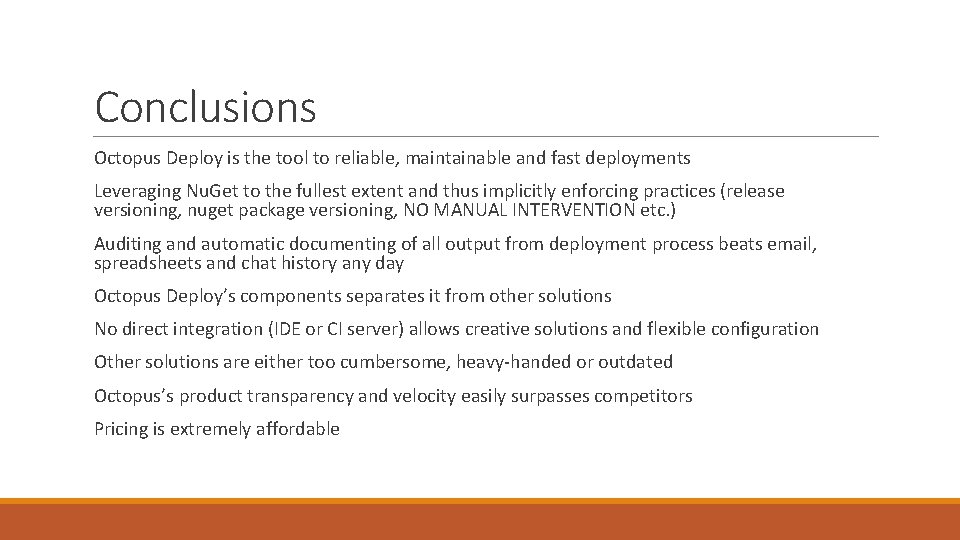

Conclusions Octopus Deploy is the tool to reliable, maintainable and fast deployments Leveraging Nu. Get to the fullest extent and thus implicitly enforcing practices (release versioning, nuget package versioning, NO MANUAL INTERVENTION etc. ) Auditing and automatic documenting of all output from deployment process beats email, spreadsheets and chat history any day Octopus Deploy’s components separates it from other solutions No direct integration (IDE or CI server) allows creative solutions and flexible configuration Other solutions are either too cumbersome, heavy-handed or outdated Octopus’s product transparency and velocity easily surpasses competitors Pricing is extremely affordable

Go forth and deploy!
