Automatic Tie-Point and Wire-frame Generation From Oblique Aerial Imagery Seth Weith-Glushko Advisor: Carl Salvaggio Research Proposal November 7, 2003 Digital Imaging and Remote Sensing Laboratory

Table of Contents • The Problem • Specific Aims • Proposed Solution • A description of the individual transforms and algorithms used to make up the proposed algorithms • Methods • Timetable • Budget • References Digital Imaging and Remote Sensing Laboratory

The Problem • Using photogrammetric techniques, tie matching algorithms and bundle adjustment algorithms, it is possible to create a 3 D model using a series of images of an object • These images must be around an axis (for objects) or ortho-rectified (for landscapes) for the algorithms to work • We want to be able to use oblique imagery for input into the algorithms • By using oblique imagery, more pixels are available to describe the features of a 3 D object than would be in an ortho-rectified image Digital Imaging and Remote Sensing Laboratory

Specific Aims • Current algorithms only work on ortho-graphic (for tie -points) and axial imagery (for wire-frame generation) • The goal is to draw from both photogrammetry and computer graphics to develop two algorithms which can work in unison • A tie-point algorithm that works on oblique imagery • A bundle adjustment algorithm that can use oblique imagery • In the future, this algorithm would become part of a suite of algorithms that could generate an accurate 3 D model of scene independent of the type of imagery used Digital Imaging and Remote Sensing Laboratory

Proposed Solution • The algorithm below relies heavily on the use of INS (Inertial Navigational System) data • The input would be a series of oblique images made around a common area • The output would be a matrix of matching points and a file using a common 3 D format Input: A series of oblique images around a common area Ortho-rectification Transform Converts an oblique image into an ortho-rectified image Image Processing • Histogram processing Digital Imaging and Remote Sensing Laboratory

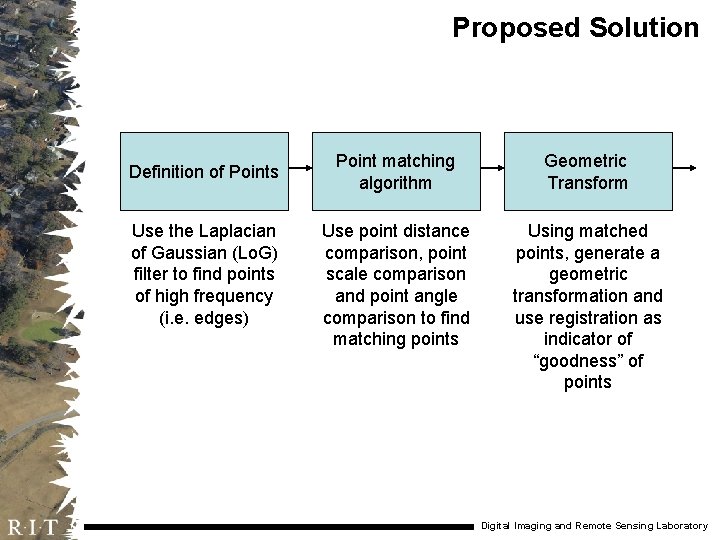

Proposed Solution Definition of Points Use the Laplacian of Gaussian (Lo. G) filter to find points of high frequency (i. e. edges) Point matching algorithm Geometric Transform Use point distance comparison, point scale comparison and point angle comparison to find matching points Using matched points, generate a geometric transformation and use registration as indicator of “goodness” of points Digital Imaging and Remote Sensing Laboratory

Proposed Solution Inverse Geometric Transform Inverse Orthorectification Transform Perform an inverse geometric transformation using previous transformation matrix Convert the orthorectified image back into its original oblique form Bundle Adjustment Algorithm Using pairs of matched points, define points in 3 D space Output: Matrix containing matched pairs between images Digital Imaging and Remote Sensing Laboratory

Proposed Solution Interface with 3 D System Output: 3 D wire-frame mesh of a scene Using software libraries and defined 3 D points, generate an output file Digital Imaging and Remote Sensing Laboratory

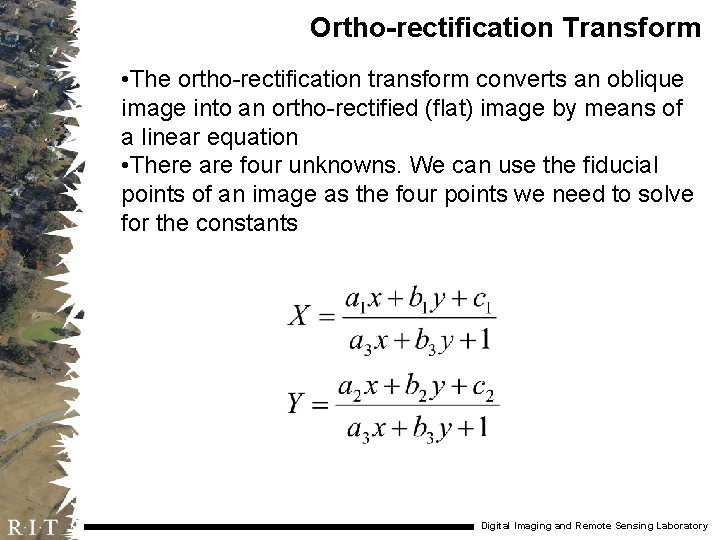

Ortho-rectification Transform • The ortho-rectification transform converts an oblique image into an ortho-rectified (flat) image by means of a linear equation • There are four unknowns. We can use the fiducial points of an image as the four points we need to solve for the constants Digital Imaging and Remote Sensing Laboratory

Image Processing • Image processing needs to be performed because images with dissimilar digital count affect the point generation operator • Histogram matching is performed to minimize this dissimilarity Images courtesy C. Salvaggio Digital Imaging and Remote Sensing Laboratory

Definition of Points • To define points the Laplacian of Gaussian operator is used • Walli found that if there is an edge in an image, a thresholded filtered image would show a point at that edge Images courtesy K. Walli Digital Imaging and Remote Sensing Laboratory

Point Matching Algorithms • To match defined points, three algorithms are primarily used: pixel distance match, scale match, angle match • Another matching criteria is Lo. G maxima similarity 25% Digital Imaging and Remote Sensing Laboratory

Pixel Distance Match 4 4 • This algorithm works by comparing distances between pixels in a matrix 3 3 3 2 2 1 1 1 3 2 3 4 1 2 3 4 # Same Elements: 2 3 2 Distance= Digital Imaging and Remote Sensing Laboratory

Scale Match 4 4 • This algorithm works by comparing ratios of distances between pixels in a matrix 3 3 3 2 2 2 1 1 2 1 0 1 3 2 3 4 1 0 1 2 3 4 5 6 7 Distance= Compare Ratios= Ratios of distances from like points is equal! Digital Imaging and Remote Sensing Laboratory

Angle Match 4 4 • This algorithm works by comparing the angle formed by the triangle of 3 pixels in a matrix 3 3 3 2 2 1 1 1 3 2 3 4 1 2 3 4 3 2 Point Set 1 Vertice 1 3 Point Set 2 2 Vertice 1 Digital Imaging and Remote Sensing Laboratory

Geometric Transformation • Using the matched pixels, solutions to the affine polynomial problem are found • Using the affine polynomial, one ortho-rectified image is geometrically transformed so that it can register with another ortho-rectified image. • Quality metrics are performed to determine whether the registration is good. Hence, the matched points are good. Digital Imaging and Remote Sensing Laboratory

Inverse Transformations • The matched points are put through an inverse geometric transformation and an inverse orthorectification transform to return the points to their original oblique pixel form • A matrix of matched points is output Digital Imaging and Remote Sensing Laboratory

Bundle Adjustment Algorithm • Bundle adjustment algorithms allow the mapping of 2 D points into 3 D space using more than two images around a common point • The algorithm estimates the underlying plane geometry of a scene Images courtesy M. Pollefeys Digital Imaging and Remote Sensing Laboratory

3 D Library Interfacing • Using these 3 D points generated from the bundle adjustment algorithm, a triangle mesh is created which forms the structure of the wire-frame scene • Also, a texture map is generated from bundle adjustment. This map is overlaid on the mesh • The full model is saved to a generic 3 D format Digital Imaging and Remote Sensing Laboratory

Methods • Using a programming environment, engineering code will be developed to determine the feasibility of this algorithm • If it is feasible, quality metrics will be applied to determine effectiveness • Visual analysis, absolute mean variance, and deviation from a polynomial model (RMSDE) can be used to check tie-point generation • Visual analysis and post-photogrammetric analysis can be used to check wire-frame generation Digital Imaging and Remote Sensing Laboratory

Timetable • September 1, 2003 – November 15, 2003 • Search for previous research, background knowledge • November 15, 2003 – April 1, 2004 • Development of algorithm and engineering code • April 1, 2004 – May 15, 2004 • Complete paper, poster and presentation Digital Imaging and Remote Sensing Laboratory

Budget • No money will be required for this project as the investigator has all of the resources he currently requires • 2 credits will be required for both Winter and Spring Quarters • Due to the nature of the contract, most of the work performed will be done on a pay basis • Flexibility in the experimenter’s schedule was required Digital Imaging and Remote Sensing Laboratory

References • Honkavaara, Eija and Anton Hogholen. “Automatic Tie Point Extraction in Aerial Triangulation. ” International Society for Photogrammetry and Remote Sensing, 16 th Congress, Vienna, July 1996. 337 -342. • Moffitt, Francis H. and Edward M. Mikhail. Photogrammetry. 3 rd Ed. New York: Harper and Row, 1980. • Pollefeys, M. “ 3 D Geometry from Images. ” 15 Oct. 2003. <http: //www. esat. kuleuven. ac. be/~pollefey/tutorial. ECCV. html> • Walli, Karl C. “Multisensor Image Registration Utilizing the LOG Filter and FWT. ” Diss. Rochester Institute of Technology, 2003. • Wolf, Paul R. Elements of Photogrammetry. 2 nd Ed. New York: Mc. Graw-Hill, 1983. Digital Imaging and Remote Sensing Laboratory

Questions Are there any? Digital Imaging and Remote Sensing Laboratory
