Automatic Position Reporting System ( APRS ) An Introduction to APRS via Amateur Radio BCYLARA Conference Kelowna, BC - May 2006 “In The Sunny Okanagan !” “Okanagan Lake - Home of the Ogopogo!” 9/13/2021

Norm Barton – VE 7 BZC Communications Coordinator Central Okanagan Reg. Dist. Emergency Operations Centre Fire Station #1, Kelowna, BC www. cordeoc. ca Locally, we acknowledge the efforts of Ian Mc. Laughlin – VE 7 BST who has been a pioneer for OCARC sponsored APRS networking and I-gating in the Okanagan.

APRS Developer and Program Authors…

APRSDos the original APRS program… l Developed by: Bob Bruninga, WB 4 APR for the PC when he wanted a cost effective mapping program that would allow positioning of mobile stations using GPS receivers. (Later developed as Windows-based “Win. APRS”) by Sproule Bros.

“UI-view” was developed by Roger Barker G 4 IDE (SK-2004) …who willed his UI-view program, and Winpack – a packet radio program, (free) to the Amateur Radio World. (Roger asked users to make a donation to their local Cancer Society)

UI-view 32 is currently the most popular Amateur Radio APRS program… Its best features: Superior mapping Open Source Code – means lots of “add-ons” Free! Second most popular – Win. APRS - Cost $65 (approx. ) closed code – no add-ons, mapping is difficult.

Some examples of Free “add-on programs” for UI-view… “Find. U” log converter Movement alarm Log call sign extractor Weather watcher Local area APRS RF and traffic analyzers Web server Message printer etc. , etc. !

APRS needs the GPS (Global Positioning System) to work!…

How you “know” where you are using “GPS” Approx. 22, 000 Km altitude 24 Satellites + 5 Ground Stations Maintained by USA DOD A fourth satellite reading resolves these time differences GPS Receiver Trilateration !

What is APRS? l It is a method of transmitting GPS and “Ham” Operator information via Amateur Radio that includes: – Location and tracking of vehicles, emergency sites, search personnel, community events, etc. Note: all examples are UI-view 32 screen captures

APRS information can be displayed, in real time, on a computer Map.

UI-view Central Okanagan Map

UI-view 32 and local mapping - see the positions of cars ve 7 bzc-3, va 7 kb and the location of the CORD EOC – ve 7 eok

Examples of information that can be transmitted: Location coordinates, course direction, altitude, speed, temperature and voltage. Information that can be extremely useful during emergencies !

The arrows: Coordinates, Compass Bearing from the receiving station, Speed, Height, Voltage and Temperature. (UI-view coordinates are in Deg. , Min. , decimal Min. )

APRS information transmitted via Amateur Radio can also include: Ham Radio Weather Station Information

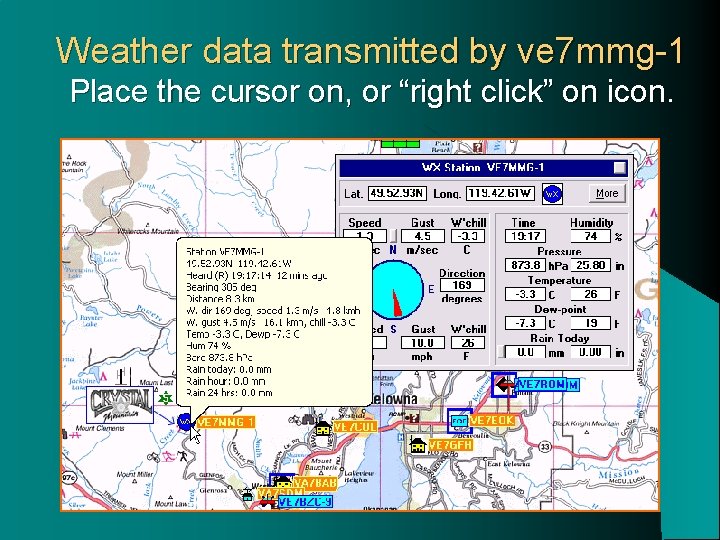

Weather data transmitted by ve 7 mmg-1 Place the cursor on, or “right click” on icon.

Two ways to “get on” APRS… l Mobile or Portable via RF (moving location) l Home via Computer and/or RF (fixed location)

APRS Mobile / Portable components: GPS + radio with a “built-in” TNC such as the Kenwood D 700 mobile or D 7 AG handheld… (TX and RX on 144. 390 MHz) Or a GPS Receiver + TNC “black-box” (such as TT 3 & Open Tracker) + a VHF radio

A Typical Portable/Mobile Setup GPS + Radio + TNC

Home APRS components: A Computer with Internet connection and an APRS Program You can add RF with a radio + TNC…

All these “RF beacons” floating around in the atmosphere are part of the Worldwide APRS Network: How do we access it ?

Putting APRS users on the Internet Steve Dimse, K 4 HG, of Miami Florida wrote an APRS display program called “Jav. APRS”. This program and its companion program, APRServe, work with the Internet to allow viewers to see real time data locally and from other parts of the World. Check Steve’s web site at: www. findu. com

APRS Network components: Radio beacons, Computer beacons, and the Internet. Accessing the data…

Examples of Amateur Radio APRS at work in local Okanagan Emergency Operations. . .

Amateur Radio + GPS + APRS and Emergency work… + +

UI-view map showing Fire. Storm 2003 activity

Fire Fighter evacuation point location provided to rescue boat (in heavy smoke) using APRS data from the Kelowna EOC !

A P R S a t E O C Double click the blue to start movie

CORD EOC Radio Crew at NW CORD ESS Fire Evacuation Practice.

UI-view APRS Tactical Messaging at NW CORD ESS Fire Evacuation Practice

Amateur APRS Ops assist Community events e. g. Parades, Memorial Cup, Triathlons, Ski-to-Sea

Personal examples of Amateur Radio APRS use: How is my spouse doing, driving in this snowstorm? I wonder if ? ? ? is down-town today? Follow & Message family or friend on the road far away. For the skeptics… Don’t want to be seen right now? “ It’s simple… Pull the plug ! ”

APRS UI-view Station in the OCARC Club Radio Room – “ve 7 ogo” APRS is a registered Trade Mark of Bob Bruninga

LIVE DEMO Air Log

You can get UI-view information… Free UI-view Program 150+ Free Canadian Maps Settings Tips, Advice and Excellent Links from this site: www. cordeoc. ca ------- >

www. cordeoc. ca

In summary… What Do I Need to Join the APRS Community? l l An Amateur Radio License and ( Basic or higher) Call Sign. A Computer, with an Internet connection (high speed preferred) l “FREE” UI-view 32 ! …When you are ready, add RF capability!

The APRS Community… Another way to make Amateur Radio Friends… Worldwide ! VE 7 BZC VA 7 BAB Norm & Betty Ann Barton
