AUTOMATIC INTELLIGENT TOLL TAX SYSTEM INTRODUCTION Electronic toll

AUTOMATIC INTELLIGENT TOLL TAX SYSTEM

INTRODUCTION • Electronic toll collection is a generally mature technology that allows for electronic payment of highway tolls. • AITS takes advantage of vehicle to road side communication technologies to perform an electronic monetary transaction between a vehicle passing through a toll station and a toll agency.

OBJECTIVES • Simplementation of automatic toll collection process • To maximize efficiency and effectiveness of toll collection while minimizing traffic impacts. • To focus specifically in identifying and assessing available toll collection technologies

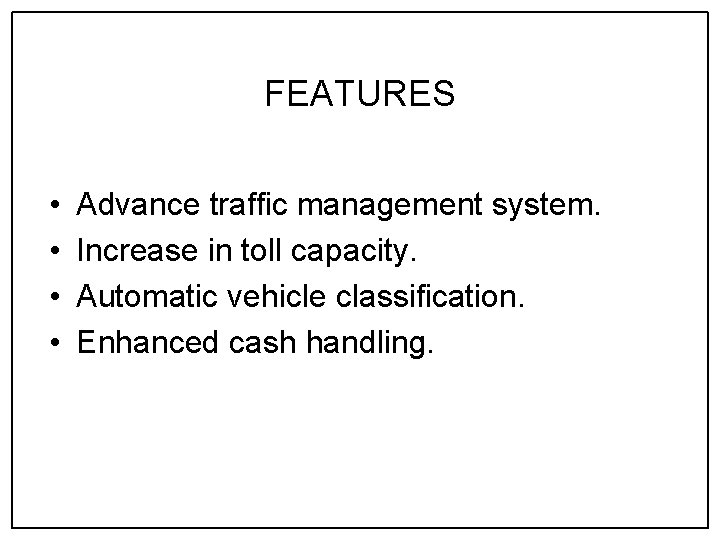

FEATURES • • Advance traffic management system. Increase in toll capacity. Automatic vehicle classification. Enhanced cash handling.

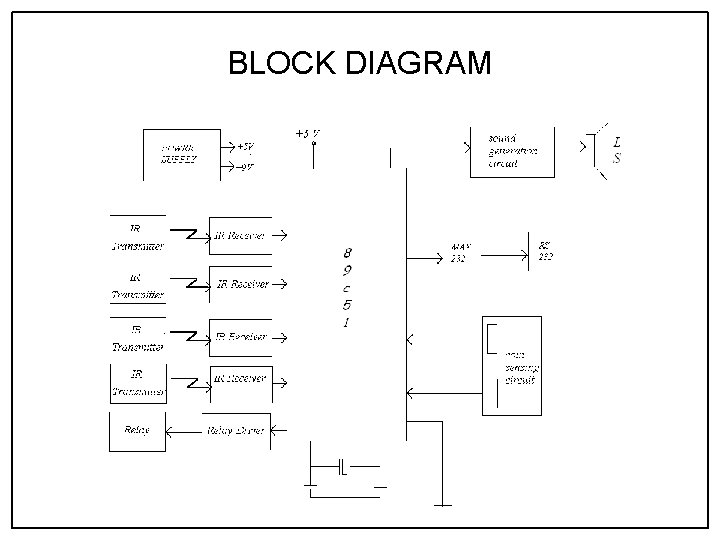

BLOCK DIAGRAM

SYSTEM WORKING MODEL • IR Transmitters identifies and classifies the vehicles. • After detection of vehicle, the system displays permitted tax for each vehicle • After getting toll the second gate will open. • After breaking the IR 4 the gate will close.

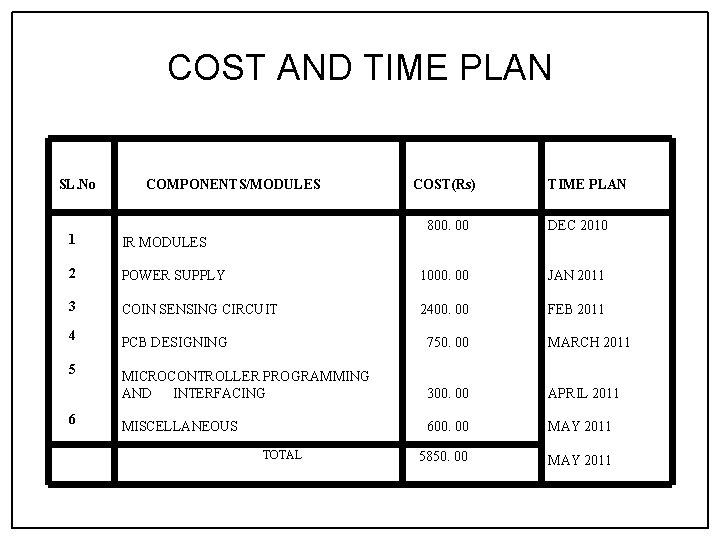

COST AND TIME PLAN SL. No COMPONENTS/MODULES COST(Rs) TIME PLAN 800. 00 DEC 2010 1 IR MODULES 2 POWER SUPPLY 1000. 00 JAN 2011 3 COIN SENSING CIRCUIT 2400. 00 FEB 2011 4 5 6 PCB DESIGNING 750. 00 MARCH 2011 MICROCONTROLLER PROGRAMMING AND INTERFACING 300. 00 APRIL 2011 MISCELLANEOUS 600. 00 MAY 2011 5850. 00 MAY 2011 TOTAL

FEASIBILITY • The project can be surely completed within the specified time period by proper guidance • All the components are easily available in the market • Its implementation is not much complex
