Automated Driver Testing System Objective v Standardize and

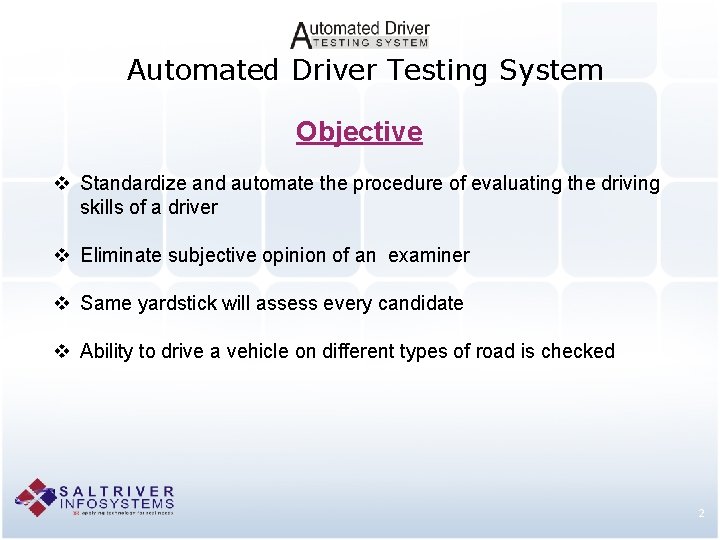

Automated Driver Testing System Objective v Standardize and automate the procedure of evaluating the driving skills of a driver v Eliminate subjective opinion of an examiner v Same yardstick will assess every candidate v Ability to drive a vehicle on different types of road is checked 2

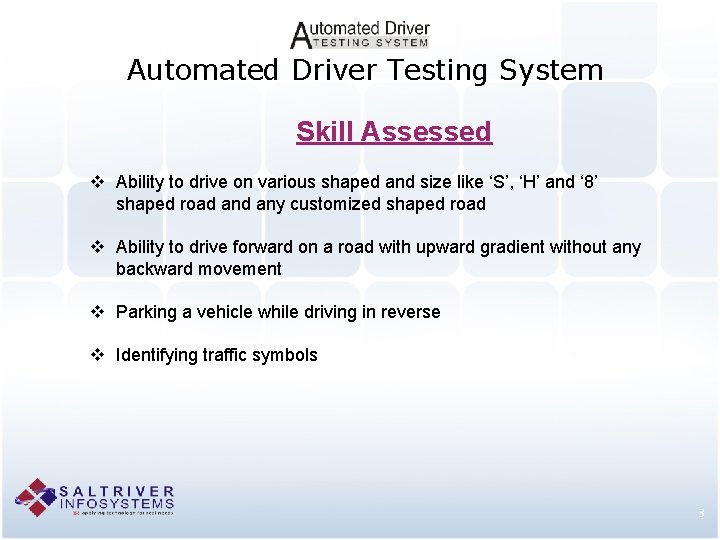

Automated Driver Testing System Skill Assessed v Ability to drive on various shaped and size like ‘S’, ‘H’ and ‘ 8’ shaped road any customized shaped road v Ability to drive forward on a road with upward gradient without any backward movement v Parking a vehicle while driving in reverse v Identifying traffic symbols 3

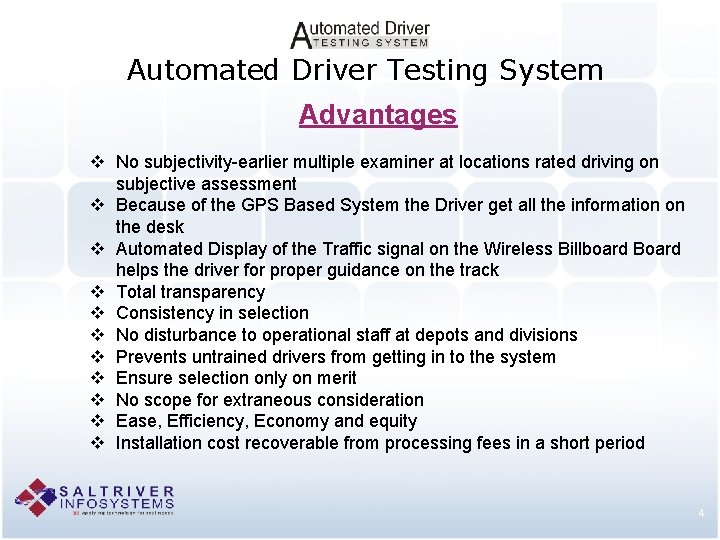

Automated Driver Testing System Advantages v No subjectivity-earlier multiple examiner at locations rated driving on subjective assessment v Because of the GPS Based System the Driver get all the information on the desk v Automated Display of the Traffic signal on the Wireless Billboard Board helps the driver for proper guidance on the track v Total transparency v Consistency in selection v No disturbance to operational staff at depots and divisions v Prevents untrained drivers from getting in to the system v Ensure selection only on merit v No scope for extraneous consideration v Ease, Efficiency, Economy and equity v Installation cost recoverable from processing fees in a short period 4

Automated Driver Testing System Salient Features v v v v Special tracks with a system of sensors embedded in the tracks Real time data transfer to central location The system awards mark automatically On completion of all tests, the results are printed and handed over to the candidate immediately Biometric based secure identification of the candidate Wireless Display Board for displaying different traffic signals GPS Based navigation system for the correct driving experience Any type of vehicle including LMV, LCV 5

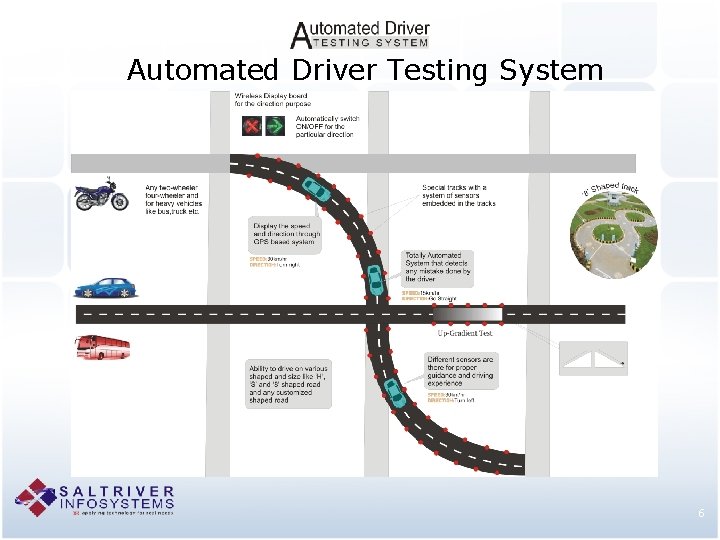

Automated Driver Testing System 6

Automated Driver Testing System Types of Test v Negotiation of ‘S’ shaped road with proper indication of Speed and traffic signals using GPS based system and Wireless Display board. v Measures time duration to complete test and any poles movement v Automated generation of traffic signals on the Wireless billboard for testing proper skills of the driver. 7

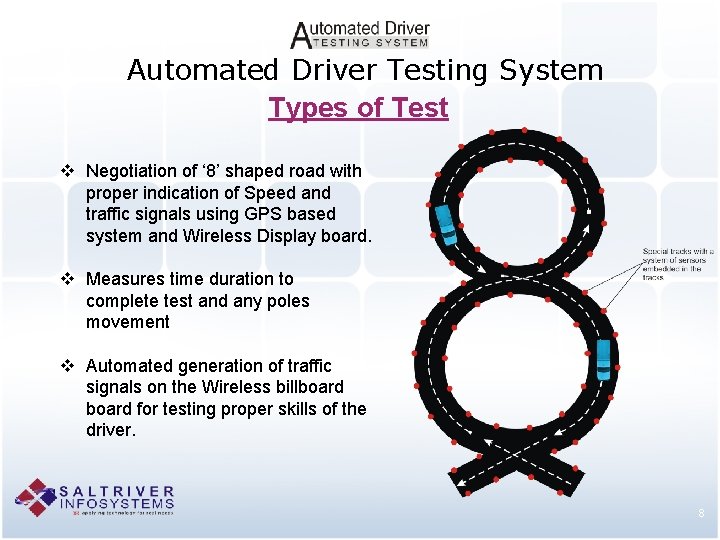

Automated Driver Testing System Types of Test v Negotiation of ‘ 8’ shaped road with proper indication of Speed and traffic signals using GPS based system and Wireless Display board. v Measures time duration to complete test and any poles movement v Automated generation of traffic signals on the Wireless billboard for testing proper skills of the driver. 8

Automated Driver Testing System Types of Test v Negotiation of ‘H’ shaped road with proper indication of Speed and traffic signals using GPS based system and Wireless Display board. v Measures time duration to complete test and any poles movement v Automated generation of traffic signals on the Wireless billboard for testing proper skills of the driver. v Different type of Forward & Entrance, Reverse, Forward and Forward Exit Tests has been carried out in this test 9

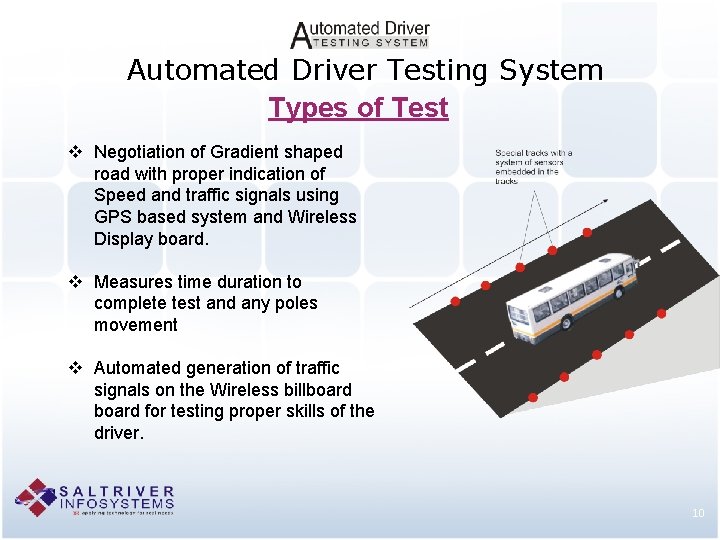

Automated Driver Testing System Types of Test v Negotiation of Gradient shaped road with proper indication of Speed and traffic signals using GPS based system and Wireless Display board. v Measures time duration to complete test and any poles movement v Automated generation of traffic signals on the Wireless billboard for testing proper skills of the driver. 10

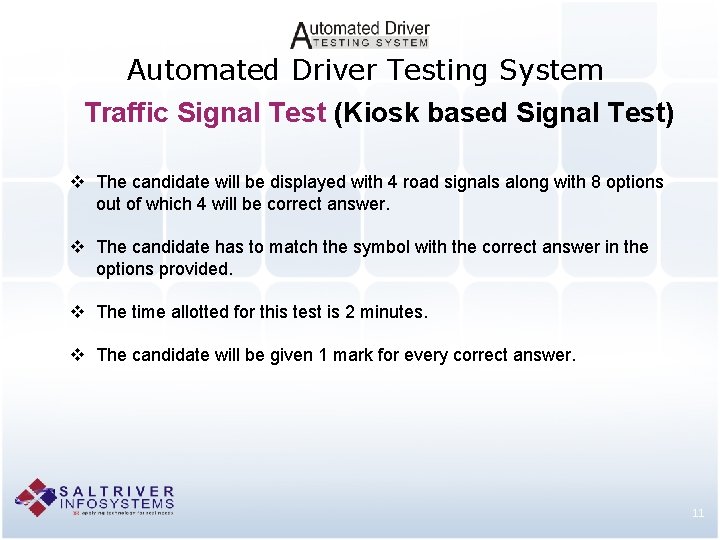

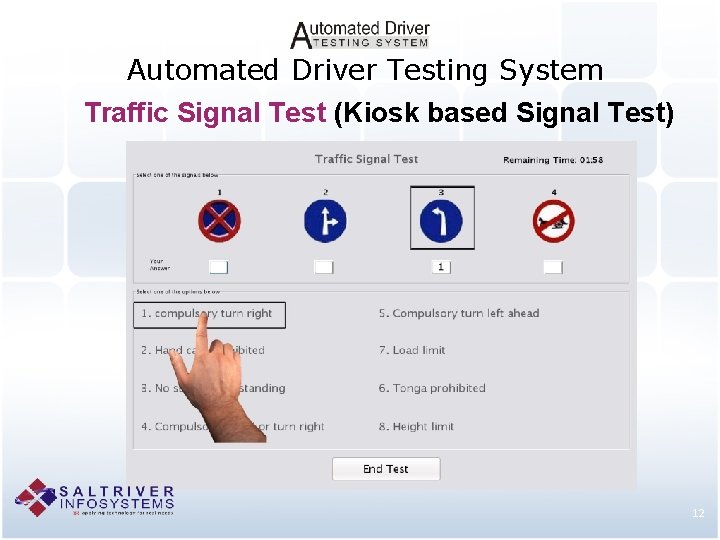

Automated Driver Testing System Traffic Signal Test (Kiosk based Signal Test) v The candidate will be displayed with 4 road signals along with 8 options out of which 4 will be correct answer. v The candidate has to match the symbol with the correct answer in the options provided. v The time allotted for this test is 2 minutes. v The candidate will be given 1 mark for every correct answer. 11

Automated Driver Testing System Traffic Signal Test (Kiosk based Signal Test) 12

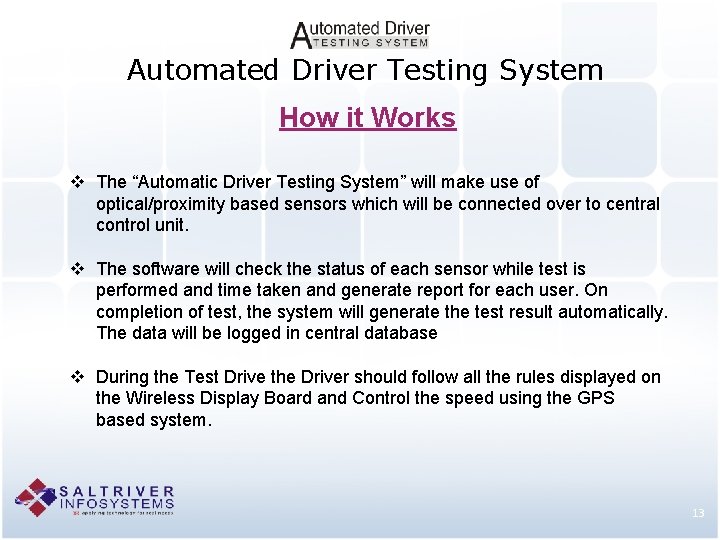

Automated Driver Testing System How it Works v The “Automatic Driver Testing System” will make use of optical/proximity based sensors which will be connected over to central control unit. v The software will check the status of each sensor while test is performed and time taken and generate report for each user. On completion of test, the system will generate the test result automatically. The data will be logged in central database v During the Test Drive the Driver should follow all the rules displayed on the Wireless Display Board and Control the speed using the GPS based system. 13

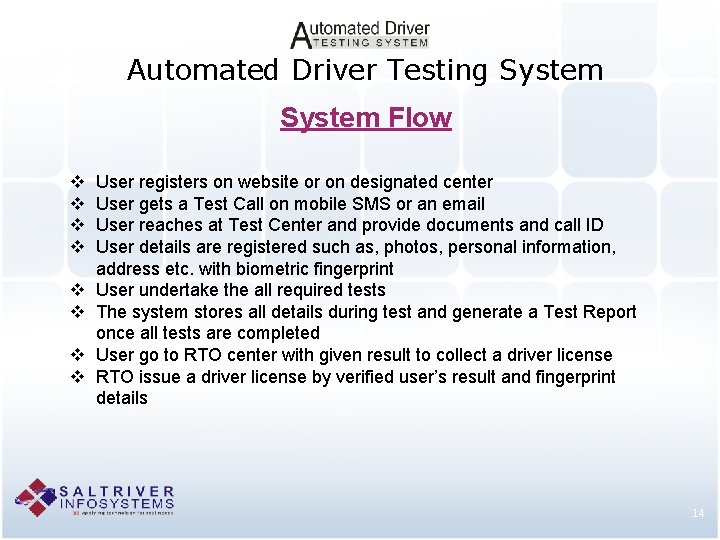

Automated Driver Testing System Flow v v v v User registers on website or on designated center User gets a Test Call on mobile SMS or an email User reaches at Test Center and provide documents and call ID User details are registered such as, photos, personal information, address etc. with biometric fingerprint User undertake the all required tests The system stores all details during test and generate a Test Report once all tests are completed User go to RTO center with given result to collect a driver license RTO issue a driver license by verified user’s result and fingerprint details 14

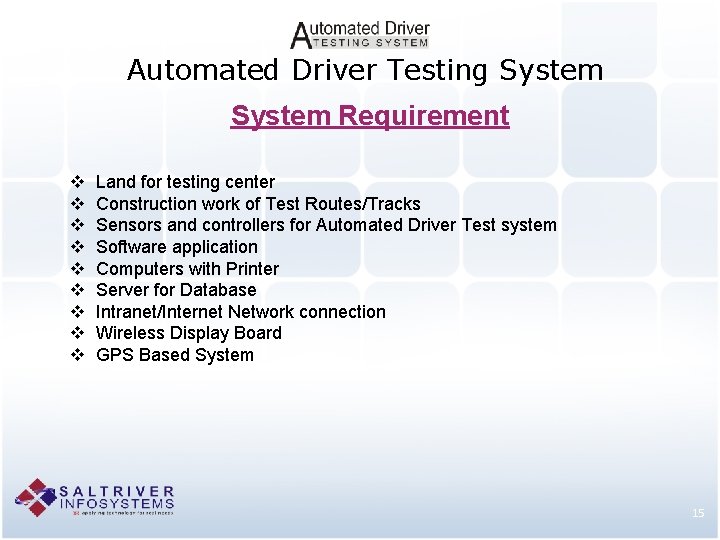

Automated Driver Testing System Requirement v v v v v Land for testing center Construction work of Test Routes/Tracks Sensors and controllers for Automated Driver Test system Software application Computers with Printer Server for Database Intranet/Internet Network connection Wireless Display Board GPS Based System 15

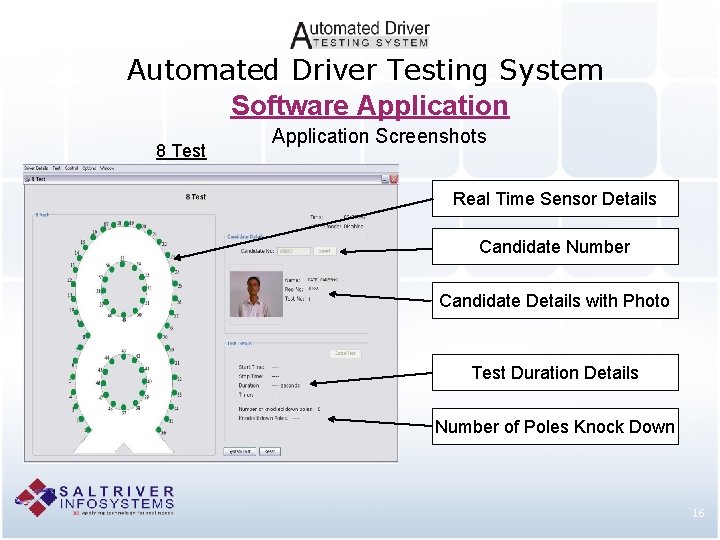

Automated Driver Testing System Software Application 8 Test Application Screenshots Real Time Sensor Details Candidate Number Candidate Details with Photo Test Duration Details Number of Poles Knock Down 16

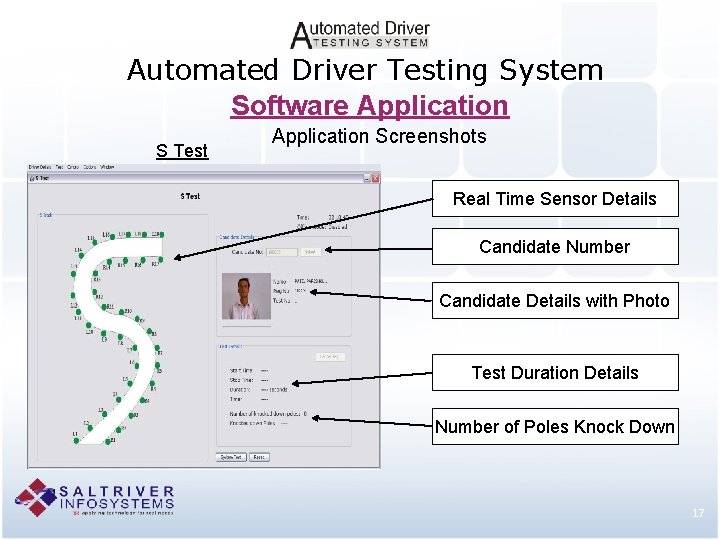

Automated Driver Testing System Software Application S Test Application Screenshots Real Time Sensor Details Candidate Number Candidate Details with Photo Test Duration Details Number of Poles Knock Down 17

Automated Driver Testing System Software Application Reverse Parking Test Application Screenshots Real Time Sensor Details Candidate Number Candidate Details with Photo Test Duration Details Number of Poles Knock Down 18

Automated Driver Testing System Software Application Up Gradient Test Application Screenshots Real Time Sensor Details Candidate Number Candidate Details with Photo Test Duration Details Number of Poles Knock Down 19

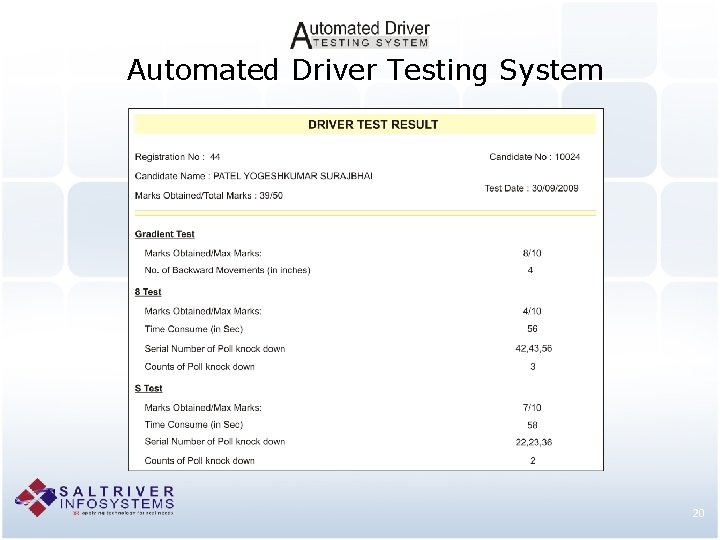

Automated Driver Testing System 20

Automated Driver Testing System Contact Us Saltriver Infosystems Pvt. Ltd. B-11, Premium House, Ellis bridge, Ahmedabad, Gujarat, India Phone : 91 -79 -26580392, 26574356 www. saltriver. com 21
