Augsburg University of Applied Sciences | Faculty of Mechanical and Process Engineering Brno University of Technology | Faculty of Mechanical Engineering | Institute of Process and Environmental Engineering Projektování a řízení procesů (KPJ) Conceptual Design of Distillation, Absorption and Stripping Systems Prof. Dr. -Ing. Marcus Reppich Room D 5/249 marcus. reppich@hs-augsburg. de Important notice: These documents are to be used exclusively for study purposes, they are made available to participants of the lecture Conceptual Design of Distillation, Absorption and Stripping Systems (Projektování a řízení procesů, KPJ) at the Institute of Process and Environmental Engineering at the Brno University of Technology only. Cover image: Copyright by BASF SE
Conceptual Design of Distillation, Absorption and Stripping Systems Timetable and Contents of Lectures and Exercises Lectures 19. 11. 2013 P 09 Fundamentals of Binary Distillation 26. 11. 2013 P 10 Types of Distillation Columns 03. 12. 2013 P 11 Design of Distillation Columns Exercises 19. 11. 2013 Assignment date 26. 11. 2013 C 10 03. 12. 2013 C 11 10. 12. 2013 C 12 13. 12. 2013 Design of a Multicomponent Distillation System Using the Process Simulation Software CHEMCAD (group work of two students, elaboration of a final project report) Due date
3 Design of Distillation Columns Determination of the Number of Actual Stages In the previous analysis, we have assumed that the vapor leaving each stage was in equilibrium with the liquid leaving the same stage. However, in practice, the trays are not perfect, i. e. there are deviations from ideal conditions. The assumption of thermal equilibrium is reasonable, but the assumption of equilibrium with respect to the mass transfer is seldom justified due to: • insufficient time of contact between the liquid and vapor phases • insufficient degree of mixing of the both phases (the presence of stagnant zones on largediameter distillation trays) • the effects of entrainment and weeping. To determine the actual number of trays required for a given separation, the number of theoretical stages must be adjusted with a overall column efficiency and a safety coefficient : Neff … number of actual stages Nth … number of theoretical stages s … safety coefficient (s = 1, 3 … 2) EOV … overall column efficiency | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 3 |
3 Design of Distillation Columns Determination of the Number of Actual Stages Overall Column Efficiency, Murphree Tray Efficiency The overall column efficiency EOV depends on the geometry and design of the trays, flow rates and flow paths of vapor and liquid streams, compositions and properties of both phases. Values of EOV can be predicted by comparsion with performance data from industrial columns for similar systems, by use of empirical correlations or semitheoretical tray models or by scale-up from laboratory data. Guideline values are: Tray Type EOV Tunnel Tray Bubble Cup Tray Sieve Tray Valve Tray 0, 5 – 0, 7 0, 6 – 0, 8 0, 7 – 0, 9 The Murphree tray efficiency Ej that describes the separation achieved on individual tray j is usually based on the vapor phase: j+1 Equilibrium Curve Operating Line z j z a b j– 1 | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 4 |
3 Design of Distillation Columns Determination of the Tray Column Height Once the overall column efficiency EOV is known, it can be used on the Mc. Cabe-Thiele graphical method in the form of a pseudo-equilibrium curve. In stepping off stages, the overall vapor-side efficiency EOV = a/b, can be used to dictate the percentage of the vertical distance taken from the operating line to the equilibrium curve. Following the staircase construction between the pseudoequilibrium curve and the operating lines the number of actual stages Neff required for the given separation is determined: 1 b a EOV = a/b = const. Equilibrium curve for EOV = 1 a 0 Pseudo-equilibrium curve for Operating lines e. g. , for b 1 The height of trayed portion of column H and the column height Htot, required to meet the product specifications, are where z is the tray spacing, typically z = 0, 2 … 0, 6 m. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 5 |
3 Design of Distillation Columns Operating Region of Tray Columns Tray columns can only be operated within certain limits of gas and liquid flow. The operating region of a tray column can be represented in a diagram with x-coordinate and y-coordinate. Often these two loads are referred to the active area Aac. The upper borders for the gas and liquid flow (bold lines) are absolute borders that can never be crossed without causing mechanical damages. The lower borders (dashed lines) may be exceeded to a certain extent without encountering any flow problems. However the mass transfer efficiency may gradually decrease. The shape and size of the operating region depends on the design parameters. The operation point should be chosen so that a sufficient safety margin to the operation limits remains. Entrainment Froth height Operating region D Downcomer capacity Minimum crest over weir Weeping Aac Note: See https: //www. youtube. com/watch? v=D 0 H 9 FWsk_Ck, https: //www. youtube. com/watch? v=Ch 68_F-G 9 z 8, https: //www. youtube. com/watch? v=I 6 G 8 y. GBp. X 5 I for videos showing different operation modes of tray columns. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 6 |
3 Design of Distillation Columns Operating Region of Tray Columns As described below the gas and liquid loads has to be kept between a maximum and a minimum value. Therefore, four limitations can be defined: Minimum Gas Load: • at low gas velocities either the gas no longer flows uniformly though all the tray openings (bypassing part of the tray) or the liquid leaks though the tray (weeping) • both modes of operation should be avoided due to tray efficiency losses because of insufficient degree of mixing of the both phases • the main factor that affects weeping is the hole diameter (the minimum gas load increases with increasing hole diameter) Maximum Gas Load: • at high gas velocities the gas blows the liquid off the tray in form of fine droplets (entrainment, jet flood) • the liquid flows no longer countercurrently to the gas, and proper column operation ends • the maximum feasible gas load depends on system properties (density of gas and liquid, surface tension) as well as on tray design • entrainment flooding of trays is decisive at very large tray spacings z, for smaller tray spacings z the froth height on the tray sets a lower limitation | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 7 |
3 Design of Distillation Columns Operating Region of Tray Columns Minimum Liquid Load: • at extremely low liquid loads, liquid flows unevenly across the tray (maldistribution), which decreases the mass transfer efficiency hl • minimum height of the weir overflow hwo 5 mm • this corresponds to a minimum liquid weir load of: hwo z Maximum Liquid • the liquid flow downward through the downcomers is enforced by gravity forces which results in a limitation Load: of the maximum liquid load • the following four empirical rules are often used to determine the maximum liquid flow rate the weir load should be lw the liquid velocity in the downcomer should not exceed a value of 0, 1 m/s the volume of the downcomer should permit a liquid residence time of more than 5 s the height of the clear liquid in the downcomer should not exceed half of the tray spacing (hl z/2) Ideally, the column is operated in the range of 60 to 90 % of the flooding vapor velocity. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 8 |

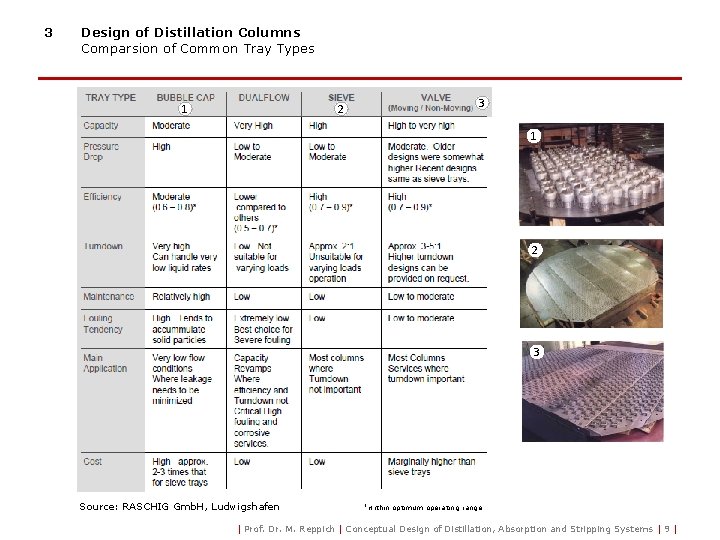

3 Design of Distillation Columns Comparsion of Common Tray Types 1 3 2 1 2 3 Source: RASCHIG Gmb. H, Ludwigshafen * within optimum operating range | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 9 |
3 Design of Distillation Columns Summary of the Geometry and Layout of Common Tray Types at Different Operating Pressures 1 2 3 1 1 2 2 3 3 * DS column diameter in m, hw outlet weir height in m Source: RASCHIG Gmb. H, Ludwigshafen | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 10 |
3 Design of Distillation Columns Determination of the Tray Column Diameter The tower diameter and, consequently, the cross-sectional area of the column must be sufficiently large to handle the gas and liquid rates within the operating region. The diameter of a distillation column is generally controlled by the vapor velocity. For designing a column the vapor velocity of the inside cross-sectional area of the empty tower is used. The vapor flows vertically upward usually at velocity from 0, 5 to 2, 5 m/s, and from 3 to 6 m/s in bubble-cup or tunnel tray columns. In contrast, the downflow velocity range of the liquid is from 1 10 -3 to 15 10 -3 m/s. The required free cross-sectional area of the column is determined using the maximum vapor volumetric flow rate during the operation and the allowable vapor velocity referred to the total column crosssectional area: AQ … free (total) cross-sectional area of the column [m²] Di … column internal diameter [m] … maximum vapor volumetric flow rate [m³/s] … allowable vapor velocity referred to the area AQ [m/s] (0, 5… 6 m/s) … maximum vapor mass flow rate [kg/s] … maximum vapor molar flow rate [kmol/s] G … avarage density of the vapor phase [kg/m³] MG … average molecular weigth of the vapor phase [kg/kmol] w. G zul | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 11 |

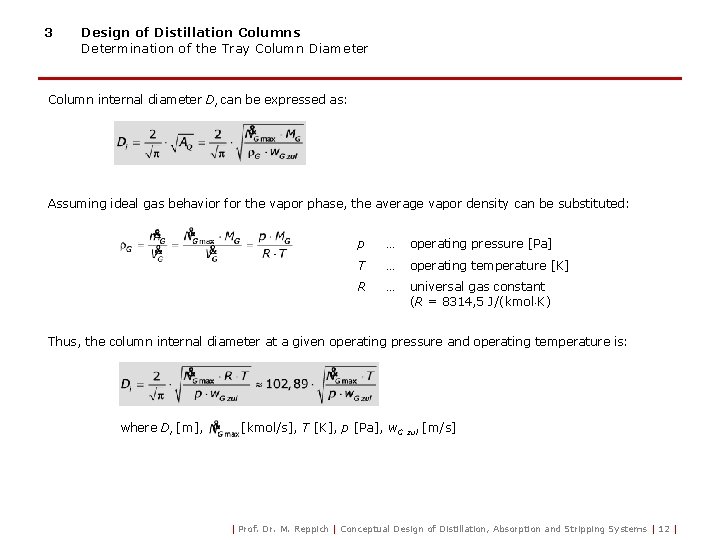

3 Design of Distillation Columns Determination of the Tray Column Diameter Column internal diameter Di can be expressed as: Assuming ideal gas behavior for the vapor phase, the average vapor density can be substituted: p … operating pressure [Pa] T … operating temperature [K] R … universal gas constant (R = 8314, 5 J/(kmol K) Thus, the column internal diameter at a given operating pressure and operating temperature is: where Di [m], [kmol/s], T [K], p [Pa], w. G zul [m/s] | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 12 |
3 Design of Distillation Columns Determination of the Tray Column Diameter The allowable vapor velocity referred to the total column cross-sectional area w. G zul depends mainly on the tray type and its geometry, on the liquid load, and on the physical properties of the both phases. The usual design limit is entrainment flooding, which is caused by excessive carry-up of suspended liquid droplets by rising vapor to the tray above. At low vapor velocity, a droplet settles out; at high vapor velocity, it is entrained. At flooding velocity w. G max, the droplet is suspended such that the vector sum of the buoyant force FA, drag force FW, and gravitational force FG acting on the droplet will be zero. From the balance of forces at a liquid doplet and a safety margin (fraction of flooding) results the allowable vapor velocity w. G zul referred to the total column cross-sectional area: FA FW z Two-phase Layer f … fraction of flooding, e. g. f=0, 7 k. V … capacity parameter of Souders/Brown [m/s] Aac … active area of a tray [m²] AQ … total column cross-sectional area [m²] L … liquid density [kg/m³] G … vapor density [kg/m³] FG z … tray spacing … liquid surface tension | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 13 |
3 Design of Distillation Columns Pressure Drop in Tray Columns Generally, the column pressure drop should be as low as possible because • obtaining the number of theoretical trays using the Mc. Cabe-Thiele graphical method assumes that the pressure is constant over the whole column • low pressure drop leads to a reduced energy requirement and to a heat supplied by the reboiler at the bottom at a lower boiling temperature level. Pressure loss of the vapor significantly depends on both gas and liquid load. The total column pressure drop is the sum of the hydrostatic pressure loss caused by the clear liquid holdup on the trays, the pressure drop due to the friction for vapor flow through the openings in the trays, and a loss due to the formation of bubbles by the gas: pcol … total column pressure drop [Pa] pst … hydrostatic pressure drop of clear liquid [Pa] pdyn … pressure drop due to vapor flow resistance [Pa] p pressure drop due to surface tension [Pa] … The first term in the equation above accounts for the liquid head on a tray, the second term refers to the dry pressure loss of the tray, the third term is small compared with pcol and is usually negligible. Due to the numerous variables such as tray geometry, physical properties of vapor and liquid, gas and liquid loads, operating pressure, etc. a general equation to calculate the columns pressure drop has not yet been developed. In most cases, the pressure drop must be found depending on the tray type experimentally. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 14 |
3 Design of Distillation Columns Pressure Drop in Tray Columns The hydrostatic pressure drop of liquid pst depends on the mass of the clear liquid inside the column, as given by: m. L … total mass of the liquid in the column [kg] g … gravitational constant g = 9, 81 m/s² AQ … total cross-sectional area of the column [m²] For tray columns the hydrostatic pressure drop is given by the sum of the pressure drops across the trays: Neff … number of actual trays [ ] S … average density of the two-phase layer [kg/m³] L … density of clear liquid [kg/m³] … relative gas/vapor fraction in the two-phase layer [ ] h. S … average heigth of the two-phase layer [m] | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 15 |

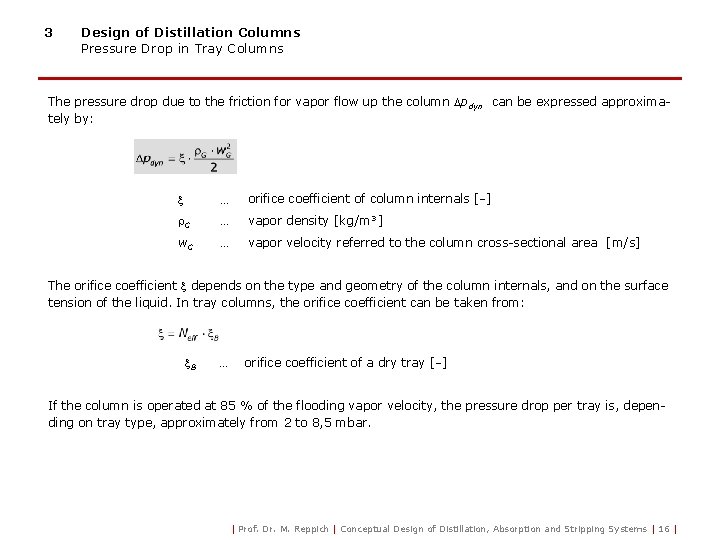

3 Design of Distillation Columns Pressure Drop in Tray Columns The pressure drop due to the friction for vapor flow up the column pdyn can be expressed approximately by: … orifice coefficient of column internals [ ] G … vapor density [kg/m³] w. G … vapor velocity referred to the column cross-sectional area [m/s] The orifice coefficient depends on the type and geometry of the column internals, and on the surface tension of the liquid. In tray columns, the orifice coefficient can be taken from: B … orifice coefficient of a dry tray [ ] If the column is operated at 85 % of the flooding vapor velocity, the pressure drop per tray is, depending on tray type, approximately from 2 to 8, 5 mbar. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 16 |
3 Design of Distillation Columns Rate-Based Method for Packed Columns With the availibilty of economical and efficient packings, packed towers are finding increasing use in new distillation processes and for retrofitting existing trayed towers. They are particularly useful in applications when the separation is relatively easy and the required column diameter is not very large, where pressure drop must be low, as in low-pressure distillation, and where liquid holdup must be small, such as when separating heat-sensitive materials whose exposure to high temperatures must be minimized. Packed columns are continuous, differential-contacting devices that do not have the physically distinguishable, discrete stages found in trayed towers. Thus, packed columns are better analyzed by masstransfer models than by equilibrium-stage concepts. However, in practice, packed-tower performance is often presented on the basis of equilibrium stages using a packed height equivalent to a theoretical plate, called the HETP and defined by the equation Values of the HETP depend mainly on packing type and size, liquid viscosity, surface tension, and operating conditions. In the absence of detailed information on the HETP, following rough approximations are sufficient: HETP 0, 6 m for random packings, HETP 0, 3 m for structured packings. The required height of the packing within the column H and the total height of the column Htot are: with Hmin (0, 5. . . 1 m) + (1. . . 2 m) | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 17 |
3 Design of Distillation Columns HETP Estimation for Random and Structured Packings For rough estimates of the HETP the following relations can be used (all values are in ft, 1 ft = 0, 3048 m) 1. Random packings of second and third generation with low-viscosity liquids d P … nominal packing diameter [in] (1 in = 25, 4 mm) 2. Structured packings at low-to-modarate pressures with low-viscosity liquids a… packing surface area per packed volume [ft²/ft³] 3. Distillation with viscous liquid 4. Vacuum service 5. Structured packings at high pressures 6. Small-diameter columns with internal diameter Di < 2 ft | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 18 |
3 Design of Distillation Columns Characteristics of Random Packings Type Packing Material Nominal Diameter d. P [in] Packing Factor FP [ft²/ft³] Raschig rings Ceramic 1, 0 2, 0 3, 0 157 58 33 Raschig rings Metal 1, 0 2, 0 3, 0 165 71 40 Intalox saddles Ceramic 1, 0 2, 0 3, 0 92 30 15 Intalox saddles Plastic 1, 0 2, 0 36 25 Pall rings Metal 1, 0 1, 5 2, 0 3, 5 56 29 27 16 Pall rings Plastic 1, 0 2, 0 3, 5 53 25 15 Sources: W. D. Seider et al. : Product and Process Design Principles. 3. Aufl. , John Wiley, Hoboken 2010; Vereinigte Füllkörper-Fabriken Gmb. H & Co. KG. , Ransbach-Baumbach | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 19 |
3 Design of Distillation Columns Characteristics of Random and Structured Packings Packing Material Size [mm] Packing Factor FP [ft²/ft³] Mass-transfer Surface Area per Unit Volume a [m²/m³] Void Fraction [-] Random Packings Hiflow rings Ceramic Metal Plastic 50 50 50 29 16 20 89, 7 92, 3 117, 1 0, 809 0, 977 0, 924 Nor-Pac rings Plastic 50 35 15 14 21 86, 8 141, 8 311, 4 0, 947 0, 944 0, 918 Tellerettes Plastic 25 40 190, 0 0, 930 Top-Pak rings Aluminium 50 105, 5 0, 956 VSP rings Metal 50 25 104, 6 199, 6 0, 980 0, 975 110, 0 202, 0 0, 936 0, 977 250, 0 100, 0 200, 0 300, 0 200, 0 0, 970 0, 987 0, 979 0, 930 0, 954 0, 900 Structured Packings Euroform Gempak Koch-Sulzer Mellapak Montz Montz Plastic Metal Metal Plastic PN-110 A 2 T-304 CY BX 250 Y B 1 -100 B 1 -200 B 1 -300 C 1 -200 C 2 -200 70 21 22 33 Source: E. J. Henley et al. : Separation Process Principles. 3. Aufl. , John Wiley, Hoboken 2011 | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 20 |
3 Design of Distillation Columns Determination of the Packed Column Diameter The column diameter is determined so as to safely avoid flooding and to ensure that pressure drop is below 1, 2 k. Pa/m of packed height. At the flooding point, the pressure drop increases infinitely with increasing vapor velocity. The internal column diameter Di is based again on a fraction f of flooding velocity w. G max by: f … fraction of flooding 0, 65 < f < 0, 9 (f 0, 7) The generalized correlation of Leva gives reasonable estimates of the flooding gas velocity w. G max [ft/s]: and with packing factor [ft²/ft³] (usually determined experimentally) g … gravitational constant (g = 32, 174 ft/s²) a … packing surface area per packed volume [m²/m³] … void fraction [m³/m³, %, -] … avarage density of the vapor phase [kg/m³] … average density of water [kg/m³] ( = 999, 5 kg/m³ at 20 °C, 1 bar) The above regression model for the dimensionless flooding velocity factor Y = f (FLG) is valid for 0, 01 Y 10. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 21 |
3 Design of Distillation Columns Determination of the Packed Column Diameter The functions F and F are corrections for liquid properties given by: … average density of water [kg/m³] ( = 999, 5 kg/m³ at 20 °C, 1 bar) L … average density of liquid [kg/m³] L … average dynamic viscosity of liquid [c. P] For a certain value of the flow parameter FLG can firstly be calculated the dimensionless factor Y, and the superficial gas velocity at flooding w. G max = f (Y) is then estimated for a given packing type and size (FP = f (a, )) and the correction functions F and F. Finally, using the allowable vapor velocity w. G zul, the internal diameter of the distillation column Di can be determined. The tower inside diameter should be at least 10 times the nominal packing diameter and preferably closer to 30 times, d P … nominal packing diameter [mm]. Under these conditions, the negative effect of maldistribution on mass-transfer efficiency is minimised. Therefore, the column diameter may need to be adjusted accordingly. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 22 |
3 Design of Distillation Columns Pressure drop in Packed Columns An estimation of pressure drop in Pa/m can be made by using the generalized pressure drop correlation for packed beds according to Sherwood et al. and Leva: Y‘ … liquid flow rate [kg/s] … gas flow rate [kg/s] L … liquid density [kg/m³] G … gas density [kg/m³] FP … packing factor [ft²/ft³] ã J. Benítez: Principles and Modern Applications of Mass Transfer Operations. 2. Aufl. , John Wiley, Hoboken 2009 w. G … gas velocity [m/s], w. G = f w. G max L … liquid viscosity [Pa s] FLG The flooding curve in the above figure corresponds to a pressure drop of 1200 Pa/m of packed height and can be accurately described by the polynomial regression: | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 23 |
3 Design of Distillation Columns Charts for the Design of Random-Packed Columns: HETP Estimation INTALOX® Metal Tower Packing (IMTP®) Source: Koch-Glitsch, LP, Wichita | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 24 |
3 Design of Distillation Columns Charts for the Design of Random-Packed Columns: Estimation of Pressure Drop INTALOX® Metal Tower Packing (IMTP®) Source: Koch-Glitsch, LP, Wichita | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 25 |
3 Design of Distillation Columns Summary of Distillation Column Design Distillation/Absorption/Stripping Tray Columns (sieve, valve, bubble-cup trays) Random-/Structured-Packed Columns stagewise contact between the phases continuous contact between the phases Concept of equilibrium stages: determination of the number of theoretical stages Nth • Mc. Cabe-Thiele graphical equilibrium-stage method • Kremser equation (analytically, assuming straight equilibrium and operation lines absorption/ stripping) Estimation of the actual number of contacting trays Neff applying an overall column efficiency EOV: Estimation of HETP depending on packing type and size, liquid viscosity, and surface tension: 0, 1 EOV 0, 9 Height of the actual equipment: Internal Column Diameter: Vapor-side pressure drop: GPDC charts, correlations | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 26 |

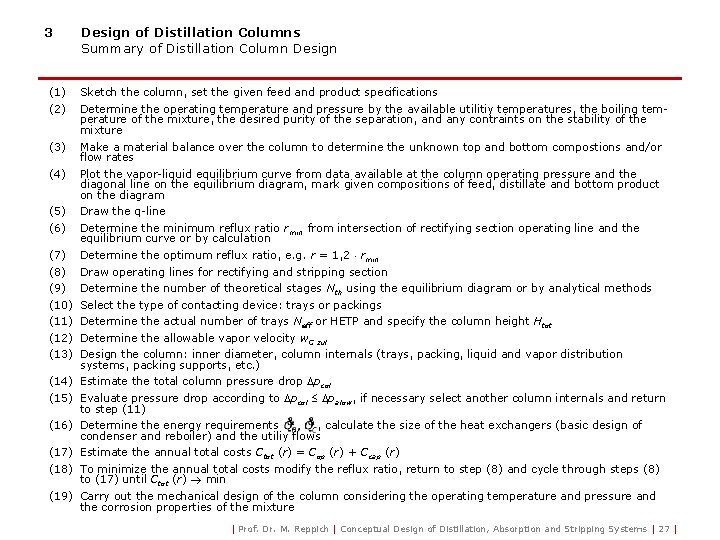

3 Design of Distillation Columns Summary of Distillation Column Design (1) (2) Sketch the column, set the given feed and product specifications (3) Make a material balance over the column to determine the unknown top and bottom compostions and/or flow rates (4) Plot the vapor-liquid equilibrium curve from data available at the column operating pressure and the diagonal line on the equilibrium diagram, mark given compositions of feed, distillate and bottom product on the diagram (5) (6) Draw the q-line (7) (8) (9) (10) (11) (12) (13) Determine the operating temperature and pressure by the available utilitiy temperatures, the boiling temperature of the mixture, the desired purity of the separation, and any contraints on the stability of the mixture Determine the minimum reflux ratio rmin from intersection of rectifying section operating line and the equilibrium curve or by calculation Determine the optimum reflux ratio, e. g. r = 1, 2 rmin Draw operating lines for rectifying and stripping section Determine the number of theoretical stages Nth using the equilibrium diagram or by analytical methods Select the type of contacting device: trays or packings Determine the actual number of trays Neff or HETP and specify the column height Htot Determine the allowable vapor velocity w. G zul Design the column: inner diameter, column internals (trays, packing, liquid and vapor distribution systems, packing supports, etc. ) (14) Estimate the total column pressure drop pcol (15) Evaluate pressure drop according to pcol palow, if necessary select another column internals and return to step (11) (16) Determine the energy requirements , calculate the size of the heat exchangers (basic design of condenser and reboiler) and the utiliy flows (17) Estimate the annual total costs Ctot (r) = Cop (r) + Ccap (r) (18) To minimize the annual total costs modify the reflux ratio, return to step (8) and cycle through steps (8) to (17) until Ctot (r) min (19) Carry out the mechanical design of the column considering the operating temperature and pressure and the corrosion properties of the mixture | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 27 |
3 Design of Distillation Columns Distillation of Multicomponent Mixtures without Azeotropes Sequences of Simple Columns Multicomponent mixtures are often separated in more than two products. In this case, there is a choice of order in which the products are separated. Consider the design of distillation systems comprising only simple columns, which have a single feed and two products. If there is a mixture of three components A, B, C (in order of increasing boiling point) to be separated into three relatively pure products, then the decision is between two distillation sequences: a) direct sequence (the lightest component is taken overhead in each column) b) indirect sequence (takes the heaviest component as bottom product in each column) In general, to separate an n-component mixture into nearly pure products n 1 simple columns are sufficient, and the number of different distillation sequences is. The following table shows some sequences of splits that can be used to separate multicomponent nonazeotropic mixtures. These can all be accomplished in simple columns, which have a single feed and two products. The components are A, B, C, D, E in order of increasing boiling point. Each of the splits listed corresponds to one simple column. Actually, more columns can be used, and this is sometimes more economical. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 28 |
3 Design of Distillation Columns Distillation of Multicomponent Mixtures without Azeotropes Sequences of Simple Columns Sequences for three components A, B, C Column 1 Column 2 1 A / BC B/C 2 AB / C A/B Sequences for four components A, B, C, D Column 1 Column 2 Column 3 1 A / BCD B / CD C/D 2 A / BCD BC / D B/C 3 AB / CD A/B C/D 4 ABC / D A / BC B/C 5 ABC / D AB / C A/B Sequences four five components A, B, C, D, E Column 1 Column 2 Column 3 Column 4 1 A / BCDE B / CDE C / DE D/E 2 A / BCDE B / CDE CD / E C/D 3 A / BCDE BC / DE B/ C D/E 4 A / BCDE BCD / E B / CD C/D 5 A / BCDE BCD / E BC / D B/C 6 AB / CDE A/B C / DE D/E 7 AB / CDE A/B CD / E C/D 8 ABC / DE A / BC D/E B/C 9 ABC / DE AB / C D/E A/B 10 ABCD / E A / BCD B / CD C/D 11 ABCD / E A / BCD BC / D B/C 12 ABCD / E AB / CD A/B C/D 13 ABCD / E ABC / D A / BC B/C 14 ABCD / E ABC / D AB / C A/B | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 29 |
3 Design of Distillation Columns Distillation of Multicomponent Mixtures without Azeotropes Sequences of Simple Columns General Heuristics: 1) Remove corrosive, hazardous, chemically reactive, or thermally unstable components as early as possible. 2) Remove final products one-by-one as distillates (prefer the direct sequence) or as vapor streams from total reboilers. 3) Prefer to reduce the number of columns in a recycle loop. 4) Lump pairs of components with relative volatilities less than 1, 1 and remove these as a single product to be separated using another separating technology the relative volatility between the two selected key components for the separation in each column is > 1, 05. Heuristics for Simple Columns: 1) Remove the components of greatest molar percentage in the feed first. 2) Remove the lightest component first. 3) Make splits with the highest recoveries last. 4) Sequence separation points in the order of decreasing relative volatility make the most difficult separation in the absence of the other components last. 5) Favor splits which give molar flows of distillate and bottom products as near equal as possible. 6) Make the cheapest split next in selecting a sequence of columns. | Prof. Dr. M. Reppich | Conceptual Design of Distillation, Absorption and Stripping Systems | 30 |
