Augmented Reality for Display Antique and Art Object
Augmented Reality for Display Antique and Art Object Information
Why be Augmented Reality Antiques ?
When the real world meets the virtual world. There is only your imagination is the only limit.
Augmented Reality Location Based Image Based
Augmented Reality Code Photo is starting point of AR.
Augmentable
Augmentable AR code should high complex.

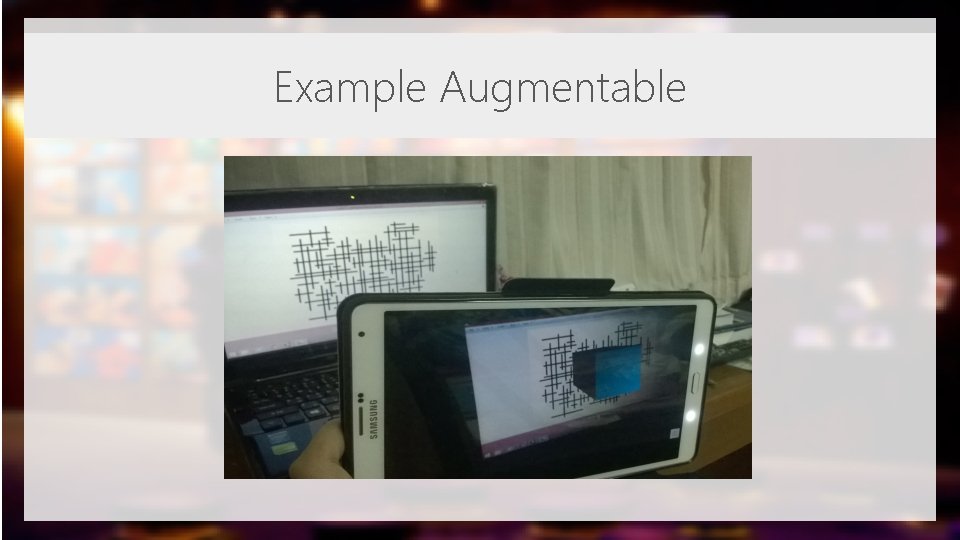

Example Augmentable
Usability with Augmented Reality Architecture Medical
Usability with Augmented Reality Books Education
And many other usability.
Related Technologies Vuforia Library Unity 3 D
Vuforia Library Augmented Reality Software Development Kit (SDK) for mobile devices.

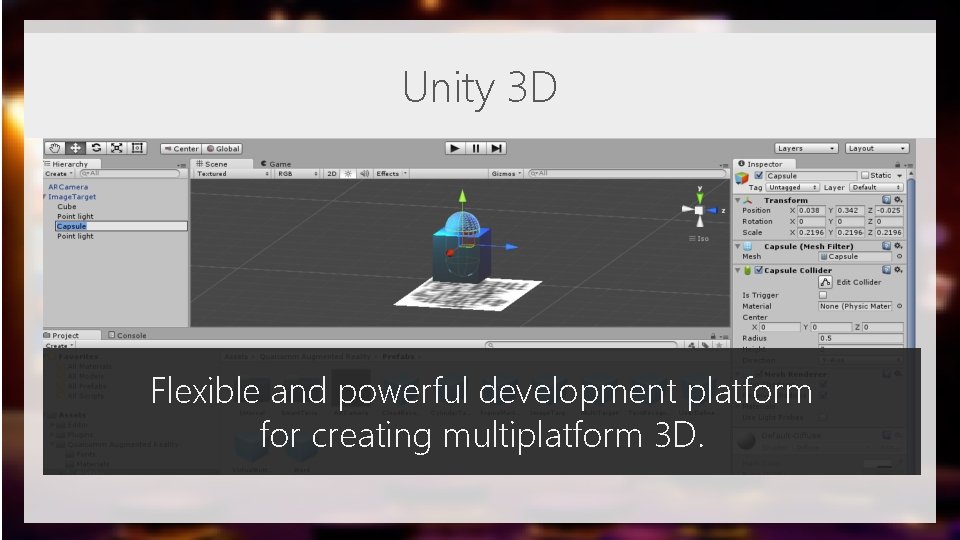

Unity 3 D Flexible and powerful development platform for creating multiplatform 3 D.
Easy for port to multiplatform.

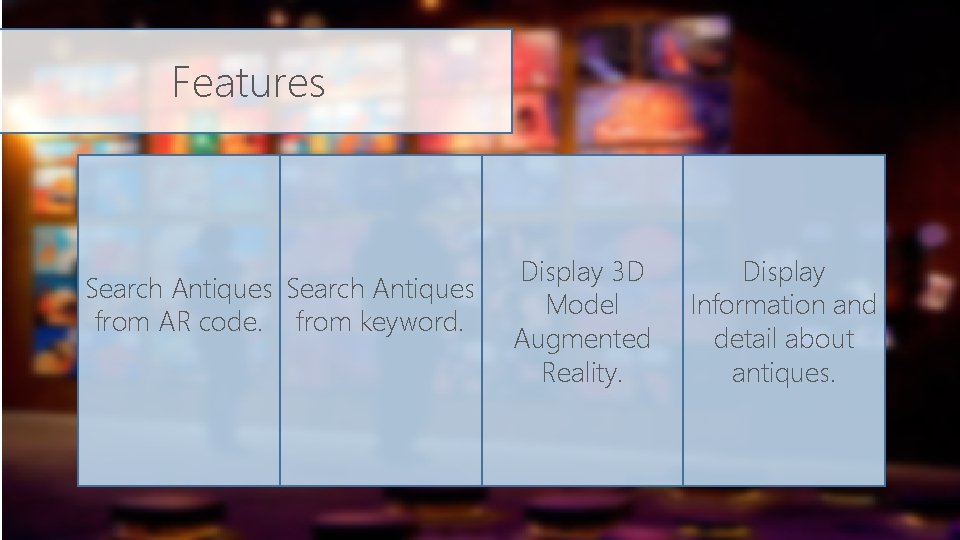

Features Search Antiques from AR code. from keyword. Display 3 D Model Augmented Reality. Display Information and detail about antiques.
Expected Benefits Users can access the virtual objects by using an application. Access to Applied Be useful to to the As an information those other interested easily alternative to with a large in Augmented Example the museum in audience easily. promotion. Reality. the presentation.

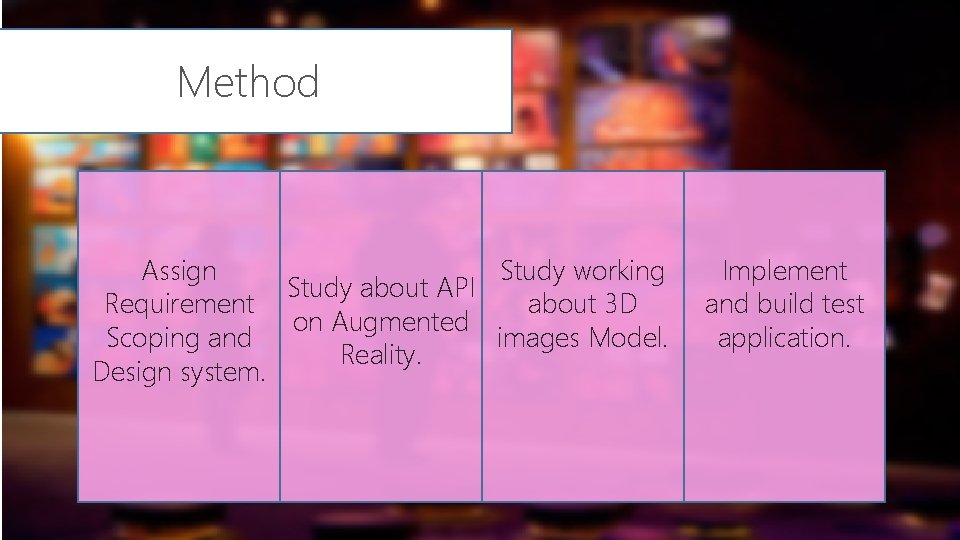

Method Assign Study working Study about API Requirement about 3 D on Augmented Scoping and images Model. Reality. Design system. Implement and build test application.
Augmented Reality for Display Antique and Art Object Information Analyst and Design system
UML Unified Modeling Language Activity Diagram Use case Diagram Sequence Diagram Entity Class Diagram

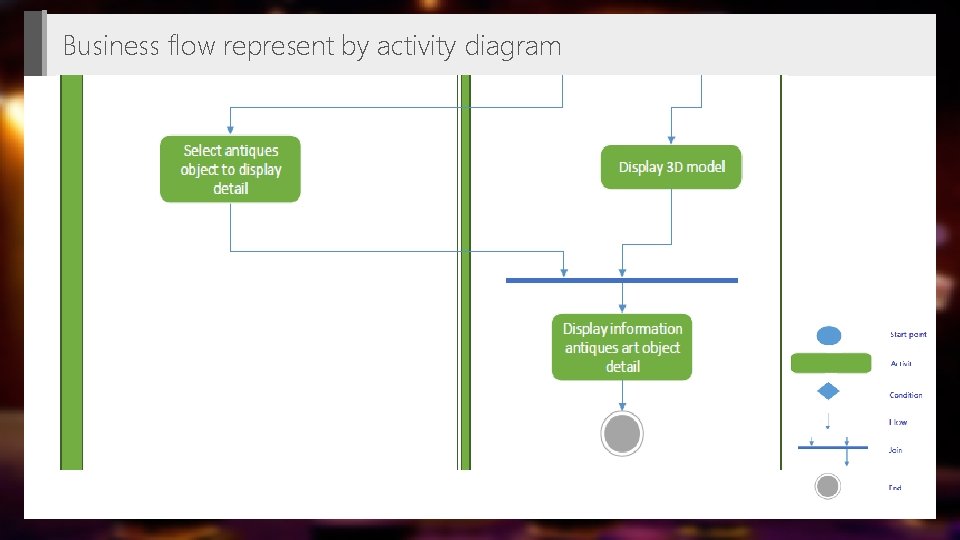

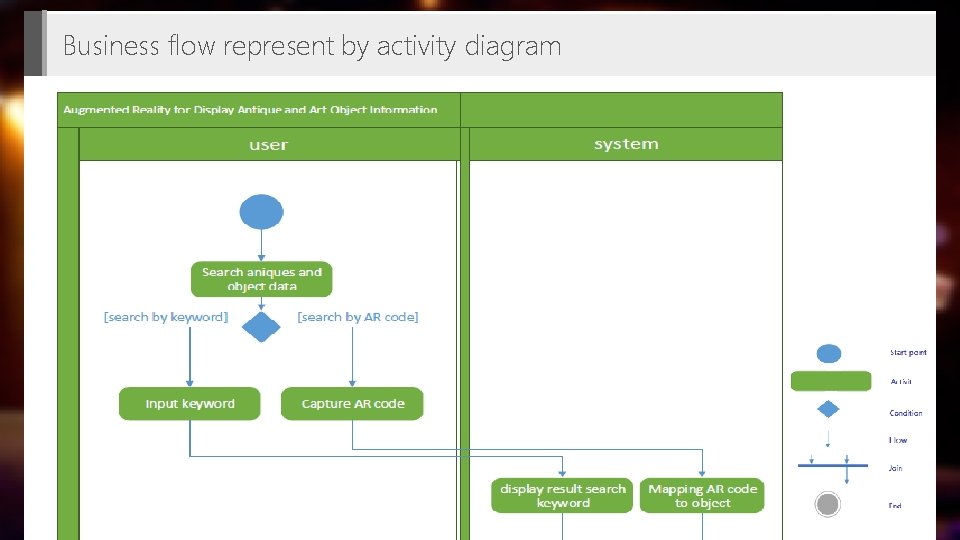

Business flow represent by activity diagram
Business flow represent by activity diagram

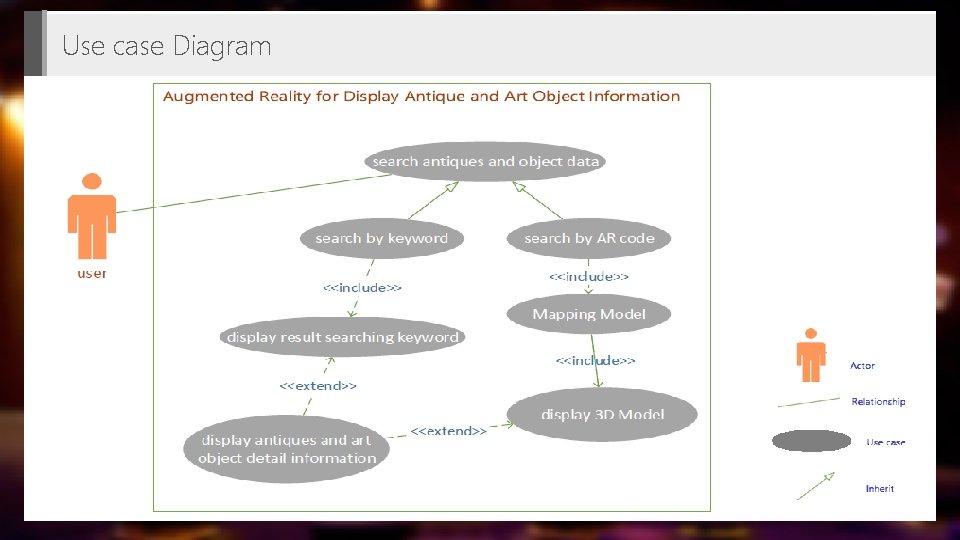

Use case Diagram

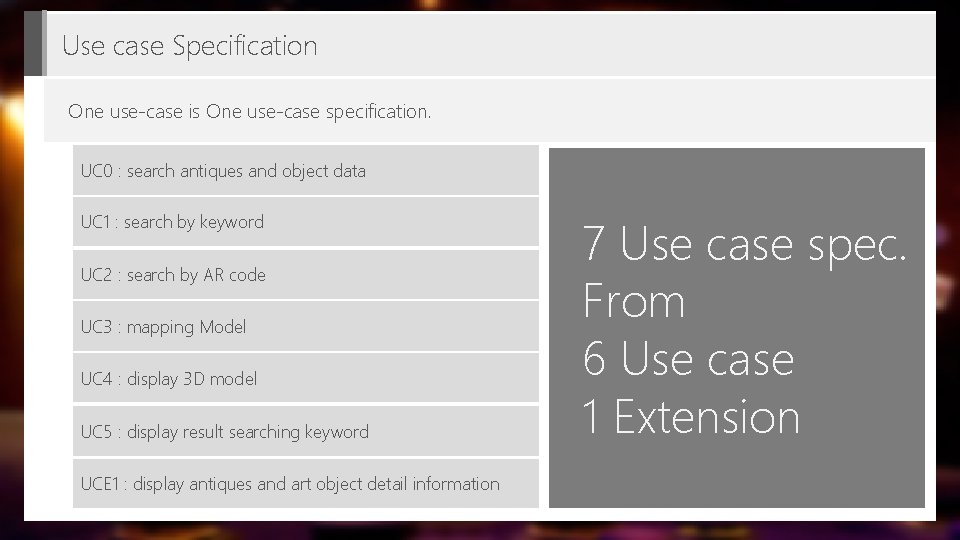

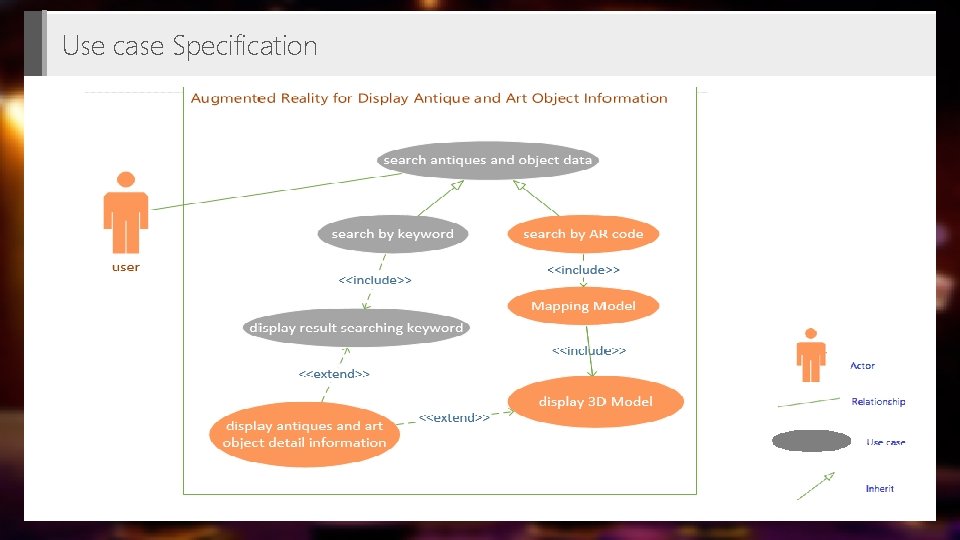

Use case Specification One use-case is One use-case specification. UC 0 : search antiques and object data UC 1 : search by keyword UC 2 : search by AR code UC 3 : mapping Model UC 4 : display 3 D model UC 5 : display result searching keyword UCE 1 : display antiques and art object detail information 7 Use case spec. From 6 Use case 1 Extension

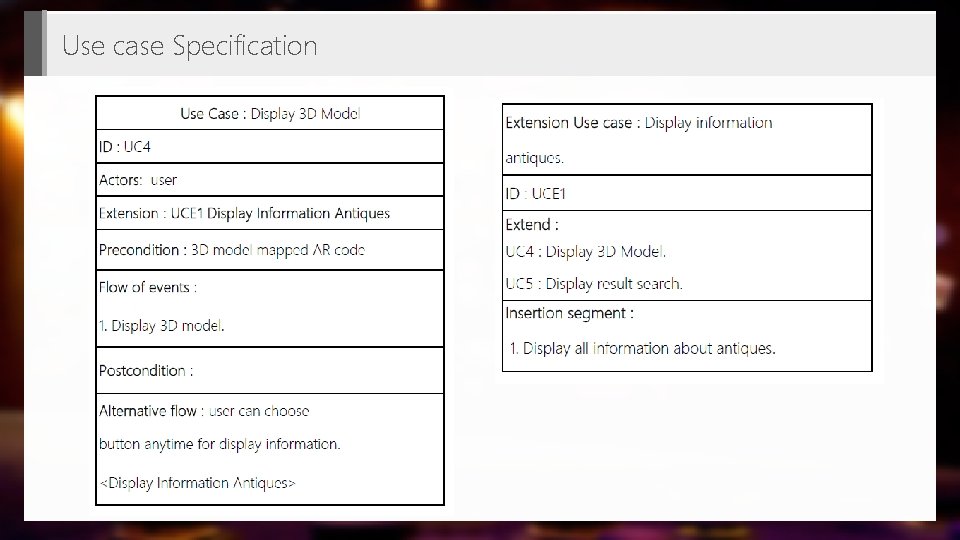

Use case Specification
Use case Specification
Use case Specification

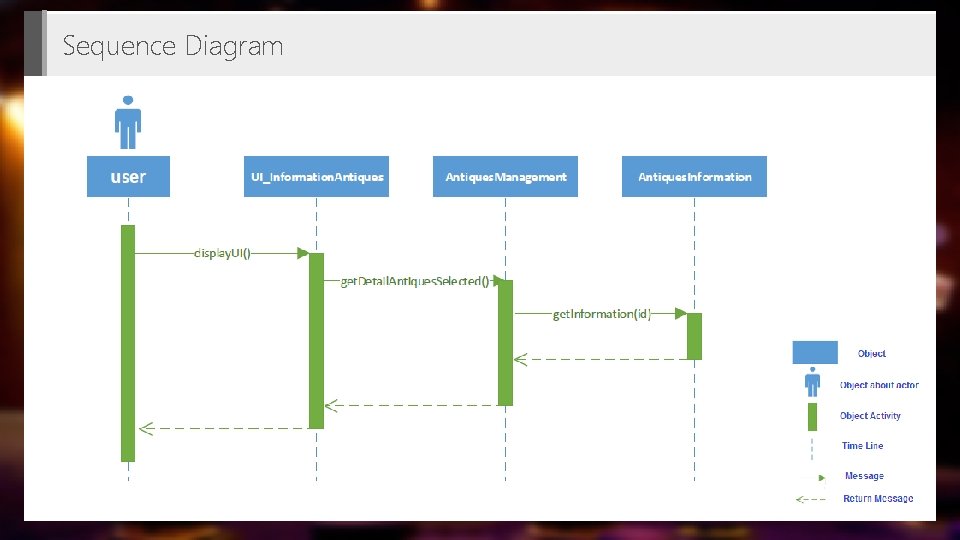

Sequence Diagram

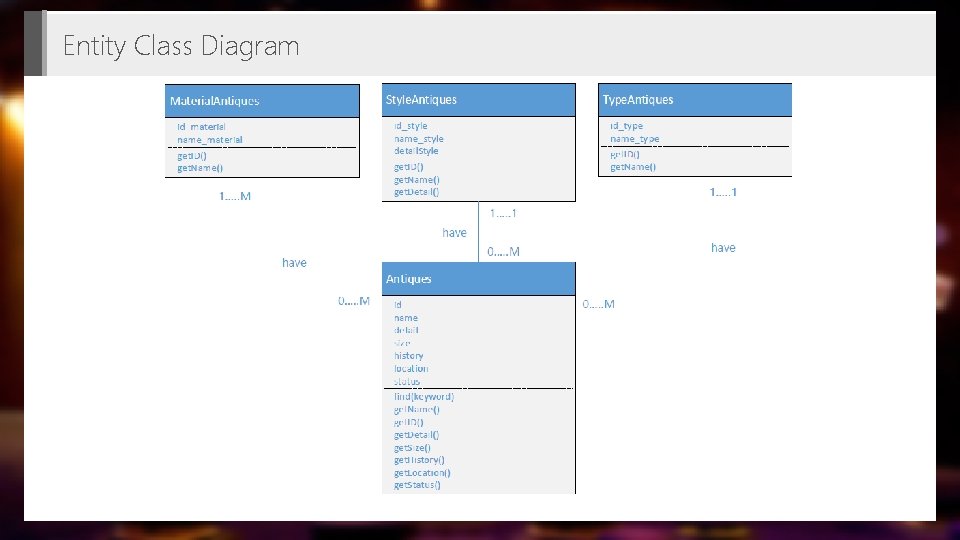

Entity Class Diagram
Data dictionary Antiques : information about antiques object. Attribute id name detail size history location status Data type integer varchar(50) varchar(1000) varchar(100) varchar(50) Meaning Id unique antiques. Name of antiques. Information and detail. Size , high and width. History and story of antiques. Location show object. Status for display AR.

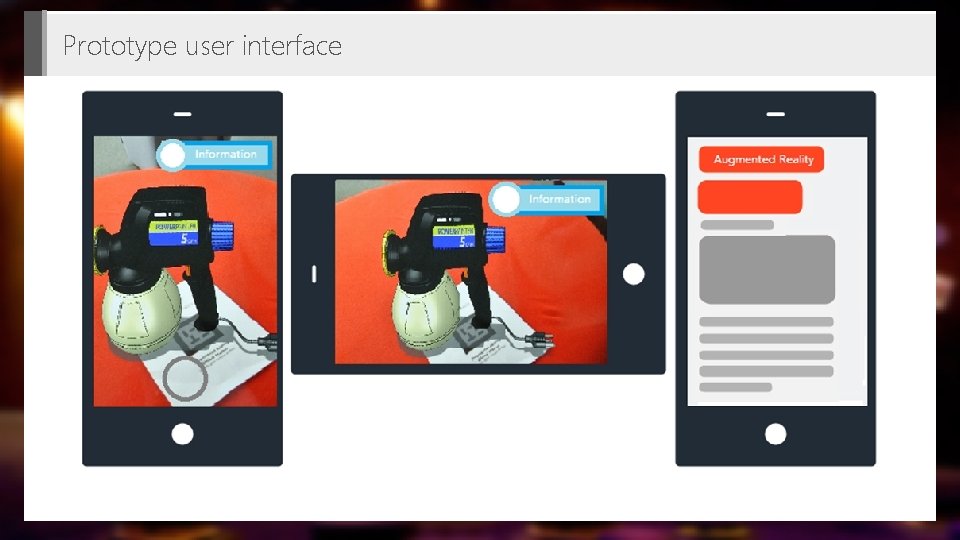

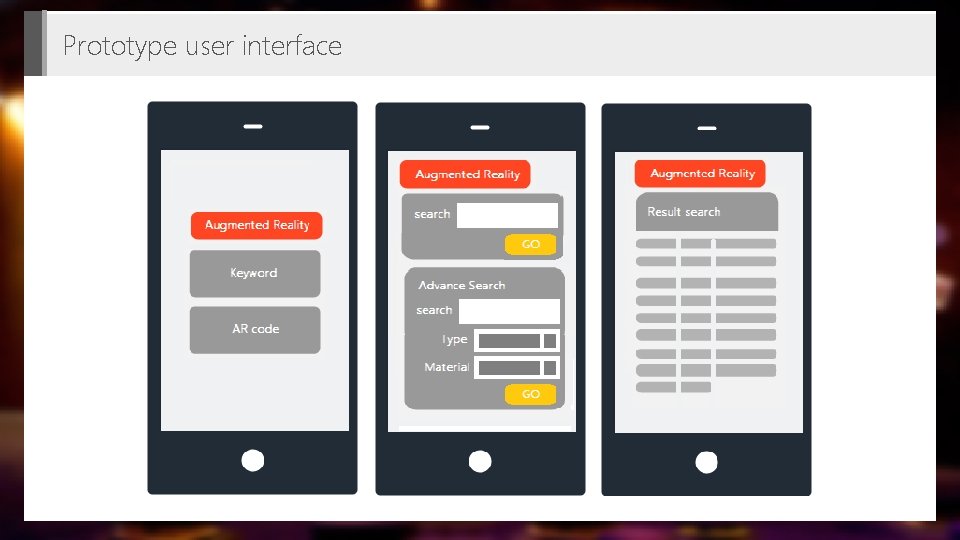

Prototype user interface
Prototype user interface
Reference [1] Image Target and example , https: //developer. vuforia. com/resources/dev-guide/image-targets , 2015 [2] Image Target Enhancement Tricks , https: //developer. vuforia. com/resources/dev-guide/image-targetenhancement-tricks , 2015 [3] Vuforia Java API with Android , https: //developer. vuforia. com/resources/api/main
Augmented Reality for Display Antique and Art Object Information
