Augean North Sea Services NORM & Hazardous Waste Management Presented to Tayside Engineering Network June 2017

Agenda • • • About Augean plc About Augean North Sea Services Regulation Safety & Compliance NORM Overview Waste Acceptance Decom Services Summary Dundee Overview Process Overview

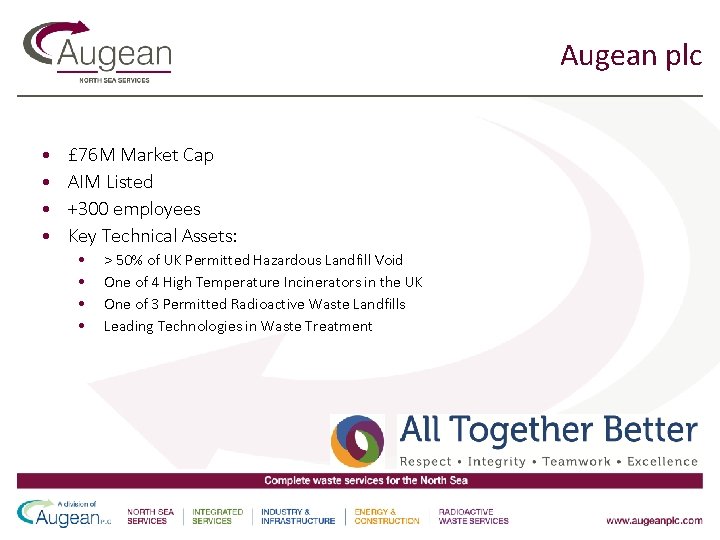

Augean plc • • £ 76 M Market Cap AIM Listed +300 employees Key Technical Assets: • • > 50% of UK Permitted Hazardous Landfill Void One of 4 High Temperature Incinerators in the UK One of 3 Permitted Radioactive Waste Landfills Leading Technologies in Waste Treatment

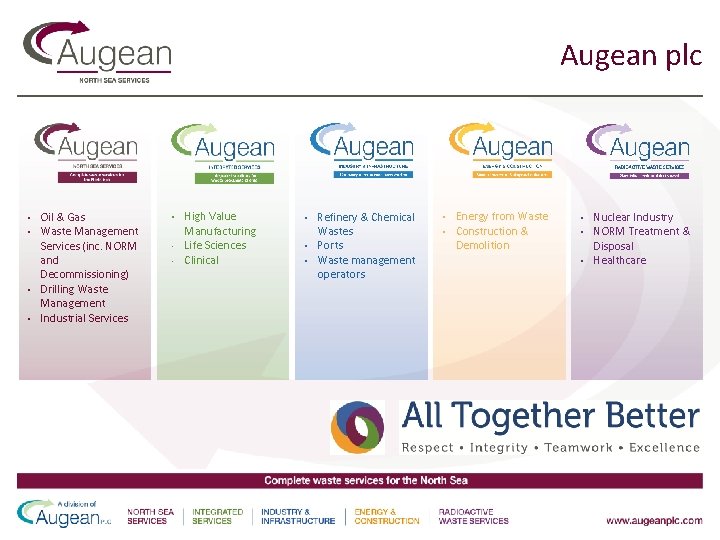

Augean plc § § Oil & Gas Waste Management Services (inc. NORM and Decommissioning) Drilling Waste Management Industrial Services § • • High Value Manufacturing Life Sciences Clinical § § § Refinery & Chemical Wastes Ports Waste management operators § § Energy from Waste Construction & Demolition § § § Nuclear Industry NORM Treatment & Disposal Healthcare

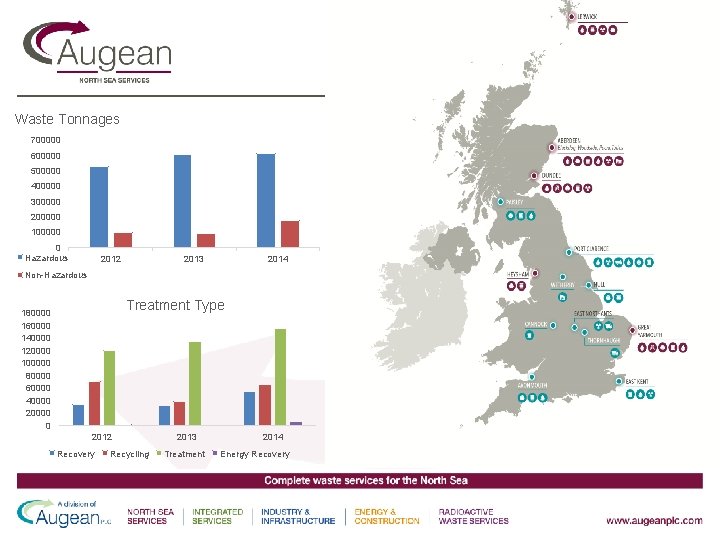

Waste Tonnages 700000 600000 500000 400000 300000 200000 100000 0 Hazardous 2012 2013 2014 Non-Hazardous Treatment Type 180000 160000 140000 120000 100000 80000 60000 40000 20000 0 2012 Recovery Recycling 2013 Treatment 2014 Energy Recovery

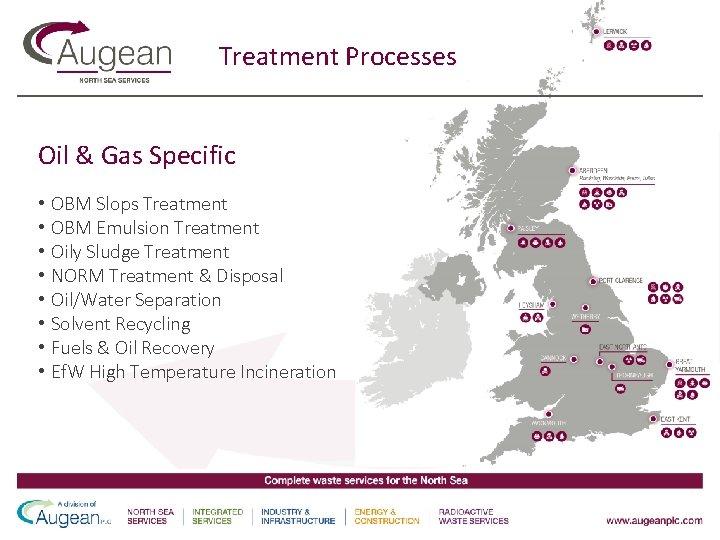

Treatment Processes Oil & Gas Specific • • OBM Slops Treatment OBM Emulsion Treatment Oily Sludge Treatment NORM Treatment & Disposal Oil/Water Separation Solvent Recycling Fuels & Oil Recovery Ef. W High Temperature Incineration

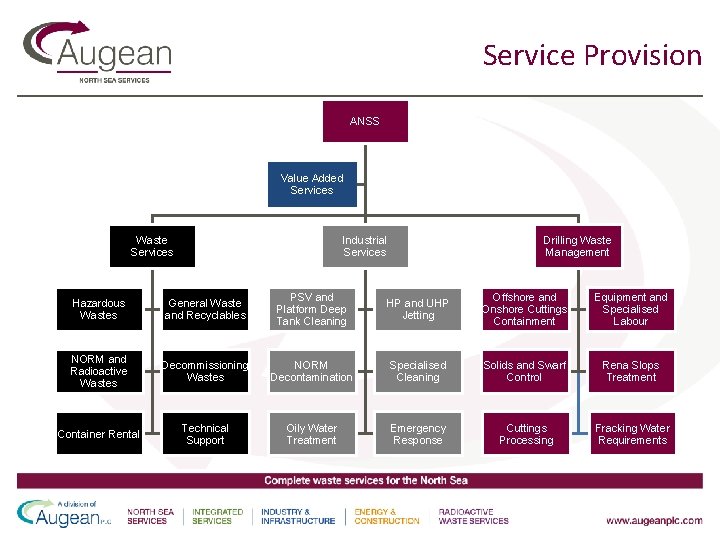

Service Provision ANSS Value Added Services Waste Services Industrial Services Drilling Waste Management Hazardous Wastes General Waste and Recyclables PSV and Platform Deep Tank Cleaning HP and UHP Jetting Offshore and Onshore Cuttings Containment Equipment and Specialised Labour NORM and Radioactive Wastes Decommissioning Wastes NORM Decontamination Specialised Cleaning Solids and Swarf Control Rena Slops Treatment Container Rental Technical Support Oily Water Treatment Emergency Response Cuttings Processing Fracking Water Requirements

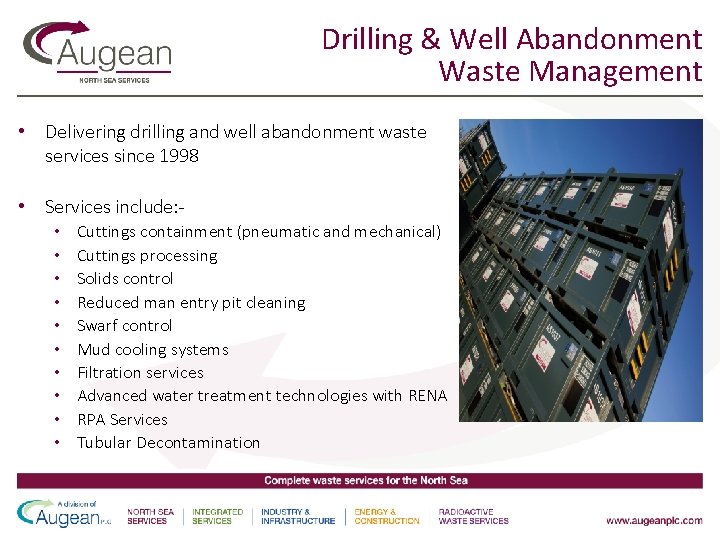

Drilling & Well Abandonment Waste Management • Delivering drilling and well abandonment waste services since 1998 • Services include: • • • Cuttings containment (pneumatic and mechanical) Cuttings processing Solids control Reduced man entry pit cleaning Swarf control Mud cooling systems Filtration services Advanced water treatment technologies with RENA RPA Services Tubular Decontamination

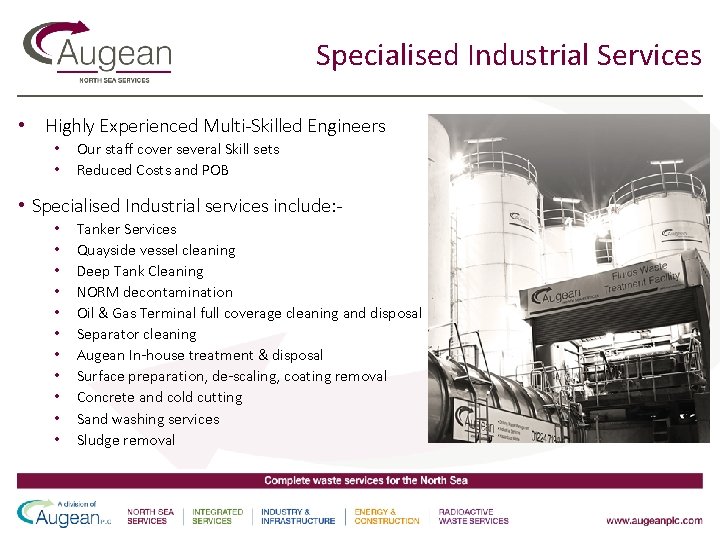

Specialised Industrial Services • Highly Experienced Multi-Skilled Engineers • • Our staff cover several Skill sets Reduced Costs and POB • Specialised Industrial services include: • • • Tanker Services Quayside vessel cleaning Deep Tank Cleaning NORM decontamination Oil & Gas Terminal full coverage cleaning and disposal Separator cleaning Augean In-house treatment & disposal Surface preparation, de-scaling, coating removal Concrete and cold cutting Sand washing services Sludge removal

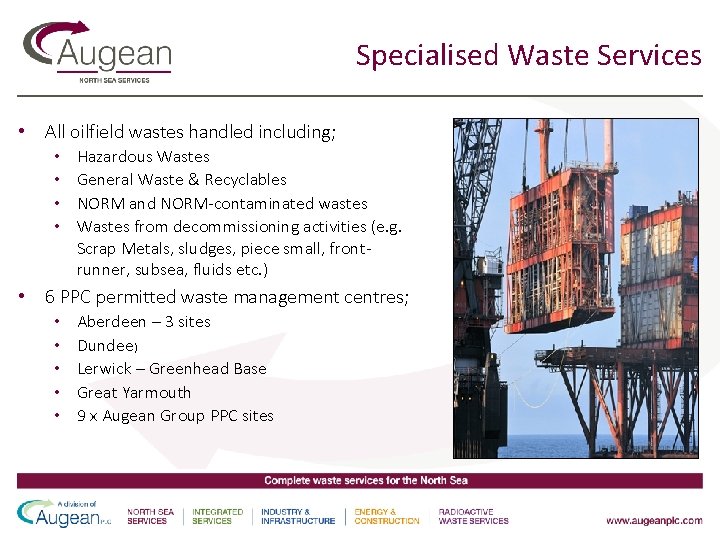

Specialised Waste Services • All oilfield wastes handled including; • • Hazardous Wastes General Waste & Recyclables NORM and NORM-contaminated wastes Wastes from decommissioning activities (e. g. Scrap Metals, sludges, piece small, frontrunner, subsea, fluids etc. ) • 6 PPC permitted waste management centres; • • • Aberdeen – 3 sites Dundee) Lerwick – Greenhead Base Great Yarmouth 9 x Augean Group PPC sites

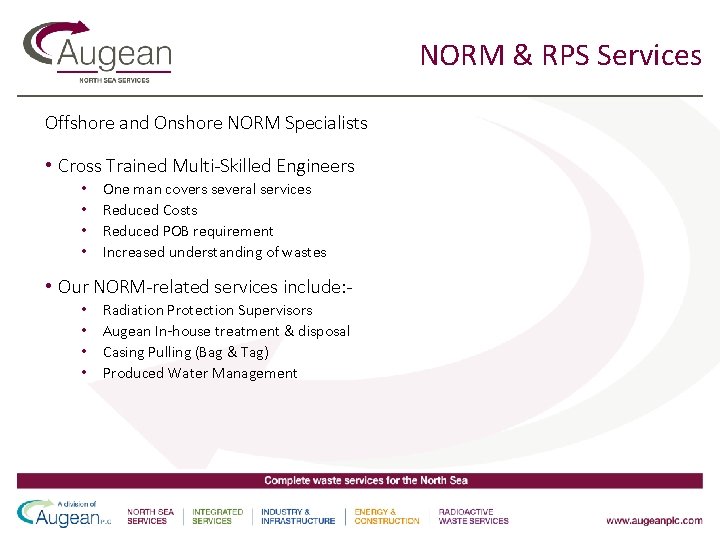

NORM & RPS Services Offshore and Onshore NORM Specialists • Cross Trained Multi-Skilled Engineers • • One man covers several services Reduced Costs Reduced POB requirement Increased understanding of wastes • Our NORM-related services include: • • Radiation Protection Supervisors Augean In-house treatment & disposal Casing Pulling (Bag & Tag) Produced Water Management

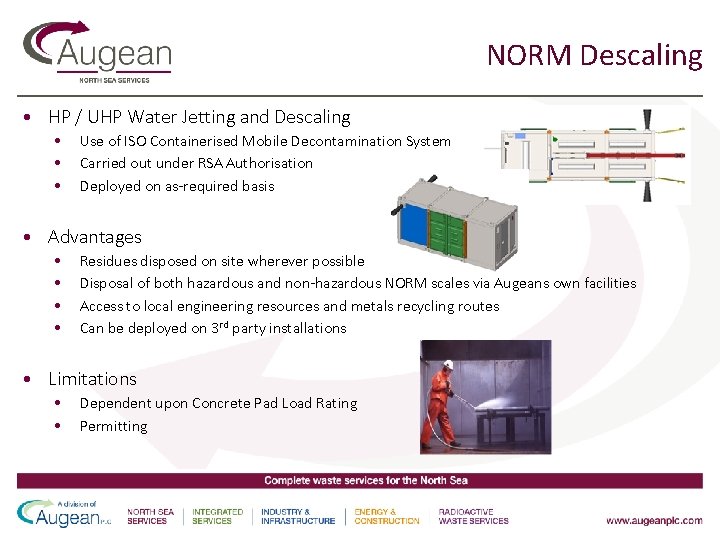

NORM Descaling • HP / UHP Water Jetting and Descaling • • • Use of ISO Containerised Mobile Decontamination System Carried out under RSA Authorisation Deployed on as-required basis • Advantages • • Residues disposed on site wherever possible Disposal of both hazardous and non-hazardous NORM scales via Augeans own facilities Access to local engineering resources and metals recycling routes Can be deployed on 3 rd party installations • Limitations • • Dependent upon Concrete Pad Load Rating Permitting

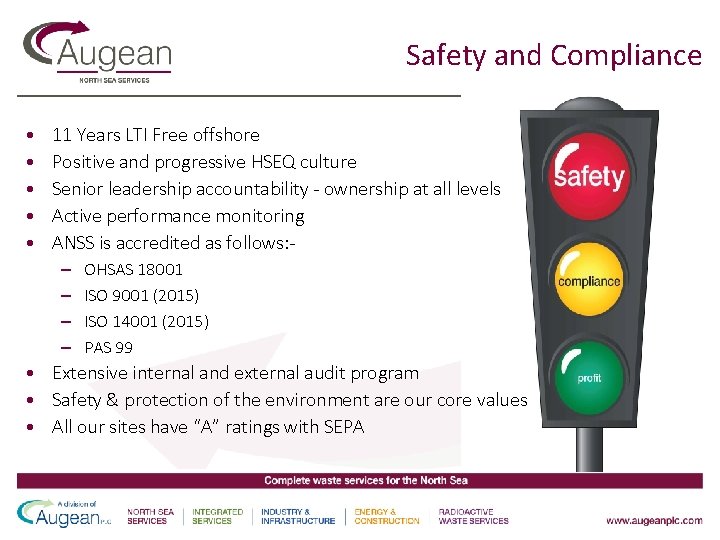

Safety and Compliance • • • 11 Years LTI Free offshore Positive and progressive HSEQ culture Senior leadership accountability - ownership at all levels Active performance monitoring ANSS is accredited as follows: – – OHSAS 18001 ISO 9001 (2015) ISO 14001 (2015) PAS 99 • Extensive internal and external audit program • Safety & protection of the environment are our core values • All our sites have “A” ratings with SEPA

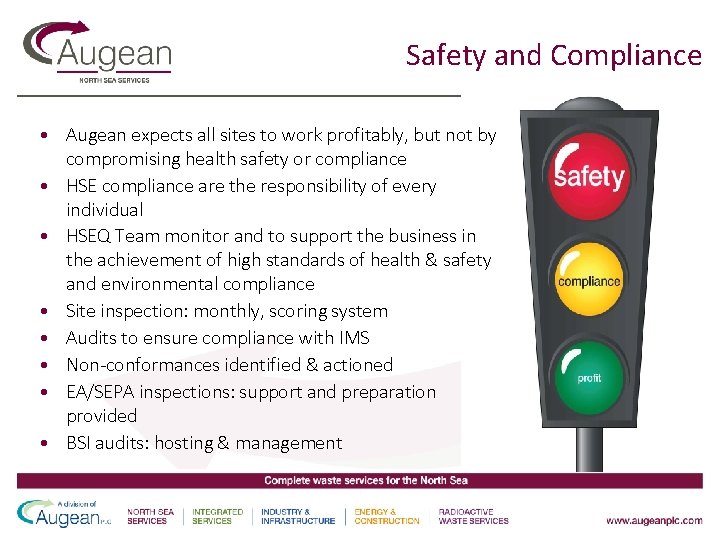

Safety and Compliance • Augean expects all sites to work profitably, but not by compromising health safety or compliance • HSE compliance are the responsibility of every individual • HSEQ Team monitor and to support the business in the achievement of high standards of health & safety and environmental compliance • Site inspection: monthly, scoring system • Audits to ensure compliance with IMS • Non-conformances identified & actioned • EA/SEPA inspections: support and preparation provided • BSI audits: hosting & management

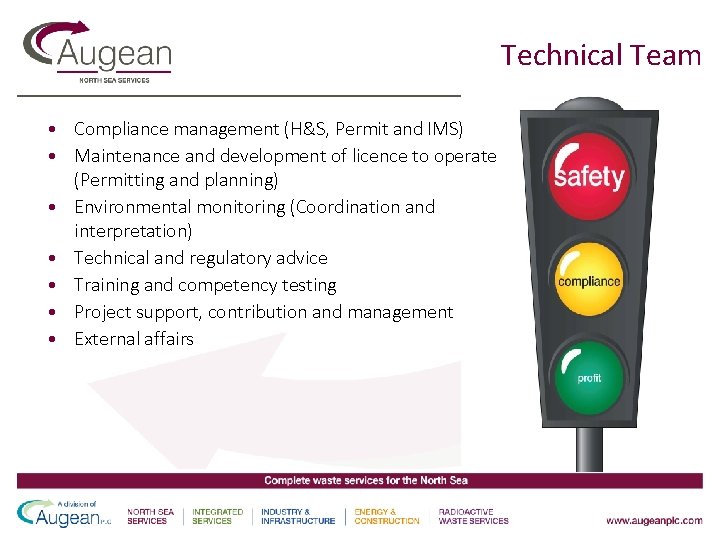

Technical Team • Compliance management (H&S, Permit and IMS) • Maintenance and development of licence to operate (Permitting and planning) • Environmental monitoring (Coordination and interpretation) • Technical and regulatory advice • Training and competency testing • Project support, contribution and management • External affairs

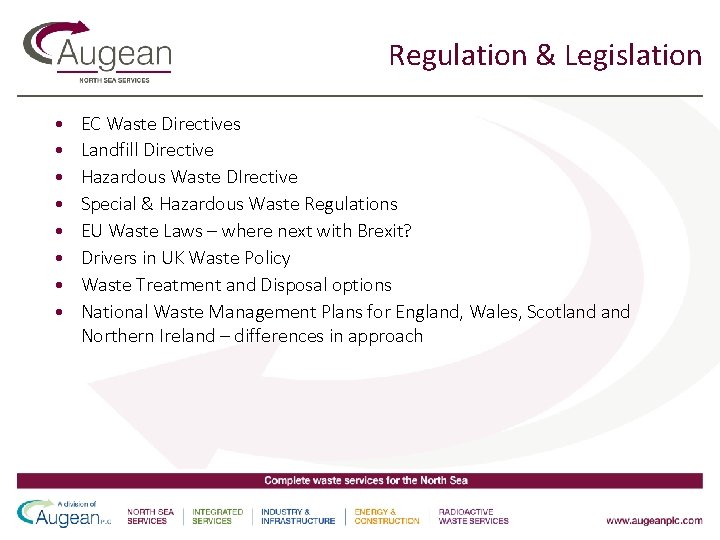

Regulation & Legislation • • EC Waste Directives Landfill Directive Hazardous Waste DIrective Special & Hazardous Waste Regulations EU Waste Laws – where next with Brexit? Drivers in UK Waste Policy Waste Treatment and Disposal options National Waste Management Plans for England, Wales, Scotland Northern Ireland – differences in approach

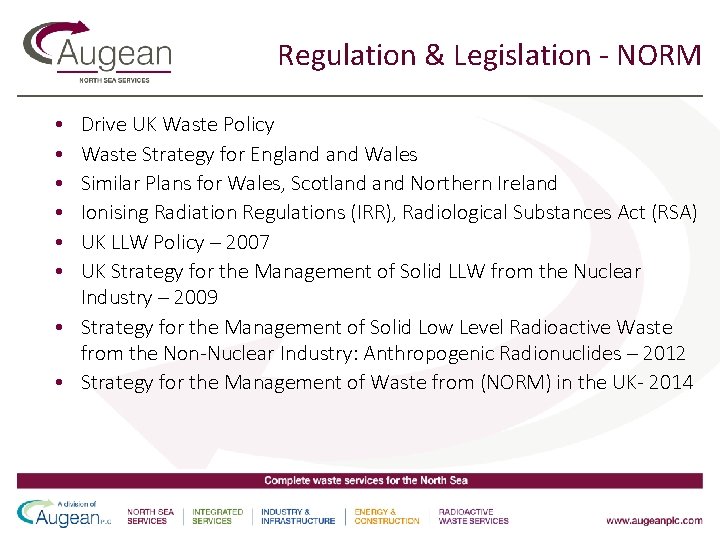

Regulation & Legislation - NORM • • • Drive UK Waste Policy Waste Strategy for England Wales Similar Plans for Wales, Scotland Northern Ireland Ionising Radiation Regulations (IRR), Radiological Substances Act (RSA) UK LLW Policy – 2007 UK Strategy for the Management of Solid LLW from the Nuclear Industry – 2009 • Strategy for the Management of Solid Low Level Radioactive Waste from the Non-Nuclear Industry: Anthropogenic Radionuclides – 2012 • Strategy for the Management of Waste from (NORM) in the UK- 2014

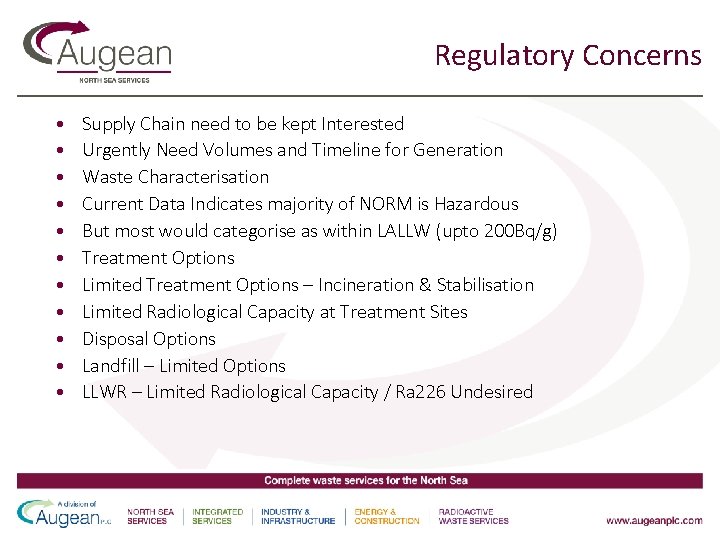

Regulatory Concerns • • • Supply Chain need to be kept Interested Urgently Need Volumes and Timeline for Generation Waste Characterisation Current Data Indicates majority of NORM is Hazardous But most would categorise as within LALLW (upto 200 Bq/g) Treatment Options Limited Treatment Options – Incineration & Stabilisation Limited Radiological Capacity at Treatment Sites Disposal Options Landfill – Limited Options LLWR – Limited Radiological Capacity / Ra 226 Undesired

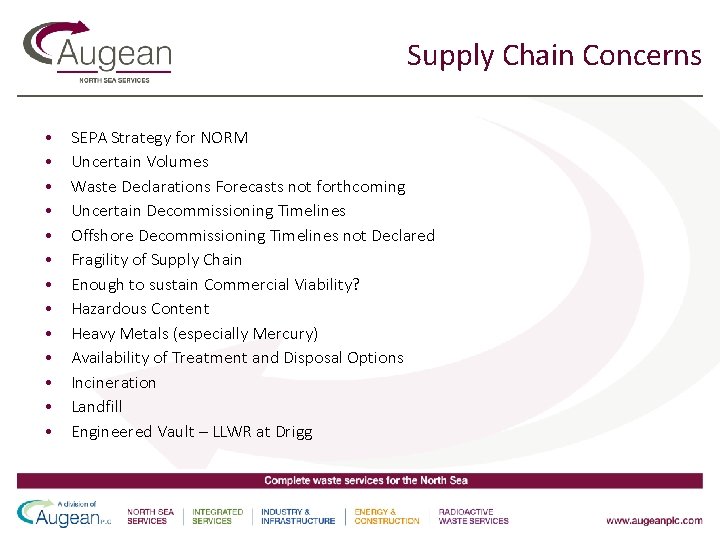

Supply Chain Concerns • • • • SEPA Strategy for NORM Uncertain Volumes Waste Declarations Forecasts not forthcoming Uncertain Decommissioning Timelines Offshore Decommissioning Timelines not Declared Fragility of Supply Chain Enough to sustain Commercial Viability? Hazardous Content Heavy Metals (especially Mercury) Availability of Treatment and Disposal Options Incineration Landfill Engineered Vault – LLWR at Drigg

NORM Disposal & Decontamination • • Lerwick (quayside) Aberdeen Dundee (quayside) Port Clarence ENRMF Great Yarmouth East Kent

NORM Disposal & Decontamination • • Sector leader in modernising hazardous waste management practices Formed in 2004, the Group is strategically positioned to provide strong commercial and compliance-led solutions in a complex and legislative driven market. We have developed through a cycle of staged acquisitions, planning and development Established a specialist waste business in the hazardous radioactive waste markets within the UK Nuclear and Non-Nuclear Industries We actively engage with our regulators Promoting (with the ESA) the need for higher standards and the application of the waste hierarchy. Operating to modern standards and responding to regulatory change.

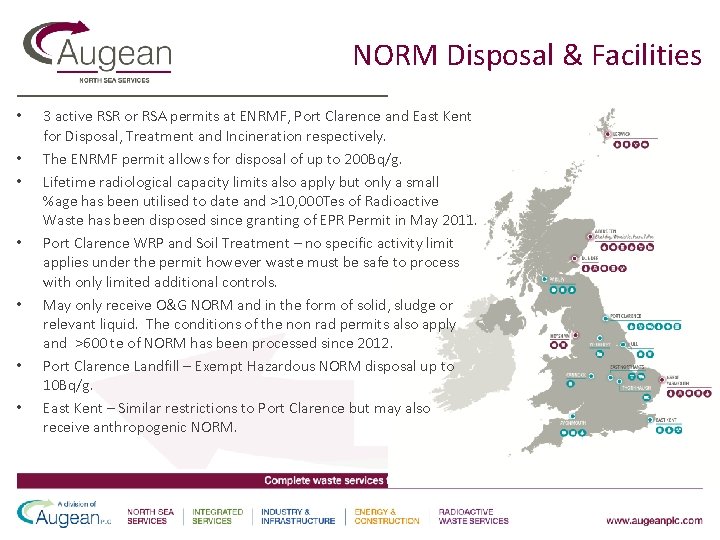

NORM Disposal & Facilities • • 3 active RSR or RSA permits at ENRMF, Port Clarence and East Kent for Disposal, Treatment and Incineration respectively. The ENRMF permit allows for disposal of up to 200 Bq/g. Lifetime radiological capacity limits also apply but only a small %age has been utilised to date and >10, 000 Tes of Radioactive Waste has been disposed since granting of EPR Permit in May 2011. Port Clarence WRP and Soil Treatment – no specific activity limit applies under the permit however waste must be safe to process with only limited additional controls. May only receive O&G NORM and in the form of solid, sludge or relevant liquid. The conditions of the non rad permits also apply and >600 te of NORM has been processed since 2012. Port Clarence Landfill – Exempt Hazardous NORM disposal up to 10 Bq/g. East Kent – Similar restrictions to Port Clarence but may also receive anthropogenic NORM.

NORM Disposal & Decontamination Facilities • Dundee – Major MORM Decontamination and Decommissioning Facility • Lerwick – NORM Decontamination and Waste Management • Aberdeeen – NORM Waste and Contaminated Equipment Transfer • Port Clarence – Ad hoc Decontamination facility

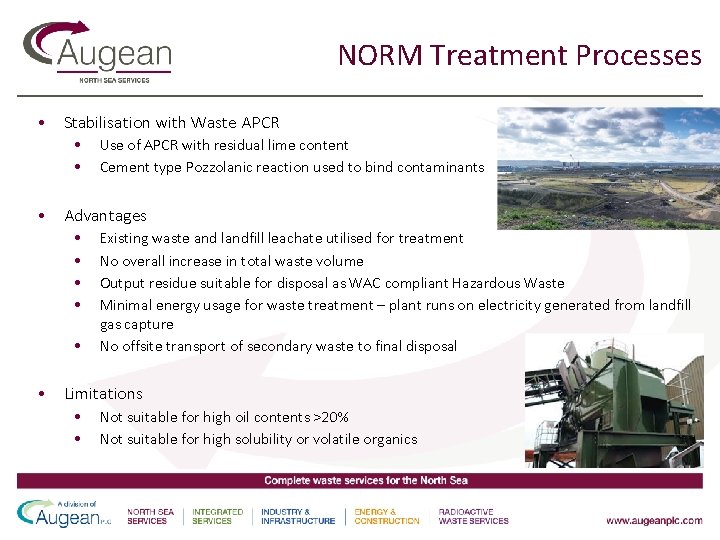

NORM Treatment Processes • Stabilisation with Waste APCR • • Use of APCR with residual lime content Cement type Pozzolanic reaction used to bind contaminants • Advantages • • • Existing waste and landfill leachate utilised for treatment No overall increase in total waste volume Output residue suitable for disposal as WAC compliant Hazardous Waste Minimal energy usage for waste treatment – plant runs on electricity generated from landfill gas capture No offsite transport of secondary waste to final disposal • Limitations • • Not suitable for high oil contents >20% Not suitable for high solubility or volatile organics

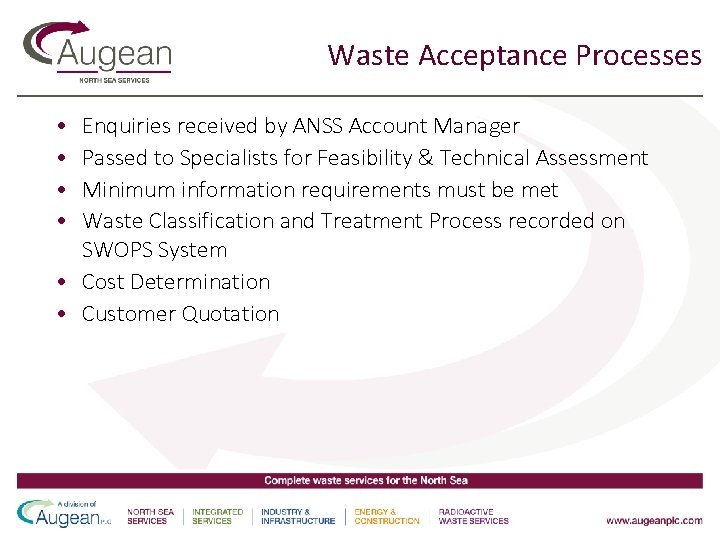

Waste Acceptance Processes • • Enquiries received by ANSS Account Manager Passed to Specialists for Feasibility & Technical Assessment Minimum information requirements must be met Waste Classification and Treatment Process recorded on SWOPS System • Cost Determination • Customer Quotation

Waste Acceptance Processes • Customer quotation received and accepted • Collection or delivery schedule agreed between Customer and ANSS • Booking Confirmed • Waste received and registered at Weighbridge • Paperwork and monitoring checks completed • Waste offloaded into Secure Storage Area • Scanned copy of accepted paperwork issued to ANSS and Customer • Waste mass and activity entered onto Inventory System

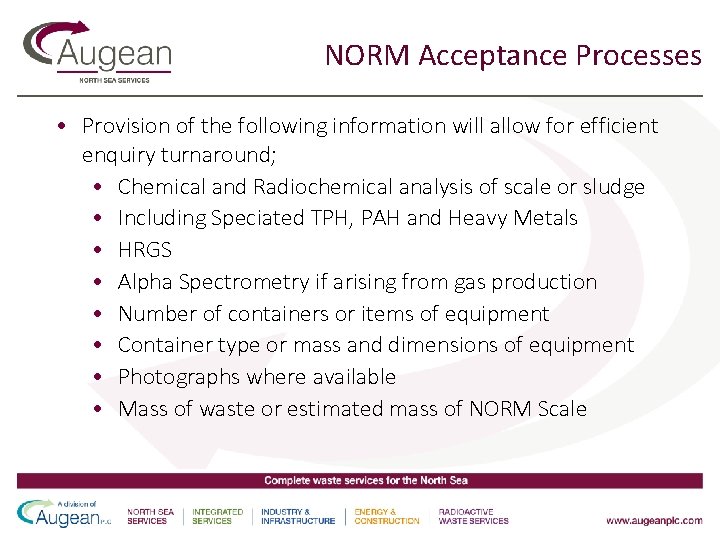

NORM Acceptance Processes • Provision of the following information will allow for efficient enquiry turnaround; • Chemical and Radiochemical analysis of scale or sludge • Including Speciated TPH, PAH and Heavy Metals • HRGS • Alpha Spectrometry if arising from gas production • Number of containers or items of equipment • Container type or mass and dimensions of equipment • Photographs where available • Mass of waste or estimated mass of NORM Scale

NORM Acceptance Processes • Waste treated via designated process • Emptied containers and decontaminated equipment monitored to confirm clean • Monitoring results recorded and Clearance Certificate issued • Mass and activity of secondary waste recorded • Secondary waste disposed to designated route • Clean containers returned with Certification • Decontaminated equipment returned / recycled • Radioactive Waste Inventory System updated • Invoices raised at appropriate Milestones • Final invoice and treatment report raised

NORM Waste Treatment and Disposal Decision Tree NORM Contaminated Equipment or Tank E&C Descale / Clean Tank / Equipment NORM Waste Batch I&I Liquid Pre-Treat No Other No Yes Non-Hazardous or meeting Haz WAC No Repackage to suitable container At WRP if necessary Incinerat e High Metals Content Yes AIS Wash? ? Yes >60◦c WWT W Water Solids Solid or Sludge Flash Point Energy Recover y Oil Bio? ? Landfil l Total Activity < 75 MBq No Yes Low Soluble Hydrocarbon Content, TOC <20% Carry out Treatability Trial Fail No NORM Content <50 Bq/g Yes Free Liquid Layer Remov e Liquids Yes No Hg Content Manageable Yes Pass ANSS Acceptable under Specific RA? Yes No Otherwise suitable For EK Yes No Treat by Stabilisatio n with APCR Output ≤ 10 Bq/g Yes PC Yes No KC East Kent Tradebe Fawley

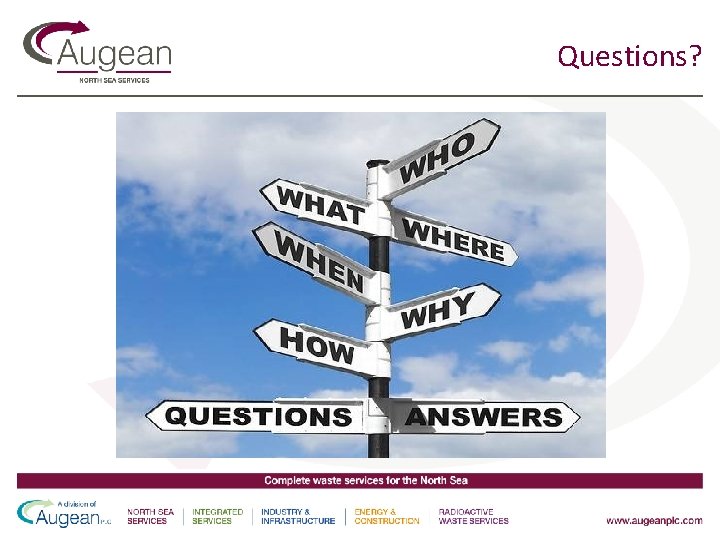

Questions?
