AUDIO STREAMING SERVER Victor Riera Salvador Priego Okpo

AUDIO STREAMING SERVER Victor Riera Salvador Priego Okpo Kalu

INDEX � Programs and Libraries � Icecast Installation � Ices Installation � Runing the server � Playing the streaming � Problems � Conclusion

PROGRAMS AND LIBRARIES 1/2 � Libraries needed to install �Libshout 2. 2. 2 �Shout-python �Libogg 1. 2. 1 �Libvorbis 1. 3. 2 �Fortran compiler

PROGRAMS AND LIBRARIES 2/2 � Programs needed: �Icecast 2. 3. 2 -> Audio streaming server �Ices 2. 0. 1 ->Send the Ogg Vorbis stream to an icecast server �Xmms or Winamp -> Clients to reproduce the streaming

ICECAST INSTALLATION 1/3 � Download and Install $ wget http: //downloads. xiph. org/releases/icecast 2. 3. 2. tar. gz tar zxf icecast-2. 3. 2. tar. gz $. /configure $ make install

ICECAST INSTALLATION 2/3 � Configuration �First we need to create some folders and files needed. $ wget http: //www. paginasprodigy. com. mx/SOAD 1982/Icest -Config. tar. gz $ tar zxcvf Icest-Config. tar. gz $ touch /var/log/Music_Server. log $ chmod 777 /var/log/Music_Server. log $ mkdir /usr/share/icecast/web $ mkdir /usr/share/icecast/admin

<authentication> <source-password>12345</source-password> <relay-password>12345</relay-password> <admin-user>admin</admin-user> <admin-password>12345</admin-password> </authentication> ICECAST INSTALLATION 3/3 � Edit the configuration file <hostname>192. 168. 10. 51</hostname> We only need the edit the next commands. � <listen-socket> <port>8000</port> </listen-socket> <paths> <basedir>/usr/share/icecast</basedir> <logdir>/var/log/</logdir> <webroot>/usr/share/icecast/web</webroot> <adminroot>/usr/share/icecast/admin</adminroot> <alias source="/" dest="/status. xsl"/> </paths> <logging> <accesslog>Music_Server. log</accesslog> <errorlog>Music_Server. log</errorlog> <changeowner> <user>kalu</user>

ICES INSTALLATION 1/2 � Download and Install $ wget http: //downloads. us. xiph. org/releases/ices 2. 0. 1. tar. gz $ tar zxf ices-2. 0. 1. tar. gz $. /configure $ make install

ICES INSTALLATION 2/2 <? xml version="1. 0"? > <ices> <background>1</background> <logpath>/etc/icecast/</logpath> <logfile>Log. Ices. log</logfile> <loglevel>4</loglevel> <consolelog>0</consolelog> � Create <instance> <hostname>192. 168. 10. 51</hostname> <port>8000</port> <password>12345</password> the configuration file <mount>/mpd. ogg</mount> <reconnectdelay>2</reconnectdelay> <reconnectattempts>5</reconnectattempts> <maxqueuelength>80</maxqueuelength> �Create a new file, config. xml in the <stream> instalation folder <metadata> <name>LNS radio</name> <genre>All</genre> <description>Radio for LNS</description> </metadata> <input> <module>playlist</module> <param name="type">basic</param> <param name="file">/usr/local/bin/playlist. txt</param> <param name="random">0</param> <param name="restart-after-reread">0</param> <param name="once">0</param> </input> <encode> <nominal-bitrate>64000</nominal-bitrate> <samplerate>44100</samplerate> <channels>2</channels> </encode> </instance> </stream> </ices>

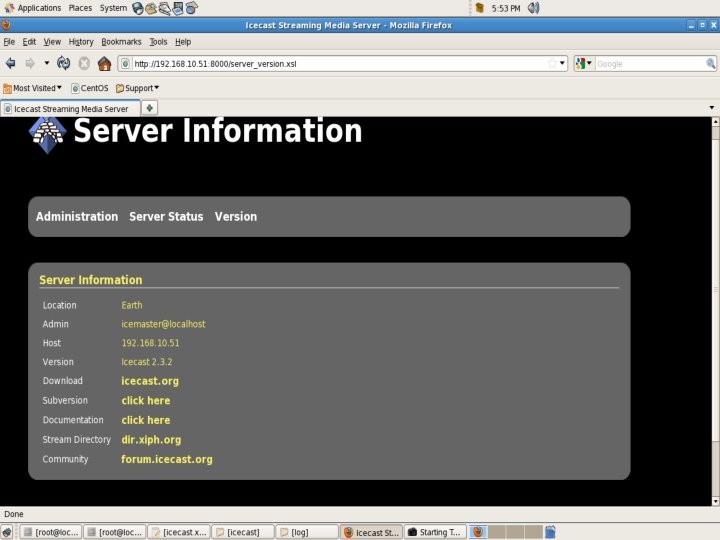

RUNING THE SERVER 1/2 � Run Icecast $ icecast –c /etc/icecast. xml � Test if it´s working �With the web browser http: //192. 168. 10. 51: 8000

RUNING THE SERVER 2/2 � Run Ices $ ices /etc/ices/config. xml � Test if it´s working �With the web browser � You should get the mount point http: //192. 168. 10. 51: 8000

PLAYING THE STREAMING � Linux �Xmms for example � Windows �Winamp for example � Open the music player, and play the location http: //192. 168. 10. 51: 8000/mpd. ogg

PROBLEMS � Many libraries needed during the compilation of Icecast and Ices � Just install the libraries asked and retry the installation. � Error on the website � ERROR: “Could not parse XSLT file” � This problem is because you don´t have the correct web folders in the config file. � Make sure that you have the next forlders � Problem trying to conect to the server with another computer � Disable Iptables in the server, use the “setup” command

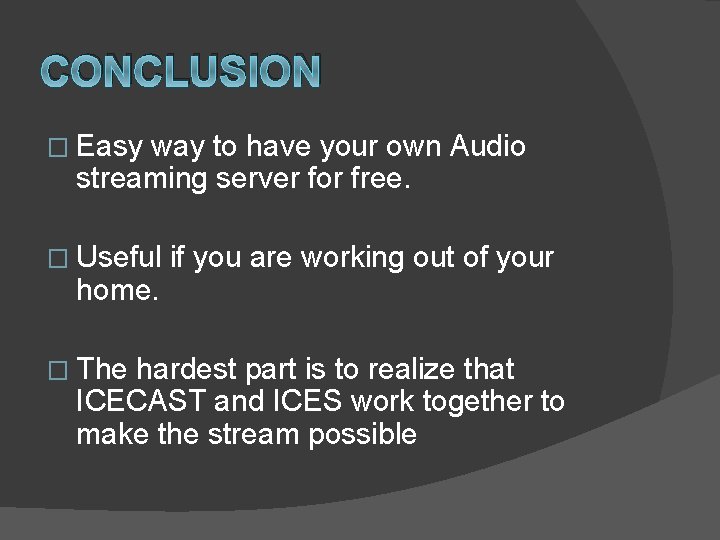

CONCLUSION � Easy way to have your own Audio streaming server for free. � Useful home. � The if you are working out of your hardest part is to realize that ICECAST and ICES work together to make the stream possible

THANK YOU FOR YOUR ATTENTION!
