Auburn University Project WallEagle CDR Rocket Design Rocket

Auburn University Project “Wall-Eagle” CDR

Rocket Design

Rocket Model

Detailed Sections

Mass Estimates Section Structure Supporting Equipment Electronics Recovery Motor Total Mass Growth Mass Allowance Mass (lb. ) 8. 577 9. 444 1. 5 2. 516 6. 47 28. 5 3. 7 32. 2 Percentage of Total Weight 33. 58% 31. 47% 5. 00% 8. 39% 21. 56% N/A 12. 98% 113%

Ogive Nose Cone • • Low Coefficient of Drag Easy to manufacture Rated highest by team trade study Commonly used in professional and hobby rocketry

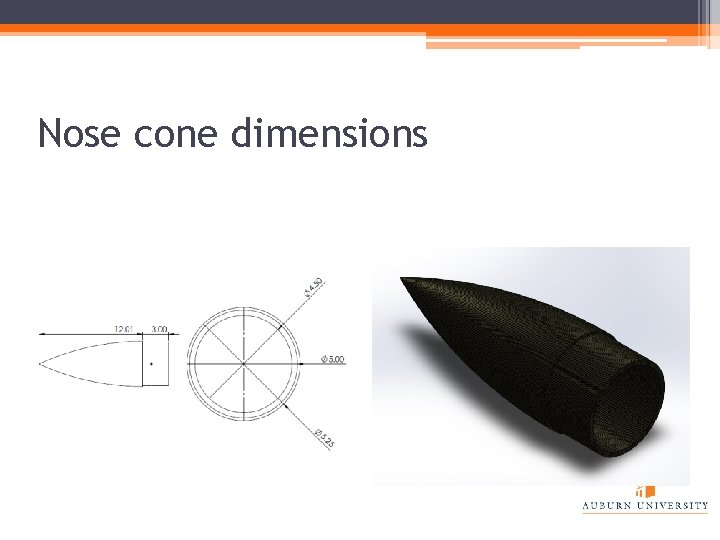

Nose cone dimensions

Trapezoidal Fin • Very easy to manufacture • Less drag than clipped delta fins, more than elliptical fins • Quicker stabilization than elliptical fins and clipped delta fins.

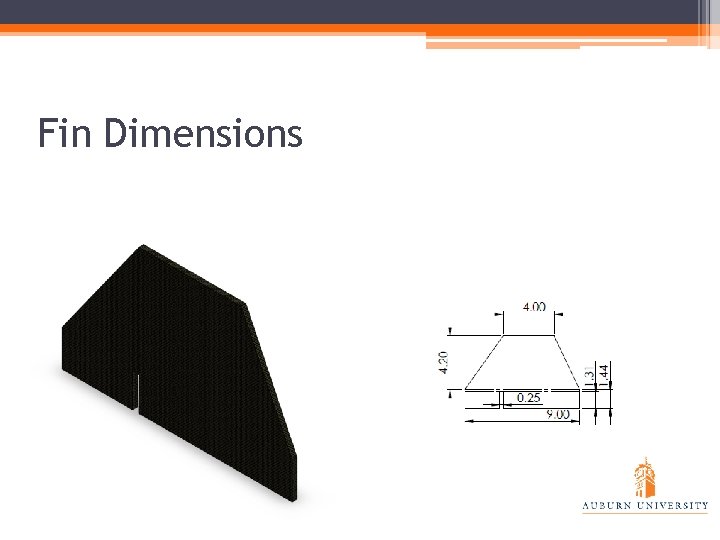

Fin Dimensions

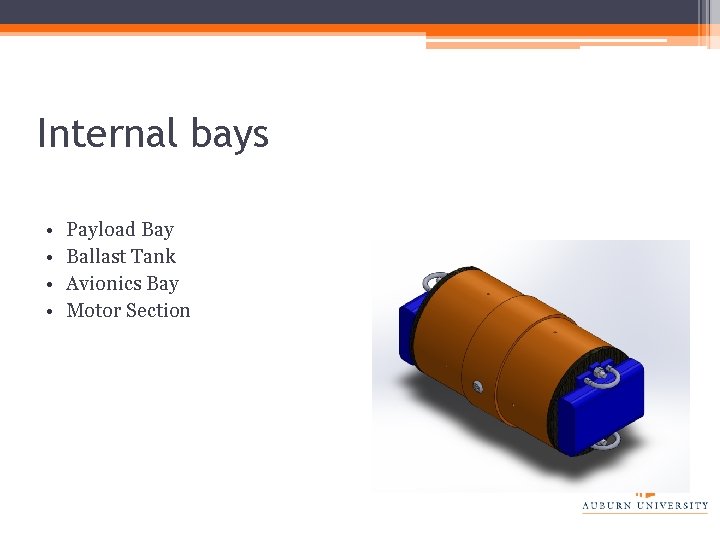

Internal bays • • Payload Bay Ballast Tank Avionics Bay Motor Section

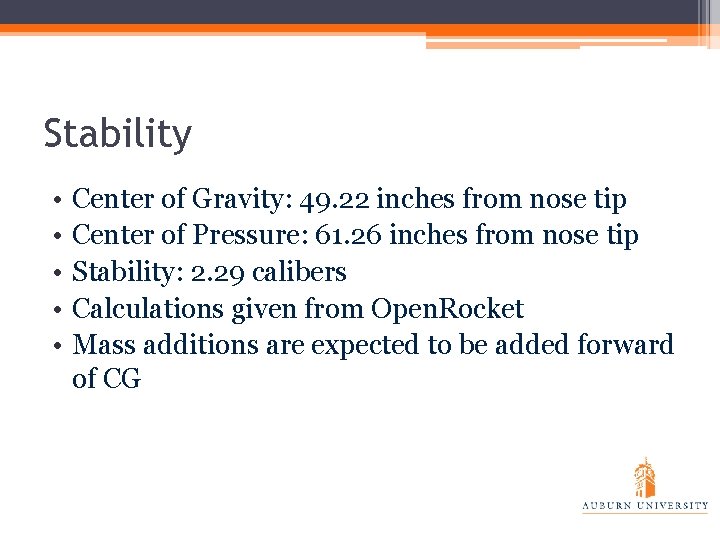

Stability • • • Center of Gravity: 49. 22 inches from nose tip Center of Pressure: 61. 26 inches from nose tip Stability: 2. 29 calibers Calculations given from Open. Rocket Mass additions are expected to be added forward of CG

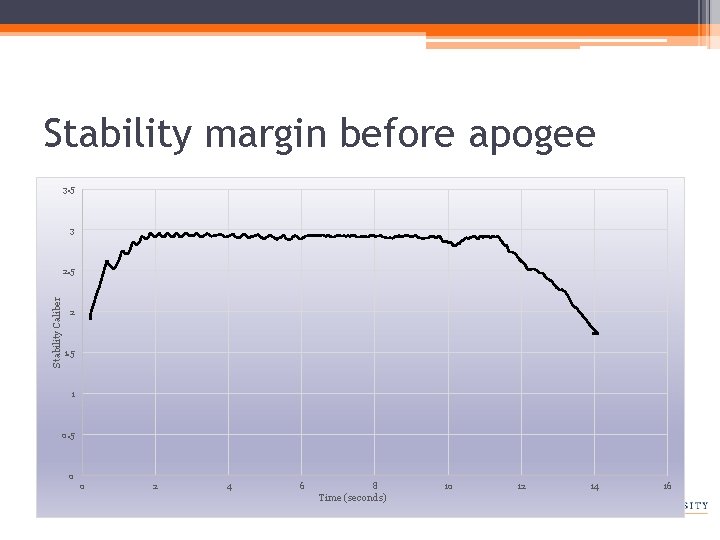

Stability margin before apogee 3. 5 3 Stability Caliber 2. 5 2 1. 5 1 0. 5 0 0 2 4 6 8 Time (seconds) 10 12 14 16

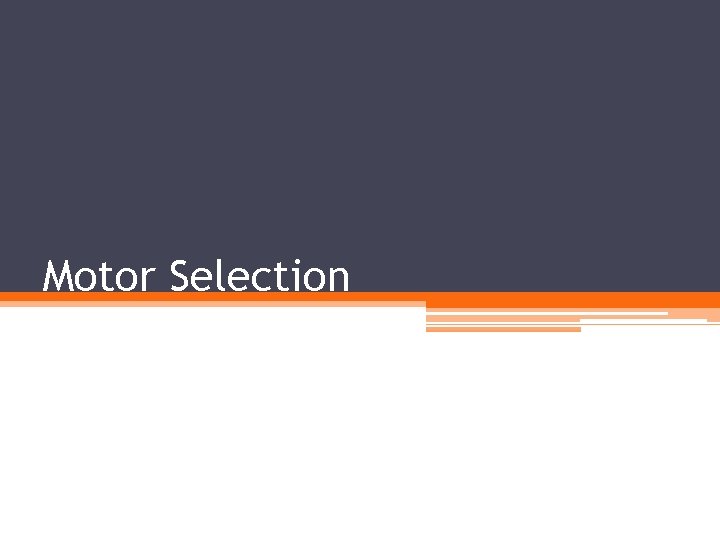

Motor Selection

Motor Selection / Altitude Prediction • Initial Motor selection is the Aero K 960 -P ▫ R-P: Loki White, Plugged • Initial thrust-to-weight ratio above required 5: 1 • Achieves above average thrust within ¼ second • High initial thrust provides high stability off the rail

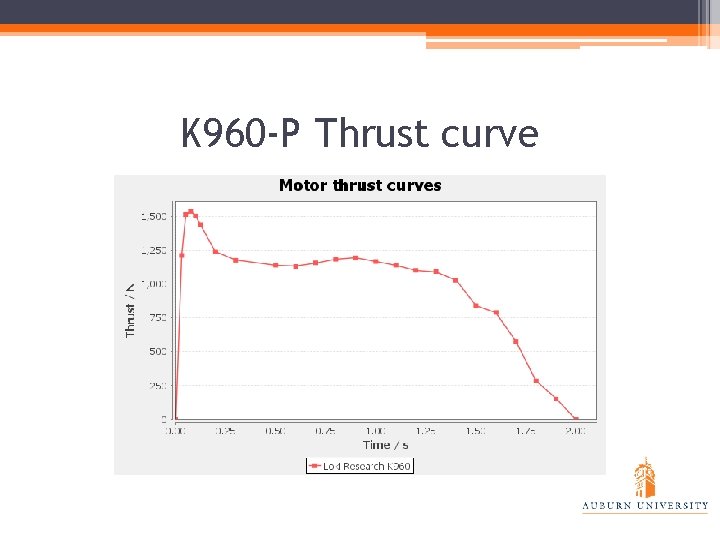

K 960 -P Thrust curve

Thrust-to-weight 16 Thrust-to-weight ratio 14 12 10 8 6 4 2 0 0 0. 2 0. 4 0. 6 0. 8 1 1. 2 Time Seconds 1. 4 1. 6 1. 8 2

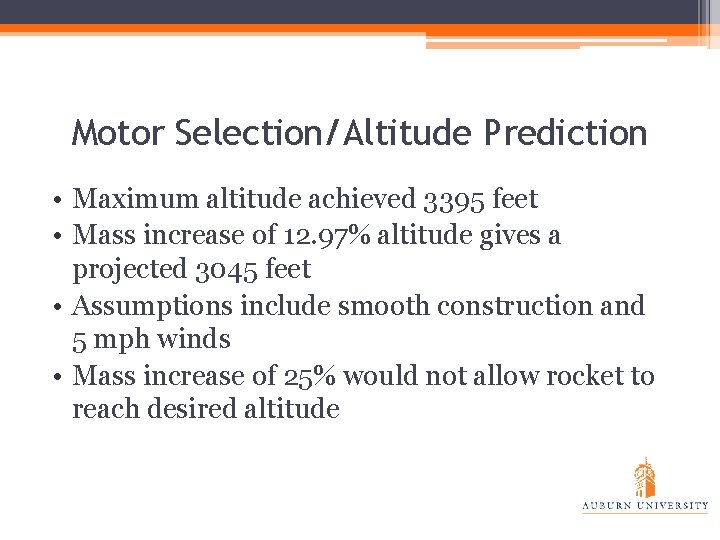

Motor Selection/Altitude Prediction • Maximum altitude achieved 3395 feet • Mass increase of 12. 97% altitude gives a projected 3045 feet • Assumptions include smooth construction and 5 mph winds • Mass increase of 25% would not allow rocket to reach desired altitude

K 960 -P Altitude vs. Time Figure 1. 3: Altitude vs. Time K 780 R-P

K 960 -P Motor Specifications Manufacturer Loki Research Motor Designation K 960 -P Diameter 2. 13 inches Length 19. 6 inches Impulse 1949 N-sec Total Motor Weight 3. 85 lbm Propellant Weight 2. 05 lbm Propellant Type Loki White Average Thrust 225 Pounds Maximum Thrust 345 Pounds Burn Time 1. 95 sec

Recovery

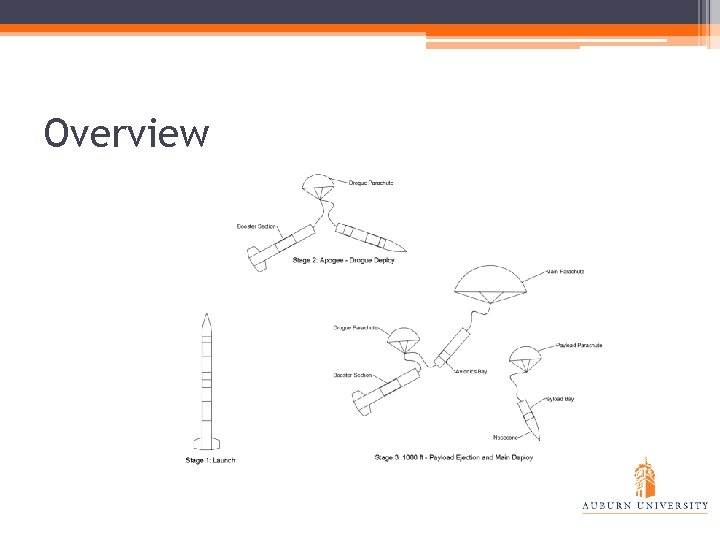

Overview

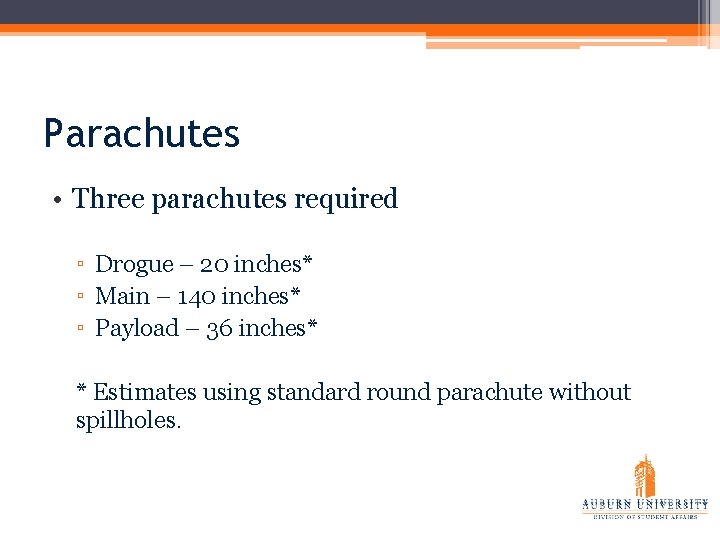

Parachutes • Three parachutes required ▫ Drogue – 20 inches* ▫ Main – 140 inches* ▫ Payload – 36 inches* * Estimates using standard round parachute without spillholes.

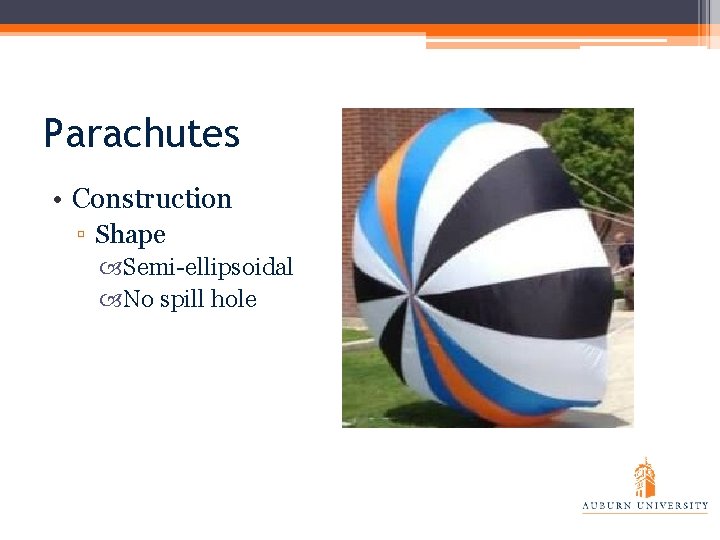

Parachutes • Construction ▫ Shape Semi-ellipsoidal No spill hole

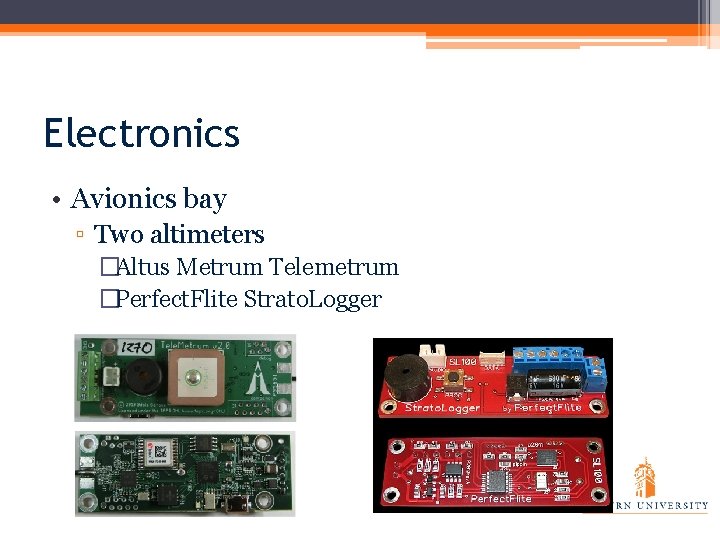

Electronics • Avionics bay ▫ Two altimeters �Altus Metrum Telemetrum �Perfect. Flite Strato. Logger

Attachments • Fasteners ▫ Nylon Slotted Pan Head Machine Screws ▫ Steel U-Bolts ▫ Quick Links

Parachute Materials • The parachute will be made of Ripstop nylon • Ripstop’s tear resistant weaving is ideal for parachute making

Shock Cord Material • The shock cord will be made of 1” tubular nylon • 1” tubular nylon has excellent tensile properties • A vendor has already been secured • The Auburn team has worked with this material before

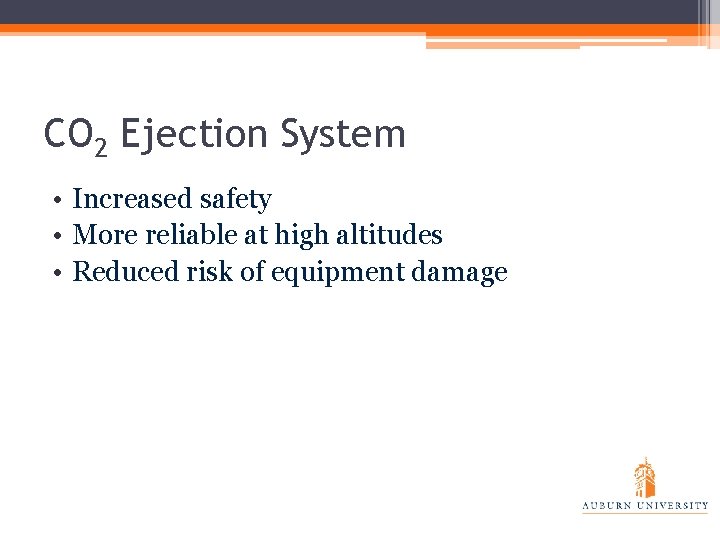

CO 2 Ejection System • Increased safety • More reliable at high altitudes • Reduced risk of equipment damage

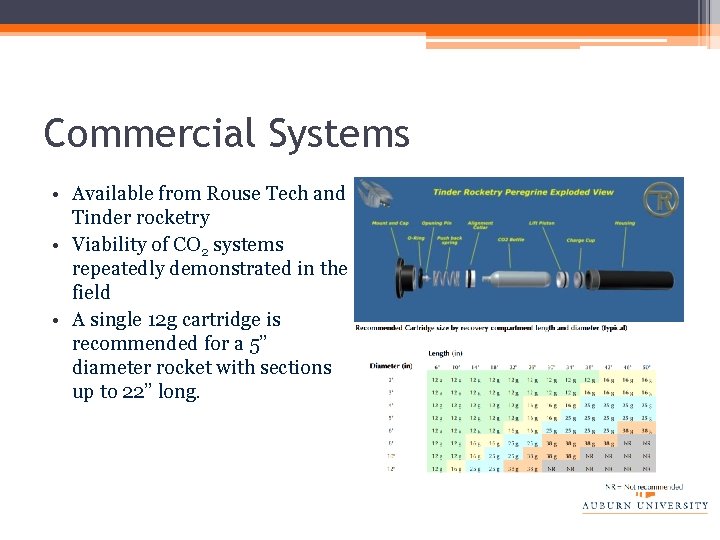

Commercial Systems • Available from Rouse Tech and Tinder rocketry • Viability of CO 2 systems repeatedly demonstrated in the field • A single 12 g cartridge is recommended for a 5” diameter rocket with sections up to 22” long.

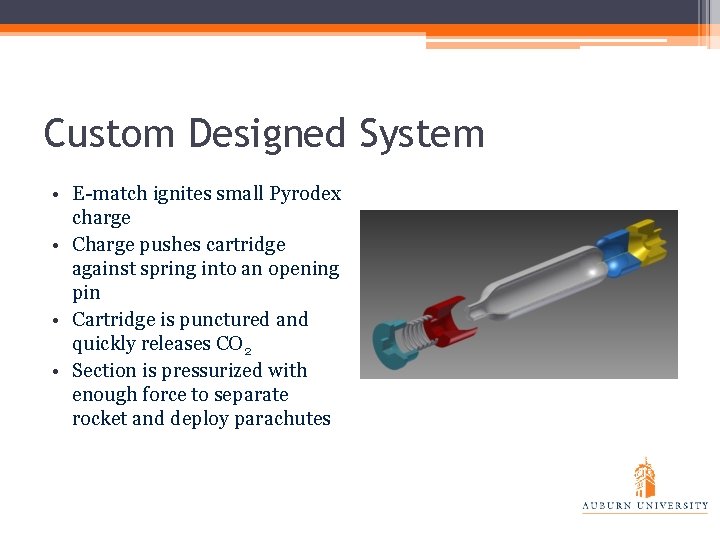

Custom Designed System • E-match ignites small Pyrodex charge • Charge pushes cartridge against spring into an opening pin • Cartridge is punctured and quickly releases CO 2 • Section is pressurized with enough force to separate rocket and deploy parachutes

Custom Designed System • Each system contains three CO 2 cartridges • Each cartridge is separately controlled • Dual fault tolerance

Ejection System Implementation • • Two ejection systems total mounted outside the avionics bay One system deploys drogue parachute and ejects payload bay Second system deploys main parachute Two altimeters, each controls two CO 2 cartridges on each system

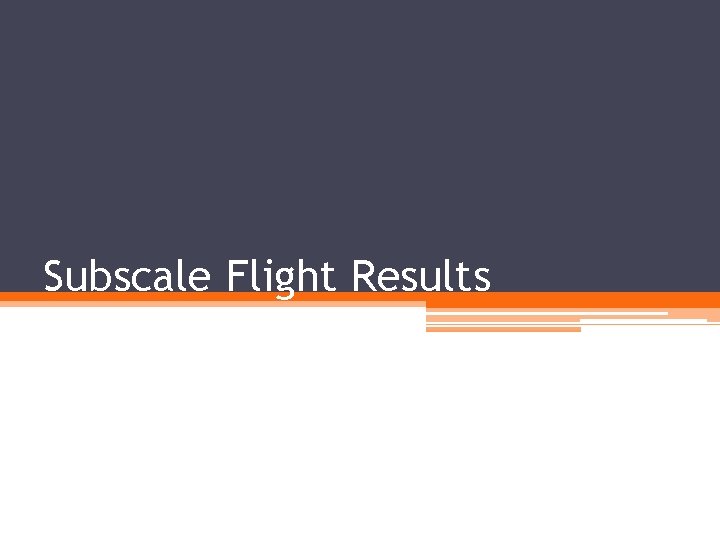

Subscale Flight Results

Subscale Plans • Phoenix Missile Works▫ Sylacauga AL, January 11 th • Sizing: 80% • Motor: J-425 ▫ Total Impulse: 152 lbs-s • Length: 68 inches

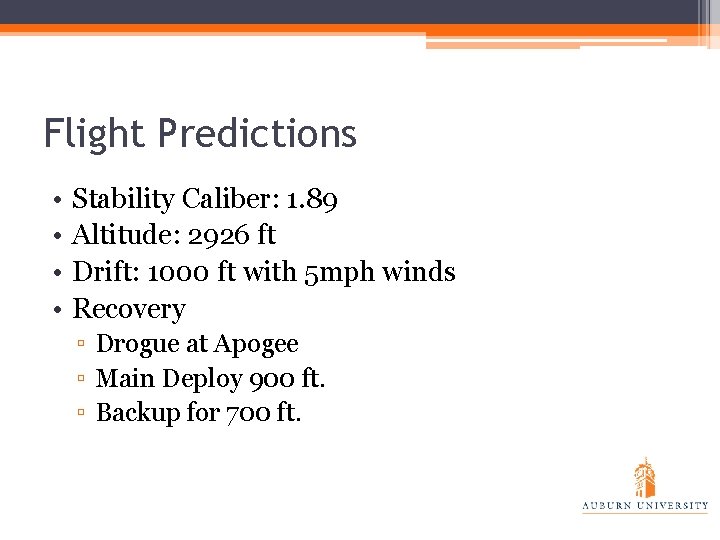

Flight Predictions • • Stability Caliber: 1. 89 Altitude: 2926 ft Drift: 1000 ft with 5 mph winds Recovery ▫ Drogue at Apogee ▫ Main Deploy 900 ft. ▫ Backup for 700 ft.

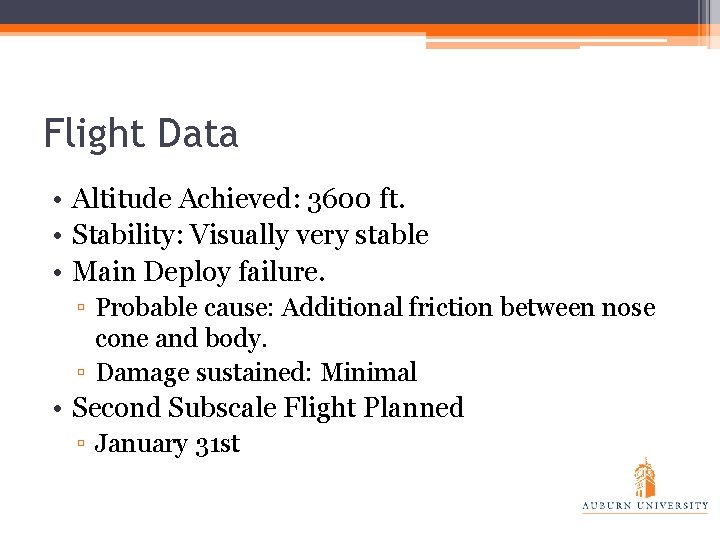

Flight Data • Altitude Achieved: 3600 ft. • Stability: Visually very stable • Main Deploy failure. ▫ Probable cause: Additional friction between nose cone and body. ▫ Damage sustained: Minimal • Second Subscale Flight Planned ▫ January 31 st

Autonomous Ground Support Equipment – Project WALL-Eagle

Overall Final Design

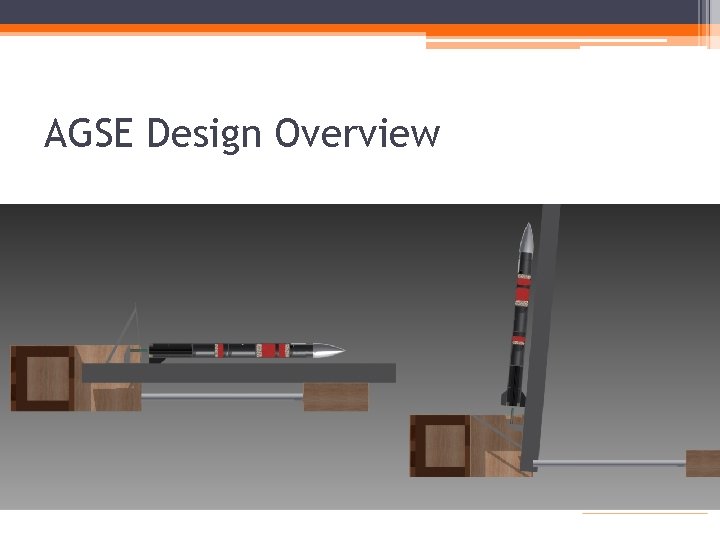

AGSE Design Overview

Launch Pad Box Dimensions

AGSE Payload Hatch

Payload Hatch Function • Seals payload bay during flight • Hatch opens and closes autonomously with a microservo • Must be closed autonomously • Guides robotic arm into payload bay

Payload Access Plate and Positioning • Single access plate revolves on slightly tightened hinges • Hinge operates with microservo • Will allow remote opening and closing • Will resist loose swiveling, but may be easily closed and locked using small force • Optical markers to guide robotic arm

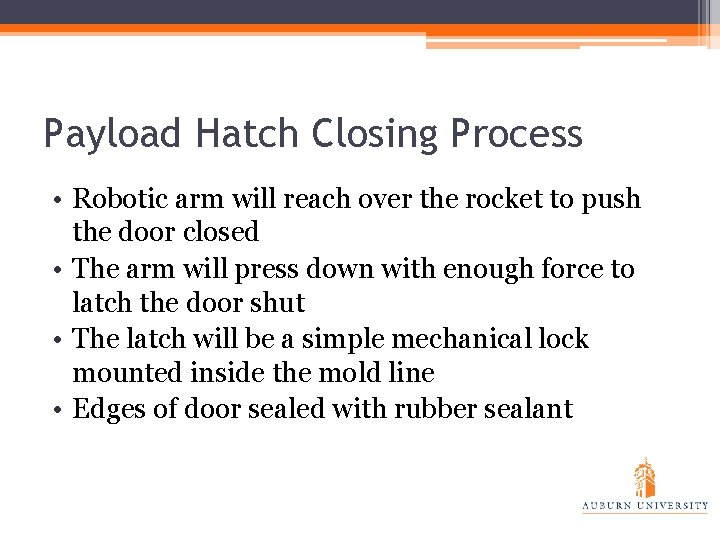

Payload Hatch Closing Process • Robotic arm will reach over the rocket to push the door closed • The arm will press down with enough force to latch the door shut • The latch will be a simple mechanical lock mounted inside the mold line • Edges of door sealed with rubber sealant

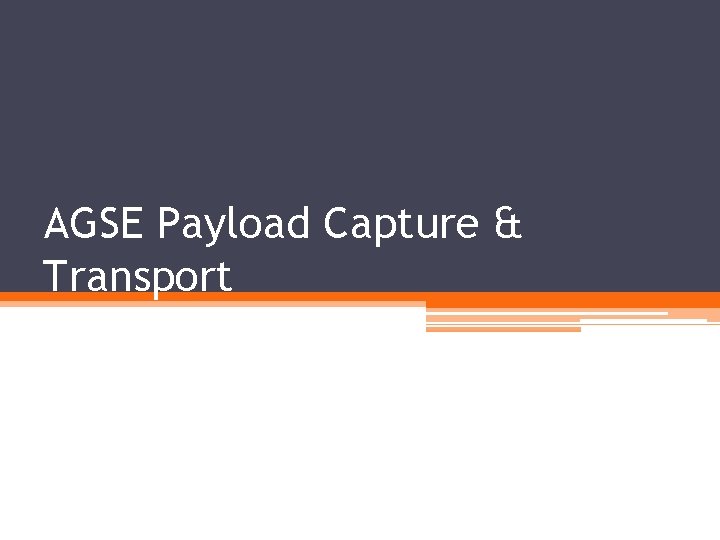

AGSE Payload Capture & Transport

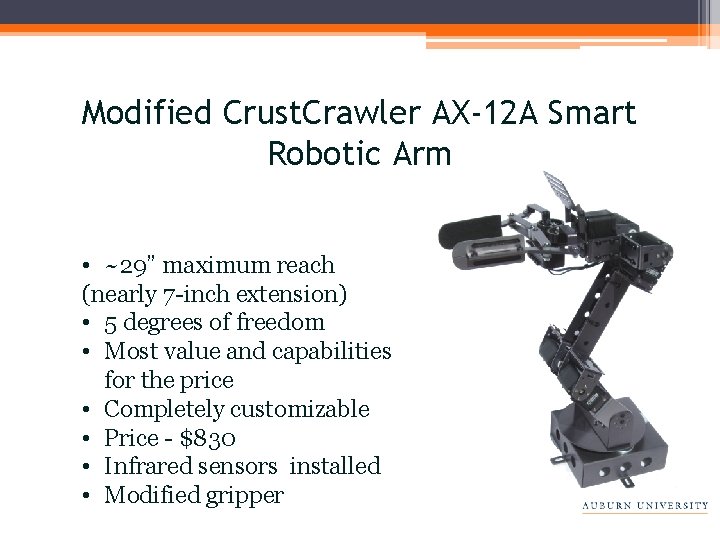

Modified Crust. Crawler AX-12 A Smart Robotic Arm • ~29” maximum reach (nearly 7 -inch extension) • 5 degrees of freedom • Most value and capabilities for the price • Completely customizable • Price - $830 • Infrared sensors installed • Modified gripper

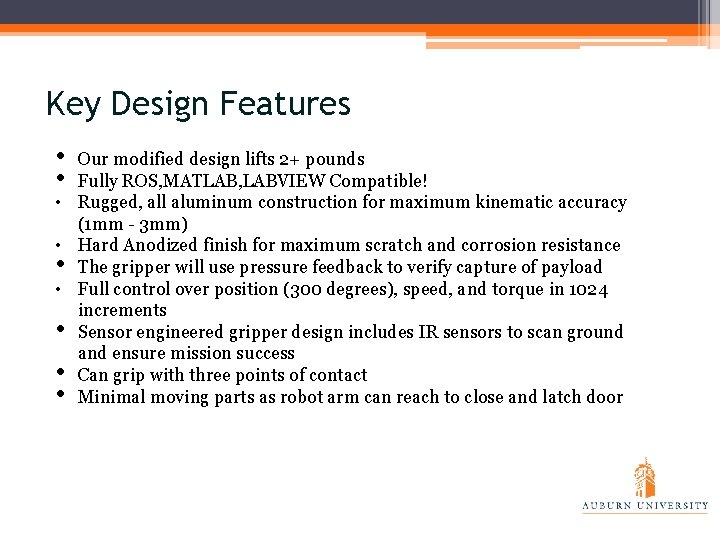

Key Design Features • • Our modified design lifts 2+ pounds Fully ROS, MATLAB, LABVIEW Compatible! • Rugged, all aluminum construction for maximum kinematic accuracy (1 mm - 3 mm) • Hard Anodized finish for maximum scratch and corrosion resistance • The gripper will use pressure feedback to verify capture of payload • Full control over position (300 degrees), speed, and torque in 1024 increments • Sensor engineered gripper design includes IR sensors to scan ground and ensure mission success • Can grip with three points of contact • Minimal moving parts as robot arm can reach to close and latch door

Robot Arm Gripper Requirements • • • Able to hold cylindrical payload Support 4 oz. weight Reach ground/reach payload bay Able to rotate at the wrist Able to sense that payload has been obtained The Big Grip Kit from the Crust. Crawler AX-12 A series robotic arms meet criteria plus more

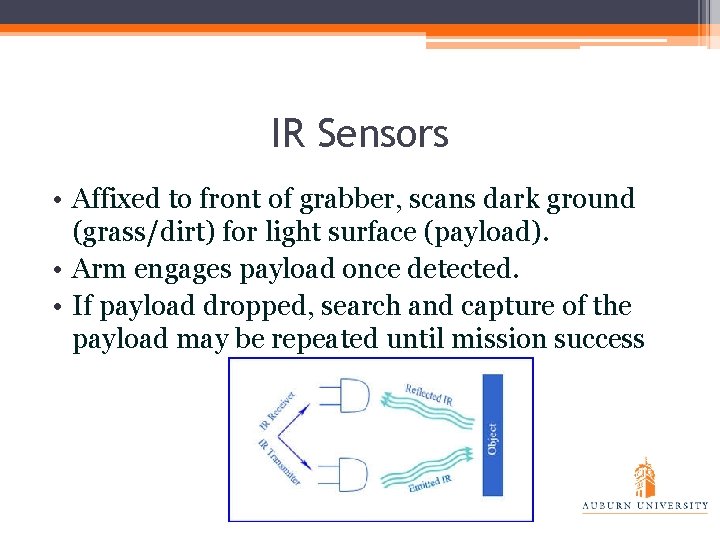

IR Sensors • Affixed to front of grabber, scans dark ground (grass/dirt) for light surface (payload). • Arm engages payload once detected. • If payload dropped, search and capture of the payload may be repeated until mission success

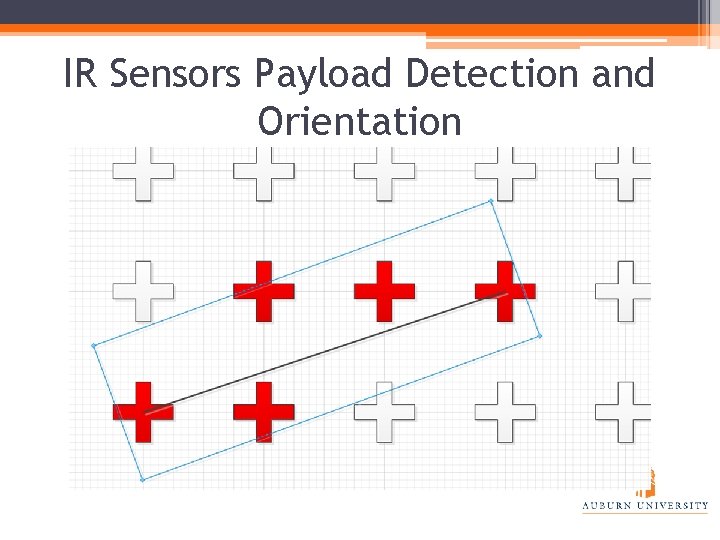

IR Sensors Payload Detection and Orientation

Contingency: Preprogrammed Location • Use preprogrammed location of payload in case IR sensors plan doesn’t work out • Can choose location of payload, so static coordinates suffice • Easier, but will cause launch failure if payload dropped

AGSE Launch Rail and Truss

AGSE Truss • Constructed out of durable carbon fiber • Designed to support the full weight of the rocket • Connected to two metal wires at top of truss • Rotates from horizontal to 85° via winch • Returns to horizontal after rocket launch

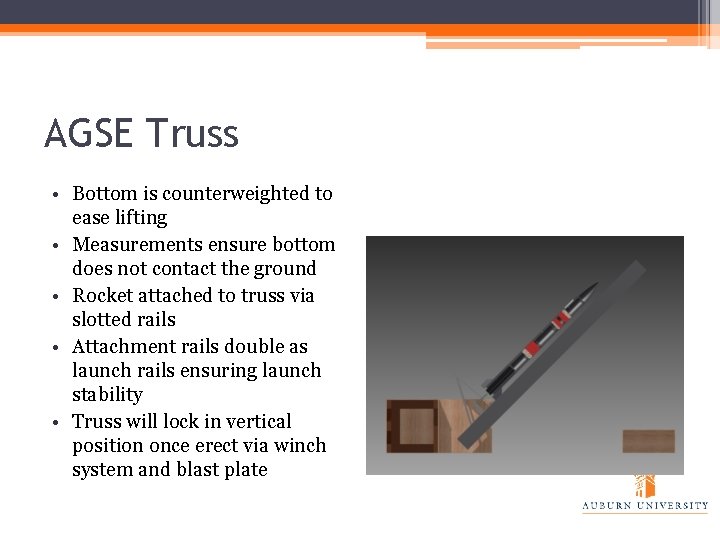

AGSE Truss • Bottom is counterweighted to ease lifting • Measurements ensure bottom does not contact the ground • Rocket attached to truss via slotted rails • Attachment rails double as launch rails ensuring launch stability • Truss will lock in vertical position once erect via winch system and blast plate

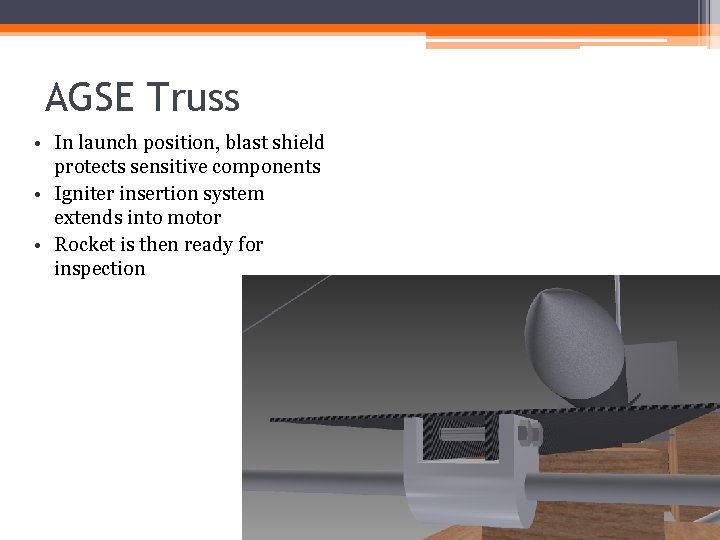

AGSE Truss • In launch position, blast shield protects sensitive components • Igniter insertion system extends into motor • Rocket is then ready for inspection

AGSE Igniter Insertion System

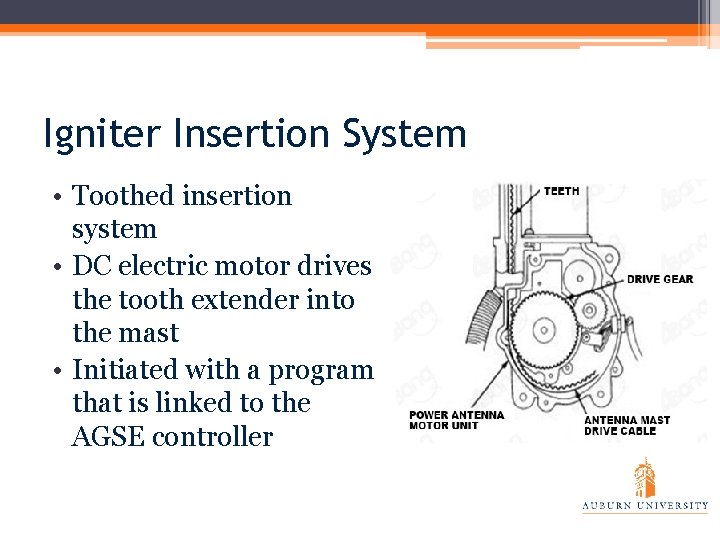

Igniter Insertion System • Toothed insertion system • DC electric motor drives the tooth extender into the mast • Initiated with a program that is linked to the AGSE controller

Igniter Insertion System • Located 6 -8 inches below the base of the rocket. • Main motor is protected by the blast plate • Rise through a whole in the blast plate to access the rocket

Igniter Insertion System • Extension of 26. 6 inches • Igniter pause at full extension • E-match attached to tip of the insertion system is in contact with motor • Inspection and arming of the rocket • Countdown ensues, followed by blast off • Dowel diameter will not choke motor

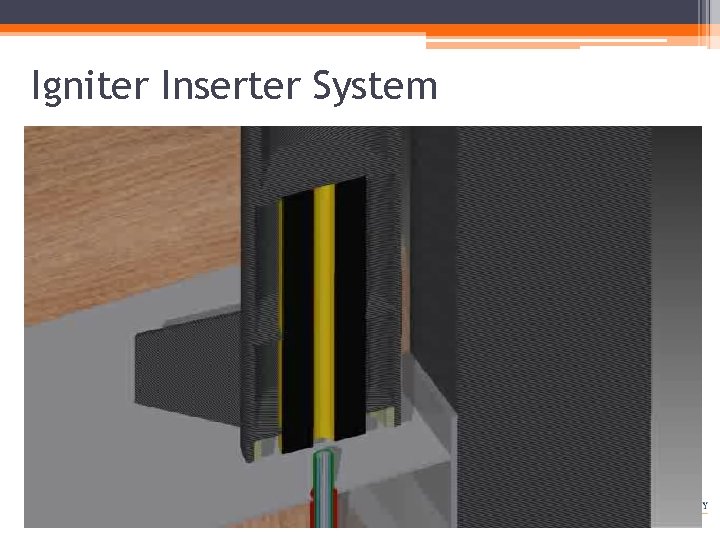

Igniter Inserter System

Master Microcontroller and Full System Operation

Master Microcontroller • Single microcontroller drives all AGSE functions ▫ Simplifies design ▫ Minimizes risk ▫ Eliminates communication between multiple microcontrollers • Arduino mega used

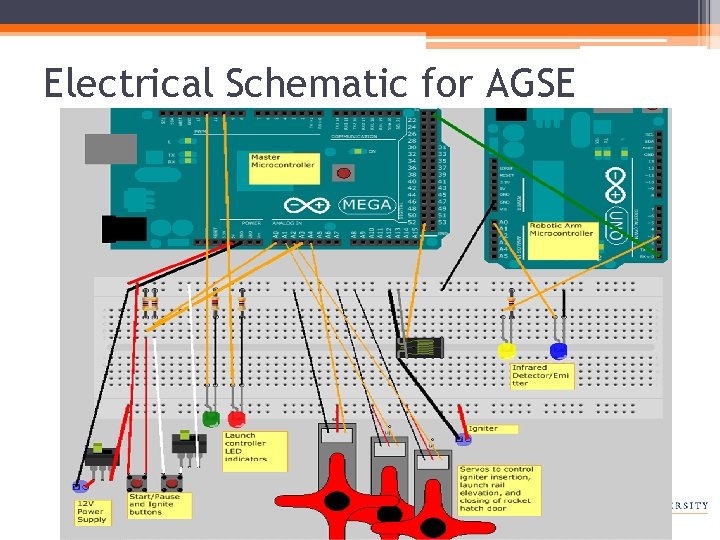

Electrical Schematic for AGSE

Launch Controller

Subsystem Connectivity • All autonomous systems connected through microcontroller ▫ Only launch controller handled independently • Single start, pause, and reset switches

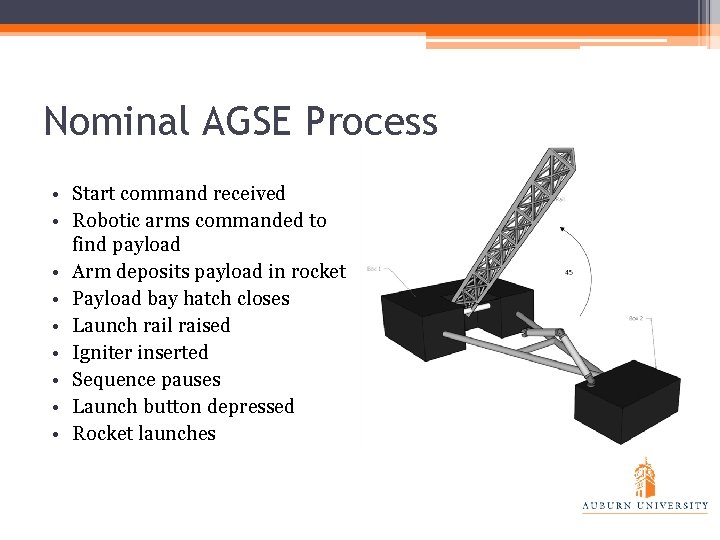

Nominal AGSE Process • Start command received • Robotic arms commanded to find payload • Arm deposits payload in rocket • Payload bay hatch closes • Launch rail raised • Igniter inserted • Sequence pauses • Launch button depressed • Rocket launches

AGSE Flow Chart • System inspected prior to launch • In some cases it is possible to reset and re-run sequence in an error has occurred

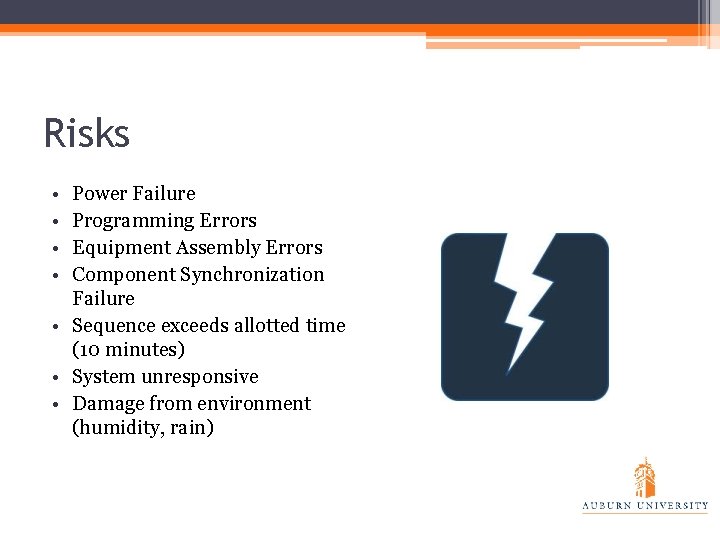

Risks • • Power Failure Programming Errors Equipment Assembly Errors Component Synchronization Failure • Sequence exceeds allotted time (10 minutes) • System unresponsive • Damage from environment (humidity, rain)

Test Plans • Full system test (normal conditions) • Speed test for winching system • Off-design payload configuration • Partially drained batteries • Power failure during AGSE sequence • Dropped payload

Safety Matthew Austin Phillips Safety Officer Auburn University Student Launch

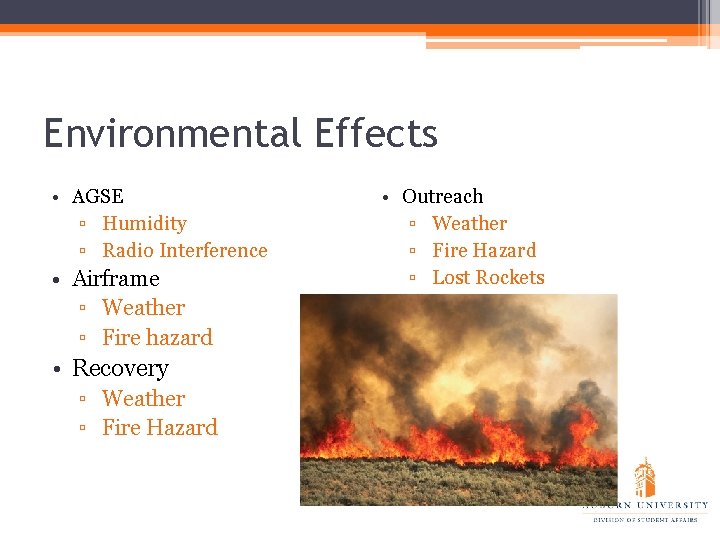

Environmental Effects • AGSE ▫ Humidity ▫ Radio Interference • Airframe ▫ Weather ▫ Fire hazard • Recovery ▫ Weather ▫ Fire Hazard • Outreach ▫ Weather ▫ Fire Hazard ▫ Lost Rockets

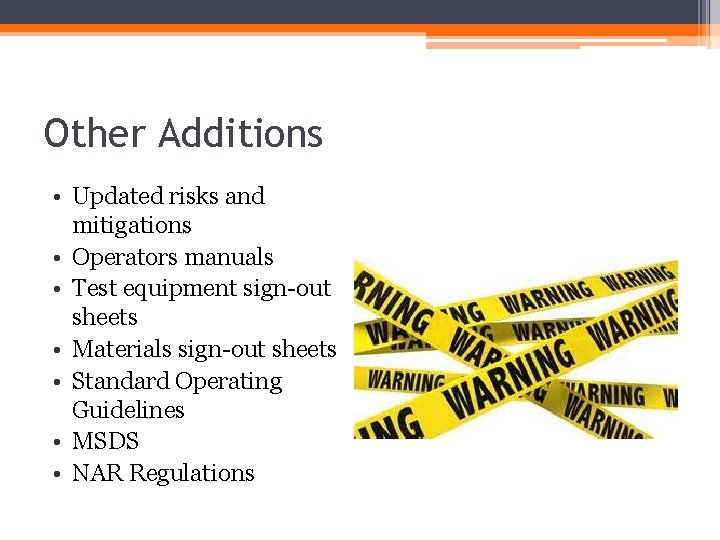

Other Additions • Updated risks and mitigations • Operators manuals • Test equipment sign-out sheets • Materials sign-out sheets • Standard Operating Guidelines • MSDS • NAR Regulations

Educational Outreach

7 th Grade Rocket Week Students Learn About: • • Gravity and g-forces Newton’s Laws of Motion Elementary rocketry Science, technology, engineering, and mathematics • Teamwork and communication

7 th Grade Rocket Week Students Work Hands-On: • Assembling an Alpha rocket in teams of 2 -3 • Sanding, gluing, and painting rockets • Initiating and observing rocket launches

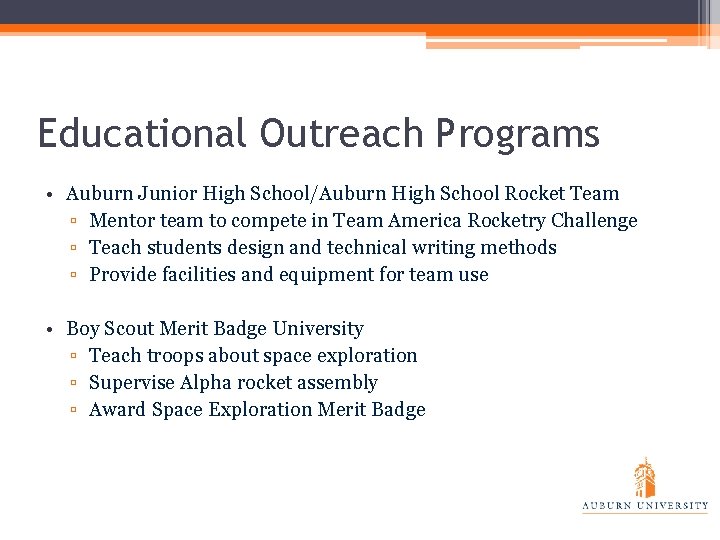

Educational Outreach Programs • Auburn Junior High School/Auburn High School Rocket Team ▫ Mentor team to compete in Team America Rocketry Challenge ▫ Teach students design and technical writing methods ▫ Provide facilities and equipment for team use • Boy Scout Merit Badge University ▫ Teach troops about space exploration ▫ Supervise Alpha rocket assembly ▫ Award Space Exploration Merit Badge

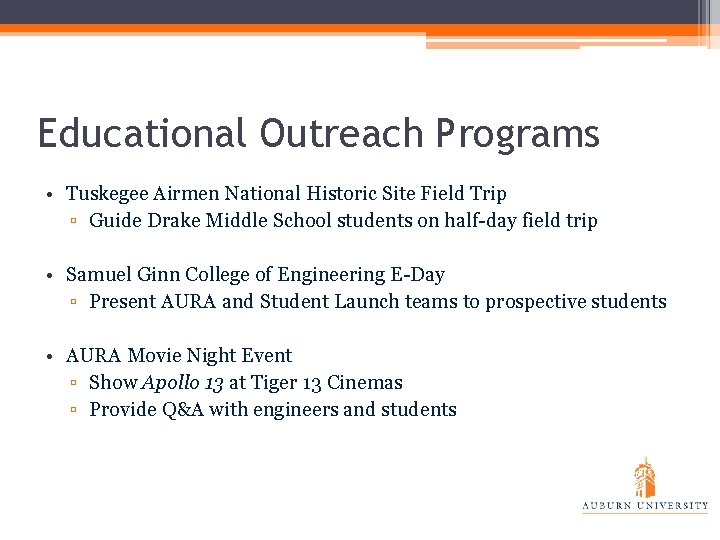

Educational Outreach Programs • Tuskegee Airmen National Historic Site Field Trip ▫ Guide Drake Middle School students on half-day field trip • Samuel Ginn College of Engineering E-Day ▫ Present AURA and Student Launch teams to prospective students • AURA Movie Night Event ▫ Show Apollo 13 at Tiger 13 Cinemas ▫ Provide Q&A with engineers and students

Additional Information • Budget Summary • Timeline Summary

Questions
