Attribute Tables GIS 1 Data table format Rectangular
Attribute Tables GIS 1
Data table format • Rectangular table with one value per cell -Columns (fields) are attributes -Rows are observations (data) GIS 2
Data table format • First row must have column names that are selfdocumenting labels -e. g. , Pop 5 To 17, Area -First character is a letter -Remaining characters can be any letter, digit, or the underscore character (but no blanks) • All additional rows of a data table must contain only attribute values -None of the rows can be sums, averages, or other statistics for other rows • Sometimes columns can be functions of other columns (sums, averages, etc. ) GIS 3
Primary keys Each data table has a primary key with two properties -Each value in the attribute column is unique -There are no null values GIS 4
FIPS Geocodes • Federal Information Processing Standards -Developed by the National Institute of Standards and Technology -Codes for place names throughout the world – – – countries states/provinces counties metropolitan statistical areas (MSA’s) cities places - Indian reservations, airports, and post offices in the US See http: //www. genesyssampling. com/pages/Template 2/site 2/61/default. aspx for additional geocodes. GIS 5
FIPS Geo codes: Hierarchy FIPS codes Country: US State: 42 (Pennsylvania) County: 003 (Allegheny) Minor Civil Division: 85188 (Wilkinsburg) Census codes Tract: 0501 Block Group: 3 Block: 12 (US 420030501312) Local government cadastral data Parcel (Block & Lot#) GIS 6
ANSI Codes American National Standards Institute (ANSI) Codes www. census. gov/geo/www/ansi. html Replaces FIPS codes In many cases, the codes are the same (e. g. Pennsylvania, Allegheny County = 42003) GIS 7

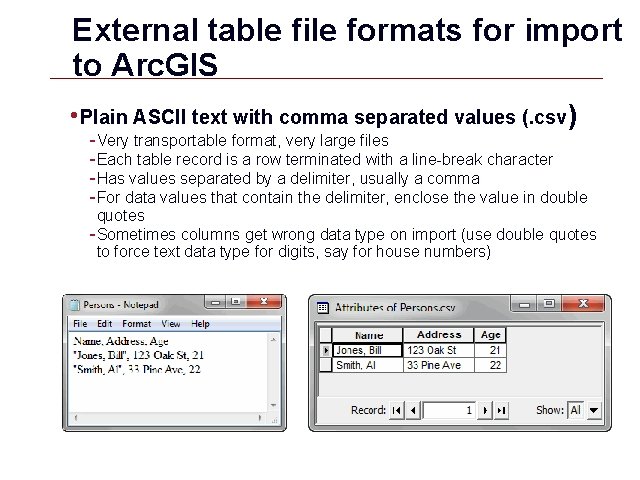

External table file formats for import to Arc. GIS • Plain ASCII text with comma separated values (. csv) - Very transportable format, very large files - Each table record is a row terminated with a line-break character - Has values separated by a delimiter, usually a comma - For data values that contain the delimiter, enclose the value in double quotes - Sometimes columns get wrong data type on import (use double quotes to force text data type for digits, say for house numbers) GIS 8
External table file formats for import to Arc. GIS • Excel (. xls, . xlsx) -Excel 2003, up to 65, 000 rows and 256 columns -Excel 2007, up to 1, 048, 576 rows and 16, 384 columns • d. Base database table(. dbf) -Legacy format -Arc. Map truncates field names to 1 st 10 characters -d. Base IV has max of 255 columns -Can open d. Base file in Excel but cannot save Dbase from Excel • Microsoft Access database (. mdb) -Up to 2 GB file size -See following for other limits: http: //www. databasedev. co. uk/access_specifications. html GIS 9
Field calculator (numeric) GIS 10
Field calculator (numeric) Calculate acres to square miles GIS 11

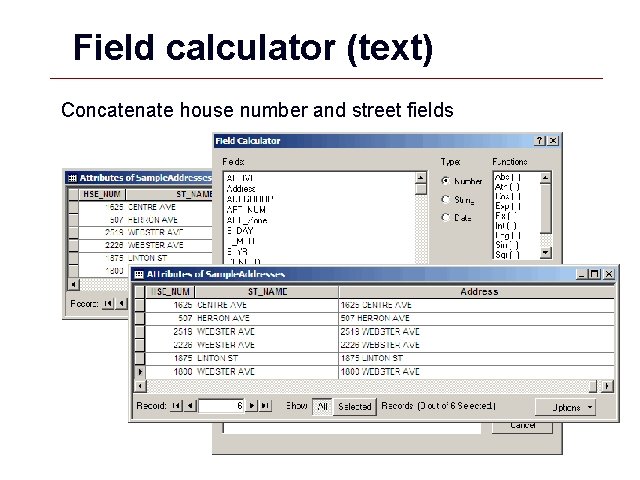

Field calculator (text) Concatenate house number and street fields GIS 12
Field calculator (text) Populate field with county name GIS 13
Data Table Joins GIS 14

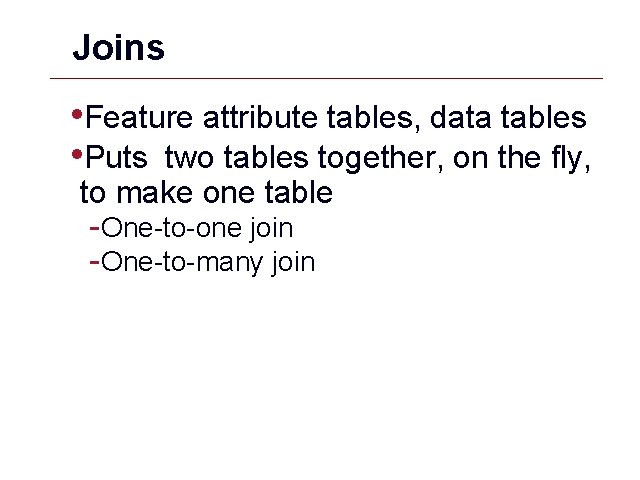

Joins • Feature attribute tables, data tables • Puts two tables together, on the fly, to make one table -One-to-one join -One-to-many join GIS 15
Example join U. S. Counties GIS layer Unemployment databases + = GIS 16

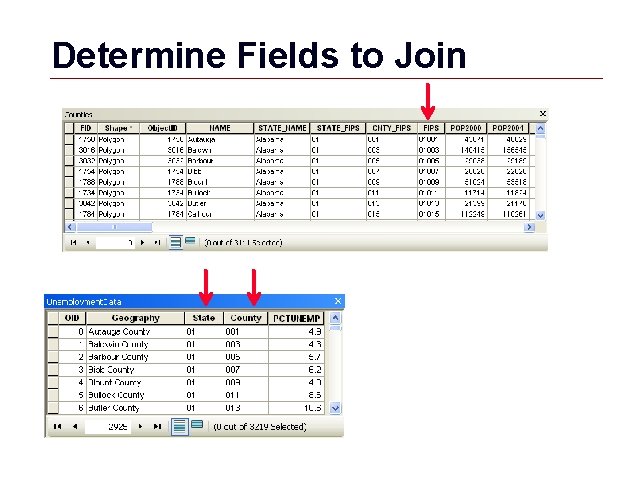

Determine Fields to Join GIS 17
Create New Field GIS 18

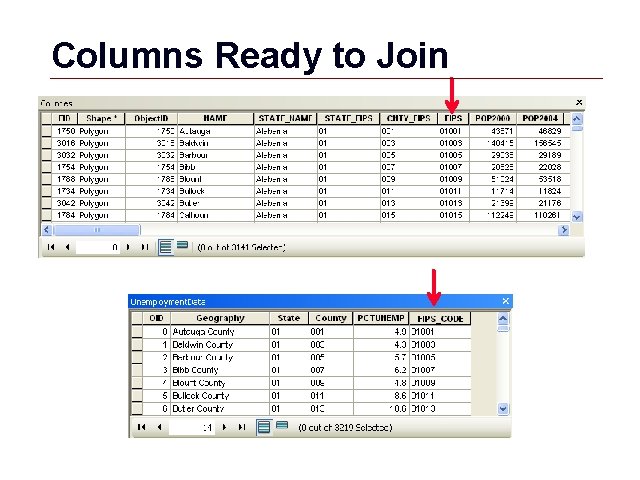

Columns Ready to Join GIS 19

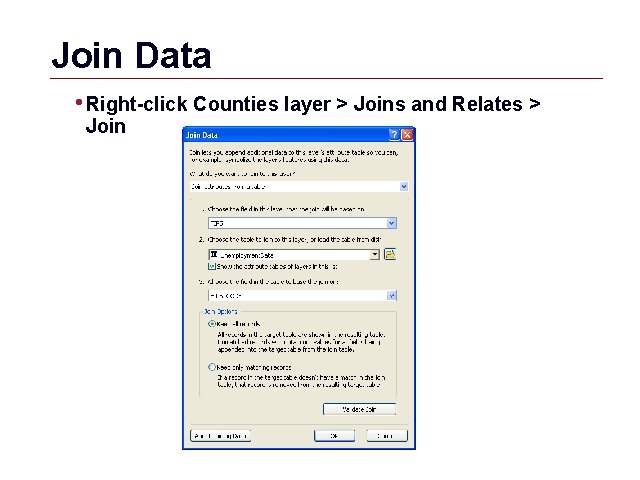

Join Data • Right-click Counties layer > Joins and Relates > Join GIS 20

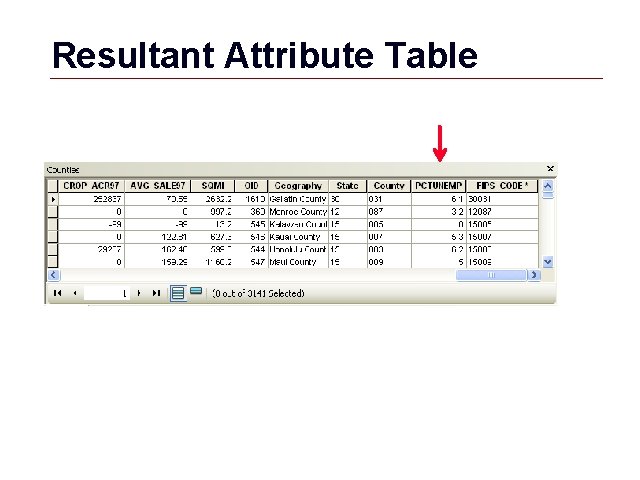

Resultant Attribute Table GIS 21
Classifying Unemployment • Values will only appear with number fields GIS 22
Final Map Percentage Unemployment by U. S. Counties, 2005 GIS 23

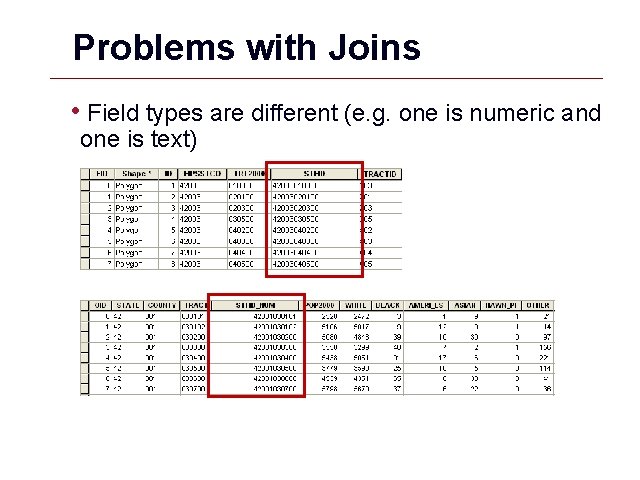

Problems with Joins • Field types are different (e. g. one is numeric and one is text) GIS 24
Problems with Joins • Data is different Must remove dashes! GIS 25

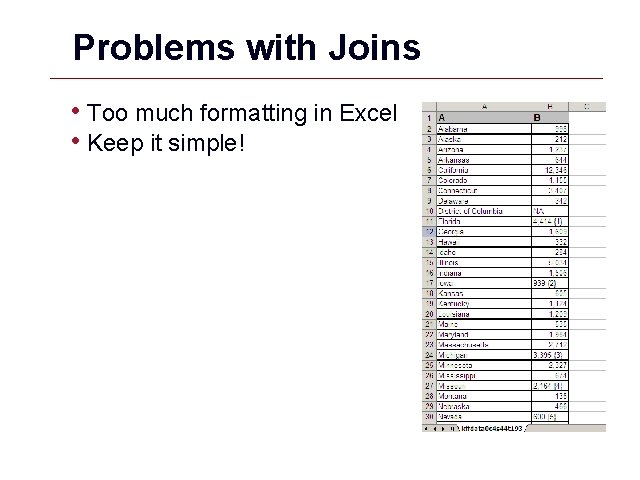

Problems with Joins • Too much formatting in Excel • Keep it simple! GIS 26
Spatial Joins GIS 27
Spatial Joins • Joins using shape (not attribute field) • Enables data aggregation (counting or summing points by polygon) • Common Spatial Joins -Points to Polygons (counts) -Polygons to Points (adds text) -Points to points (distances) GIS 28

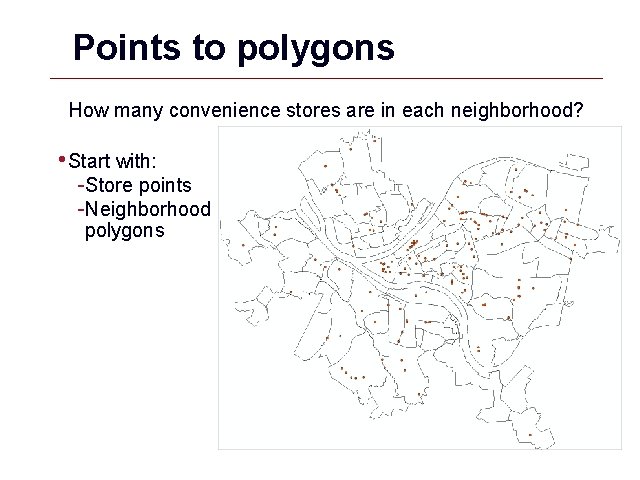

Points to polygons How many convenience stores are in each neighborhood? • Start with: -Store points -Neighborhood polygons GIS 29

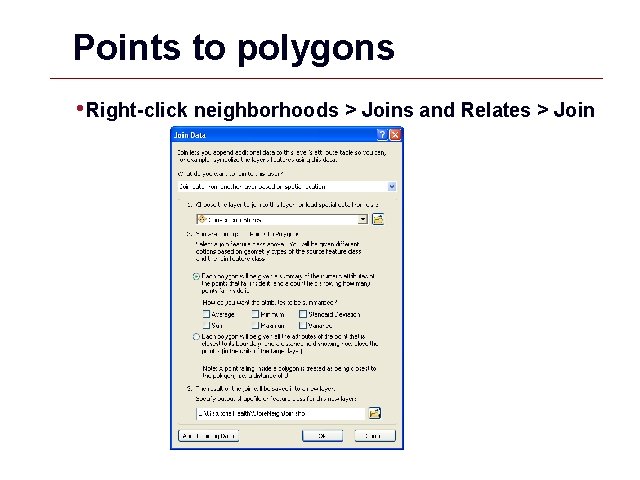

Points to polygons • Right-click neighborhoods > Joins and Relates > Join GIS 30

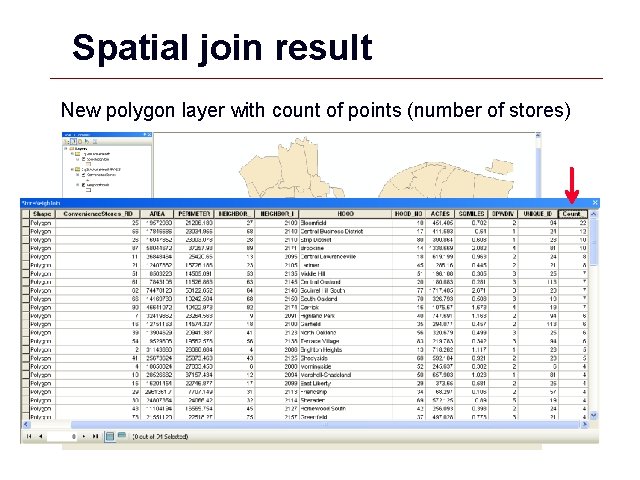

Spatial join result New polygon layer with count of points (number of stores) GIS 31
Spatial join result Show as a choropleth map, with labels, or table Neighborhood Bloomfield Central Business District Strip District Brookline Central Lawrenceville Larimer Middle Hill Central Oakland Squirrel Hill South Oakland Carrick Highland Park Garfield North Oakland Terrace Village Brighton Heights Shadyside Morningside Marshall-Shadeland East Liberty Friendship Sheraden Homewood South Greenfield Store Count 22 12 10 10 8 8 7 7 7 6 6 5 5 4 4 4 4 GIS 32
Polygons to points What neighborhood is a store in? • Start with: -Store points -Neighborhood polygons GIS 33
Polygons to points • Right-click business points> Joins and Relates > Join GIS 34
Spatial join result Point shapefile with neighborhood data on each store GIS 35

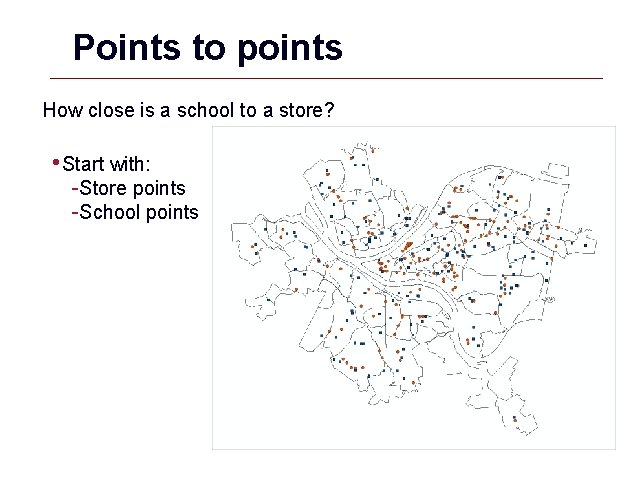

Points to points How close is a school to a store? • Start with: -Store points -School points GIS 36

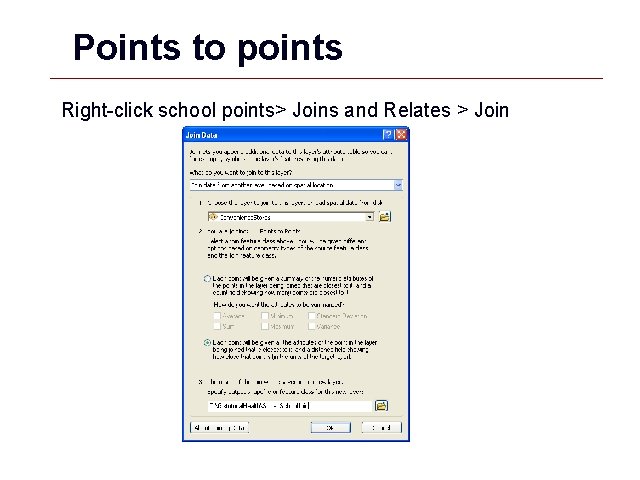

Points to points Right-click school points> Joins and Relates > Join GIS 37

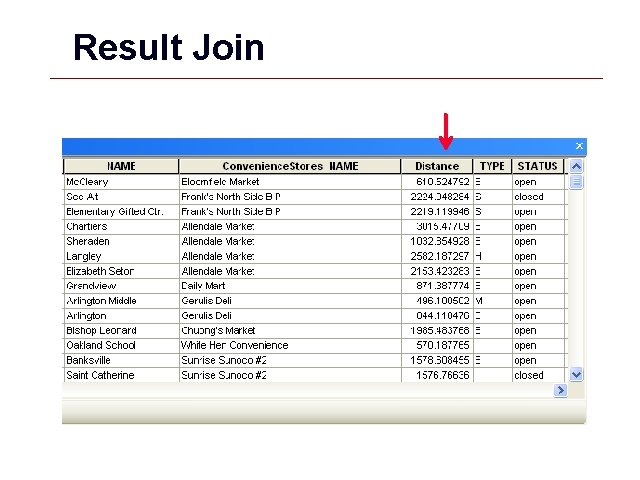

Result Join GIS 38
Geodatabases GIS 39

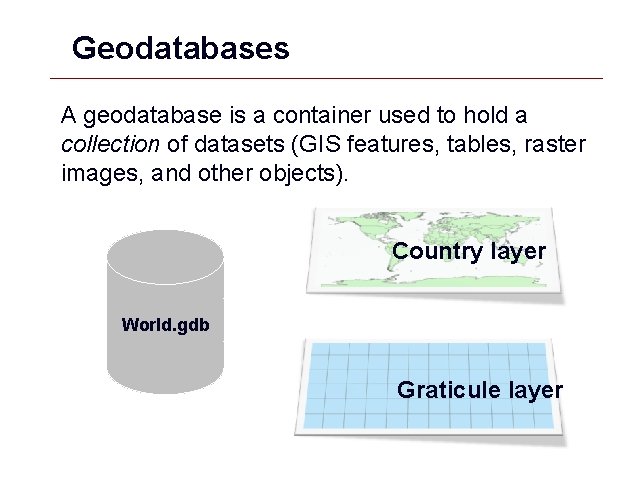

Geodatabases A geodatabase is a container used to hold a collection of datasets (GIS features, tables, raster images, and other objects). Country layer World. gdb Graticule layer GIS 40

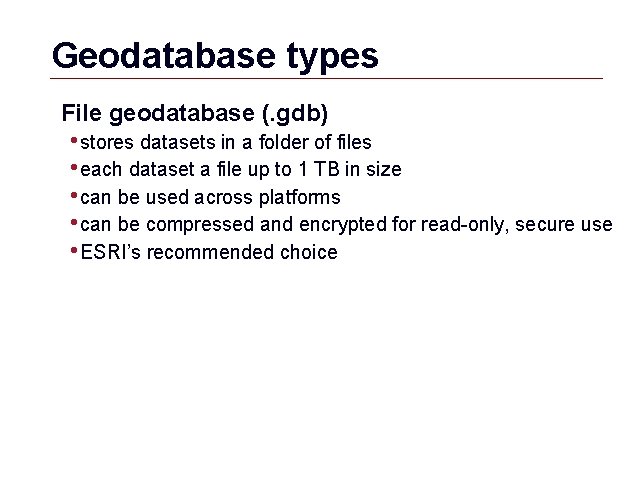

Geodatabase types File geodatabase (. gdb) • stores datasets in a folder of files • each dataset a file up to 1 TB in size • can be used across platforms • can be compressed and encrypted for read-only, secure use • ESRI’s recommended choice GIS 41

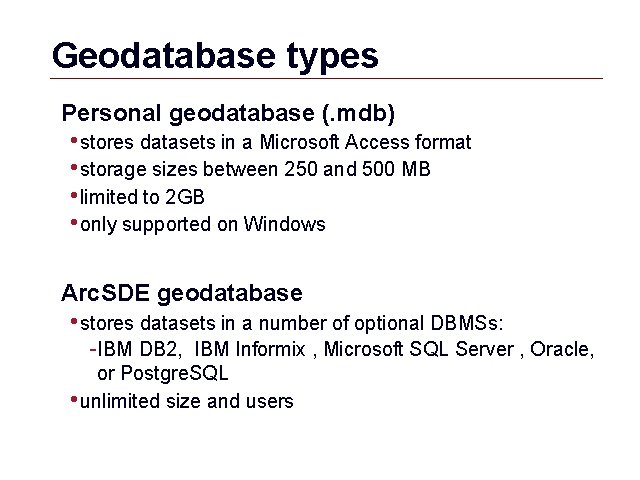

Geodatabase types Personal geodatabase (. mdb) • stores datasets in a Microsoft Access format • storage sizes between 250 and 500 MB • limited to 2 GB • only supported on Windows Arc. SDE geodatabase • stores datasets in a number of optional DBMSs: -IBM DB 2, IBM Informix , Microsoft SQL Server , Oracle, or Postgre. SQL • unlimited size and users GIS 42

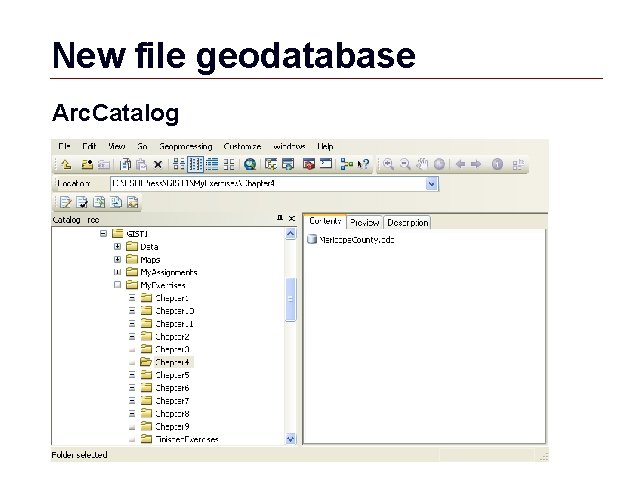

New file geodatabase Arc. Catalog GIS 43

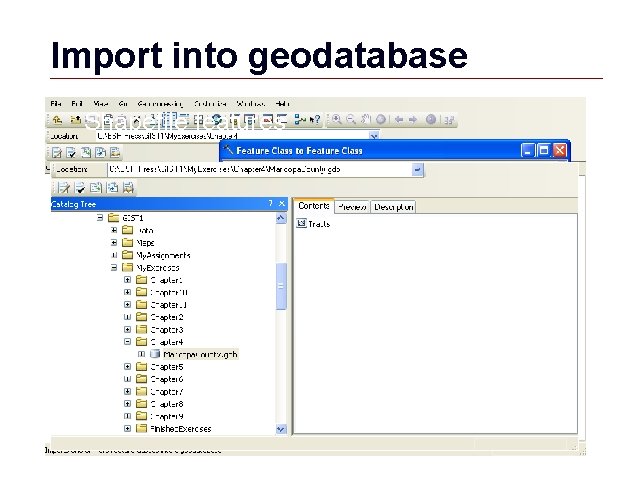

Import into geodatabase Shapefile features GIS 44
Import into geodatabase Tables GIS 45

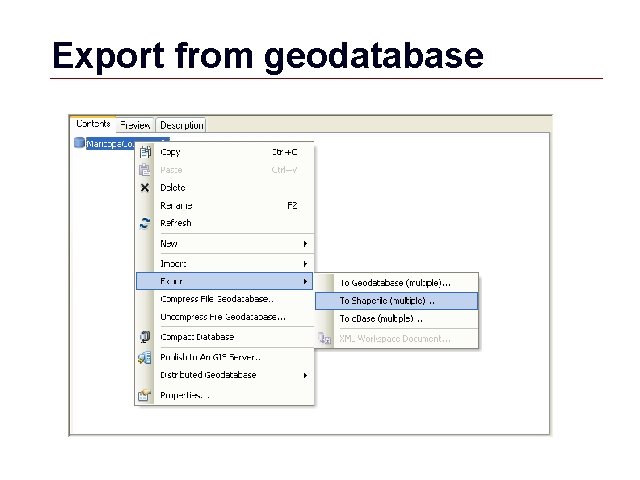

Export from geodatabase GIS 46

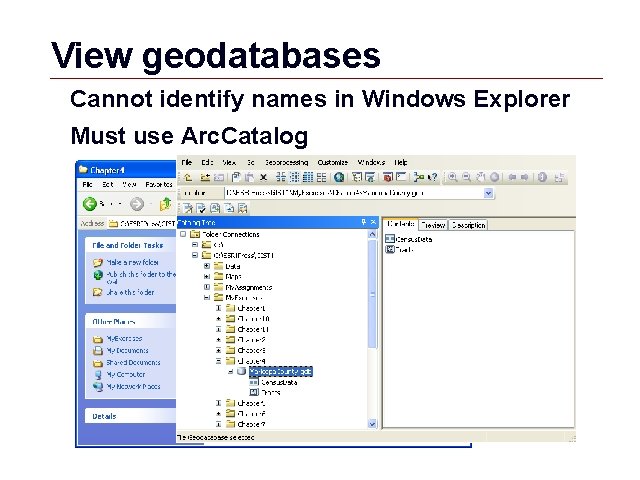

View geodatabases Cannot identify names in Windows Explorer Must use Arc. Catalog GIS 47
Compact geodatabases File and personal geodatabases • Reduces size and improves performance • Compact personal geodatabases > 250 MB. • Geodatabases with frequent data entry, deletion, or general editing • Open geodatabases in Arc. Map cannot be compacted -remove any layers with a source table or feature class in that database from the TOC GIS 48
Compress geodatabases File geodatabases • Once compressed, a feature class or table is read-only and cannot be edited • Compression is ideally suited to mature datasets that do not require further editing • Compressed dataset can be uncompressed to return it to its original, read-write format GIS 49
Arc. Catalog GIS 50

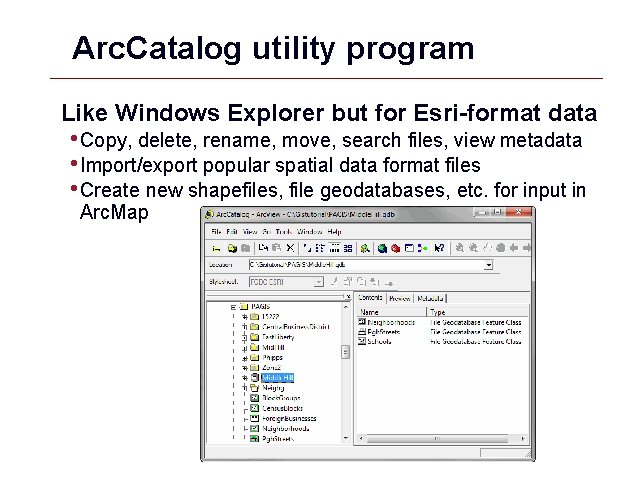

Arc. Catalog utility program Like Windows Explorer but for Esri-format data • Copy, delete, rename, move, search files, view metadata • Import/export popular spatial data format files • Create new shapefiles, file geodatabases, etc. for input in Arc. Map GIS 51

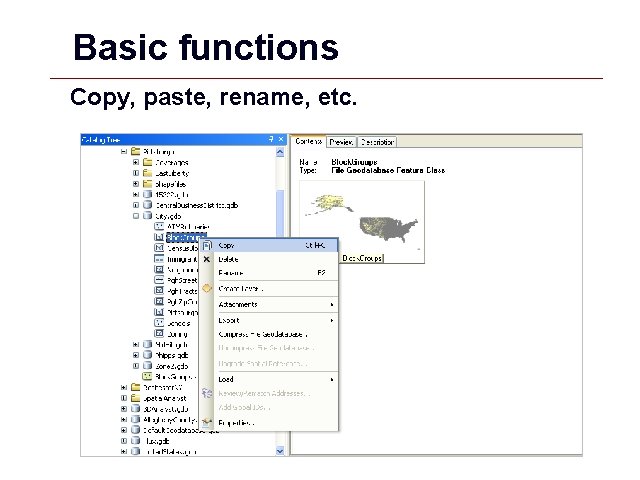

Basic functions Copy, paste, rename, etc. GIS 52
View and edit properties Projections, fields, etc. GIS 53

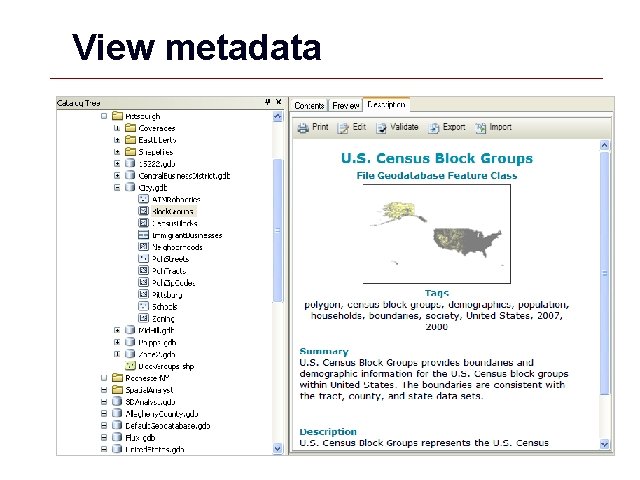

View metadata GIS 54

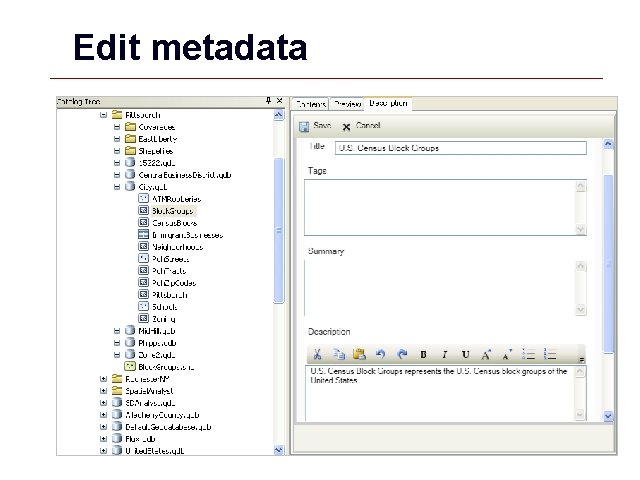

Edit metadata GIS 55

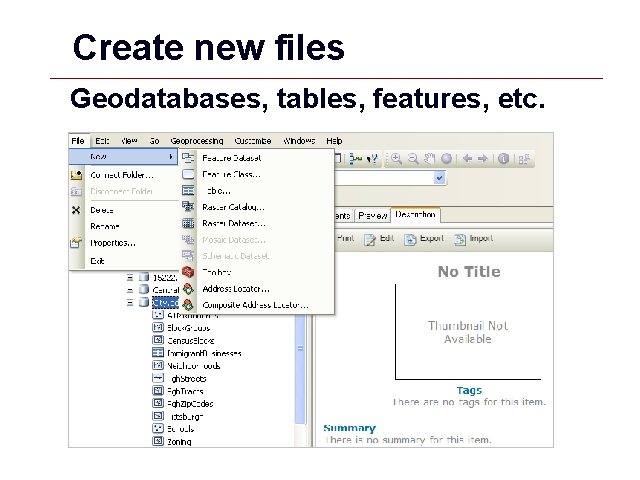

Create new files Geodatabases, tables, features, etc. GIS 56
Calculating Geometry GIS 57
Point Centroids Used to display and calculate data GIS 58
Point centroids When displaying or analyzing small polygons it is often better to use point centroids GIS 59

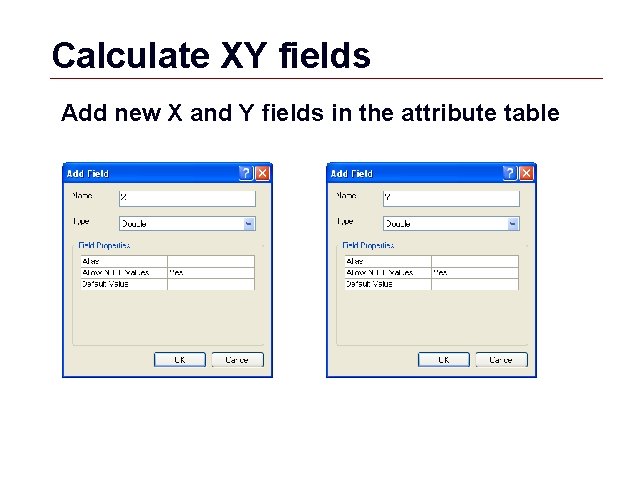

Calculate XY fields Add new X and Y fields in the attribute table GIS 60
Calculate XY fields Calculate geometry for X field, repeat for Y GIS 61
XY field results Results are X and Y values based on map properties (e. g. Long/Lat or XY feet) GIS 62
Export XY coordinates GIS 63
Add XY data table GIS 64

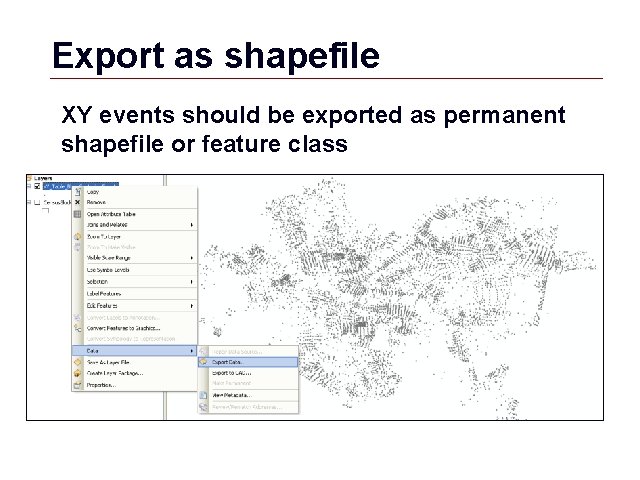

Export as shapefile XY events should be exported as permanent shapefile or feature class GIS 65

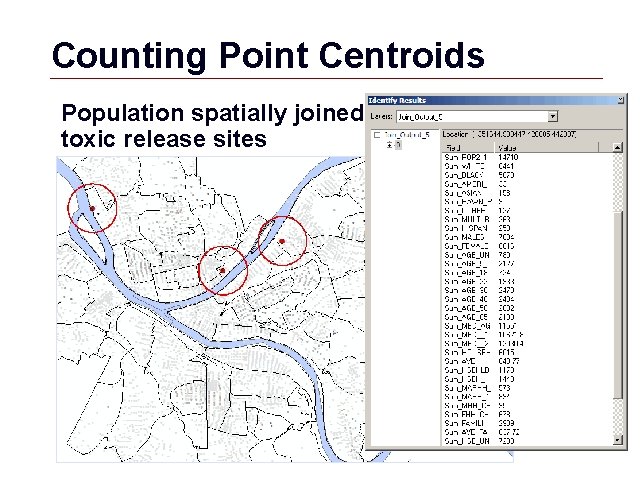

Counting Point Centroids Population spatially joined to buffer around toxic release sites GIS 66
Calculate area Add area field and calculate geometry GIS 67

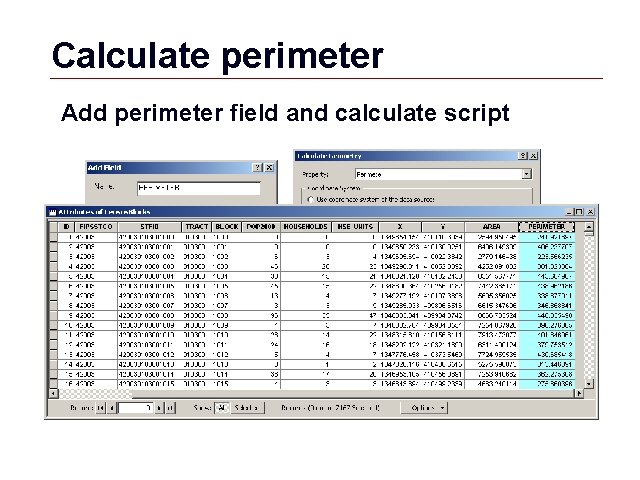

Calculate perimeter Add perimeter field and calculate script GIS 68

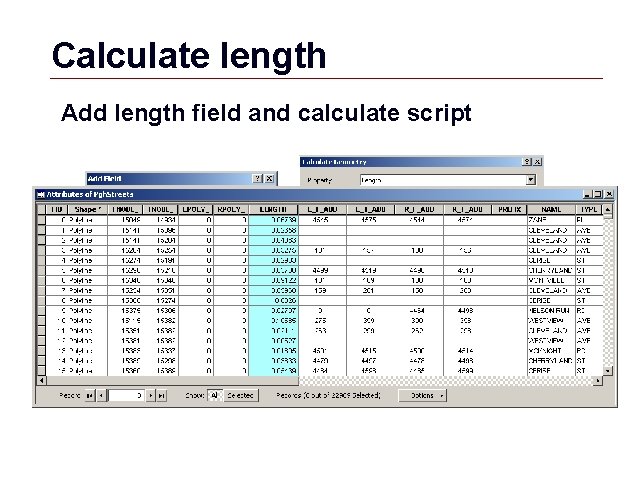

Calculate length Add length field and calculate script GIS 69
