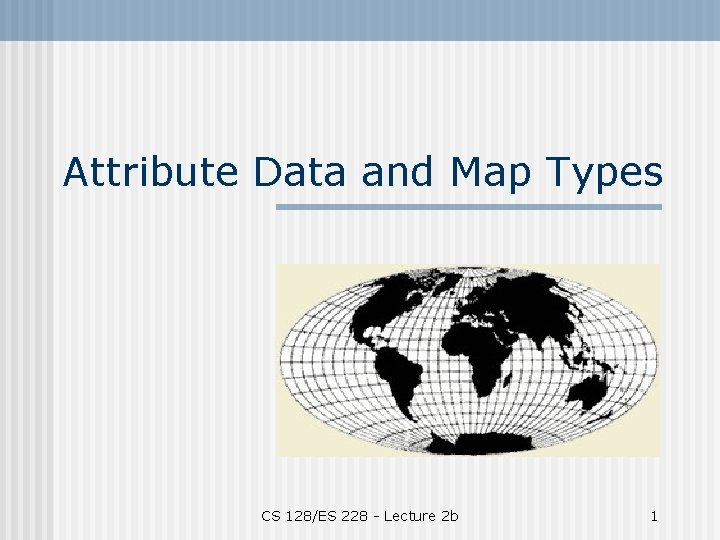

Attribute Data and Map Types CS 128ES 228
Attribute Data and Map Types CS 128/ES 228 - Lecture 2 b 1

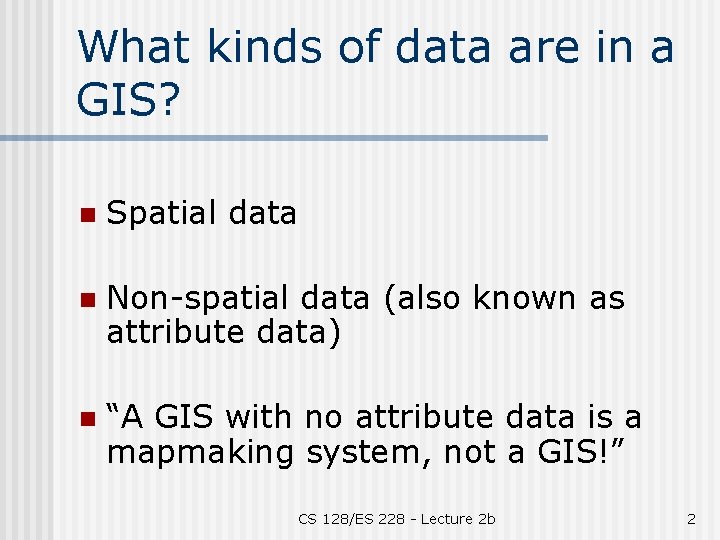

What kinds of data are in a GIS? n Spatial data n Non-spatial data (also known as attribute data) n “A GIS with no attribute data is a mapmaking system, not a GIS!” CS 128/ES 228 - Lecture 2 b 2

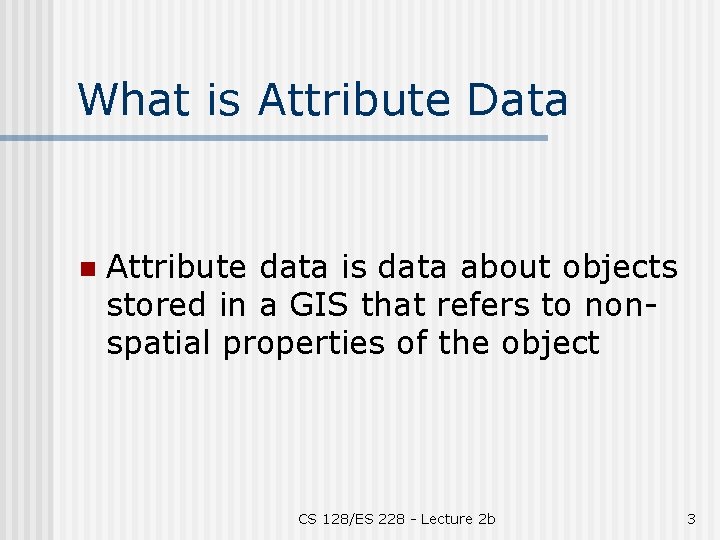

What is Attribute Data n Attribute data is data about objects stored in a GIS that refers to nonspatial properties of the object CS 128/ES 228 - Lecture 2 b 3

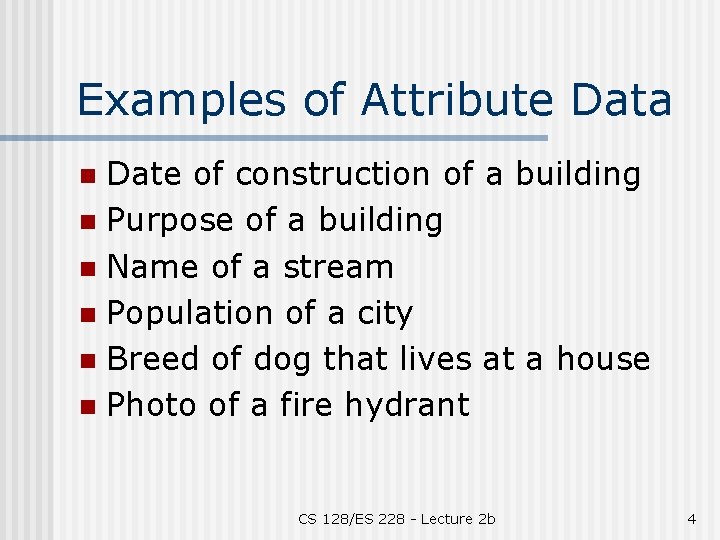

Examples of Attribute Data Date of construction of a building n Purpose of a building n Name of a stream n Population of a city n Breed of dog that lives at a house n Photo of a fire hydrant n CS 128/ES 228 - Lecture 2 b 4

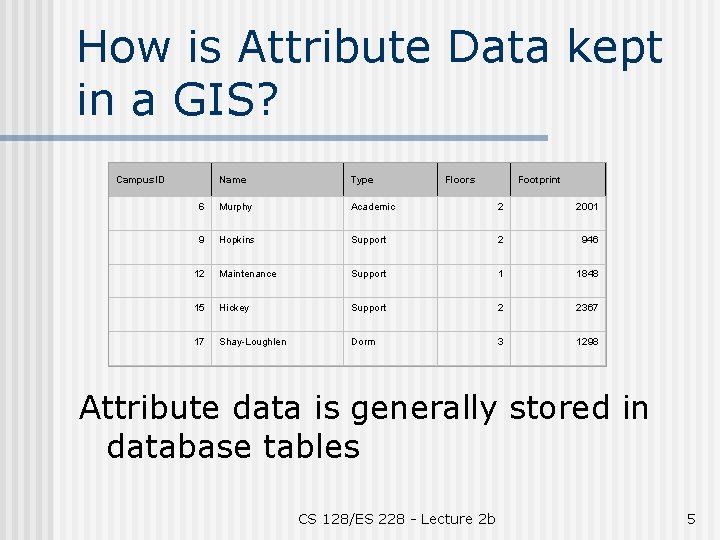

How is Attribute Data kept in a GIS? Campus. ID Name Type Floors Footprint 6 Murphy Academic 2 2001 9 Hopkins Support 2 946 12 Maintenance Support 1 1848 15 Hickey Support 2 2367 17 Shay-Loughlen Dorm 3 1298 Attribute data is generally stored in database tables CS 128/ES 228 - Lecture 2 b 5
How is Attribute Data extracted from a GIS? n GIS’s have two main types of output Reports n Maps n n As always, these can be combined CS 128/ES 228 - Lecture 2 b 6
Reports A Geographic Information System is, at its core, a database. n Good database software always has a report generator. n Ergo, one can produce reports from a GIS n CS 128/ES 228 - Lecture 2 b 7

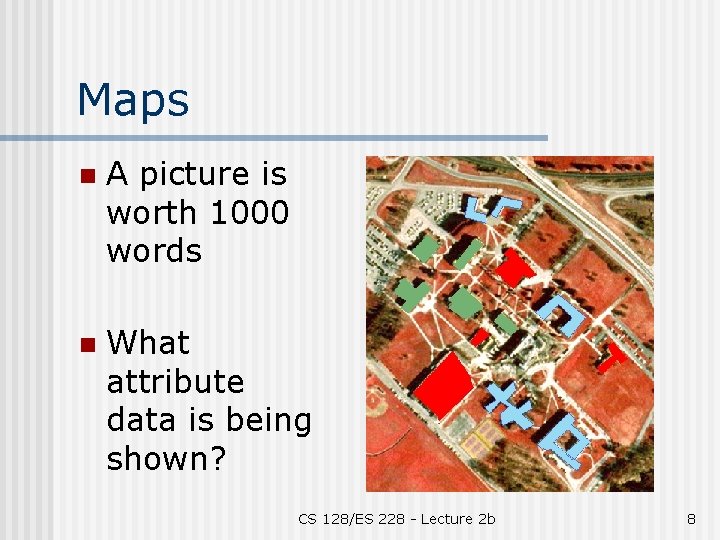

Maps n A picture is worth 1000 words n What attribute data is being shown? CS 128/ES 228 - Lecture 2 b 8

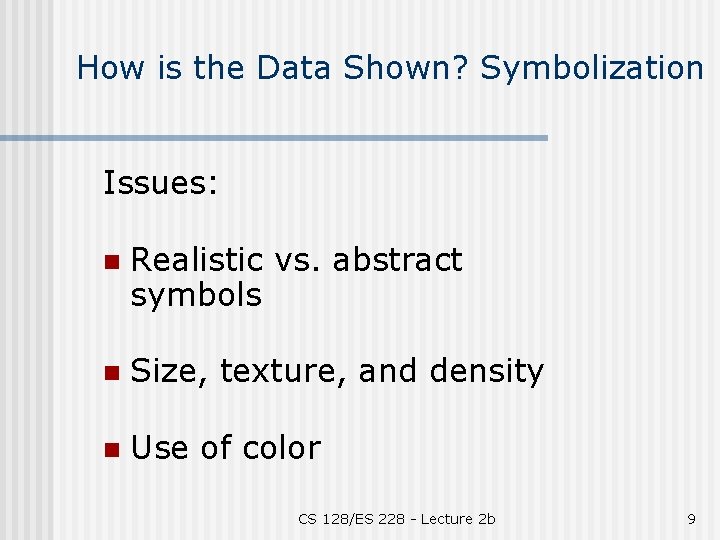

How is the Data Shown? Symbolization Issues: n Realistic vs. abstract symbols n Size, texture, and density n Use of color CS 128/ES 228 - Lecture 2 b 9

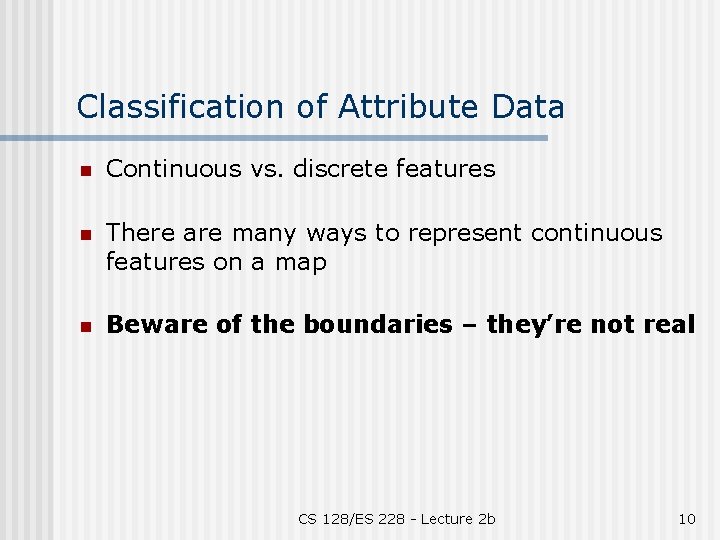

Classification of Attribute Data n Continuous vs. discrete features n There are many ways to represent continuous features on a map n Beware of the boundaries – they’re not real CS 128/ES 228 - Lecture 2 b 10
Classification issues 1. How many classes to use? 2. How to set class limits? CS 128/ES 228 - Lecture 2 b 11

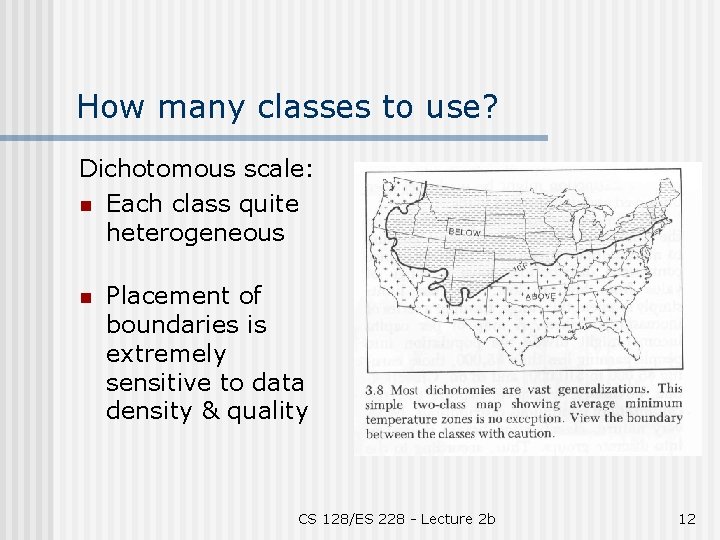

How many classes to use? Dichotomous scale: n Each class quite heterogeneous n Placement of boundaries is extremely sensitive to data density & quality CS 128/ES 228 - Lecture 2 b 12
How many classes to use? Multi-class scale: n Classes more homogeneous n Large number of classes hard to interpret Note: density of symbols should match the quantitative order of the classes CS 128/ES 228 - Lecture 2 b 13

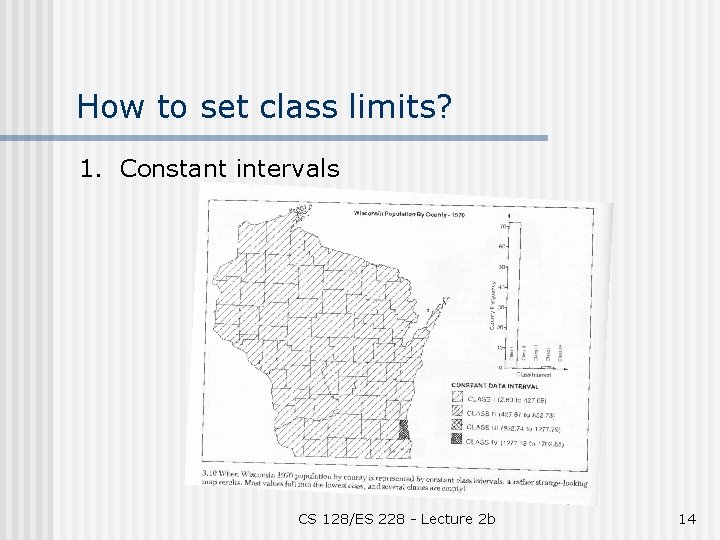

How to set class limits? 1. Constant intervals CS 128/ES 228 - Lecture 2 b 14

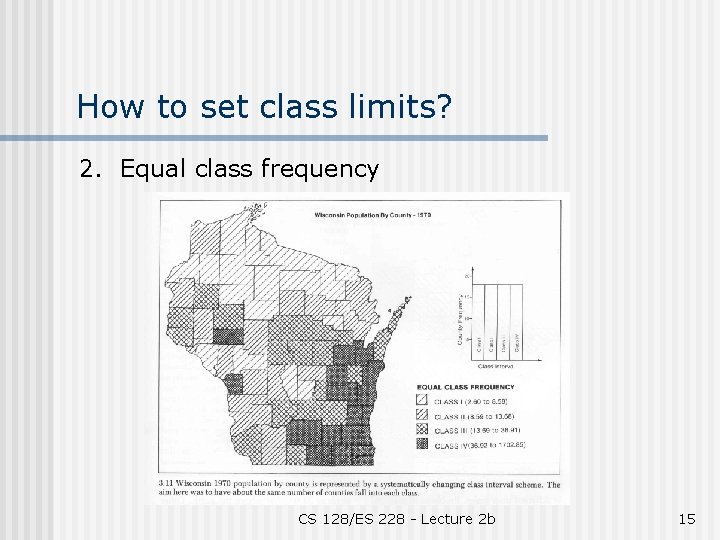

How to set class limits? 2. Equal class frequency CS 128/ES 228 - Lecture 2 b 15

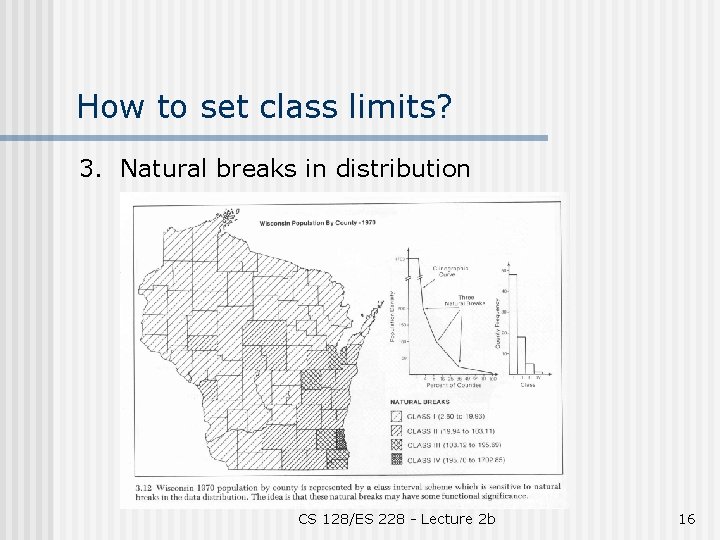

How to set class limits? 3. Natural breaks in distribution CS 128/ES 228 - Lecture 2 b 16

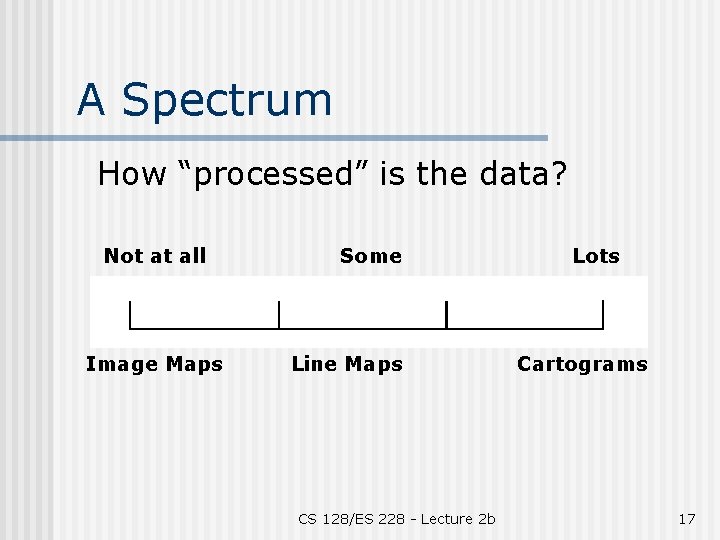

A Spectrum How “processed” is the data? Not at all Image Maps Some Line Maps CS 128/ES 228 - Lecture 2 b Lots Cartograms 17

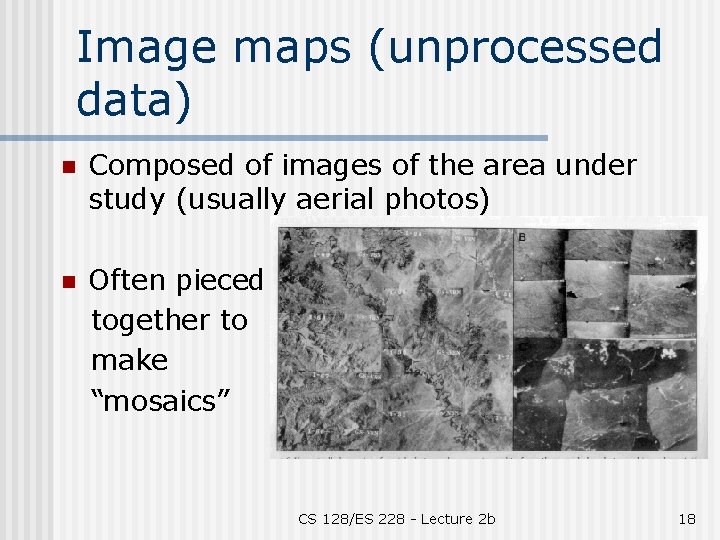

Image maps (unprocessed data) n Composed of images of the area under study (usually aerial photos) n Often pieced together to make “mosaics” CS 128/ES 228 - Lecture 2 b 18

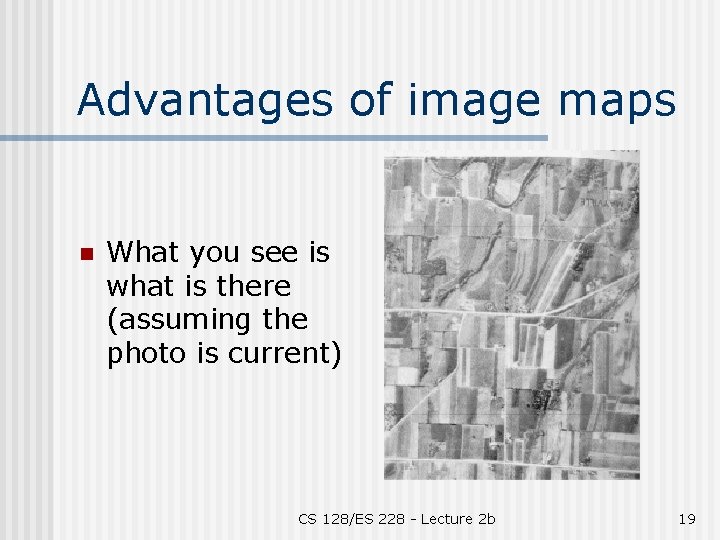

Advantages of image maps n What you see is what is there (assuming the photo is current) CS 128/ES 228 - Lecture 2 b 19

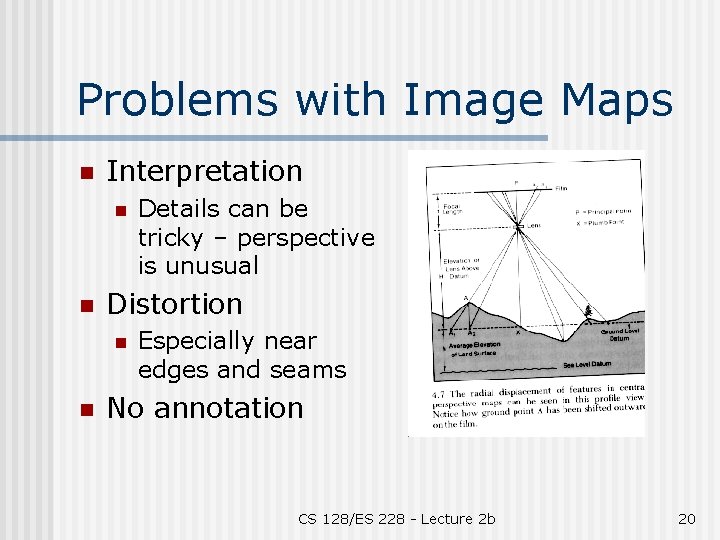

Problems with Image Maps n Interpretation n n Distortion n n Details can be tricky – perspective is unusual Especially near edges and seams No annotation CS 128/ES 228 - Lecture 2 b 20

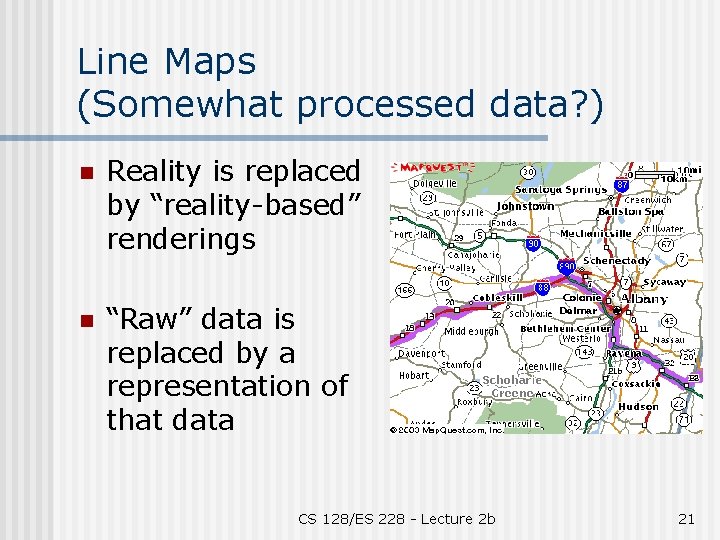

Line Maps (Somewhat processed data? ) n Reality is replaced by “reality-based” renderings n “Raw” data is replaced by a representation of that data CS 128/ES 228 - Lecture 2 b 21

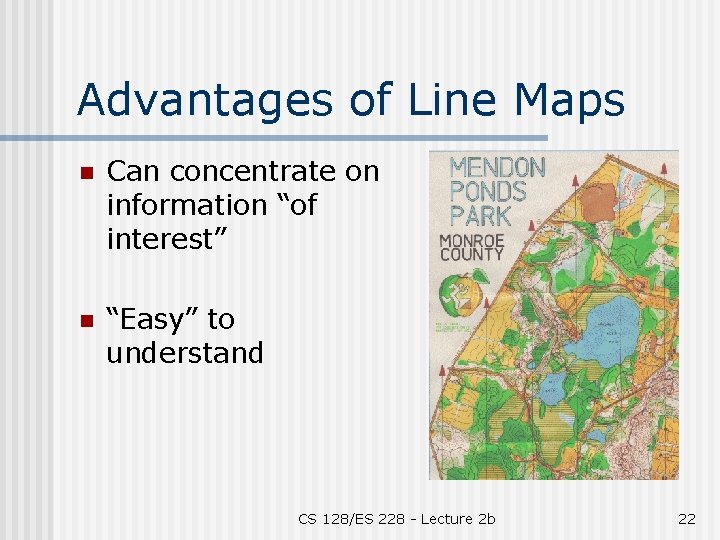

Advantages of Line Maps n Can concentrate on information “of interest” n “Easy” to understand CS 128/ES 228 - Lecture 2 b 22

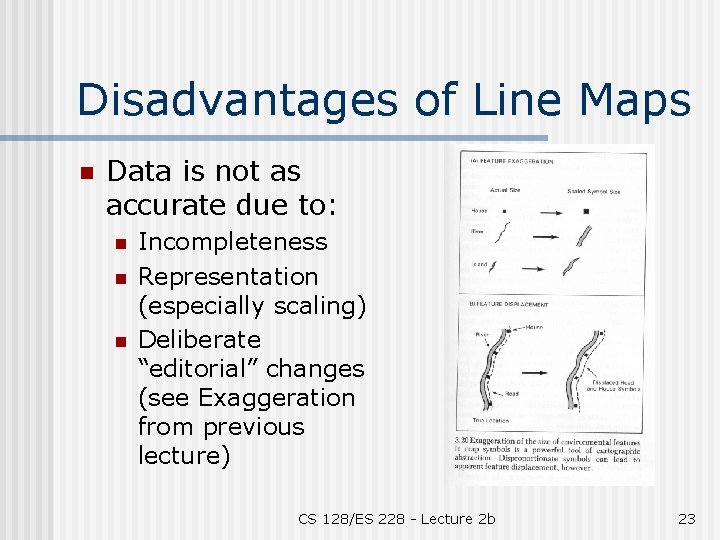

Disadvantages of Line Maps n Data is not as accurate due to: n n n Incompleteness Representation (especially scaling) Deliberate “editorial” changes (see Exaggeration from previous lecture) CS 128/ES 228 - Lecture 2 b 23
Cartograms n Similar to line maps, but geographic data is deliberately distorted to make some other point CS 128/ES 228 - Lecture 2 b 24
Utility of Cartograms n Strengths n Weaknesses n Highlight exactly what is desired n n Strong visual imagery n n Not useful outside initially intended domain Relatively difficult to produce Lots of information is lost CS 128/ES 228 - Lecture 2 b 25

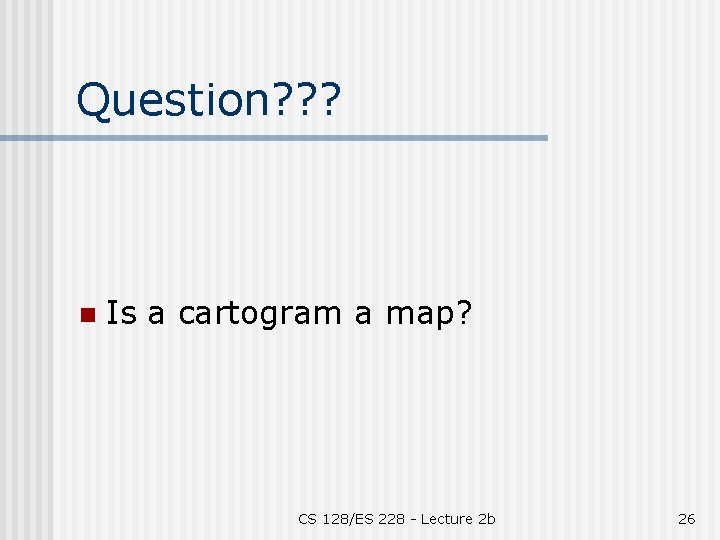

Question? ? ? n Is a cartogram a map? CS 128/ES 228 - Lecture 2 b 26

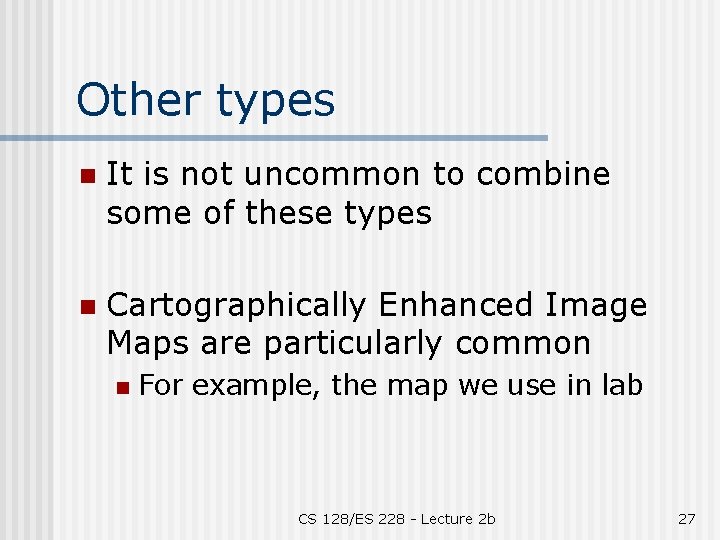

Other types n It is not uncommon to combine some of these types n Cartographically Enhanced Image Maps are particularly common n For example, the map we use in lab CS 128/ES 228 - Lecture 2 b 27

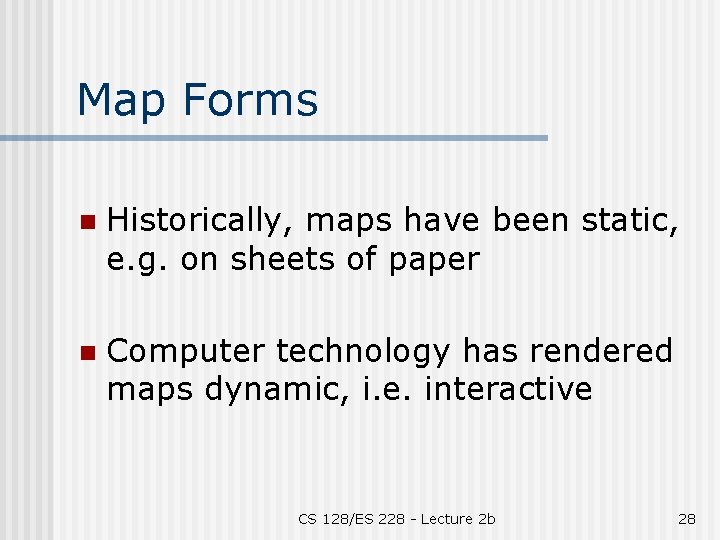

Map Forms n Historically, maps have been static, e. g. on sheets of paper n Computer technology has rendered maps dynamic, i. e. interactive CS 128/ES 228 - Lecture 2 b 28

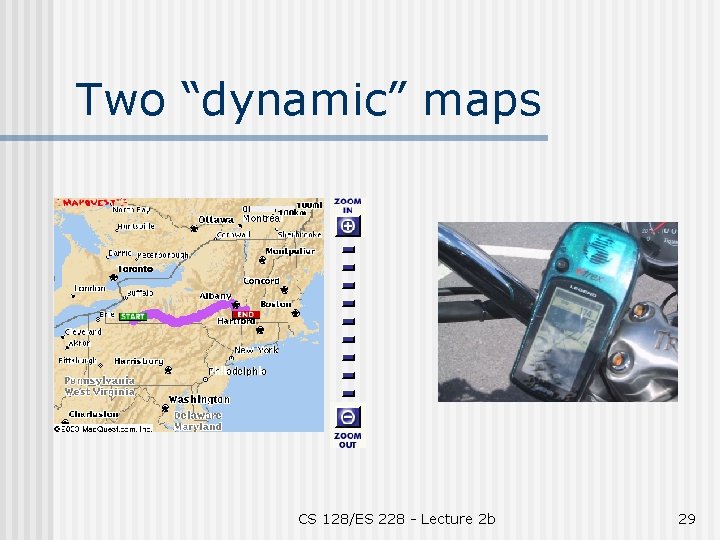

Two “dynamic” maps CS 128/ES 228 - Lecture 2 b 29
One last issue n When do we compute using the attribute data? CS 128/ES 228 - Lecture 2 b 30
Early Processing Compute your answers early and then reveal them when asked. n Commonly done for systems such as search engines n CS 128/ES 228 - Lecture 2 b 31
Late Processing n Store only your data; compute answers as needed n Map. Quest does this, as requests can’t be known in advance CS 128/ES 228 - Lecture 2 b 32

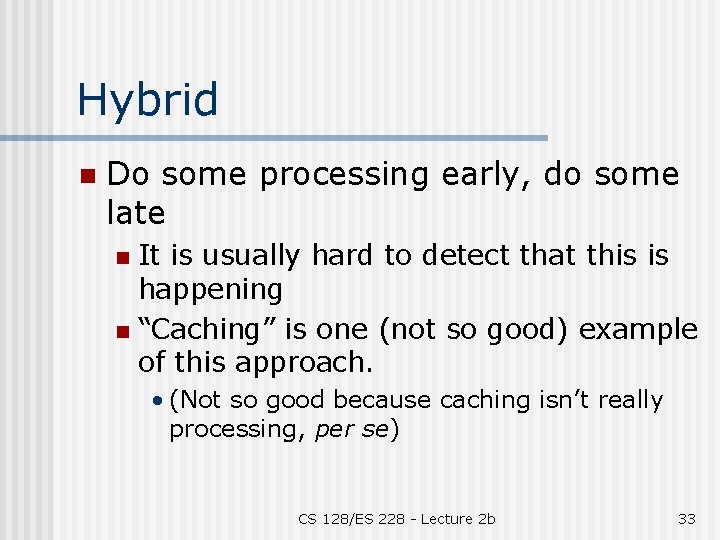

Hybrid n Do some processing early, do some late It is usually hard to detect that this is happening n “Caching” is one (not so good) example of this approach. n • (Not so good because caching isn’t really processing, per se) CS 128/ES 228 - Lecture 2 b 33

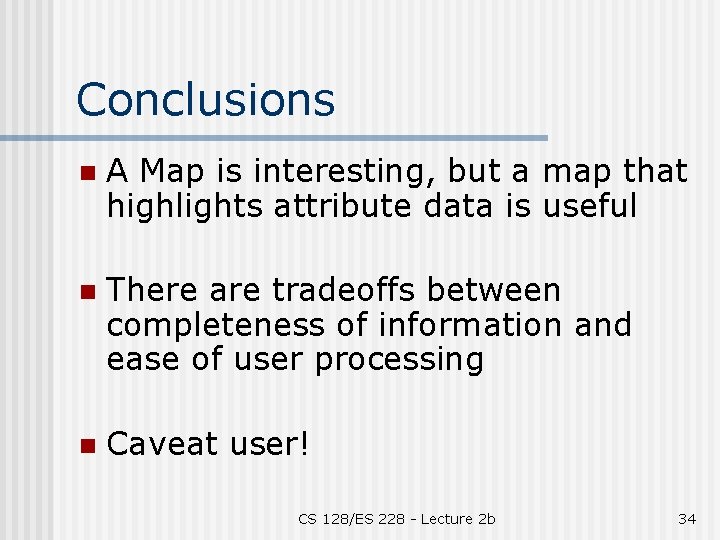

Conclusions n A Map is interesting, but a map that highlights attribute data is useful n There are tradeoffs between completeness of information and ease of user processing n Caveat user! CS 128/ES 228 - Lecture 2 b 34
