Atrioventricular AV Heart Block Chapter 17 Classification of
Atrioventricular (AV) Heart Block Chapter 17
Classification of AV Heart Blocks Degree AV Conduction Pattern Uniformly prolonged PR Degree Block interval Progressive PR interval nd 2 Degree, Mobitz Type I prolongation 2 nd Degree, Mobitz Type Sudden conduction failure II 1 St 3 rd Degree Block No AV conduction
First Degree Block • prolonged PR interval

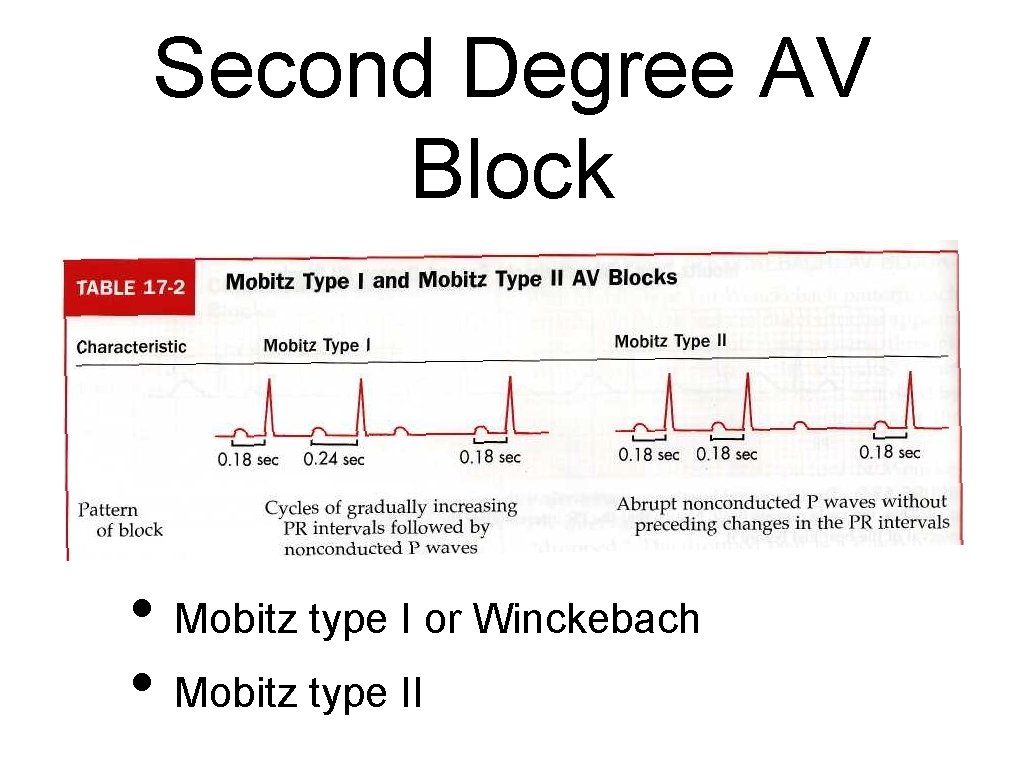

Second Degree AV Block • Mobitz type I or Winckebach • Mobitz type II
Mobitz Type I
Mobitz Type I • Progressive lengthening of the PR interval from beat to beat until a beat is dropped. • The PR interval after the nonconducted P wave is shorter than the PR interval before the nonconducted P wave.

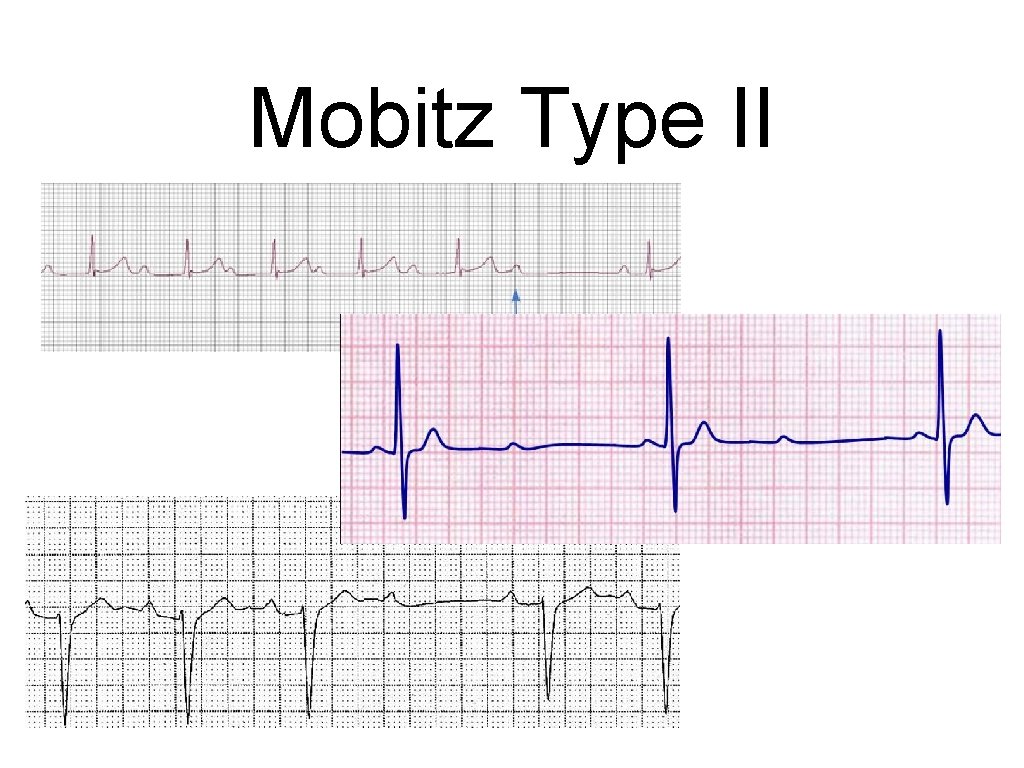

Mobitz Type II
Mobitz Type II • Sudden appearance of a single, nonconducted sinus P wave. . . • . . . without. . . • . . . the progressive prolongation of the PR intervals… • . . . and the shortening of the PR interval in the beat after the nonconducted P wave.
Advanced Second. Degree AV Block Two or more consecutive nonconducted sinus P waves

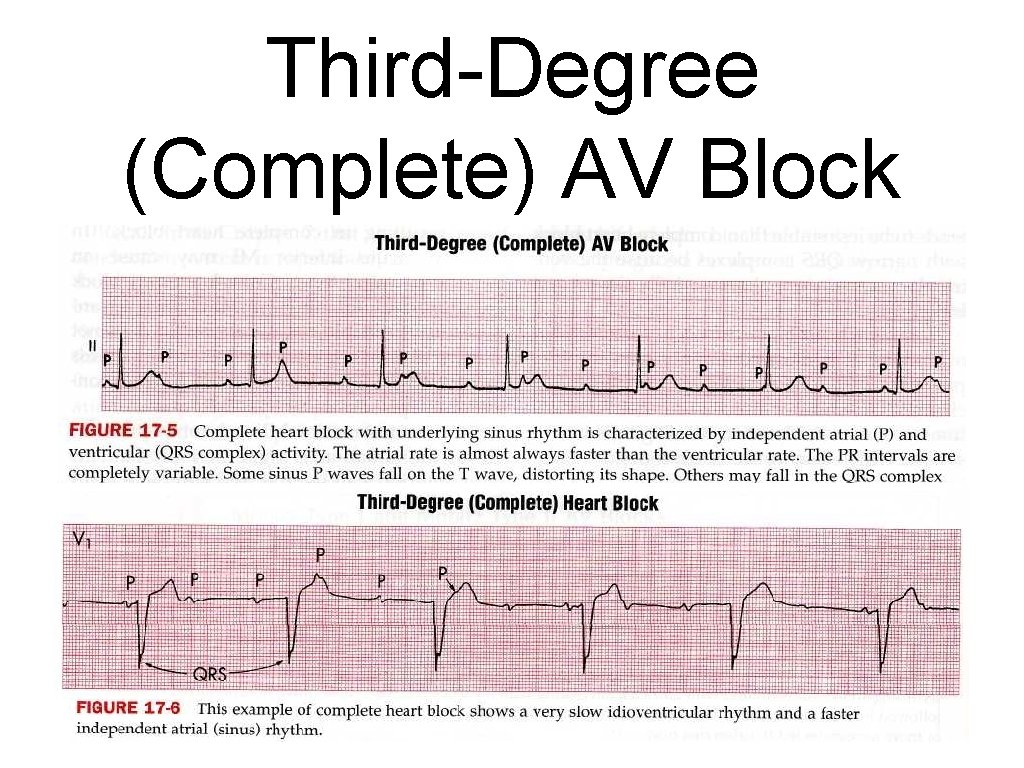

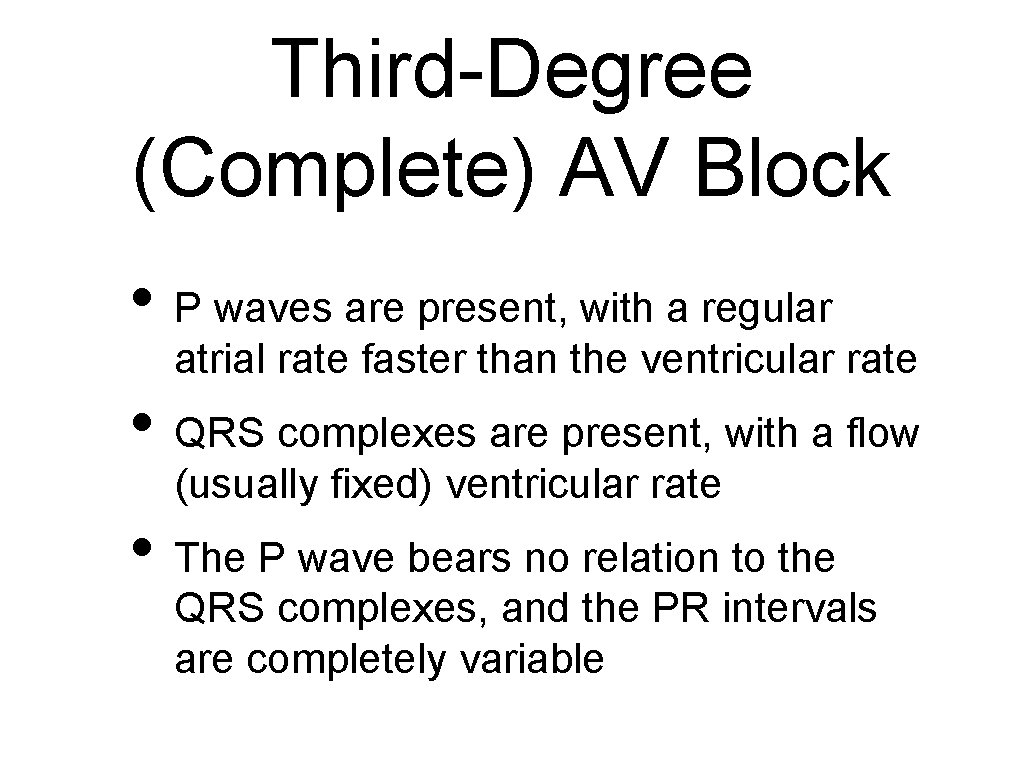

Third-Degree (Complete) AV Block
Third-Degree (Complete) AV Block • P waves are present, with a regular atrial rate faster than the ventricular rate • QRS complexes are present, with a flow (usually fixed) ventricular rate • The P wave bears no relation to the QRS complexes, and the PR intervals are completely variable
