Atomic Orbitals And Quantum Numbers Quantum Numbers A

Atomic Orbitals And Quantum Numbers

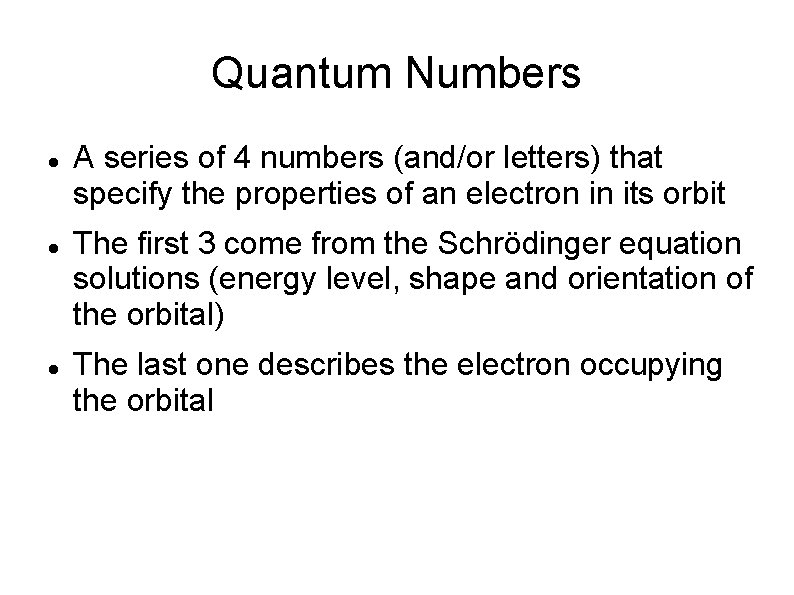

Quantum Numbers A series of 4 numbers (and/or letters) that specify the properties of an electron in its orbit The first 3 come from the Schrödinger equation solutions (energy level, shape and orientation of the orbital) The last one describes the electron occupying the orbital

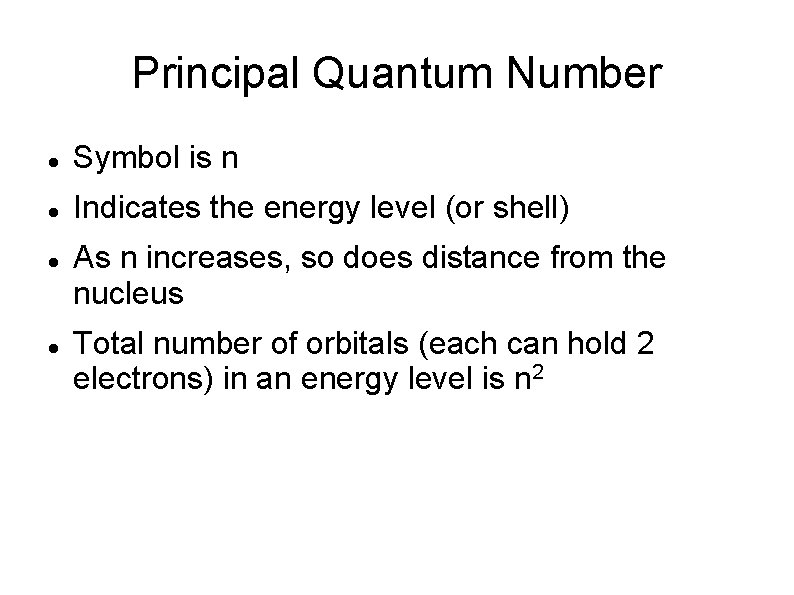

Principal Quantum Number Symbol is n Indicates the energy level (or shell) As n increases, so does distance from the nucleus Total number of orbitals (each can hold 2 electrons) in an energy level is n 2

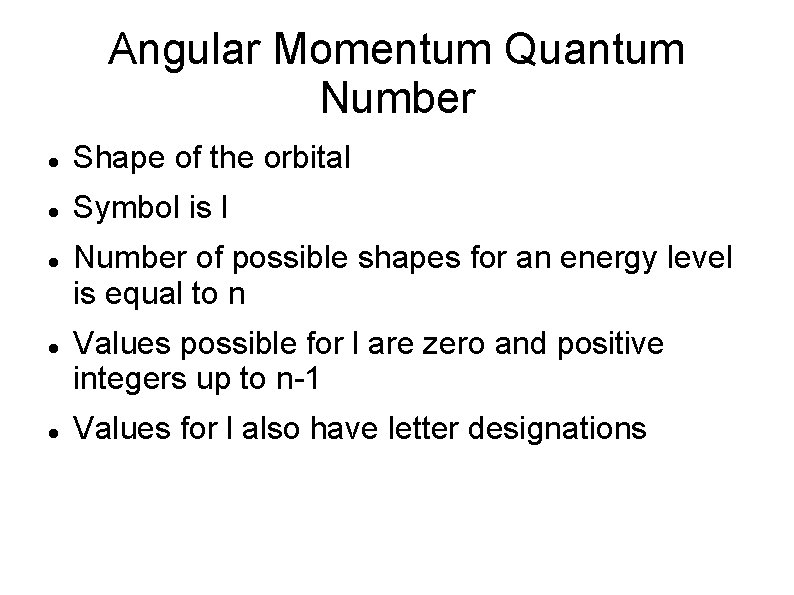

Angular Momentum Quantum Number Shape of the orbital Symbol is l Number of possible shapes for an energy level is equal to n Values possible for l are zero and positive integers up to n-1 Values for l also have letter designations

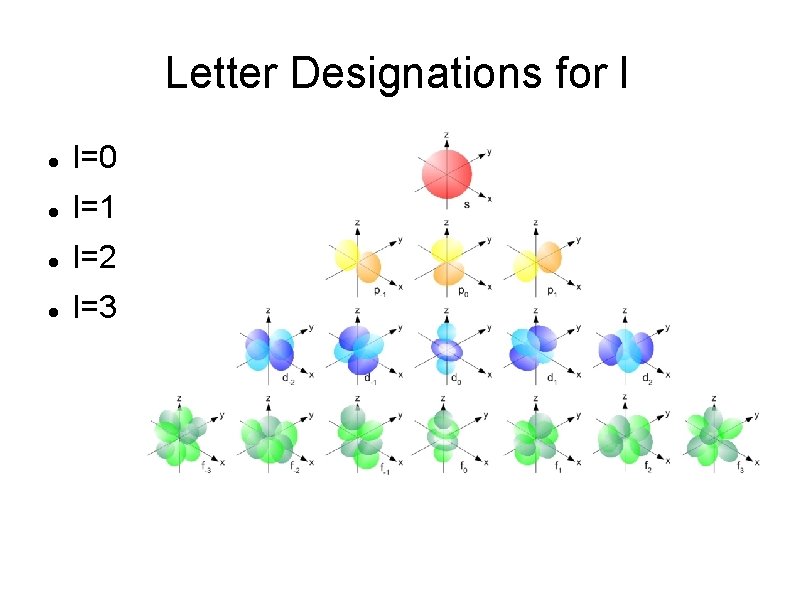

Letter Designations for l l=0 s (shape is spherical) l=1 p (shape is dumbbell) l=2 l=3 d (shape is multiple dumbbell) f (shape is complex)

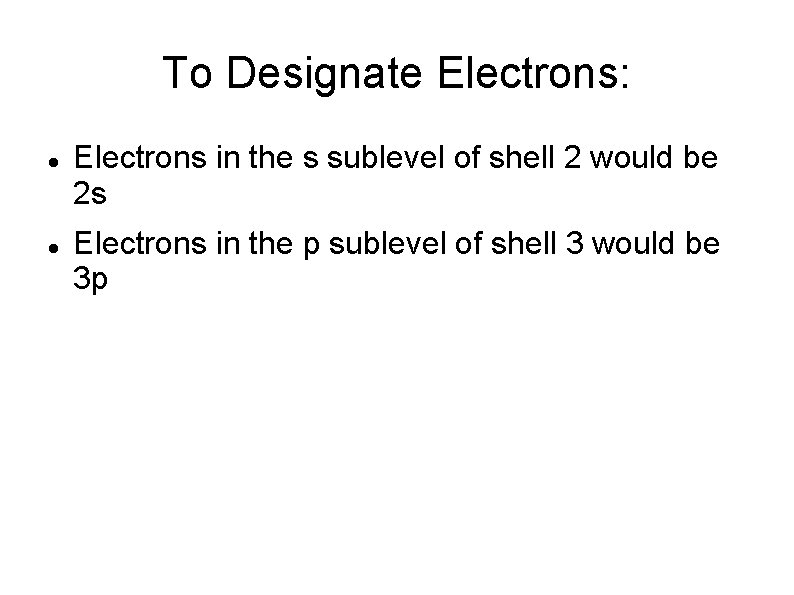

To Designate Electrons: Electrons in the s sublevel of shell 2 would be 2 s Electrons in the p sublevel of shell 3 would be 3 p

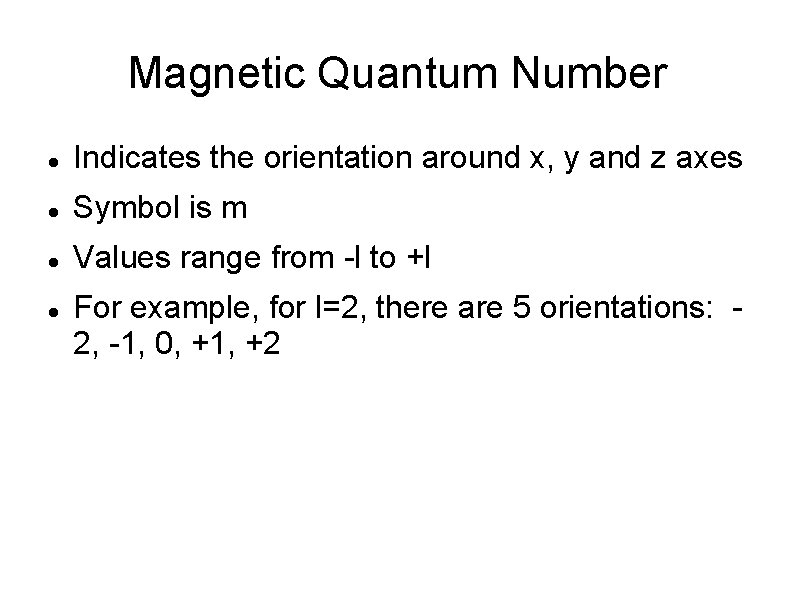

Magnetic Quantum Number Indicates the orientation around x, y and z axes Symbol is m Values range from -l to +l For example, for l=2, there are 5 orientations: 2, -1, 0, +1, +2

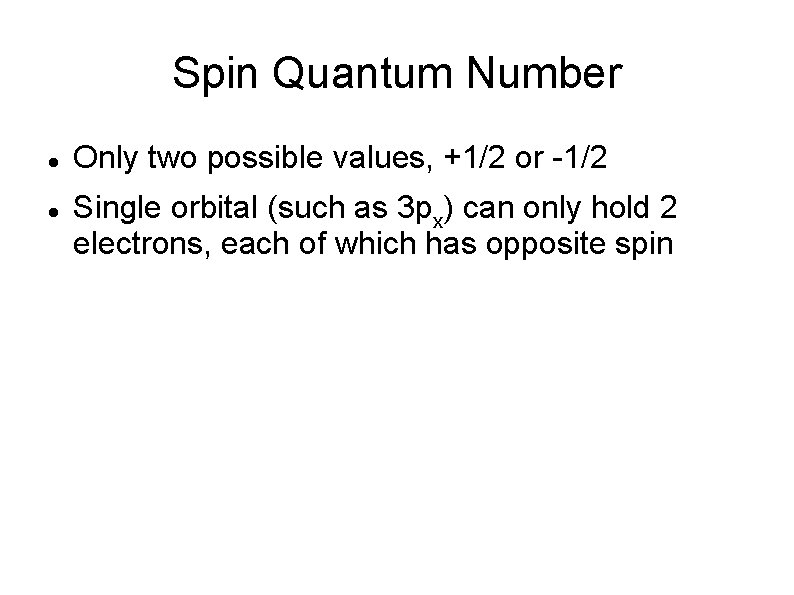

Spin Quantum Number Only two possible values, +1/2 or -1/2 Single orbital (such as 3 px) can only hold 2 electrons, each of which has opposite spin
