Atomic Absorption Terry A Ring Chemical Engineering University

Atomic Absorption Terry A. Ring Chemical Engineering University of Utah

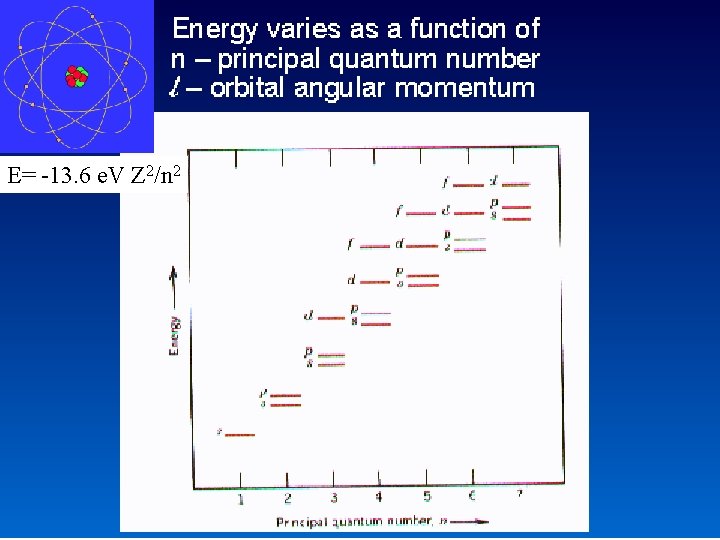

E= -13. 6 e. V Z 2/n 2

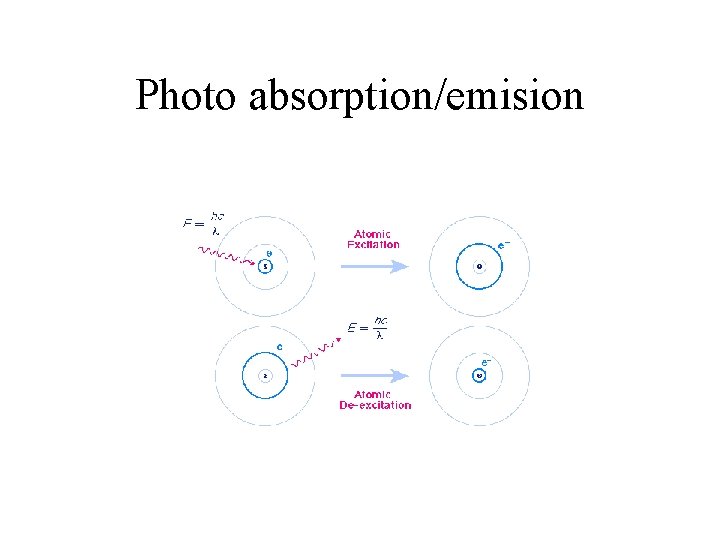

Photo absorption/emision

Atomic Absorption

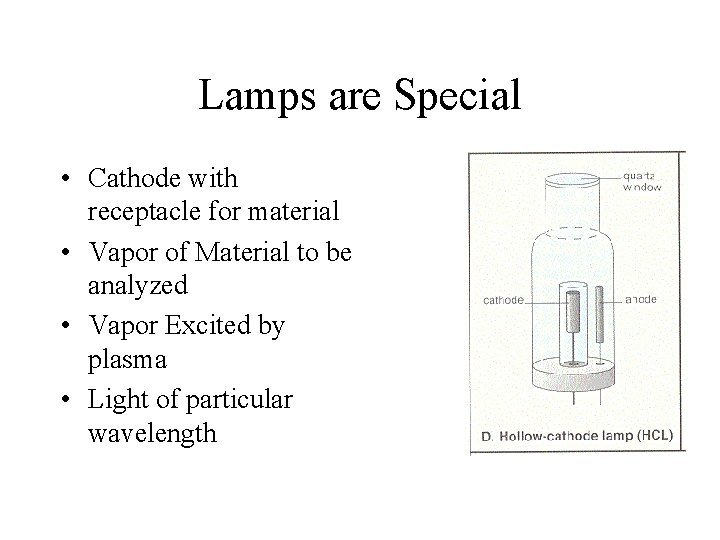

Lamps are Special • Cathode with receptacle for material • Vapor of Material to be analyzed • Vapor Excited by plasma • Light of particular wavelength

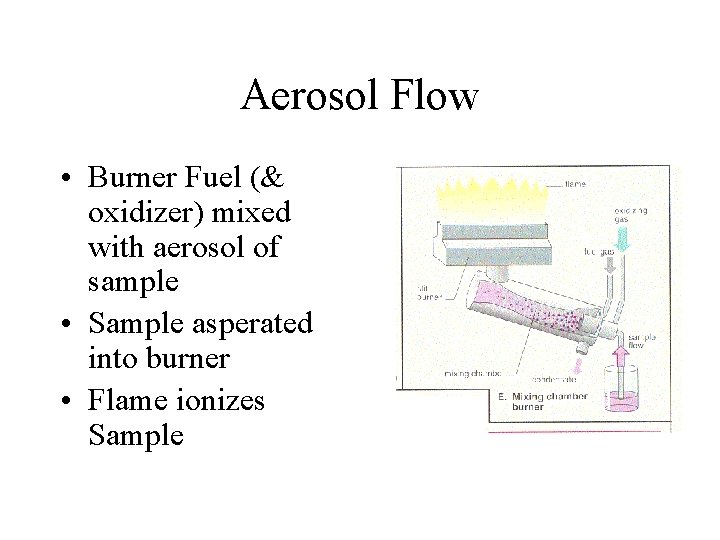

Aerosol Flow • Burner Fuel (& oxidizer) mixed with aerosol of sample • Sample asperated into burner • Flame ionizes Sample

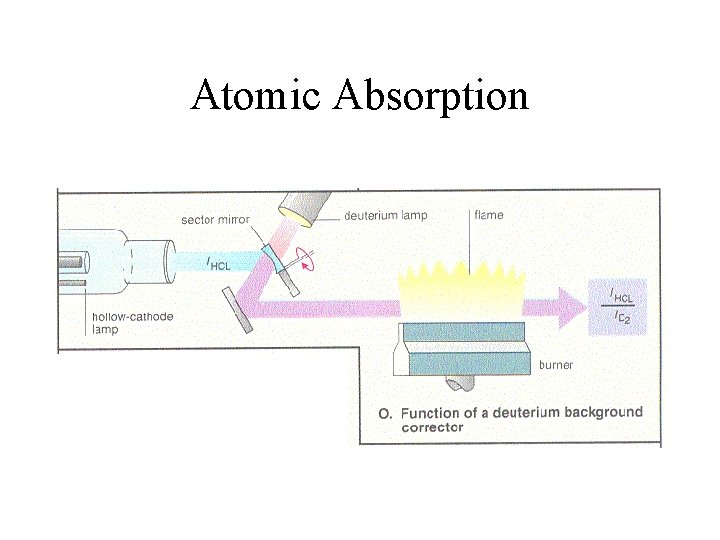

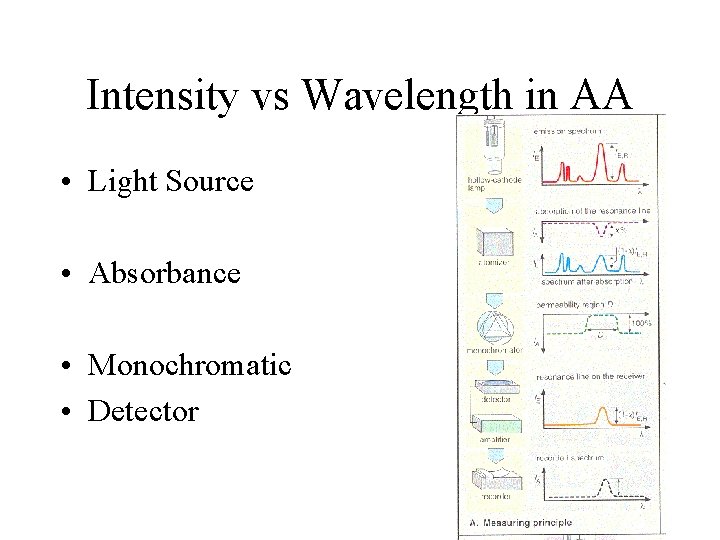

Intensity vs Wavelength in AA • Light Source • Absorbance • Monochromatic • Detector

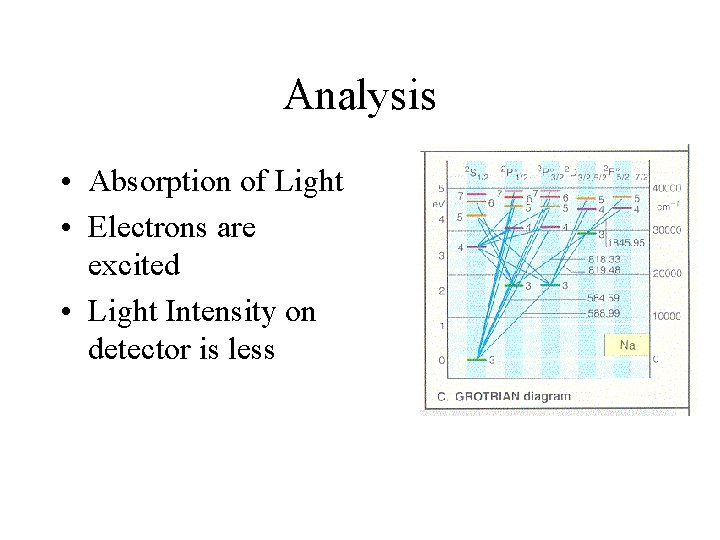

Analysis • Absorption of Light • Electrons are excited • Light Intensity on detector is less

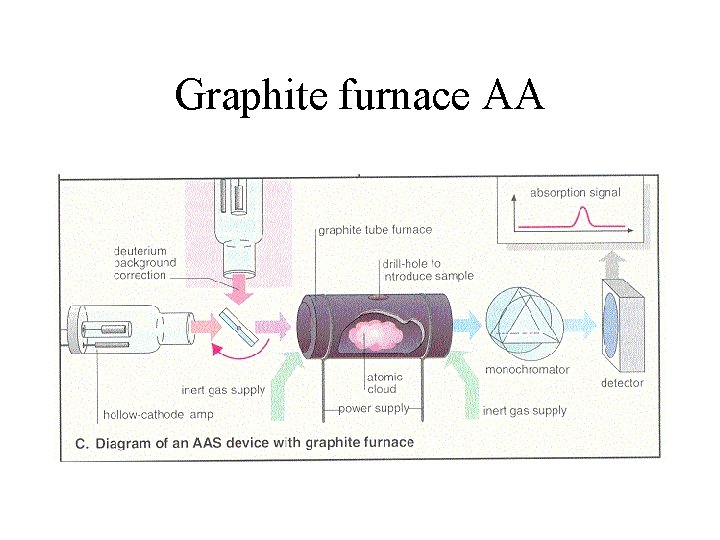

Graphite furnace AA

Other AA’s • • • Flame Spark Arc Plasma Laser X-ray

Atomic Emission Spectroscopy • Flame is used to generated Atoms with excited electrons and ions • Light is filtered in spectrometer to give Intensity vs wavelength

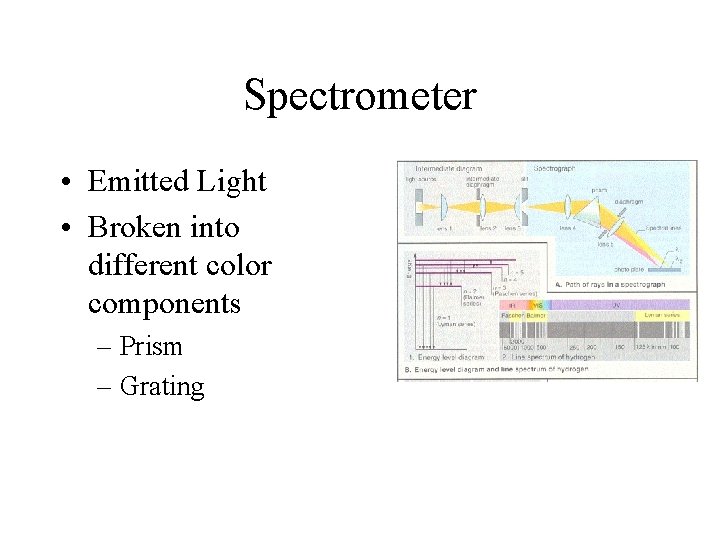

Spectrometer • Emitted Light • Broken into different color components – Prism – Grating

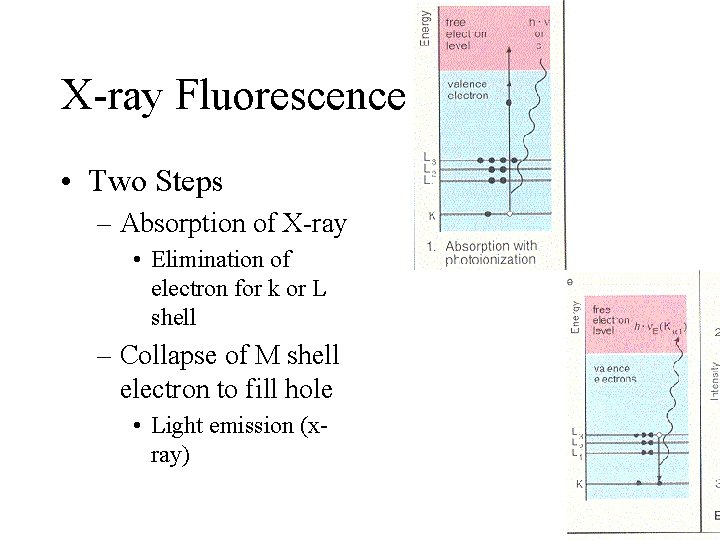

X-ray Fluorescence • Two Steps – Absorption of X-ray • Elimination of electron for k or L shell – Collapse of M shell electron to fill hole • Light emission (xray)

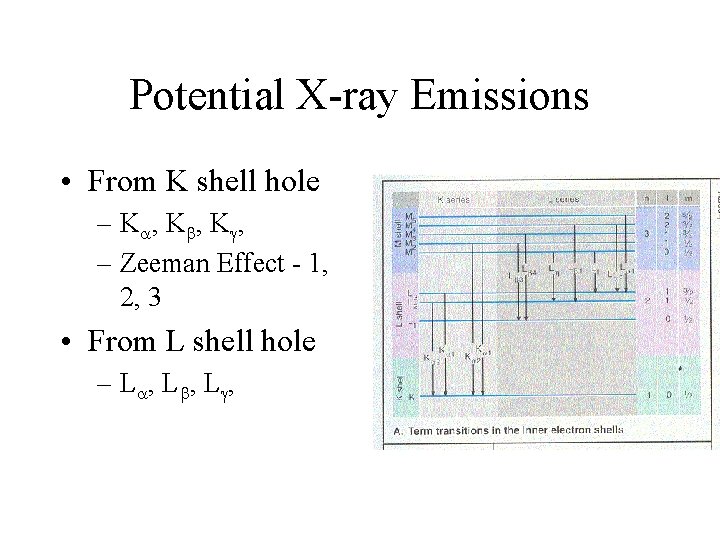

Potential X-ray Emissions • From K shell hole – K , K , – Zeeman Effect - 1, 2, 3 • From L shell hole – L , L ,

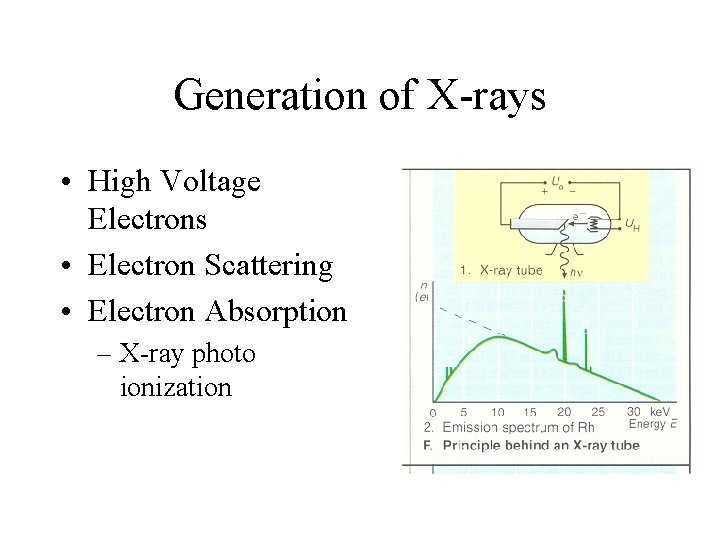

Generation of X-rays • High Voltage Electrons • Electron Scattering • Electron Absorption – X-ray photo ionization

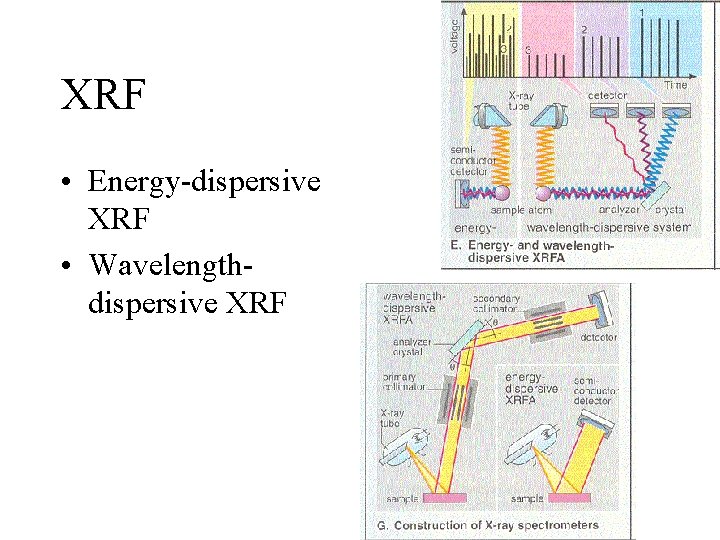

XRF • Energy-dispersive XRF • Wavelengthdispersive XRF

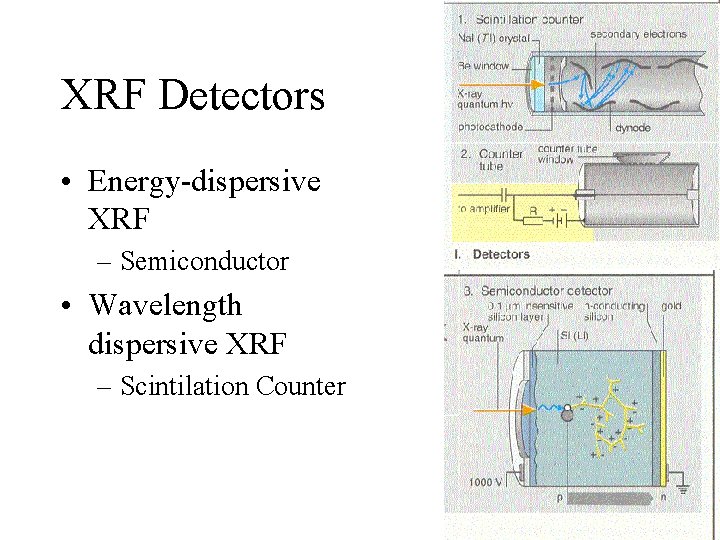

XRF Detectors • Energy-dispersive XRF – Semiconductor • Wavelength dispersive XRF – Scintilation Counter

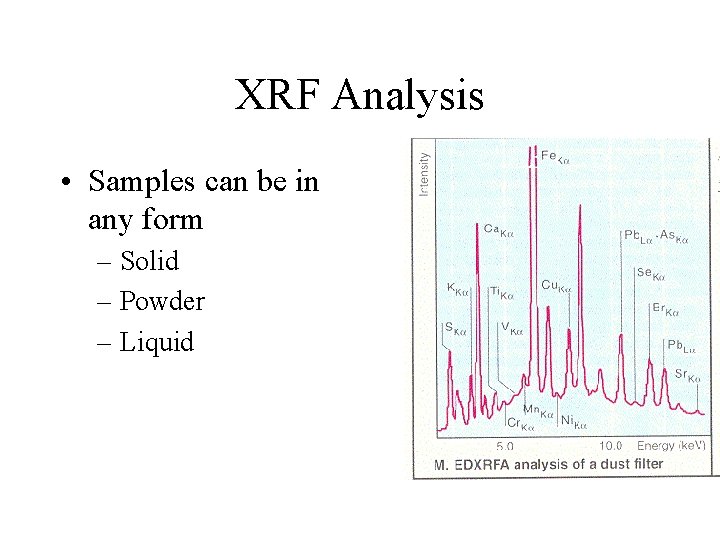

XRF Analysis • Samples can be in any form – Solid – Powder – Liquid
