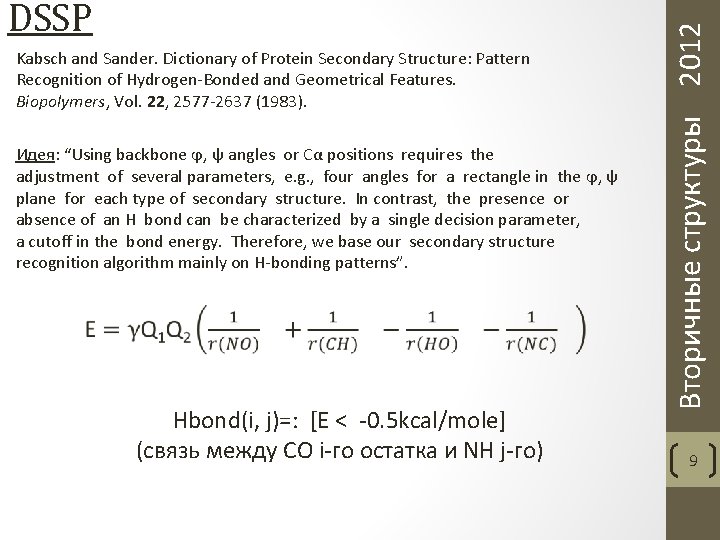

Kabsch and Sander. Dictionary of Protein Secondary Structure: Pattern Recognition of Hydrogen-Bonded and Geometrical Features. Biopolymers, Vol. 22, 2577 -2637 (1983). Идея: “Using backbone ϕ, ψ angles or Cα positions requires the adjustment of several parameters, e. g. , four angles for a rectangle in the ϕ, ψ plane for each type of secondary structure. In contrast, the presence or absence of an H bond can be characterized by a single decision parameter, a cutoff in the bond energy. Therefore, we base our secondary structure recognition algorithm mainly on H-bonding patterns”. Hbond(i, j)=: [E < -0. 5 kcal/mole] (связь между CO i-го остатка и NH j-го) Вторичные структуры 2012 DSSP 9

T: n-turn(i)=: Hbond(i, i+n), n = 3, 4, 5 H: 4 -helix(i, i+3) =: [4 -turn(i-1) and 4 -turn(i)] G: 3 -helix(i, i+2) =: [3 -turn(i-1) and 3 -turn(i)] I: 5 -helix(i, i+4) =: [5 -turn(i-1) and 5 -turn(i)] B: Parallel Bridge(i, j) =: [Hbond(i-1, j) and Hbond(j, i+1)] Antiparallel Bridge(i, j) =: [Hbond(i, j) and Hbond(j, i)] or [Hbond(i-1, j+1) and Hbond(j-1, i+1)] E: ladder =: set of one or more consecutive bridges of identical type sheet =: set of one or more ladders connected by shared residues Приоритет: H, B, E, G, I, T Вторичные структуры 2012 Паттерны DSSP 10

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 A A A A A A A M D Q F E C I N V A D A H Q K L Q E K E A V L V D I S E E E H H H H H T T E E + S-a +a -a > > S+ X S+ <>S+ ><5 S+ 3<5 S< 5 S+ < + -b -b -bc + 0 0 87 88 89 0 0 0 0 61 62 63 64 0 0 0 A 0 A 0 A 0 0 0 0 A 0 A 41 A 42 A 0 102 135 128 46 94 61 9 81 2 48 54 0 42 108 32 13 136 88 191 100 8 45 3 0 0 41 0, 0. 0 83, -0. 0 81, -0. 2 -2, -0. 3 81, -1. 8 -2, -0. 4 81, -2. 4 -2, -0. 3 81, -0. 3 2, -0. 2 -4, -2. 6 -4, -1. 9 -4, -2. 4 -4, -2. 6 -4, -2. 2 -3, -1. 6 -5, -2. 6 -6, -0. 8 38, -2. 7 16, -0. 5 38, -2. 9 16, -2. 8 38, -2. 3 85, -0. 1 2, -0. 3 83, -0. 3 2, -0. 4 83, -2. 2 2, -0. 3 83, -2. 8 4, -2. 6 4, -1. 9 4, -2. 4 4, -2. 6 4, -2. 2 5, -2. 6 3, -1. 6 -1, -0. 2 -1, -0. 3 -3, -0. 2 2, -0. 3 40, -2. 7 18, -2. 5 40, -2. 7 18, -1. 9 39, -0. 1 Вторичные структуры 2012 DSSP 0, 0. 0 2, -0. 0 76, -0. 0 81, -0. 1 -2, -0. 3 81, -0. 2 -2, -0. 5 81, -0. 2 2, -0. 2 1, -0. 2 -5, -0. 2 1, -0. 3 -5, -0. 2 -4, -0. 3 -6, -0. 2 -9, -0. 1 -2, -0. 3 11 -2, -0. 3 -2, -0. 5 -2, -0. 4 -2, -0. 5

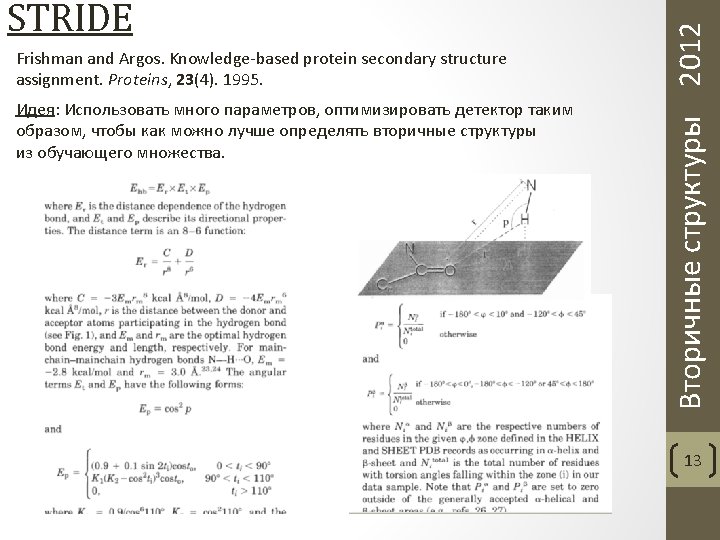

Frishman and Argos. Knowledge-based protein secondary structure assignment. Proteins, 23(4). 1995. Вторичные структуры 2012 STRIDE 14

LOC … LOC LOC … REM REM ASG ASG ASG ASG Alpha. Helix VAL PRO 9 A 29 A GLU MET 18 A 34 A Strand GLU VAL HIS 5 A 22 A 36 A ILE ASP ALA 7 A 25 A 37 A -------- Detailed secondary structure assignment|---Residue---| MET A 1 1 ASP A 2 2 GLN A 3 3 PHE A 4 4 GLU A 5 5 CYS A 6 6 ILE A 7 7 ASN A 8 8 VAL A 9 9 ALA A 10 10 ASP A 11 11 ALA A 12 12 HIS A 13 13 GLN A 14 14 |--Structure--| C Coil E Strand C Coil H Alpha. Helix |-Phi-| 360. 00 -94. 97 -136. 58 -105. 88 -124. 03 -89. 61 -129. 87 -88. 60 -67. 50 -66. 33 -62. 19 -57. 64 -59. 88 -65. 60 |-Psi-| 170. 86 14. 07 155. 89 163. 36 147. 02 131. 95 156. 48 168. 19 -29. 30 -42. 80 -48. 83 -44. 42 -41. 08 -44. 33 Вторичные структуры 2012 STRIDE 15

Martin, Letellier, Marin, Taly, de Brevern and Gibrat. Protein secondary structure a ssignment revisited: a detailed analysis of different assignment methods. BMC Structural Biology. 5(17). 2005. Вторичные структуры 2012 KAKSI 16

Martin, Letellier, Marin, Taly, de Brevern and Gibrat. Protein secondary structure a ssignment revisited: a detailed analysis of different assignment methods. BMC Structural Biology. 5(17). 2005. Вторичные структуры 2012 KAKSI 17

Вторичные структуры 2012 Sheep: Sheet Puzzle 18

Zhang, Dunker and Zhou. Assessing secondary structure assignment of protein structures by using pairwise sequence-alignment benchmarks. Proteins, 71. 2008. METYAVFGNPIAHSKSPFIHQQFAQQLNIEHPYGRVLAPIN ---EEEED-------HHHHHHX-----EEEED---MDLYAVWGNPIAQSKSPLIQNKLAAQTHQTMEYIAKLGDLD -EEEEEED-------HHHHHX----EEEEEED---- Вторичные структуры 2012 Тестирование 20

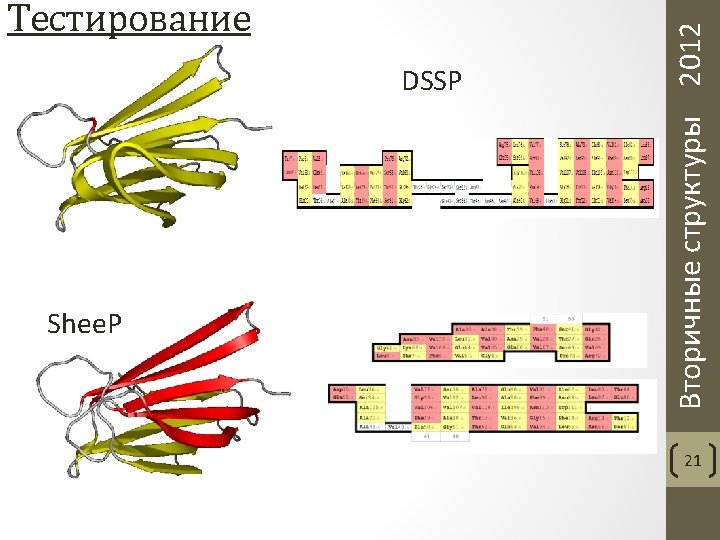

Частота ошибок, допускаемых программами DSSP, Stride и Shee. P Aksianov, Alexeevski. Shee. P: A Tool for Description of β-Sheets in Protein 3 D Structures. Journal of Bioinformatics and Computational Biology, 2012. 10(2) Вторичные структуры 2012 Тестирование 22
