ATMPOS INTEGRATION INTORDUCTION 2 Method of text transfer

ATM/POS INTEGRATION INTORDUCTION

• 2 Method of text transfer Serial port Network TCP/IP NETWORK SNIFFER

Method of text integration-RS 232 DATA POS DVR Usually for POS information overlay POS/ATM-DVR surveillance system is your prescription for POS Loss prevention. Combined with Data Capture. By bringing video and transaction data together, it provides visual contextual awareness to reduce shrinkage and protect asset against business losses. POS communicates with DVR via RS 232 ports, DVR will overlay all the information to video

1. Overlay everything Text overlay max: 32*8 line PAL: 352*288 NTSC: 352*240

Schedule ATM TEXT INTEGRAION is a very popular function in CCTV field. Specially for bank application, if we can overlay the text information such as card number, amount in the video, and search by card number, it will be very helpful for the security management of bank. Schedule: Method of text Close to ATM integration Current Solution

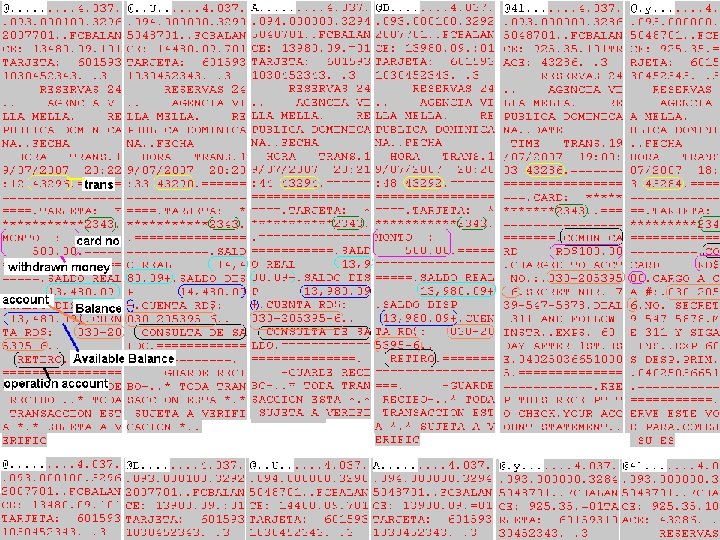

Current solution Theory---Capture the data packet AN ASCII DATA PACKET Monitor from here , we can get all of those data packets between ATM and Bank, and we can copy one Data packet from Bank center to ATM Data packet from ATM to Bank center

Current solution Theory--- Analysis of ASCII data packet Content 40 Function FLAG Offset 1 Length 2 In this Sample: 40 is the FLAG of this data packet, it means what kind of data packet it is. In this data packet, We can get all of those information that we need from this kind of data packet. Actually, we can find this kind of data packet after Check those data packets between ATM and Center An ASCII data packet via TCP/IP network There are many data packet in the network, some of them have the useful information that we need. Such as this data packet, we can get Card number, Amount, Transaction number. 04341400 00002021 81394 CARD NO 130 21 QR 100. 00 Amount 206 8 9489 TRAN NO 276 4 So, if we can find this kind of data packet and set those parameter, such as offset, length, we can get any information that we want.

Software interface & configurations Data Group: Normally, it have 4 group, that means one DVR can communicate with 4 ATMs. Rec Channel: The video channel that TEXT will be overlay on. Source IP: IP of ATM or BANK CENTER Target IP: IP of BANK CERTER or ATM Frame ID: The flag of data packet The DVR checks every data packets, and pick up the data from “Start Position”, end as “Length” bit, and compare it with the Key, if it’s equal to the key, it will look it as the one that we need. Then, DVR will capture every “Field” and overlay it line by line to the screen. Click “Data” button will popup field setting window, Display Position: Provided two options here, “Top” and “Bottom”, it will determine the overlay position. In this way, we can capture any parts of the data packet that we need. Also we provided the video record search by “Field”, we can type account, and DVR will list corresponding records.

1. Overlay everything

Hardware connection Logic map LAN Network LAN Bank server

Current solution Software interface & configurations ATM NO: Normally, it’s 4, That means one DVR can communicate with 4 ATMs. RECORD CHANNEL: The video channel that TEXT will be overlay on. Source IP: IP of ATM or BANK CENTER Destination IP: IP of BANK CERTER or ATM Frame ID: The flag of data packet the DVR checks every data packets, and pick up the data from offset position, end as length bit, and compare it with the Key, if it’s equal to the key, it will look it as the one that we need. Account, Trans No, Amount: Take those data as the rule of your setting. Sniffer menu Different interface between different software version. In this way, we can capture any parts of the data packet that we need, For details, please study our operation manual or contact us. We also provide customized software service for actual applications.

Current solution Hardware connection Logic map LAN Teller side Network LAN Bank server Actual connection To ATM 1 To BANK NETWORK To ATM 2 To ATM 3

Current solution Result & Search Input the card number in the green box Real time monitor Playback video Search menu

Close to ATM MAIN ATM BRAND NCR Diebold IBM WINCOR ATM STRUCTURE Teller System

Thanks! 1234
