Atmospheric CO 2 Global Warming Atmospheric Temperature and
Atmospheric CO 2 & Global Warming
Atmospheric Temperature and CO 2 Levels
Predicted vs Observed Temperatures (Solar Radiation)
Atmosphere Composition

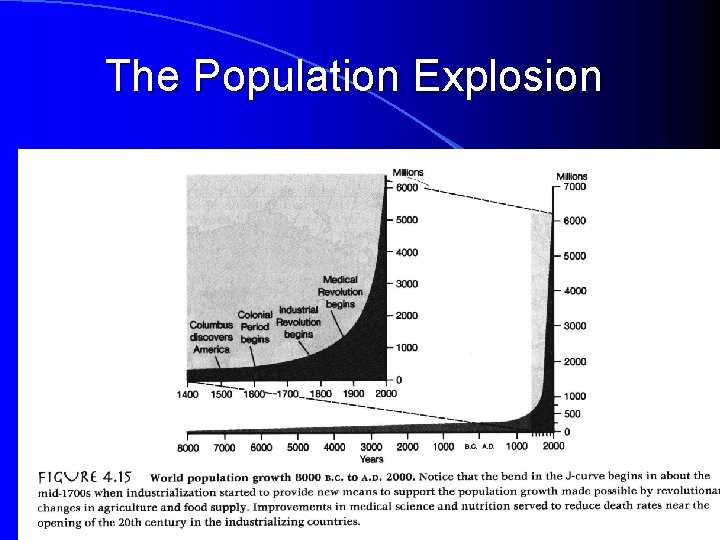

The Population Explosion

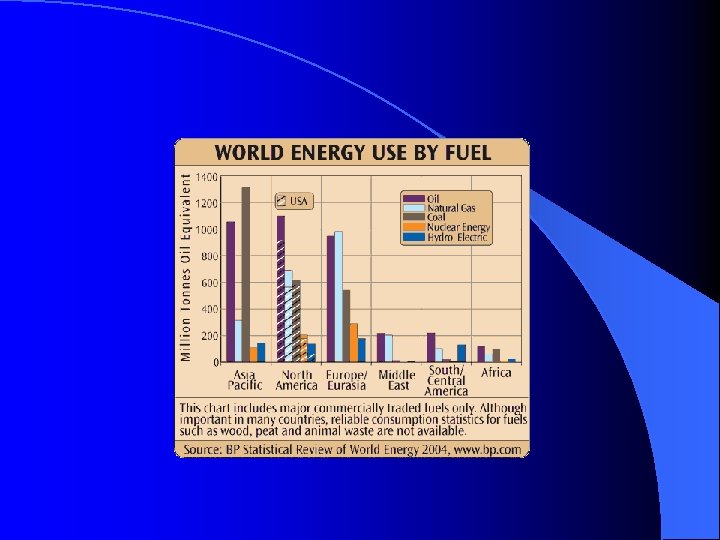

The increase in atmospheric carbon dioxide is primarily due to world energy consumption and secondarily due to deforestation.
The Carbon Cycle
Fixing Carbon (Carbon Sequestration) l Photosynthesis l 6 C 02 + 6 H 2 O C 6 H 12 O 6 + 6 O 2 l Atmospheric carbon is fixed in the biosphere. l Stable exchanges of @ 110 billion tons of carbon annually
Carbon Imbalance l Atmospheric carbon levels are at the highest level in 20 million years. l Annually between 9 and 10 billion tons MORE carbon is introduced into the atmosphere than is fixed. l Why?
Types of Carbon l Biospheric carbon and Lithospheric carbon (fossil fuels) l General balance of biospheric carbon exchange, EXCEPT for additional atmospheric carbon from deforestation l Between 1 and 2 billion tons per year. l Lithosperic carbon adds @ 8 billion tones of carbon to the atmosphere l 1 gallon of gas releases @ 5 lbs carbon (18 -19 lbs CO 2).
2010 Carbon Emissions by Country
Carbon Emissions Per Capita
World Mapper Carbon Emissions Per Capita
Atmospheric CO 2 (ppm) 400, 000 Years of Atmospheric Carbon Dioxide Data Hundreds of thousands of years ago
OK, Make it a Million Years
Causes of Global Change (population, proximate/ultimate effects) • l l l • • Population growth or resource over consumption? Impact = Population Number * Per Capita Resource Use US CO 2 emissions = ca. 4 tons C/person/year Chinese CO 2 emissions = ca. 0. 2 tons. C/person/year US Impact = 4 ton C /person x ca. 270, 000 =ca. 1. 1 billion tons C/year Chinese Impact =. 2 ton C /person x 1. 4 billion people =ca. 0. 3 billion tons C/year

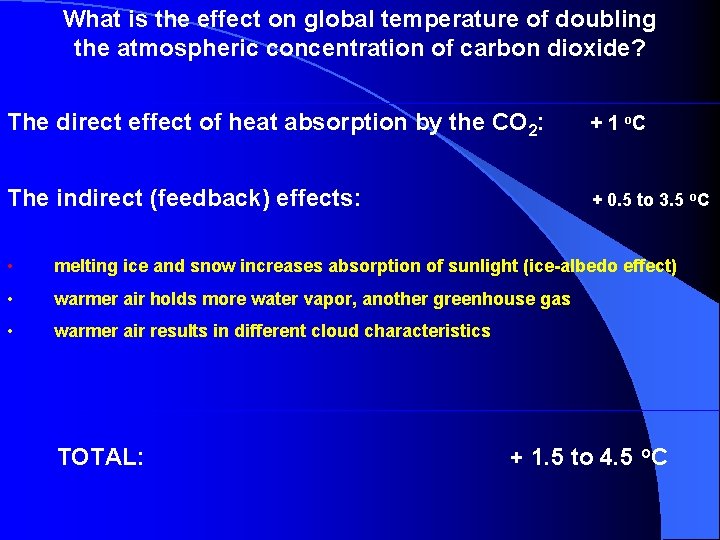

What is the effect on global temperature of doubling the atmospheric concentration of carbon dioxide? The direct effect of heat absorption by the CO 2: + 1 o. C The indirect (feedback) effects: + 0. 5 to 3. 5 o. C • melting ice and snow increases absorption of sunlight (ice-albedo effect) • warmer air holds more water vapor, another greenhouse gas • warmer air results in different cloud characteristics TOTAL: + 1. 5 to 4. 5 o. C
IMPACTS OF GLOBAL WARMING • Threats to Food Production (Diminished Water Supplies) • Human Health Impacts (Heat Waves, Infectious Disease) • Wildfire • Sealevel Rise • Ecological Effects: • Extinction Episode Comparable to K-T Boundary • Spread of Invasive Species • Coral Bleaching • Biome Shift Northwards • Climate Hot Map
Future energy policy will determine this This warming has already occurred 2100 1000 Year
How Serious Is This? l l l Warming of more than 10 C above today’s level will make the Earth warmer than it has been in a million years. Business-as-usual, with fossil fuel CO 2 emissions continuing to increase will mean an additional warming of 20 C to 30 C this century and will make the Earth a different planet. At 20 C to 30 C the new sea level would be 25 meters (80 feet) higher than today. Dr. James Hansen, NASA GISS
New Haven Montauk New York City Long Beach Atlantic City Weiss and Overpeck, University of A Wildwood
New Haven Montauk New York City Long Beach Atlantic City Sea Level +1 M Weiss and Overpeck, University of A Wildwood
New Haven Montauk New York City Long Beach Atlantic City Sea Level +6 M Weiss and Overpeck, University of A Wildwood
Dover Ocean City Hampton Virginia Beach Norfolk Weiss and Overpeck, University of Arizo
Dover Ocean City Hampton Virginia Beach Norfolk Sea Level +1 M Weiss and Overpeck, University of A
Dover Ocean City Hampton Virginia Beach Norfolk Sea Level +6 M Weiss and Overpeck, University of A
Wilmington Myrtle Beach Charleston Mt. Pleasant Hilton Head Savannah Weiss and Overpeck, University of A
Wilmington Myrtle Beach Charleston Mt. Pleasant Hilton Head Savannah Sea Level +1 M Weiss and Overpeck, University of A
Wilmington Myrtle Beach Charleston Mt. Pleasant Hilton Head Savannah Sea Level +6 M Weiss and Overpeck, University of A
Jacksonville Panama City Daytona Beach St. Petersburg Fort Meyers Ft. Lauderdale Miami Weiss and Overpeck, University of A
Jacksonville Panama City Daytona Beach St. Petersburg Fort Meyers Ft. Lauderdale Miami Sea Level + 1 M Weiss and Overpeck, University of A
Jacksonville Panama City Daytona Beach St. Petersburg Fort Meyers Ft. Lauderdale Miami Sea Level + 6 M Weiss and Overpeck, University of A
Baton Rouge Beaumont Lake Charles New Orleans Weiss and Overpeck, University of A
Baton Rouge Beaumont Lake Charles New Orleans Sea Level +1 M Weiss and Overpeck, University of A
Baton Rouge Beaumont Lake Charles New Orleans Sea Level +6 M Weiss and Overpeck, University of A
