ATM TEXT INTEGRATION INTORDUCTION Schedule ATM TEXT INTEGRAION

ATM TEXT INTEGRATION INTORDUCTION

Schedule ATM TEXT INTEGRAION is a very popular function in CCTV field. Specially for bank application, if we can overlay the text information such as card number, amount in the video, and search by card number, it will be very helpful for the security management of bank. Schedule: Method of text Close to ATM integration Current Solution

Close to ATM MAIN ATM BRAND NCR Diebold IBM WINCOR ATM STRUCTURE Teller System

Method of text integration

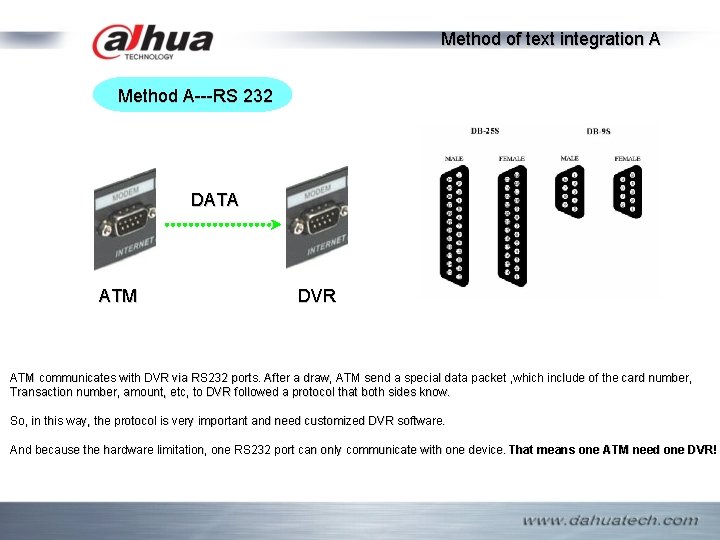

Method of text integration A Method A---RS 232 DATA ATM DVR ATM communicates with DVR via RS 232 ports. After a draw, ATM send a special data packet , which include of the card number, Transaction number, amount, etc, to DVR followed a protocol that both sides know. So, in this way, the protocol is very important and need customized DVR software. And because the hardware limitation, one RS 232 port can only communicate with one device. That means one ATM need one DVR!

Method of text integration A Method A---Solution This solution need a special communication box which pick up the text information and overlay it to the video. The problem is that you can not search the video by the text information.

Method of text integration B Method B---SDLC Synchronous Data Link Control SDLC is developed on IBM industry system, Some ATM system use this, and this system need A special hardware IC supports. This causes the high cost of DVR and a narrow range of application SDLC IC DVR DATA DVR need a special SDLC IC.

Method of text integration C Method C---TCP/IP NETWORK SNIFFER DVR ASCII DATA One DVR can communicate with Several ATMs synchronously. We select this method as our solution TCP/IP network is very popular in internet and LAN network, it’s the widest network in this world And, mostly, a standard network communication method.

Our Solution

Current solution Theory---Capture the data packet AN ASCII DATA PACKET Monitor from here , we can get all of those data packets between ATM and Bank, and we can copy one Data packet from Bank center to ATM Data packet from ATM to Bank center

Current solution Theory--- Analysis of ASCII data packet Content 40 Function FLAG Offset 1 Length 2 In this Sample: 40 is the FLAG of this data packet, it means what kind of data packet it is. In this data packet, We can get all of those information that we need from this kind of data packet. Actually, we can find this kind of data packet after Check those data packets between ATM and Center An ASCII data packet via TCP/IP network There are many data packet in the network, some of them have the useful information that we need. Such as this data packet, we can get Card number, Amount, Transaction number. 04341400 00002021 81394 CARD NO 130 21 QR 100. 00 Amount 206 8 9489 TRAN NO 276 4 So, if we can find this kind of data packet and set those parameter, such as offset, length, we can get any information that we want.

Current solution Software interface & configurations ATM NO: Normally, it’s 4, That means one DVR can communicate with 4 ATMs. RECORD CHANNEL: The video channel that TEXT will be overlay on. Source IP: IP of ATM or BANK CENTER Destination IP: IP of BANK CERTER or ATM Frame ID: The flag of data packet the DVR checks every data packets, and pick up the data from offset position, end as length bit, and compare it with the Key, if it’s equal to the key, it will look it as the one that we need. Account, Trans No, Amount: Take those data as the rule of your setting. Sniffer menu Different interface between different software version. In this way, we can capture any parts of the data packet that we need, For details, please study our operation manual or contact us. We also provide customized software service for actual applications.

Current solution Hardware connection Logic map LAN Teller side Network LAN Bank server Actual connection To ATM 1 To BANK NETWORK To ATM 2 To ATM 3

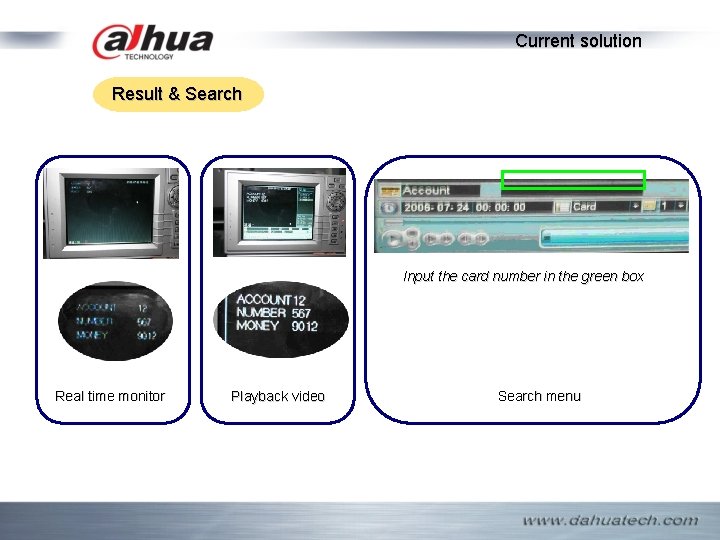

Current solution Result & Search Input the card number in the green box Real time monitor Playback video Search menu
