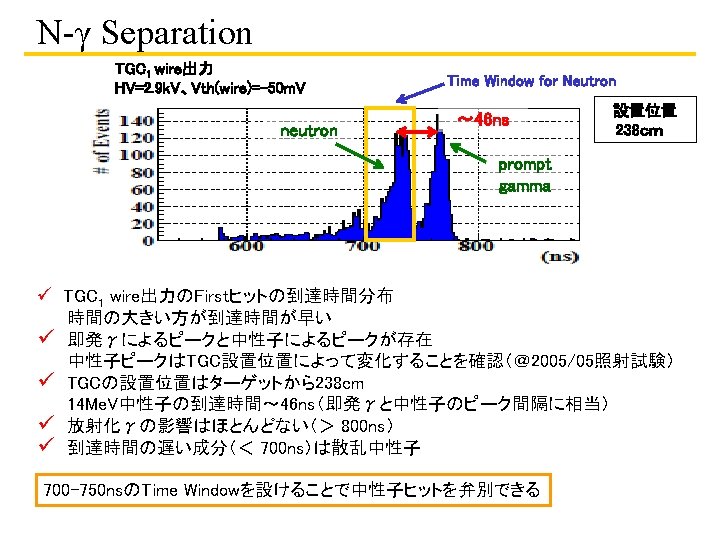

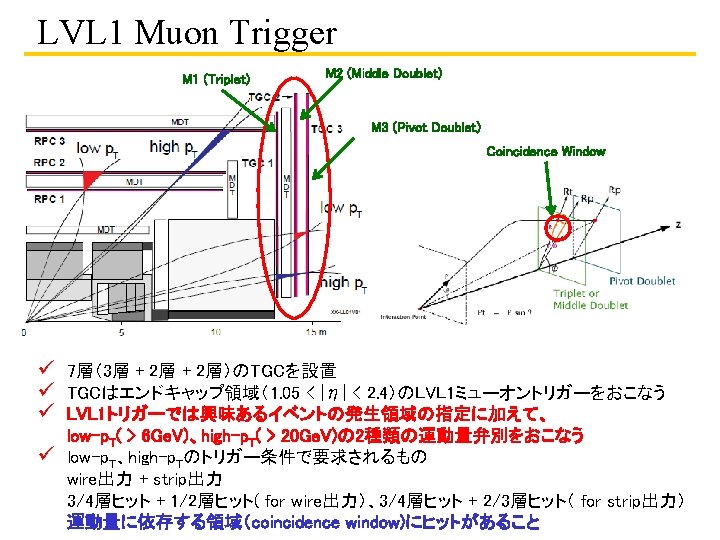

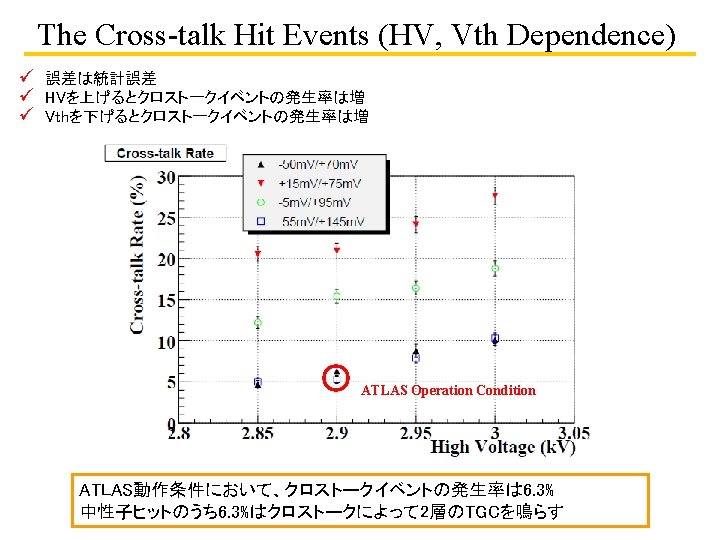

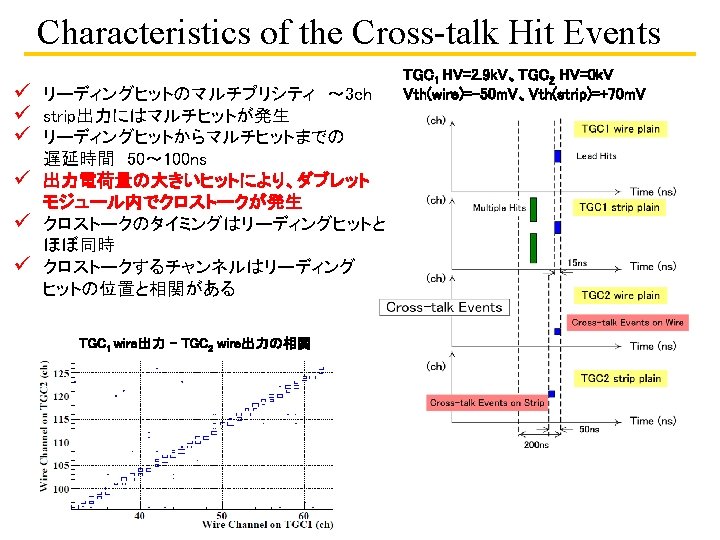

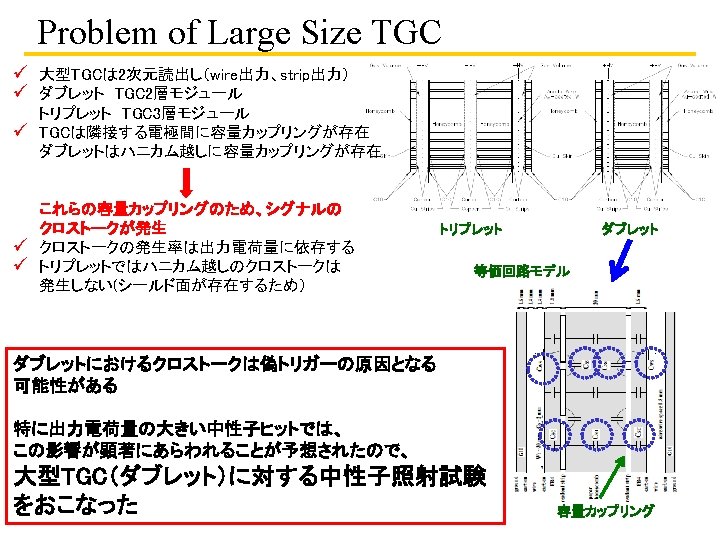

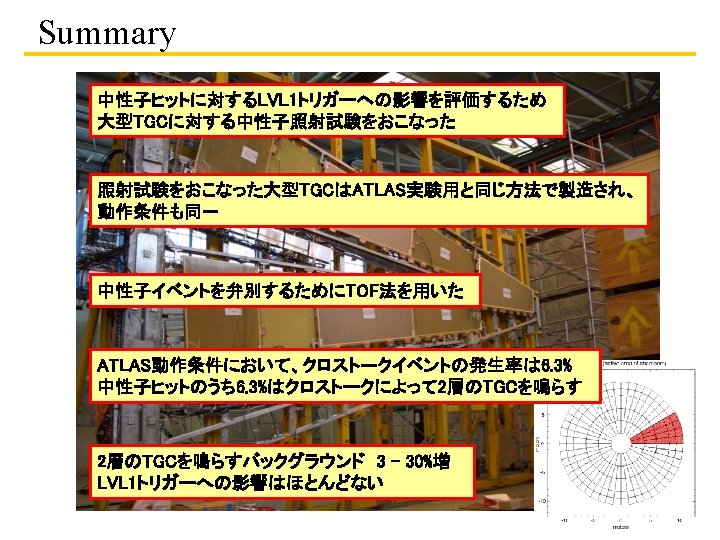

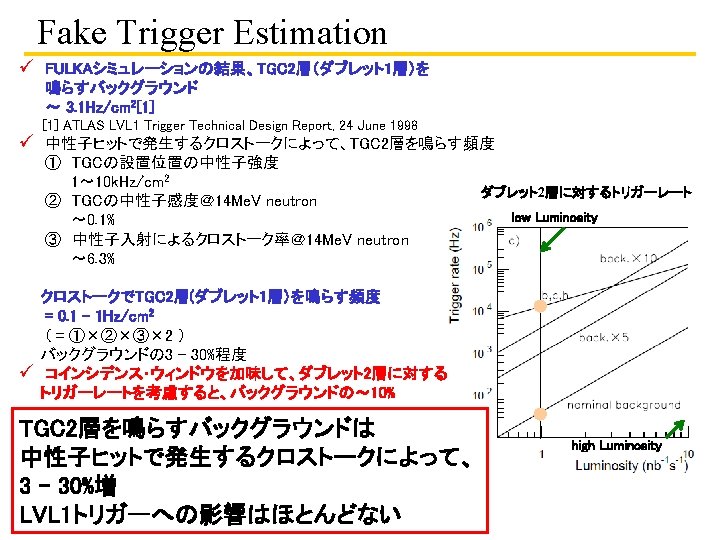

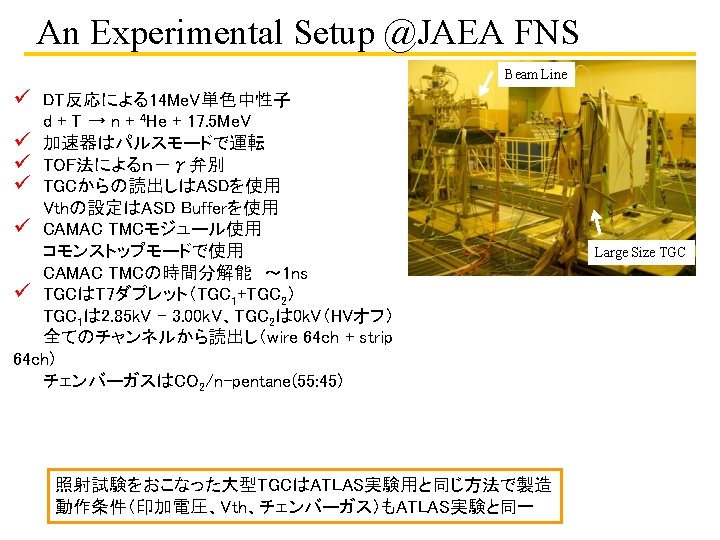

日本物理学会 第61回年次大会 @愛媛大学、松山大学 2006/03/30 ATLAS用 大型TGCに対する 中性子照射試験 信州大理、神戸大自然A、高エ研B、北大 C、原研D 大下英敏、竹下徹、越智敦彦A、喜家村裕宣A 岩崎博行B、田中秀治B、金子純一C、落合謙太郎D、 中尾誠D、他ATLAS-TGCグループ TGC Position Outline: 1. LVL 1 Muon Trigger 2. Thin Gap Chamber (TGC) 3. Problem of Large Size TGC 4. An Experimental Setup @ JAEA FNS 5. N-γ Separation 6. Raw Hits Distribution 7. Characteristics of the Cross-talk Events 8. HV, Vth Dependence 9. Fake Trigger Estimation 10. Summary ATLAS検出器 高さ 22 m×長さ 44 mの世界最大級の検出器!
Thin Gap Chamber(TGC) ü Similar to MWPC ü (Multi Wire Proportional Chamber) wire space < anode to cathode distance --> “Thin” ~ 130 cm ATLAS TGC Parameters ü ü Open Half Chamber (Large Size TGC) Wire potential: 2. 9 – 3. 0 k. V Gas mixture: CO 2/n-C 5 H 12 (55: 45) Gas amplification: ~ 106 More than 99% detection efficiency to MIP within 25 ns ü Rate capability : ~ 1 k. Hz/cm 2
Raw Hits Distribution 通常のイベント TGC 1 HV=2. 9 k. V、TGC 2 HV=0 k. V Vth(wire)=-50 m. V、Vth(strip)=+70 m. V マルチヒットやクロストークイベントを伴うもの leading hit TGC 1 wire multi hit TGC 1 strip oscillation hit TGC2 wire multi hit TGC2 strip oscillation hit
