ATLAS SOLUTIONS FOR TEXTILE TESTING TEXTILEXPO MOSCOW 25
- Slides: 44
ATLAS SOLUTIONS FOR TEXTILE TESTING TEXTILEXPO MOSCOW 25 th September 2014 Michal KALIK Area Manager East Europe
Atlas Material Testing Technology WEATHERING INSTRUMENTS
XENOTEST® 220 / 220+ All you Need for Reliable Textile Lightfastness Testing
Lightfastness Testing. . . Test . . . testing textiles on their color fastness to Daylight Test
1950: lightfastness test methods specify Xenon light. . . Over 50 Years of Experience 2010 2006 2000 1984 1 st Xenon unit 1954 Xenotest 220+ Xenotest 150 S+ Atlas® Xenotest 150 . . . Xenon becomes the industry standard
Xenotest 220 addresses all your needs Proven Design Stainless Steel Proven Controls . . . Provides Long-Lasting Reliability

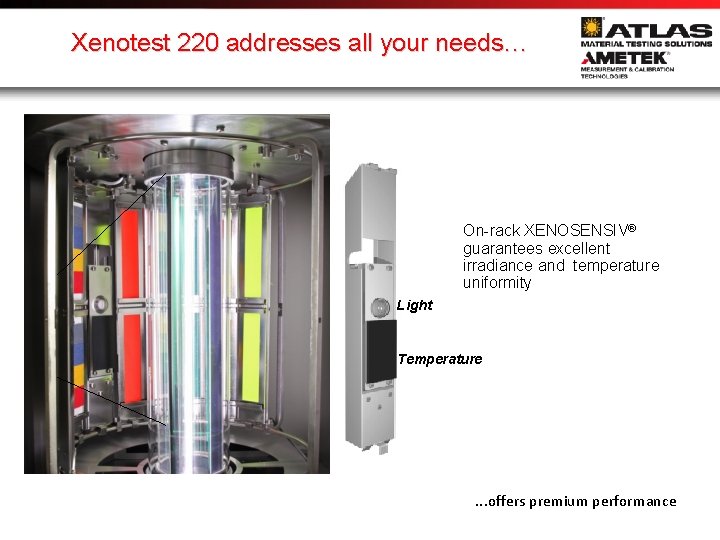

Xenotest 220 addresses all your needs… On-rack XENOSENSIV® guarantees excellent irradiance and temperature uniformity Light Temperature . . . offers premium performance
Xenotest 220 addresses all your needs… Optical Filters Non-aging for ISO 105 -B 02 Non-aging for AATCC TM 16 . . . with premium technology
Xenotest 220 addresses all your needs… . . . It‘s easy to program
Xenotest 220 addresses all your needs… Simplify! Go online with Xenotest 220+ . . . modern technology at its best
Xenotest 220 addresses all your needs… Sample holders without screws Standard cover masks for ISO and AATCC testing . . . and is easy to use
Xenotest 220 addresses all your needs… 22 samples 38 samples 22 samples ~ ~ Xenotest 220 Xenotest 150 S+ . . . economical too!
New XENOTEST® 440 FAST ECONOMICAL VERSATILE

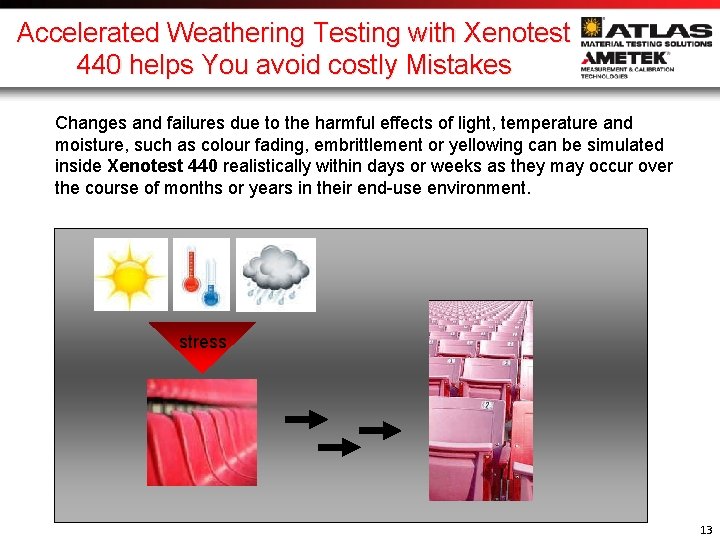

Accelerated Weathering Testing with Xenotest 440 helps You avoid costly Mistakes Changes and failures due to the harmful effects of light, temperature and moisture, such as colour fading, embrittlement or yellowing can be simulated inside Xenotest 440 realistically within days or weeks as they may occur over the course of months or years in their end-use environment. stress 13
Atlas: Pioneers in Xenon Technology • Xenotest: Setting Milestones since 1954 Atlas develops a more realistic sun simulation chamber and introduces the first air cooled xenon device Atlas’ Xenotest® sets Atlas introduces the first 3 the global standard in sun instrument for high textile testing with the acceleration material 150 S testing Atlas goes digital introducing its first touch screen user interface Atlas introduces the 150 S successor offering best in class performance The first twin-lamp test chamber with Xeno. Logic™ technology for extended lamp service life and 2 -sun irradiance 14
New Xenotest 440 FAST – ECONOMICAL -VERSATILE 15
New Xenotest 440 is FAST • 2 x 2200 W lamps = high irradiance capabilities for shorter testing Emax: 120 W/m 2 (300 -400 nm) 16
New Xenotest 440 is ECONOMICAL • New lamp operating technology = extended lamp service life and long test chamber uptime 4000 hours + uptime (@40 -60 W/m ) 2 +33% lamp service life Lamp ON/OFF and synchronization logic = minimum stress = optimum light efficiency 17
New Xenotest 440 is ECONOMICAL • Ultrasonic humidifiers = best-in-class water consumption values Ø Ultrasonic humidifiers Ø best-in-class water consumption Ø no compressed air required Ø 60 litre reservoir fed manually / automatically 3 litre / day @ ISO 105 -B 02 conditions 18

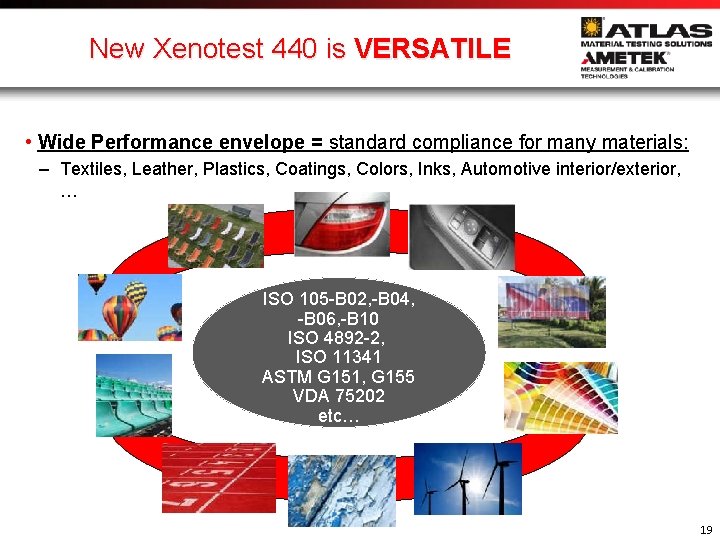

New Xenotest 440 is VERSATILE • Wide Performance envelope = standard compliance for many materials: – Textiles, Leather, Plastics, Coatings, Colors, Inks, Automotive interior/exterior, … ISO 105 -B 02, -B 04, -B 06, -B 10 ISO 4892 -2, ISO 11341 ASTM G 151, G 155 VDA 75202 etc… 19
New Xenotest 440 is VERSATILE • Lightfastness AND Weathering Testing Specimen Spray (Standard Feature) 20
New Xenotest 440 is VERSATILE • Material-specific specimen holders = great flexibility Textiles Technical Textiles, Plastics Technical Textiles, Coatings, Auto interior Auto exterior Plastics (1 -3 mm) (1 -10 mm) (1 -3 mm) For specimen 1 -3 mm / 1 -10 mm thick 21
Premium Controls… • XENOSENSIV® RC-34 BST / XENOSENSIV ® RC-420 BPT fast and reliable radio controlled data transmission on-rack replacing old-style “collector ring” technology reduced maintenance cost XENOSENSIV RC-34 BST (standard) XENOSENSIV RC-420 BPT(option) Radio Control Wavelength (*300 -400 nm, ** 420 nm) Black Panel Temperature Type (insulated: BST / uninsulated: BPT) Battery 22
… for Premium Test Chamber Uniformity 1. Light and temperature controlled on-rack: uniformity ca. ± 4% Test chamber uniformity >2 x better than ISO requirement! BST and CHT controlled simultaneously. Note: ISO 4892 -1 uniformity requirement for irradiance and BST: ± 10% 23
… for Premium Test Chamber Uniformity 2. Excellent humidity management: - proven from Xenotest 220 Bottom-to-Top chamber Uniformity 1 BW 5 2 3 4 5 6 7 8 0 1 2 3 4 5 delta E* 6 7 8 9 10 Very high Bottom-to-Top chamber uniformity: Light, Temperature, and Moisture sensitive Blue Wool Reference material shows maximum 24 difference of ½ note rating
ACCESSORIES . . . for Xenotest 440 25
Optical Filters – Indoor Daylight 2 x Standard compliant, non-aging indoor Daylight filter systems XENOCHROME 320 indoor sunlight (ISO) TM 16 Indoor sunlight (AATCC) 26
Optical Filters – Outdoor Daylight 1 Standard compliant, non-aging outdoor Daylight filter system Daylight B 04 outdoor sunlight (ISO) 27
Accessory Kits for Textile testing ISO and AATCC application Kits ISO 105 -B 02 AATCC TM 16 28
Accessory Kit for Weathering testing Accessory-Kit Weathering All purpose weathering 29
Easy Programming • Multiple Languages = error-free operation around the world Welkom Willkommen Witaj Bienvenid os Welcome Bienvenue Benvenuto boas-vindas üdvözlés vítejte 30

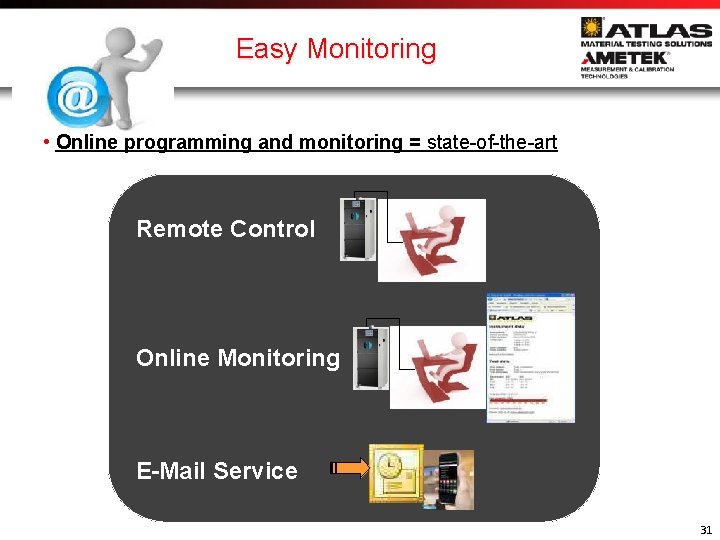

Easy Monitoring • Online programming and monitoring = state-of-the-art Remote Control Online Monitoring E-Mail Service 31
SUMMARY Xenotest 440 sets a new standard for economical, mid-sized, air-cooled Xenon devices - Engineered by the Pioneers of Xenon technology - Superior High Irradiance functionality up to 120 W/m 2 - New technology for superior 4000 hours test chamber uptime, +33% longer lamp service life - Low-water humidifiers - Large standard compliance - Exceptional capacity and material-specific holders - Premium Controls for Light, Temperature, and Humidity high performance test chamber - Easy installation worldwide - Easy-to-use with multiple languages & online features 32
OTHER ATLAS PRODUCTS AND SERVICES 33
Fluorescence Devices – UV Test
Air cooled Xenon-Instruments SUNTEST XXL+ SUNTEST XLS+(II) SUNTEST CPS+(II)
Air cooled Xenon-Instruments Xenotest Alpha + Xenotest Beta + Principle: Filter lantern / UV-Special glas exterior cylinder (Suprax)
Water cooled Xenon-Instruments Ci Weather-Ometer® Ci 5000 Ci 3000+ Ci 4000
ATLAS Flammability Instruments FLAMMABILITY
Natural Weathering Services Static weathering at global benchmark locations: Miami, Florida, South Florida Test Service Phoenix, Arizona, DSET Laboratories
Questions? Ideas?
Quiz Prior…………… • • • Is that possible? Or is it a fake? Why yes or no? Later……………
Thanks to the following colleagues for their contributions… Dirk Oefner Jürgen Parr, Larry Bond, Matt Mc. Greer, Oliver Rahäuser, Andreas Ruth, Andreas Riedl, Bruno Bentjerodt, Cees van Teylingen, Torsten Ruppert, Peter Swartjes
Thank you very much for your attention! ATLAS MTT Gmb. H Michal Kalik Vogelsbergstrasse 22 D- 63589 Linsengericht – Altenhasslau E-mail: michal. kalik@ametek. com Website: www. atlas-mts. com
