ATLAS Muon Spectrometer and Chinese Activities Zhu Chengguang

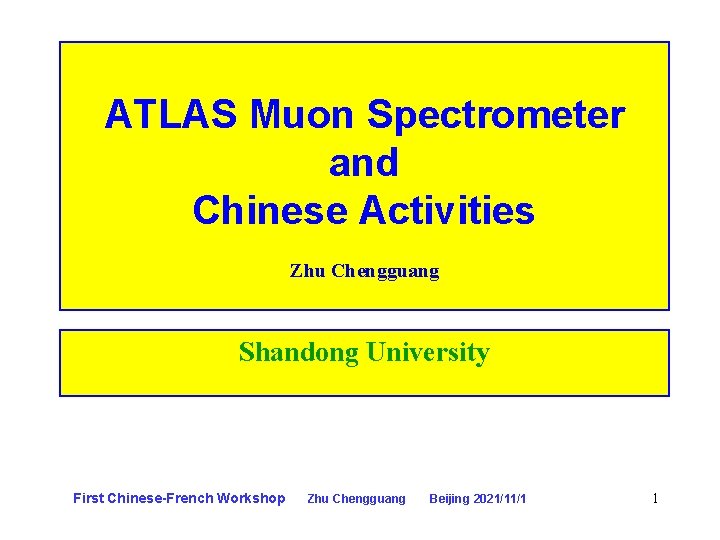

ATLAS Muon Spectrometer and Chinese Activities Zhu Chengguang Shandong University First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 1

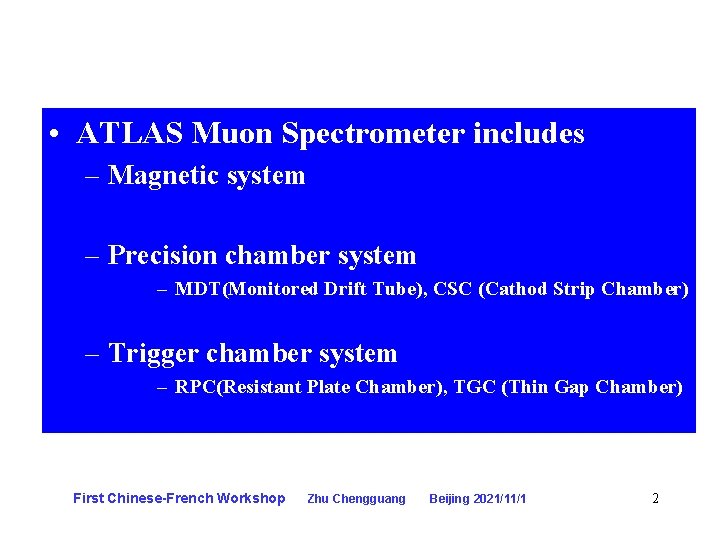

• ATLAS Muon Spectrometer includes – Magnetic system – Precision chamber system – MDT(Monitored Drift Tube), CSC (Cathod Strip Chamber) – Trigger chamber system – RPC(Resistant Plate Chamber), TGC (Thin Gap Chamber) First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 2

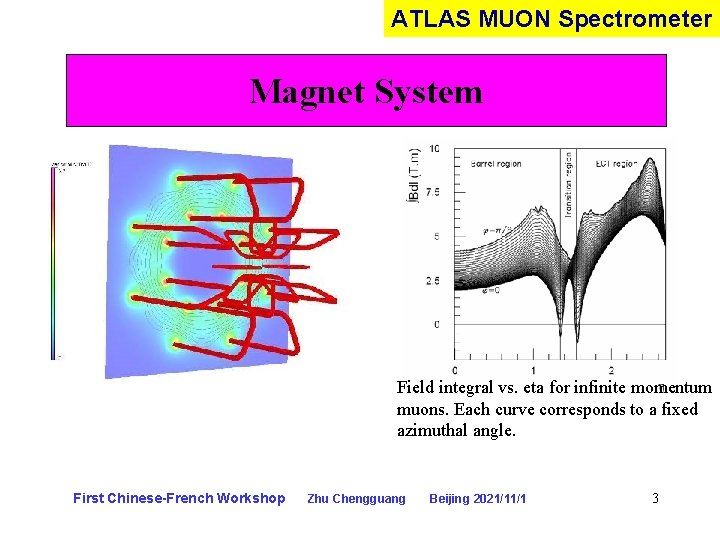

ATLAS MUON Spectrometer Magnet System Field integral vs. eta for infinite momentum muons. Each curve corresponds to a fixed azimuthal angle. First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 3

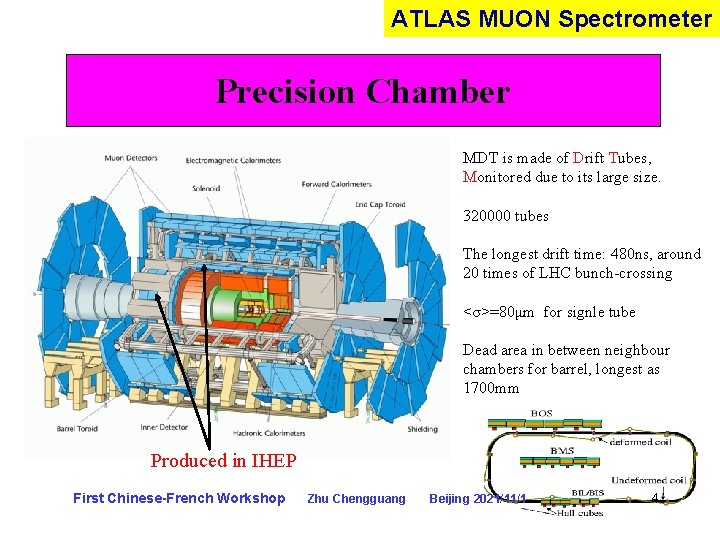

ATLAS MUON Spectrometer Precision Chamber MDT is made of Drift Tubes, Monitored due to its large size. 320000 tubes The longest drift time: 480 ns, around 20 times of LHC bunch-crossing <σ>=80μm for signle tube Dead area in between neighbour chambers for barrel, longest as 1700 mm Produced in IHEP First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 4

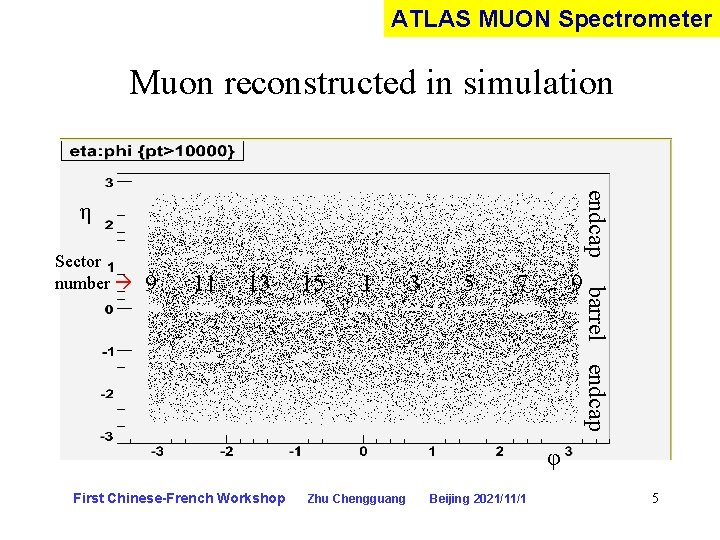

ATLAS MUON Spectrometer Muon reconstructed in simulation endcap η 9 11 13 15 1 3 5 7 9 barrel endcap Sector number φ First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 5

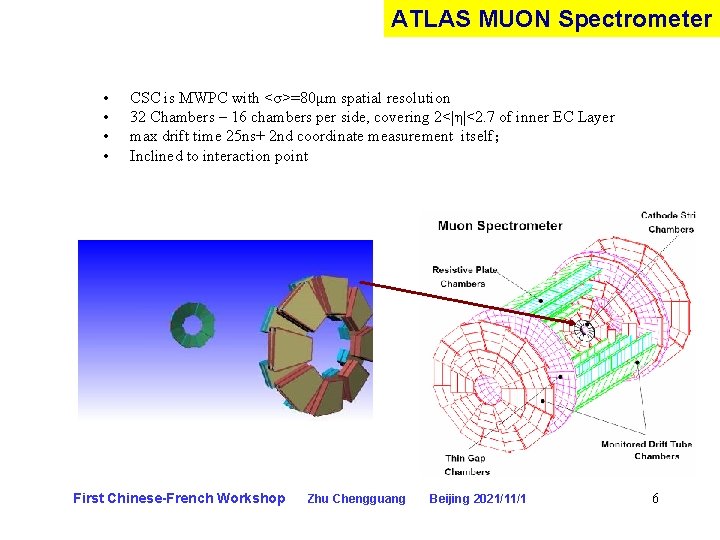

ATLAS MUON Spectrometer • • CSC is MWPC with <σ>=80μm spatial resolution 32 Chambers – 16 chambers per side, covering 2<|η|<2. 7 of inner EC Layer max drift time 25 ns+ 2 nd coordinate measurement itself； Inclined to interaction point First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 6

ATLAS MUON Spectrometer Muon momentum measurement Single muon Pt resolution (simulation) Inner tracker Muon spectrometer First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 7

ATLAS MUON Spectrometer F. Cerutti, muon week Nov 2006 Blue not installed Side A Red installed 5 3 4 Violet : partly installed 6 3 7 2 9 1 6 1 4 1 2 First Chinese-French Workshop 7 8 9 1 6 1 0 1 5 1 1 Total Missing chambers : 126/680 ~ 19%, 2~3 months of work needed 6 1 1 0 1 5 4 2 8 1 Side C 5 1 4 1 3 1 2 1 1 Chamber testing underway: HV, gas tightness, alignment, DCS… Full commissioning up to cosmics only in sectors 13 (part of the chambers) Zhu Chengguang Beijing 2021/11/1 8

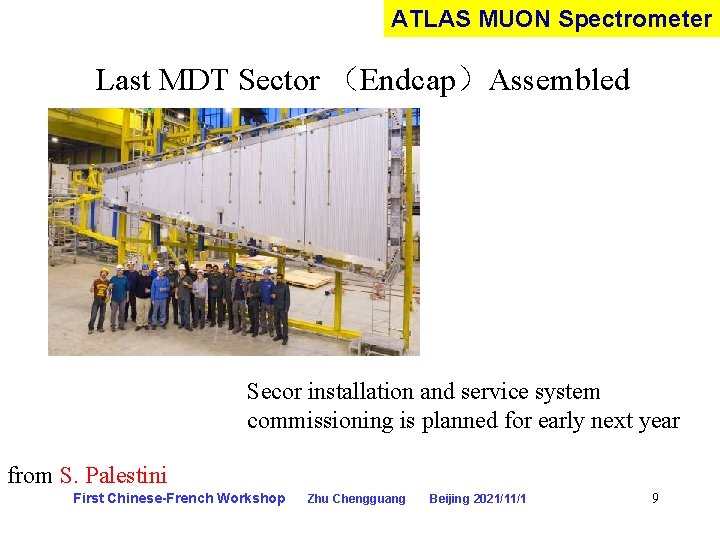

ATLAS MUON Spectrometer Last MDT Sector （Endcap）Assembled Secor installation and service system commissioning is planned for early next year from S. Palestini First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 9

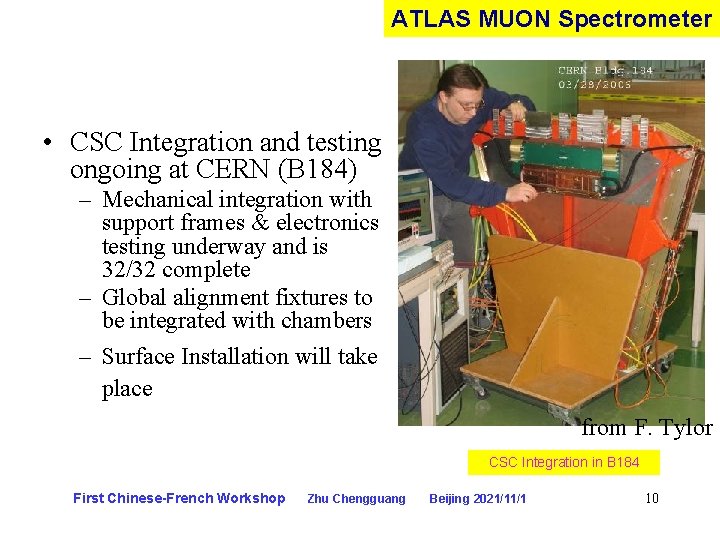

ATLAS MUON Spectrometer • CSC Integration and testing ongoing at CERN (B 184) – Mechanical integration with support frames & electronics testing underway and is 32/32 complete – Global alignment fixtures to be integrated with chambers – Surface Installation will take place from F. Tylor CSC Integration in B 184 First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 10

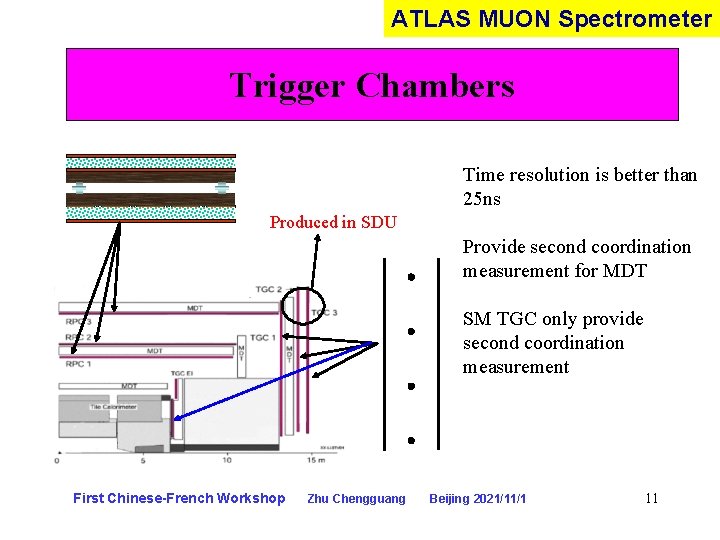

ATLAS MUON Spectrometer Trigger Chambers Time resolution is better than 25 ns Produced in SDU Provide second coordination measurement for MDT SM TGC only provide second coordination measurement First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 11

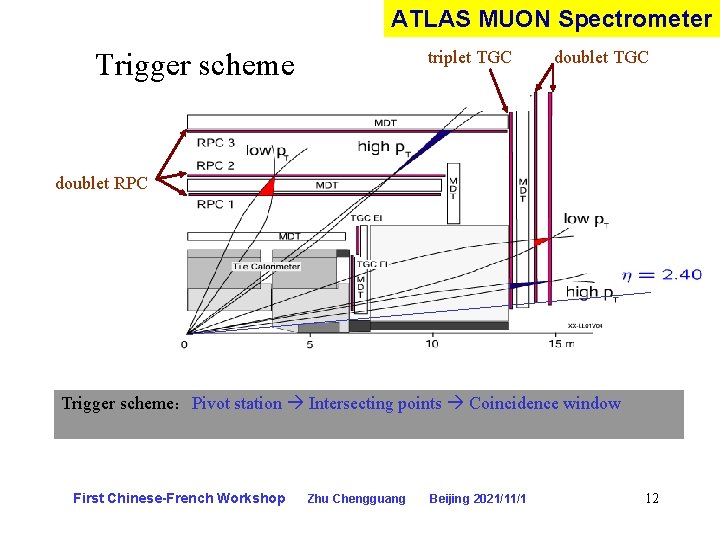

ATLAS MUON Spectrometer Trigger scheme triplet TGC doublet RPC Trigger scheme：Pivot station Intersecting points Coincidence window First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 12

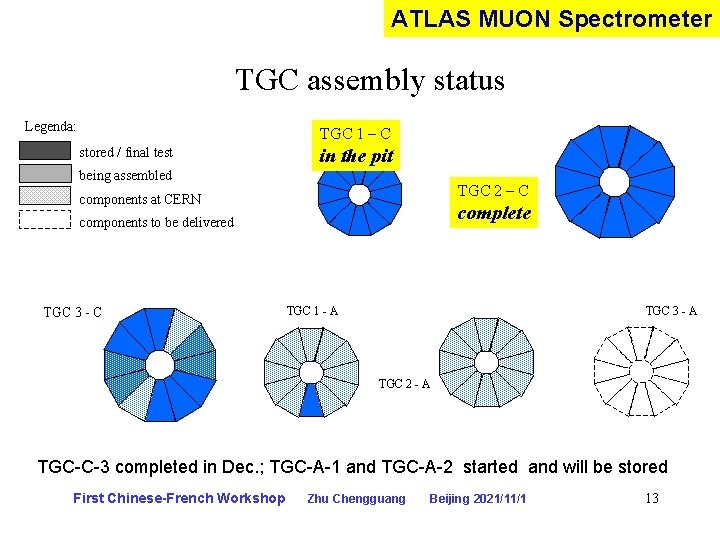

ATLAS MUON Spectrometer TGC assembly status Legenda: TGC 1 – C stored / final test in the pit being assembled TGC 2 – C components at CERN complete components to be delivered TGC 3 - C TGC 1 - A TGC 3 - A TGC 2 - A TGC-C-3 completed in Dec. ; TGC-A-1 and TGC-A-2 started and will be stored First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 13

ATLAS MUON Spectrometer First TGC Big Wheel has been installed First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 14

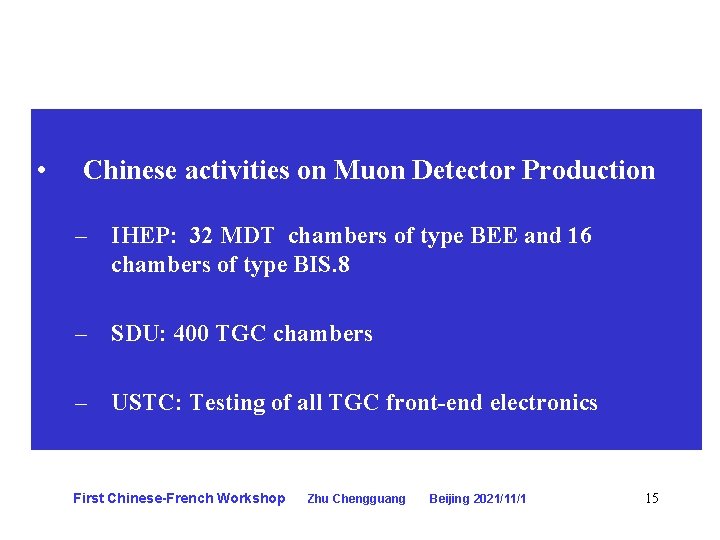

• Chinese activities on Muon Detector Production – IHEP: 32 MDT chambers of type BEE and 16 chambers of type BIS. 8 – SDU: 400 TGC chambers – USTC: Testing of all TGC front-end electronics First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 15

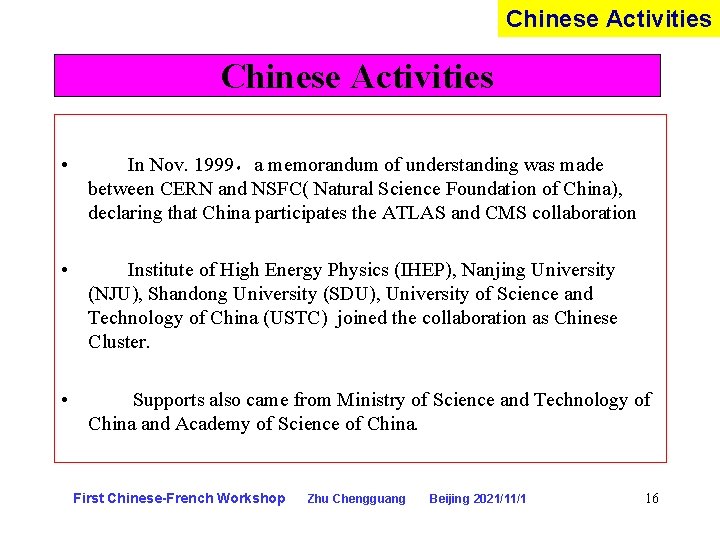

Chinese Activities • In Nov. 1999，a memorandum of understanding was made between CERN and NSFC( Natural Science Foundation of China), declaring that China participates the ATLAS and CMS collaboration • Institute of High Energy Physics (IHEP), Nanjing University (NJU), Shandong University (SDU), University of Science and Technology of China (USTC) joined the collaboration as Chinese Cluster. • Supports also came from Ministry of Science and Technology of China and Academy of Science of China. First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 16

Chinese Activities MDT production（IHEP) Mar. 2004, site review was held in IHEP First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 17

Chinese Activities Mass production First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 18

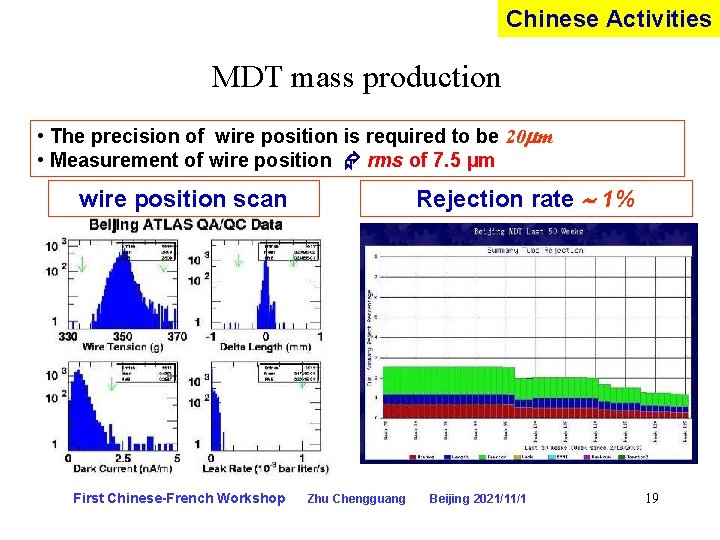

Chinese Activities MDT mass production • The precision of wire position is required to be 20 m • Measurement of wire position rms of 7. 5 µm Rejection rate 1% wire position scan First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 19

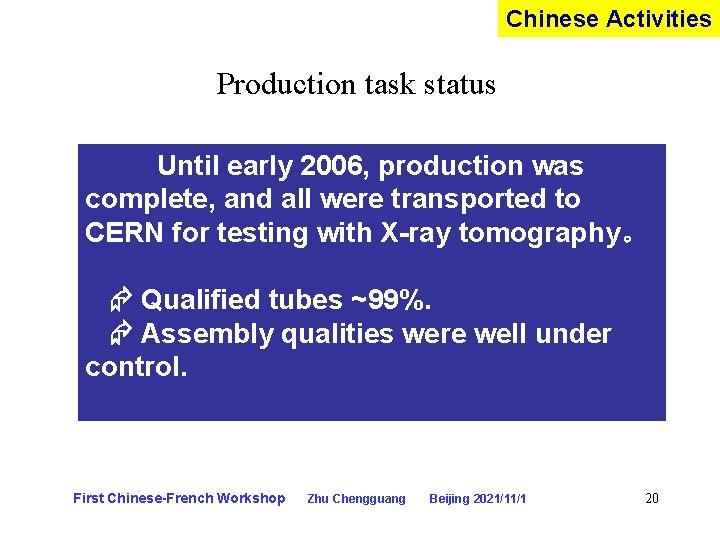

Chinese Activities Production task status Until early 2006, production was complete, and all were transported to CERN for testing with X-ray tomography。 Qualified tubes ~99%. Assembly qualities were well under control. First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 20

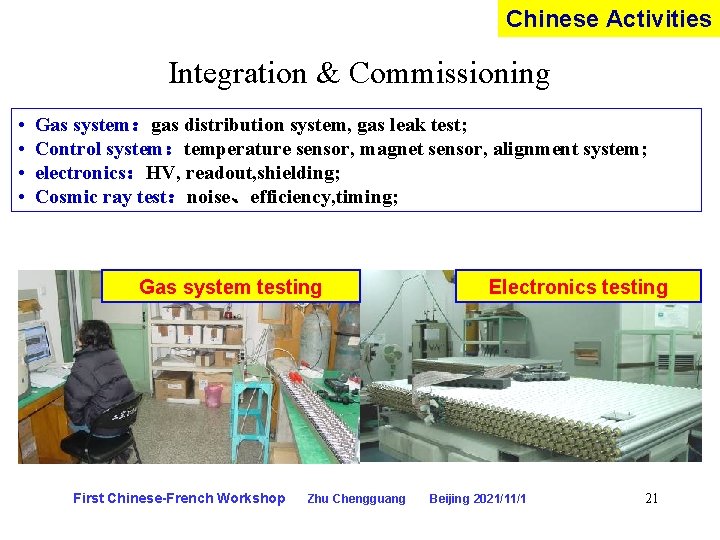

Chinese Activities Integration & Commissioning • • Gas system：gas distribution system, gas leak test; Control system：temperature sensor, magnet sensor, alignment system; electronics：HV, readout, shielding; Cosmic ray test：noise、efficiency, timing; Gas system testing First Chinese-French Workshop Zhu Chengguang Electronics testing Beijing 2021/11/1 21

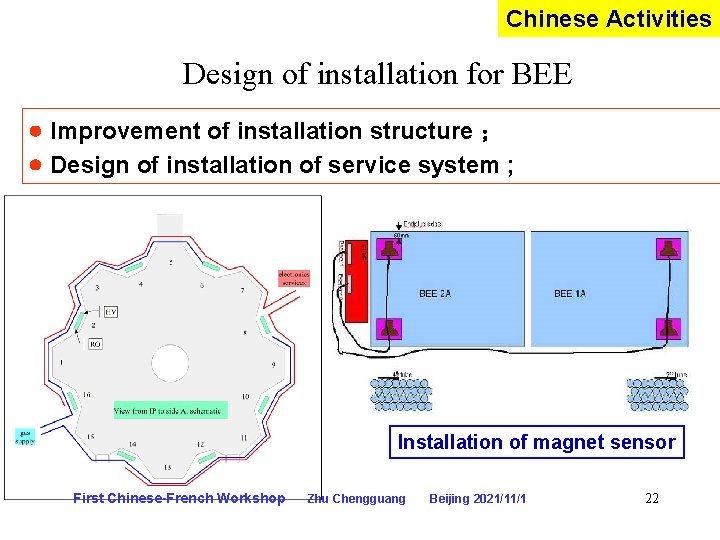

Chinese Activities Design of installation for BEE Improvement of installation structure ； Design of installation of service system ; Installation of magnet sensor First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 22

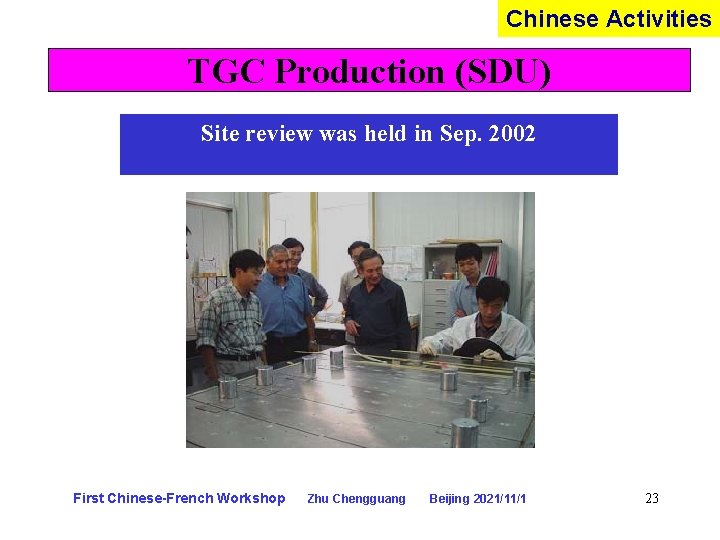

Chinese Activities TGC Production (SDU) Site review was held in Sep. 2002 First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 23

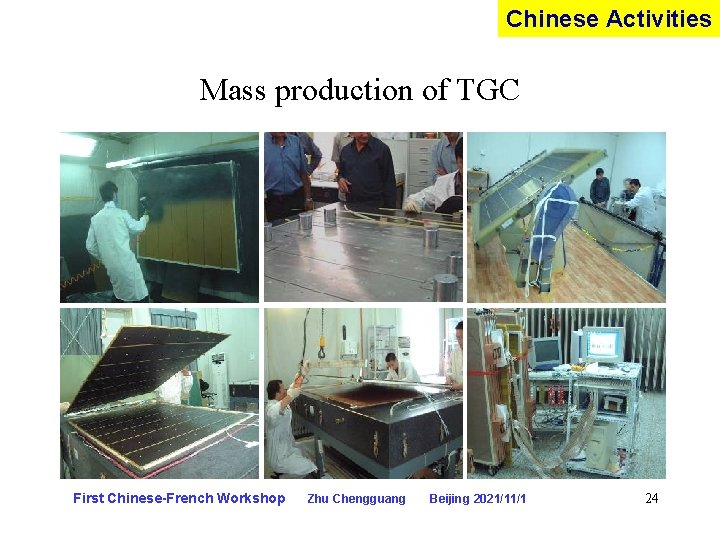

Chinese Activities Mass production of TGC First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 24

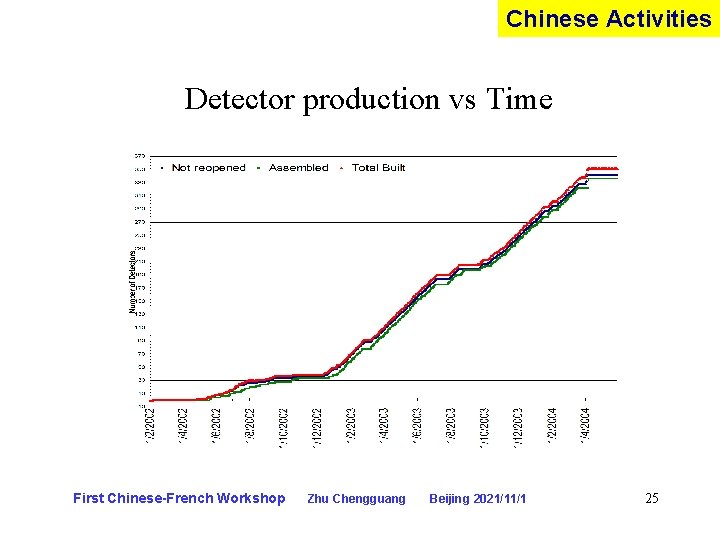

Chinese Activities Detector production vs Time First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 25

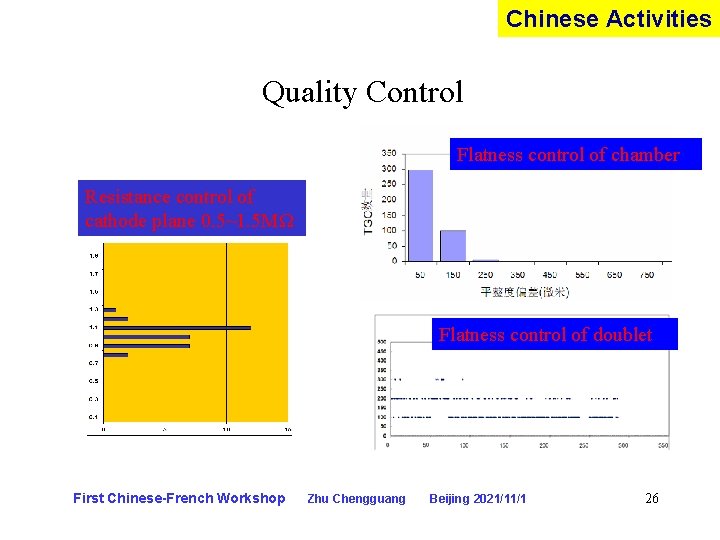

Chinese Activities Quality Control Flatness control of chamber Resistance control of cathode plane 0. 5~1. 5 MΩ Flatness control of doublet First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 26

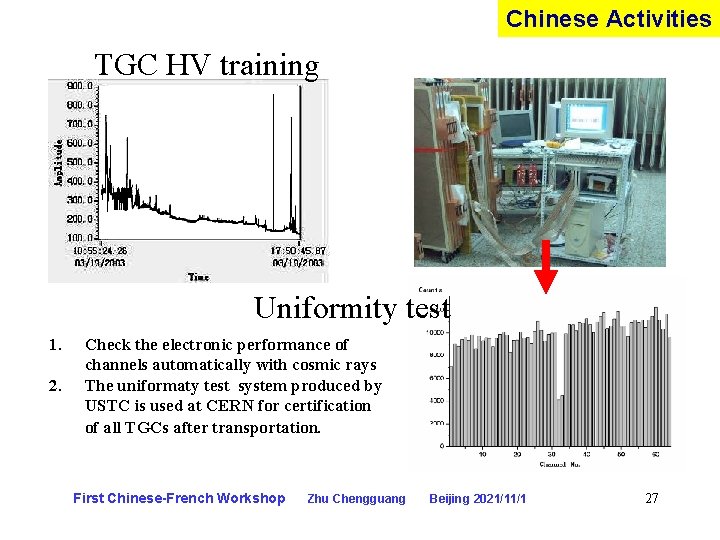

Chinese Activities TGC HV training Uniformity test 1. 2. Check the electronic performance of channels automatically with cosmic rays The uniformaty test system produced by USTC is used at CERN for certification of all TGCs after transportation. First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 27

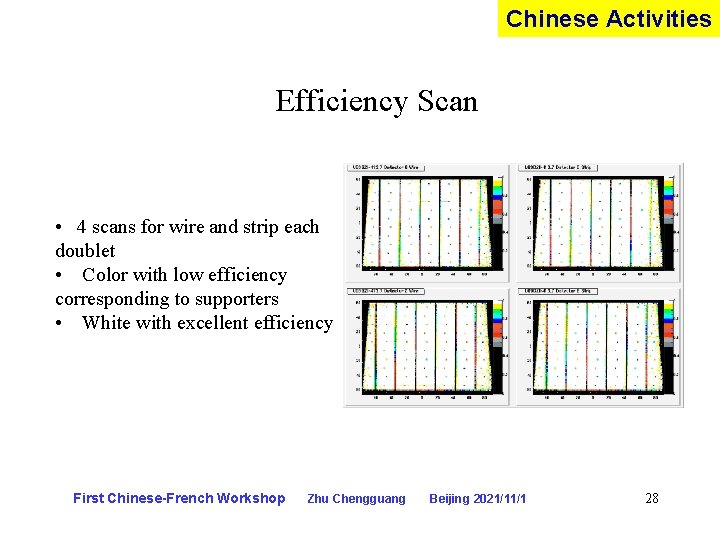

Chinese Activities Efficiency Scan • 4 scans for wire and strip each doublet • Color with low efficiency corresponding to supporters • White with excellent efficiency First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 28

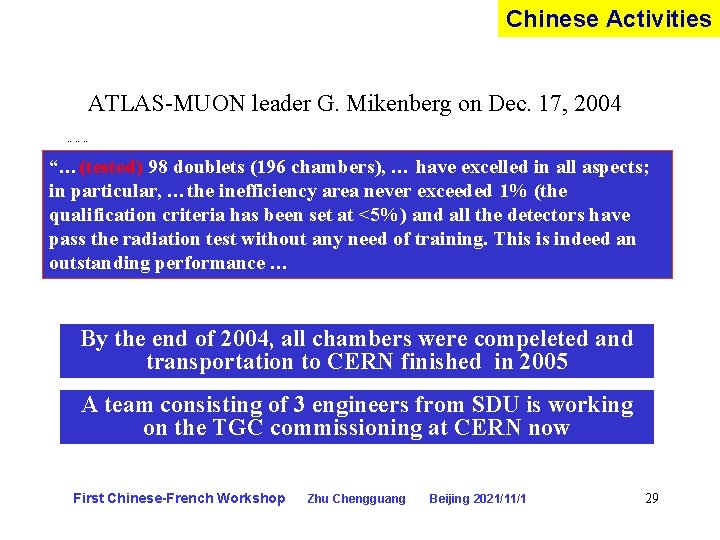

Chinese Activities ATLAS-MUON leader G. Mikenberg on Dec. 17, 2004 ……… “…(tested) 98 doublets (196 chambers), … have excelled in all aspects; in particular, …the inefficiency area never exceeded 1% (the qualification criteria has been set at <5%) and all the detectors have pass the radiation test without any need of training. This is indeed an outstanding performance … By the end of 2004, all chambers were compeleted and transportation to CERN finished in 2005 A team consisting of 3 engineers from SDU is working on the TGC commissioning at CERN now First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 29

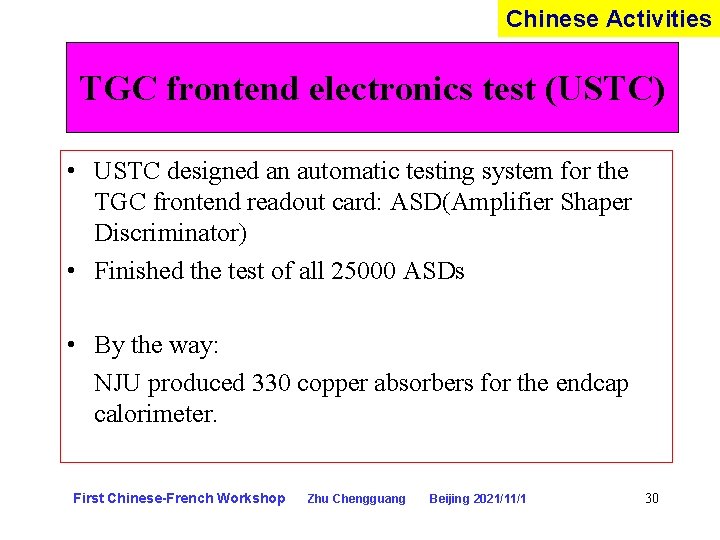

Chinese Activities TGC frontend electronics test (USTC) • USTC designed an automatic testing system for the TGC frontend readout card: ASD(Amplifier Shaper Discriminator) • Finished the test of all 25000 ASDs • By the way: NJU produced 330 copper absorbers for the endcap calorimeter. First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 30

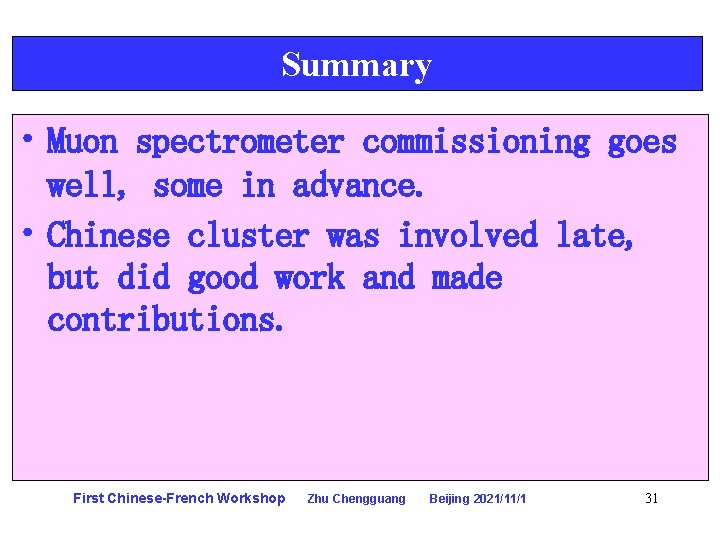

Summary • Muon spectrometer commissioning goes well, some in advance. • Chinese cluster was involved late, but did good work and made contributions. First Chinese-French Workshop Zhu Chengguang Beijing 2021/11/1 31
