Atlantic Branch of P. P. Shirshov Institute of Oceanology of Russian Academy of Scienses Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia Dmitry A. Domnin Gdansk, Poland Boris V. Chubarenko 14 January 2013

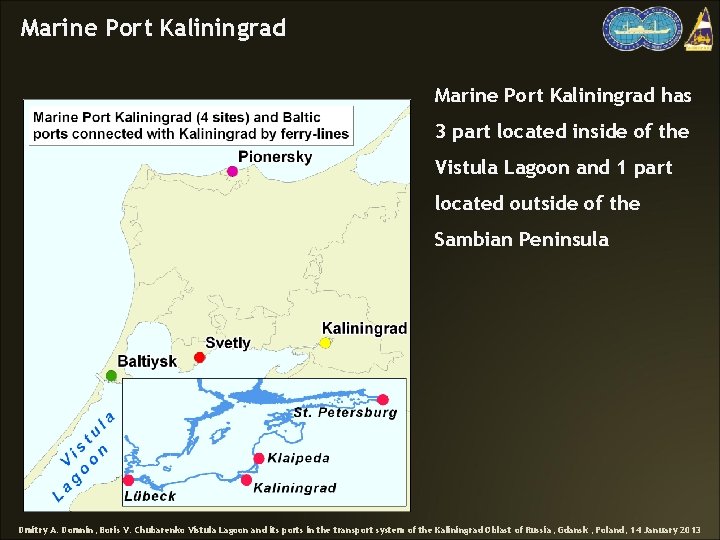

Marine Port Kaliningrad has 3 part located inside of the Vistula Lagoon and 1 part located outside of the Sambian Peninsula Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

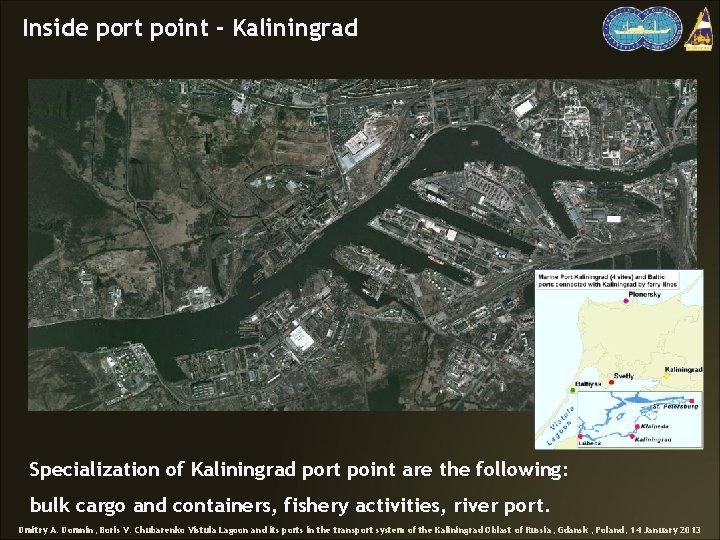

Inside port point - Kaliningrad Specialization of Kaliningrad port point are the following: bulk cargo and containers, fishery activities, river port. Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

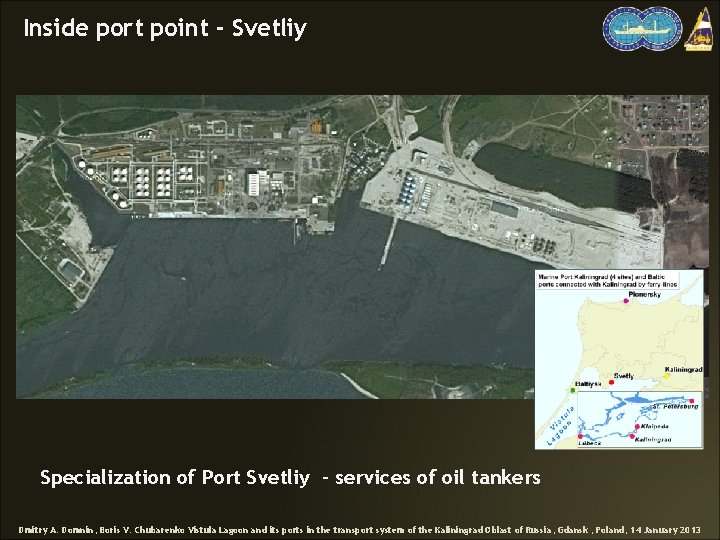

Inside port point - Svetliy Specialization of Port Svetliy - services of oil tankers Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

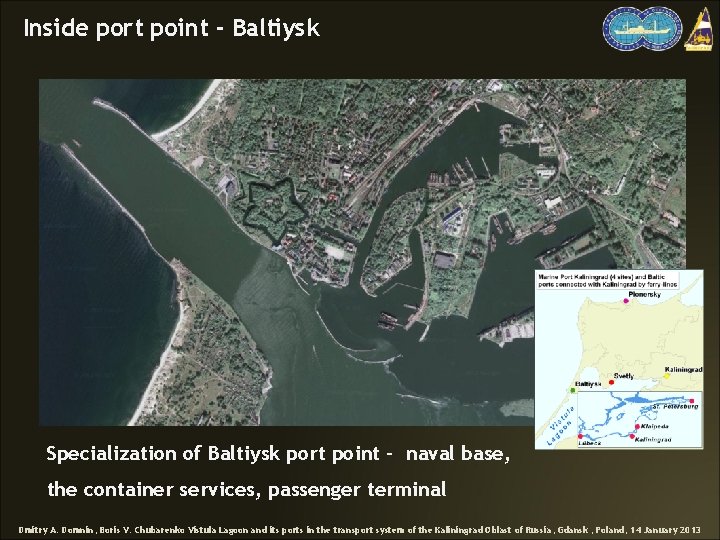

Inside port point - Baltiysk Specialization of Baltiysk port point - naval base, the container services, passenger terminal Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

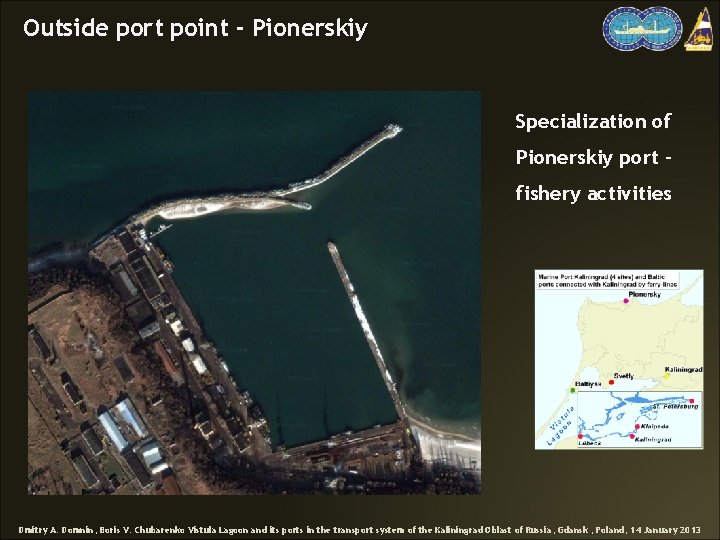

Outside port point - Pionerskiy Specialization of Pionerskiy port fishery activities Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

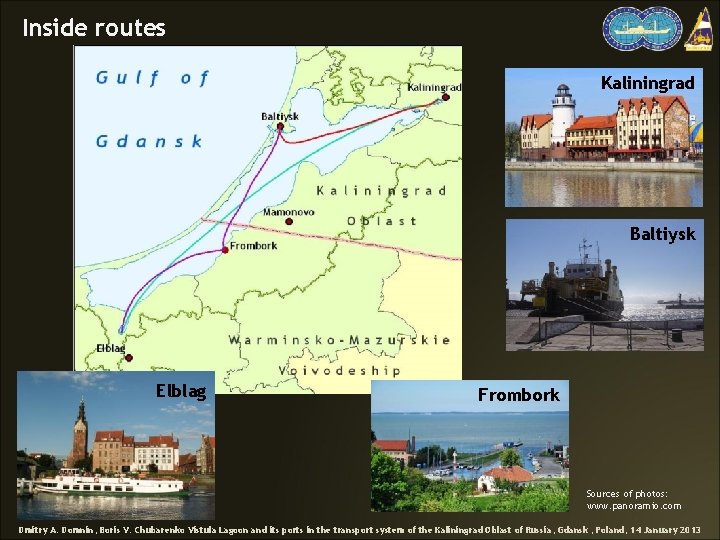

Inside routes Kaliningrad Baltiysk Elblag Frombork Sources of photos: www. panoramio. com Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

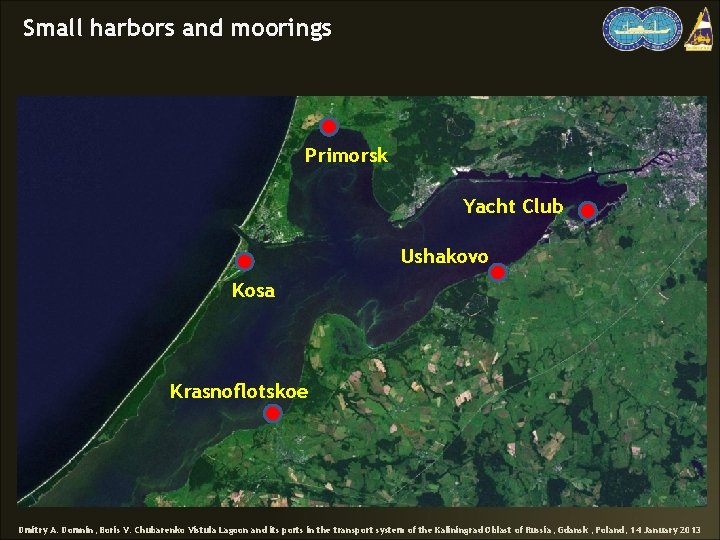

Small harbors and moorings Primorsk Yacht Club Ushakovo Kosa Krasnoflotskoe Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

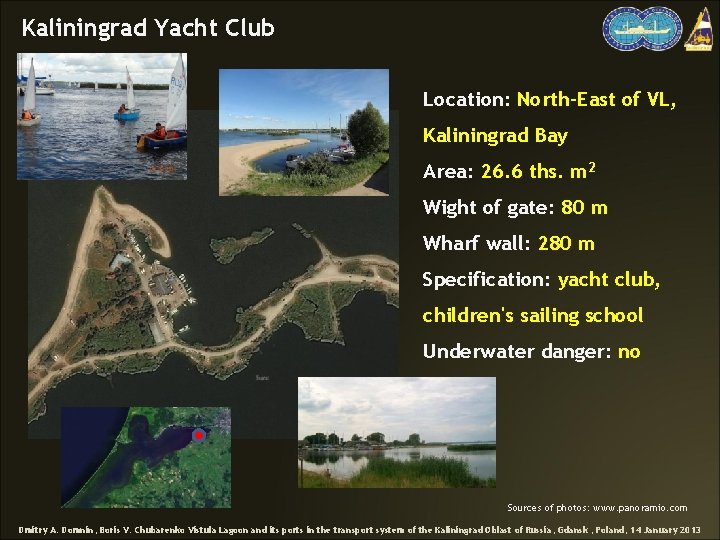

Kaliningrad Yacht Club Location: North-East of VL, Kaliningrad Bay Area: 26. 6 ths. m 2 Wight of gate: 80 m Wharf wall: 280 m Specification: yacht club, children's sailing school Underwater danger: no Sources of photos: www. panoramio. com Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

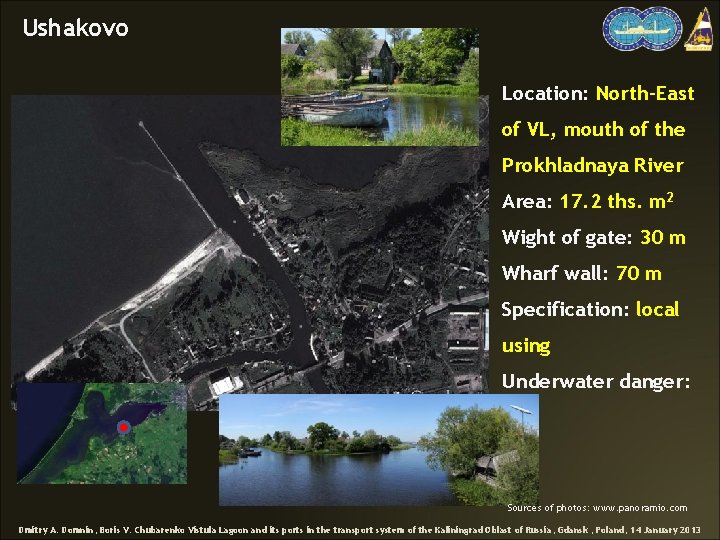

Ushakovo Location: North-East of VL, mouth of the Prokhladnaya River Area: 17. 2 ths. m 2 Wight of gate: 30 m Wharf wall: 70 m Specification: local using Underwater danger: Sources of photos: www. panoramio. com Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

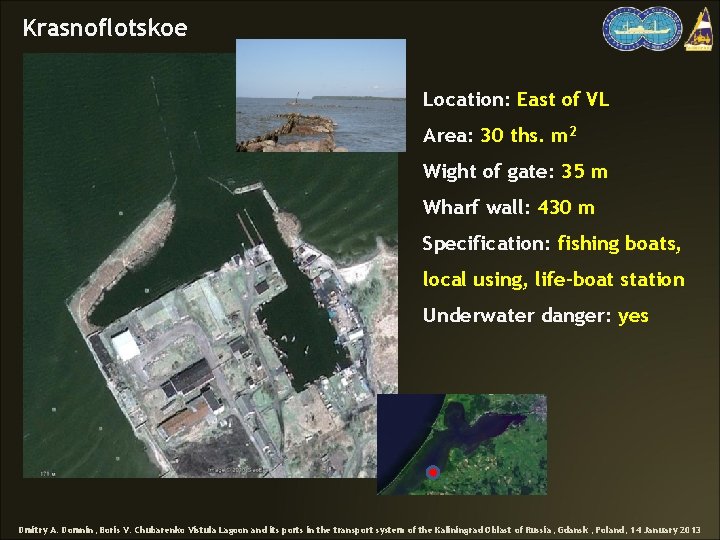

Krasnoflotskoe Location: East of VL Area: 30 ths. m 2 Wight of gate: 35 m Wharf wall: 430 m Specification: fishing boats, local using, life-boat station Underwater danger: yes Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

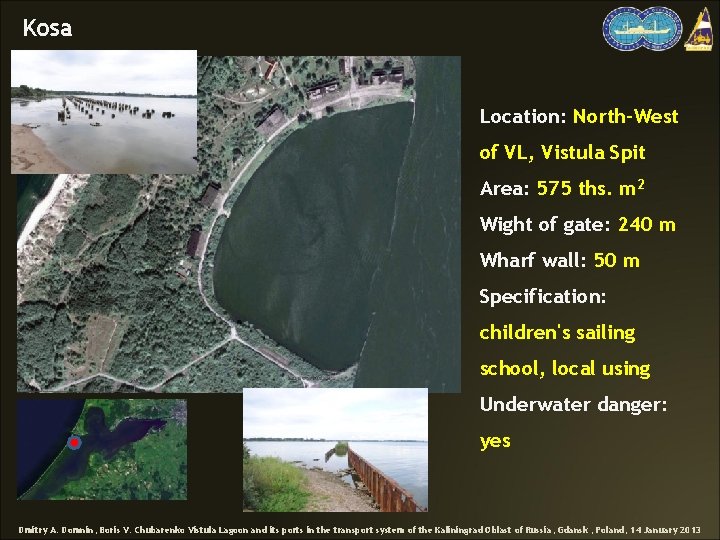

Kosa Location: North-West of VL, Vistula Spit Area: 575 ths. m 2 Wight of gate: 240 m Wharf wall: 50 m Specification: children's sailing school, local using Underwater danger: yes Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

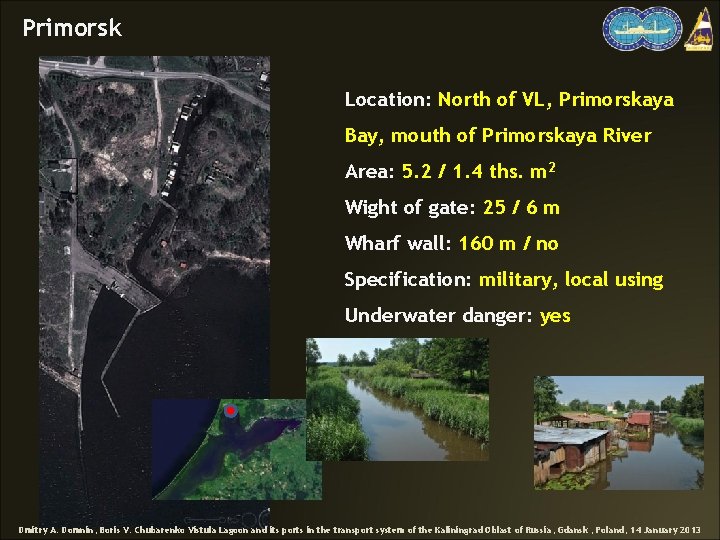

Primorsk Location: North of VL, Primorskaya Bay, mouth of Primorskaya River Area: 5. 2 / 1. 4 ths. m 2 Wight of gate: 25 / 6 m Wharf wall: 160 m / no Specification: military, local using Underwater danger: yes Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

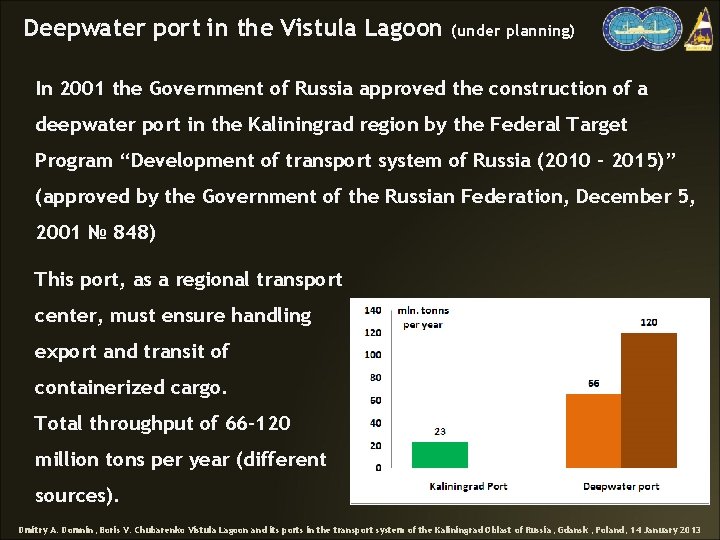

Deepwater port in the Vistula Lagoon (under planning) In 2001 the Government of Russia approved the construction of a deepwater port in the Kaliningrad region by the Federal Target Program “Development of transport system of Russia (2010 – 2015)” (approved by the Government of the Russian Federation, December 5, 2001 № 848) This port, as a regional transport center, must ensure handling export and transit of containerized cargo. Total throughput of 66 -120 million tons per year (different sources). Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

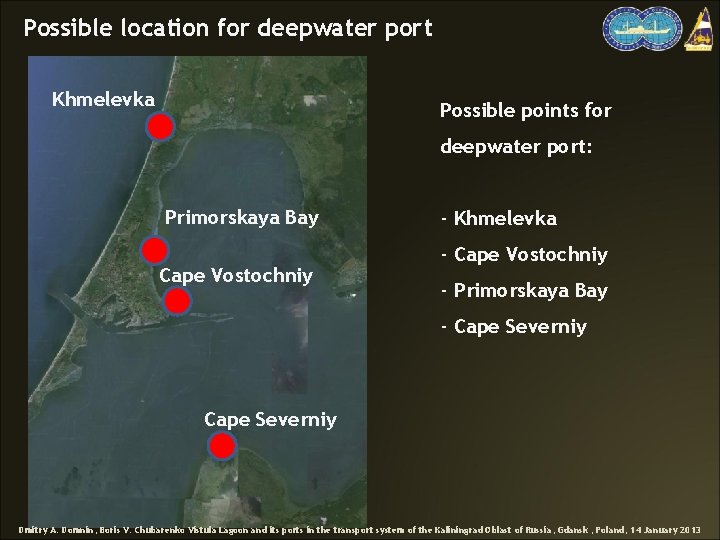

Possible location for deepwater port Khmelevka Possible points for deepwater port: Primorskaya Bay Cape Vostochniy - Khmelevka - Cape Vostochniy - Primorskaya Bay - Cape Severniy Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

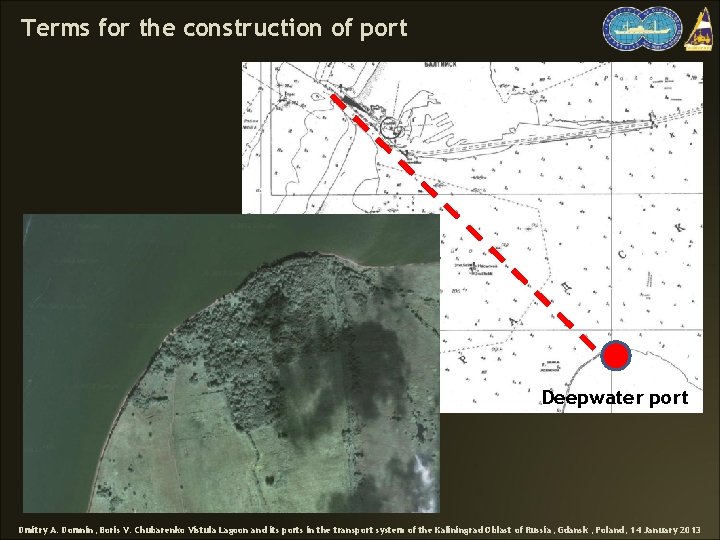

Terms for the construction of port Deepwater port Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

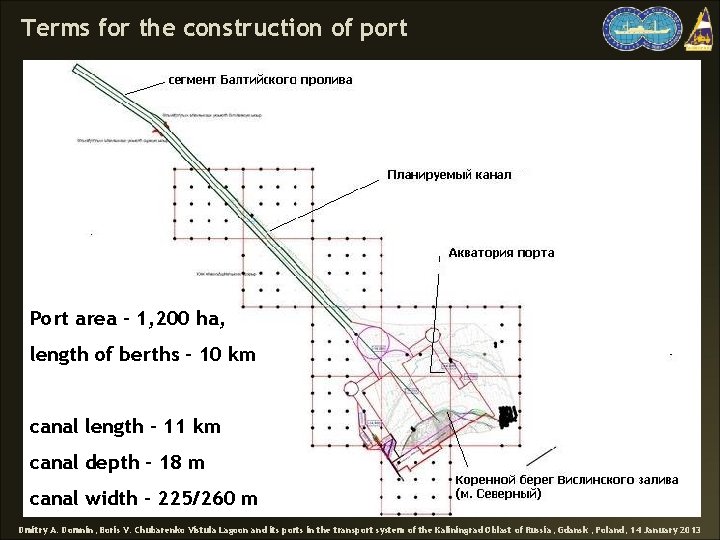

Terms for the construction of port Port area - 1, 200 ha, length of berths - 10 km canal length - 11 km canal depth - 18 m canal width - 225/260 m Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

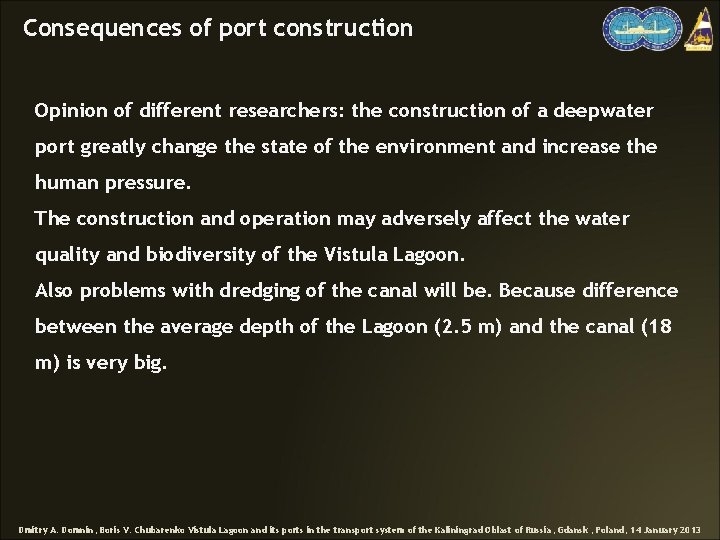

Consequences of port construction Opinion of different researchers: the construction of a deepwater port greatly change the state of the environment and increase the human pressure. The construction and operation may adversely affect the water quality and biodiversity of the Vistula Lagoon. Also problems with dredging of the canal will be. Because difference between the average depth of the Lagoon (2. 5 m) and the canal (18 m) is very big. Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

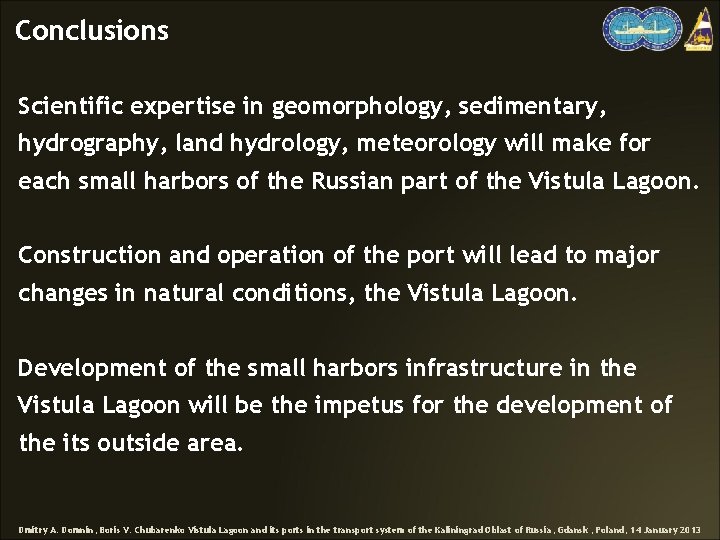

Conclusions Scientific expertise in geomorphology, sedimentary, hydrography, land hydrology, meteorology will make for each small harbors of the Russian part of the Vistula Lagoon. Construction and operation of the port will lead to major changes in natural conditions, the Vistula Lagoon. Development of the small harbors infrastructure in the Vistula Lagoon will be the impetus for the development of the its outside area. Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013

Thank You for attention! Atlantic Branch of P. P. Shirshov Institute of Oceanology of RAS Gdansk, Poland January, 2013 Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk , Poland, 14 January 2013
