ATHE THORACIC WALL Boundaries Posteriorly by by the

A-THE THORACIC WALL Boundaries Posteriorly by by the thoracic part of of the vertebral column Anteriorly by by the sternum and costal cartilages Laterally by by the ribs and intercostal spaces Superiorly by by the suprapleural membrane Inferiorly by by the diaphragm, which separates the thoracic cavity from the abdominal cavity

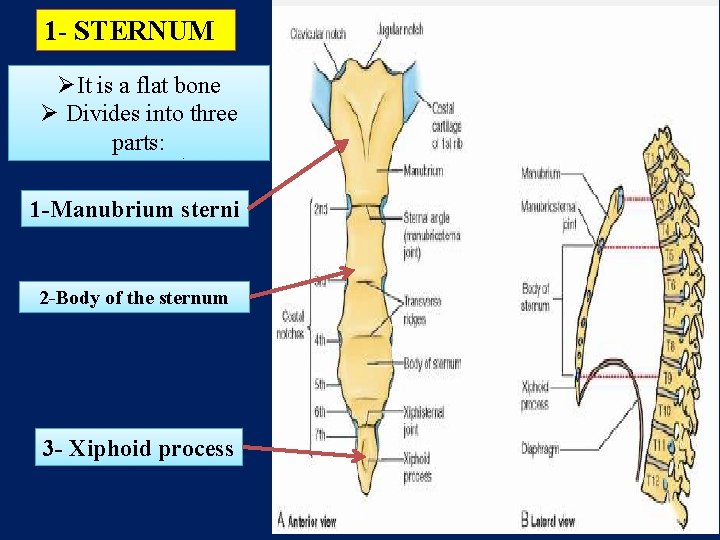

1 - STERNUM ØIt is a flat bone Ø Divides into three parts: 1 -Manubrium sterni 2 -Body of the sternum 3 - Xiphoid process

The sternal angle (angle of Louis) formed by the articulation of the manubrium with the body of the sternum Lies at the level of second costal cartilage The point from which all costal cartilages and ribs are counted

2 -Ribs There are 12 pairs of ribs, all of which are attached posteriorly to the thoracic vertebrae. The ribs are divided into three categories according to their relation to the sternum: True ribs: The upper seven pairs are attached anteriorly to the sternum by their costal cartilages False ribs: The 8 th, 9 th, and 10 th pairs of ribs are attached anteriorly to each other and to the 7 th rib by means of their costal cartilages. Floating ribs: The 11 th and 12 th pairs have no anterior attachment

Typical Rib A typical rib is a long, twisted, flat bone having a rounded, smooth superior border and a sharp, thin inferior border The inferior border forms THE COSTAL GROOVE which accommodates the intercostal vessels and nerve. intercostal vein t n a intercostal artery rt o p intercostal nerve im VAN A rib has a head, neck, tubercle, shaft, and angle

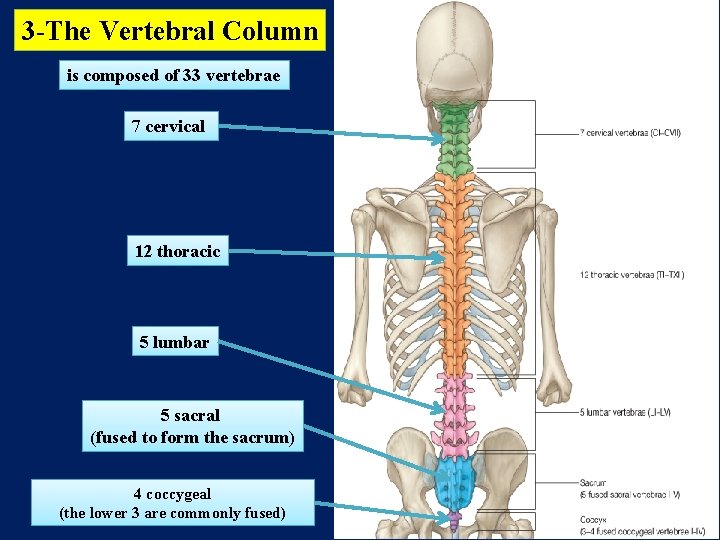

3 -The Vertebral Column is composed of 33 vertebrae 7 cervical 12 thoracic 5 lumbar 5 sacral (fused to form the sacrum) 4 coccygeal (the lower 3 are commonly fused)

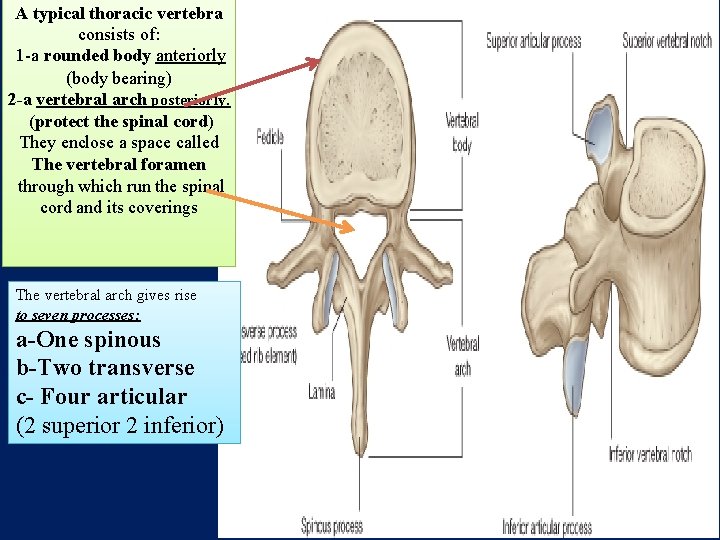

A typical thoracic vertebra consists of: 1 -a rounded body anteriorly (body bearing) 2 -a vertebral arch posteriorly. (protect the spinal cord) They enclose a space called The vertebral foramen through which run the spinal cord and its coverings The vertebral arch gives rise to seven processes: a-One spinous b-Two transverse c- Four articular (2 superior 2 inferior)

Characteristics of a Typical Thoracic Vertebra ØThe body is heart shaped ØThe vertebral foramen is small and circular ØThe spines are long and inclined downward ØCostal facets are present on the sides of the bodies for articulation with the heads of the ribs ØCostal facets are present on the transverse processes for articulation with the tubercles of the ribs

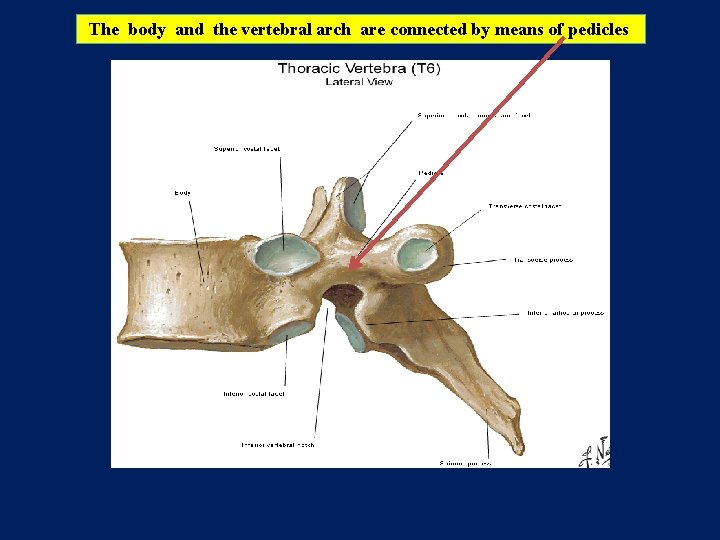

The body and the vertebral arch are connected by means of pedicles

v. The pedicles are notched on their upper and lower borders Forming the superior and inferior vertebral notches. On each side the superior notch of one vertebra and the inferior notch of an adjacent vertebra together form an intervertebral foramen. These foramina, in an articulated skeleton, serve to transmit the spinal nerves and blood vessels.

4 -The diaphragm is a thin muscular and tendinous septum that separates the chest cavity above from the abdominal cavity below ØThe diaphragm is the most important muscle of respiration. ØIt is dome shaped and consists of a peripheral muscular part and a centrally placed tendon

Main Openings in the diaphragm The inferior vena cava passes through the central tendon at approximately vertebral level T 8 The esophagus passes through the muscular part of the diaphragm, approximately at vertebral level T 10 The aorta passes behind the posterior attachment of the diaphragm at vertebral level T 12

Nerve supply of the diaphragm The phrenic nerves

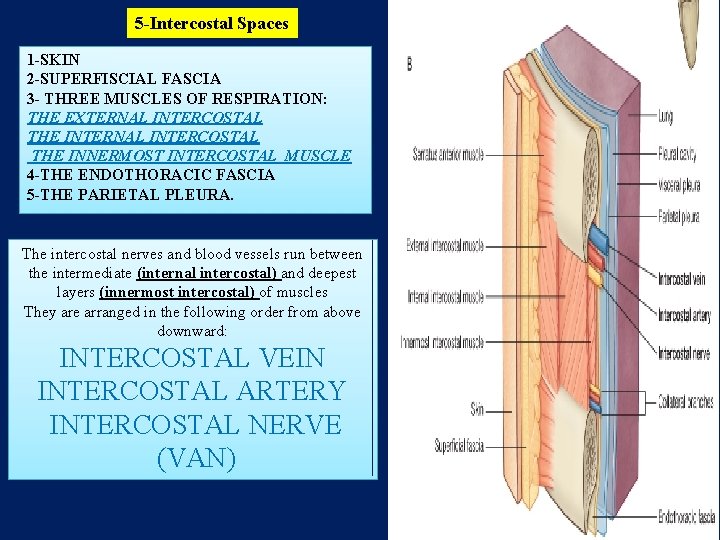

5 -Intercostal Spaces 1 -SKIN 2 -SUPERFISCIAL FASCIA 3 - THREE MUSCLES OF RESPIRATION: THE EXTERNAL INTERCOSTAL THE INNERMOST INTERCOSTAL MUSCLE 4 -THE ENDOTHORACIC FASCIA 5 -THE PARIETAL PLEURA. The intercostal nerves and blood vessels run between the intermediate (internal intercostal) and deepest layers (innermost intercostal) of muscles They are arranged in the following order from above downward: INTERCOSTAL VEIN INTERCOSTAL ARTERY INTERCOSTAL NERVE (VAN)

The external intercostal muscle Øthe most superficial layer. ØIts fibers are directed downward and forward The Internal Intercostal Muscle Øforms the intermediate layer. ØIts fibers are directed downward and backward

The innermost intercostal muscle Forms the deepest layer It is an incomplete muscle layer and crosses more than one intercostal space within the ribs.

B-CHEST CAVITY The chest cavity is bounded by the chest wall and below by the diaphragm

The chest cavity can be divided into MEDIAN PARTITION CALLED THE MEDIASTINUM LATERALLY PLACED PLEURAE AND LUNGS

2 -Pleurae The pleurae and lungs lie on either side of the mediastinum within the chest cavity FORMATION OF THE LUNGS Each lung bud invaginates the wall of the cavity and then grows to fill a greater part of the cavity the lung is covered with visceral pleura and the thoracic wall is lined with parietal pleura The original cavity is reduced to a slitlike space called the pleural cavity as a result of the growth of the lung.

Each pleura has two parts: 1 - Parietal layer, which lines A-The thoracic wall 2 - Visceral layer: completely covers the outer surfaces of The lungs

The parietal and visceral layers of pleura are separated from one another by a slit like space The Pleural Cavity

Trachea ØThe trachea is a mobile cartilaginous and membranous tube Ø It begins in the neck as a continuation of the larynx at the lower border of the cricoid cartilage at the level of the sixth cervical vertebra Øends at the carina by dividing into right and left principal (main) bronchi at the level of the sternal angle (opposite the disc between the fourth and fifth thoracic vertebrae).

Principal Bronchi The right principal (main) bronchus 1 -wider 2 -shorter 3 - more vertical than the left 4 -is about 1 in. (2. 5 cm) long The left principal (main) bronchus is 1 -narrower 2 -longer 3 -more horizontal than the right 4 - is about 2 in. (5 cm) long.

INHALED FOREIGN BODIES Inhalation of foreign bodies into the lower respiratory tract is common, especially in children Because the right bronchus is the wider and more direct continuation of the trachea foreign bodies tend to enter the right instead of the left bronchus

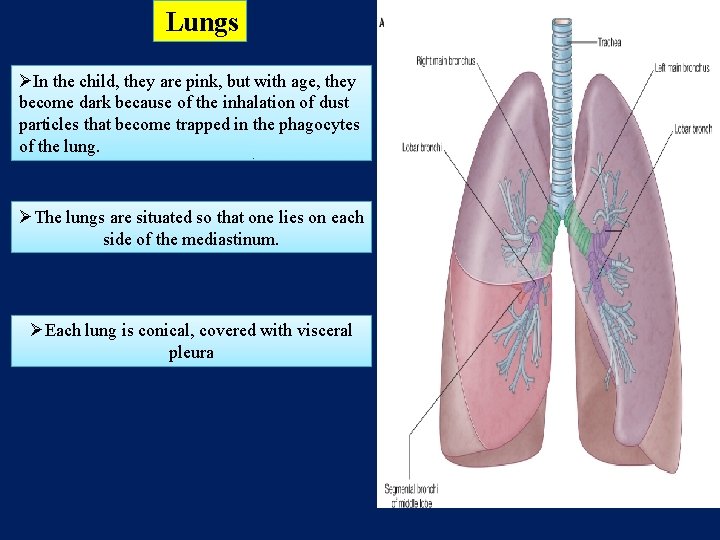

Lungs ØIn the child, they are pink, but with age, they become dark because of the inhalation of dust particles that become trapped in the phagocytes of the lung. ØThe lungs are situated so that one lies on each side of the mediastinum. ØEach lung is conical, covered with visceral pleura

ØEach lung has a blunt apex, which projects upward into the neck for about 1 in. (2. 5 cm) above the clavicle Øa concave base that sits on the diaphragm Øa convex costal surface, which corresponds to the concave chest wall Øa concave mediastinal surface, which is molded to the pericardium and other mediastinal structures ØAt about the middle of mediastinal hilum surface is the a depression in which the bronchi, vessels, and nerves that form the root enter and leave the lung. ØThe anterior border is thin and overlaps the heart The posterior border is thick and lies beside the vertebral column

Right Lung The right lung is slightly larger than the left is divided by the oblique and horizontal fissures into three lobes: THE UPPER MIDDLE LOWER LOBES

Left Lung The left lung is divided by a similar oblique fissure into two lobes: the upper and lower lobes There is no horizontal fissure in the left lung

1 -Pulmonary artery Superior in position superior 3 -Main bronchus Posterior in position 2 -Pulmonary veins Inferior in position posterior inferior anterior For the Practical sessions you do need to recognize the following (1, 2 & 3) according to their anatomical positions
