ATEIS Middle East ATES in Brief Part of

ATEIS Middle East

ATEÏS in Brief § Part of the UK based PCI Corporation § Turn over of 100 Million US Dollars § Offices / Manufacturing facilities across USA, UK, Germany, France, Switzerland, , Taiwan, China and Dubai § Manufacturing both Audio Technologies and Speakers § Latest innovation products § The first Pro-audio system than comply to BS 5839 part 8 and EN 60849 standards and requirements. § Over 35 years in the line of Audio Technology

ATEÏS in short ATEÏS is developing and manufacturing audio products since 1980 In 1995 ATEÏS developed its first PC based PA matrix system In 2001 ATEÏS presented its first security (EN 60849) PA/VA system In 2004, creation of ATEïS International and Development team ATEÏS INTERNATIONAL SA Goumoens-La-Ville Switzerland Head Offices ATEÏS FRANCE ATEÏS World Wide 1) Grenoble USA 2) Paris UK Product Development and Manufacturing Middle East Marketing, Sales, Technical support for France and French Speaking Countries Germany Taiwan China Product Marketing and Technical Support

ATEÏS a few references Paris Orly airport Lyon Satolas airport Basel airport Agadir airport Train stations : Lyon, Marseille, Monaco Subway : Paris RATP renewal Bruxells WTC Paris Stade Rolland Garos Futuroscope de Poitier Shopping Mall Roanne

ATEÏS Local References Some of Land Marks in Dubai, in less than one year of ATEÏS Middle East Operation

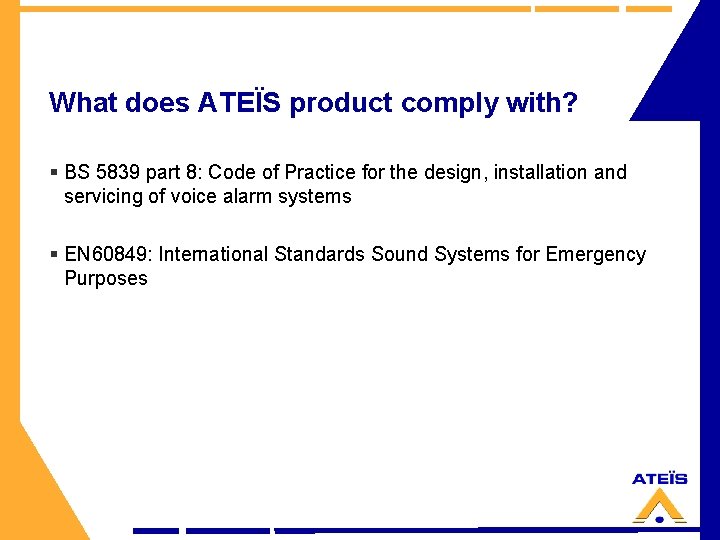

What does ATEÏS product comply with? § BS 5839 part 8: Code of Practice for the design, installation and servicing of voice alarm systems § EN 60849: International Standards Sound Systems for Emergency Purposes

Why d. B § It enables us to use a comparatively small range of numbers to express large and often unwieldy quantities. § The decibel also makes sense from a psychoacoustical point of view in that it relates directly to the effect of most sensory stimuli. § d. B=1/10 Bell § Bell=Log(P 1/P 0) and always P 0 =1 W § Hence d. B=10 Log(P 1/P 0) § SPL=20 log(P 1/P 0)

Why d. B § Every double the power shall double the d. B level

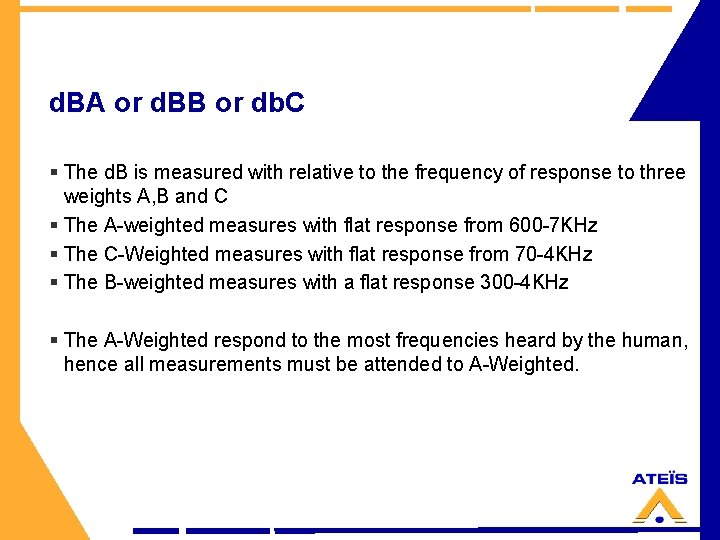

d. BA or d. BB or db. C § The d. B is measured with relative to the frequency of response to three weights A, B and C § The A-weighted measures with flat response from 600 -7 KHz § The C-Weighted measures with flat response from 70 -4 KHz § The B-weighted measures with a flat response 300 -4 KHz § The A-Weighted respond to the most frequencies heard by the human, hence all measurements must be attended to A-Weighted.

SPL losses at double the distance § It comes from the Inverse Square Relationship § As seen below, the area of the 1 m sphere is 4 times less than 2 m at point B § Hence d. B power level=10 Log(4/1)=6 d. B=10 Log²(2)=20 Log 2 § Hence the Inverse rule Loss in d. B=20 Log Distance

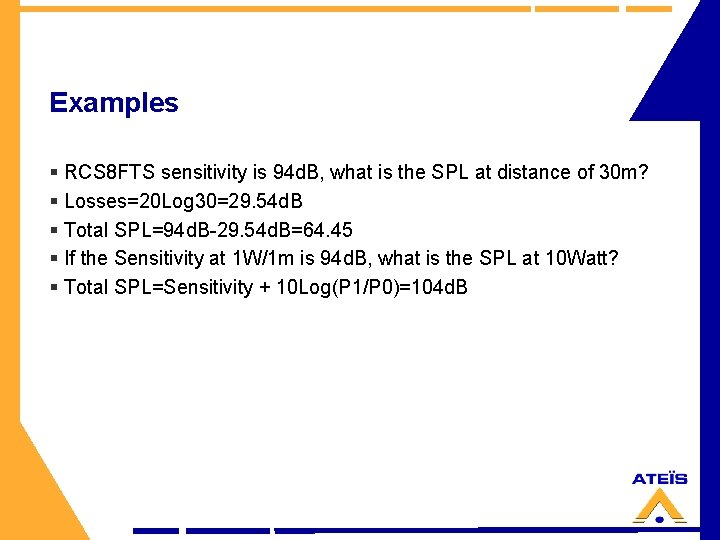

Examples § RCS 8 FTS sensitivity is 94 d. B, what is the SPL at distance of 30 m? § Losses=20 Log 30=29. 54 d. B § Total SPL=94 d. B-29. 54 d. B=64. 45 § If the Sensitivity at 1 W/1 m is 94 d. B, what is the SPL at 10 Watt? § Total SPL=Sensitivity + 10 Log(P 1/P 0)=104 d. B

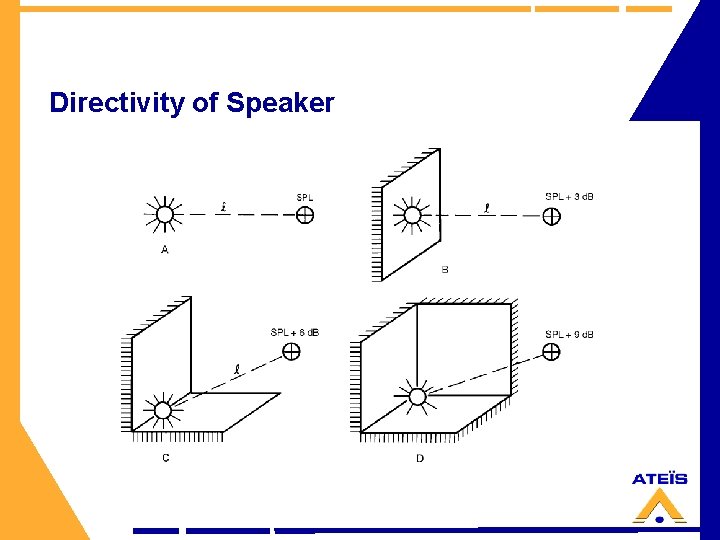

Directivity of Speaker

ATEÏS product ranges Ø Public Address and Voice Alarm

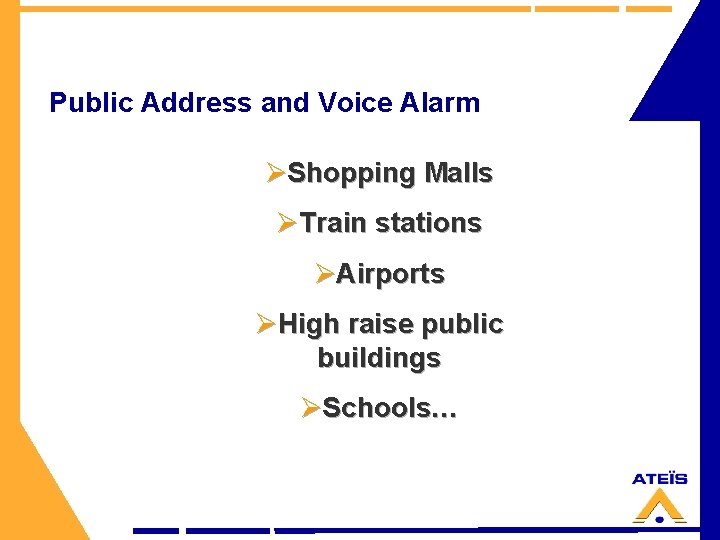

Public Address and Voice Alarm ØShopping Malls ØTrain stations ØAirports ØHigh raise public buildings ØSchools…

SINAPS COMPACT IDA 4 • 5 audio inputs (1 emergency broadcast microphone + 4 x 0 db symmetric inputs) • Monitoring of 4 100 V Loudspeaker zones (max 500 W per zone) • Monitoring of 4 zone amplifiers + 1 backup amplifier • Full monitoring of the PSS microphone console (capsule, screen, touchpad, connections) • Digital message player (4 messages, total length up to 2 mins. 11 secs. ) • Digital signal processing (DSP) • Parametric equalization: 3 bands on inputs, 7 bands on outputs • Individual controls for each input and output level • Separate controls for the security modulation • Designation of names to sources and zones • 9 programmable priority levels (contact or automatic detection activation) • Sound level adjustments with VU meter • Programmable delay of 0 to 683 msecs. • Measurements (levels and impedance) of amplifiers and LS lines • Incident data record with up to 2, 000 incidents • Internal clock

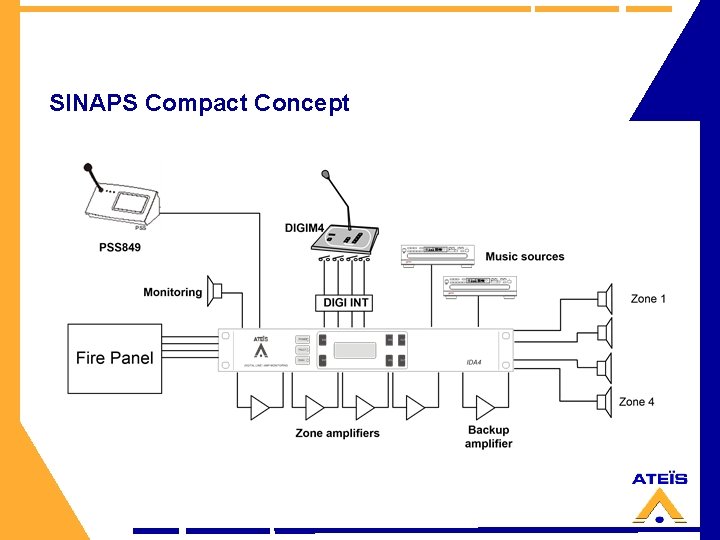

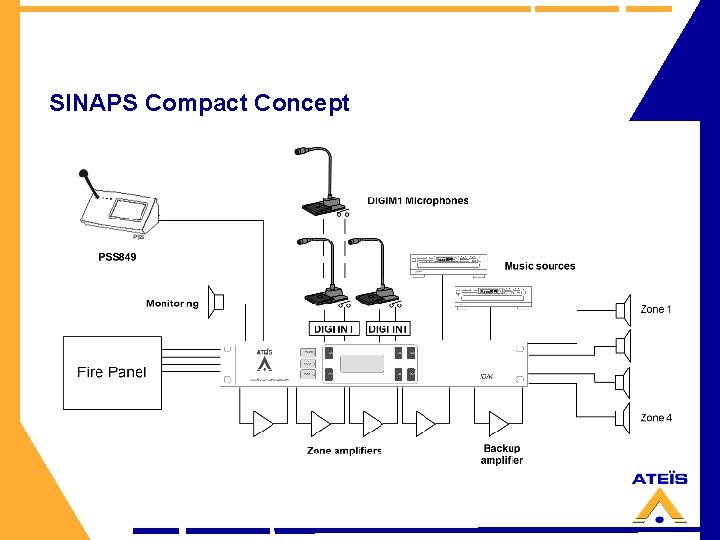

SINAPS Compact Concept

SINAPS Compact Concept

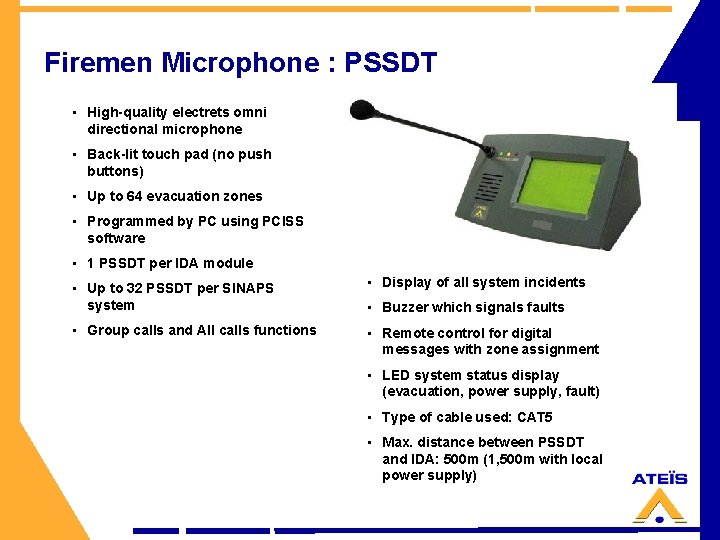

Firemen Microphone : PSSDT • High-quality electrets omni directional microphone • Back-lit touch pad (no push buttons) • Up to 64 evacuation zones • Programmed by PC using PCISS software • 1 PSSDT per IDA module • Up to 32 PSSDT per SINAPS system • Display of all system incidents • Group calls and All calls functions • Remote control for digital messages with zone assignment • Buzzer which signals faults • LED system status display (evacuation, power supply, fault) • Type of cable used: CAT 5 • Max. distance between PSSDT and IDA: 500 m (1, 500 m with local power supply)

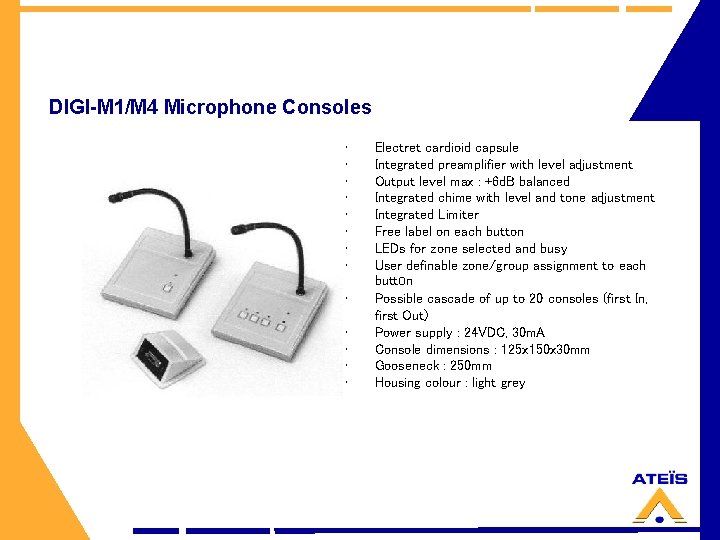

DIGI-M 1/M 4 Microphone Consoles • • • • Electret cardioid capsule Integrated preamplifier with level adjustment Output level max : +6 d. B balanced Integrated chime with level and tone adjustment Integrated Limiter Free label on each button LEDs for zone selected and busy User definable zone/group assignment to each button Possible cascade of up to 20 consoles (first In, first Out) Power supply : 24 VDC, 30 m. A Console dimensions : 125 x 150 x 30 mm Gooseneck : 250 mm Housing colour : light grey

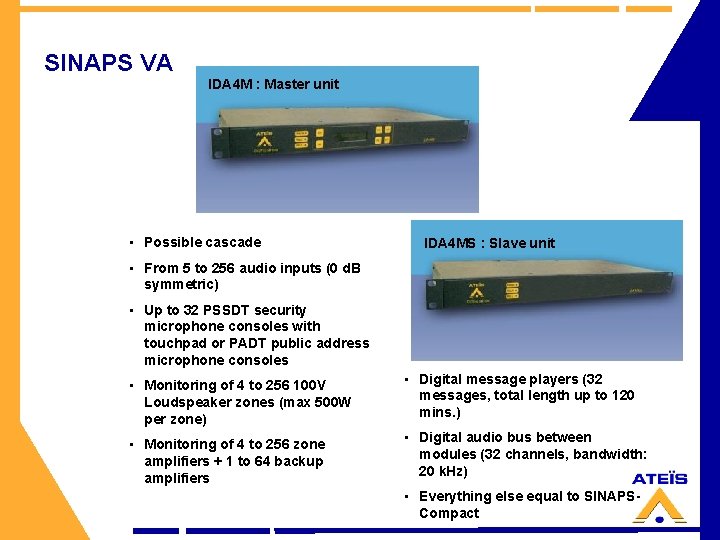

SINAPS VA IDA 4 M : Master unit • Possible cascade IDA 4 MS : Slave unit • From 5 to 256 audio inputs (0 d. B symmetric) • Up to 32 PSSDT security microphone consoles with touchpad or PADT public address microphone consoles • Monitoring of 4 to 256 100 V Loudspeaker zones (max 500 W per zone) • Digital message players (32 messages, total length up to 120 mins. ) • Monitoring of 4 to 256 zone amplifiers + 1 to 64 backup amplifiers • Digital audio bus between modules (32 channels, bandwidth: 20 k. Hz) • Everything else equal to SINAPSCompact

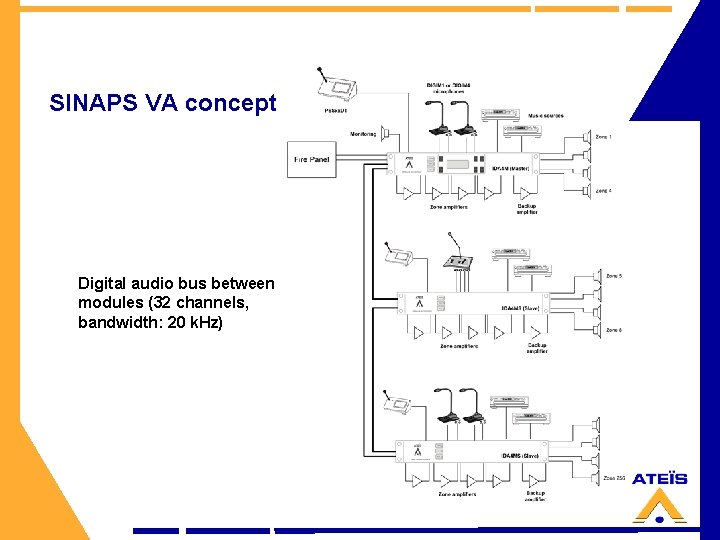

SINAPS VA concept Digital audio bus between modules (32 channels, bandwidth: 20 k. Hz)

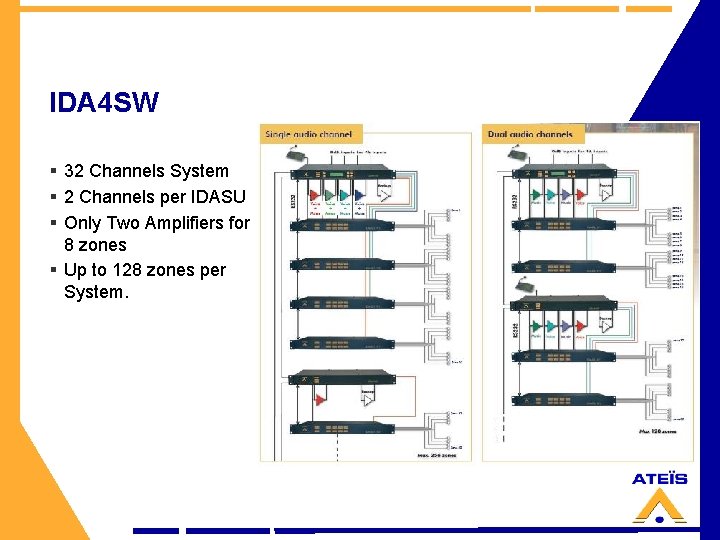

IDA 4 SW § 32 Channels System § 2 Channels per IDASU § Only Two Amplifiers for 8 zones § Up to 128 zones per System.

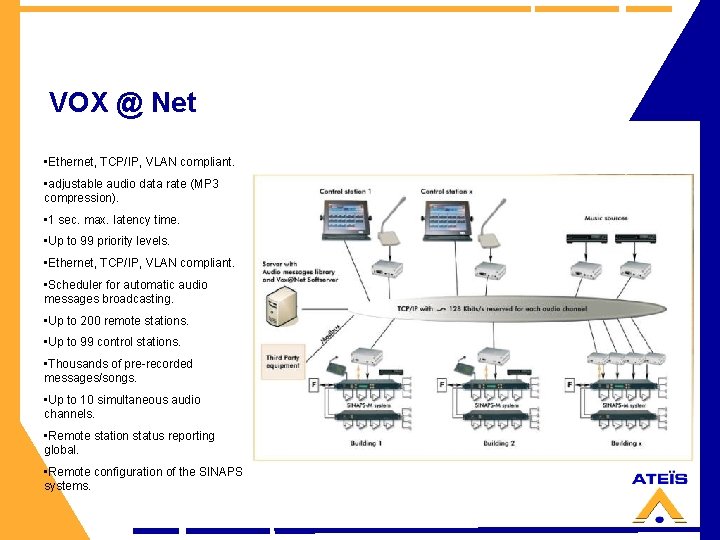

VOX @ Net • Ethernet, TCP/IP, VLAN compliant. • adjustable audio data rate (MP 3 compression). • 1 sec. max. latency time. • Up to 99 priority levels. • Ethernet, TCP/IP, VLAN compliant. • Scheduler for automatic audio messages broadcasting. • Up to 200 remote stations. • Up to 99 control stations. • Thousands of pre-recorded messages/songs. • Up to 10 simultaneous audio channels. • Remote station status reporting global. • Remote configuration of the SINAPS systems.

APA 100 V amplifiers • Balanced 0 d. B input • 100 V, 75 V, 50 V outputs • Thermostatic ventilation • 230 VAC and 24 VDC power supply • Amplifier status contact output APA 60 : 60 W APA 120 : 120 W APA 240 : 240 W RKAPA

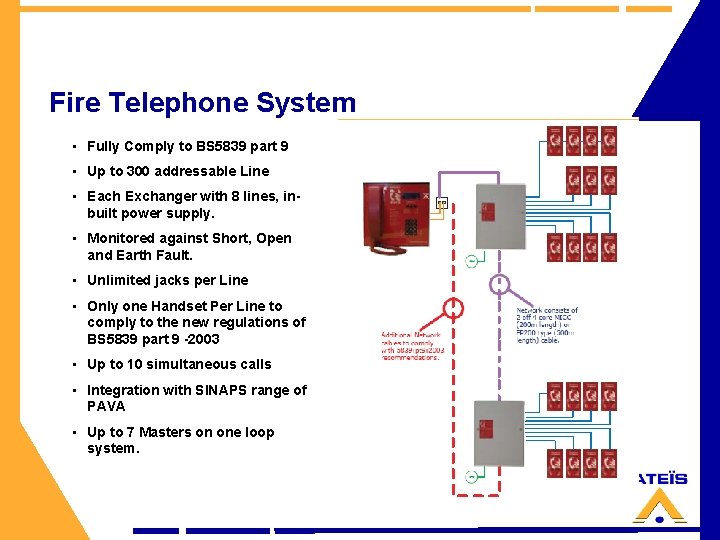

Fire Telephone System • Fully Comply to BS 5839 part 9 • Up to 300 addressable Line • Each Exchanger with 8 lines, inbuilt power supply. • Monitored against Short, Open and Earth Fault. • Unlimited jacks per Line • Only one Handset Per Line to comply to the new regulations of BS 5839 part 9 -2003 • Up to 10 simultaneous calls • Integration with SINAPS range of PAVA • Up to 7 Masters on one loop system.

PRO Audio ØChurches ØAuditoriums ØConference rooms ØAudio-Video applications

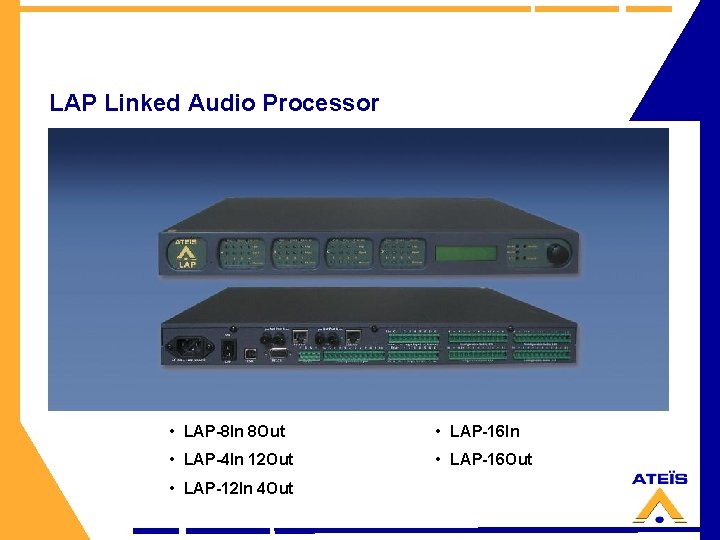

LAP Linked Audio Processor • LAP-8 In 8 Out • LAP-16 In • LAP-4 In 12 Out • LAP-16 Out • LAP-12 In 4 Out

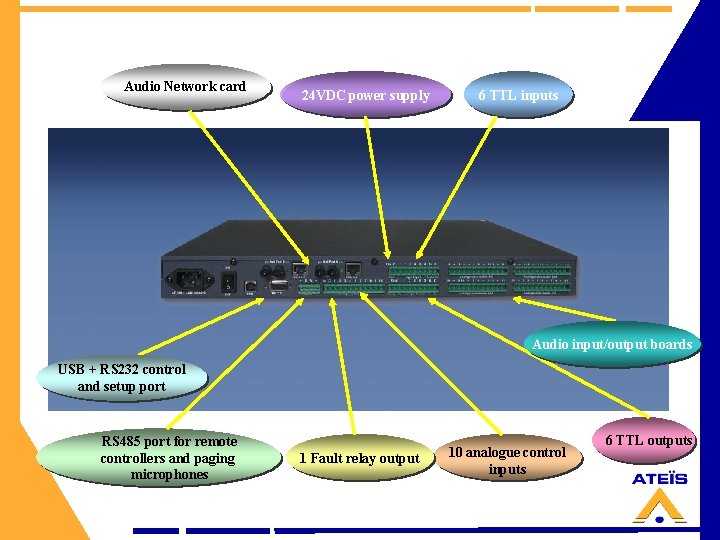

Audio Network card 24 VDC power supply 6 TTL inputs Audio input/output boards USB + RS 232 control and setup port RS 485 port for remote controllers and paging microphones 1 Fault relay output 10 analogue control inputs 6 TTL outputs

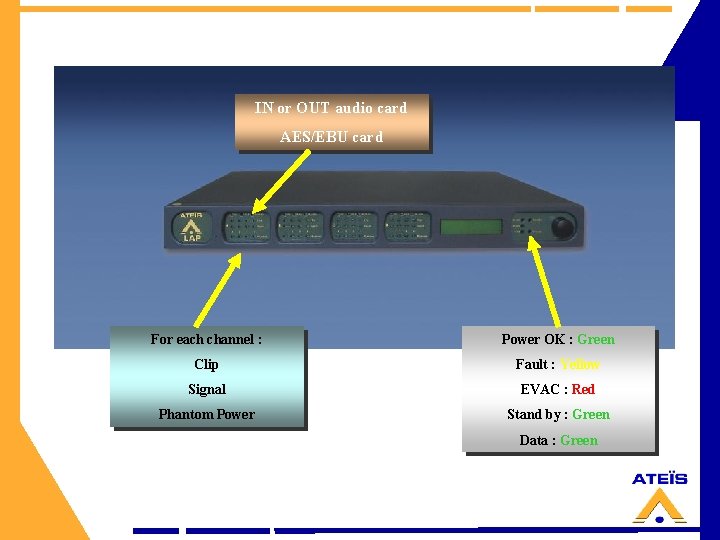

IN or OUT audio card AES/EBU card For each channel : Power OK : Green Clip Fault : Yellow Signal EVAC : Red Phantom Power Stand by : Green Data : Green

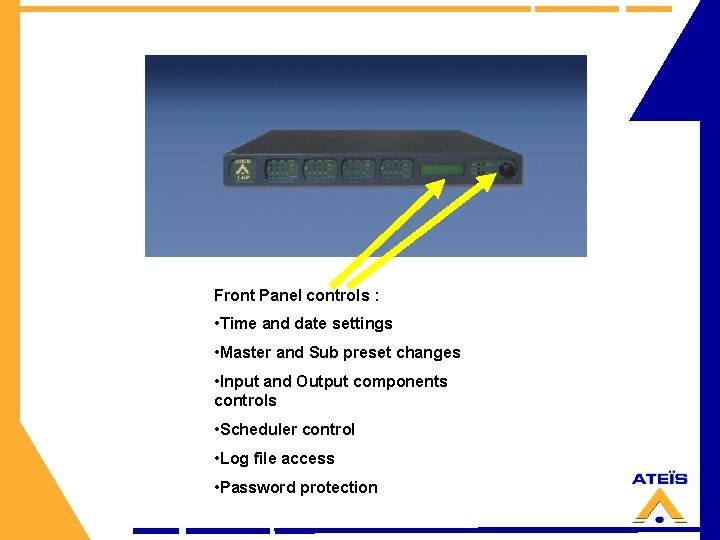

Front Panel controls : • Time and date settings • Master and Sub preset changes • Input and Output components controls • Scheduler control • Log file access • Password protection

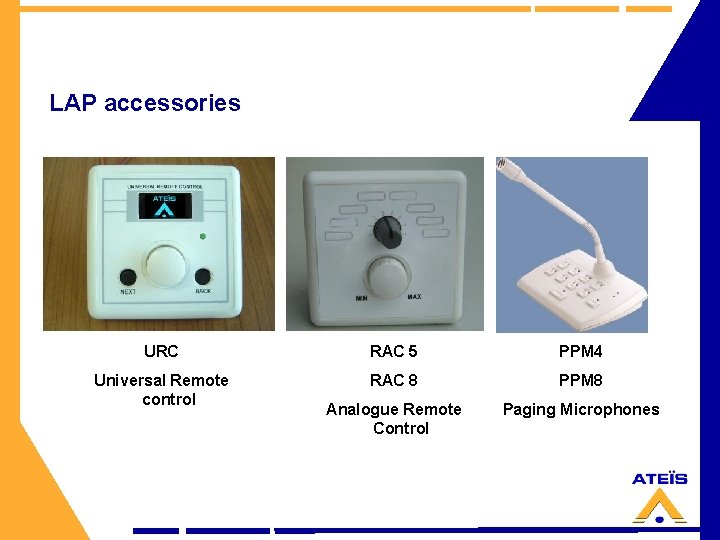

LAP accessories URC RAC 5 PPM 4 Universal Remote control RAC 8 PPM 8 Analogue Remote Control Paging Microphones

URC controls • Master and Sub preset changes • Level controls • Source selection • Scheduler control • Password protection

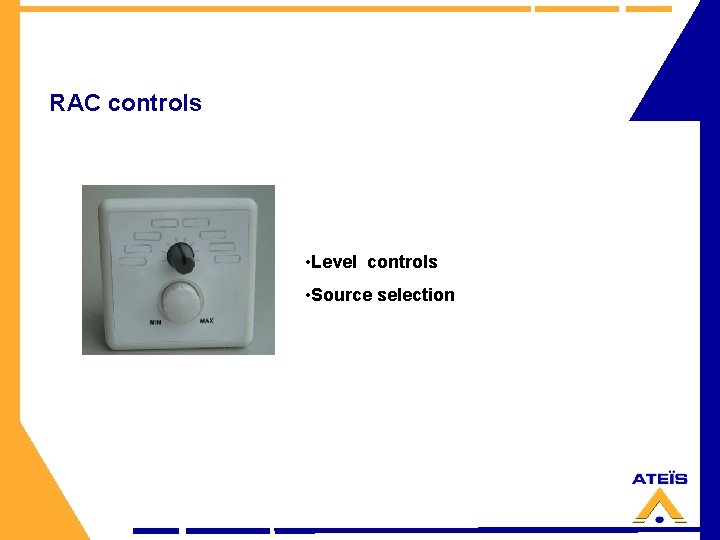

RAC controls • Level controls • Source selection

PPM microphones • Custom chime • Free assignement of each button (zone or group of zone) • Cascading of up to 16 microphones on same LAP input

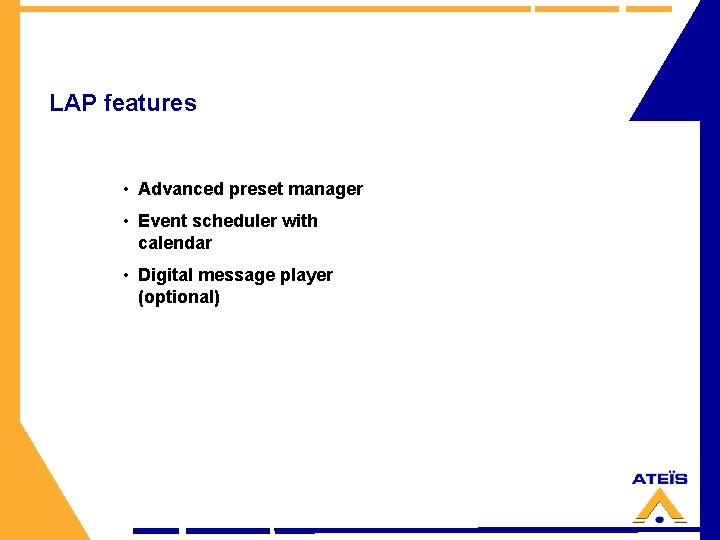

LAP features • Advanced preset manager • Event scheduler with calendar • Digital message player (optional)

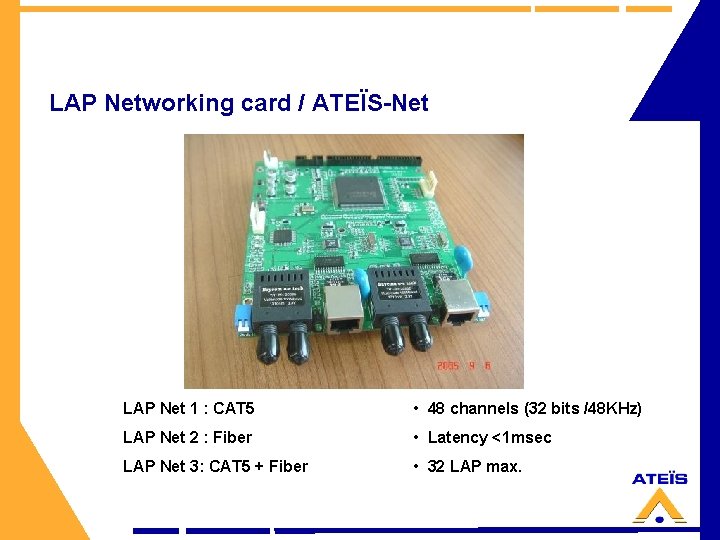

LAP Networking card / ATEÏS-Net LAP Net 1 : CAT 5 • 48 channels (32 bits /48 KHz) LAP Net 2 : Fiber • Latency <1 msec LAP Net 3: CAT 5 + Fiber • 32 LAP max.

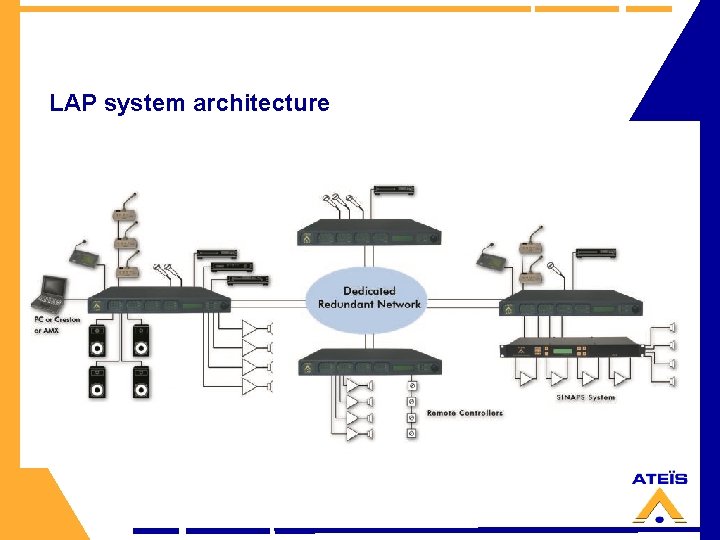

LAP system architecture

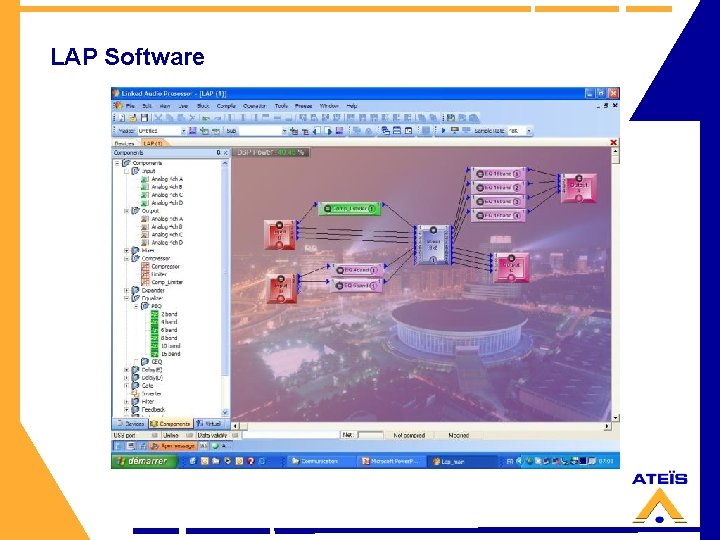

LAP Software

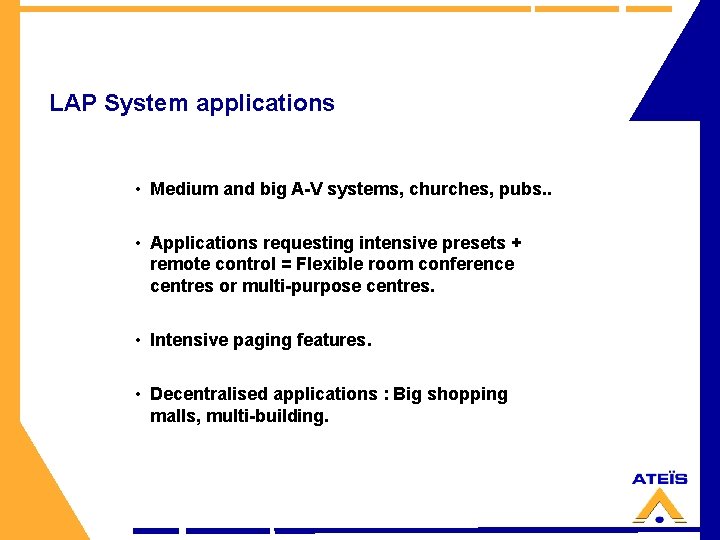

LAP System applications • Medium and big A-V systems, churches, pubs. . • Applications requesting intensive presets + remote control = Flexible room conference centres or multi-purpose centres. • Intensive paging features. • Decentralised applications : Big shopping malls, multi-building.

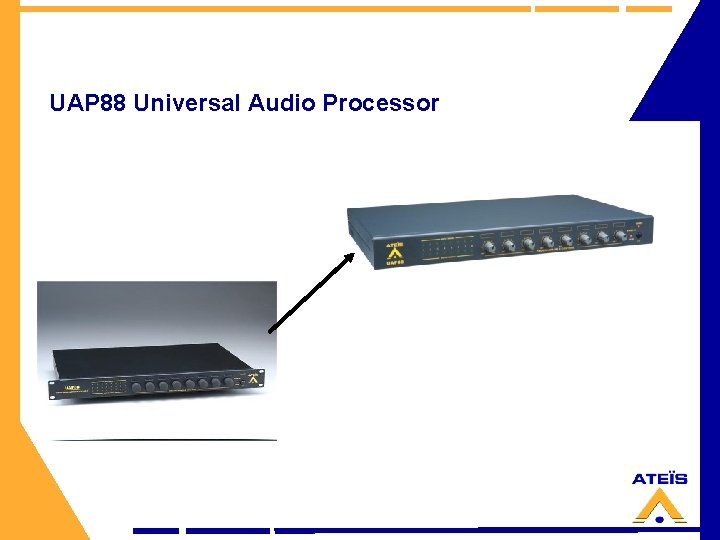

UAP 88 Universal Audio Processor

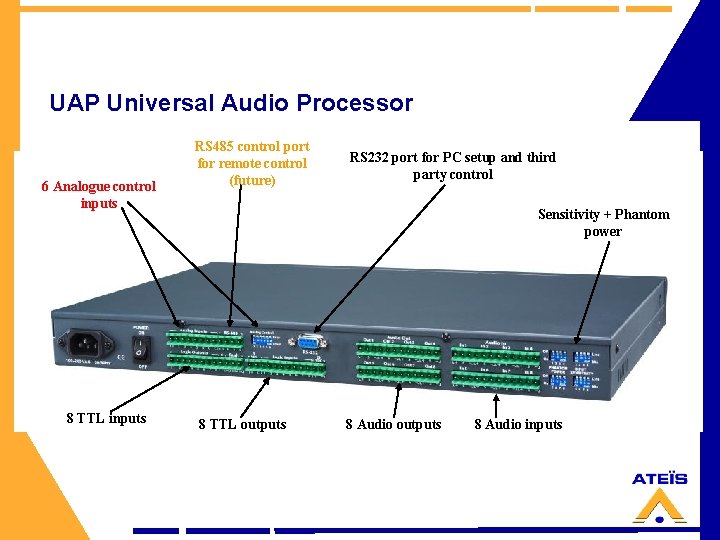

UAP Universal Audio Processor 6 Analogue control inputs 8 TTL inputs RS 485 control port for remote control (future) RS 232 port for PC setup and third party control Sensitivity + Phantom power 8 TTL outputs 8 Audio inputs

UAP Universal Audio Processor DSP treatments : • 8 balanced universal audio inputs • Phantom Power • 8 balanced audio outputs • 8 input contacts • 8 output contacts • Fully digital (DSP) • PC setup • RS 232 external control • Free functional assignment to each rotary knobs • Free design of internal treatments • Input/Output level controls • 2 to 16 bands EQs • Gate Control • Matrix mixer • Compressor • Delay • Feedback suppressor • Page Matrix • Source selector • Ducker

UAP Accessories RAC 5 and RAC 8 DIGI M 1 or M 4 Analogue Remote controllers Or any microphone (0 d. B + contacts) (level + sources)

UAP Universal Audio Processor MIC 1 MIC 2 MIC 3 MIC 4 CD PC ROOM 1 ROOM 2

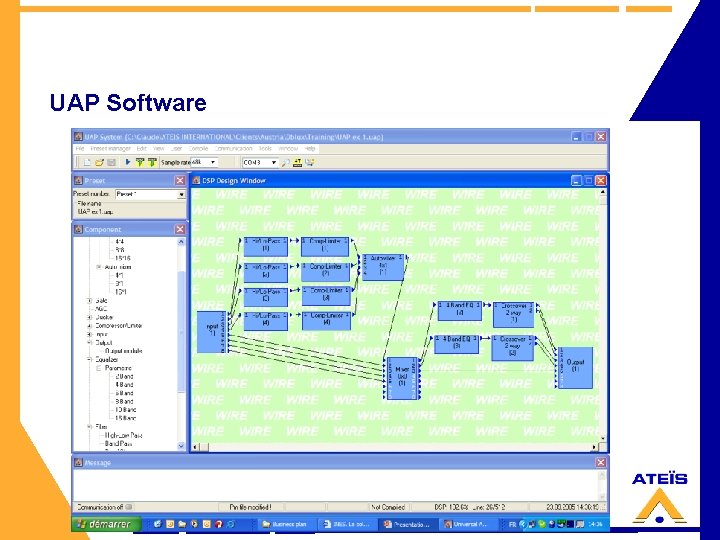

UAP Software

UAP application example

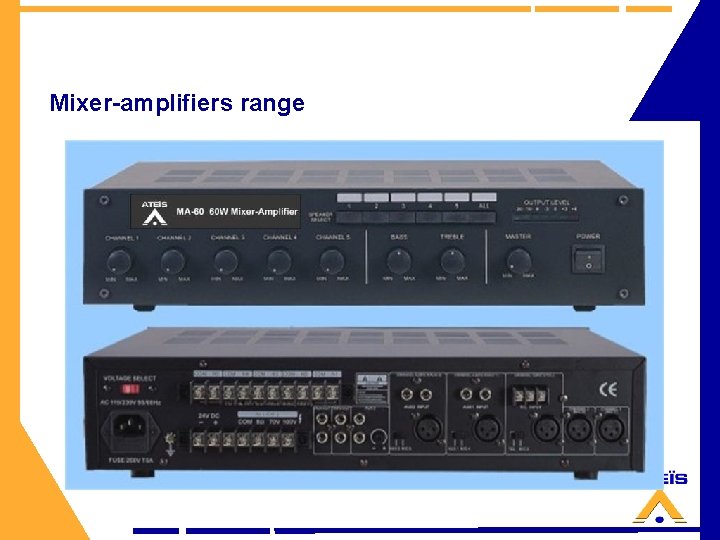

Mixer-amplifiers range

Counter Intercom System Banks Train stations Ski resorts …

Magellan Counter Intercom System MAP : officer microphone HPS : Louspeaker • Full Duplex • Bandwidth: 8 KHz • Fully digital (DSP) • Antilarsen via echo cancellation (without filtering) • Nominal power: 4 W / 8 ohms MC : Customer microphone • Programmable output level UC 1 : Central Unit • Automatic gain control • Limiter • Automatic stand-by mode • Anti-vandal microphones and speakers

Magellan Accessories Cable kits BME : Antenna for hearing impaired people

Magellan Setup Software

Thank You

Business Bay Positioned to become the leading business capital, and located along the new extension of Dubai Creek, this 64 million square feet area of 12 towers positioned on a common shopping mall is the business land mark of Dubai.

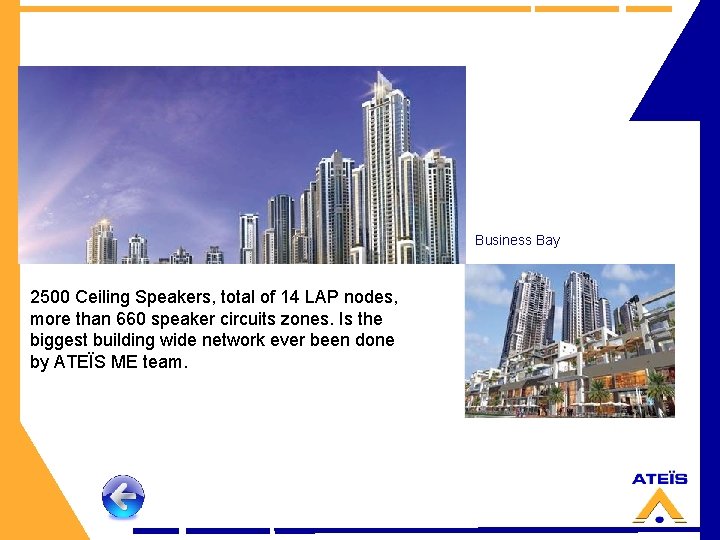

Business Bay 2500 Ceiling Speakers, total of 14 LAP nodes, more than 660 speaker circuits zones. Is the biggest building wide network ever been done by ATEÏS ME team.

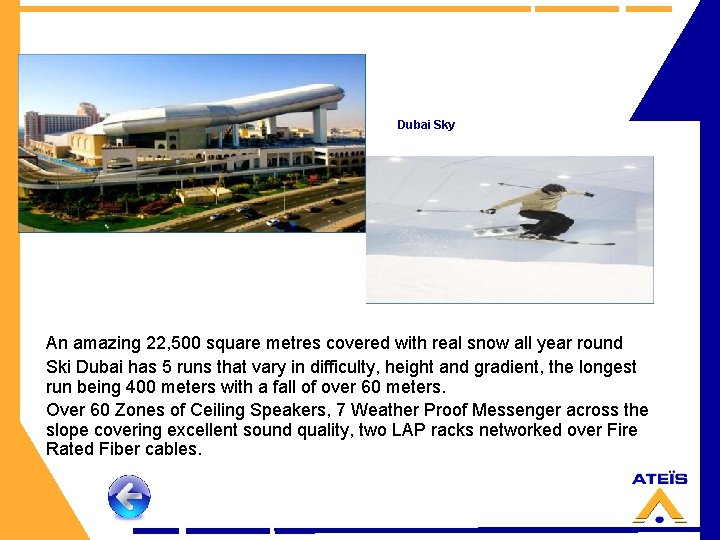

Dubai Sky An amazing 22, 500 square metres covered with real snow all year round Ski Dubai has 5 runs that vary in difficulty, height and gradient, the longest run being 400 meters with a fall of over 60 meters. Over 60 Zones of Ceiling Speakers, 7 Weather Proof Messenger across the slope covering excellent sound quality, two LAP racks networked over Fire Rated Fiber cables.

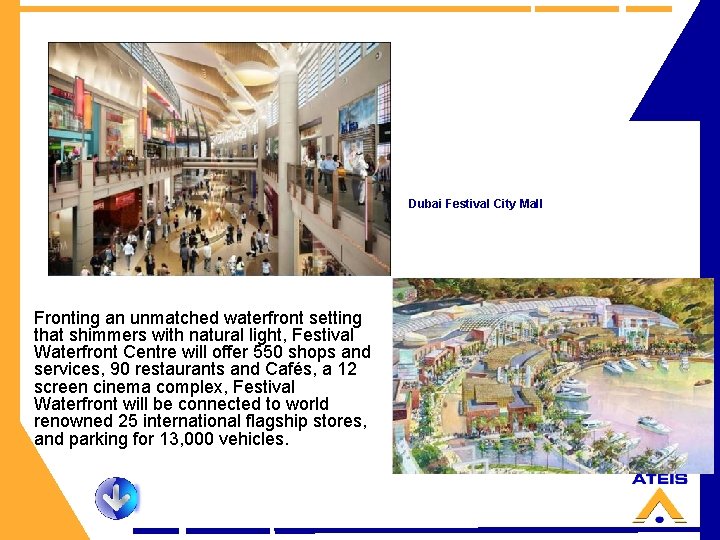

Dubai Festival City Mall Fronting an unmatched waterfront setting that shimmers with natural light, Festival Waterfront Centre will offer 550 shops and services, 90 restaurants and Cafés, a 12 screen cinema complex, Festival Waterfront will be connected to world renowned 25 international flagship stores, and parking for 13, 000 vehicles.

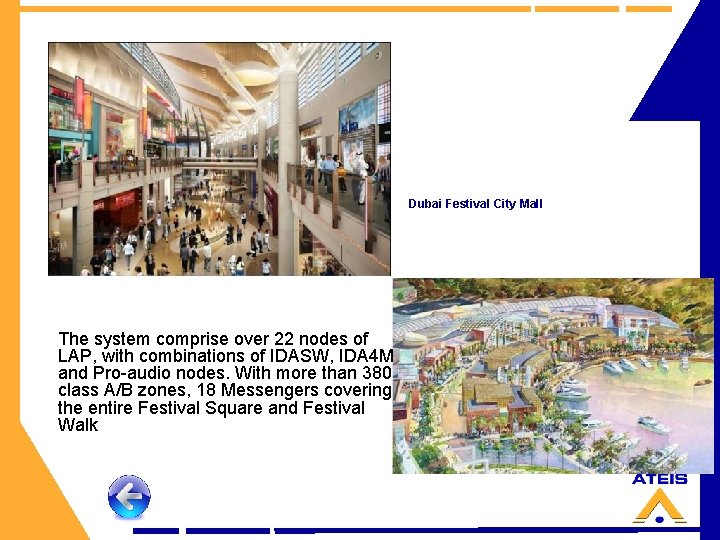

Dubai Festival City Mall The system comprise over 22 nodes of LAP, with combinations of IDASW, IDA 4 M and Pro-audio nodes. With more than 380 class A/B zones, 18 Messengers covering the entire Festival Square and Festival Walk

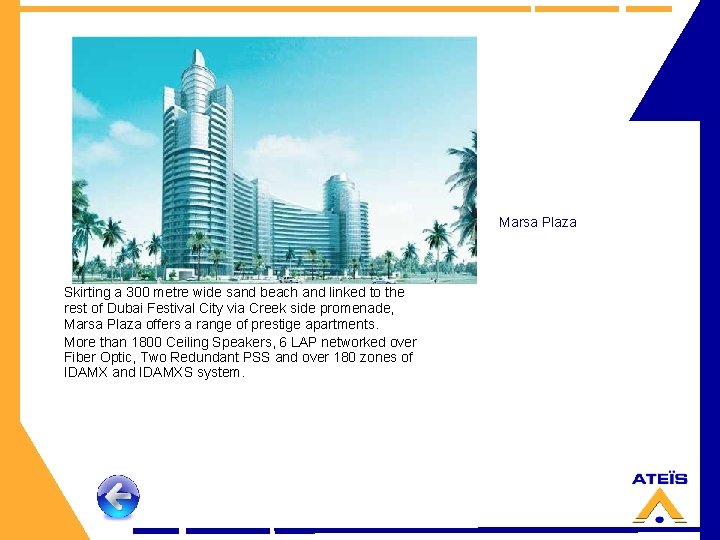

Marsa Plaza Skirting a 300 metre wide sand beach and linked to the rest of Dubai Festival City via Creek side promenade, Marsa Plaza offers a range of prestige apartments. More than 1800 Ceiling Speakers, 6 LAP networked over Fiber Optic, Two Redundant PSS and over 180 zones of IDAMX and IDAMXS system.
