ATCOM CORPORATION Company Profile About Us Atcom Corporation
ATCOM CORPORATION
Company Profile About Us Atcom Corporation is privately own company and is a leading manufacturer of Industrial Valves in India. We are a group with a goal to supply best quality products at the most competitive rates in India and worldwide. Over the past few years the products manufactured by the company has earned a reputation for the quality and reliability in the wide spectrum of industries applications. our products are best suited to various industries and meet the requirements of ASTM, BS, DIN, API, API 6 D, ASA and various other standards recognized globally.
Company Profile (cont. . ) The company is involved in manufacture and sales of "Phonixl" Brand Industrial Valves a for use in Process & Chemical, Refineries & Petrochemicals, Fertilizers, Drugs & Pharmaceuticals, Thermal Power Stations, Nuclear & Atomic Power Stations, Textiles, Dyes & Intermediates, Paints & Varnishes, Sugar, Breweries & Distilleries, Soaps & Detergents, Steel Plants, Food & Oil Industry, Solvent Extraction Plants, Sewage, Effluent & Water Treatment, Cooling Water, Ship Yards and Marine Management, Water Works, Pulp & Paper, LPG Bottling Plants, Onshore & Offshore platforms, Slurry & Ash handling. Our in-house engineering team is experts in valve modification and recertification and has the ability to change the design and specification of valves to suit your requirements

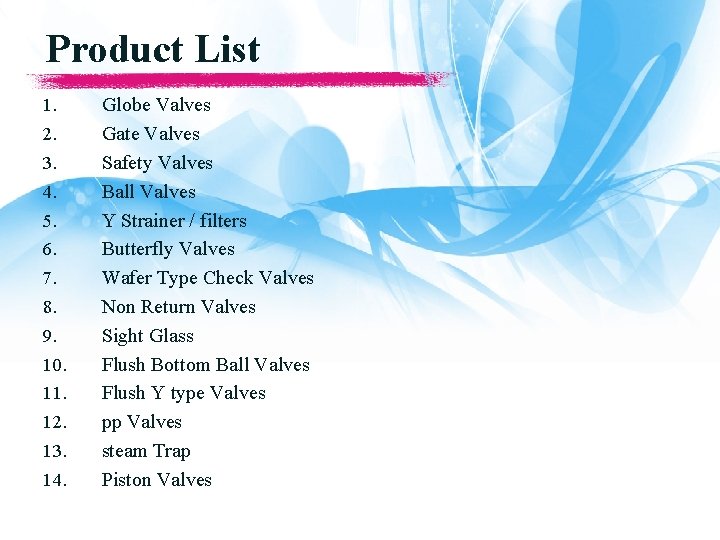

Product List 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Globe Valves Gate Valves Safety Valves Ball Valves Y Strainer / filters Butterfly Valves Wafer Type Check Valves Non Return Valves Sight Glass Flush Bottom Ball Valves Flush Y type Valves pp Valves steam Trap Piston Valves
Globe Valves CONSTRUCTION OF MATERIALS Cast Steel (ASTM A 216 WCB/ LCB), Forged Steel A 105, Forged Stainless Steel A 182, Stainless Steel (ASTM A 351 CF 8(304), CF 3 (304 L), CF 8 M(316), CF 3 M (316 L) COMPLIES TO DESIGN STD API 600/ 602 BS-1868 and BS-5352 TESTING STD BS 5146/ BS 6755 TEMPERATURE: Up to 600 o C TYPE O. S. & Y Type, Rising Stem TRIM AISI SS 410 13% Cr/, SS 304/ 316 PLUG & SEAT AISI SS 410 13% Cr/ Stellited/ Hard Face/ Stainless Steel SS 304/ 316, Stellited & Hard Faced END CONNECTION Screwed/ Socket weld/ But Weld/ Flanged PRESSURE RATING ASA 150, 300, 600, 800, 900, 1500, 2500 # Class DIN 2545, ND 25/ 40/ 64 SIZE 15 mm to 400 mm Wheel/ Hand Wheel Gear/ Actuator Operated
Gate Valves CONSTRUCTION OF MATERIALS Cast Steel (ASTM A 216 WCB), Forged Steel A 105, Alloy Steel F 22, Forged Stainless Steel A 182, S. S. (ASTM A 351 CF 8(304), CF 3(304 L, CF 8 M(316), CF 3 M(316 L)) COMPLIES TO DESIGN STD API 600/602 And BS-5352 TESTING STD API 598/BS 6755 TEMPERATURE: Up to 600 o C. TYPE O. S. & Y Type, Rising Stem SIZE: 15 mm to 600 mm TRIM AISI SS 410 13% Cr/ , SS 304/ 316 WEDGE Solid Wedge/ Flexible Wedge SEAT AISI SS 410 13% Cr/ Stellited/ Hard Face/ Stainless Steel SS 304/ 316, Stellited & Hard Faced END CONNECTION Screwed/ Socket weld/ but Weld/ Flanged PRESSURE RATING ASA 150, 300, 400, 600, 800, 900, 1500# Class. Wheel/ Hand Wheel Gear/ Actuator Operated
Safety Valves CONSTRUCTION OF MATERIALS Cast Steel ASTM A 216 WCB, Stainless Steel ASTM A 351 CF 8(304)/ CF 8 M(316) TYPE Spring Loaded PATTERN Close Body/ Angle Type SEAT SS 304/ 316 TRIM AISI SS 304/ 316 PRESSURE RATING ASA 150/ 300# Class SIZE 15 mm to 150 mm END CONNECTION Screwed/ Flanged
Ball Valves CONSTRUCTION OF MATERIALS Stainless Steels (ASTM A 351 CF 8(304), CF 3 (304 L), CF 8 M(316), CF 3 M(316 L)), Alloy 20, Forged Steel, Cast Iron/ SG Iron Cast Steels (ASTM A 216 WCA/ LCB) COMPLIES TO DESIGN STD BS-5351, API-6 D TESTING STD BS 5146/ BS 6765 TYPE Single Pice, Two Piece, Three Piece Design DESIGN Fire Safe Design/ Anti Static Design PORT Reduce Port, Full Port, SIZE: 15 mm to 400 mm SEAT PTEE (100%)/ Glass/ Carbon Filled/ Metal to Metal Seated BALL S. S. 304/ 316/ 410, Floating Ball and Tunion Mounted END CONNECTION Screwed/ Socket Weld/ But welld/ Flanged PRESSURE RATING ASA 150/ 300/ 600/ 800# Class. Lever Operated, Hand Wheel Gear Operated, Pneumatic, Electric Actuator
Y Strainer / filters CONSTRUCTION OF MATERIALS Cast Steel (ASTM A 216 WCB), Stainless Steel ASTM A 351 CF 8(SS 304), ASTM A 351 CF 8 M(SS 316), Gun Metal, Cast Iron, Fabricated (C. S. / S. S. 304 & 316) TYPE “Y” Type / Port (T) Type / Basket Type SCREEN SS 304 / 316, Brass MESH 20 MESH to 500 Mesh RATING ASA 150#, 300#, DIN ND 16/25/40 END Screwed/ Socket Welded/ Flanged SIZE 15 mm to 400 mm (“Y” type) 25 mm to 750 mm (“T”/Basket Type) We are also making fabricated ‘Y’ & ‘T’ Type Strainers Flanged. “Y” TYPE Strainers, Duplex Filter Available
Butter fly Valves CONSTRUCTION OF MATERIALS Cast Iron, SG Iron, Ductile Iron, Cast Steel (ASTM A 216 WCB/ LCB), Stainless Steels ASTM A 315 CF 8/ CF 8 M COMPLIES TO DESIGN STD BS 5155/ API 609/ MSSSB 67/ AWWA C 504 TESTING STD BS 6755 PART-1 PRESSURE RATING : PN-10/ 16 TYPE Wafer Type/ LUG Type Plain Ends, Double Flange DESIGN Center Disc/ Offset Disc Design TRIM S. S. 410 -S. S. 304/ 316 DISC S. G. Iron, S. S. 304(CF 8) S. S. 316 (CF 8 M) & ASTM A 216 WCB, Cast Iron ylon Coated, Cast Iron Epoxy Coated SEAT Molded Nitrile (Buna) Rubber/ E. P. D. M. Rubber/ Neoprene Rubber/ Viton Rubber/ Replaceable PTFE Teflon END CONNECTION Wafer Type Plain Ends/ Flanged SIZE 25 mm to 300 mm Hand Lever Only, 200 mm to 1000 mm Hand Wheel Gear Operated and also Electric Actuator operated
Wafer Type Check Valves CONSTRUCTION OF MATERIALS Cast Iron, Carbon Steel, S. S. 304 - (CF 8) & 316 (CF 8 M) COMPLIES TO DESIGN STD BS 1686 / API 6 D TESTING STD BS 5146 RATING ASA 150 / 300#, DIN/ND 10/16/25 SEAT Metal To Metal Seat SIZE 25 mm to 600 mm (Wafer type) SIZE 15 mm to 200 mm (Disc type) TYPE Plained or Spring Type O RING Nitrile / Neoprene / Teflon END Wafer Type / Disc Type Plain Ends. Suitable To ASA 150/300# Class Flanged Ends
Non Return Valves CONSTRUCTION OF MATERIALS Cast Steel (ASTM A 216 WCB), Forged Steel A 105, Forged Stainless Steel A 182, S. S. (ASTM A 351 CF 8 (304), CF 3 (304 L), CF 8 M (316), CF 3 M (316 L)) COMPLIES TO DESIGN STD API 600/602, BS-1868 and BS-5352 TESTING STD BS 5146 / BS 6755 TYPE Swing Type or Lift Type (Piston) TRIM AISI SS 410 13% Cr/ , SS 304 / 316 PLUG / DISC & SEAT AISI SS 410 13% Cr/ Stellited / Hard Face / Stainless Steel SS 304 / 316, Stellited & Hard Faced END CONNECTION Screwed / Socket weld / But weld / Flanged PRESSURE RATING ASA 150, 300, 600, 800, 900, 1500#, DIN 2545, ND 25/40/64 SIZE 15 mm to 400 mm TEMPERATURE Up to 600°C
Sight Glass SIGHT FLOW INDICATOR CONSTRUCTION OF MATERIALS Carbon Steels (M. S. ) Stainless Steels, ASTM A 351 CF 8 (SS 304) CF 8 M (SS 316) TYPE Q. V. F. GLASS Q. V. F. Toughened Borosilicate Glass Tube Long 4”, 6” & 8” PACKING P. T. F. E. Teflon PLUG / DISC & SEAT AISI SS 410 13% Cr/ Stellited / Hard Face / Stainless Steel SS 304 / 316, Stellited & Hard Faced END CONNECTION Flanged BS 10 Table “E” “F” & ASA 150# Drilled SIZE 15 mm to 200 mm DOBLE WINDOW SIGHT FLOW INDICATOR CONSTRUCTION OF MATERIALS Cast Steels ASTM A 216 WCB, Stainless Steel, ASTM A 351 CF 8 (304)/ CF 8 M 316) TYPE Double Window GLASS Round Toughened Glass PACKING P. T. F. E. Teflon E, F End CONNECTION Flanged END CONNECTION ASA 150/ 300#Class SIZE 25 mm to 200 mm
Flush Bottom Ball Valves CONSTRUCTION OF MATERIALS Stainless Steel ASTM A 351 CF 8 (304) / CF 8 M (316), Cast Steel ASTM A 216 WCB SEAT Pure PTFE/GFT/CFT PORT Full port TYPE One-Piece Design BALL S. S. 316 / 304 SIZE 25 mm to 200 mm TEMPERATURE 190°C PRESSURE RATING Flanged Rating ASA 150 / 300#Class ACCESSORIES Pneumatic Electric Actuator SERVICE Chemicals, Bulk Drugs, Pharma, Biotech, Resign
Flush Y type Valves CONSTRUCTION OF MATERIALS Stainless Steel ASTM A 351 CF 8 (304) / CF 8 M (316), Cast Steel (WCB) ASTM A 216 WCB SEAT S. S. 304/316 TYPE O. S. & Y. Type Rising Steam TRIM AISI S. S. 304/316, S. S. 410 13% Cr. , SIZE 25 mm to 200 mm PRESSURE RATING ASA 150 / 300# Class. ACCESSORIES Hydraulic / Pneumatic Cylinder SERVICE Chemicals, Bulk Drugs, Pharma, Biotech, Resign
pp Valves CONSTRUCTION OF MATERIALS PP/PVDF/HDPE CONSTRUCTION Three Piece Design SEAT PTFE BALL PP/PVDF/HDPE END CONNECTION Screwed / Flanged TEMPERATURE 80°C WORKING PRESSURE 100 PSI OTHER PRODUCT AVAILABLE PP Foot Valve, Butterfly Valve, Non Return Valve, Strainer, Side Glass & Pipe Fittings
Steam Trap CONSTRUCTION OF MATERIALS S. S. 420 Investment Castings Body, Cap, Disc MESH S. S. 316 Mesh TYPE In Built Steam Trap with Strainers END CONNECTION Screwed / Socket welded. K SIZE 15 mm to 25 mm TEMPERATURE 300°C SERVICE Steam, Hot Air, Oils, Hot Water
Piston Valves CONSTRUCTION OF MATERIALS Cast Steel ASTM A 216 WCB, Stainless Steel ASTM A 351 CF 8 (304) / CF 8 M (316) TYPE O. S. & Y. Type Rising Steam PISTON AISI SS 410 (13% Cr. ) CAGE AISI SS 410 (13% Cr. ) TRIM 13% Cr, Stainless Steel, or AISI SS 304 / 316 Stainless Steel END CONNECTION Screwed / Flanged PRESSURE RATING PIN – 25 / DIN 2545 / ASA 150# Class FACE TO FACE As per DIN – ND 25 SIZE 15 mm to 100 mm
Services Ø We provide services in various other engineering requirements. Ø We have design and develop capabilities effective use of �Steam �Vacuum �Air �Gas �Hydraulic Equipments Ø We also provide consultancy in Dehumidifiers Ø We conduct Energy Audits and take Energy Conservation Projects
Other Product Compressed Air Dryers 1. Desiccant Type a) Heat less Regenerative type b) Heated Low Purge type c) No Purge loss type 2. Refrigerated type Heat Less Dehumidifiers Filtration Systems for a) Air b) Gases c) Oil d) Water e) Chemicals
Other Product Filters and Filtration system For removal of Moisture 1. Compressed air Dryer – for removal of moisture from air even in vapor state 2. Heat less Dehumidifier – To Remove the Humidity (applied for World Patent) 3. Air Handling Unit – to control Temperature & removal of moisture from enclosed area in Pharmaceutical & Food Industries. (60 % Energy Saving) 4. Hopper Dryer – for removal of moisture from plastic granules (40% Time & Energy Saving) 5. Gas dryers – for Nitrogen, Argon, CO 2, Chlorine, all Calibration Gases etc. 6. Liquid Dryer – for Acetone, Alcohols, Water Mixable Liquids, 7. Gas Separations – Recovery of Noble Gases from waste
Other Product Water filtration & Purification System 1. For Domestic, Hotels, Industrial & Commercial Use – High Capacity UV Filter & Purifiers. 2. For hard Water Treatment – Water Softeners with UV Filter & Purifier. 3. For River Water – Self Cleaning filters, Sand filters, Aeration to Reduce BOD Level, Activated Carbon Filter to Reduce COD Level, Ozonization to kill Bacteria & Residual Protection. 4. R O Systems
Other Product Air Purifiers 1. For Liquor Bars – to remove Smoke, Dust & Bad Odor (without loss of cooling) 2. For Industries Foundries – to Remove Dust, Chemical Fumes 3. For Hospitals – to Remove Dust & Bad Odor, Bacteria Oil Filters 1. Filtration Trolley – to remove contamination from Power Pack Hydraulic Oil 2. Transformer Oil Filtration System – contamination, Moisture, Ionic Impurity, Oxidation due to heat from Transformer Oil & to maintain Break Down Voltage.
Other Product Scrubbers 1. Scrubbers – to remove Suspended particles, Hazardous Gases, Oil fumes and Dust from air Dust Filtration System 1. Cyclone Filter – to remove dust from air 2. Bag Filters and Bag House with Pneumatic Pulsating for dust Filtration
Why Us �We use Quality Raw Materials (Castings & Forgings ) from reputed foundries/forge shops and we have Statistical Quality Assurance system with inspection at every stage of Manufacture to ensure sustained quality in our supplies. We have adequate capacity in terms of expertise and finance are in a position to undertake large volume of orders with committed deliveries. �Achieve continual business growth by increasing Customer Satisfaction. �On time delivery. �Minimization of Custom Complaints. �Reduce rework and save quality Loss.
Contact Us For Further Information Please feel free to contact us… Works & Sales Office: Unit No. 26 & 27, Phase 2, Parmar Techno Center, Pelhar, Vasai (E), Thane - 401 208 Phone: +91 9820371297 +91 9820371207 E-mail: sales@phonixtvalves. com kalpesh@phonixtvalves. com
Thank You
