ATCA System architecture
Technology Meeting 14. 2. 2013 CERN Genève ATCA Systems 03. 12. 2020 Friedrich Fix, Elma Electronic Gmb. H 2
ATCA System architecture Table of Contents 2 U ATCA Systems Platforms Ø CAP 002002 Ø CAP 002021 Ø CAP 002034 5 U ATCA Systems Platforms Ø CAP 001476 13 U ATCA Systems Platforms Ø CAP 002014 Ø Custom Systems 03. 12. 2020 Friedrich Fix, Elma Electronic Gmb. H 3

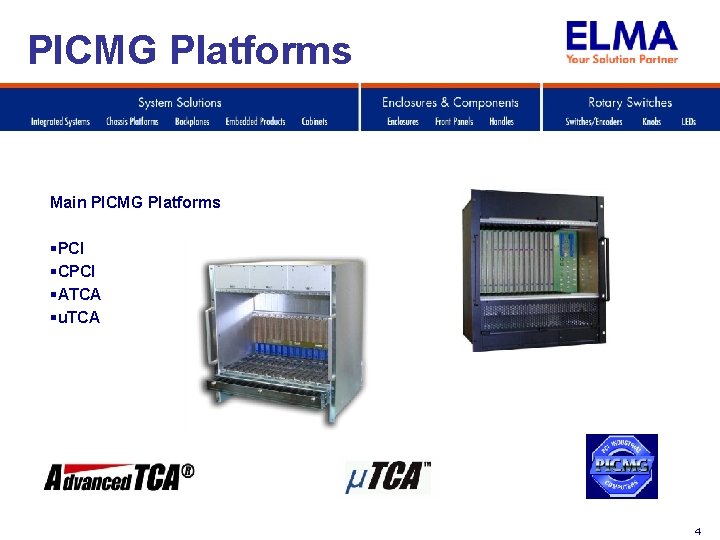

PICMG Platforms Main PICMG Platforms §PCI §CPCI §ATCA §u. TCA 4
II Generation 5

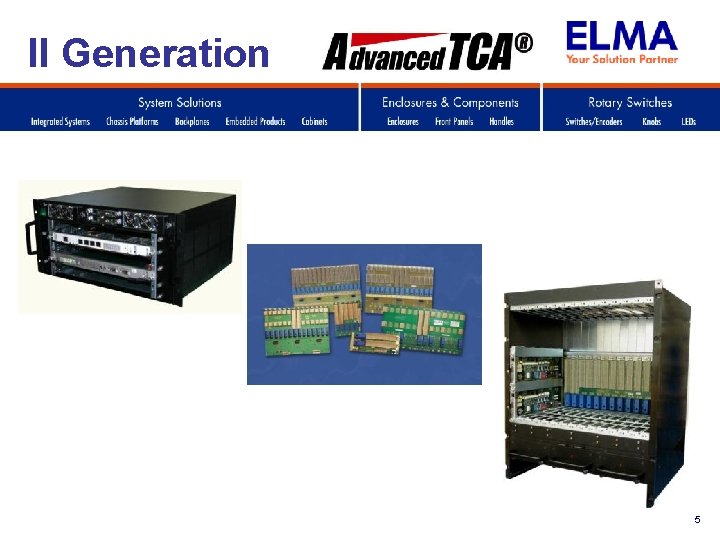

II Generation ATCA Platforms 5 U, 6 slot DC 5 U, 5 slot AC 2 U, 2 slot DC 13 U, 14 slot DC 6
ATCA System architecture Advanced. TCA Systems Platforms according to PICMG 3. 0 currently produced by Elma Electronic, Inc. 44350 Grimmer Blvd. Fremont, CA 94538, USA 03. 12. 2020 Friedrich Fix, Elema electronic Gmb. H 7
ATCA Systems Platform 2 U, CAP 002034 2 slot with RTM, 1 Shelf Manager fix mount, 2 Fan trays pluggable with 3 Fans each, Air Filter, Dual, redundant -48 VDC Feeds Front View
ATCA Systems Platform 2 U, CAP 002034 2 slot with RTM, 1 Shelf Manager fix mount, 2 Fan trays pluggable with 3 Fans each, Air Filter, Dual, redundant -48 VDC Feeds Rear View
ATCA II GEN 2 U 2 slot DC Features • 2 U high • Holds 2 ATCA cards • 2 slot Full mesh backplane • Rear I/O • Dual Shelf Managers • Dual removable fan trays • 250 watts/slot cooling • Dual 48 VDC input • NEBS compliant removable air filter 10
ATCA Systems Platform 5 U, CAP 001476 5 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90 -264 VAC / 600 W, N+1, fix mount Front View
ATCA Systems Platform 5 U, CAP 001476 5 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90 -264 VAC / 600 W, N+1, fix mount Rear View
5 U ATCA with Rear I/O, DC • Dual Shelf Manager • Push Pull Fan Configuration • Filter Tray removable from the Front • Dual 48 V input • Easy Conversion to AC Version • Carrying Handles for Lab transportation
Easy removable Fan Tray left and right. No Tools required. Right Fan Tray with integrated Filter. Left side 8 Fans 80 mm al the way to the back for rear I/O cooling. Right fan tray 6 Fans 80 mm.
• Filter Tray extended to cover Rear I/O Area. • Removable from the Front. No Tools required. • Filter Mesh washable fixed with Velcro to the Filter tray. • Fan Tray stays in Place.
• Two Shelf manager installed on Top of Card cage. • Easy Removable from the Front trough the convenient ELMA Hot Swap Handle.

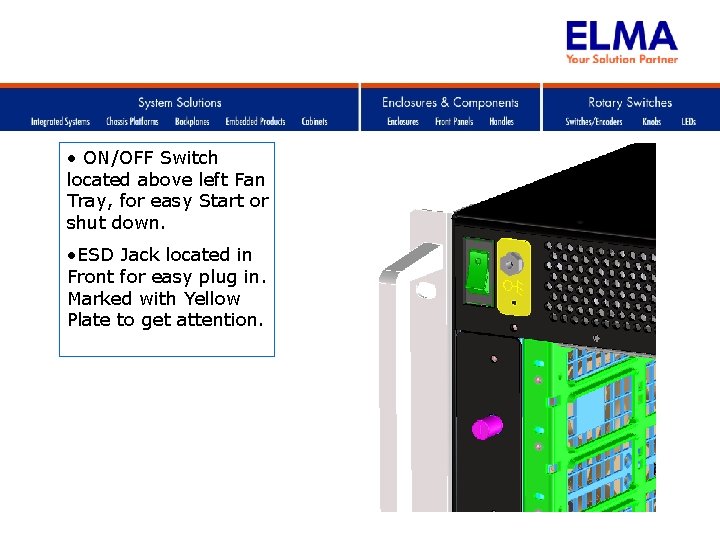

• ON/OFF Switch located above left Fan Tray, for easy Start or shut down. • ESD Jack located in Front for easy plug in. Marked with Yellow Plate to get attention.
• For Easy Transportation additional Carrying Handle on each Side. • Integrated to stay in the 19 Inch Width.
DC-Version • DC Version with two Filtered Terminal Blocks including Safety cover. • DC Hole Arrangement cover with Patch-Panel. AC-Version • ESD Jack on the left Top for easy Access. Marked with Yellow Silkscreen Plate to get Attention. • Grounding Feature with Bridge to connect Logic Ground to Chassis Ground if needed.
• Easy update to AC Version with ELMA AC-Update-Kit, including PSU 1000 W and all necessary Components like Fuse holders and Plugs. Assembly provisions and already included in Sheet metal Parts.
Height: 5 U 221. 4 mm Width Front: 19” 482. 6 mm Width Rear: 17. 5” 444. 5 mm Depth: 16. 5” 419. 1 mm Overall Depth Flange to Terminal Block 17” 431. 8 mm

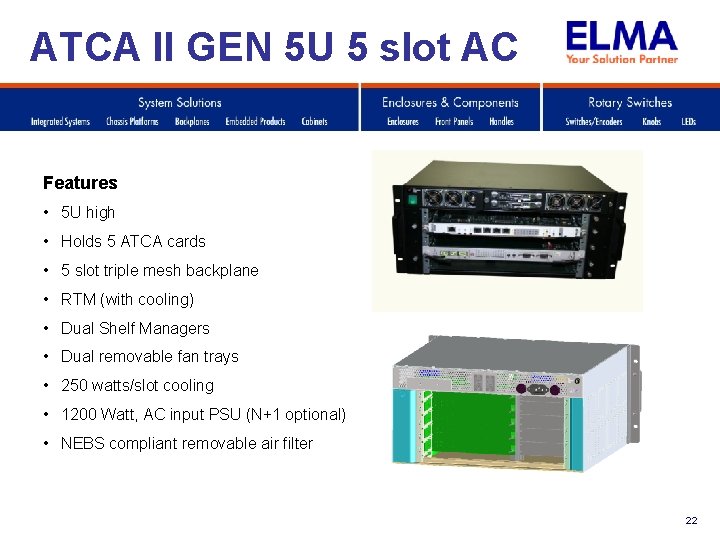

ATCA II GEN 5 U 5 slot AC Features • 5 U high • Holds 5 ATCA cards • 5 slot triple mesh backplane • RTM (with cooling) • Dual Shelf Managers • Dual removable fan trays • 250 watts/slot cooling • 1200 Watt, AC input PSU (N+1 optional) • NEBS compliant removable air filter 22
ATCA II GEN 5 U 6 slot DC Features • 5 U high • Holds 6 ATCA cards • 6 slot Full mesh backplane • RTM (with cooling) • Dual Shelf Managers • Dual removable fan trays • 250 watts/slot cooling • Dual 48 VDC input • NEBS compliant removable air filter 23

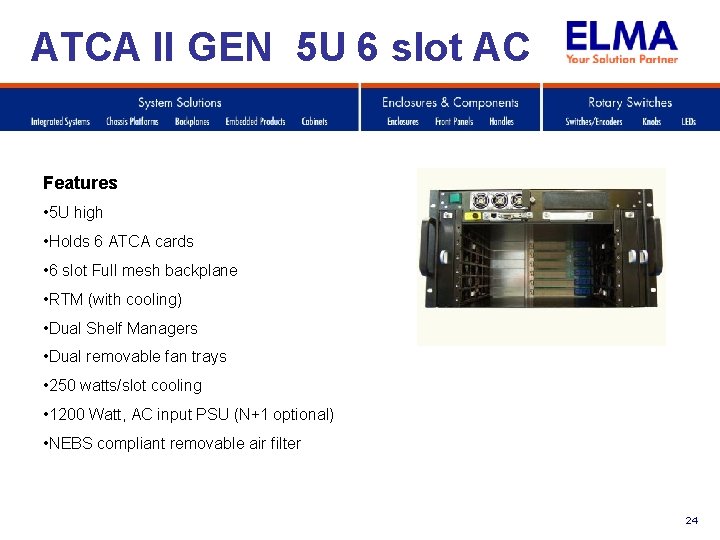

ATCA II GEN 5 U 6 slot AC Features • 5 U high • Holds 6 ATCA cards • 6 slot Full mesh backplane • RTM (with cooling) • Dual Shelf Managers • Dual removable fan trays • 250 watts/slot cooling • 1200 Watt, AC input PSU (N+1 optional) • NEBS compliant removable air filter 24

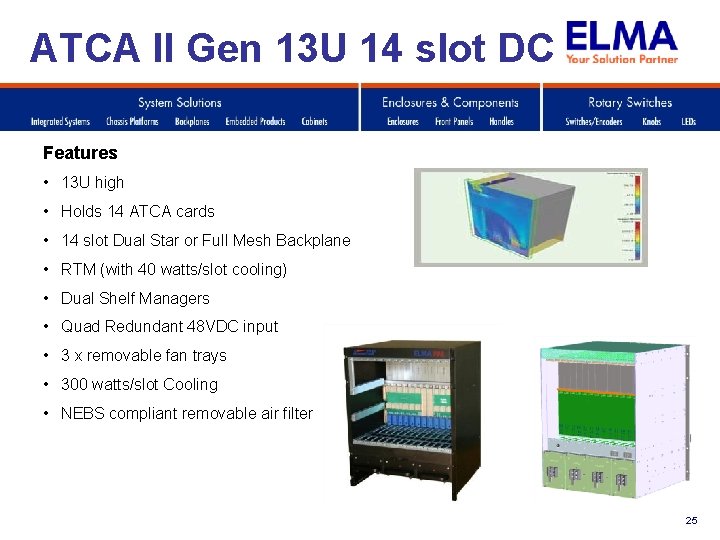

ATCA II Gen 13 U 14 slot DC Features • 13 U high • Holds 14 ATCA cards • 14 slot Dual Star or Full Mesh Backplane • RTM (with 40 watts/slot cooling) • Dual Shelf Managers • Quad Redundant 48 VDC input • 3 x removable fan trays • 300 watts/slot Cooling • NEBS compliant removable air filter 25
Sec. Gen. 13 U ATCA Chassis Ø 13 U tall NEBS width compliant shelf Ø Ro. HScompliant steel construction with black finish Ø 14 slot Dual Star backplane with Integrated dual Shelf manager connectors Ø Dual Second Gen Shelf managers in card cage slot 0 for easy access Ø Cooling scheme engineered after extensive thermal simulations ensures even distribution of air over board surface per ATCA spec. Ø Capable of cooling over 200 watts per slot with up to 40 CFM perslot in front card cage and 6 -10 CFM over RTMs Ø 3 x individually removable fan trays with 2 x 120 mm 48 V fans each Ø High speed Fans rated from 250 to 420 CFM per fan with PWM control Ø NEBS compliant air filter above fans ensures even air distribution Ø Honeycomb filter located below fans maximizes air flow intake Ø Rear I²C enabled dual 50 A power entry modules per segment (A and B) Ø Optional PEM with integrated circuit breaker Ø All FRUs (fan trays, PEMs) with Indicator LEDs Ø Front and rear cable management brackets
Front View
Right Side View
Right side View opened
Back View
The internal DC connections
Front, Right, Top
Back, Left, Top
Back, Left, Top (Show DC IN internal connections
Front Right, Top Fan Trays Pulled out
Fan Tray Assembly
Fran Tray
Fan Option – 420 CFM
Fan options 260 and 330 CFM
Fan option – 250 CFM NH 6 Fan
Fan option – 150 CFM
2 nd Gen. Shelf manager Features 2. 5 U x 280 mm deep slim design Ø Ø Ø Ø Ø Bussed IPMI Hot swappable design Incorporates Pigeon point s. Hmm 500 Dual IPMB interface Serial (RS-232) interface Dual Ethernet 10/100 interfaces USB interface to facilitate Shelf redundancy Incorporates JTAG interface Provides TELCO Alarm requirements Redundant operation with automatic Switchover Ø Ø Monitors up to 12 Tachsignals Monitors up to 8 ftp (Fan present) signals Monitors up to 6 Air Filter Present signals Controls 4 PWM signals (each signal can control from 1 -4 fans Ø Ø Monitors up to 8 LM 75 temperature sensors Controls up to 4 Cooling Zones Monitors up to 4 Power entry Modules Fully Ro. HScompliant
POWER ENTRY MODULES

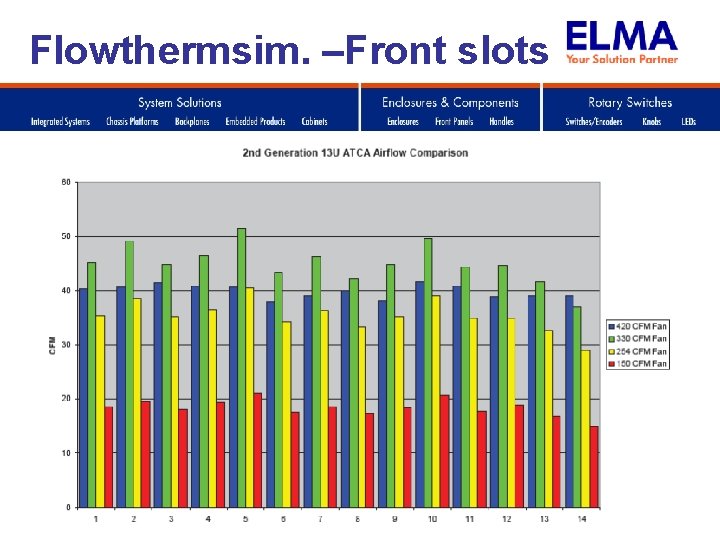

Flowthermsim. –Front slots
Flowthermsim. Rear slots
Airflow Regions
View of Region A
View of Region B
View of Region C
View of Region D
The graph on the top shows that the percentage of airflow through each region on each board in each slot is between 20% and 30%, which is what the ATCA specification recommends.
ATCA Custom Design -Dust Protected ATCA System Proposal for XFEL Tunnel Application DESY Hamburg
Dust Protected Special: Cross flow heat exchanger 4 U System with 2 Slots 1 Shelfmanager 1 Powersupply

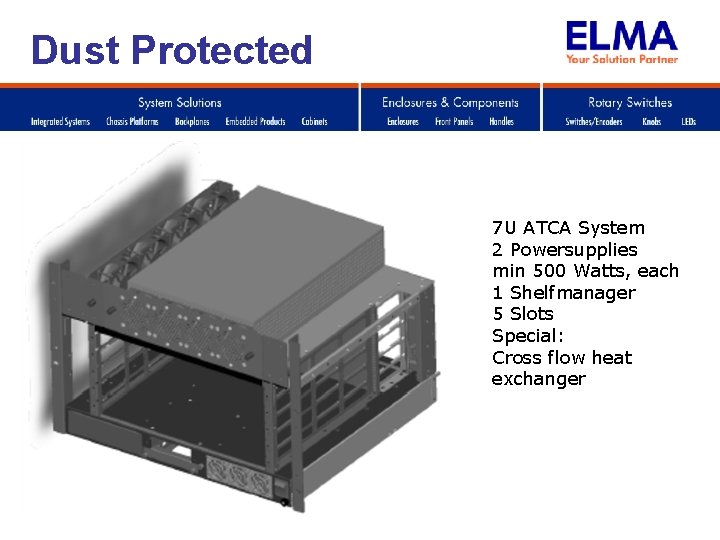

Dust Protected 7 U ATCA System 2 Powersupplies min 500 Watts, each 1 Shelfmanager 5 Slots Special: Cross flow heat exchanger
Dust Protected Design Features: Ø Top bottom hinged front door Ø Screw mounted frontpanels The screws are locked with 90° rotation Special design for robot handling Total closed cardgage Cooling via heat exchanger AC Input redundance (7 U System) Space for a special zone 3 Backplane Horizontal Form factor Fan Blocks in front and on side of heat exchanger
Laboratory Systems
8 Slot Horizontal Custom Redundant HDD Tray Features Ø 6 U high Ø Redundant HDD Trays Ø Holds 8 ATCA cards Ø Quad Redundant 48 VDC input Ø 8 slot Custom Backplane Ø 2 x removable fan trays Ø Rear I/O Ø 300 watts/slot Cooling 57

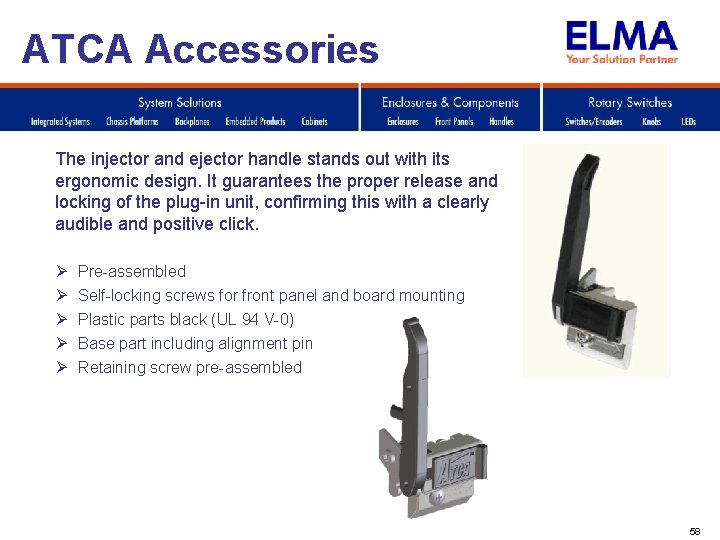

ATCA Accessories The injector and ejector handle stands out with its ergonomic design. It guarantees the proper release and locking of the plug-in unit, confirming this with a clearly audible and positive click. Ø Ø Ø Pre-assembled Self-locking screws for front panel and board mounting Plastic parts black (UL 94 V-0) Base part including alignment pin Retaining screw pre-assembled 58
Compatibility ATCA Carrier for San. Blaze 1010 Emerson Carrier Blade Emerson Storage Blade Radisys ATCA 4500 Quad Core SBC
