ATCA Super Session Brough Tuner CTO Greg Blumenthal

ATCA Super Session Brough Tuner, CTO Greg Blumenthal, Principal Engineer

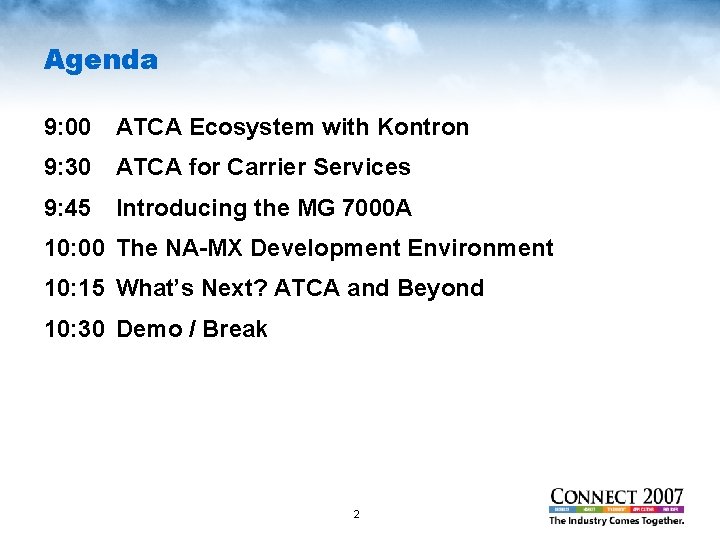

Agenda 9: 00 ATCA Ecosystem with Kontron 9: 30 ATCA for Carrier Services 9: 45 Introducing the MG 7000 A 10: 00 The NA-MX Development Environment 10: 15 What’s Next? ATCA and Beyond 10: 30 Demo / Break 2

ATCA — The Next Evolutionary Step l Major NEPs endorse ATCA Enters Growth Phase n Siemens, Alcatel, Nortel, NEC, Motorola n Do. Co. Mo prefers ATCA $4 $4 CPU vendors: Switches / hubs: Storage blades: Chassis / shelves: Carrier boards Total l AMC modules: l l l ’ 04 11 9 3 12 8 43 8 $3 ’ 07 14 16 4 20 15 69 31 $USD Billions l Ecosystem in place $3 $2 $2 $1 $1 $0 2005 Popular poster from NMS is in its 4 th edition 3 2006 2007 2008 2009 2010 2011 ATCA Courtesy: Motorola, IDC (April 2007)

ATCA Building Blocks and Platforms Michael Liu Project Manager Kontron

Corporate Fast Facts l l l Company Overview HQ – Germany (KCO: Tec. Dax) Leading global ECT provider Publicly traded on Tec. Dax 2500 employees worldwide 500 M Dollar Revenue in ’ 06 Premier member – Intel ICA R&D for Open Modular Solutions l Kaufbeuren & Saarbrücken (Germany) l Montreal (Canada) l Design & manufacturing in Europe, America and Far East l Sales/support offices in all major countries l 730 engineers - 39% of total staff - in R&D 5

COTS Ecosystem 6

Kontron Sets Industry Standards l PICMG 1. x l PICMG 2. x – 2. 16 l ETXexpress (COMexpress) l PICMG 3. x/Advanced. TCA l Micro. TCA l and many others. . . 7

Industry Landscape SCOPE Alliance Linux Profile Middleware Profile CP-TA™ Suppliers Coordinated Marketing ATCA® Profile Building Block Level Interoperability Certification Program (Interop Requirements, Test Procedures and Tools) PICMG® OSDL RES: Taxonomy & Requirements Enumeration SA Forum™ Multi–Dimensional Building Blocks Technical Specifications 8 Users Mountain View Alliance Reference Architecture, Carrier-Grade Base Platforms Specifications Profiles

Interoperability CP-TA Overview: CP-TA is an association of communications platform and building block providers dedicated to accelerating mainstream adoption of SIG-governed, open specification-based communications platforms through interoperability testing and certification. CP-TA Value Proposition: Network Equipment Providers • Faster time-to-market • Lower integration costs “Creating interoperability requirements • Alternative sourcing and product choice that recommend standards options and • Economies of scale through mainstream certifying compliance with those COTS adoption requirements, as CP-TA proposes, is Service Providers crucial to the success of efforts like Advanced. TCA. ” • Faster time-to-revenue • Lower operational costs • Alternative sourcing and product choice - Fred S. Cook, Sprint/Nextel 9

Advanced. TCA – a business case l Open Modular l High bandwidth Communications l Hot swap l Ideal baseline l Integrated system telecom platform management MORE PERFORMANCE MORE EFFICIENT Standard blade-based modules offer greater port and compute density Automated/highly efficient management capabilities via standard IPMI at blade-, shelf-, and system-levels LESS POWER REDUCED OPEX Reduce complexity and power consumption Smaller footprints with greater computing capacity help reduce costs. 10

Advanced. TCA Built for Telecom l PICMG specification formed by more than 100 key vendor members n Improved board space l Channels per sqmm n Split Paths for Data and Control Planes CPCI ATCA l Base and Fabric I/F n System Management IPMI l HA/Hot Swap n Scalable l Advanced Mezzanine Cards (AMC) 11 6 U X 160 mm 8 U X 280 mm 0. 8’’ board pitch 4 HP 1. 2’’ board pitch 6 HP 367 cm board area 903 cm board area 35 -50 W 150 -200 W

PICMG Backplane Specifications Synchronization Interface Update Channel Interface Fabric Interface Base Interface 12

ATCA Switch Fabric options Which one to choose? l PICMG 3. 1 Ethernet n Control: Dual star 10/1000 Ethernet n Bearer: Dual star 1000 BX, BX 4 (XAUI), Fibre Channel. Also, Full Mesh n Option 9 ->10 GE l PICMG 3. 2 Infini. Band l PICMG 3. 3 Star. Fabric l PICMG 3. 4 PCI-Express/ Advanced Switching Interconnect (ASI) l PICMG 3. 5 Serial Rapid. IO l PICMG 3. 6 Cell switching 13

PICMG Standard l Control Plane - Base Interface as 10/1000 Base-T Ethernet as dual star fabric topology l Synchronization l Data Plane – Fabric Interface depending on chosen or required switching technology as star or mesh topology l Update channel – for board to board interconnection for redundancy for two slots n Supports any switching technology n PCI-express for Carrier and CPU, Gb. E for switch interconnection 14

10 Gb. E AMC Carrier Example With AMC. 2 Implementation More than 2 Gb. E ports per AMC site Higher flexibility for I/O AMC’s and NPU AMC’s Increased throughput and processing capabilities Require 10 Gb. E support for fabric interface 15

The Birth of Advanced. MC Specification PICMG, AMC. 0/. 1/. 2/. 3 l Hot swappable, front loadable l Smallest FRU!! (Field Replaceable Unit) l High real estate (20% more than PMC) l High power envelope (up to 60 W per bay) l High speed serial interconnect Source: Kontron on LVDS The AMC module expands upon ATCA’s value proposition by providing greater operating flexibility and programmability to service personnel. l Serdes @ 2. 5 -10 Gbit/s/lane l Guaranteed interoperability; electronic keying l ATCA compliant manageability 16

Comparison: PMC and Advanced. MC 17

AMC Interconnects l General l l Control (IMPB) Synchronization clock JTAG System management l Fabric – 42 serial lanes n 21 lanes with basic connector l “Common options” (0 -3) l “Fat pipes” (4 -11) l “Extended Options” (12 -20) n AMC. x Specifications l l AMC. 1 - PCIe and Advanced Switching AMC. 2 - Ethernet AMC. 3 – Storage AMC. 4 – Serial Rapid. IO Source: Earlswood Marketing 18

PICMG AMC. 2 Specifications AMC. 2 Fat Pipe region Scalable from 1 Gb. E, multiple 1 Gb. E to 10 Gb. E higher I/O throughput with up to 10 Gb. E per AMC • I/O AMC • NPU AMC Higher packet processing capability 19

Variation of AMCs HALF HEIGHT MID HEIGHT FULL HEIGHT DOUBLE WIDTH DOUBLE COMPACT MID-SIZE FULL SIZE SINGLE COMPACT MID SIZE FULL SIZE WIDTH 20

ATCA/AMC/m. TCA l Complementary Open Standard Hardware PICMG Specifications l Advanced. TCA (ATCA) and Micro. TCA (m. TCA) BOTH USE Advanced. MC Modules 21

Scope of Kontron Open Modular Solutions HW Building Blocks n Advanced. TCA boards (Processor, Hub/Switch, Carrier) n Advanced. MC Modules (IO & non-IO) n Advanced. TCA Chassis’/Sh. MC n micro. TCA – the next complementary step SW Building Blocks n Operating System (LSP) n HA middleware Integration & Certification Services n Pre-Integration n Application-ready platforms 22

RTM support AT 8020 Dual Gigabit (Base Interface) Dual Gigabit Mezzanine Dual Sossaman Up to 16 GB of DDR (2 channels) USB Serial port 100 Base. T-TX Dual Gigabit (Fabric Interface) AMC slot 23

RTM support AT 8030 Intel Core 2 Duo AMC slot 24 Dual 10 Gigabit (Fabric Interface)

AT 8904 + 2 x AM 4310 25

THANK YOU! Compact. PCI l Kontron Open Modular Solutions Providing fixed-mobile application-ready solutions built with Kontron Avanced. TCA / Advanced. MC / and Micro. TCA building-block platform http: //www. kontron. com/atca http: //www. cp-ta. org http: //www. iptvexperience. com 26

Agenda 9: 00 ATCA Ecosystem with Kontron 9: 30 ATCA for Carrier Services n Requirements for network deployment n Achieving five-nines availability n ATCA vs. c. PCI 9: 45 Introducing the MG 7000 A 10: 00 The NA-MX Development Environment 10: 15 What’s Next? ATCA and Beyond 10: 30 Demo / Break 27

Telco Goal — High Availability l Reliable service — four-nines (99. 99%) availability n Unavailable for 52. 56 minutes per year l OK for data center services l Systems designed with reliable components including software l Highly available (HA) service — five-nines (99. 999%) availability n Unavailable for 5. 25 minutes per year l Requirement for telco switches; service platforms l No system can be down waiting for repair n HA systems require redundancy Availability = 1 - (MTTR/(MTBF+MTTR)) MTTR must be small 28

Two Approaches to Scalability and Reliability l PCI boards in servers n Scale by adding more servers n Server is single point of failure n N+1 servers for redundancy l Blades in chassis PCI CG 6565 Rack-mount Server n Scale by adding blades n Blade is single point of failure n Efficient use of space, heat, and power n N+1 blades for redundancy n Blades evolving from c. PCI to ATCA 29 MG 7000 A ATCA Chassis

Designed for Telecom One of two possible shelf controllers Designed for high volume/low cost sheet metal manufacturing Rear connectivity through rear transition module Connectors for Ethernet switch blades Gig. E connectors for Base and Fabric connections Hot-swappable fans Power, IPMI connections l Multiple, high-performance switch fabrics l 200 Watts per slot — needed for new blade servers l -48 VDC l Front and rear cabling l Redundancy — all FRUs are hot swap l Dual shelf managers l ETSI & NEBS compliance 30

Compact. PCI Moves to Compact. PCI Advanced. TCA Comment 6 U, 2– 21, 0. 8” 8 U, 2– 16, 1. 2” 2. 5 X area Connection Fabric, Total Bandwidth PCI 4 Gbps Base fabric, switched fabric 2. 4 Tbps High-bandwidth backplane TDM Carriage H. 110 bus I-TDM No parallel bus Redundant power supplies Distributed -48 VDC Lower chas. cost; higher bd cost Power per Slot 35– 50 W 200 W Can use new CPUs Management IPMI bus Dual IPMI; Shelf Manager Now real management NMS Product CG 6565 C, CG 6060 C MG 7000 A Most c. PCI will move to ATCA Size, Slots, Height Power 31

Advanced. TCA High Availability Features INCREASE MTBF DECREASE MTTR Dual DC Power (-48 V); glitch protection; NEBS ready ü ü ü Advanced. TCA Feature ü Dual serial IPMI Bus; dual shelf controllers; on-board measurement of temperature, voltage, current, health ü Hot swap: blades, self controllers, AMC modules Large boards — fewer of them ü Dual serial connections; Base Fabric, Switch Fabric = autonomous operation, no single point of failure Ruggedized construction — connectors, chassis, cooling (200 W) ü ü ü MG 7000 A — craft port; status lights; front I/O Natural Access MX l Path failure detection for control paths l SCTP: Multi-homing support l Internal process monitoring and recovery l Virtual IP addressing for failover 32 l API to quickly reinstantiate sessions on alternate MG board

Agenda 9: 00 ATCA Ecosystem with Kontron 9: 30 ATCA for Carrier Services 9: 45 Introducing the MG 7000 A 10: 00 The NA-MX Development Environment 10: 15 What’s Next? ATCA and Beyond 10: 30 Demo / Break 33

Introducing the MG 7000 A l High-performance ATCA 3. 0 media blade n Ideal for applications requiring five-nines availability, such as live call applications, as well as those requiring intensive media processing l Up to 500 multimedia sessions l 16 T 1/E 1/J 1 interface on rear transition module l Supports ATCA 3. 1 Gigabit Ethernet switch fabric l On-board Ethernet switch for use in small chassis* l Full support for IPMB chassis management bus l On-board Compact. FLASHTM for prompt storage* * Future release 34

MG 7000 A Dual Base & Switch Fabric Connectors Compact FLASH 4 GB Echo cancellation ASICs Up to 128 DSP cores Dual Gig. E (Base/Fabric) Dual PPC Controllers 16 T 1/E 1/J 1 Interfaces (2 RJ-21 s) Base, Fabric, & Mgt Gig. E Interfaces Craft Port Hot Swap Dual Ethernet Switches Caps for Glitch Protection Dual Power; IPMI – Pin & Socket Connectors Power Converter 35

MG 7000 A Interfaces Front Panel RTM Base (Gig E) OUT OF SERVICE ACTIVE Fabric (Gig E) STAND BY 2 X 8 T 1/E 1 (RJ 21) Activity, Link LEDs MGT (Management Ethernet) BASE (Base Ethernet) FAB 2 (Fabric 2 Ethernet) FAB 1 (Fabric 1 Ethernet) HOT SWAP 10101 (Craft port- RS 232) Status LEDs (PRI, STAT 1, Handle blinks when blade is running) 36

MG 7000 A Block Diagram 37

MG 7000 A Backplane I/O l Dual IPMB chassis management bus connections l Five Base channels of 10/1000 Base-T l Four Fabric channels of 10/1000 Base-BX (PICMG 3. 1 Option 1) l Can be used as a ATCA 3. 1 node card in Dual Star switch configuration l Can be used as ATCA 3. 1 switch card in 5 -slot backplanes* n Supports 1+1 switch redundancy * Future release 38

Media Subsystem Block Diagram DSP Pool Cross Connect FPCG PPC Controller RS 232 PCI IPMI DRAM FLASH TDM ITDM FPGA Fabric Base Ethernet Marvel Switch Ethernet TSI EEPROM 39

High Availability Hardware l Hot-swap support l Physical separation of Base and Fabric traffic (separate media and control planes) l Redundant -48 V power l Power voltage, temperature, status/ health, board data, on main blade and RTM to shelf controller l Craft port and front panel I/O for trouble shooting l RTM and Rear I/O for media connections l Right sized FRU — 250/500 universal ports 40

Agenda 9: 00 ATCA Ecosystem with Kontron 9: 30 ATCA for Carrier Services 9: 45 Introducing the MG 7000 A 10: 00 The NA-MX Development Environment n Natural Access MX architecture n Autonomous operation n Universal port capability; services supported n High availability features n Migrating from NA to NA-MX 10: 15 What’s Next? ATCA and Beyond 10: 30 Demo / Break 41

Introducing Natural Access MX l Similar services as Natural Access plus autonomous operation Single Board Computer (SBC) Application NA Functions Thin Client l All communications are over IP l Thin client n Functionality all on MG 7000 A n Provided with source, documentation, tools n Compile with any OS NA Events Natural Access MX Commands (IP) Event MSG (IP) l Advanced. TCA cold boot l Standalone mode (craft port) Server l Hot swap NA MX 42

Universal Port Capability Application Host Application Natural Access MX Client Natural Access MX API call MG 7000 A Windows or POSIX Environment NA-MX_EVENT routed to application IP IP MG Blade Connection Management service (NMX) Voice Play and Record service (VPR) Endpoint service (EPT) Media Connection service (MCT) Call Control service (MCC) Universal Speech Access* (MSA) Conferencing service (MCN) MG 7000 A Blade Media Processing 500 universal ports Ethernet Interfaces PSTN Interfaces T 1/E 1, ISDN RTP, SIP *Future release (MRCP 2. 0) 43 OAM Repository (OAM)

Natural Access MX Services l NA-MX 1. 1 (now) n IP Media Processor n IVR n IP conferencing n Play/record from external n IP session control — SIP n Vo. IP development n Autonomous operation n Remote boot, provisioning, and monitoring l NA-MX 2. 0 (Nov 30 Beta) n T 1/E 1 support; EC n PSTN call control — ISDN n PSTN conferencing n SNMP 2. 0 MIBs n IPv 6 l NA-MX 2. 1 (Q 2 ’ 08) n MRCP 2. 0 n T. 38 Fax n Inter-subsystem I-TDM n Ethernet switching — 5 slots n Compact Flash support n Conference coaching 44

Natural Access to Natural Access MX Migration Natural Access Service Natural Access MX Service ADI play and record Voice Play and Record (VPR) ADI call progress Endpoint (EPT) Voice Message Voice Play and Record (VPR) Natural. Conference (CNF) NA-MX Conferencing (MCN) Digital Trunk Monitor (DTM) NA-MX OAM Repository Switching NA-MX Connection (MCT) OAM NA-MX OAM (OAM) NMS SIP for NCC NA-MX Call Control (MCC) ISDN for NCC, ISDN management, ISDN Messaging, ISDN supplementary services NA-MX Call Control (MCC) Fusion and MSPP Endpoint (EPT) Universal Speech Access Interface (USAI) NA-MX Speech Access Service (MSA)* * Future release 45

MG 7000 A/ NA-MX Documentation Description Part Number MG 7000 A Installation Manual 62586 -13 Natural Access MX Developer's Manual 62516 -12 Endpoint Service Developer's Manual 62579 -13 Voice Play and Record Service Developer's Manual 62512 -12 Conferencing Service Developer's Manual 62517 -12 Natural Access MX SNMP Reference Manual 62690 -10 Call Control Service Developer's Manual 62523 -13 Migrating to Natural Access MX 62513 -12 Now on the NMS web site 46

Agenda 9: 00 ATCA Ecosystem with Kontron 9: 30 ATCA for Carrier Services 9: 45 Introducing the MG 7000 A 10: 00 The NA-MX Development Environment 10: 15 What’s Next? ATCA and Beyond n What’s next in the industry? n What’s next for NMS? 10: 30 Demo / Break 47

MG Series Roadmap MG 7000 A Main blade, IP-only Natural Access MX 1. 0 IP support: SIP, IVR, play/record, IP conferencing MG 7000 A Add RTM for PSTN support NA-MX 2. 0 Add MRCP 2. 0, T. 38 fax, plus ISDN support: Vo. IP gateway, PSTN conferencing NA-MX 2. 1 MRCP 2. 0; 5 -slot chassis switch VA-MX 1. 0 Video SS 7 AMC-based solution AMC DSP Video; WB audio 2007 2008 48 NMS CONFIDENTIAL 2009

Longer Term — AMCs Offer ATCA Configuration Flexibility l AMC building blocks n PSTN interfaces — 4/8 x T 1/E 1; STM 1/OC-3 n CPU Modules — Pentium M n DSP Modules (accelerators) l Video transcoding, wideband audio l AMC carriers n MG 7000 A (1 bay) n Blade Servers with AMC slots (1/2 bays) n Carrier Blades (1 -4 bays) l Telephony vendors will provide integrated solutions 49

Next Generation ATCA Products* l TX 4000 A — SS 7 blade server n Blade server with PSTN interface AMC l MG 7 X 00 — media server with wideband audio n MG 7000 A with DSP accelerator (Trunk Adaptor STM-1 or OC 3) l MG 7 X 00 — video gateway with video transcoding n MG 7000 A with DSP accelerator l MG 8 X 00 — high-capacity media server (2, 016 ports) n ATCA carrier with OC-3/STM-1, DSP and processor AMCs (Media Processor Accelerator Voice, Video, Audio) Integrated Carrier Blade (SS 7, SIGTRAN Engine) * Not committed products 50

Agenda 9: 00 ATCA Ecosystem with Kontron 9: 20 ATCA for Carrier Services 9: 40 Introducing the MG 7000 A 10: 00 The NA-MX Development Environment 10: 20 What’s Next? ATCA and Beyond 10: 30 Demo / Break 51

NA-MX Redundancy Demo Shelf-manager PC Blade Linux HTTP GUI (Web-based) SIP Music Control Interface (TCP/IP) SIP Phone MG 7000 A (Active) MG 7000 A (Standby) Music/DTMF Control (RTP) 52 IPMB

53

54

55

NA-MX Redundancy Demo IVR Application PC Blade (Linux) Music IVR Application SIP Stack NA-MX API Apache Web Server SIP NA-MX Control Interface (TCP/IP) SIP Phone Music/DTMF Control (RTP) MG 7000 A (Active) MG 7000 A (Standby) 56 HTTP

NA-MX Redundancy Demo Shelf Manager and GUI Command Line Interface using Telnet Shelf-manager PC Blade (Linux) Power control scripts GUI (Web-based) HTTP Apache Web Server Sensor Querying Program Board and Sensor Information HTML files for display Application Information NA-MX-based IVR Application Check Status MG 7000 A Blades 57 IPMB Power Control and Querying Information

Questions? 58

Thank You Brough Turner rbt@nmss. com Greg Blumenthal greg_blumenthal@nmss. com 59
